CHRYSLER 300 2017 2.G User Guide

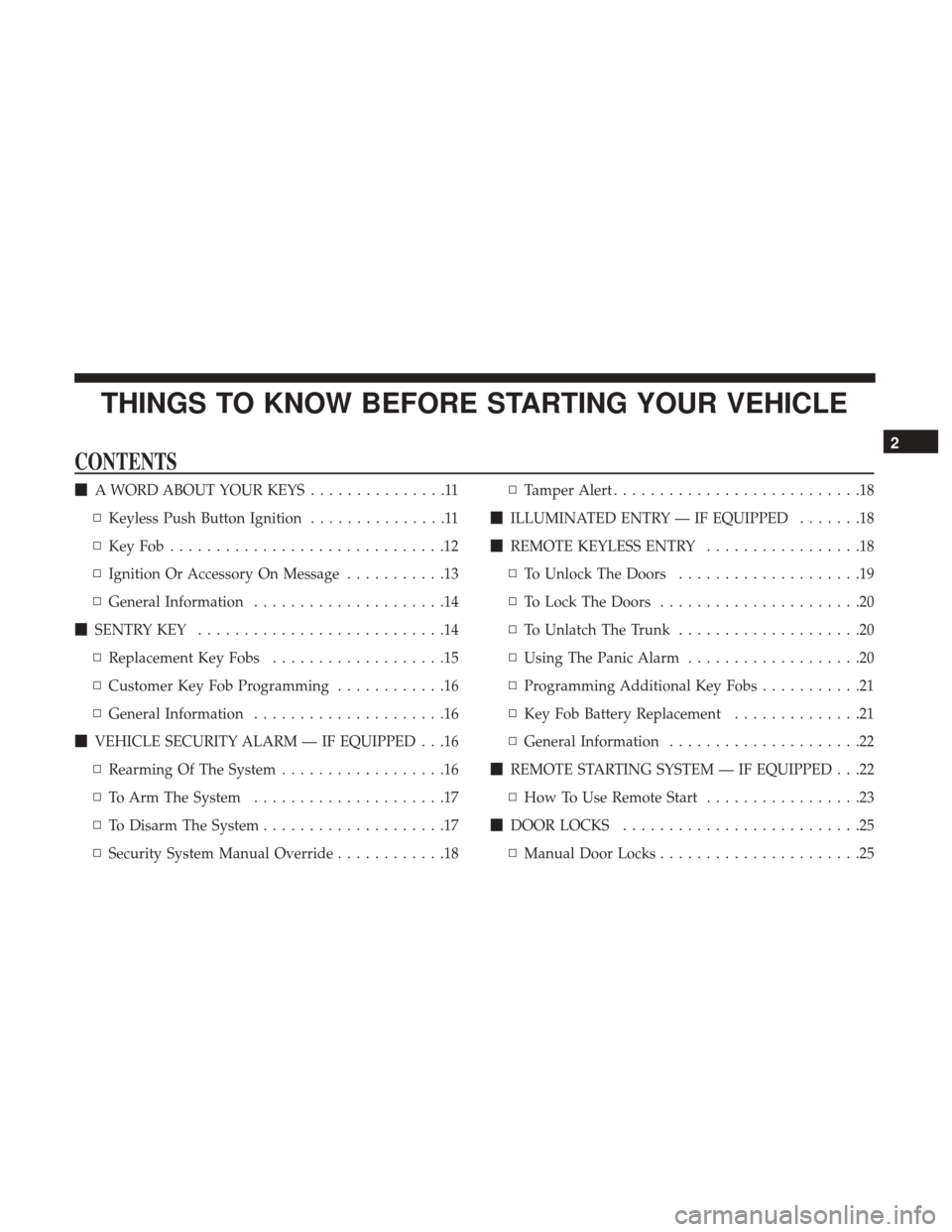

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS ...............11
▫ Keyless Push Button Ignition ...............11
▫ KeyFob..............................12
▫ Ignition Or Accessory On Message ...........13
▫ General Information .....................14
 SENTRY KEY ...........................14
▫ Replacement Key Fobs ...................15
▫ Customer Key Fob Programming ............16
▫ General Information .....................16
 VEHICLE SECURITY ALARM — IF EQUIPPED . . .16
▫ Rearming Of The System ..................16
▫ To Arm The System .....................17
▫ To Disarm The System ....................17
▫ Security System Manual Override ............18▫
Tamper Alert ...........................18
 ILLUMINATED ENTRY — IF EQUIPPED .......18
 REMOTE KEYLESS ENTRY .................18
▫ To Unlock The Doors ....................19
▫ To Lock The Doors ......................20
▫ To Unlatch The Trunk ....................20
▫ Using The Panic Alarm ...................20
▫ Programming Additional Key Fobs ...........21
▫ Key Fob Battery Replacement ..............21
▫ General Information .....................22
 REMOTE STARTING SYSTEM — IF EQUIPPED . . .22
▫ How To Use Remote Start .................23
 DOOR LOCKS ..........................25
▫ Manual Door Locks ......................25
2

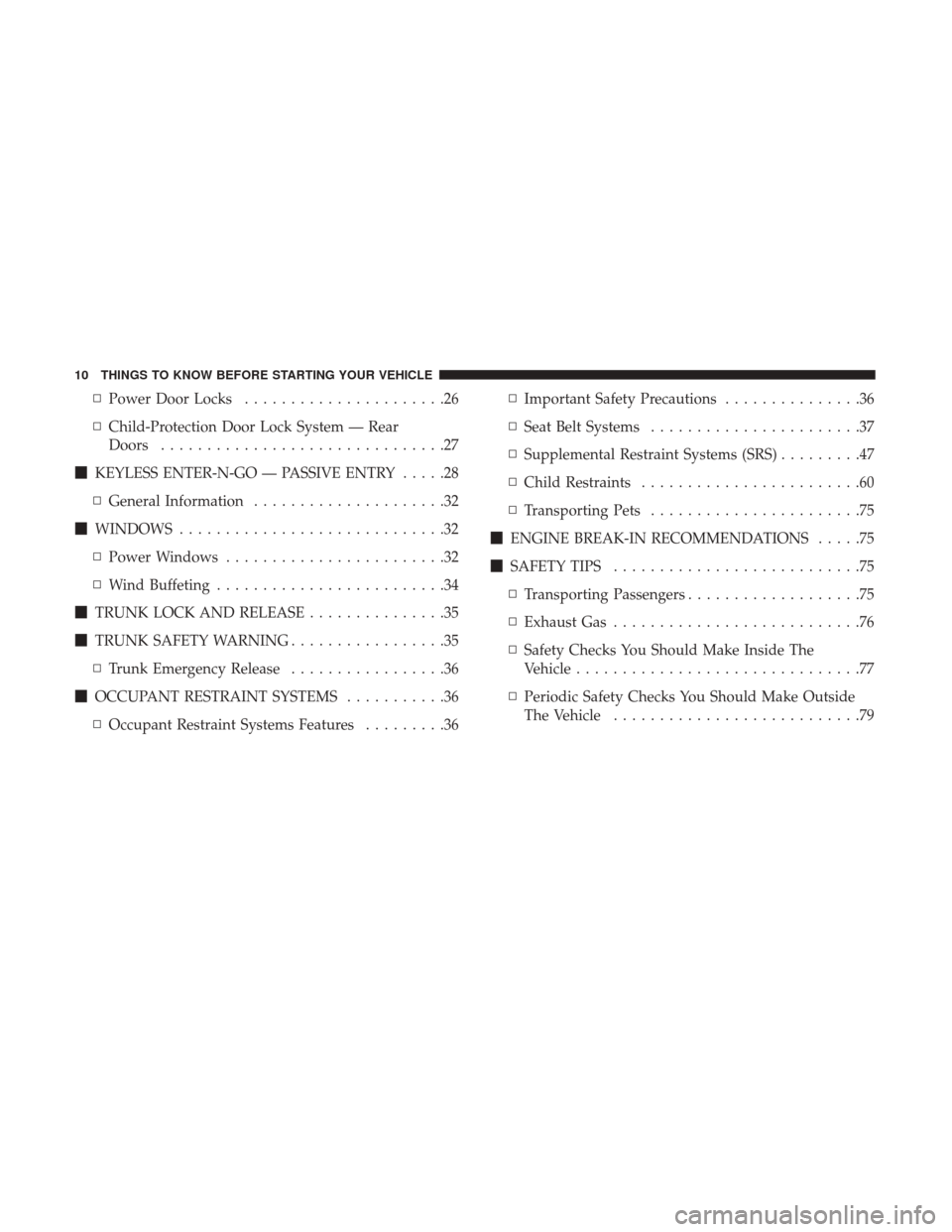

▫Power Door Locks ......................26
▫ Child-Protection Door Lock System — Rear
Doors ...............................27
 KEYLESS ENTER-N-GO — PASSIVE ENTRY .....28
▫ General Information .....................32
 WINDOWS .............................32
▫ Power Windows ........................32
▫ Wind Buffeting .........................34
 TRUNK LOCK AND RELEASE ...............35
 TRUNK SAFETY WARNING .................35
▫ Trunk Emergency Release .................36
 OCCUPANT RESTRAINT SYSTEMS ...........36
▫ Occupant Restraint Systems Features .........36▫
Important Safety Precautions ...............36
▫ Seat Belt Systems .......................37
▫ Supplemental Restraint Systems (SRS) .........47
▫ Child Restraints ........................60
▫ Transporting Pets .......................75
 ENGINE BREAK-IN RECOMMENDATIONS .....75
 SAFETY TIPS ...........................75
▫ Transporting Passengers ...................75
▫ Exhaust Gas ...........................76
▫ Safety Checks You Should Make Inside The
Vehicle ...............................77
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ...........................79
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
includes a key fob and a Keyless Push Button Ignition.
Keyless Push Button Ignition
This feature allows the driver to operate the ignition with
the push of a button as long as the key fob is in the
passenger compartment.
The Keyless Push Button Ignition has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START. During start,
ON/RUN will illuminate.
NOTE:In case the ignition does not change with the push
of a button, the key fob may have a low or dead battery. In
this situation, a back up method can be used to operate the
ignition switch. Put the nose side (side opposite of the
emergency key) of the key fob against the engine START/
STOP button and push to operate the ignition.
Keyless Push Button Ignition
1—OFF
2 — ACC (Accessory)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

Key Fob
The key fob also contains the Remote Keyless Entry key fob
and an emergency key, which stores in the rear of the key
fob.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. The
emergency key is also for locking/unlocking the glove
compartment. You can keep the emergency key with you
when valet parking.
To remove the emergency key, slide the mechanical latch
on the back of the key fob sideways with your thumb and
then pull the key out with your other hand.
Emergency Key Release Latch
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
When opening the driver’s door when the ignition is in
ACC or ON (engine not running), a chime will sound to
remind you to cycle the ignition to OFF. In addition to the
chime, the ignition or accessory on message will display in
the cluster. NOTE:
With the Uconnect system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to ten minutes after the
ignition is placed in the OFF position. Opening either front
door will cancel this feature. The time for this feature is
programmable. Refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
WARNING!
• Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into FIRST gear or REVERSE, apply the parking
brake, turn the vehicle OFF, remove the key fobs
from vehicle, and lock all doors.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
(Continued)
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

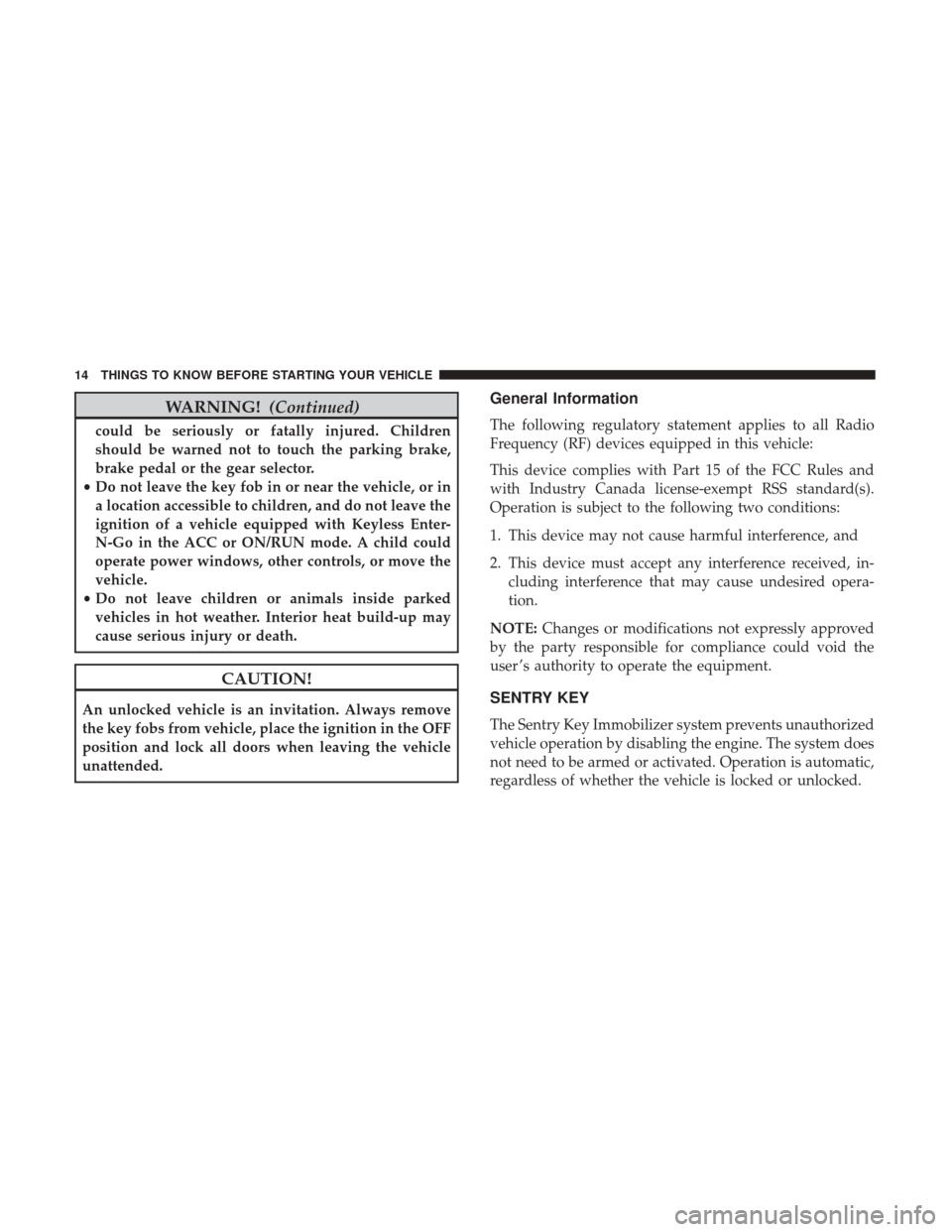

WARNING!(Continued)
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always remove
the key fobs from vehicle, place the ignition in the OFF
position and lock all doors when leaving the vehicle
unattended.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in-
cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthorized
vehicle operation by disabling the engine. The system does
not need to be armed or activated. Operation is automatic,
regardless of whether the vehicle is locked or unlocked.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

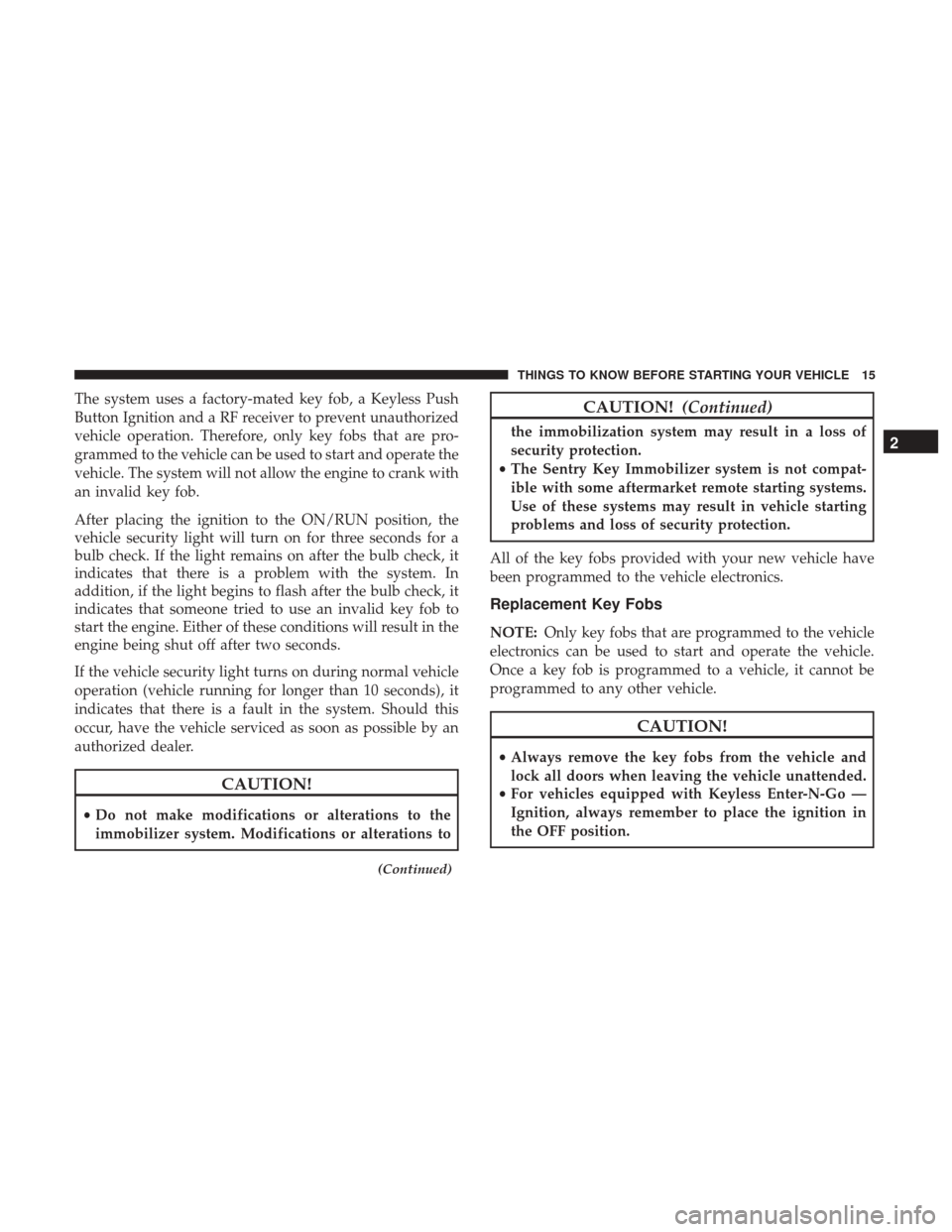

The system uses a factory-mated key fob, a Keyless Push
Button Ignition and a RF receiver to prevent unauthorized
vehicle operation. Therefore, only key fobs that are pro-
grammed to the vehicle can be used to start and operate the
vehicle. The system will not allow the engine to crank with
an invalid key fob.
After placing the ignition to the ON/RUN position, the
vehicle security light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the system. In
addition, if the light begins to flash after the bulb check, it
indicates that someone tried to use an invalid key fob to
start the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the vehicle security light turns on during normal vehicle
operation (vehicle running for longer than 10 seconds), it
indicates that there is a fault in the system. Should this
occur, have the vehicle serviced as soon as possible by an
authorized dealer.
CAUTION!
•Do not make modifications or alterations to the
immobilizer system. Modifications or alterations to
(Continued)
CAUTION! (Continued)
the immobilization system may result in a loss of
security protection.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Key Fobs
NOTE: Only key fobs that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a key fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.
CAUTION!
• Always remove the key fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
• For vehicles equipped with Keyless Enter-N-Go —
Ignition, always remember to place the ignition in
the OFF position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

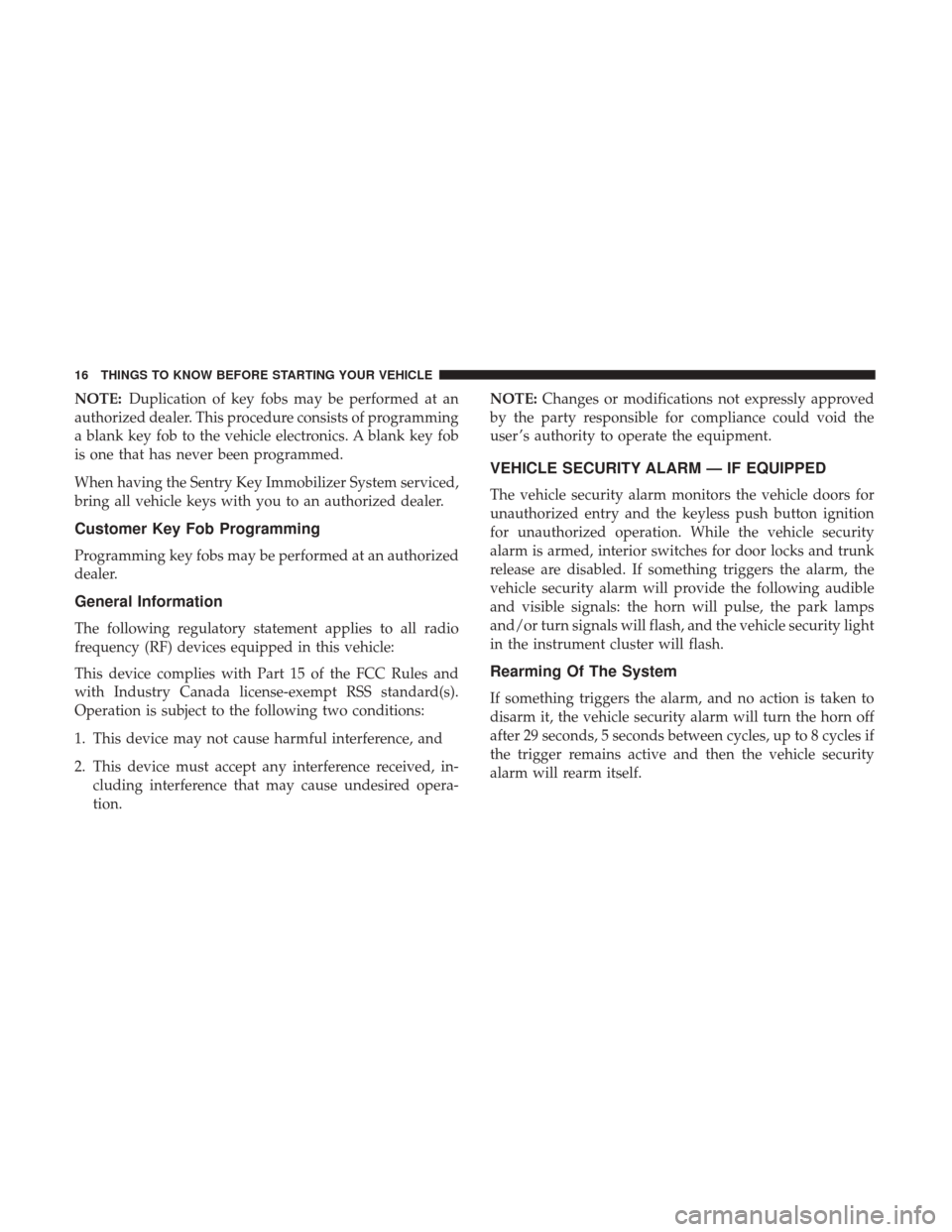

NOTE:Duplication of key fobs may be performed at an
authorized dealer. This procedure consists of programming
a blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.
When having the Sentry Key Immobilizer System serviced,
bring all vehicle keys with you to an authorized dealer.
Customer Key Fob Programming
Programming key fobs may be performed at an authorized
dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion. NOTE:
Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The vehicle security alarm monitors the vehicle doors for
unauthorized entry and the keyless push button ignition
for unauthorized operation. While the vehicle security
alarm is armed, interior switches for door locks and trunk
release are disabled. If something triggers the alarm, the
vehicle security alarm will provide the following audible
and visible signals: the horn will pulse, the park lamps
and/or turn signals will flash, and the vehicle security light
in the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the vehicle security alarm will turn the horn off
after 29 seconds, 5 seconds between cycles, up to 8 cycles if
the trigger remains active and then the vehicle security
alarm will rearm itself.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

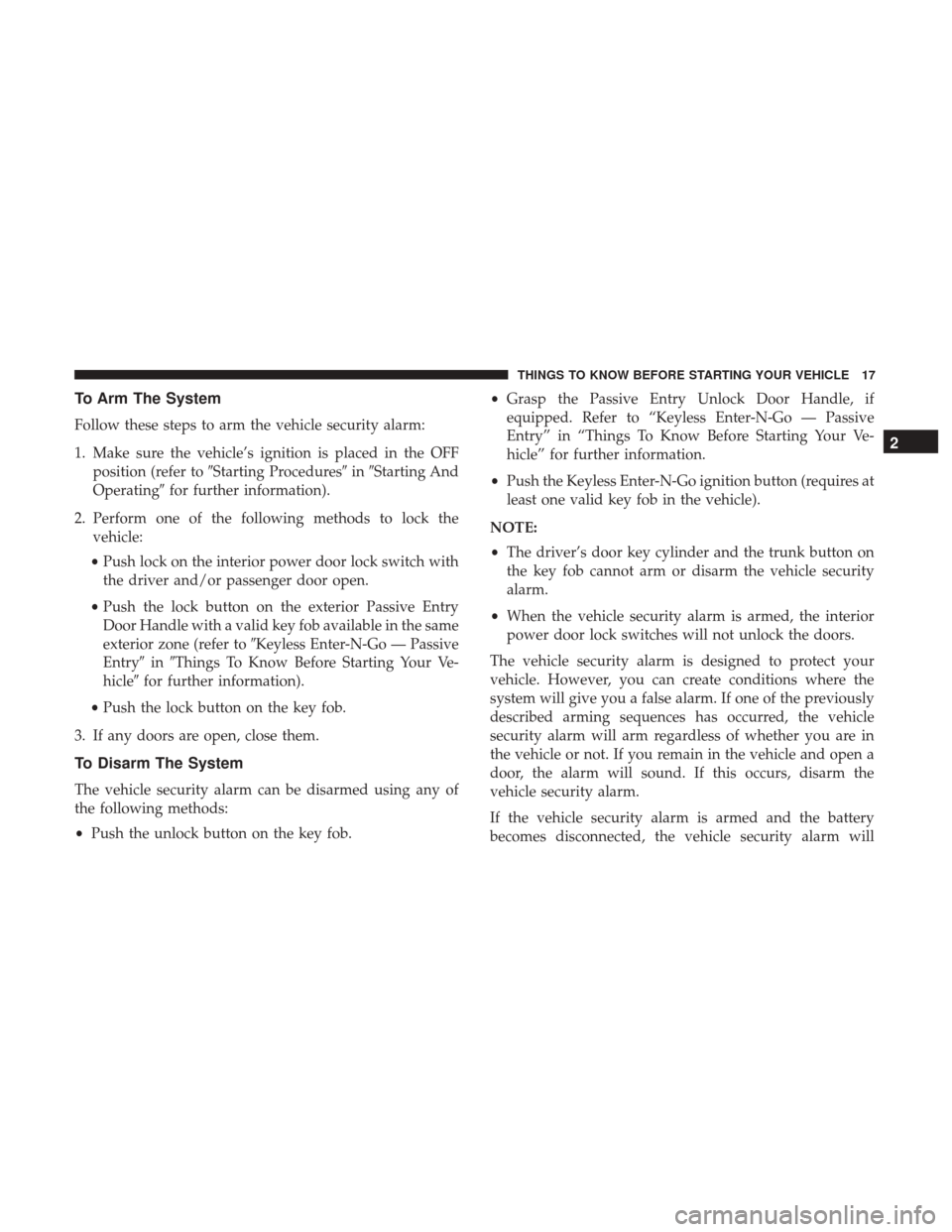

To Arm The System
Follow these steps to arm the vehicle security alarm:
1. Make sure the vehicle’s ignition is placed in the OFFposition (refer to Starting Procedures inStarting And
Operating for further information).
2. Perform one of the following methods to lock the vehicle:
• Push lock on the interior power door lock switch with
the driver and/or passenger door open.
• Push the lock button on the exterior Passive Entry
Door Handle with a valid key fob available in the same
exterior zone (refer to Keyless Enter-N-Go — Passive
Entry inThings To Know Before Starting Your Ve-
hicle for further information).
• Push the lock button on the key fob.
3. If any doors are open, close them.
To Disarm The System
The vehicle security alarm can be disarmed using any of
the following methods:
• Push the unlock button on the key fob. •
Grasp the Passive Entry Unlock Door Handle, if
equipped. Refer to “Keyless Enter-N-Go — Passive
Entry” in “Things To Know Before Starting Your Ve-
hicle” for further information.
• Push the Keyless Enter-N-Go ignition button (requires at
least one valid key fob in the vehicle).
NOTE:
• The driver’s door key cylinder and the trunk button on
the key fob cannot arm or disarm the vehicle security
alarm.
• When the vehicle security alarm is armed, the interior
power door lock switches will not unlock the doors.
The vehicle security alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previously
described arming sequences has occurred, the vehicle
security alarm will arm regardless of whether you are in
the vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
vehicle security alarm.
If the vehicle security alarm is armed and the battery
becomes disconnected, the vehicle security alarm will
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

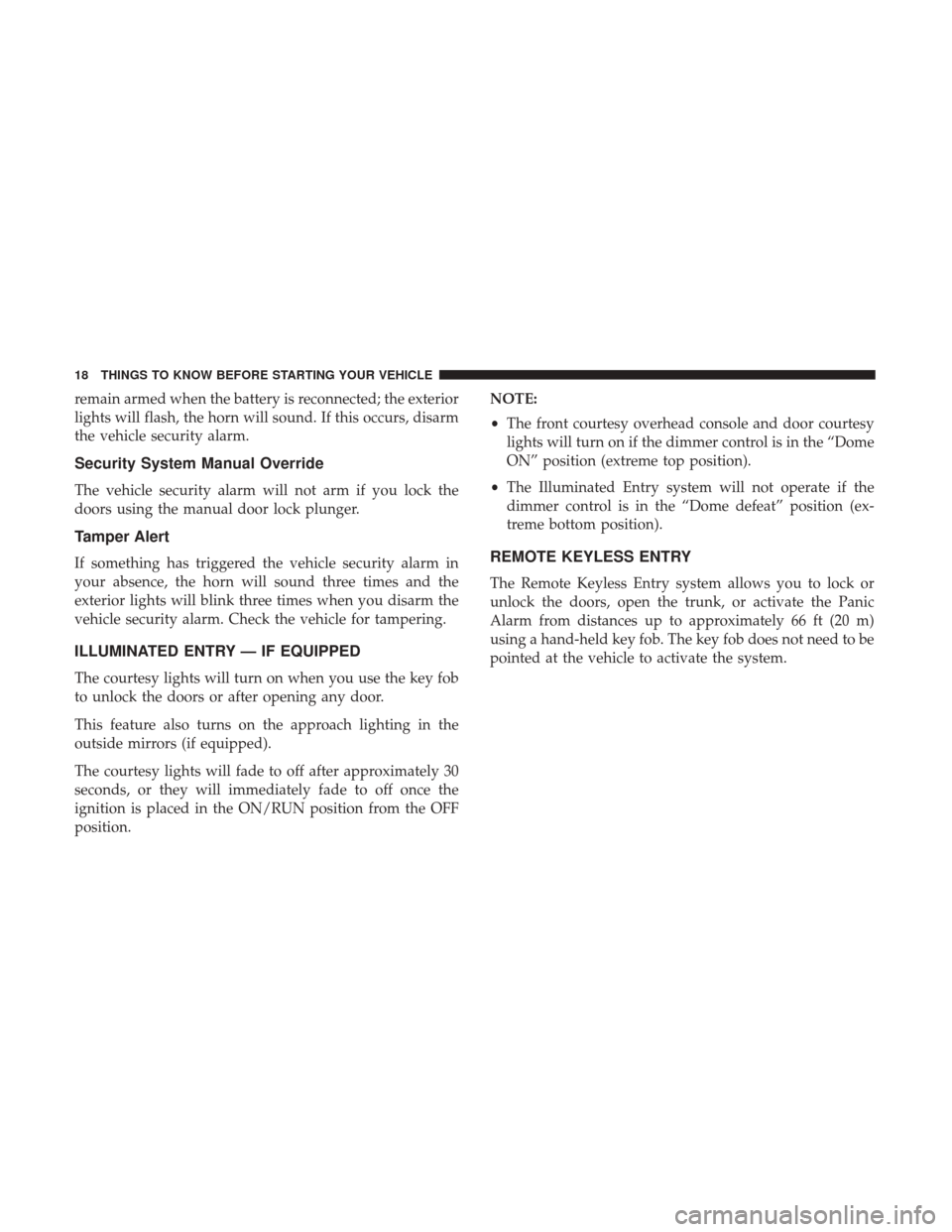

remain armed when the battery is reconnected; the exterior
lights will flash, the horn will sound. If this occurs, disarm
the vehicle security alarm.
Security System Manual Override
The vehicle security alarm will not arm if you lock the
doors using the manual door lock plunger.
Tamper Alert
If something has triggered the vehicle security alarm in
your absence, the horn will sound three times and the
exterior lights will blink three times when you disarm the
vehicle security alarm. Check the vehicle for tampering.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the key fob
to unlock the doors or after opening any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped).
The courtesy lights will fade to off after approximately 30
seconds, or they will immediately fade to off once the
ignition is placed in the ON/RUN position from the OFF
position.NOTE:
•
The front courtesy overhead console and door courtesy
lights will turn on if the dimmer control is in the “Dome
ON” position (extreme top position).
• The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position (ex-
treme bottom position).
REMOTE KEYLESS ENTRY
The Remote Keyless Entry system allows you to lock or
unlock the doors, open the trunk, or activate the Panic
Alarm from distances up to approximately 66 ft (20 m)
using a hand-held key fob. The key fob does not need to be
pointed at the vehicle to activate the system.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
