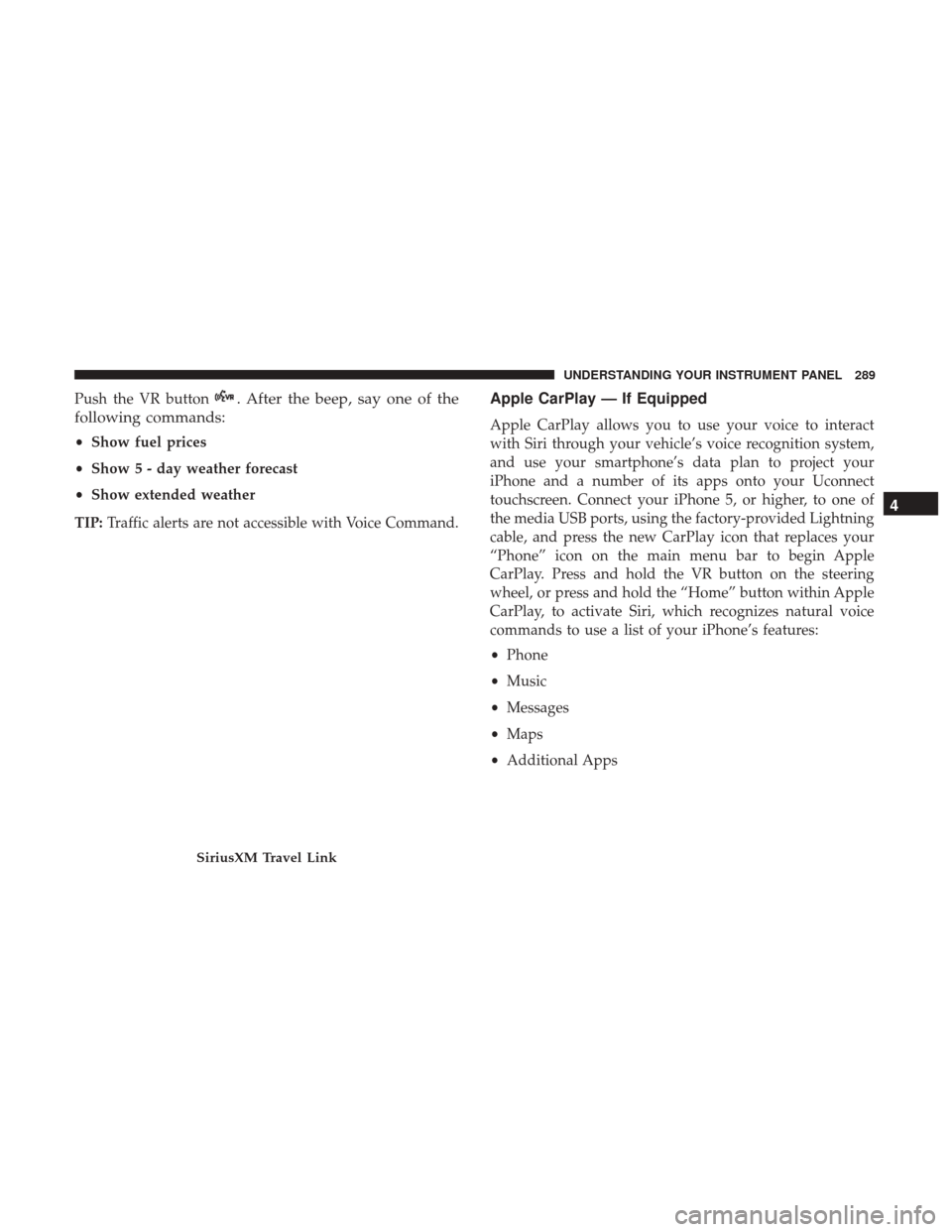

Push the VR button. After the beep, say one of the
following commands:
• Show fuel prices
• Show 5 - day weather forecast
• Show extended weather
TIP: Traffic alerts are not accessible with Voice Command.
Apple CarPlay — If Equipped
Apple CarPlay allows you to use your voice to interact
with Siri through your vehicle’s voice recognition system,
and use your smartphone’s data plan to project your
iPhone and a number of its apps onto your Uconnect
touchscreen. Connect your iPhone 5, or higher, to one of
the media USB ports, using the factory-provided Lightning
cable, and press the new CarPlay icon that replaces your
“Phone” icon on the main menu bar to begin Apple
CarPlay. Press and hold the VR button on the steering
wheel, or press and hold the “Home” button within Apple
CarPlay, to activate Siri, which recognizes natural voice
commands to use a list of your iPhone’s features:
•Phone
• Music
• Messages
• Maps
• Additional Apps
SiriusXM Travel Link
4
UNDERSTANDING YOUR INSTRUMENT PANEL 289

Refer to your Uconnect Owner ’s Manual Supplement for
further information.

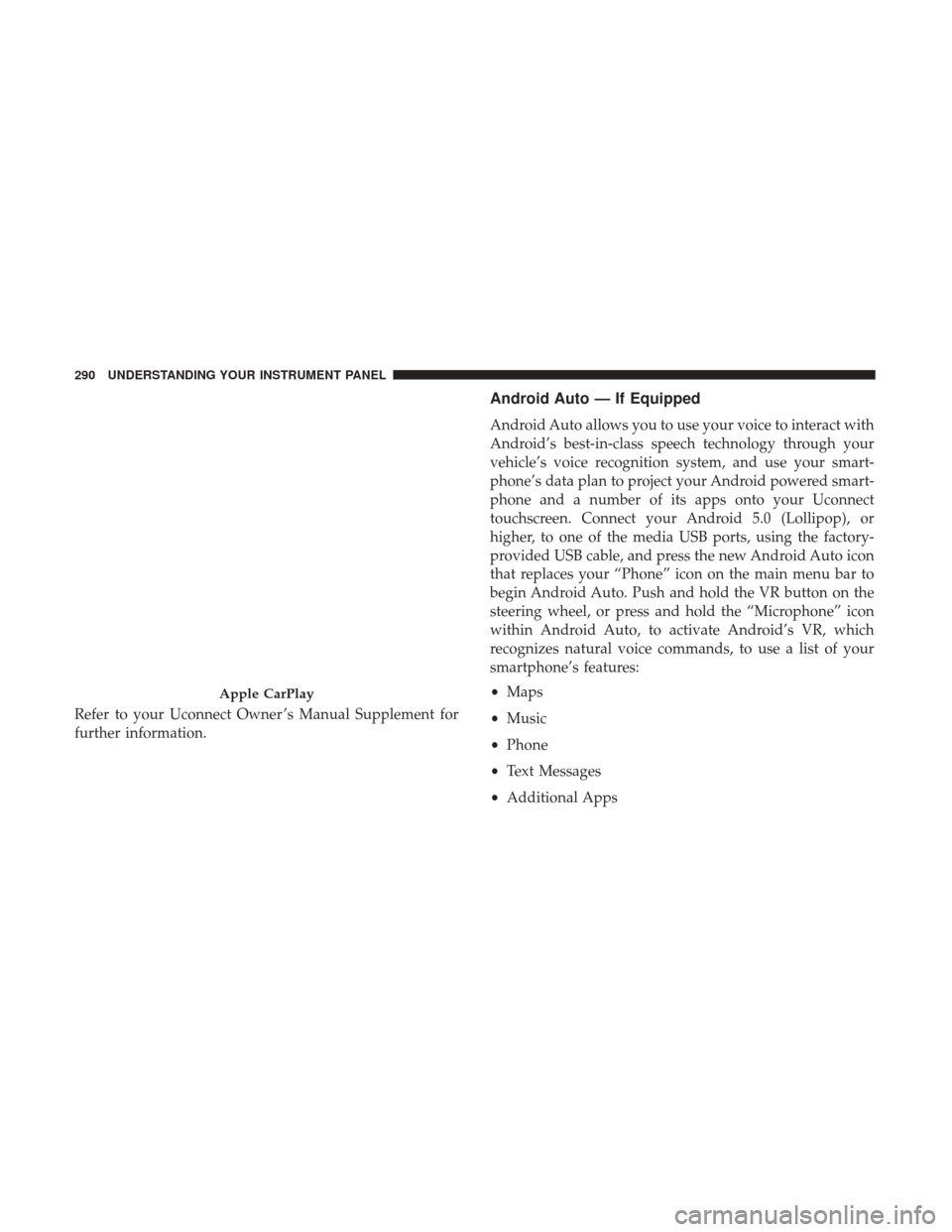

Android Auto — If Equipped
Android Auto allows you to use your voice to interact with
Android’s best-in-class speech technology through your
vehicle’s voice recognition system, and use your smart-
phone’s data plan to project your Android powered smart-
phone and a number of its apps onto your Uconnect
touchscreen. Connect your Android 5.0 (Lollipop), or
higher, to one of the media USB ports, using the factory-
provided USB cable, and press the new Android Auto icon
that replaces your “Phone” icon on the main menu bar to
begin Android Auto. Push and hold the VR button on the
steering wheel, or press and hold the “Microphone” icon
within Android Auto, to activate Android’s VR, which
recognizes natural voice commands, to use a list of your
smartphone’s features:
•Maps
• Music
• Phone
• Text Messages
• Additional Apps
Apple CarPlay
290 UNDERSTANDING YOUR INSTRUMENT PANEL

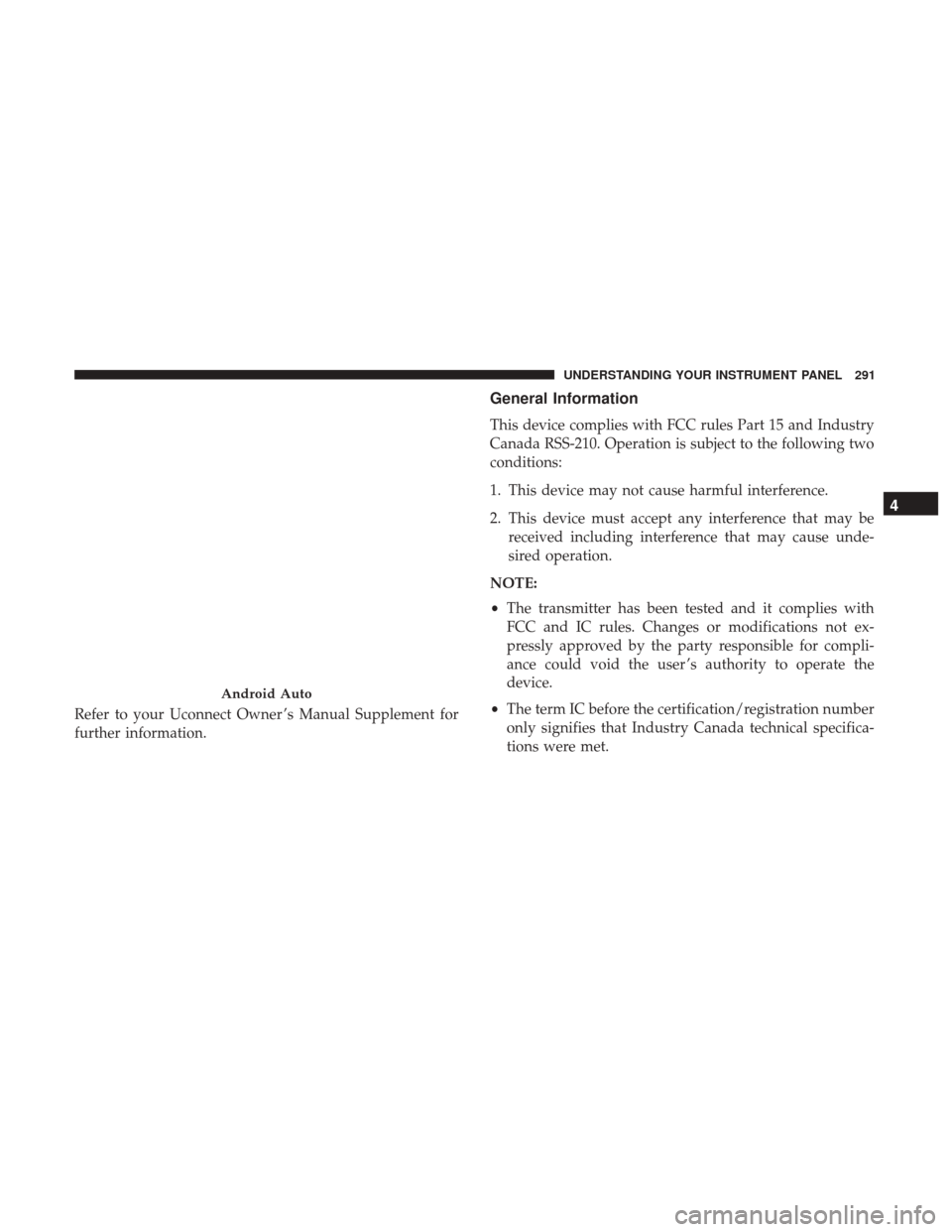

Refer to your Uconnect Owner ’s Manual Supplement for
further information.
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may bereceived including interference that may cause unde-
sired operation.
NOTE:
• The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
• The term IC before the certification/registration number
only signifies that Industry Canada technical specifica-
tions were met.
Android Auto
4
UNDERSTANDING YOUR INSTRUMENT PANEL 291

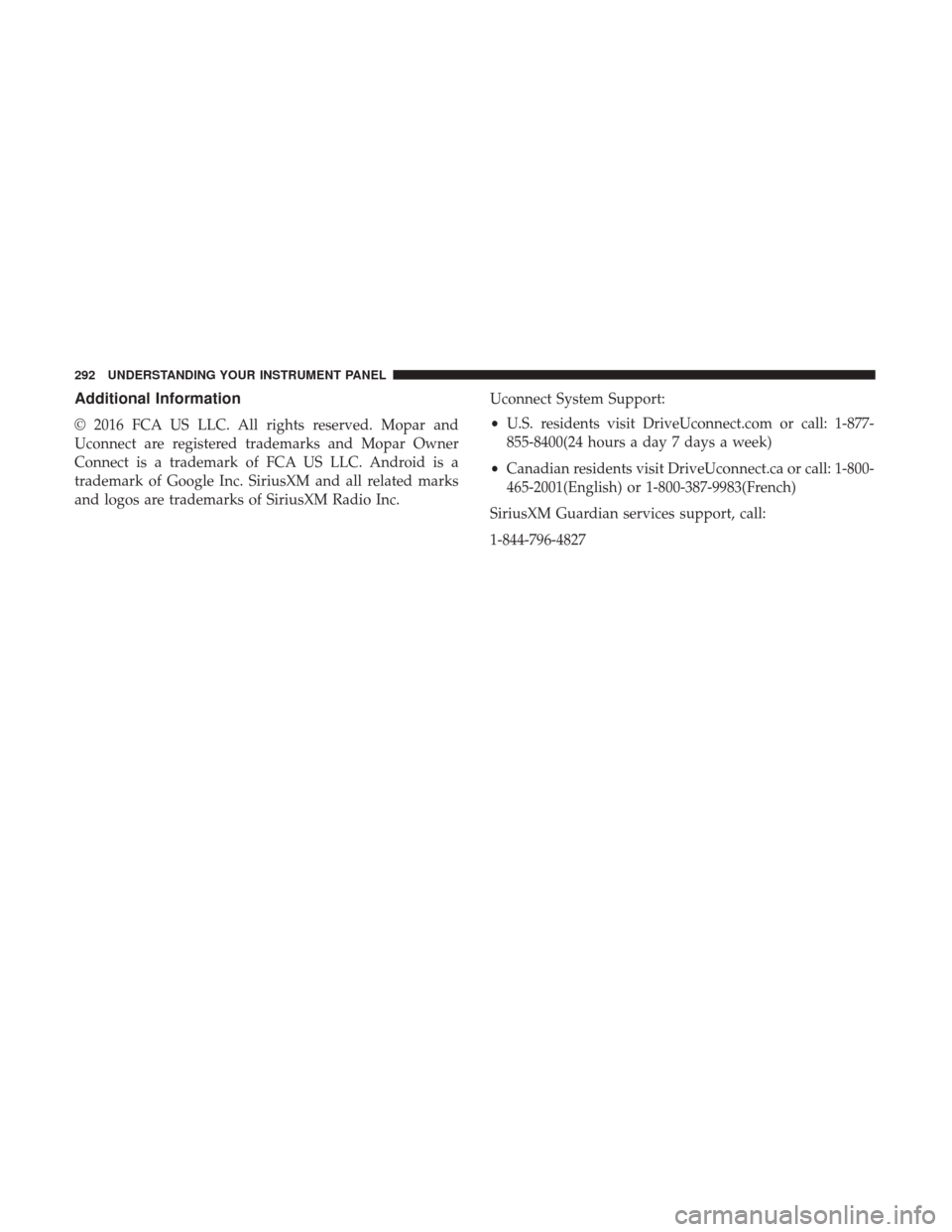

Additional Information
© 2016 FCA US LLC. All rights reserved. Mopar and
Uconnect are registered trademarks and Mopar Owner
Connect is a trademark of FCA US LLC. Android is a
trademark of Google Inc. SiriusXM and all related marks
and logos are trademarks of SiriusXM Radio Inc.Uconnect System Support:
•
U.S. residents visit DriveUconnect.com or call: 1-877-
855-8400(24 hours a day 7 days a week)
• Canadian residents visit DriveUconnect.ca or call: 1-800-
465-2001(English) or 1-800-387-9983(French)
SiriusXM Guardian services support, call:
1-844-796-4827
292 UNDERSTANDING YOUR INSTRUMENT PANEL

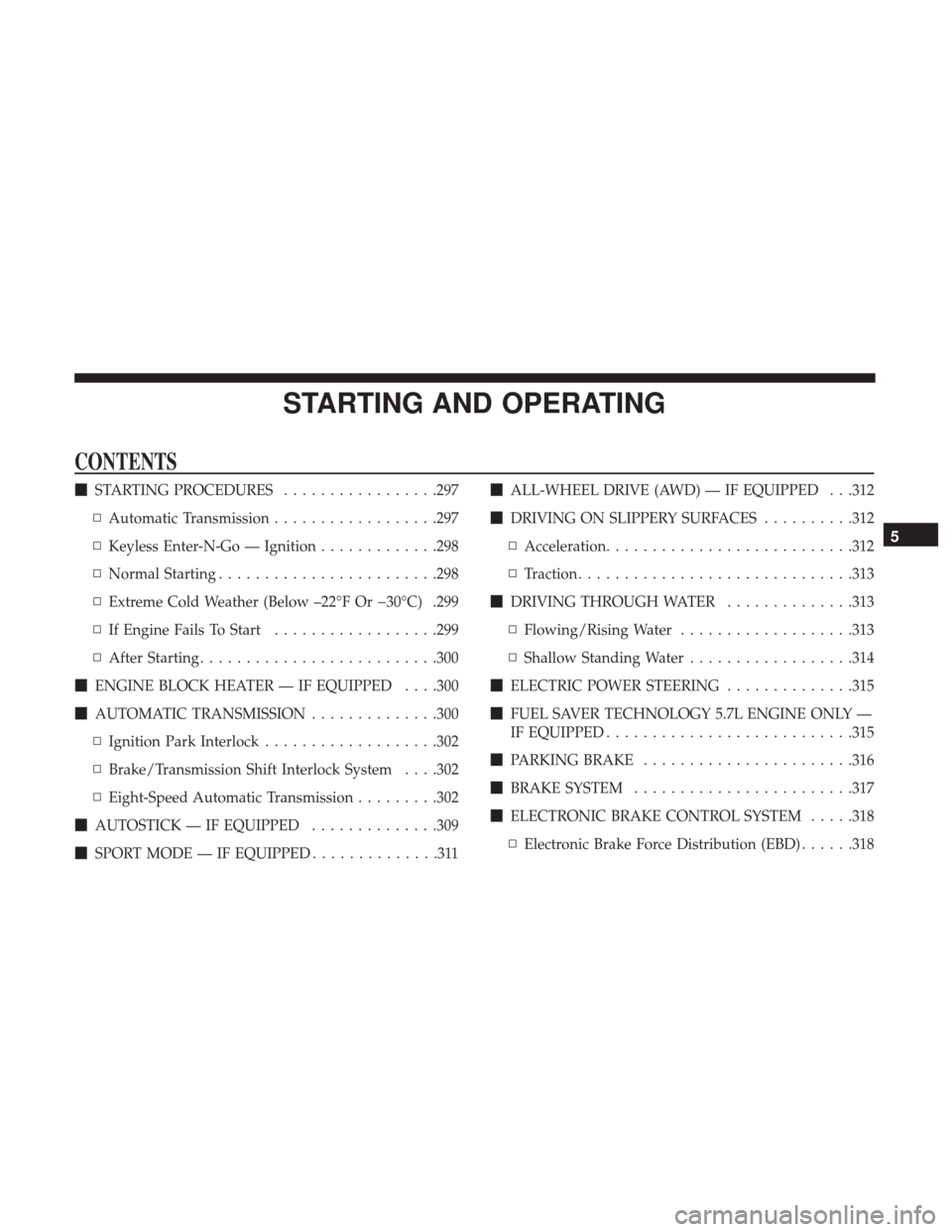

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES .................297
▫ Automatic Transmission ..................297
▫ Keyless Enter-N-Go — Ignition .............298
▫ Normal Starting ........................298
▫ Extreme Cold Weather (Below –22°F Or 30°C) .299
▫ If Engine Fails To Start ..................299
▫ After Starting ..........................300
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .300
 AUTOMATIC TRANSMISSION ..............300
▫ Ignition Park Interlock ...................302
▫ Brake/Transmission Shift Interlock System . . . .302
▫ Eight-Speed Automatic Transmission .........302
 AUTOSTICK — IF EQUIPPED ..............309
 SPORT MODE — IF EQUIPPED ..............311
ALL-WHEEL DRIVE (AWD) — IF EQUIPPED . . .312
 DRIVING ON SLIPPERY SURFACES ..........312
▫ Acceleration .......................... .312
▫ Traction ............................. .313
 DRIVING THROUGH WATER ..............313
▫ Flowing/Rising Water ...................313
▫ Shallow Standing Water ..................314
 ELECTRIC POWER STEERING ..............315
 FUEL SAVER TECHNOLOGY 5.7L ENGINE ONLY —
IF EQUIPPED .......................... .315
 PARKING BRAKE .......................316
 BRAKE SYSTEM ........................317
 ELECTRONIC BRAKE CONTROL SYSTEM .....318
▫ Electronic Brake Force Distribution (EBD) ......318
5

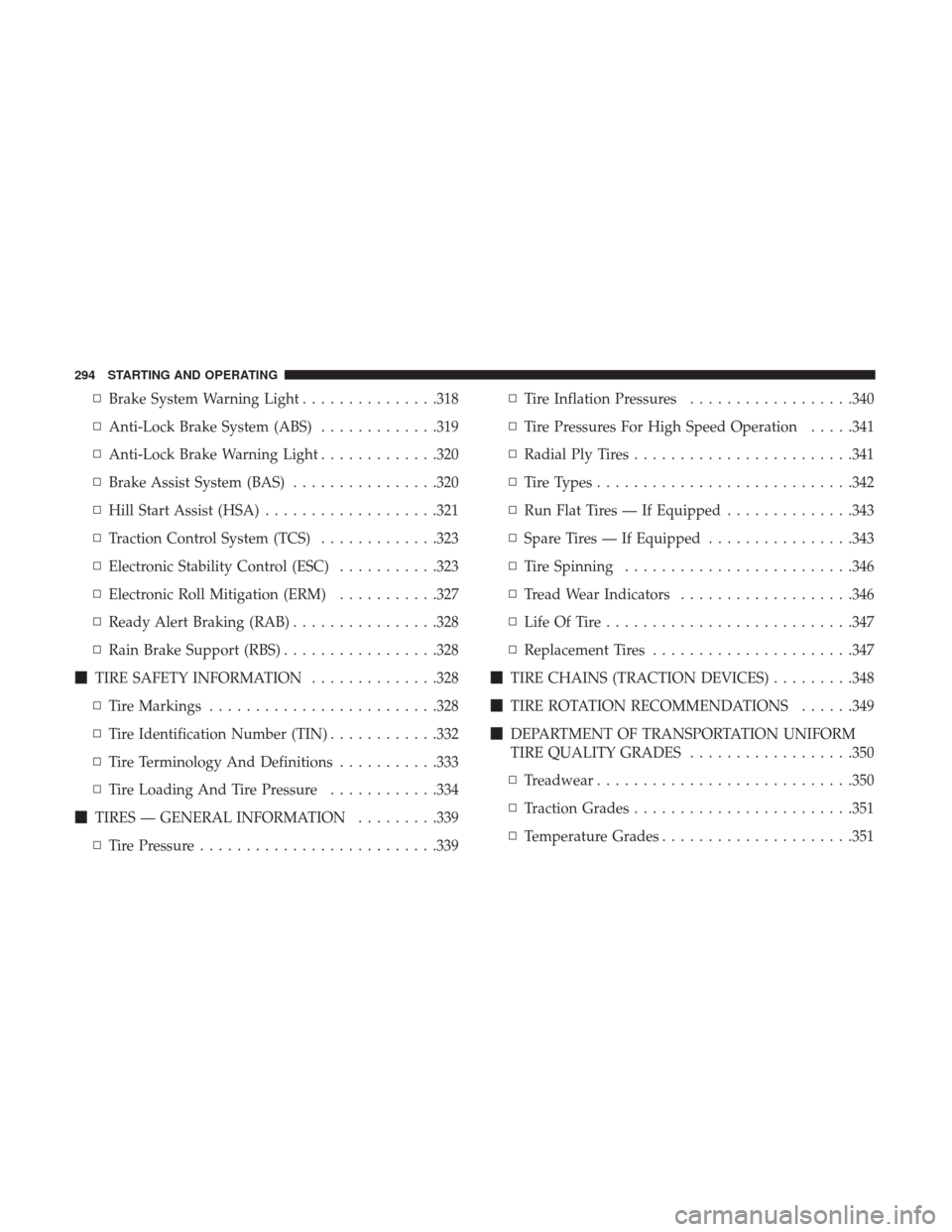

▫Brake System Warning Light ...............318
▫ Anti-Lock Brake System (ABS) .............319
▫ Anti-Lock Brake Warning Light .............320
▫ Brake Assist System (BAS) ................320
▫ Hill Start Assist (HSA) ...................321
▫ Traction Control System (TCS) .............323
▫ Electronic Stability Control (ESC) ...........323
▫ Electronic Roll Mitigation (ERM) ...........327
▫ Ready Alert Braking (RAB) ................328
▫ Rain Brake Support (RBS) .................328
 TIRE SAFETY INFORMATION ..............328
▫ Tire Markings ........................ .328
▫ Tire Identification Number (TIN) ............332
▫ Tire Terminology And Definitions ...........333
▫ Tire Loading And Tire Pressure ............334
 TIRES — GENERAL INFORMATION .........339
▫ Tire Pressure ..........................339 ▫
Tire Inflation Pressures ..................340
▫ Tire Pressures For High Speed Operation .....341
▫ Radial Ply Tires ........................341
▫ Tire Types ............................342
▫ Run Flat Tires — If Equipped ..............343
▫ Spare Tires — If Equipped ................343
▫ Tire Spinning ........................ .346
▫ Tread Wear Indicators ...................346
▫ Life Of Tire .......................... .347
▫ Replacement T

ires..................... .347
 TIRE CHAINS (TRACTION DEVICES) .........348
 TIRE ROTATION RECOMMENDATIONS ......349
 DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES ..................350
▫ Treadwear ............................350
▫ Traction Grades ........................351
▫ Temperature Grades .....................351
294 STARTING AND OPERATING

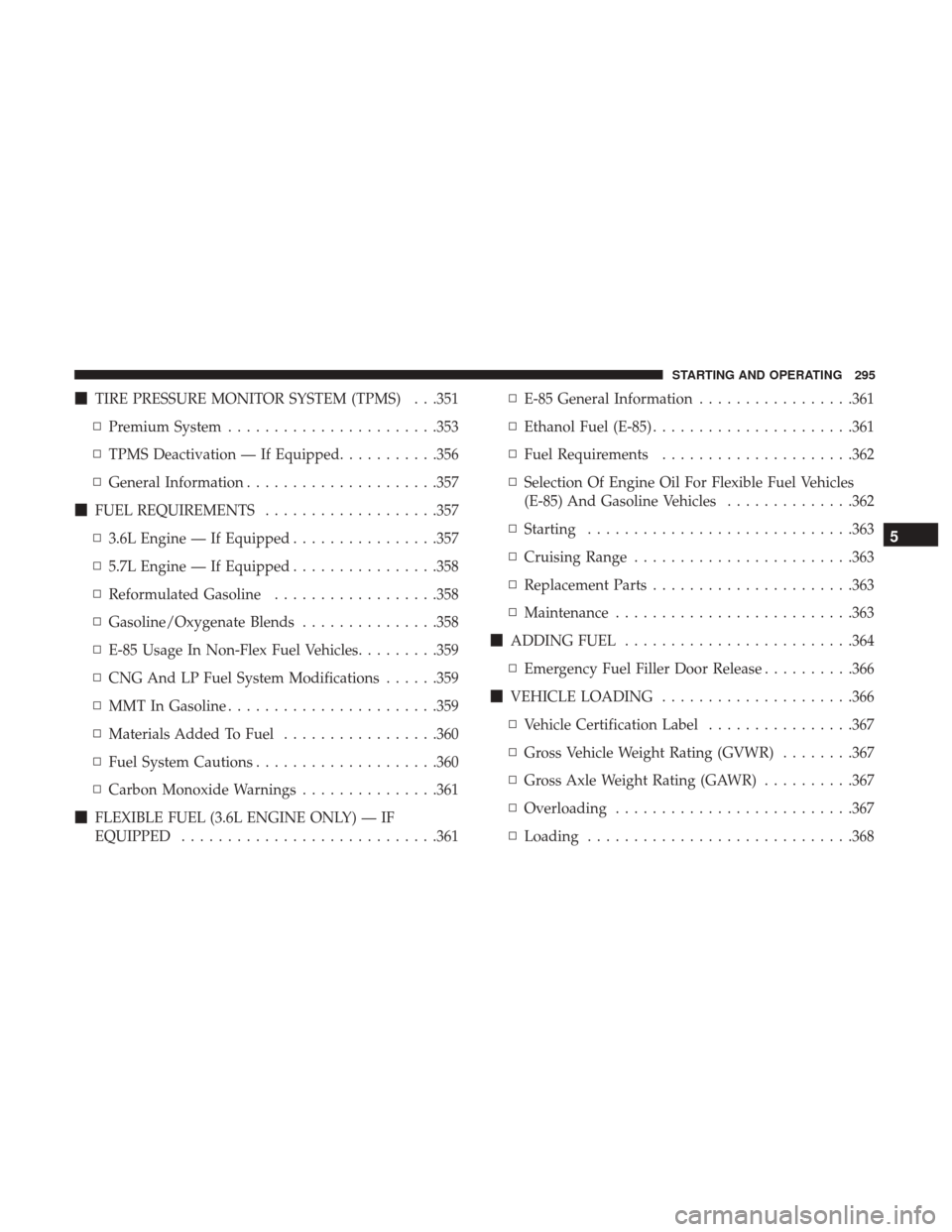

TIRE PRESSURE MONITOR SYSTEM (TPMS) . . .351
▫ Premium System .......................353
▫ TPMS Deactivation — If Equipped ...........356
▫ General Information .....................357
 FUEL REQUIREMENTS ...................357
▫ 3.6L Engine — If Equipped ................357
▫ 5.7L Engine — If Equipped ................358
▫ Reformulated Gasoline ..................358
▫ Gasoline/Oxygenate Blends ...............358
▫ E-85 Usage In Non-Flex Fuel Vehicles .........359
▫ CNG And LP Fuel System Modifications ......359
▫ MMT In Gasoline .......................359
▫ Materials Added To Fuel .................360
▫ Fuel System Cautions ....................360
▫ Carbon Monoxide Warnings ...............361
 FLEXIBLE FUEL (3.6L ENGINE ONLY) — IF
EQUIPPED ............................361 ▫
E-85 General Information .................361
▫ Ethanol Fuel (E-85) ..................... .361
▫ Fuel Requirements .....................362
▫ Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles ..............362
▫ Starting ............................ .363
▫ Cruising Range ........................363
▫ Replacement Parts ..................... .363
▫ Maintenance ..........................363
 ADDING FUEL ........................ .364
▫ Emergency Fuel Filler Door Release ..........366
 VEHICLE LOADING ....................

.366
▫ Vehicle Certification Label ................367
▫ Gross Vehicle Weight Rating (GVWR) ........367
▫ Gross Axle Weight Rating (GAWR) ..........367
▫ Overloading ..........................367
▫ Loading ............................ .368
5
STARTING AND OPERATING 295

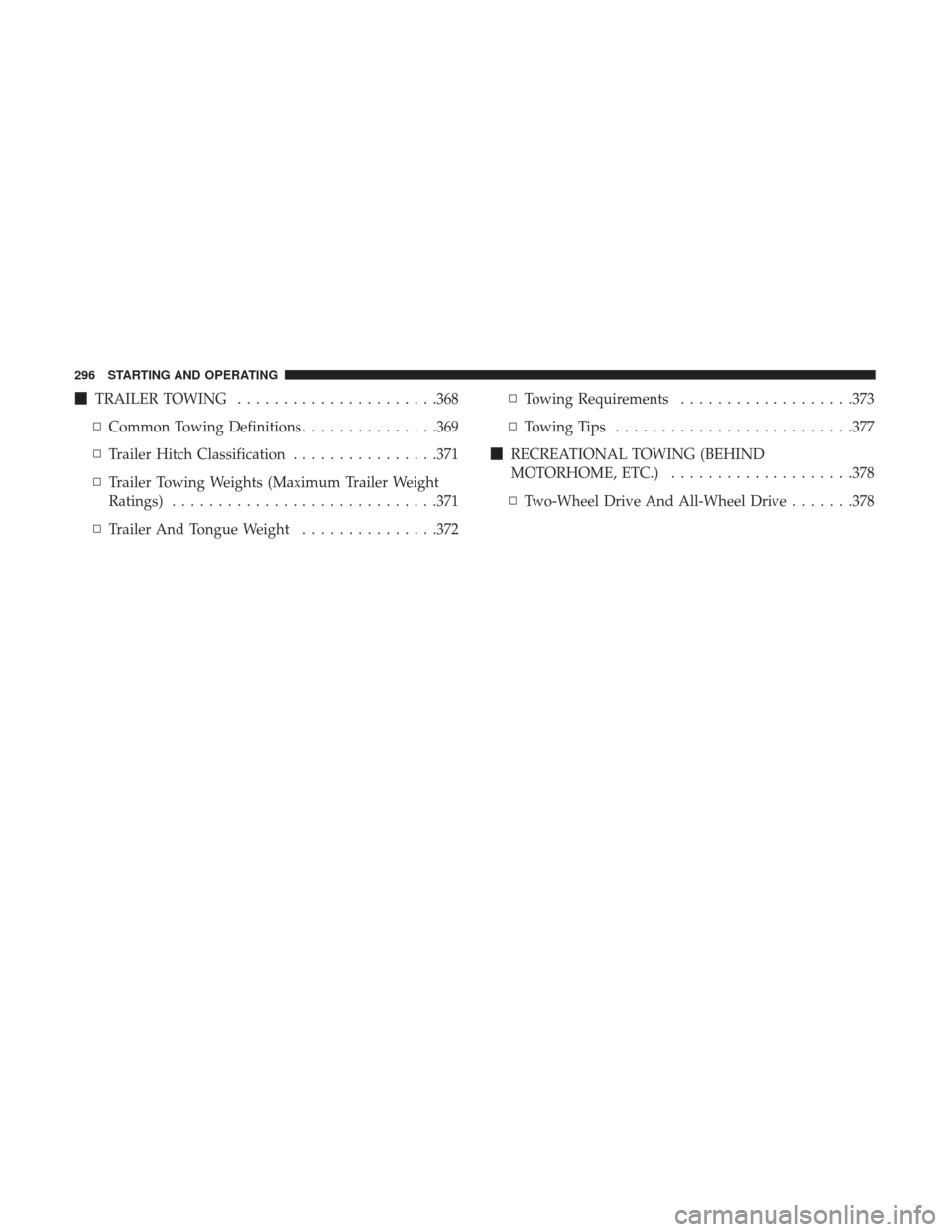

TRAILER TOWING ..................... .368
▫ Common Towing Definitions ...............369
▫ Trailer Hitch Classification ................371
▫ Trailer Towing Weights (Maximum Trailer Weight
Ratings) ............................ .371
▫ Trailer And Tongue Weight ...............372 ▫
Towing Requirements ...................373
▫ Towing Tips ..........................377
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................378
▫ Two-Wheel Drive And All-Wheel Drive .......378
296 STARTING AND OPERATING

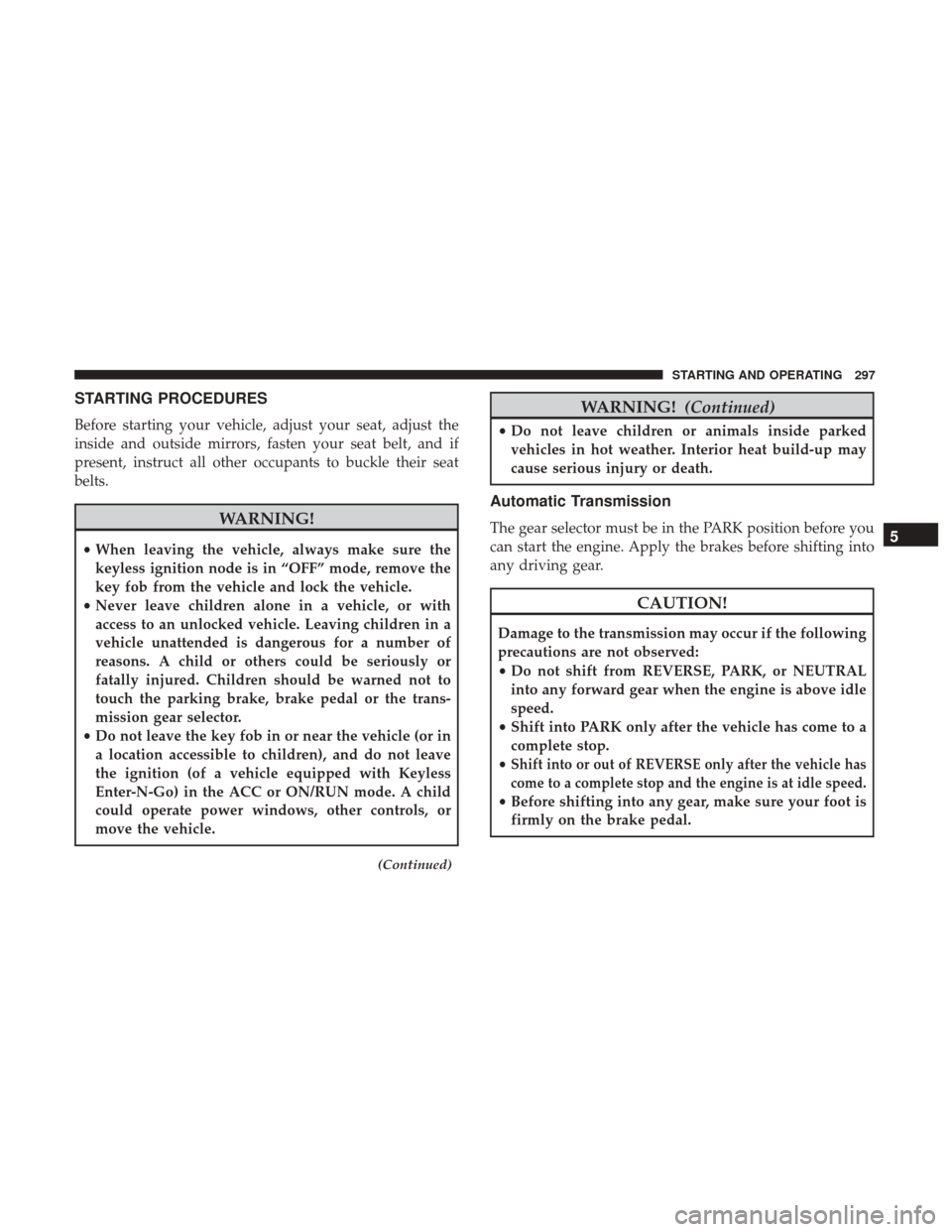

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always make sure the
keyless ignition node is in “OFF” mode, remove the
key fob from the vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the trans-
mission gear selector.
• Do not leave the key fob in or near the vehicle (or in
a location accessible to children), and do not leave
the ignition (of a vehicle equipped with Keyless
Enter-N-Go) in the ACC or ON/RUN mode. A child
could operate power windows, other controls, or
move the vehicle.
(Continued)
WARNING! (Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
Automatic Transmission
The gear selector must be in the PARK position before you
can start the engine. Apply the brakes before shifting into
any driving gear.
CAUTION!
Damage to the transmission may occur if the following
precautions are not observed:
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above idle
speed.
• Shift into PARK only after the vehicle has come to a
complete stop.
•
Shift into or out of REVERSE only after the vehicle has
come to a complete stop and the engine is at idle speed.
• Before shifting into any gear, make sure your foot is
firmly on the brake pedal.
5
STARTING AND OPERATING 297

Keyless Enter-N-Go — Ignition
This feature allows the driver to operate
the ignition switch with the push of a
button, as long as the Remote Start/
Keyless Enter-N-Go key fob is in the
passenger compartment.
Normal Starting
To Turn On The Engine Using The ENGINE
START/STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing theENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again. NOTE:
Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Place the gear selector in PARK, then push and release the ENGINE START/STOP button.
2. The ignition will return to the OFF position.
3. If the gear selector is not in PARK, the ENGINE START/ STOP button must be held for two seconds or three short
pushes in a row with the vehicle speed above 5 mph
(8 km/h) before the engine will shut off. The ignition
switch position will remain in the ACC position until the
gear selector is in PARK and the button is pushed twice
to the OFF position. If the gear selector is not in PARK
and the ENGINE START/STOP button is pushed once,
the instrument cluster display will display a “Vehicle
Not In Park” message and the engine will remain
running. Never leave a vehicle out of the PARK position,
or it could roll.
298 STARTING AND OPERATING
