Page 361 of 492

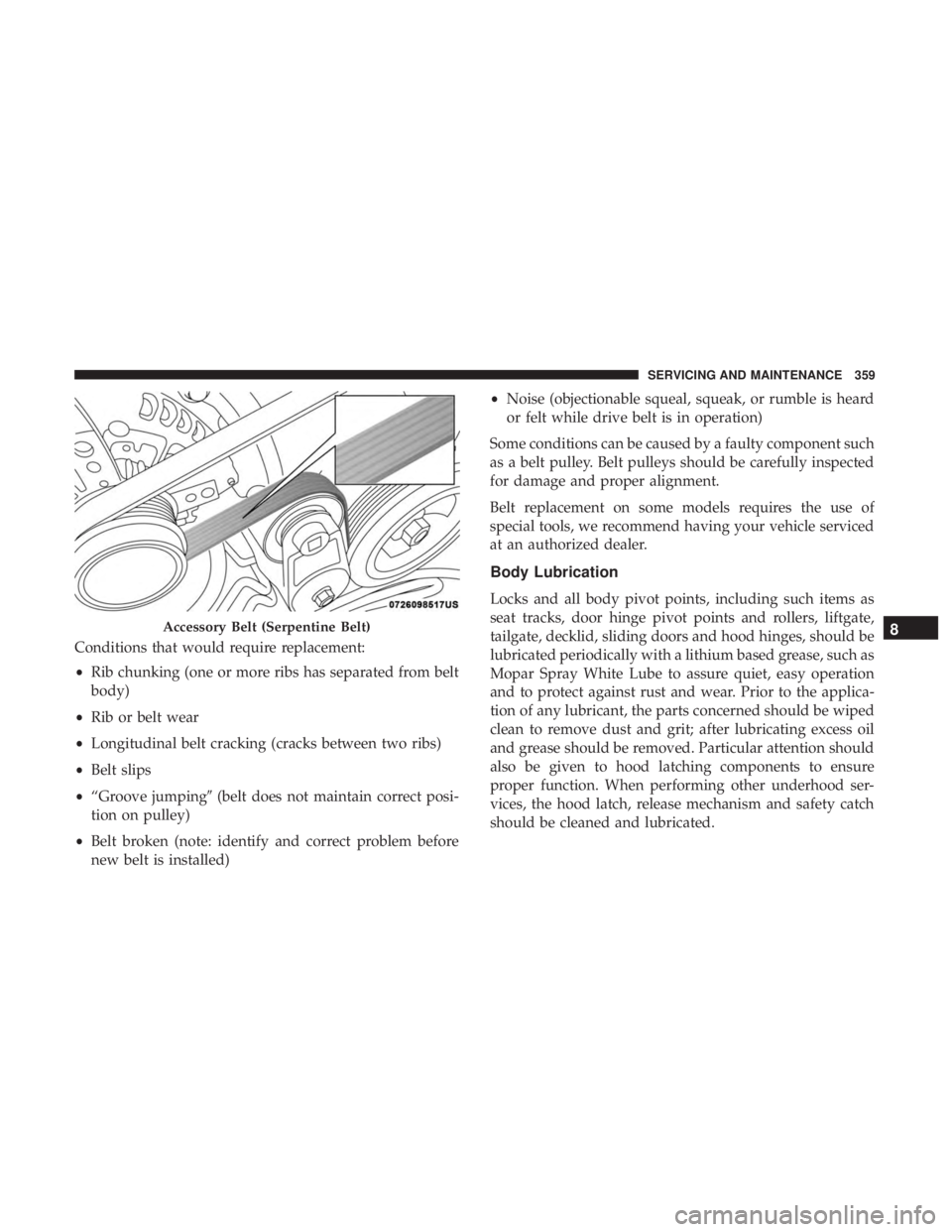

CHRYSLER 300 2019  Owners Manual Conditions that would require replacement:
•Rib chunking (one or more ribs has separated from belt
body)
• Rib or belt wear
• Longitudinal belt cracking (cracks between two ribs)
• Belt slips

Page 362 of 492

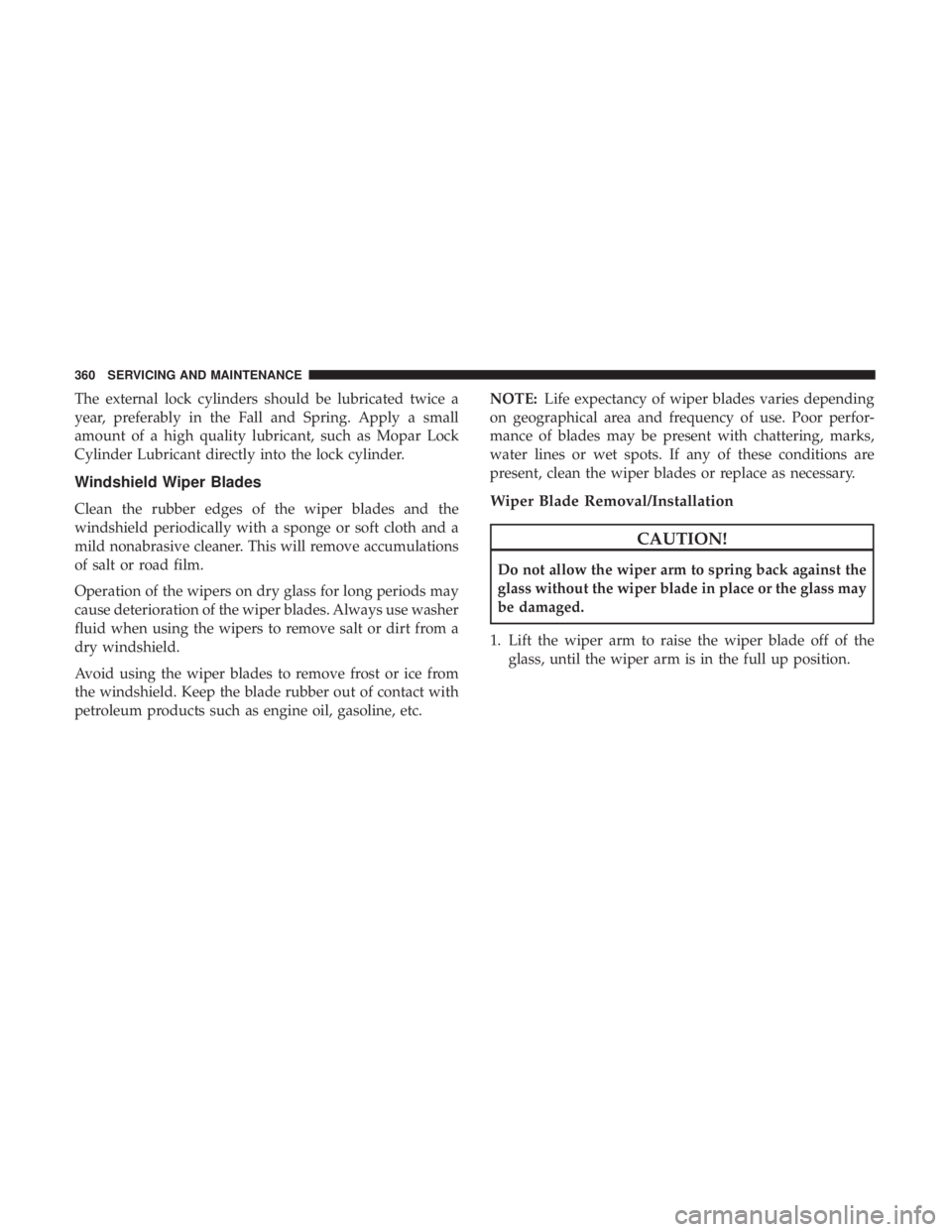

CHRYSLER 300 2019  Owners Manual The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into

Page 363 of 492

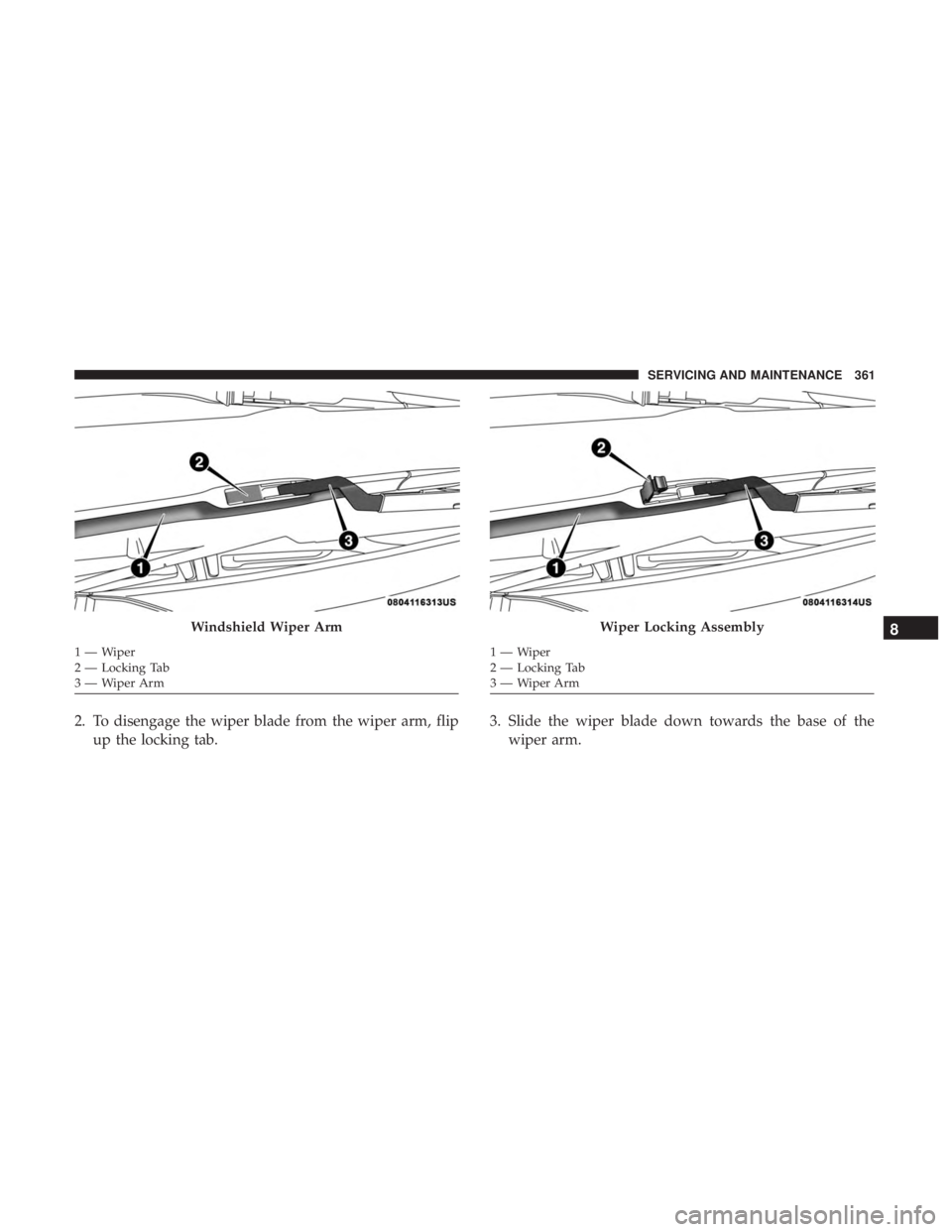

CHRYSLER 300 2019  Owners Manual 2. To disengage the wiper blade from the wiper arm, flipup the locking tab. 3. Slide the wiper blade down towards the base of the
wiper arm.
Windshield Wiper Arm
1—Wiper
2 — Locking Tab
3—WiperA

Page 364 of 492

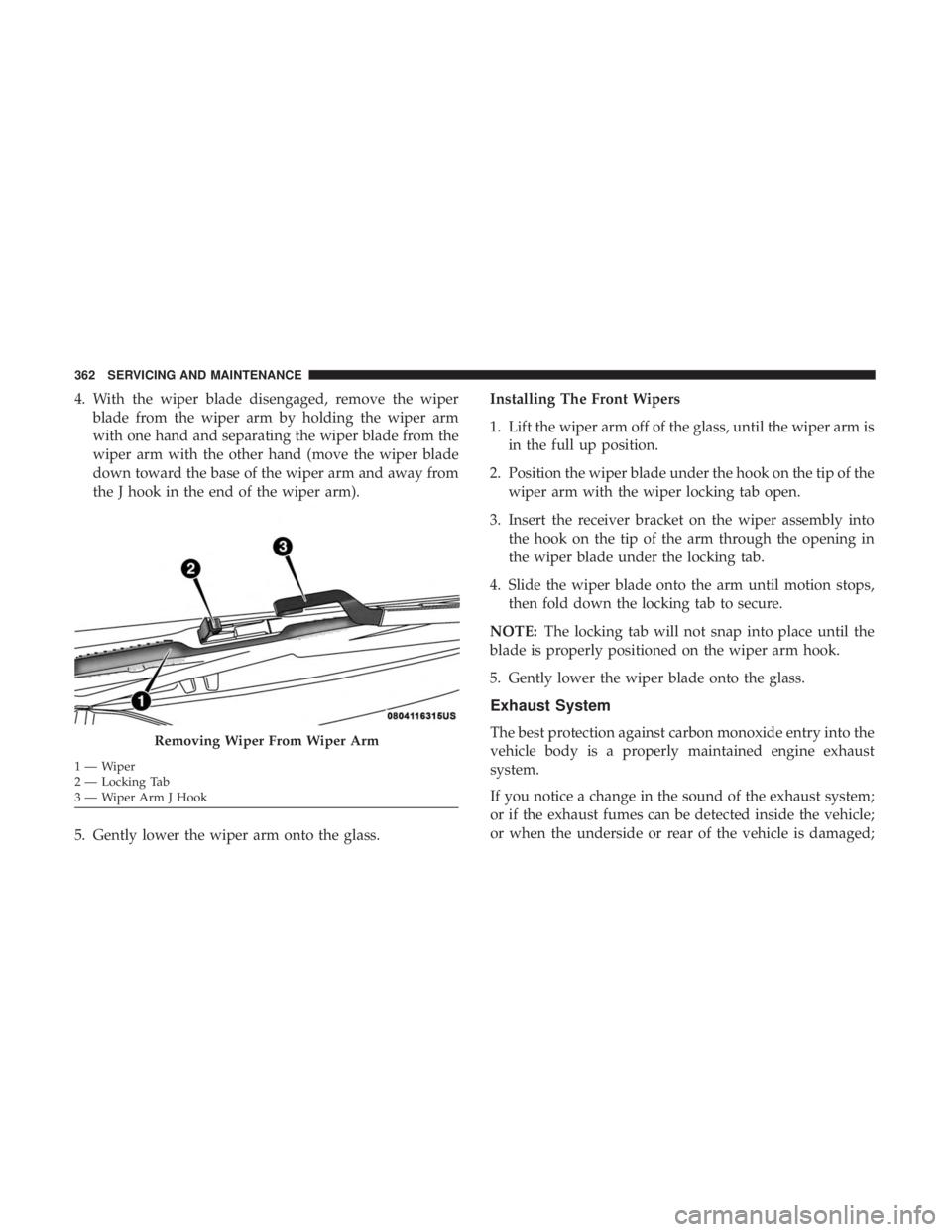

CHRYSLER 300 2019  Owners Manual 4. With the wiper blade disengaged, remove the wiperblade from the wiper arm by holding the wiper arm
with one hand and separating the wiper blade from the
wiper arm with the other hand (move the wipe

Page 365 of 492

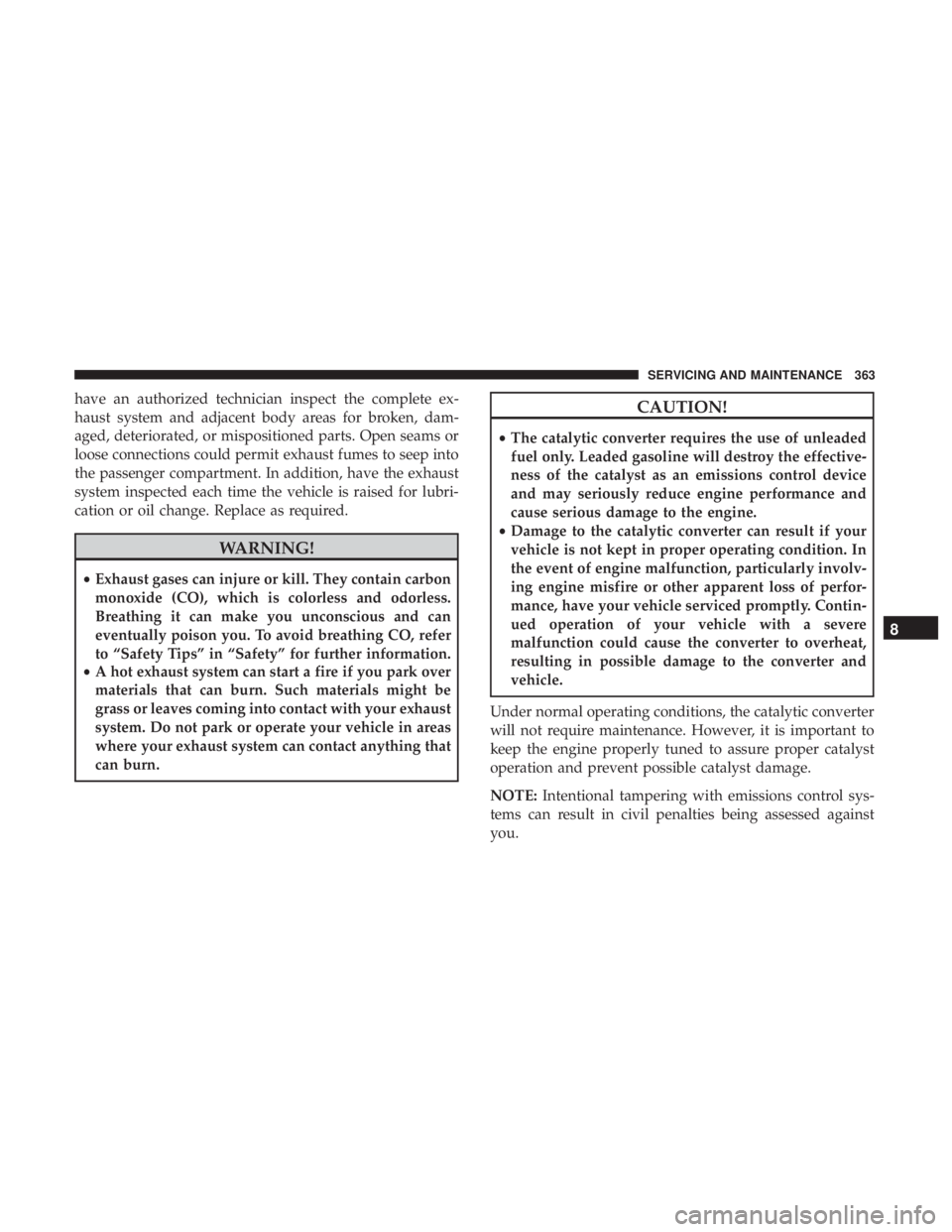

CHRYSLER 300 2019  Owners Manual have an authorized technician inspect the complete ex-
haust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams or
loose connections could permit ex

Page 366 of 492

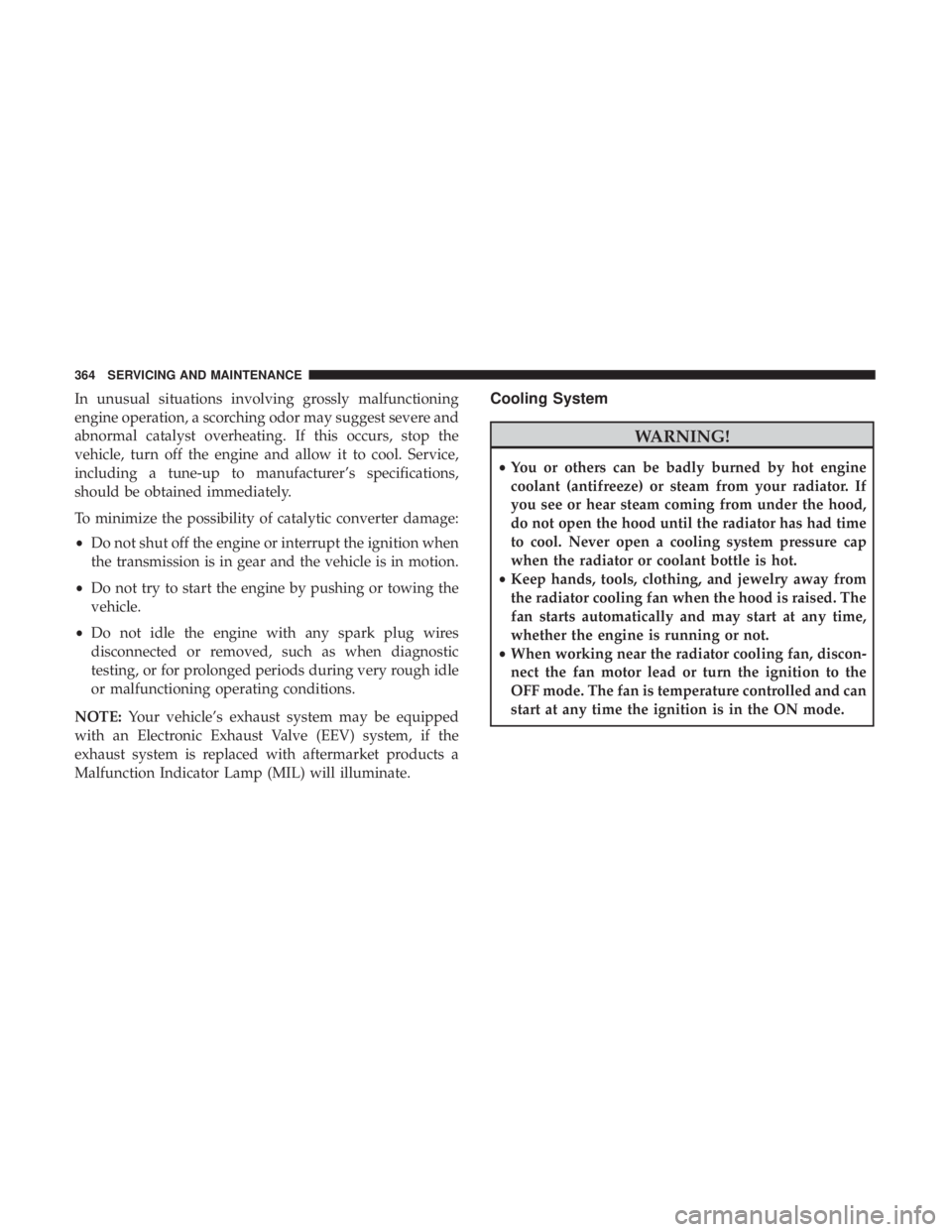

CHRYSLER 300 2019  Owners Manual In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe and
abnormal catalyst overheating. If this occurs, stop the
vehicle, turn off the engine an

Page 367 of 492

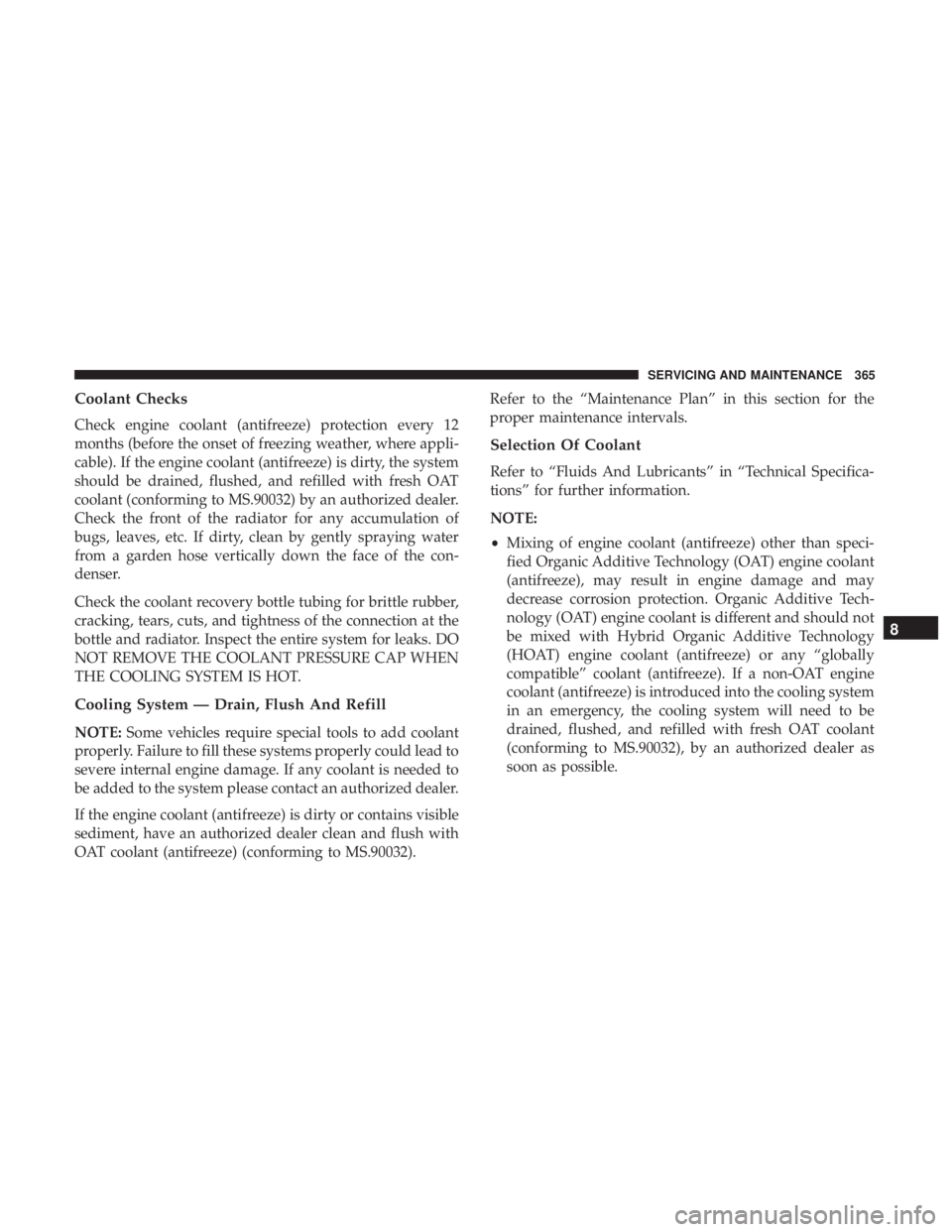

CHRYSLER 300 2019  Owners Manual Coolant Checks
Check engine coolant (antifreeze) protection every 12
months (before the onset of freezing weather, where appli-
cable). If the engine coolant (antifreeze) is dirty, the system
should b

Page 368 of 492

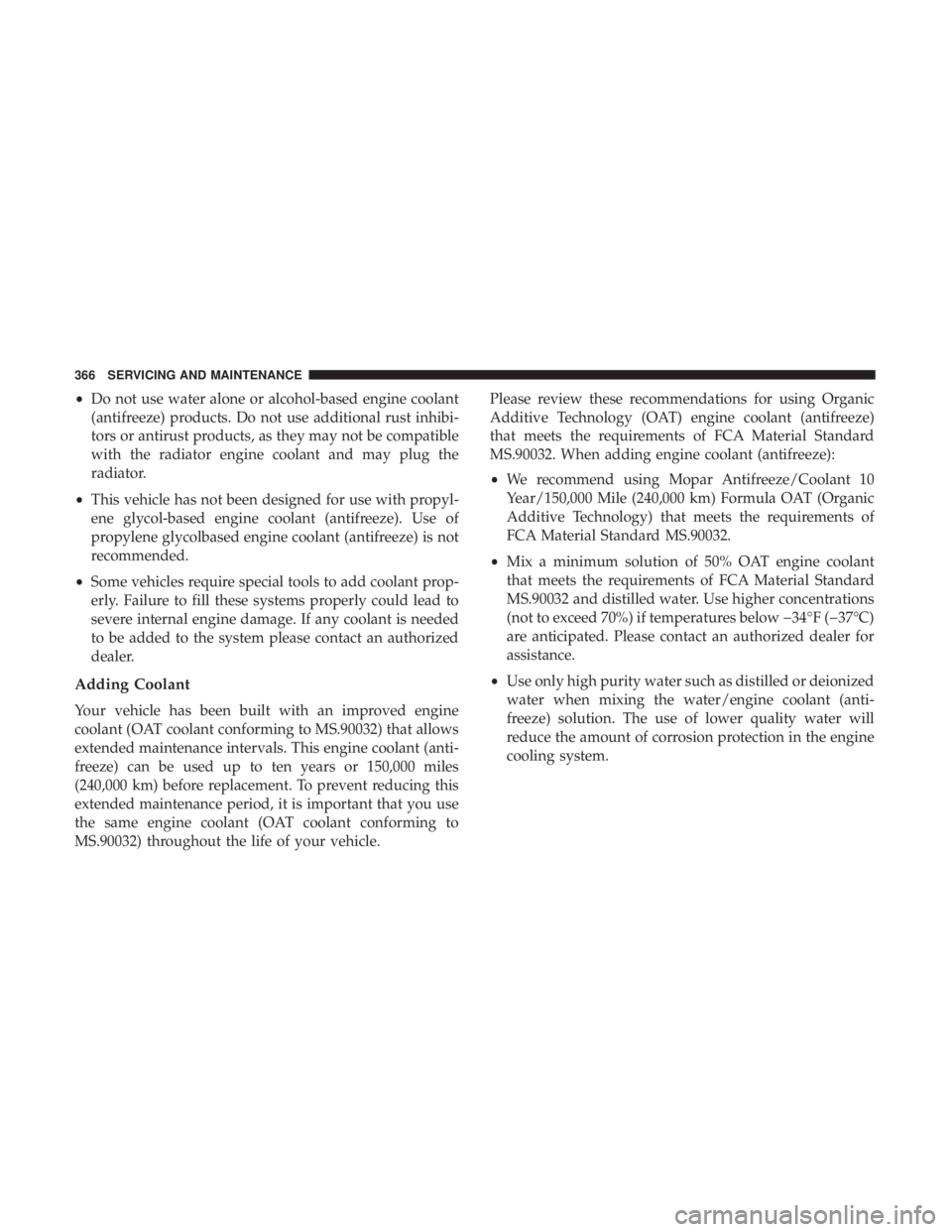

CHRYSLER 300 2019  Owners Manual •Do not use water alone or alcohol-based engine coolant
(antifreeze) products. Do not use additional rust inhibi-
tors or antirust products, as they may not be compatible
with the radiator engine co

Page 369 of 492

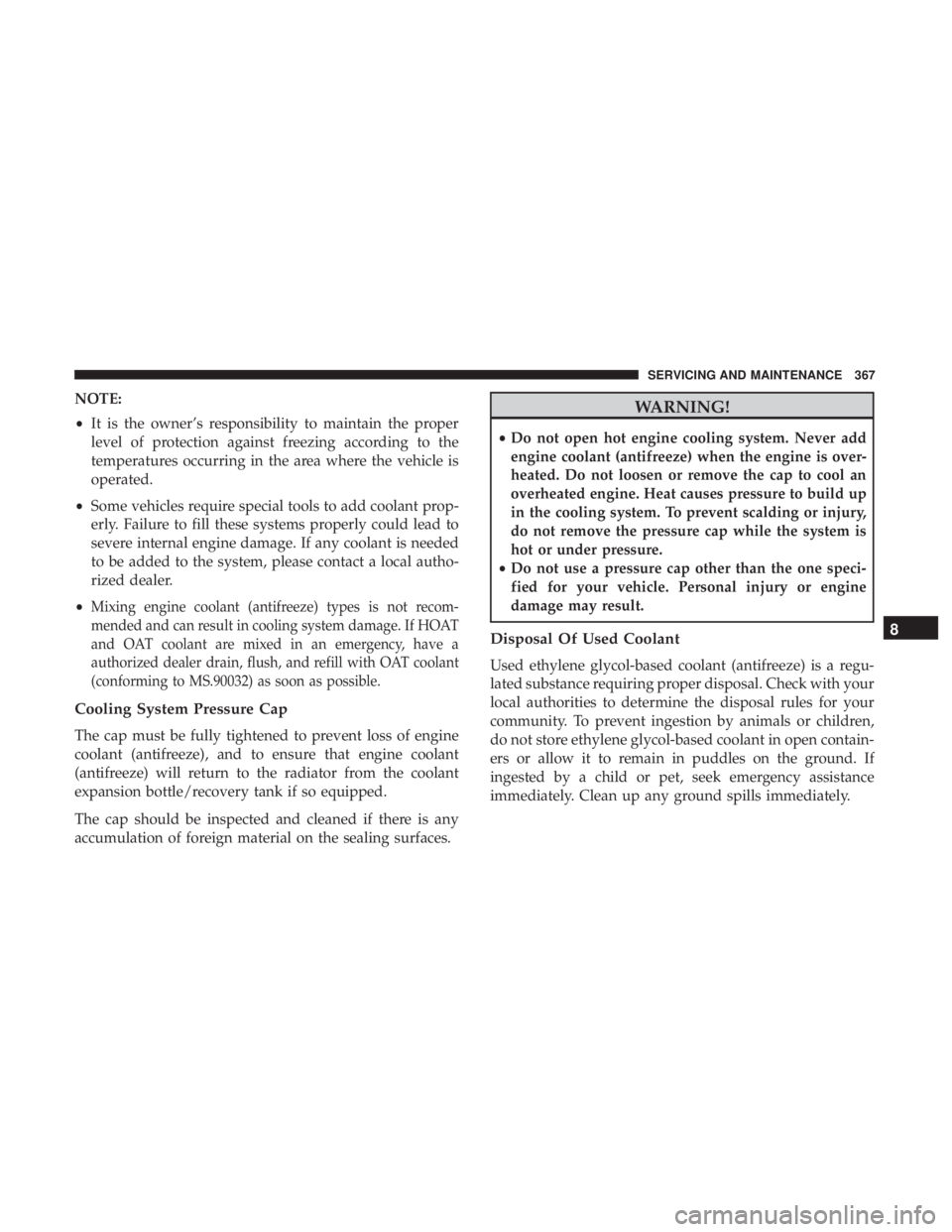

CHRYSLER 300 2019  Owners Manual NOTE:
•It is the owner’s responsibility to maintain the proper
level of protection against freezing according to the
temperatures occurring in the area where the vehicle is
operated.
• Some vehi

Page 370 of 492

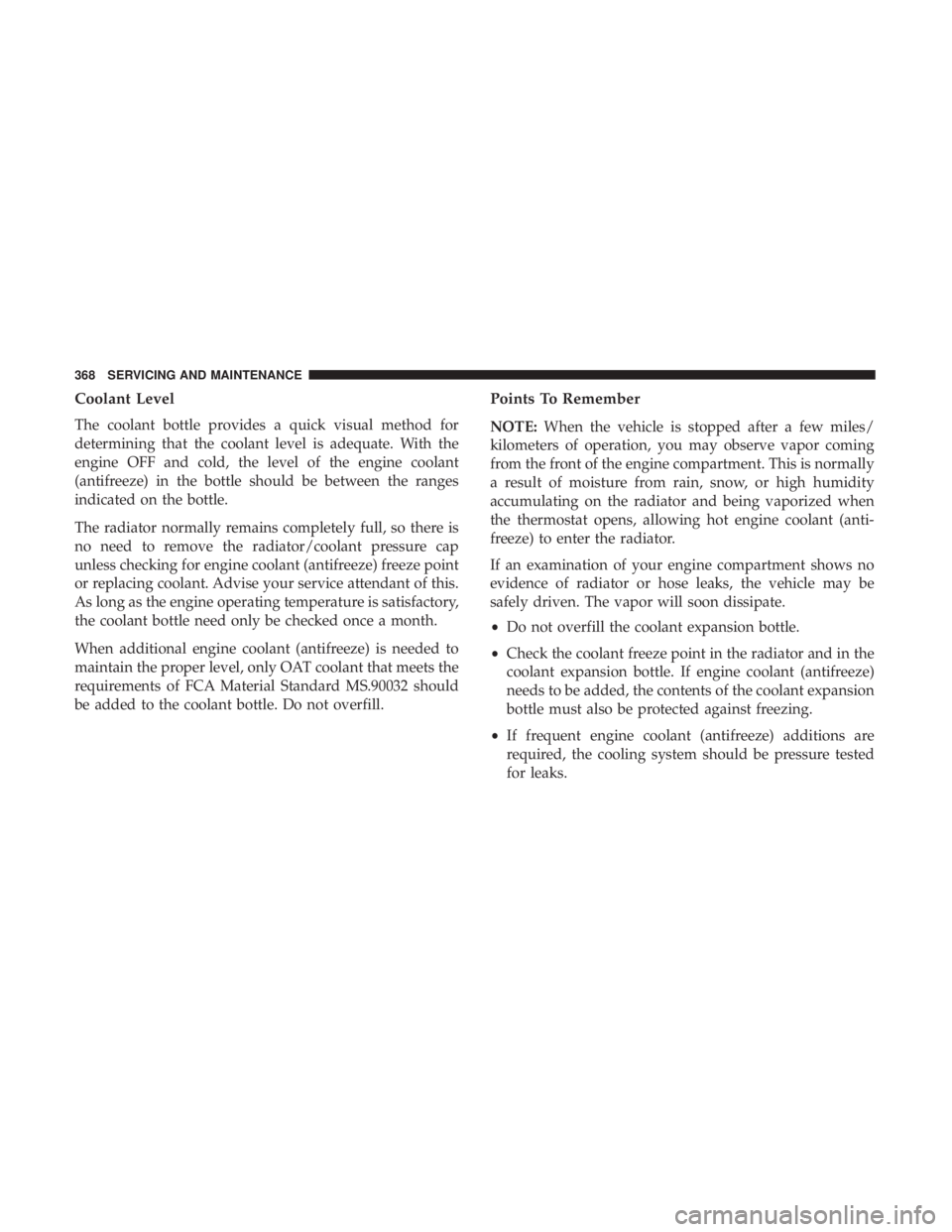

CHRYSLER 300 2019  Owners Manual Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine OFF and cold, the level of the engine coolant
(antifreeze) in the bo
