check engine CHRYSLER 300 C 2007 1.G Manual PDF

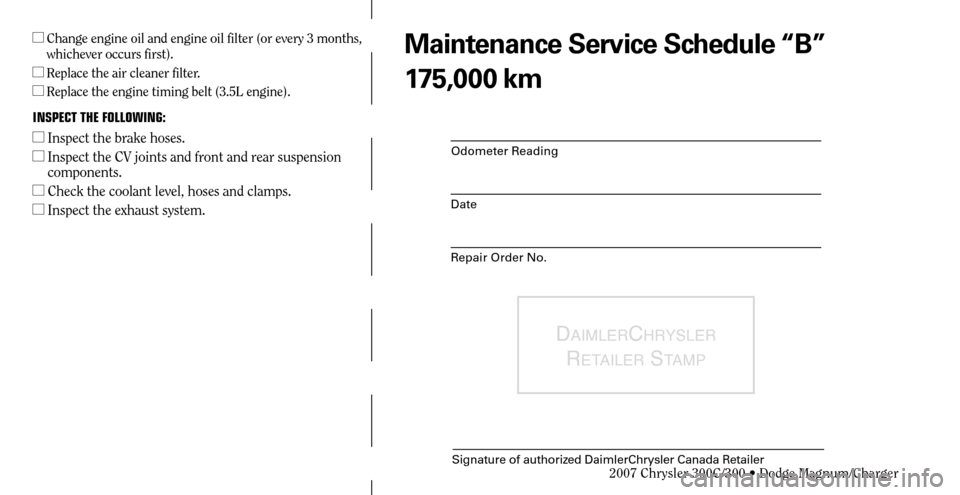

Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Replace the air cleaner filter.
 Replace the engine timing belt (3.5L engine).
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
Maintenance Service Schedule “B”
175,000 km
2007 Chrysler 300C/300

Maintenance Service
Schedule “B”
Odometer Reading
Date
180,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-36-01 3N.

Maintenance Service Schedule “B”
180,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the air cleaner filter and replace if necessary.*
 Inspect the front and rear brake linings and rotors.
 Replace the air conditioning filter.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.

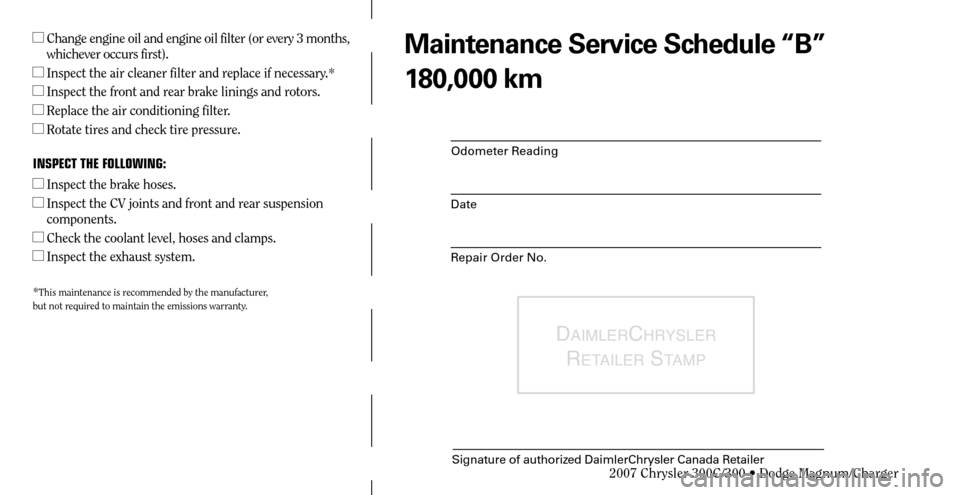

2007 Chrysler 300C/300

Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Inspect the air cleaner filter and replace if necessary.*
 Inspect the front and rear brake linings and rotors.
 Replace the air conditioning filter.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
*This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
Maintenance Service Schedule “B”
180,000 km
2007 Chrysler 300C/300

Maintenance Service
Schedule “B”
Odometer Reading
Date
185,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-37-01 3N.

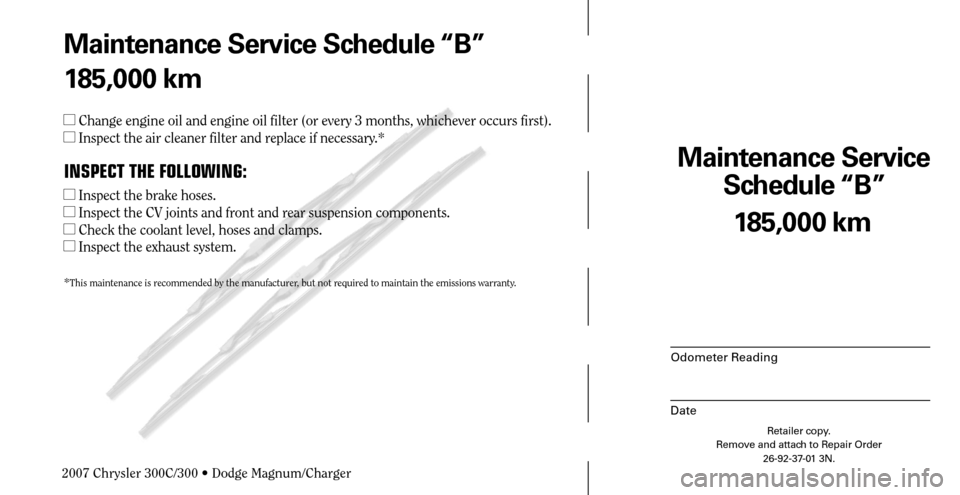

Maintenance Service Schedule “B”
185,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the air cleaner filter and replace if necessary.*
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.

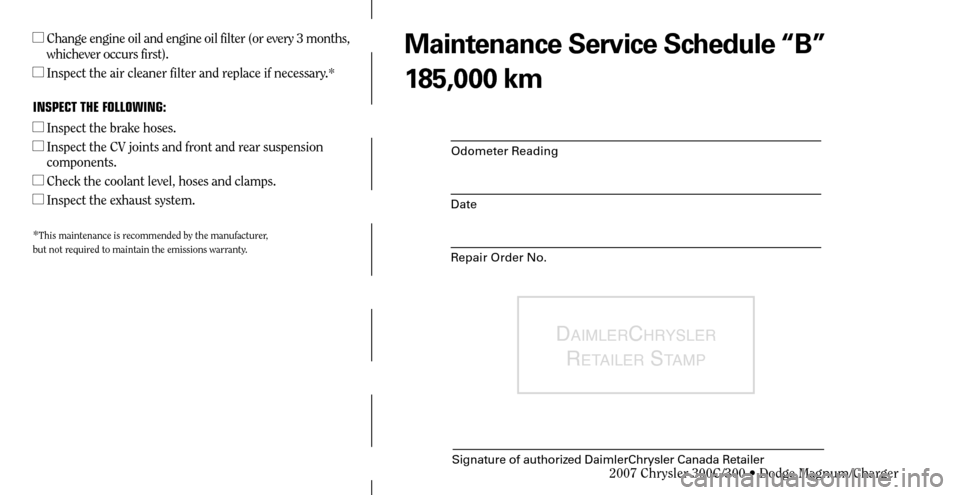

2007 Chrysler 300C/300

Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Inspect the air cleaner filter and replace if necessary.*
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
*This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
Maintenance Service Schedule “B”
185,000 km
2007 Chrysler 300C/300

Maintenance Service
Schedule “B”
Odometer Reading
Date
190,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-38-01 3N.

Maintenance Service Schedule “B”
190,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the air cleaner filter and replace if necessary.*
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.
2007 Chrysler 300C/300

Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
 Change engine oil and engine oil filter (or every 3
months, whichever occurs first).
 Inspect the air cleaner filter and replace
if necessary.*
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
*This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
Maintenance Service Schedule “B”
190,000 km
2007 Chrysler 300C/300

Maintenance Service
Schedule “B”
Odometer Reading
Date
195,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-39-01 3N.

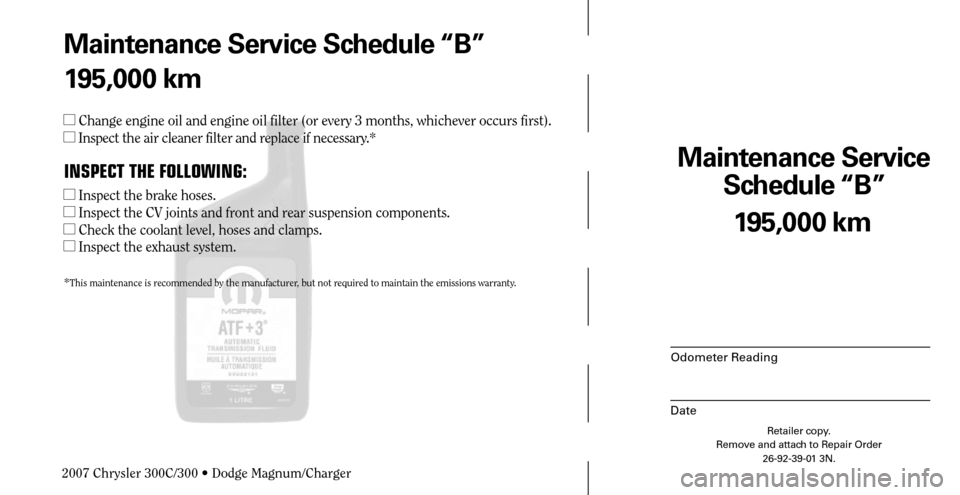

Maintenance Service Schedule “B”
195,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the air cleaner filter and replace if necessary.*
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.
2007 Chrysler 300C/300

Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Inspect the air cleaner filter and replace if necessary.*
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
*This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
Maintenance Service Schedule “B”
195,000 km
2007 Chrysler 300C/300

Maintenance Service
Schedule “B”
Odometer Reading
Date
200,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-40-01 3N.

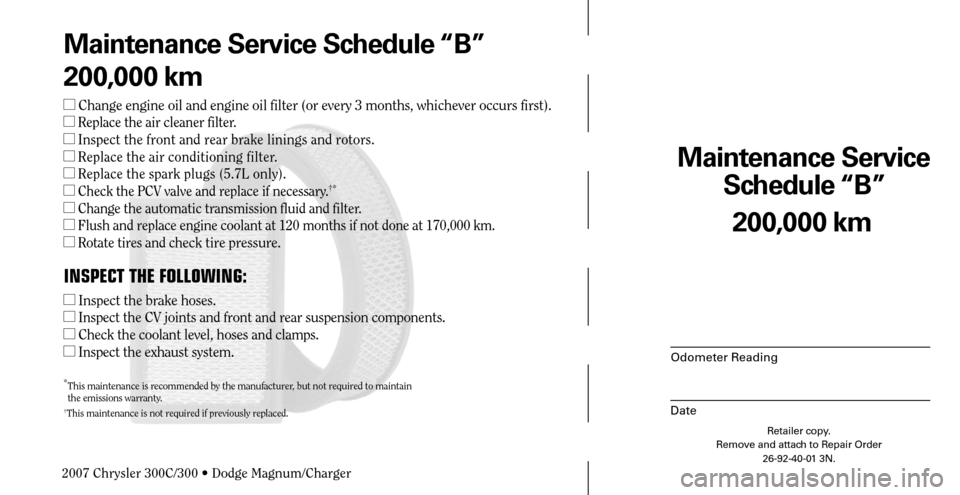

Maintenance Service Schedule “B”
200,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Replace the air cleaner filter.
 Inspect the front and rear brake linings and rotors.
 Replace the air conditioning filter.
 Replace the spark plugs (5.7L only).
 Check the PCV valve and replace if necessary.
†*
 Change the automatic transmission fluid and filter.
 Flush and replace engine coolant at 120 months if not done at 170,000 km.
 Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.
†This maintenance is not required if previously replaced.
2007 Chrysler 300C/300
