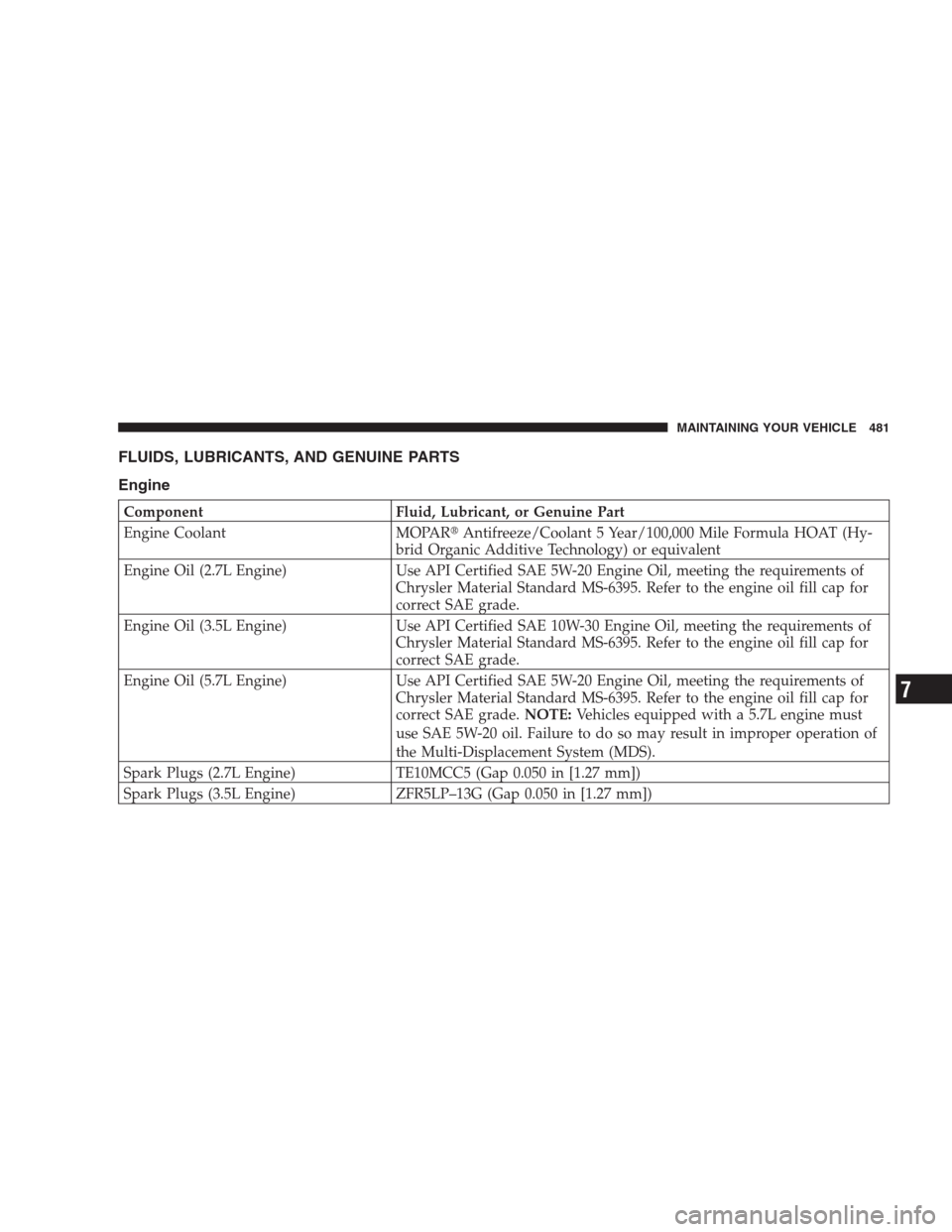

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent
Engine Oil (2.7L Engine) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for
correct SAE grade.
Engine Oil (3.5L Engine) Use API Certified SAE 10W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for
correct SAE grade.
Engine Oil (5.7L Engine) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for
correct SAE grade.NOTE:Vehicles equipped with a 5.7L engine must
use SAE 5W-20 oil. Failure to do so may result in improper operation of
the Multi-Displacement System (MDS).
Spark Plugs (2.7L Engine) TE10MCC5 (Gap 0.050 in [1.27 mm])
Spark Plugs (3.5L Engine) ZFR5LP–13G (Gap 0.050 in [1.27 mm])
MAINTAINING YOUR VEHICLE 481
7

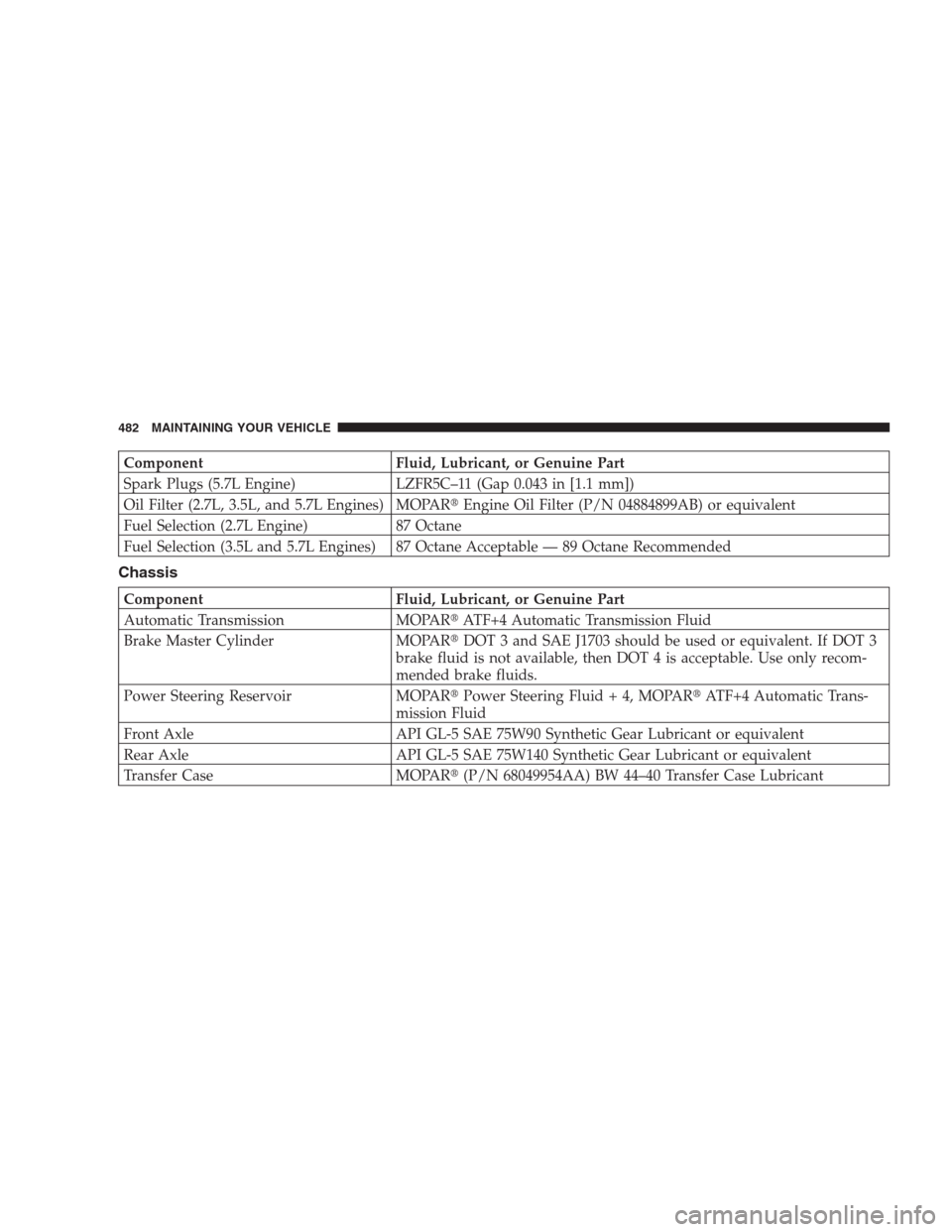

Component Fluid, Lubricant, or Genuine Part
Spark Plugs (5.7L Engine) LZFR5C–11 (Gap 0.043 in [1.1 mm])
Oil Filter (2.7L, 3.5L, and 5.7L Engines) MOPAREngine Oil Filter (P/N 04884899AB) or equivalent
Fuel Selection (2.7L Engine) 87 Octane
Fuel Selection (3.5L and 5.7L Engines) 87 Octane Acceptable — 89 Octane Recommended
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4 Automatic Transmission Fluid
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPARATF+4 Automatic Trans-
mission Fluid
Front Axle API GL-5 SAE 75W90 Synthetic Gear Lubricant or equivalent
Rear Axle API GL-5 SAE 75W140 Synthetic Gear Lubricant or equivalent
Transfer Case MOPAR(P/N 68049954AA) BW 44–40 Transfer Case Lubricant
482 MAINTAINING YOUR VEHICLE

30,000 Miles (50,000 km) or
30 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the spark plugs (2.7L and
5.7L Engines).
❏Inspect the transfer case fluid — All
Wheel Drive (AWD).
❏Adjust parking brake on vehicles
equipped with four-wheel disc brakes.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
36,000 Miles (60,000 km) or 36 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏Replace the air conditioning filter (if equipped)
❏Inspect the rear axle fluid. Inspect the front axle fluid — All Wheel Drive (AWD).
❏Inspect the brake linings; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 489
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Inspect the rear axle fluid. Inspect the
front axle fluid — All Wheel Drive
(AWD).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the spark plugs (2.7L and 5.7L Engines).
❏Replace the air conditioning filter (if equipped)
❏Inspect the brake linings; replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Change the automatic transmission fluid and filter if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏Change the transfer case fluid if using your vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing — All Wheel Drive (AWD).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 491
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

90,000 Miles (150,000 km) or 90 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the spark plugs (2.7L and 5.7L Engines).
❏Inspect and replace PCV valve if necessary. †
❏Inspect the rear axle fluid. Inspect the front axle fluid — All Wheel Drive (AWD).
❏Inspect the transfer case fluid — All Wheel Drive (AWD).
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
494 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

96,000 Miles (160,000 km) or 96 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏Replace the air conditioning filter (if equipped)
❏Inspect the brake linings; replace if necessary.
❏Inspect the CV joints.
❏Inspect exhaust system.
❏Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
❏Change the rear axle fluid and on models equipped with All Wheel Drive (AWD) change the
front axle fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or
frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
102,000 Miles (170,000 km) or
102 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Replace the spark plugs (3.5L
Engines).
❏Replace the timing belt (3.5L Engine).
❏Flush and replace the engine coolant.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 495
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

120,000 Miles (200,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the air conditioning filter (if equipped)
❏Replace the spark plugs (2.7L and 5.7L Engines).
❏Inspect the brake linings; replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Inspect the CV joints.
❏Inspect exhaust system.
❏Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
❏Change the automatic transmission fluid and filter.
❏Change the transfer case fluid if using your vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing — All Wheel Drive (AWD).
❏Replace the accessory drive belt (2.7L/3.5L Engines).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
126,000 Miles (210,000 km) or
126 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Inspect the rear axle fluid. Inspect the
front axle fluid — All Wheel Drive
(AWD).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 497
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

144,000 Miles (240,000 km) or 144 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏Replace the air conditioning filter (if equipped)
❏Inspect the brake linings; replace if necessary.
❏Inspect the CV joints.
❏Inspect exhaust system.
❏Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
❏Change the rear axle fluid and on models equipped with All Wheel Drive (AWD) change the
front axle fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or
frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
150,000 Miles (250,000 km) or
150 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the spark plugs (2.7L and
5.7L Engines).
❏Inspect the transfer case fluid — All
Wheel Drive (AWD).
❏Adjust parking brake on vehicles
equipped with four-wheel disc brakes.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 499
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
