jacking CHRYSLER 300 LX 2005 Owners Manual

WHAT TO DO IN EMERGENCIES
CONTENTS
mHazard Warning Flasher.................264
mIf Your Engine Overheats................264
mJacking And Tire Changing...............265
NPreparations For Jacking................266
NJack Location........................267
NSpare Tire Stowage....................268
NJacking And Changing a Tire.............269
NCompact Spare Tire....................272
NWheel Cover Installation (If Required)......273
mJump-Starting Procedures If Battery Is Low...273
mDriving On Slippery Surfaces.............276NAcceleration.........................276
NTraction............................276
mFreeing A Stuck Vehicle.................277
mTowing A Disabled Vehicle...............278
NWith Ignition Key.....................278
NWithout The Ignition Key...............279
NTowing This Vehicle Behind Another Vehicle
(Flat Towing With All Four Wheels On The
Ground)............................279
NTowing This Vehicle Behind Another Vehicle
With A Tow Dolley....................2796
ProCarManuals.com

NOTE:There are steps that you can take to slow down
an impending overheat condition. If your air conditioner
is on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C
removes this heat. You can also turn the Temperature
control to maximum heat, the Mode control to floor, and
the fan control to High. This allows the heater core to act
as a supplement to the radiator and aids in removing heat
from the engine cooling system.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If temperature gauge reads ªHº, pull
over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the ªHº, turn the engine off immediately, and call for
service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, see Section 7, Maintenance, of this
manual. Follow the warnings under the Cooling
System Pressure Cap paragraph.
JACKING AND TIRE CHANGING
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
WHAT TO DO IN EMERGENCIES 265
6
ProCarManuals.com

WARNING!
Getting under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never get any part of your body
under a vehicle that is on a jack. Never start or run
the engine while the vehicle is on a jack. If you need
to get under a raised vehicle, take it to a service
center where it can be raised on a lift.
Preparations For Jacking
²
Park the vehicle on a firm level surface, avoid ice or
slippery areas,set the parking brakeand place the
gear selector in PARK. Turn OFF the ignition.
²Turn on the Hazard Warning Flasher.
²Passengers should not remain in the vehicle when the
vehicle is being jacked.
²Block both the front and rear of the wheel diagonally
opposite the jacking position. For example, if changing
the right front tire, block the left rear wheel.
Hazard Warning Flasher
266 WHAT TO DO IN EMERGENCIES
ProCarManuals.com

²Remove the fastener securing the spare tire.
Jacking and Changing a Tire
1. Block the wheel diagonally
opposite the flat tire. Passengers
should not remain in the vehicle
when the vehicle is being jacked.
2. Remove the spare tire, jack and lug wrench.3. Before raising the vehicle, use lug wrench to carefully
pry off wheel cover (if equipped with steel wheels) or
center cap (if equipped with aluminum wheels).WARNING!
To avoid possible personal injury, handle the wheel
covers with care to avoid contact with the metal
edges and retention teeth.
WHAT TO DO IN EMERGENCIES 269
6
ProCarManuals.com

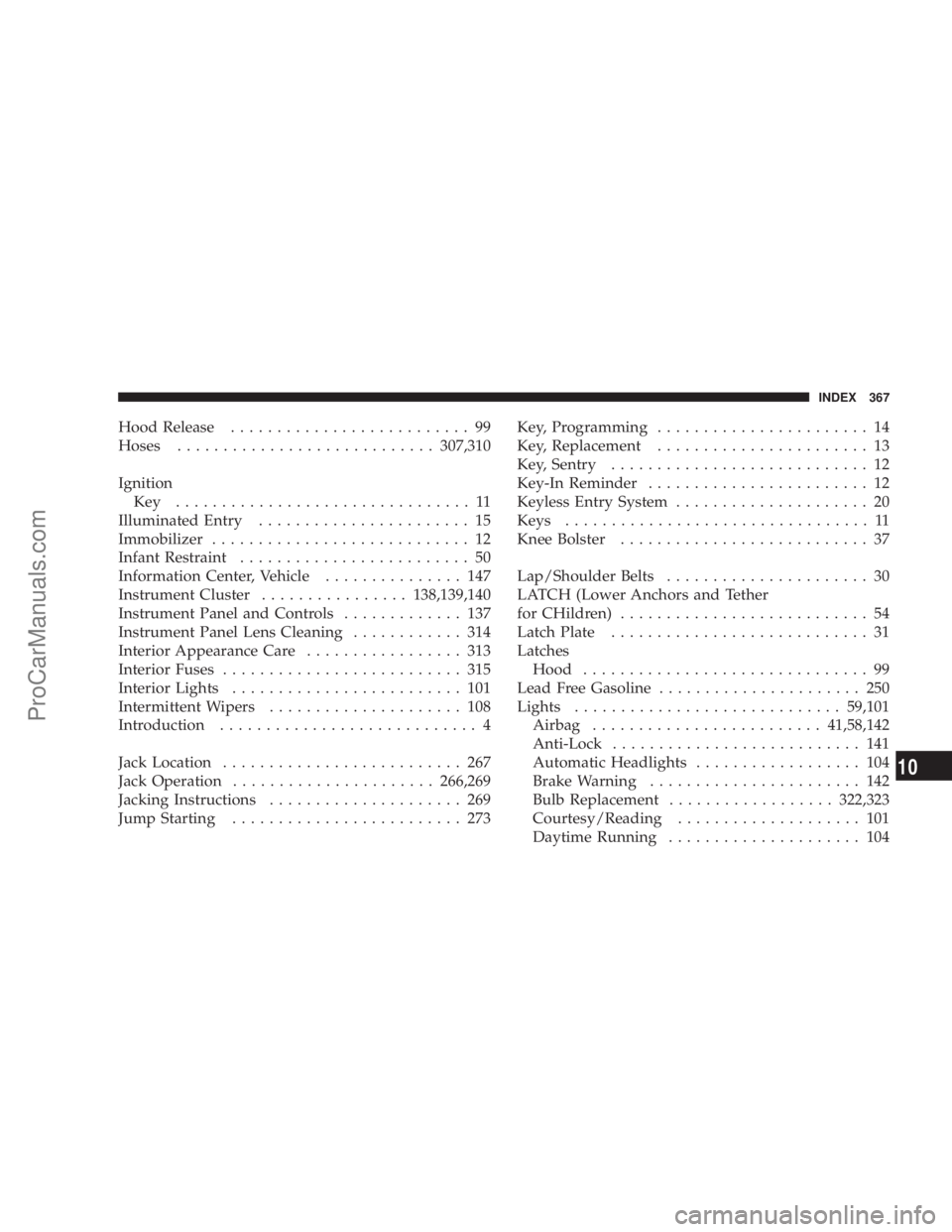

Hood Release.......................... 99
Hoses............................307,310
Ignition
Key ................................ 11
Illuminated Entry....................... 15
Immobilizer............................ 12
Infant Restraint......................... 50
Information Center, Vehicle............... 147
Instrument Cluster................138,139,140
Instrument Panel and Controls............. 137
Instrument Panel Lens Cleaning............ 314
Interior Appearance Care................. 313
Interior Fuses.......................... 315
Interior Lights......................... 101
Intermittent Wipers..................... 108
Introduction............................ 4
Jack Location.......................... 267
Jack Operation......................266,269
Jacking Instructions..................... 269
Jump Starting......................... 273Key, Programming....................... 14
Key, Replacement....................... 13
Key, Sentry............................ 12
Key-In Reminder........................ 12
Keyless Entry System..................... 20
Keys................................. 11
Knee Bolster........................... 37
Lap/Shoulder Belts...................... 30
LATCH (Lower Anchors and Tether
for CHildren)........................... 54
Latch Plate............................ 31
Latches
Hood............................... 99
Lead Free Gasoline...................... 250
Lights.............................59,101
Airbag.........................41,58,142
Anti-Lock........................... 141
Automatic Headlights.................. 104
Brake Warning....................... 142
Bulb Replacement..................322,323
Courtesy/Reading.................... 101
Daytime Running..................... 104
INDEX 367
10
ProCarManuals.com

Power
Brakes............................. 224
Distribution Center.................... 315
Door Locks.......................... 16
Mirrors............................. 67
Outlet.............................. 127
Seats............................... 89
Steering............................ 227
Steering, Checking.................... 300
Sunroof............................ 124
Tilt/Telescoping Steering Column......... 109
Windows............................ 25
Pregnant Women and Seat Belts............. 36
Preparation for Jacking................... 266
Programmable Electronic Features..... 119,123,154
Programming Transmitters............. 119,123
Radial Ply Tires........................ 239
Radiator Cap.......................... 305
Radio..........................159,164,175
Radio Broadcast Signals.................. 191
Radio Operation...............159,164,175,194
Radio Remote Controls.................. 190Radio, Satellite......................... 187
Rain Sensitive Wiper System.............. 107
Rear Seat, Folding....................... 97
Rear Window Defroster.................. 195
Rearview Mirrors........................ 65
Reclining Front Seats..................... 90
Recommended Fluids, Lubricants and Genuine
Parts............................... 333
Recorder, Event Data..................... 48
Recreational Towing..................... 261
Refrigerant............................ 299
Reminder, Seat Belt...................... 35
Remote Keyless Entry.................... 20
Remote Sound System Controls............ 190
Remote Trunk Release.................... 28
Replacement Tires...................... 241
Reporting Safety Defects................. 356
Restraint, Head......................... 96
Restraints, Occupant..................... 29
Rocking Vehicle When Stuck.............. 277
Rotation, Tires......................... 249
Safety Checks Inside Vehicle............... 58
370 INDEX
ProCarManuals.com

Engine Fails to Start................... 208
Starting and Operating................... 207
Steering
Linkage............................ 301
Power...........................227,300
Tilt Column......................... 109
Wheel, Tilt.......................... 109
Steering Wheel Mounted Sound System
Controls............................ 190
Storage...........................130,321
Storage, Vehicle.....................203,321
Storing Your Vehicle..................... 321
Sulfur in Gasoline...................... 252
Sun Roof............................. 124
Sunglass Storage....................... 118
Supplemental Restraint System - Airbag....... 37
Tachometer........................... 141
Telescoping Steering Column.............. 109
Temperature Control, Automatic............ 197
Temperature Gauge, Engine Coolant......143,265
Theft Alarm............................ 24
Theft System........................... 24Tie Down Hooks, Cargo.................. 131
Tilt Steering Column.................... 109
Tire and Loading Information Placard....... 232
Tire Identification Number (TIN)........... 231
Tire Markings......................... 228
Tire Safety Information................... 228
Tires ...........................59,236,358
Air Pressure......................... 236
Alignment.......................... 242
Chains............................. 248
Changing........................265,269
Compact Spare....................... 239
Flat Changing........................ 265
General Information................... 236
High Speed......................... 238
Inflation Pressures.................... 237
Jacking..........................266,269
Load Capacity....................232,233
Pressure Monitor System............... 243
Quality Grading...................... 358
Radial............................. 239
Replacement......................... 241
Rotation............................ 249
372 INDEX
