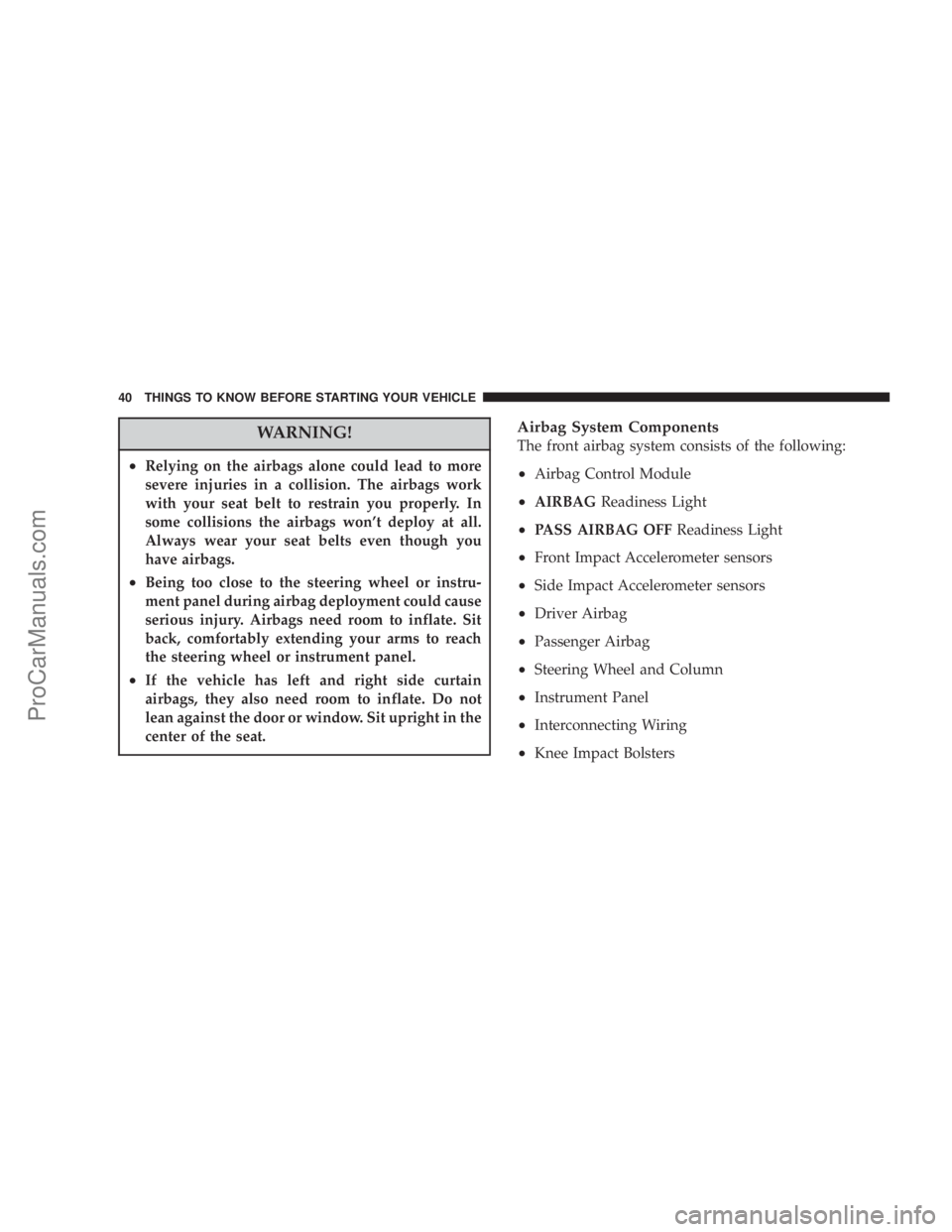

WARNING!
²Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won't deploy at all.
Always wear your seat belts even though you
have airbags.
²Being too close to the steering wheel or instru-
ment panel during airbag deployment could cause
serious injury. Airbags need room to inflate. Sit
back, comfortably extending your arms to reach
the steering wheel or instrument panel.
²If the vehicle has left and right side curtain
airbags, they also need room to inflate. Do not
lean against the door or window. Sit upright in the
center of the seat.
Airbag System Components
The front airbag system consists of the following:
²Airbag Control Module
²AIRBAGReadiness Light
²PASS AIRBAG OFFReadiness Light
²Front Impact Accelerometer sensors
²Side Impact Accelerometer sensors
²Driver Airbag
²Passenger Airbag
²Steering Wheel and Column
²Instrument Panel
²Interconnecting Wiring
²Knee Impact Bolsters
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

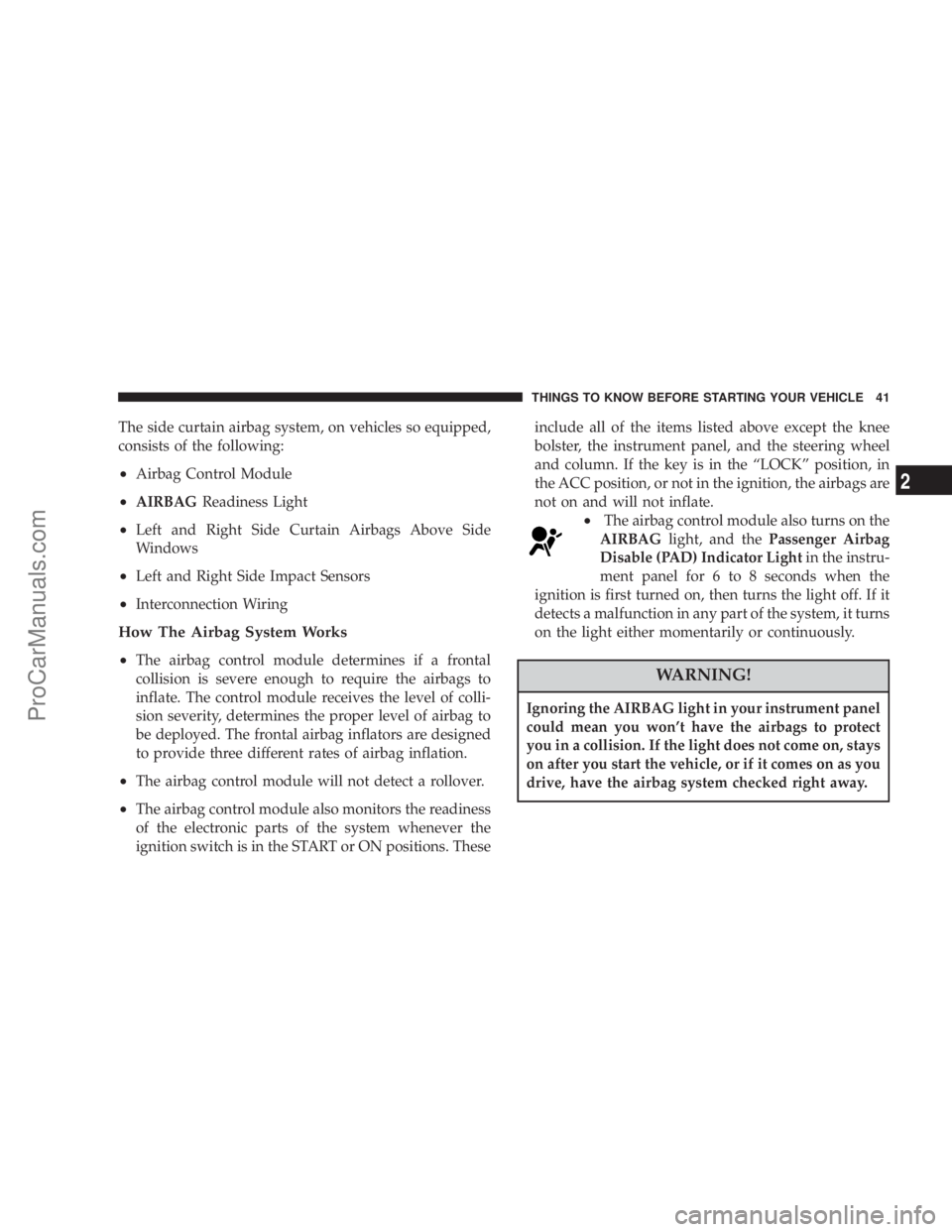

The side curtain airbag system, on vehicles so equipped,
consists of the following:
²Airbag Control Module
²AIRBAGReadiness Light
²Left and Right Side Curtain Airbags Above Side
Windows
²Left and Right Side Impact Sensors
²Interconnection Wiring
How The Airbag System Works
²
The airbag control module determines if a frontal
collision is severe enough to require the airbags to
inflate. The control module receives the level of colli-
sion severity, determines the proper level of airbag to
be deployed. The frontal airbag inflators are designed
to provide three different rates of airbag inflation.
²The airbag control module will not detect a rollover.
²The airbag control module also monitors the readiness
of the electronic parts of the system whenever the
ignition switch is in the START or ON positions. Theseinclude all of the items listed above except the knee
bolster, the instrument panel, and the steering wheel
and column. If the key is in the ªLOCKº position, in
the ACC position, or not in the ignition, the airbags are
not on and will not inflate.
²The airbag control module also turns on the
AIRBAGlight, and thePassenger Airbag
Disable (PAD) Indicator Lightin the instru-
ment panel for 6 to 8 seconds when the
ignition is first turned on, then turns the light off. If it
detects a malfunction in any part of the system, it turns
on the light either momentarily or continuously.
WARNING!
Ignoring the AIRBAG light in your instrument panel
could mean you won't have the airbags to protect
you in a collision. If the light does not come on, stays
on after you start the vehicle, or if it comes on as you
drive, have the airbag system checked right away.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
2
ProCarManuals.com

way and inflates (in about the same time it takes to blink
your eyes) with enough force to injure you if you are not
belted and seated properly, or if items are positioned in
the area where the side curtain airbag inflates. This
especially applies to children. The side curtain airbag is
only about 3
1¤2inches (83¤4cm) thick when it is inflated.
Maintaining Your Airbag System
WARNING!
²Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured because the airbags are not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or
the upper right side of the instrument panel. Do
not modify the front bumper, vehicle body struc-
ture, or frame.
²You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee impact bolster.
²It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.
