CHRYSLER 300 LX 2007 Owners Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3
ProCarManuals.com

North American English
Primary Alternate(s)
Zero Oh
Add location Add new
All All of them
Confirmation prompts Confirmations prompts
Delete a name Delete
Language Select language
List names List all
List paired phones List phones
Pager Beeper
Phone pairing Pairing
Phonebook Phone book
Return to main menu Return. Main menu
Select phone select
Set up Phone settings phone set

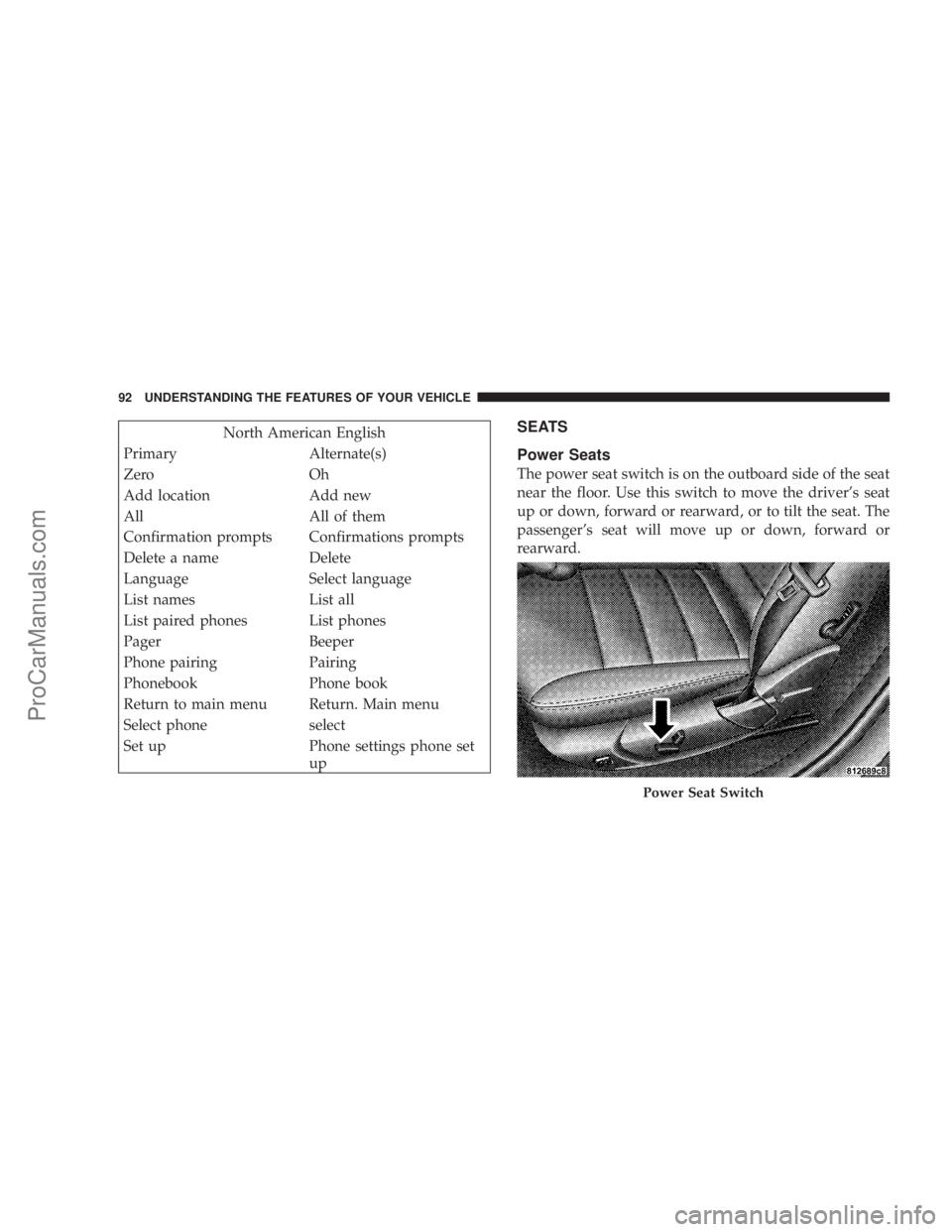

upSEATS
Power Seats
The power seat switch is on the outboard side of the seat
near the floor. Use this switch to move the driver’s seat
up or down, forward or rearward, or to tilt the seat. The
passenger’s seat will move up or down, forward or
rearward.
Power Seat Switch
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
the seat only while the vehicle is parked.
CAUTION!
Do not place any article under a power seat as it may
cause damage to the seat controls.
Power Reclining Seats
The recliner control is located on the outboard side of the
seat.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Power Seat Recline Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3
ProCarManuals.com

Lumbar Support
This feature allows you to increase or decrease the
amount of lumbar support. Turn the control lever for-
ward to increase and rearward to decrease the desired
amount of lumbar support.
Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Adjustable restraints
should be adjusted so that the upper edge is as high as
practical.
The head restraints have a locking button, which must be
pushed in to lower the head restraint. The restraints may
be raised without pushing in the button.
Lumbar Support Control Lever
Adjustable Head Restraint
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

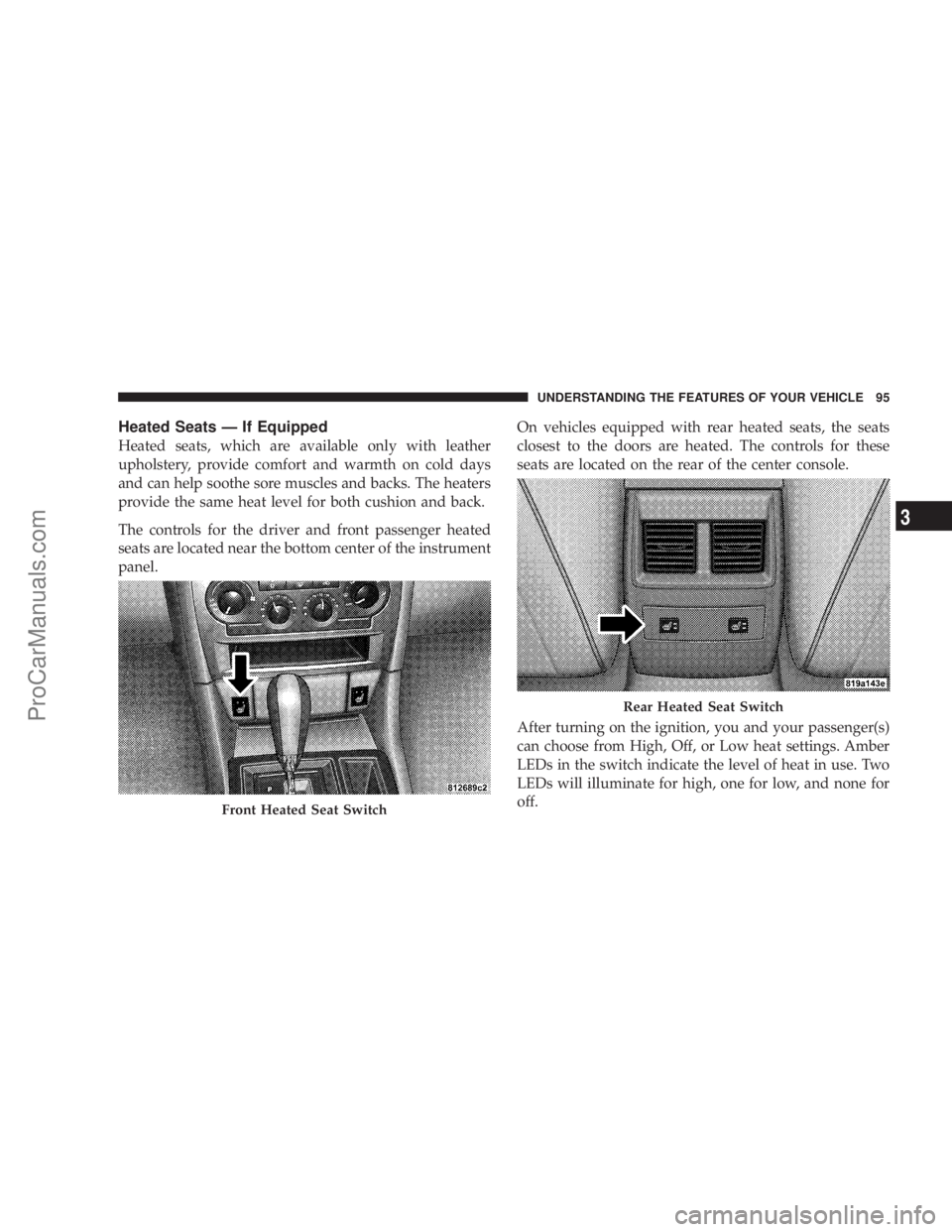

Heated Seats — If Equipped
Heated seats, which are available only with leather
upholstery, provide comfort and warmth on cold days
and can help soothe sore muscles and backs. The heaters
provide the same heat level for both cushion and back.
The controls for the driver and front passenger heated
seats are located near the bottom center of the instrument
panel.On vehicles equipped with rear heated seats, the seats
closest to the doors are heated. The controls for these
seats are located on the rear of the center console.
After turning on the ignition, you and your passenger(s)
can choose from High, Off, or Low heat settings. Amber
LEDs in the switch indicate the level of heat in use. Two
LEDs will illuminate for high, one for low, and none for
off.
Front Heated Seat Switch
Rear Heated Seat Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3
ProCarManuals.com

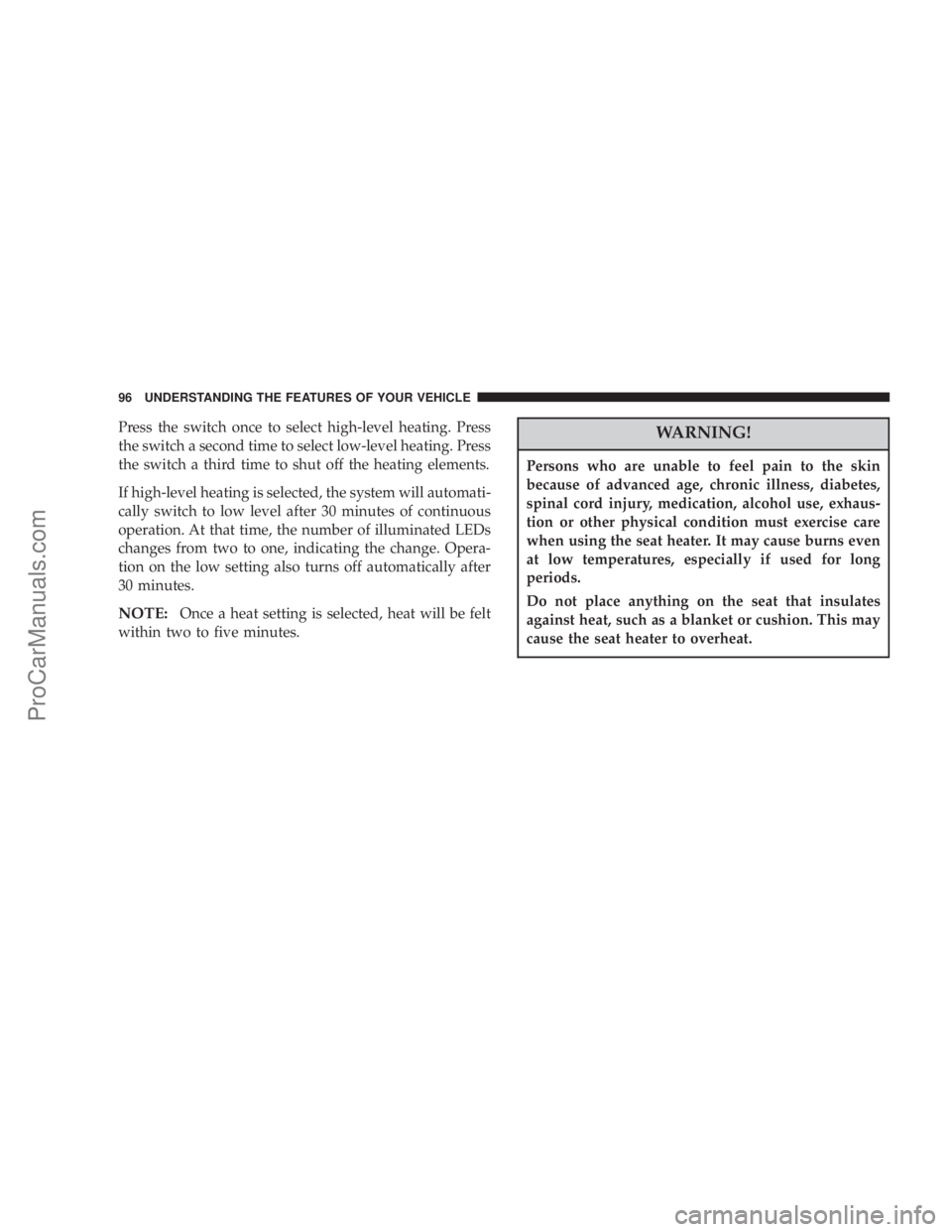

Press the switch once to select high-level heating. Press
the switch a second time to select low-level heating. Press
the switch a third time to shut off the heating elements.
If high-level heating is selected, the system will automati-
cally switch to low level after 30 minutes of continuous
operation. At that time, the number of illuminated LEDs
changes from two to one, indicating the change. Opera-
tion on the low setting also turns off automatically after
30 minutes.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods.
Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This may
cause the seat heater to overheat.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

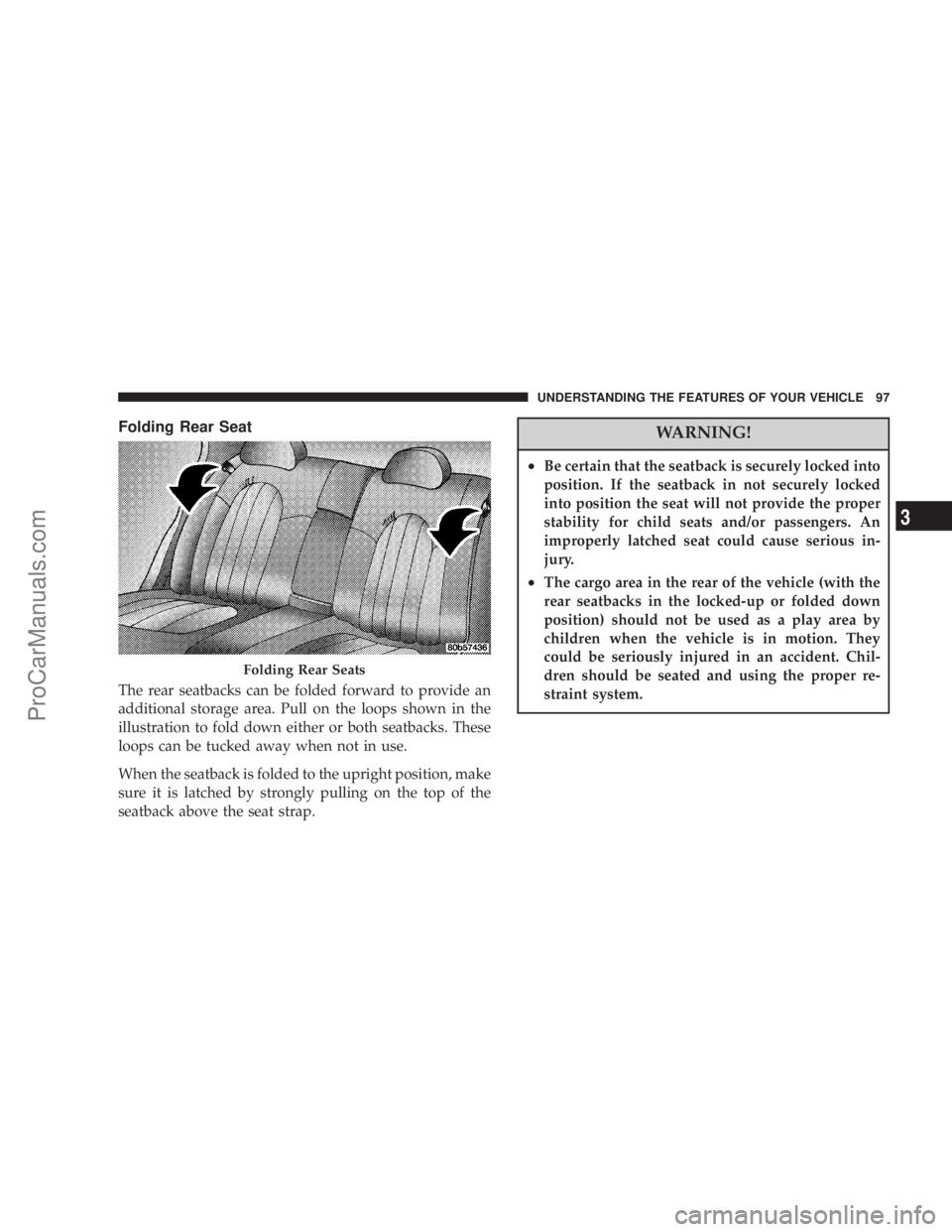

Folding Rear Seat
The rear seatbacks can be folded forward to provide an
additional storage area. Pull on the loops shown in the
illustration to fold down either or both seatbacks. These
loops can be tucked away when not in use.
When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious in-
jury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They
could be seriously injured in an accident. Chil-
dren should be seated and using the proper re-
straint system.
Folding Rear Seats
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3
ProCarManuals.com

DRIVER MEMORY SEAT — IF EQUIPPED
This feature allows the driver to store up to two different
memory profiles, for easy recall through a memory
switch. Each memory profile contains desired position
settings for the driver seat, side mirror, adjustable pedals
(if equipped), and power tilt and telescopic steering
column (if equipped), and a set of desired radio station
presets.
The memory switch is located on the driver’s door panel.
The switch contains an (S) button to activate the memory
save function. It also contains a rocker switch labeled
with the number (1) and the number (2). The rocker
switch allows the driver to recall either of two pre-
programmed memory profiles by pressing the appropri-
ate side of the switch.
Programming The Memory Feature
To create a new memory profile, perform the following:
NOTE:Saving a new memory profile will erase an
existing profile from memory.
1. Adjust all memory profile settings to desired prefer-
ences (i.e. seat, side mirror, adjustable pedals [if
equipped], power tilt and telescopic steering column [if
equipped], and radio station presets).
Memory Switch
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

2. Press and release the Set (S) button on the memory
switch, then press the side of the rocker switch labeled (1)
within 5 seconds. The Electronic Vehicle Information
Center (EVIC) — if equipped will display which memory
position is being set.
If desired, a second memory profile can be stored into
memory as follows:
1. Adjust all memory profile settings to desired prefer-
ences (i.e. seat, side mirror, adjustable pedals [if
equipped], power tilt and telescopic steering column [if
equipped], and radio station presets).
2. Press and release the Set (S) button on the memory
switch, then press the side of the rocker switch labeled (2)
within 5 seconds. The Electronic Vehicle Information
Center (EVIC) — if equipped will display which memory
position is being set.
NOTE:Memory profiles can be set without the vehicle
in Park, but the vehicle must be in Park to recall a
memory profile.
NOTE:The Recall Memory with Remote Key Unlock
feature can be enabled through the Electronic VehicleInformation Center (EVIC) — if equipped. For details,
refer to “Personal Settings (Customer Programmable
Features)” under “Electronic Vehicle Information Center
(EVIC)” in Section 4 of this manual.
Linking & Unlinking the Remote Keyless
Transmitter to the Memory Feature
Your Remote Keyless Entry Transmitters can be pro-
grammed to recall one of two pre-programmed memory
profiles by pressing the UNLOCK button on the Remote
Keyless Entry Transmitter.
To program your transmitters, perform the following:
1. Remove key from ignition.
2. Select desired memory profile 1 or 2.
3. Press and release the Set (S) button on the memory
switch, then press and release the side of the rocker
switch labeled 1 or 2 accordingly.Memory Profile Set” (1
or 2) will display in the instrument cluster on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3
ProCarManuals.com

4. Press and release the LOCK button on the transmitter
within 10 seconds.
NOTE:Your transmitters can be unlinked to your
memory settings by pressing the Set (S) button followed
by the UNLOCK button on the transmitter in Step 4
above.
Memory Position Recall
NOTE:
The vehicle must be in Park to recall memory
positions. If a recall is attempted when the vehicle is not
in Park, a message will display in the Electronic Vehicle
Information Center (EVIC) — if equipped.
To recall the memory settings for driver one, press
memory button number 1 on the driver’s door or the
“Unlock” button on the Remote Keyless Entry transmit-
ter linked to memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver’s door or the
“Unlock” button on the Remote Keyless Entry transmit-
ter linked to memory position 2.A recall can be cancelled by pressing any of the memory
buttons (S, 1, or 2) on the drivers door during a recall.
When a recall is cancelled, the driver seat, side mirror,
adjustable pedals (if equipped), and power tilt and
telescopic steering column (if equipped) stop moving. A
delay of one second will occur before another recall can
be selected.
Easy Entry/Exit Seat (Available with Memory Seat
Only)
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle.
The distance the driver seat moves depends on where
you have the driver seat positioned when you remove the
key from the ignition switch.
•When you remove the key from the ignition switch,
the driver seat will move about 2.4 inches (60 mm)
rearward if the driver seat position is greater than or
equal to 3.5 inches (90 mm) forward of the rear stop.
The seat will return to its previously set position when
you insert the key into the ignition switch and turn it
out of the LOCK position.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
