check transmission fluid CHRYSLER 300 LX 2007 Owners Manual

Towing Tips
Before setting out on a trip, practice turning, stopping,
and backing the trailer in an area located away from
heavy traffic.
Towing Tips — Automatic Transmission
The “D” range can be selected when towing. However, if
frequent shifting occurs while in this range, the “3” range
should be selected.
NOTE:Using the “3” range while operating the vehicle
under heavy operating conditions will improve perfor-
mance and extend transmission life by reducing exces-
sive shifting and heat build up. This action will also
provide better engine braking.
The automatic transmission fluid and filter should be
changed if you REGULARLY tow a trailer for more than
45 minutes of continuous operation. See Schedule “B” in
section 8 of this manual for transmission fluid change
intervals.
NOTE:Check the automatic transmission fluid level
before towing.
Towing Tips — Electronic Speed Control (If
Equipped)

Don’t use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
7 - Pin Connector
308 STARTING AND OPERATING
ProCarManuals.com

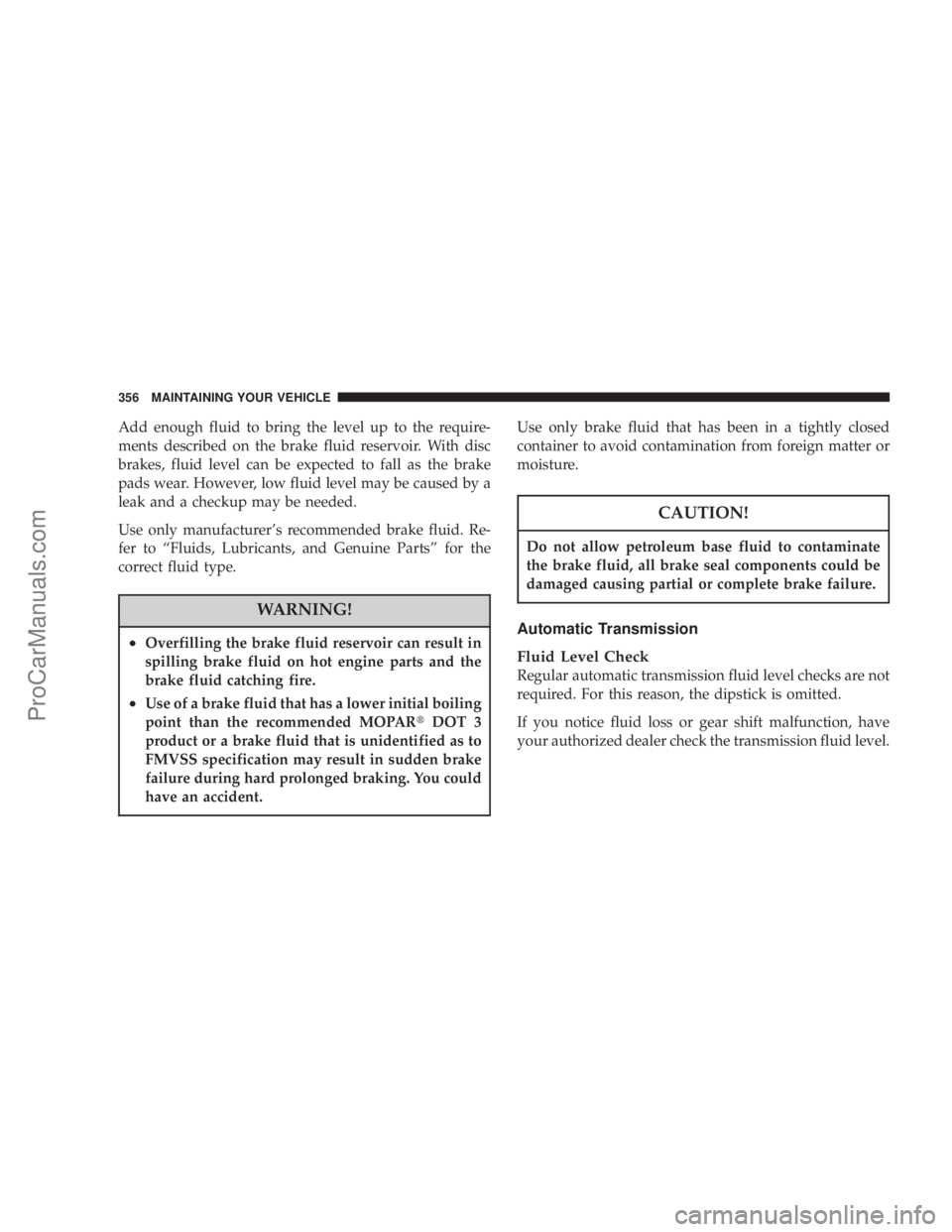

Add enough fluid to bring the level up to the require-
ments described on the brake fluid reservoir. With disc
brakes, fluid level can be expected to fall as the brake
pads wear. However, low fluid level may be caused by a
leak and a checkup may be needed.
Use only manufacturer’s recommended brake fluid. Re-
fer to “Fluids, Lubricants, and Genuine Parts” for the
correct fluid type.
WARNING!
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts and the
brake fluid catching fire.
•Use of a brake fluid that has a lower initial boiling
point than the recommended MOPARDOT 3
product or a brake fluid that is unidentified as to
FMVSS specification may result in sudden brake
failure during hard prolonged braking. You could
have an accident.
Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
CAUTION!
Do not allow petroleum base fluid to contaminate
the brake fluid, all brake seal components could be
damaged causing partial or complete brake failure.
Automatic Transmission
Fluid Level Check
Regular automatic transmission fluid level checks are not
required. For this reason, the dipstick is omitted.
If you notice fluid loss or gear shift malfunction, have
your authorized dealer check the transmission fluid level.
356 MAINTAINING YOUR VEHICLE
ProCarManuals.com

Miles 57,000 60,000 63,000 66,000 69,000 72,000
(Kilometers) (95 000) (100 000) (105 000) (110 000) (115 000) (120 000)
Change engine oil and engine oil filter, if not
replaced at 3 months.XXXXX X
Inspect theair cleaner filterand replace if re-
quired.*X XXX X
Replace theair cleaner filter.X
Replace thespark plugs.5.7L Engine. X
Inspect the front and rear brake linings and
rotors.XX
Check and Inspect the accessory drive belt
and tensioner. Replace if required.X
Check and replace, if necessary, thePCV
valve.*‡X
Change the automatic transmission fluid and
filter.X
Replace the air conditioning filter. X X
Flush and replace engine coolant at 60 months
if not done at 102,000 miles.X
Rotate the tires. X X X
SCHEDULE “B” 393
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
ProCarManuals.com

Miles 108,000 111,000 114,000 117,000 120,000
(Kilometers) (180 000) (185 000) (190 000) (195 000) (200 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months.XXXXX
Inspect theair cleaner filterand replace if re-
quired.*XXXX
Replace theair cleaner filter.X
Inspect the front and rear brake linings and rotors. X X
Replace thespark plugs.5.7L Engine. X
Check and replace, if necessary, thePCV valve.*X
Change the automatic transmission fluid and filter. X
Replace the air conditioning filter. X X
Flush and replace the engine coolant at 120 months,
if not replaced at 102,000 miles.X
Rotate the tires. X X X
396 SCHEDULE “B”
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
ProCarManuals.com

Autostick........................... 249
Fluid and Filter Changes................ 357
Fluid Change........................ 357
Fluid Level Check..................... 356
Fluid Type.......................... 384
Gear Ranges......................... 241
Shifting..........................240,245
Special Additives..................... 357
Torque Converter..................... 243
Automatic Transmission Limp Home Mode . . . 244
Autostick..........................247,249
Ball Joints............................ 346
Battery............................... 343
Emergency Starting.................... 322
Jump Starting........................ 322
Keyless Transmitter Replacement (RKE)..... 21
Location.........................322,343
Bearings.............................. 358
Belts, Drive........................... 340
Belts, Seat............................. 33
Body Mechanism Lubrication.............. 346
B-Pillar Location....................... 267Brake Assist System..................... 258
Brake, Parking......................... 251
Brake System.......................253,354
Anti-Lock (ABS)...................... 253
Fluid Check......................355,384
Hoses.............................. 354
Master Cylinder...................... 355
Parking............................ 251
Warning Light....................165,253
Brakes............................... 253
Brake/Transmission Interlock.............. 240
Break-In Recommendations, New Vehicle...... 58
Bulb Replacement...................... 372
Bulbs, Light........................... 371
Calibration, Compass.................... 178
Capacities, Fluid....................... 382
Caps, Filler
Fuel............................... 293
Oil (Engine)......................338,339
Radiator (Coolant Pressure).............. 351
Car Washes........................... 359
Carbon Monoxide Warning.............59,292
INDEX 415
