cruise control CHRYSLER 300 LX 2007 Owners Manual

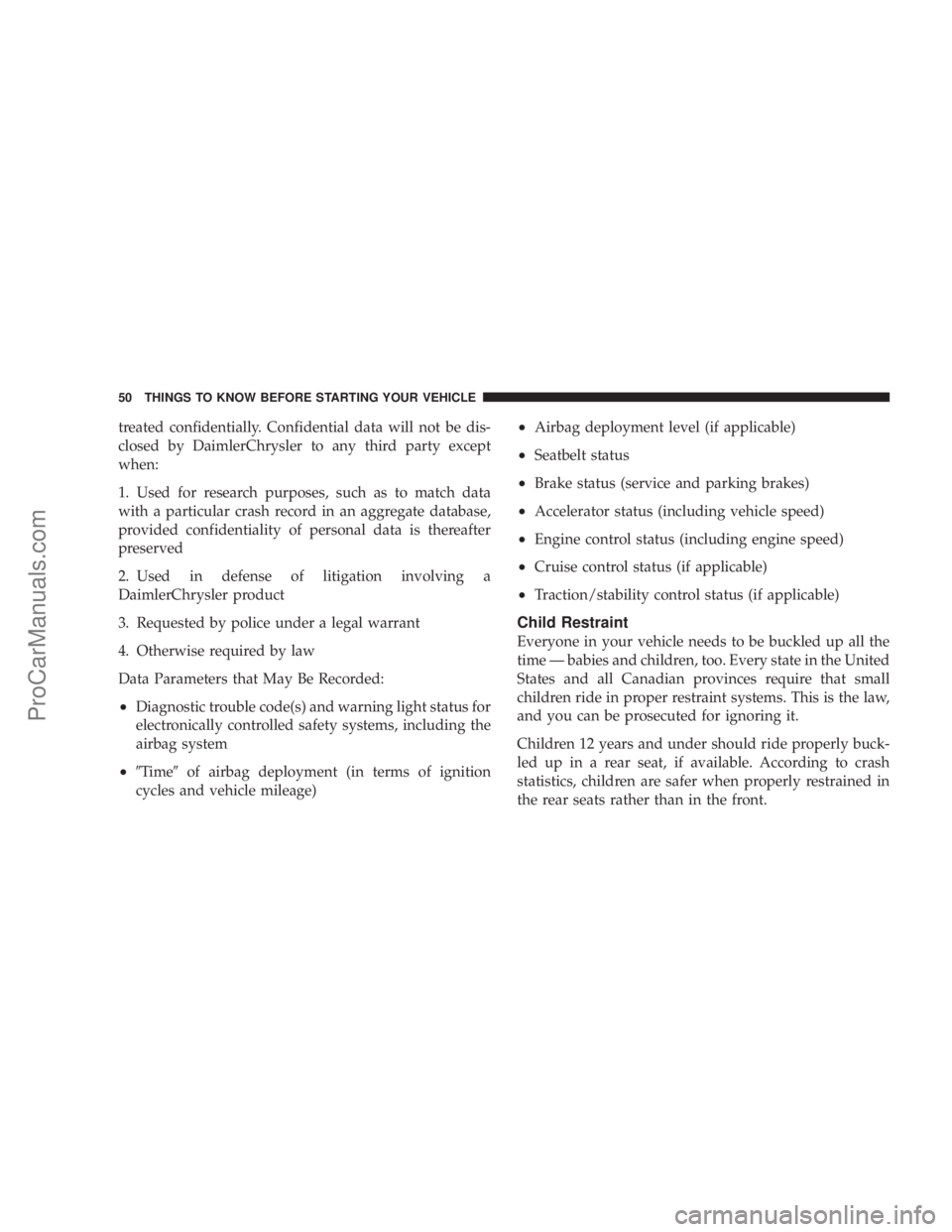

treated confidentially. Confidential data will not be dis-
closed by DaimlerChrysler to any third party except
when:
1. Used for research purposes, such as to match data
with a particular crash record in an aggregate database,
provided confidentiality of personal data is thereafter
preserved
2. Used in defense of litigation involving a
DaimlerChrysler product
3. Requested by police under a legal warrant
4. Otherwise required by law
Data Parameters that May Be Recorded:
•Diagnostic trouble code(s) and warning light status for
electronically controlled safety systems, including the
airbag system
•Timeof airbag deployment (in terms of ignition
cycles and vehicle mileage)
•Airbag deployment level (if applicable)
•Seatbelt status
•Brake status (service and parking brakes)
•Accelerator status (including vehicle speed)
•Engine control status (including engine speed)
•Cruise control status (if applicable)
•Traction/stability control status (if applicable)
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time — babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.
Children 12 years and under should ride properly buck-
led up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

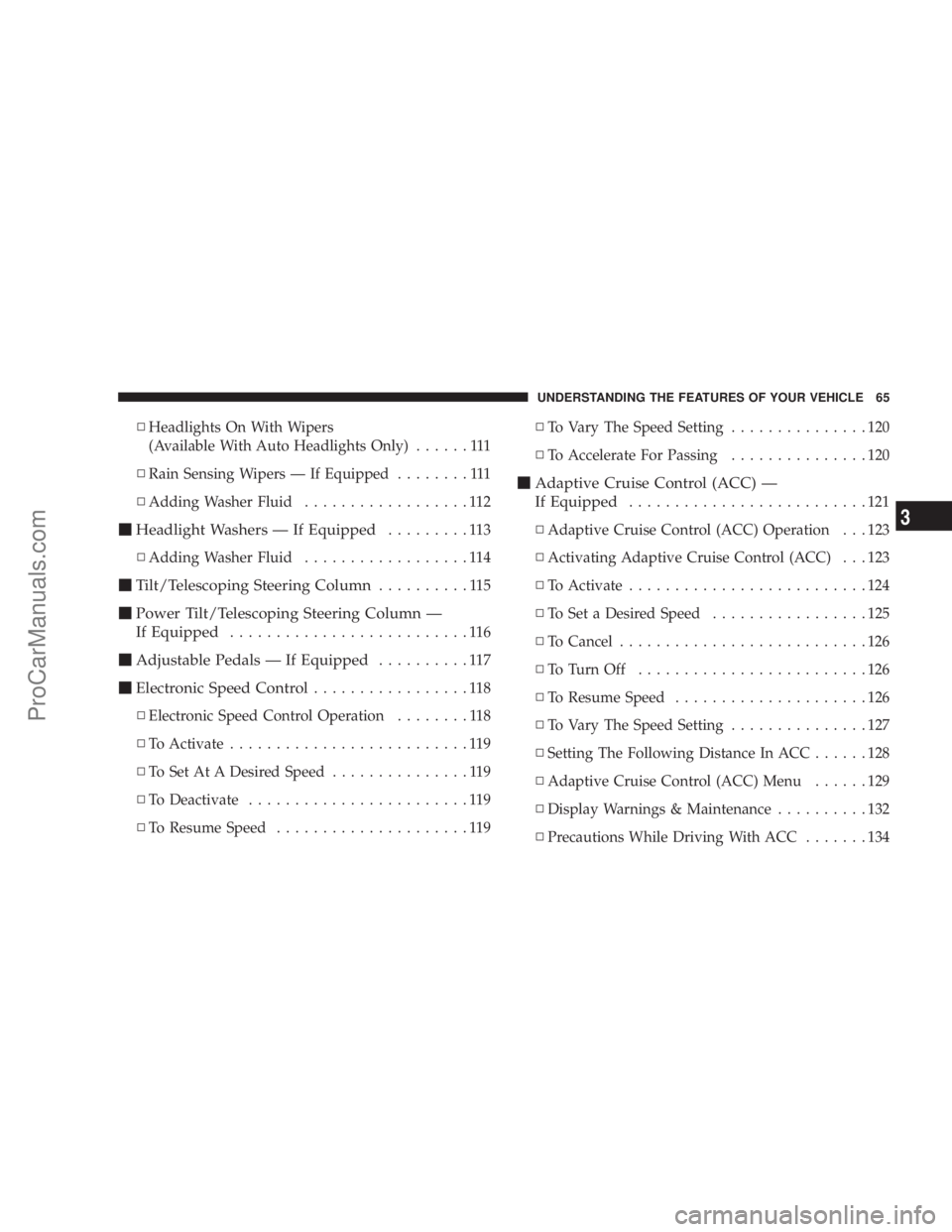

▫Headlights On With Wipers
(Available With Auto Headlights Only)......111
▫Rain Sensing Wipers — If Equipped........111
▫Adding Washer Fluid..................112
Headlight Washers — If Equipped.........113
▫Adding Washer Fluid..................114
Tilt/Telescoping Steering Column..........115
Power Tilt/Telescoping Steering Column —
If Equipped
..........................116
Adjustable Pedals — If Equipped..........117
Electronic Speed Control.................118
▫Electronic Speed Control Operation........118
▫To Activate..........................119
▫To Set At A Desired Speed...............119
▫To Deactivate........................119
▫To Resume Speed.....................119▫To Vary The Speed Setting...............120
▫To Accelerate For Passing...............120
Adaptive Cruise Control (ACC) —
If Equipped
..........................121
▫Adaptive Cruise Control (ACC) Operation . . . 123
▫Activating Adaptive Cruise Control (ACC) . . . 123
▫To Activate..........................124
▫To Set a Desired Speed.................125
▫To Cancel...........................126
▫ToTurnOff .........................126
▫To Resume Speed.....................126
▫To Vary The Speed Setting...............127
▫Setting The Following Distance In ACC......128
▫Adaptive Cruise Control (ACC) Menu......129
▫Display Warnings & Maintenance..........132
▫Precautions While Driving With ACC.......134
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 65
3
ProCarManuals.com

ADJUSTABLE PEDALS — IF EQUIPPED
The adjustable pedals system is designed to allow a
greater range of driver comfort for steering wheel tilt and
seat position. This feature allows both the brake and
accelerator pedal to move toward or away from the
driver to provide improved position with the steering
wheel. The switch is located on the front side of the
driver’s seat cushion side shield.
Press the switch forward to move the pedals forward
(toward the front of the vehicle).Press the switch rearward to move the pedals rearward
(toward the driver).
•The pedals can be adjusted with the ignition OFF.
•The pedals can be adjusted while driving.
•The pedalscannotbe adjusted when the vehicle is in R
(Reverse) or when the Speed Control is ON. One of the
following messages will display in the Electronic Ve-
hicle Information Center (EVIC) — if equipped if a
pedal adjustment is attempted when the system is
locked out: “Adjustable Pedal Disabled — Cruise
Control Engaged” or “Adjustable Pedal Disabled —
Vehicle In Reverse.”
NOTE:For vehicles equipped with Driver Memory
Seat, you can use your remote keyless entry transmitter
or the memory switch on the driver’s door panel to
return the adjustable pedals to pre-programmed posi-
tions. Refer to “Driver Memory Seat” in this section for
details.
Adjustable Pedal Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3
ProCarManuals.com

WARNING!
Speed Control can be dangerous where the system
can’t maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control. An accident could be the result. Don’t use
Speed Control in heavy traffic or on roads that are
winding, icy, snow-covered, or slippery.
ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED
Adaptive Cruise Control (ACC) increases the driving
convenience provided by cruise control while traveling
on highways and major roadways. However, it is not a
safety system and not designed to prevent collisions.ACC will allow you to keep cruise control engaged in
light to moderate traffic conditions without the constant
need to reset your cruise control. ACC utilizes an infrared
sensor designed to detect a vehicle directly ahead in your
path within a distance of 328 ft (100 m).
NOTE:
•
If the sensor does not detect a vehicle directly ahead of
you, ACC will function in the same way as standard
cruise control system. For additional information, refer
to “Electronic Speed Control” in this section.
•If the ACC sensor detects a vehicle ahead, ACC will
apply limited braking or acceleration automatically so
that your vehicle maintains a preset following dis-
tance.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3
ProCarManuals.com

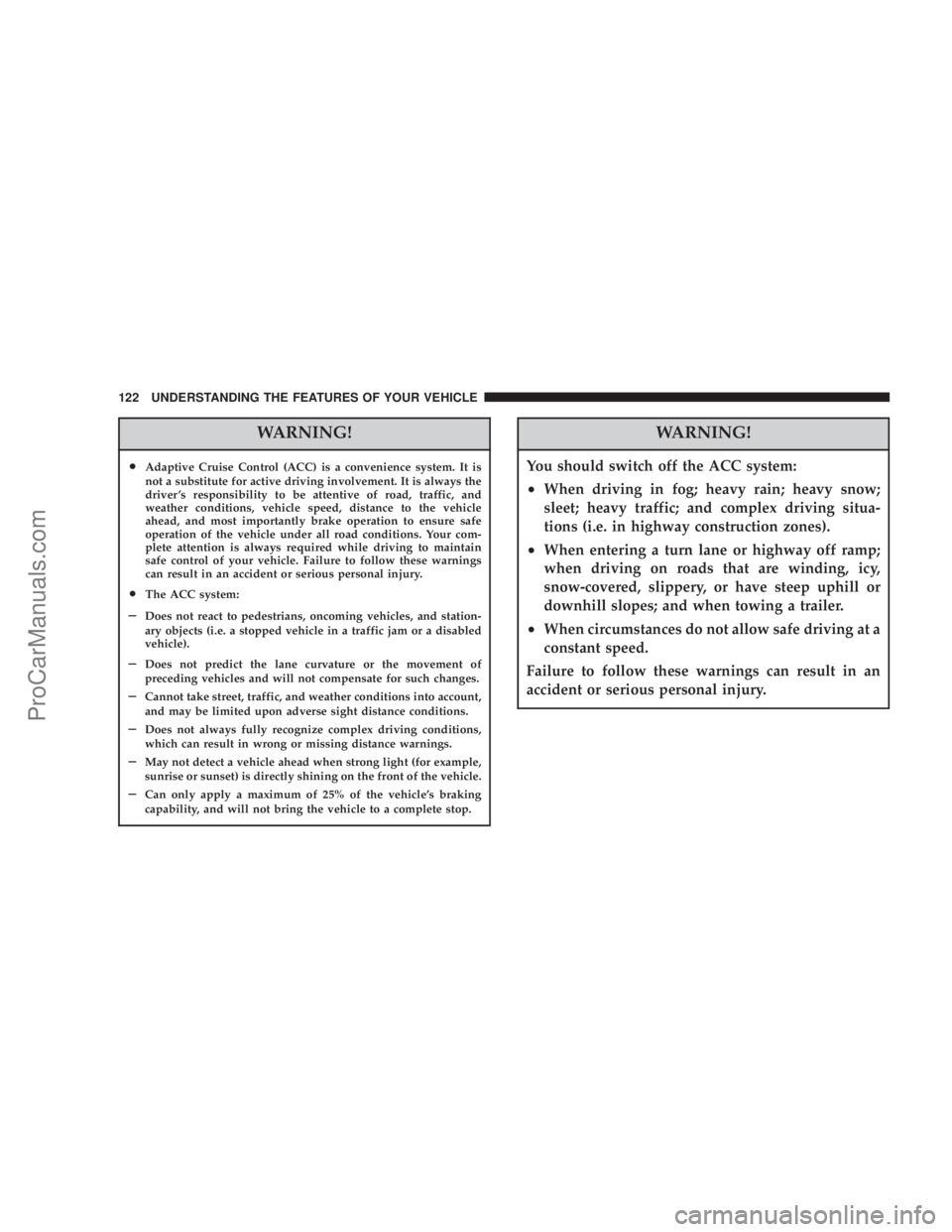

WARNING!
•Adaptive Cruise Control (ACC) is a convenience system. It is
not a substitute for active driving involvement. It is always the
driver ’s responsibility to be attentive of road, traffic, and
weather conditions, vehicle speed, distance to the vehicle
ahead, and most importantly brake operation to ensure safe
operation of the vehicle under all road conditions. Your com-
plete attention is always required while driving to maintain
safe control of your vehicle. Failure to follow these warnings
can result in an accident or serious personal injury.
•The ACC system:
Does not react to pedestrians, oncoming vehicles, and station-
ary objects (i.e. a stopped vehicle in a traffic jam or a disabled
vehicle).
Does not predict the lane curvature or the movement of
preceding vehicles and will not compensate for such changes.
Cannot take street, traffic, and weather conditions into account,
and may be limited upon adverse sight distance conditions.
Does not always fully recognize complex driving conditions,
which can result in wrong or missing distance warnings.
May not detect a vehicle ahead when strong light (for example,
sunrise or sunset) is directly shining on the front of the vehicle.
Can only apply a maximum of 25% of the vehicle’s braking
capability, and will not bring the vehicle to a complete stop.
WARNING!
You should switch off the ACC system:
•When driving in fog; heavy rain; heavy snow;
sleet; heavy traffic; and complex driving situa-
tions (i.e. in highway construction zones).
•When entering a turn lane or highway off ramp;
when driving on roads that are winding, icy,
snow-covered, slippery, or have steep uphill or
downhill slopes; and when towing a trailer.
•When circumstances do not allow safe driving at a
constant speed.
Failure to follow these warnings can result in an
accident or serious personal injury.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

Adaptive Cruise Control (ACC) Operation
The speed control lever (located on the left side of the
steering column) operates the ACC system.
Activating Adaptive Cruise Control (ACC)
You can only activate ACC if the vehicle speed is between
25 mph and 100 mph (Canada 30 km/h and 180 km/h).
When the system is turned on and in the READY state,
the Electronic Vehicle Information Center (EVIC) dis-
plays “ACC READY.”
When the system is OFF, the EVIC displays “ACC OFF.”
NOTE:You cannot enable ACC under the following
conditions:
•When you apply the brakes.
•When the parking brake is set.
•When the automatic transmission is in P (Park), R
(Reverse), or N (Neutral).
•When the Electronic Stability Program (ESP) is
switched off.
•When pressing the RES/ACCEL switch without a
previously set speed in memory.
1 — RESUME/ACCEL
2 — SET/DECEL
3 — CANCEL
4 — DISTANCE SETTING
5 — ON/OFFUNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3
ProCarManuals.com

To Activate:
Push the speed control lever inward (toward the steering
column) and release (“ON/OFF”). The ACC menu in the
EVIC displays “ACC READY.”To turn the system OFF, push the lever inward (toward
the steering column) again and release. At this time, the
system will turn off and the EVIC will display “ACC
OFF.”
WARNING!
Leaving the Adaptive Cruise Control (ACC) system
on when not in use is dangerous. You could acciden-
tally set the system or cause it to go faster than you
want. You could lose control and have an accident.
Always leave the system OFF when you aren’t using
it.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

A Proximity Warning will alert the driver if ACC predicts
that its maximum braking level is not sufficient to
maintain the set distance. If this occurs, a visual alert
(“ATTENTION”) will flash in the EVIC and a chime will
sound while ACC continues to apply its maximum
braking capacity. When this occurs, you should immedi-
ately apply the brakes as needed to maintain a safe
distance from the vehicle ahead.Adaptive Cruise Control (ACC) Menu
The EVIC displays the current ACC system settings. The
EVIC is located in the upper part of the instrument
cluster between the speedometer and the tachometer. The
information it displays depends on ACC system status.
Press the Menu button (located on the steering
wheel) repeatedly until one of the following
displays in the EVIC:
Menu
Button
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3
ProCarManuals.com

INSTRUMENT CLUSTER DESCRIPTIONS
1. Electronic Speed Control/Adaptive Cruise Control
(ACC) Indicator Light — If Equipped
This light will turn on when the electronic
speed control or ACC is ON. (See page 118
for more information.) (See page 121 for
more information.)
2. Low Fuel Indicator Light
This light will turn on and a single chime will
sound when the fuel level drops to 1/8 tank. (See
page 293 for more information.)
3. Front Fog Light Indicator — If Equipped
This light will turn on when the front fog lights
are ON. (See page 106 for more information.)
4. Turn Signal Indicators
The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
NOTE:
A continuous chime will sound if the vehicle is
driven more than 1 mile (1.6 km) with either turn signal
on.
NOTE:Check for a defective outside light bulb if either
indicator flashes at a rapid rate. (See page 107 for more
information.)
5. Speedometer
Indicates vehicle speed.
6. Electronic Vehicle Information Center Display
This display shows the Electronic Vehicle Information
Center (EVIC) messages when the appropriate conditions
exist. (See page 171 for more information.) (only on
vehicles equipped with steering wheel mounted
switches).
NOTE:On non-EVIC equipped vehicles, the odometer
is located here.
Loose Fuel Filler Cap
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“Check Gascap” message will display in the Electronic
Vehicle Information Center (EVIC) — if equipped.
UNDERSTANDING YOUR INSTRUMENT PANEL 163
4
ProCarManuals.com

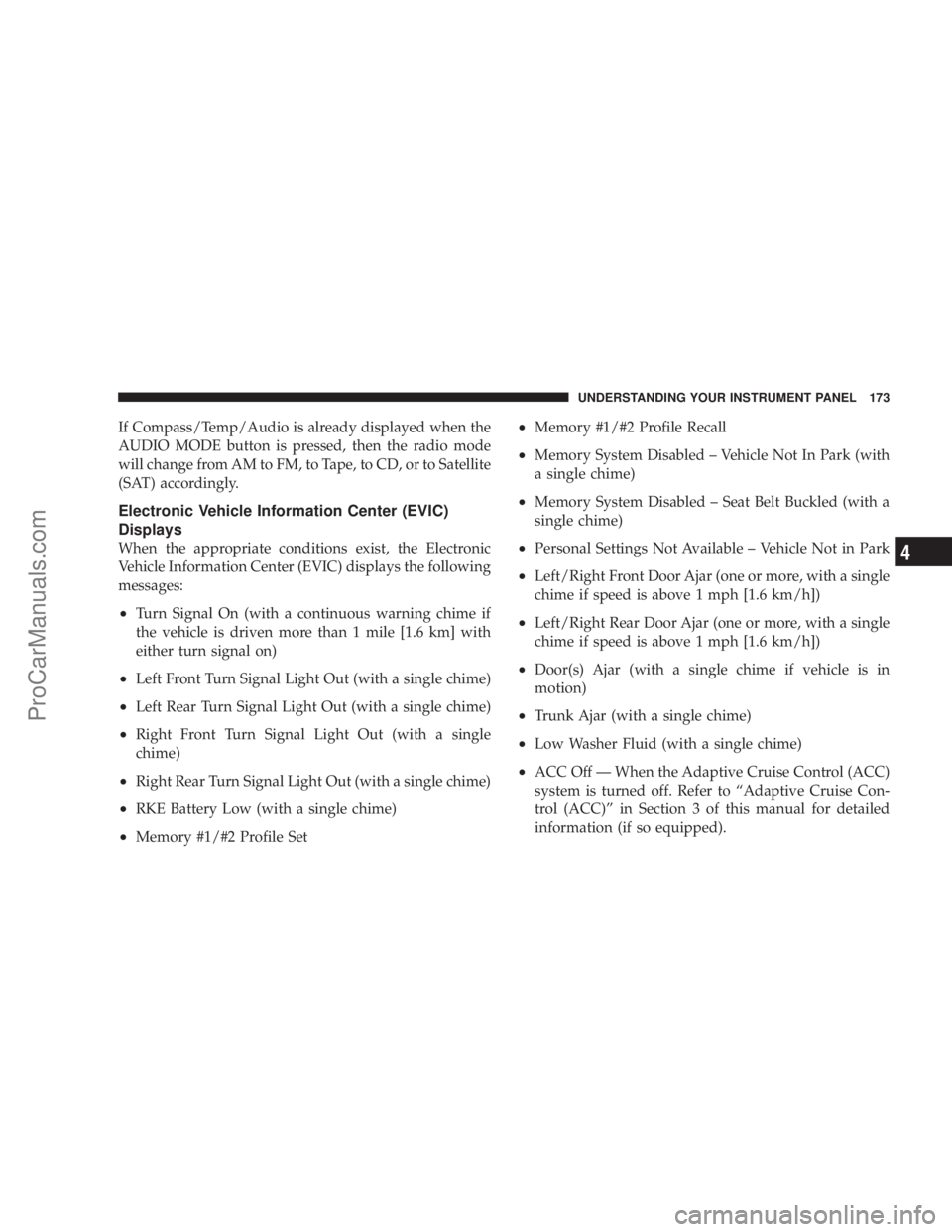

If Compass/Temp/Audio is already displayed when the
AUDIO MODE button is pressed, then the radio mode
will change from AM to FM, to Tape, to CD, or to Satellite
(SAT) accordingly.
Electronic Vehicle Information Center (EVIC)
Displays
When the appropriate conditions exist, the Electronic
Vehicle Information Center (EVIC) displays the following
messages:
•Turn Signal On (with a continuous warning chime if
the vehicle is driven more than 1 mile [1.6 km] with
either turn signal on)
•Left Front Turn Signal Light Out (with a single chime)
•Left Rear Turn Signal Light Out (with a single chime)
•Right Front Turn Signal Light Out (with a single
chime)
•Right Rear Turn Signal Light Out (with a single chime)
•RKE Battery Low (with a single chime)
•Memory #1/#2 Profile Set
•Memory #1/#2 Profile Recall
•Memory System Disabled – Vehicle Not In Park (with
a single chime)
•Memory System Disabled – Seat Belt Buckled (with a
single chime)
•Personal Settings Not Available – Vehicle Not in Park
•Left/Right Front Door Ajar (one or more, with a single
chime if speed is above 1 mph [1.6 km/h])
•Left/Right Rear Door Ajar (one or more, with a single
chime if speed is above 1 mph [1.6 km/h])
•Door(s) Ajar (with a single chime if vehicle is in
motion)
•Trunk Ajar (with a single chime)
•Low Washer Fluid (with a single chime)
•ACC Off — When the Adaptive Cruise Control (ACC)
system is turned off. Refer to “Adaptive Cruise Con-
trol (ACC)” in Section 3 of this manual for detailed
information (if so equipped).
UNDERSTANDING YOUR INSTRUMENT PANEL 173
4
ProCarManuals.com
