trunk release CHRYSLER 300 LX 2007 Owners Manual

▫Power Door Locks.....................23
▫Child Protection Door Lock...............25
Windows.............................27
▫Power Windows.......................27
▫Wind Buffeting........................30
Trunk Lock And Release..................31
Trunk Safety Warning....................31
▫Trunk Emergency Release................32
Occupant Restraints.....................32
▫Lap/Shoulder Belts.....................33
▫Lap/Shoulder Belt Untwisting Procedure.....38
▫Seat Belt Pretensioners...................38
▫Enhanced Seat Belt Reminder System
(BeltAlert)...........................38
▫Automatic Locking Mode — If Equipped.....39▫Seat Belts And Pregnant Women............40
▫Seat Belt Extender......................40
▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag............41
▫Event Data Recorder (EDR)...............49
▫Child Restraint........................50
Engine Break-In Recommendations..........58
Safety Tips............................59
▫Transporting Passengers.................59
▫Lock Your Vehicle......................59
▫Exhaust Gas..........................59
▫Safety Checks You Should Make Inside The
Vehicle..............................60
▫Periodic Safety Checks You Should Make
Outside The Vehicle....................61
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

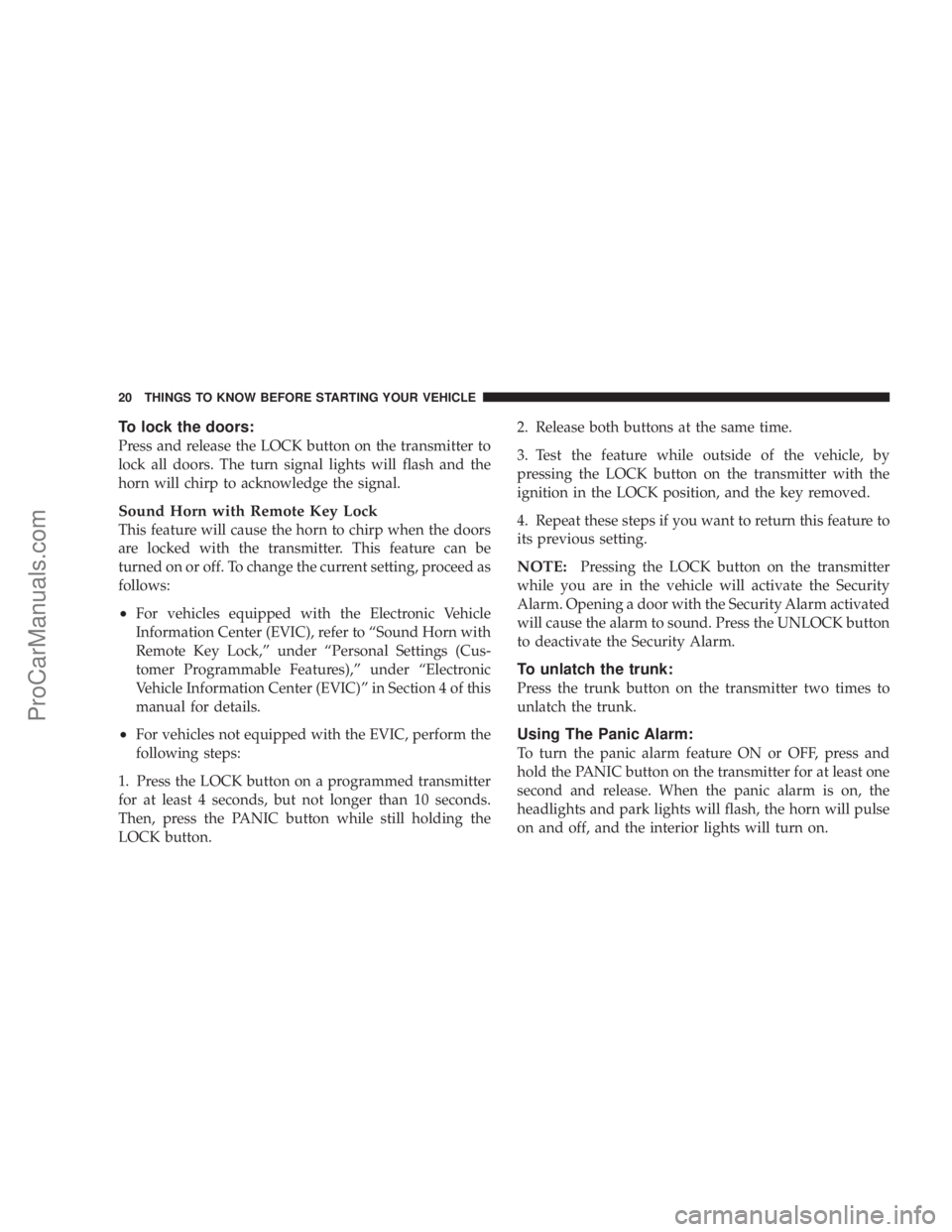

To lock the doors:
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Sound Horn with
Remote Key Lock,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic
Vehicle Information Center (EVIC)” in Section 4 of this
manual for details.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed transmitter
for at least 4 seconds, but not longer than 10 seconds.
Then, press the PANIC button while still holding the
LOCK button.2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK button on the transmitter with the
ignition in the LOCK position, and the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
To unlatch the trunk:
Press the trunk button on the transmitter two times to
unlatch the trunk.
Using The Panic Alarm:
To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

buffeting occurs with the sunroof open, then adjust the
sunroof opening to minimize the buffeting.
TRUNK LOCK AND RELEASE
The trunk lid can be released from inside the vehicle by
pressing the Trunk Release Button located on the instru-
ment panel to the left of the steering wheel.
NOTE:The transmission must be in Park before the
switch will operate.The trunk lid can be released from outside the vehicle by
pressing the trunk button on the Remote Keyless Entry
Transmitter two times.
With the ignition ON, the trunk open symbol will display
in the instrument cluster indicating that the trunk is
open. The odometer display will reappear once the trunk
is closed.
With the key in the lock position or key out, the trunk
open symbol will display until the trunk is closed.
TRUNK SAFETY WARNING
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke.
Trunk Release Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
ProCarManuals.com

Trunk Emergency Release
The trunk of your vehicle is equipped with an emergency
release handle. It is located on the inside of the trunk lid,
near the latch, and is coated so that it glows in a darkened
trunk. Pull on the handle to open the trunk.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and front passenger and, if so
equipped, side curtain airbags for the driver and passen-
gers seated next to a window. If you will be carrying
children too small for adult-size belts, your seat belts also
can be used to hold infant and child restraint systems.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.
Emergency Release
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

INSTRUMENT PANEL AND CONTROLS
1 — Air Outlet 7 — Radio 13 — Ignition Switch
2 — Instrument Cluster 8 — Climate Control 14 — Hood Release
3 — Hazard Switch 9 — Heated Seat Switch* 15 — Trunk Release Switch
4 — Analog Clock 10 — Power Outlet 16 — Headlight Switch
5 — Electronic Stability Program Off Button*
/ Traction Control System Off Button*11 — Ash Tray* * If Equipped
6 — Glove Box 12 — Storage Compartment*
160 UNDERSTANDING YOUR INSTRUMENT PANEL
ProCarManuals.com

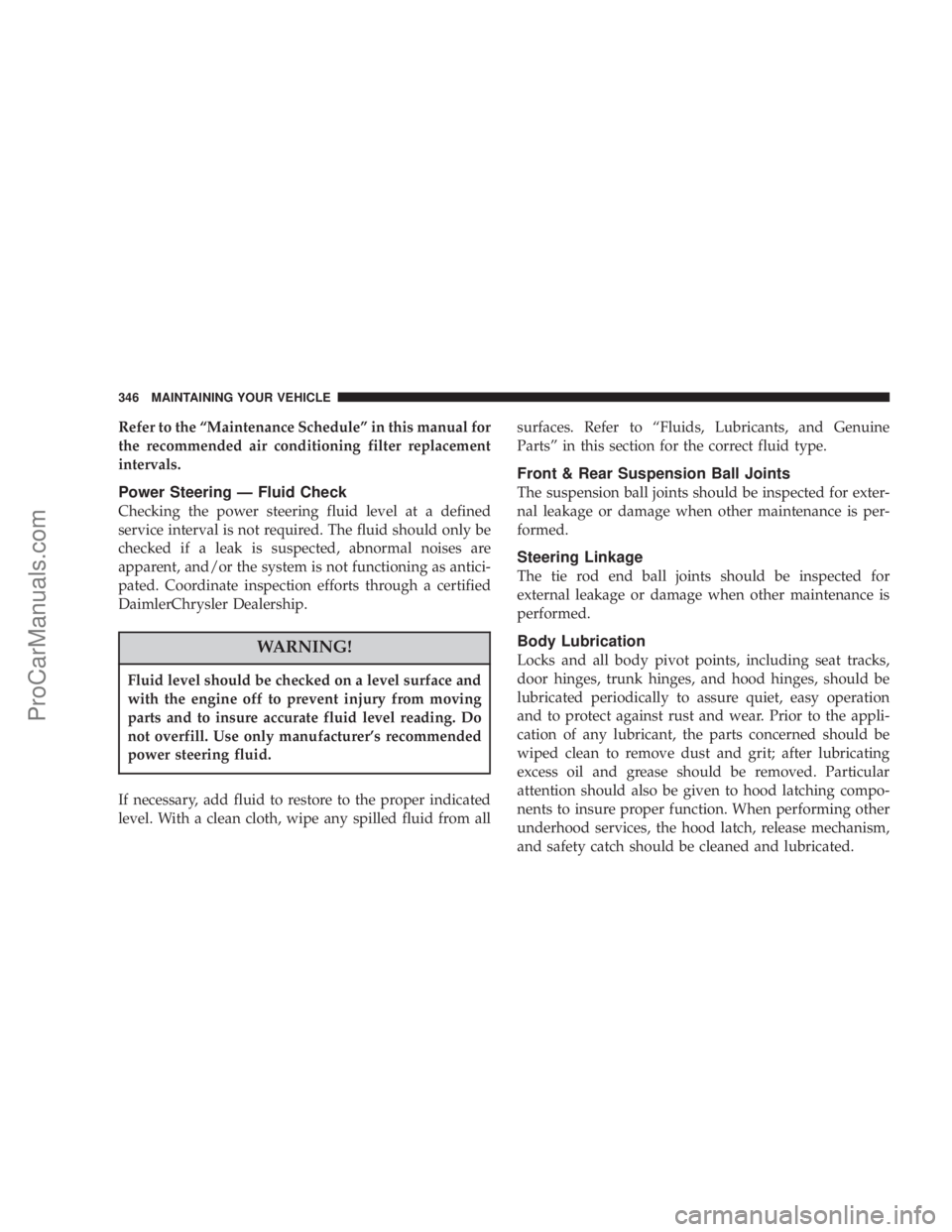

Refer to the “Maintenance Schedule” in this manual for
the recommended air conditioning filter replacement
intervals.
Power Steering — Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be
checked if a leak is suspected, abnormal noises are
apparent, and/or the system is not functioning as antici-
pated. Coordinate inspection efforts through a certified
DaimlerChrysler Dealership.
WARNING!
Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to insure accurate fluid level reading. Do
not overfill. Use only manufacturer’s recommended
power steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from allsurfaces. Refer to “Fluids, Lubricants, and Genuine
Parts” in this section for the correct fluid type.
Front & Rear Suspension Ball Joints
The suspension ball joints should be inspected for exter-
nal leakage or damage when other maintenance is per-
formed.
Steering Linkage
The tie rod end ball joints should be inspected for
external leakage or damage when other maintenance is
performed.
Body Lubrication
Locks and all body pivot points, including seat tracks,
door hinges, trunk hinges, and hood hinges, should be
lubricated periodically to assure quiet, easy operation
and to protect against rust and wear. Prior to the appli-
cation of any lubricant, the parts concerned should be
wiped clean to remove dust and grit; after lubricating
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to insure proper function. When performing other
underhood services, the hood latch, release mechanism,
and safety catch should be cleaned and lubricated.
346 MAINTAINING YOUR VEHICLE
ProCarManuals.com

Outlet (Auxiliary Electrical Outlet)........ 149
Seats............................... 92
Steering.........................255,346
Steering, Checking.................... 346
Sunroof............................ 146
Tilt/Telescoping Steering Column......... 116
Windows............................ 27
Pregnant Women and Seat Belts............. 40
Preparation for Jacking................... 314
Pretensioners
Seat Belts............................ 38
Programmable Electronic Features....142,145,182
Programming Transmitters
(Remote Keyless Entry).............21,142,145
Radial Ply Tires........................ 274
Radiator Cap (Coolant Pressure Cap)........ 351
Radio Broadcast Signals.................. 187
Radio, Navigation...................... 206
Radio Operation..................188,195,219
Radio Remote Controls.................. 215
Radio, Satellite......................207,212
Radio (Sound Systems)................188,195Rain Sensitive Wiper System............... 111
Rear Park Assist System.................. 136
Rear Seat, Folding....................... 97
Rear Window Defroster.................. 229
Rear Window Features................... 229
Rearview Mirrors........................ 68
Reclining Front Seats..................... 93
Recorder, Event Data..................... 49
Recreational Towing..................... 309
Reformulated Gasoline................... 290
Refrigerant............................ 345
Reminder, Seat Belt...................... 38
Remote Keyless Entry (RKE)............... 17
Remote Sound System (Radio) Controls...... 215
Remote Trunk Release.................... 31
Replacement Parts...................... 334
Replacement Tires...................... 277
Reporting Safety Defects................. 409
Restraint, Head......................... 94
Restraints, Child........................ 50
Restraints, Occupant..................... 32
Rocking Vehicle When Stuck.............. 324
Rotation, Tires......................... 280
424 INDEX
ProCarManuals.com

Transmitter Battery Service
(Remote Keyless Entry)................... 21
Transmitter, Garage Door Opener
(HomeLink) .......................... 141
Transmitter Programming
(Remote Keyless Entry)................... 21
Transmitter, Remote Keyless Entry (RKE)...... 17
Transporting Pets........................ 58
Tread Wear Indicators................... 276
Trip Odometer......................... 167
Trunk Release, Emergency................. 32
Trunk Release Remote Control.............. 31
Turn Signals........................107,163
UConnect™ (Hands-Free Phone)............ 72
Uniform Tire Quality Grades.............. 410
Universal Transmitter.................... 141
Unleaded Gasoline...................... 289
Untwisting Procedure, Seat Belt............. 38
Vanity Mirrors.......................... 71
Variance, Compass...................... 179
Vehicle Certification Label................ 295Vehicle Identification Number (VIN).......... 6
Vehicle Loading..................268,295,297
Vehicle Modifications/Alterations............ 7
Vehicle Storage......................226,370
Vehicle Theft Alarm (Security Alarm)......... 15
Video Entertainment System
(Rear Seat Video System)................. 210
Warning Flasher, Hazard................. 312
Warning Lights
(Instrument Cluster Description)............ 163
Warnings and Cautions.................... 6
Warranty Information.................... 408
Washer, Adding Fluid.............. 112,114,347
Washers, Headlight..................... 113
Washers, Windshield................. 110,347
Washing Vehicle........................ 359
Wheel Alignment and Balance............. 278
Wheel and Wheel Trim................... 360
Wheel and Wheel Trim Care............... 360
Wheel Bearings........................ 358
Wind Buffeting......................30,148
Window Airbag (Side Curtain)............42,46
428 INDEX
ProCarManuals.com
