CHRYSLER 300 M 2004 1.G Owners Manual

Operating Tips
UNDERSTANDING YOUR INSTRUMENT PANEL 151
4

Outside Air Intake
Make sure that the air intake directly in front of the
windshield is free of obstructions. Leaves, snow, etc.,
could block air flow into the vehicle.
152 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
Starting Procedures....................155
▫Normal Starting......................155
▫Extremely Cold Weather
(Below -20°F Or -29°C).................155
▫If Engine Fails To Start.................156
▫After Starting........................157
Engine Block Heater — Optional U.S. And
Standard Canada
......................157
Automatic Transaxle....................157
▫Brake/Transmission Interlock.............157
▫Transaxle Reset Mode..................158
▫Gear Ranges.........................158
Autostick............................159
▫Autostick Operation...................159
▫Autostick General Information............160
Parking Brake.........................161
Brake System.........................162
▫Anti-Lock Brake System (ABS)............163
Power Steering........................163
Traction Control.......................163
Ti re s................................164
▫Tire Inflation Pressures.................165
▫Tire Pressure Monitor System — If Equipped . . 166
▫High Speed Operation..................168
5

▫Radial-Ply Tires......................168
▫Spare Tire Usage With Directional Tread Pattern
Tires (300M Special Only)...............169
▫Compact Spare Tire....................169
▫Tire Spinning........................170
▫Tire Chains..........................170
▫Snow Tires..........................170
▫Tread Wear Indicators..................171
▫Replacement Tires.....................172
▫Tire Rotation Recommendations...........173
▫Tire Rotation With Directional Tread Pattern Tires
(300M Special Only)...................173
▫Alignment And Balance.................174
Fuel Requirements.....................175▫300M..............................175
▫300M Special Only....................175
▫Reformulated Gasoline.................175
▫Gasoline/Oxygenate Blends..............176
▫MMT In Gasoline.....................176
▫Materials Added To Fuel................177
▫Sulfur In Gasoline.....................177
Adding Fuel..........................177
▫Fuel Filler Cap (Gas Cap)...............177
Vehicle Loading.......................179
▫Luggage Racks.......................179
Trailer Towing........................179
▫Warranty Requirements.................179
154 STARTING AND OPERATING

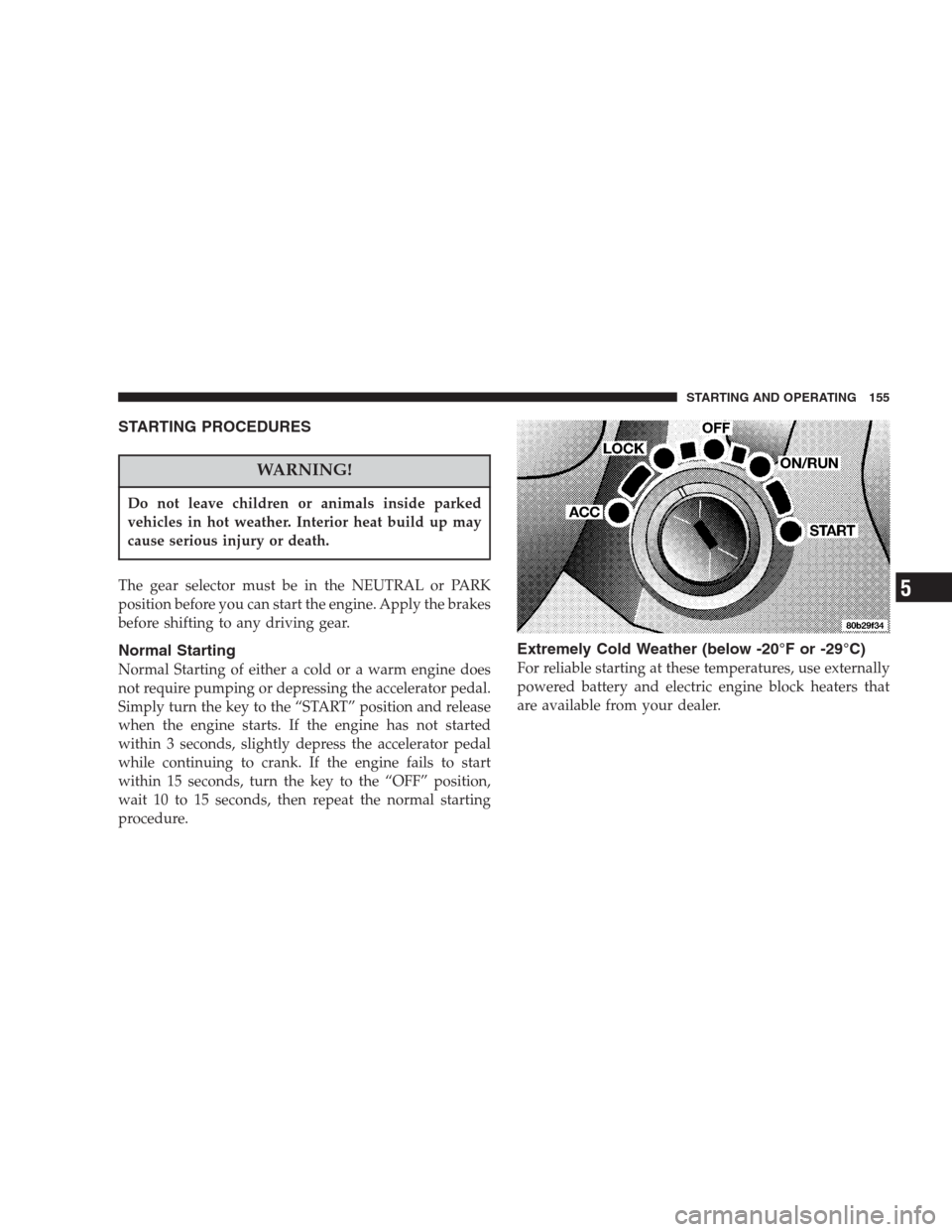

STARTING PROCEDURES
WARNING!
Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build up may
cause serious injury or death.
The gear selector must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting to any driving gear.
Normal Starting
Normal Starting of either a cold or a warm engine does
not require pumping or depressing the accelerator pedal.
Simply turn the key to the “START” position and release
when the engine starts. If the engine has not started
within 3 seconds, slightly depress the accelerator pedal
while continuing to crank. If the engine fails to start
within 15 seconds, turn the key to the “OFF” position,
wait 10 to 15 seconds, then repeat the normal starting
procedure.
Extremely Cold Weather (below -20°F or -29°C)
For reliable starting at these temperatures, use externally
powered battery and electric engine block heaters that
are available from your dealer.
STARTING AND OPERATING 155
5

If Engine Fails To Start
CAUTION!
Do not try to push or tow your vehicle to get it
started. Your vehicle cannot be started this way.
Pushing with another vehicle may damage the trans-
axle or the rear of your vehicle. See Section 6 of this
manual for the proper jump starting procedures.
WARNING!
Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
If the engine fails to start after following the Normal
Starting procedure, it may be flooded. Push the accelera-
tor pedal all the way to the floor and hold it there while
cranking the engine. This should clear any excess fuel in
case the engine is flooded.
CAUTION!
To prevent damage to the starter, do not crank the
engine for more than 15 seconds at a time. Wait 10 to
15 seconds before trying again.
If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key is
released. If this occurs, continue cranking with the accel-
erator pedal pushed all the way to the floor. Release the
accelerator pedal and the key once the engine is running
smoothly.
If the engine shows no sign of starting after two 15
second periods of cranking with the accelerator pedal
held to the floor, the Normal Starting procedure should
be repeated.
156 STARTING AND OPERATING

After Starting
The idle speed will automatically decrease as the engine
warms up.
ENGINE BLOCK HEATER — Optional U.S. and
Standard Canada
These heaters use a common power cord which is stored
under the hood, behind the Air Cleaner housing. Plug the
cord into any 110 volt AC outlet and both heaters will be
energized. Use the heaters when temperatures below 0°F
(-18°C) are expected to last for several days.
AUTOMATIC TRANSAXLE
Brake/Transmission Interlock
This interlock system prevents you from moving the gear
selector out of the Park position unless the brake pedal is
pressed. This system is active only while the key is in the
RUN position.
CAUTION!
Damage to the transaxle may occur if the following
precautions are not observed:
•Shift into PARK only after the vehicle has come to a
complete stop.
•Shift into or out of REVERSE only after the vehicle has
come to a complete stop and the engine is at idle
speed.
•Do not shift from REVERSE, PARK or NEUTRAL into
any forward gear when the engine is above idle speed.
•Before shifting into any gear, make sure your foot is
firmly on the brake pedal.
The electronically controlled transaxle provides a precise
shift schedule. The transaxle electronics are self-
calibrating. Therefore, the first few shifts on a new
vehicle may be somewhat abrupt. This is a normal
condition, and precision shifts will develop within a few
shift cycles.
STARTING AND OPERATING 157
5

Transaxle Reset Mode
The transaxle is monitored for abnormal conditions. If a
condition is detected that could cause damage, the trans-
axle automatically shifts into second gear. The transaxle
remains in second gear despite the forward gear selected.
Park (P), Reverse (R), and Neutral (N) will continue to
operate. This Reset feature allows the vehicle to be driven
to a dealer for service without damaging the transaxle.
If the problem has been momentary, the transaxle can be
reset to regain all forward gears.
•Stop the vehicle and shift into PARK (P).
•Turn the key to OFF then start the engine.
•Shift into “D” and resume driving.
NOTE:Even if the transaxle can be reset, we recom-
mend that you visit a dealer at your earliest possible
convenience. Your dealer has diagnostic equipment to
determine if the problem could recur.
If the transaxle cannot be reset, dealer service is required.
Gear Ranges
“P” Park
NOTE:
If the key is in the RUN position, you must
press the brake pedal to shift out of the “P” Park position.
Supplements the parking brake by locking the transaxle.
Engine can be started in this range. Never attempt to use
PARK while vehicle is in motion.
Apply parking brake when leaving vehicle in this range.
“R” Reverse
Shift into this range only after the vehicle has come to a
complete stop.
“N” Neutral
The engine may be started in this range. Use this range
for starting your vehicle if it is moving or is being towed.
“D” Overdrive
This range should be used for most city and highway
driving. It provides smoothest up shifts and down shifts
and best fuel economy.
158 STARTING AND OPERATING

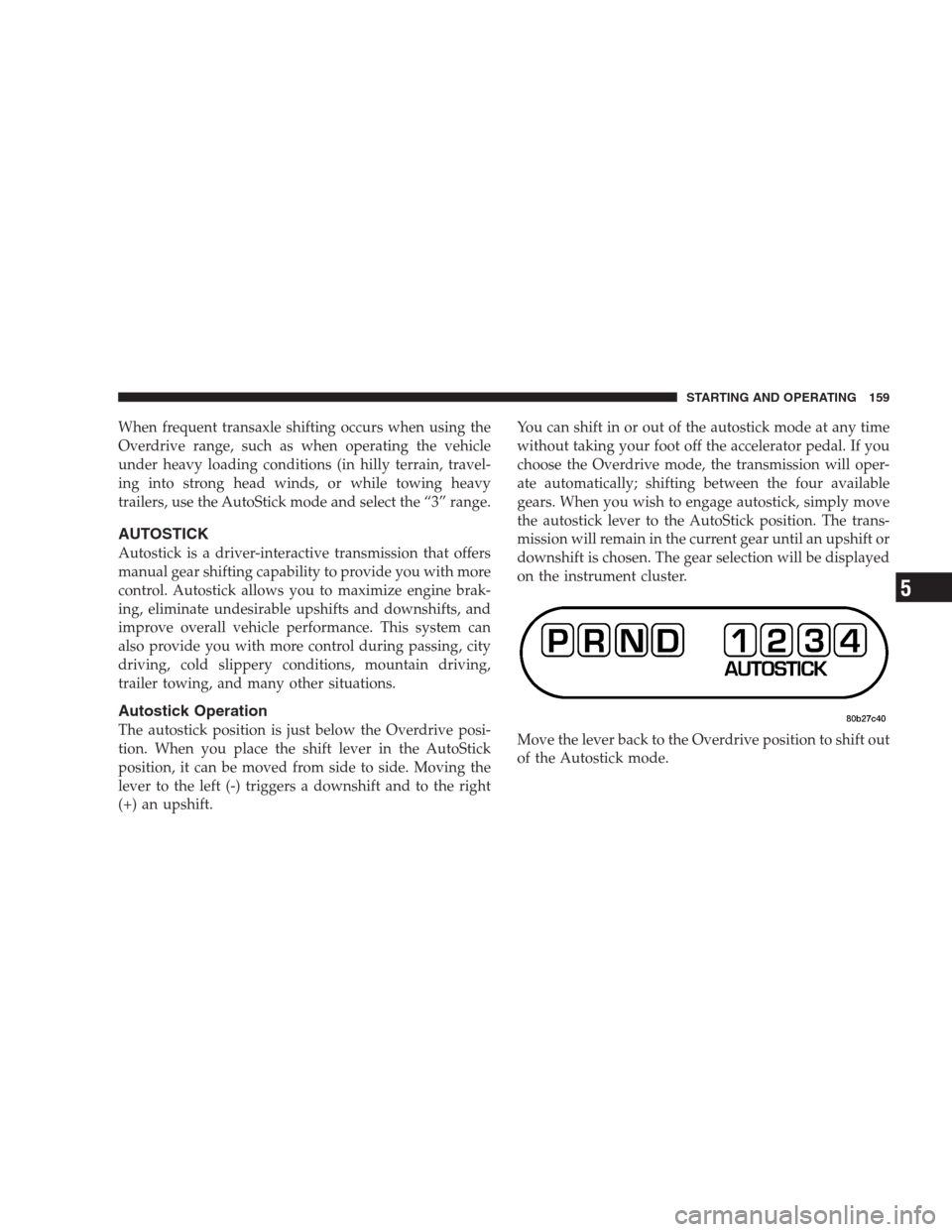

When frequent transaxle shifting occurs when using the
Overdrive range, such as when operating the vehicle
under heavy loading conditions (in hilly terrain, travel-
ing into strong head winds, or while towing heavy
trailers, use the AutoStick mode and select the “3” range.
AUTOSTICK
Autostick is a driver-interactive transmission that offers
manual gear shifting capability to provide you with more
control. Autostick allows you to maximize engine brak-
ing, eliminate undesirable upshifts and downshifts, and
improve overall vehicle performance. This system can
also provide you with more control during passing, city
driving, cold slippery conditions, mountain driving,
trailer towing, and many other situations.
Autostick Operation
The autostick position is just below the Overdrive posi-
tion. When you place the shift lever in the AutoStick
position, it can be moved from side to side. Moving the
lever to the left (-) triggers a downshift and to the right
(+) an upshift.You can shift in or out of the autostick mode at any time
without taking your foot off the accelerator pedal. If you
choose the Overdrive mode, the transmission will oper-
ate automatically; shifting between the four available
gears. When you wish to engage autostick, simply move
the autostick lever to the AutoStick position. The trans-
mission will remain in the current gear until an upshift or
downshift is chosen. The gear selection will be displayed
on the instrument cluster.
Move the lever back to the Overdrive position to shift out
of the Autostick mode.
STARTING AND OPERATING 159
5

Autostick General Information
•
The transmission will automatically upshift from first
to second gear and from second to third gear when
engine speed reaches about 6300 rpm.
•Downshifts from third to second gear above 85 mph
(137 km/h) and from second to first gear above 47
mph (76 km/h) will be ignored.
•You can start out in first, second, or third gear. Shifting
into fourth gear can occur only after vehicle speed
reaches 17 mph (27 km/h).
•The transmission will automatically downshift to first
gear when coming to a stop.
•Starting out in second or third gear is helpful in snowy
or icy conditions.
•While in the Autostick mode, Speed Control will only
function in third or fourth gear.
Downshifting out of third gear turns off speed control.
•If the system detects powertrain overheating, the
transmission will revert to the automatic shift mode
and remain in that mode until the powertrain cools off.
•If the system detects a problem it will disable the
Autostick mode and the transmission will return to the
automatic mode until the problem is corrected.
•The transmission will automatically downshift from
fourth to third gear at speeds between 15 mph (24
km/h and 50 mph (80 km/h) under certain conditions.
This is to avoid poor fourth gear performance with
accelerator pedal actuation at lower speeds.
160 STARTING AND OPERATING
