must remain open, close all windows. Adjust the
heating or cooling system to force outside air into the
vehicle. Set the blower at high speed.
Safety Checks You Should Make Inside the
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Safety belt assemblies must be replaced after an accident
if they have been damaged (bent retractor, torn webbing,
etc.). If there is any question regarding belt or retractor
condition, replace the belt.
Airbag Light
The light should come on and remain on for 6 to
8 seconds as a bulb check when the ignition
switch is first turned ON. If the bulb is not lit
during starting, have it replaced. If the light stays on or
comes on while driving, have the system checked by an
authorized dealer.
Defrosters
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield.
Periodic Safety Checks You Should Make Outside
the Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness and tires (includ-
ing spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check area under vehicle after overnight parking for
brake fluid, fuel, water, oil, or other fluid leaks. Also, if
gasoline fumes are present, the cause should be corrected
immediately.
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Automatic system off, turn the headlight switch clock-
wise, to the off position.
The engine must be running before the headlights will
come on in the automatic mode.
NOTE:The Automatic Headlight System will turn on
the headlights if it detects that the windshield wipers
have been in operation for more than 10 seconds.
NOTE:Your 300M Special vehicle may be equipped
with high intensity headlights (HID). When first turned
on these lights take on a blue hue for about 15 seconds
after which they brighten to a clear light.
Headlight Time Delay
This feature provides the safety of headlight illumination
for about 90 seconds when leaving your vehicle in an
unlighted area. For vehicles equipped with Electronic
Vehicle Information Center (EVIC), this is customer pro-
grammable to Off, 30, 60, or 90 seconds. (See the Elec-
tronic Vehicle Information Center (EVIC) section of this
manual.)To activate the delay, turn off the ignition while the
headlights are still on. Then turn off the headlights within
45 seconds. The delay interval begins when the ignition is
turned off.
If the headlights are turned off before the ignition, they
will go off in the normal manner.
Battery Saver Feature
If an exterior light is left on when the ignition switch is
moved to the Off position, it will automatically turn off
after 10 minutes. Normal operation will resume when the
ignition is turned On or when the headlight switch is
turned to another position.
Fog Lights
Turn the headlight switch to any ON position,
then pull out the headlight switch knob to turn on
the fog lights. A light near the switch will illumi-
nate to show that the Fog Lights are On.
NOTE:Turning on the high beam headlights will turn
off the fog lights. Fog light operation will resume when
the high beams are turned off and the lights return to the
low beam, parking light, or automatic positions.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 67
3

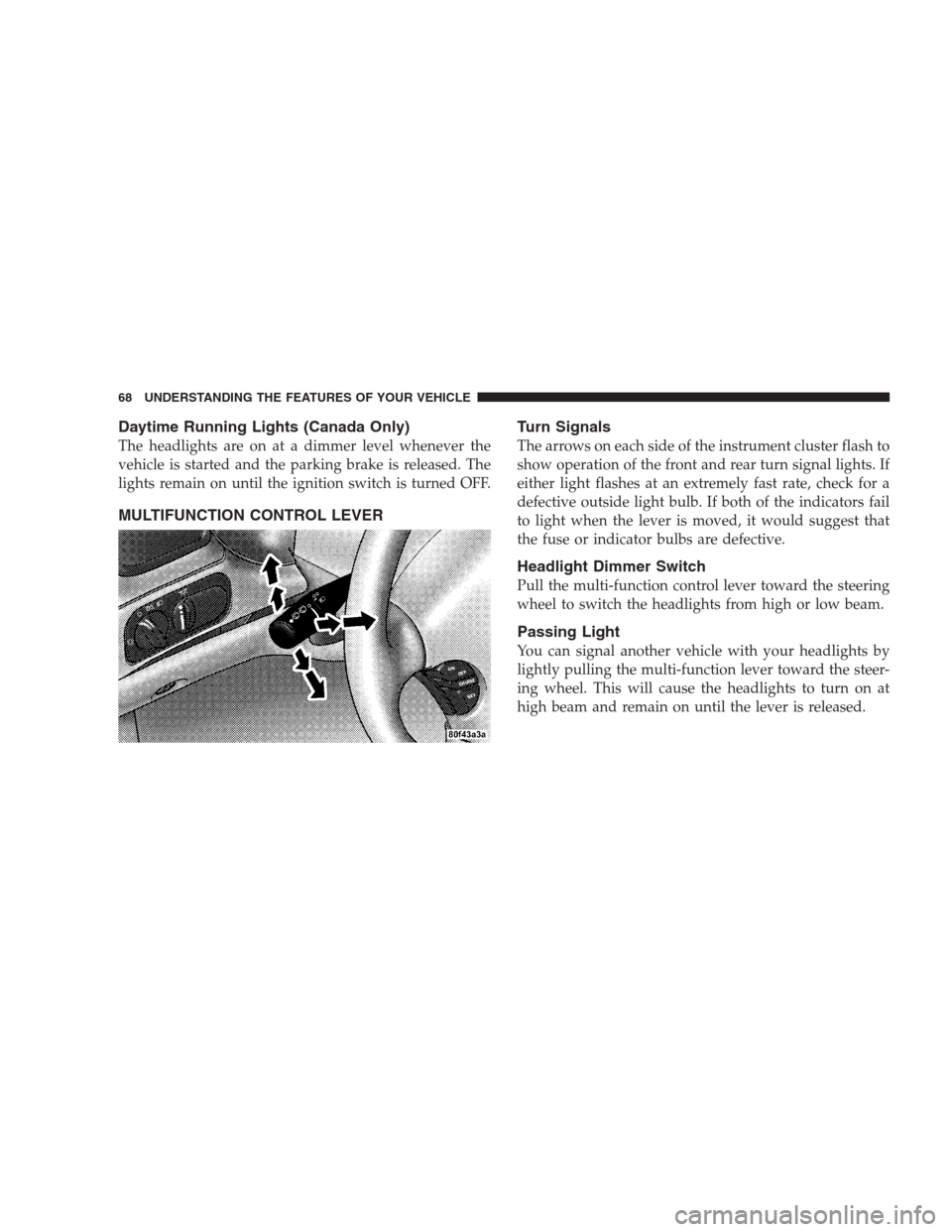

Daytime Running Lights (Canada Only)
The headlights are on at a dimmer level whenever the
vehicle is started and the parking brake is released. The
lights remain on until the ignition switch is turned OFF.
MULTIFUNCTION CONTROL LEVERTurn Signals
The arrows on each side of the instrument cluster flash to
show operation of the front and rear turn signal lights. If
either light flashes at an extremely fast rate, check for a
defective outside light bulb. If both of the indicators fail
to light when the lever is moved, it would suggest that
the fuse or indicator bulbs are defective.
Headlight Dimmer Switch
Pull the multi-function control lever toward the steering
wheel to switch the headlights from high or low beam.
Passing Light
You can signal another vehicle with your headlights by
lightly pulling the multi-function lever toward the steer-
ing wheel. This will cause the headlights to turn on at
high beam and remain on until the lever is released.
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

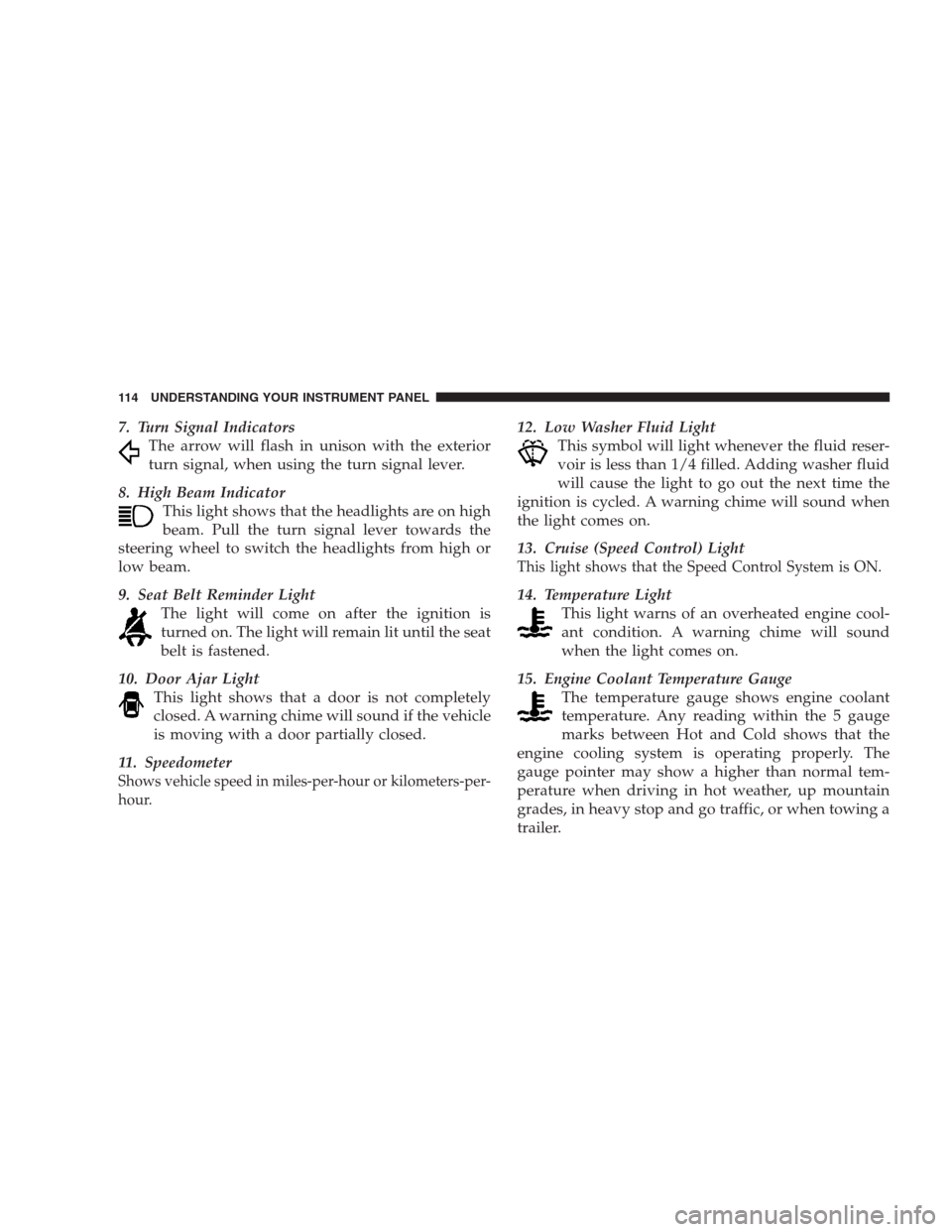

7. Turn Signal Indicators
The arrow will flash in unison with the exterior
turn signal, when using the turn signal lever.
8. High Beam Indicator
This light shows that the headlights are on high
beam. Pull the turn signal lever towards the
steering wheel to switch the headlights from high or
low beam.
9. Seat Belt Reminder Light
The light will come on after the ignition is
turned on. The light will remain lit until the seat
belt is fastened.
10. Door Ajar Light
This light shows that a door is not completely
closed. A warning chime will sound if the vehicle
is moving with a door partially closed.
11. Speedometer
Shows vehicle speed in miles-per-hour or kilometers-per-
hour.
12. Low Washer Fluid Light
This symbol will light whenever the fluid reser-
voir is less than 1/4 filled. Adding washer fluid
will cause the light to go out the next time the
ignition is cycled. A warning chime will sound when
the light comes on.
13. Cruise (Speed Control) Light
This light shows that the Speed Control System is ON.
14. Temperature Light
This light warns of an overheated engine cool-
ant condition. A warning chime will sound
when the light comes on.
15. Engine Coolant Temperature Gauge
The temperature gauge shows engine coolant
temperature. Any reading within the 5 gauge
marks between Hot and Cold shows that the
engine cooling system is operating properly. The
gauge pointer may show a higher than normal tem-
perature when driving in hot weather, up mountain
grades, in heavy stop and go traffic, or when towing a
trailer.
114 UNDERSTANDING YOUR INSTRUMENT PANEL

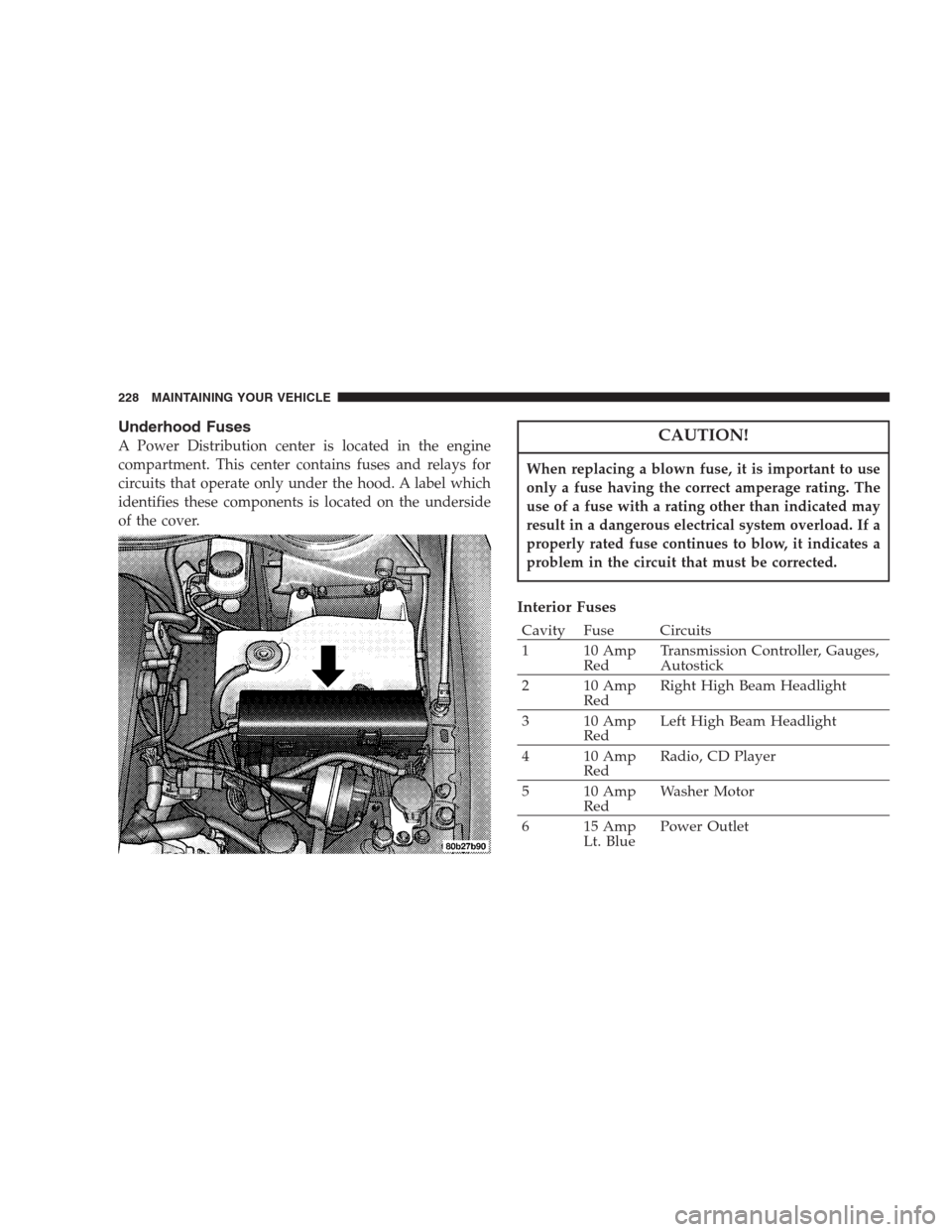

Underhood Fuses
A Power Distribution center is located in the engine
compartment. This center contains fuses and relays for
circuits that operate only under the hood. A label which
identifies these components is located on the underside
of the cover.CAUTION!
When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
Interior Fuses
Cavity Fuse Circuits
1 10 Amp
RedTransmission Controller, Gauges,
Autostick
2 10 Amp
RedRight High Beam Headlight
3 10 Amp
RedLeft High Beam Headlight
4 10 Amp
RedRadio, CD Player
5 10 Amp
RedWasher Motor
6 15 Amp
Lt. BluePower Outlet
228 MAINTAINING YOUR VEHICLE

Cavity Fuse Circuits
7 20 Amp
YellowTail, License, Parking, Illumina-
tion Lights, Instrument Cluster
8 10 Amp
RedAirbag
9 10 Amp
RedTurn Signal Lights, Turn Signal/
Hazard Indicator
10 15 Amp
Lt. BlueRight Low Beam
11 20 Amp
YellowHigh Beam Relay, High Beam
Indicator, High Beam Switch
12 15 Amp
Lt. BlueLeft Low Beam Headlight
13 10 Amp
RedFuel Pump Relay, Power Train
Control Module
14 10 Amp
RedCluster, Day/Night Mirror, Sun-
roof, Overhead Console, Garage
Door Opener, Body Control Mod-
ule
15 10 Amp
RedDaytime Running Light Module
(Canada)
16 20 Amp
YellowFog Light IndicatorCavity Fuse Circuits
17 10 Amp
RedABS Control, Back Up Lights,
Daytime Running Lights, A/C
Heater Control,
18 20 Amp
YellowPower Amplifier, Horn
19 15 Amp
Lt. BlueOverhead Console, Garage Door
Opener, Trunk, Overhead, Rear
Reading, and Visor Vanity Lights,
Trunk Release Solenoid, Power
Mirrors, Power Door Locks, Body
Control Module, Aspirator Motor
20 20 Amp
YellowBrake Lights
21 10 Amp
RedLeak Detection Pump, Low Rad
Relay, High Rad Relay, A/C
Clutch Relay
22 10 Amp
RedAirbag
23 30 Amp
GreenBlower Motor, ATC Power Mod-
ule
24 20 Amp
C/BRKRPower Window Motors
25 20 Amp
C/BRKRPower Door Lock Motors, Power
Seats
MAINTAINING YOUR VEHICLE 229
7

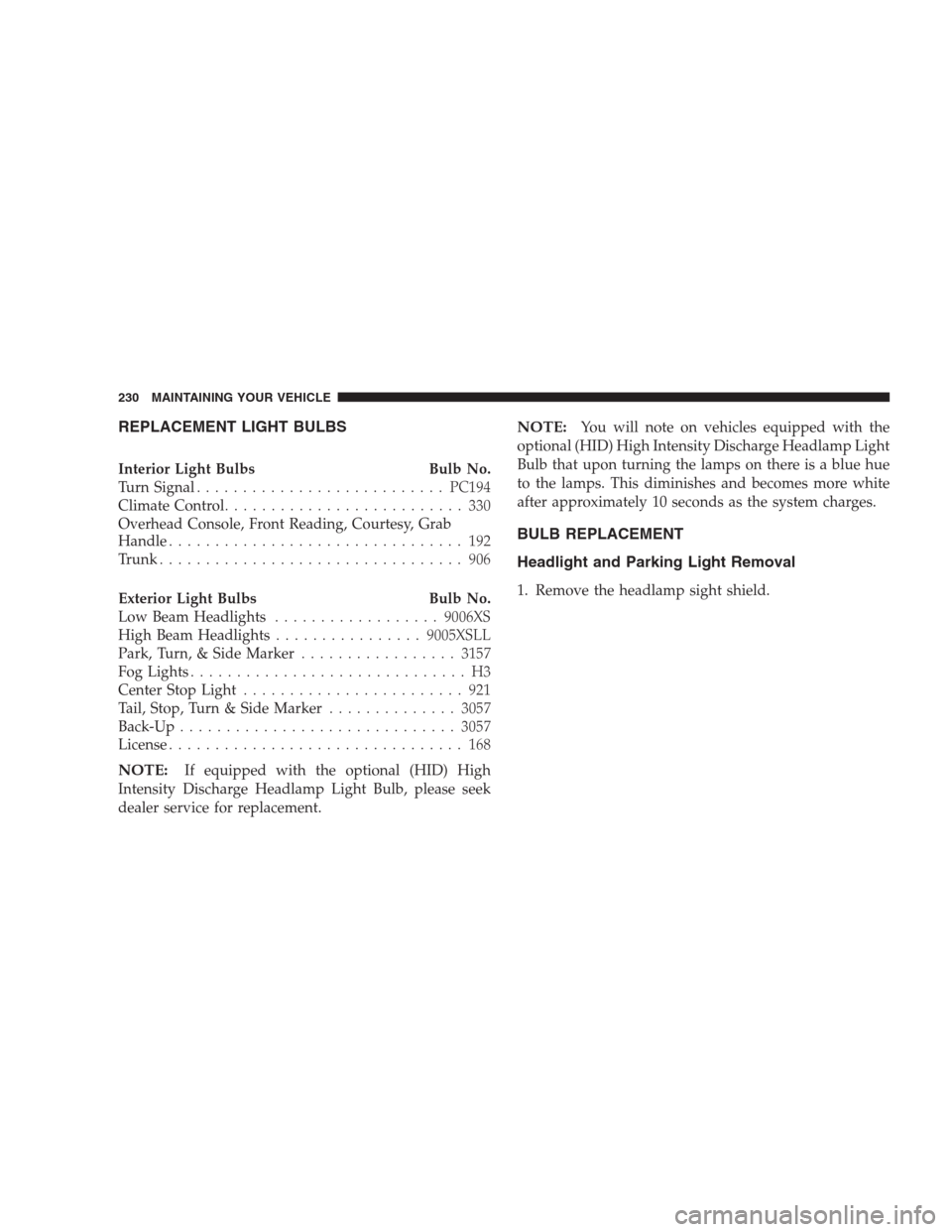

REPLACEMENT LIGHT BULBS
Interior Light Bulbs Bulb No.
Turn Signal...........................PC194
Climate Control.......................... 330
Overhead Console, Front Reading, Courtesy, Grab
Handle................................ 192
Trunk................................. 906
Exterior Light Bulbs Bulb No.
Low Beam Headlights..................9006XS
High Beam Headlights................9005XSLL
Park, Turn, & Side Marker.................3157
Fog Lights.............................. H3
Center Stop Light........................ 921
Tail, Stop, Turn & Side Marker..............3057
Back-Up..............................3057
License................................ 168
NOTE:If equipped with the optional (HID) High
Intensity Discharge Headlamp Light Bulb, please seek
dealer service for replacement.
NOTE:You will note on vehicles equipped with the
optional (HID) High Intensity Discharge Headlamp Light
Bulb that upon turning the lamps on there is a blue hue
to the lamps. This diminishes and becomes more white
after approximately 10 seconds as the system charges.
BULB REPLACEMENT
Headlight and Parking Light Removal
1. Remove the headlamp sight shield.
230 MAINTAINING YOUR VEHICLE

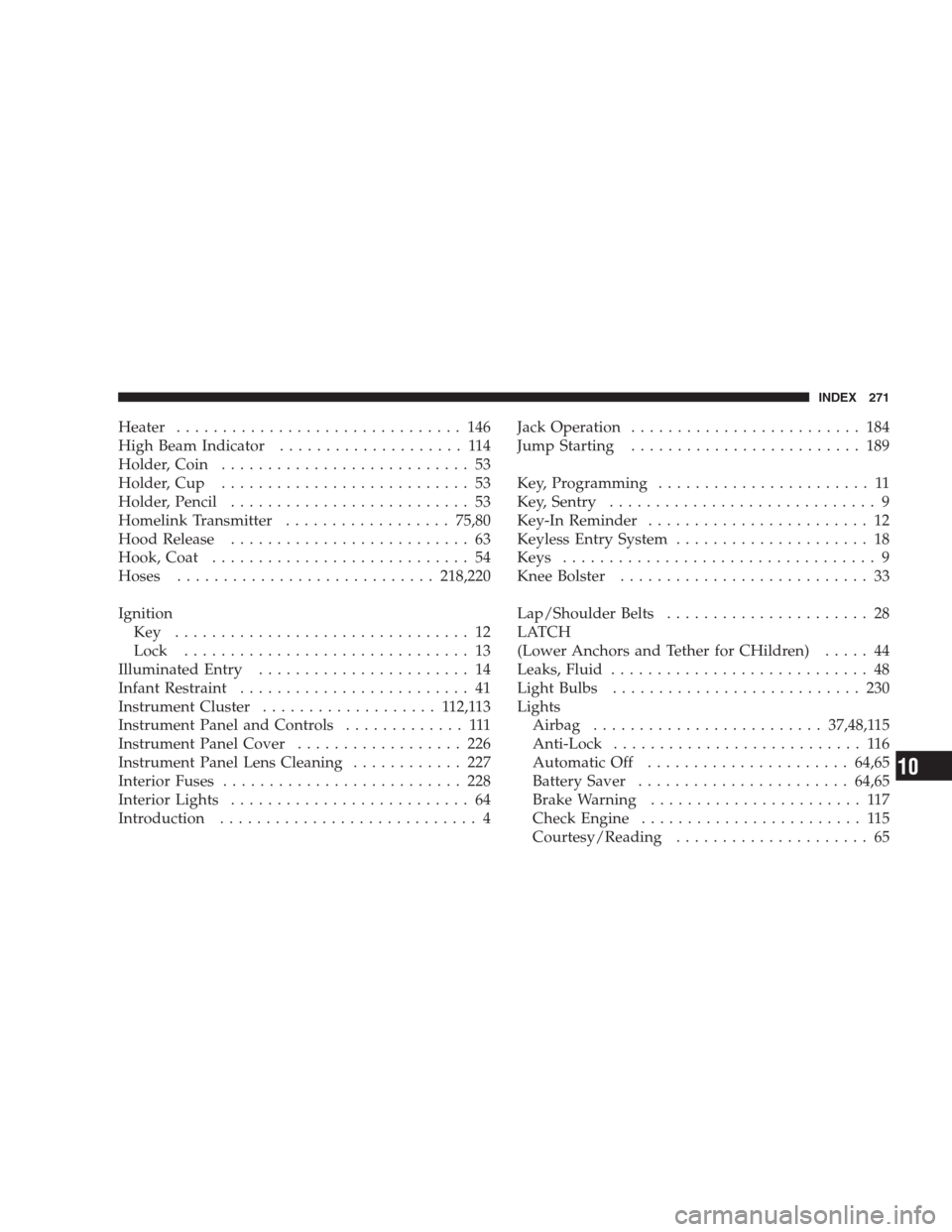

Heater............................... 146
High Beam Indicator.................... 114
Holder, Coin........................... 53
Holder, Cup........................... 53
Holder, Pencil.......................... 53
Homelink Transmitter..................75,80
Hood Release.......................... 63
Hook, Coat............................ 54
Hoses............................218,220
Ignition
Key ................................ 12
Lock............................... 13
Illuminated Entry....................... 14
Infant Restraint......................... 41
Instrument Cluster................... 112,113
Instrument Panel and Controls............. 111
Instrument Panel Cover.................. 226
Instrument Panel Lens Cleaning............ 227
Interior Fuses.......................... 228
Interior Lights.......................... 64
Introduction............................ 4Jack Operation......................... 184
Jump Starting......................... 189
Key, Programming....................... 11
Key, Sentry............................. 9
Key-In Reminder........................ 12
Keyless Entry System..................... 18
Keys.................................. 9
Knee Bolster........................... 33
Lap/Shoulder Belts...................... 28
LATCH
(Lower Anchors and Tether for CHildren)..... 44
Leaks, Fluid............................ 48
Light Bulbs........................... 230
Lights
Airbag.........................37,48,115
Anti-Lock........................... 116
Automatic Off......................64,65
Battery Saver.......................64,65
Brake Warning....................... 117
Check Engine........................ 115
Courtesy/Reading..................... 65
INDEX 271
10

Cruise...........................72,114
Daytime Running...................... 68
Dimmer Switch, Headlight............... 68
Dome............................... 74
Door Ajar........................... 114
Exterior Check........................ 48
Fog .............................67,233
Front Replacement.................... 230
Hazard Warning Flasher................ 182
Headlight Switch...................... 66
Headlights........................66,230
High Beam Indicator................... 114
Illuminated Entry...................... 14
Instrument Cluster..................... 65
Interior...........................14,64
Low Fuel........................... 113
Low Washer Fluid..................... 114
Malfunction Indicator............... 115,198
Map Reading......................... 65
Oil Pressure......................... 113
Park.............................66,233
Passing............................. 68
Reading............................. 74Seat Belt Reminder.................... 114
Security Alarm........................ 24
Service Engine Soon................... 198
Side Marker......................... 230
Theft Alarm.......................... 10
Traction Control.................70,113,164
Trunk Ajar.......................... 113
Turn Signal....................... 114,233
Voltage............................. 116
Locks
Cylinder Maintenance.................. 16
Door.............................14,15
Glove Compartment.................... 13
Lubricants............................ 211
Luggage Carrier........................ 179
Luggage Rack......................... 179
Lumbar Support........................ 59
Maintenance Free Battery................. 208
Maintenance Schedule................... 240
Light Duty ScheduleB................ 243
ScheduleA......................... 250
ScheduleB......................... 243
272 INDEX
