INTRODUCTION/WELCOMEWelcome From Chrysler Group LLC......2
CONTROLS AT A GLANCEDriver Cockpit................4
Instrument Cluster ..............6
GETTING STARTEDKeyFob ...................8
Remote Start.................8
Keyless Enter-N-Go .............9
Theft Alarm .................11
Seat Belt ...................12
Supplemental Restraint System (SRS) —
Air Bags ...................13
Child Restraints ................14
Front Seats ..................16
Rear Seat ...................18
Heated Seats .................18
Heated And Cooled Cupholders .......19
Adjustable Pedals ...............20
Tilt/Telescoping Steering Column .......20
OPERATING YOUR VEHICLEEngine Break-In Recommendations ......22
Turn Signal/Wiper/Washer/High Beam Lever . . 23
Headlight Switch ...............24
Speed Control ................25
Electronic Shifter – 3.6L Engine ........27
Transmission Modes/AutoStick® ........29
Climate Controls ...............31
Power Sunroof ................33
Wind Buffeting ................33
ELECTRONICSYour Vehicle's Sound System .........34
Identifying Your Radio .............36
Uconnect Touch™ 8.4 & 8.4N At A Glance . . . 36
Radio ....................38
Sirius Satellite Radio ..............39
iPod®/CD/AUX Controls ...........41
Garmin® Navigation (8.4N Only) .......41
Sirius Travel Link (8.4N Only) .........45
Playing iPod/USB/MP3 Devices ........46
Uconnect™ Phone (Bluetooth® Hands
Free Calling) .................47
Uconnect™ Voice Command .........51
Electronic Vehicle Information Center
(EVIC) ....................53
Programmable Features ............54
Universal Garage Door Opener
(HomeLink®) .................54
Power Outlets ................57
UTILITYTrailer Towing Weights (Maximum Trailer
Weight Ratings) ...............58
Recreational Towing (Behind
Motorhome, Etc.) ...............59
SRT8AutoStick®..................60
Performance Features .............61
WHAT TO DO IN EMERGENCIES24-Hour Towing Assistance ..........64
Instrument Cluster Warning Lights .......64
If Your Engine Overheats ...........68
Jacking And Tire Changing ..........69
Battery Location ...............74
Jump-Starting ................74
Shift Lever Override .............76
Towing A Disabled Vehicle ..........78
Freeing A Stuck Vehicle ............79
Event Data Recorder (EDR) ..........80
MAINTAINING YOUR VEHICLEOpening The Hood..............81
Fuel Door Release ..............82
Engine Compartment .............84
Fluids And Capacities .............87
Maintenance Chart ..............90
Fuses .....................95
Tire Pressures .................99
Wheel And Wheel Trim Care .........99
Exterior Bulbs ................100
CONSUMER ASSISTANCEChrysler Group LLC Customer Center ....101
Chrysler Canada Inc. Customer Center . . . 101
Assistance For The Hearing Impaired ....101
Publications Ordering ............101
Reporting Safety Defects In The
50 United States And Washington, D.C. . . . 102
MOPAR ACCESSORIESAuthentic Accessories By MOPAR® .....103
INDEX.................104
FAQ(HowTo?)Frequently Asked Questions.........107
TABLE OF CONTENTS
ProCarManuals.com

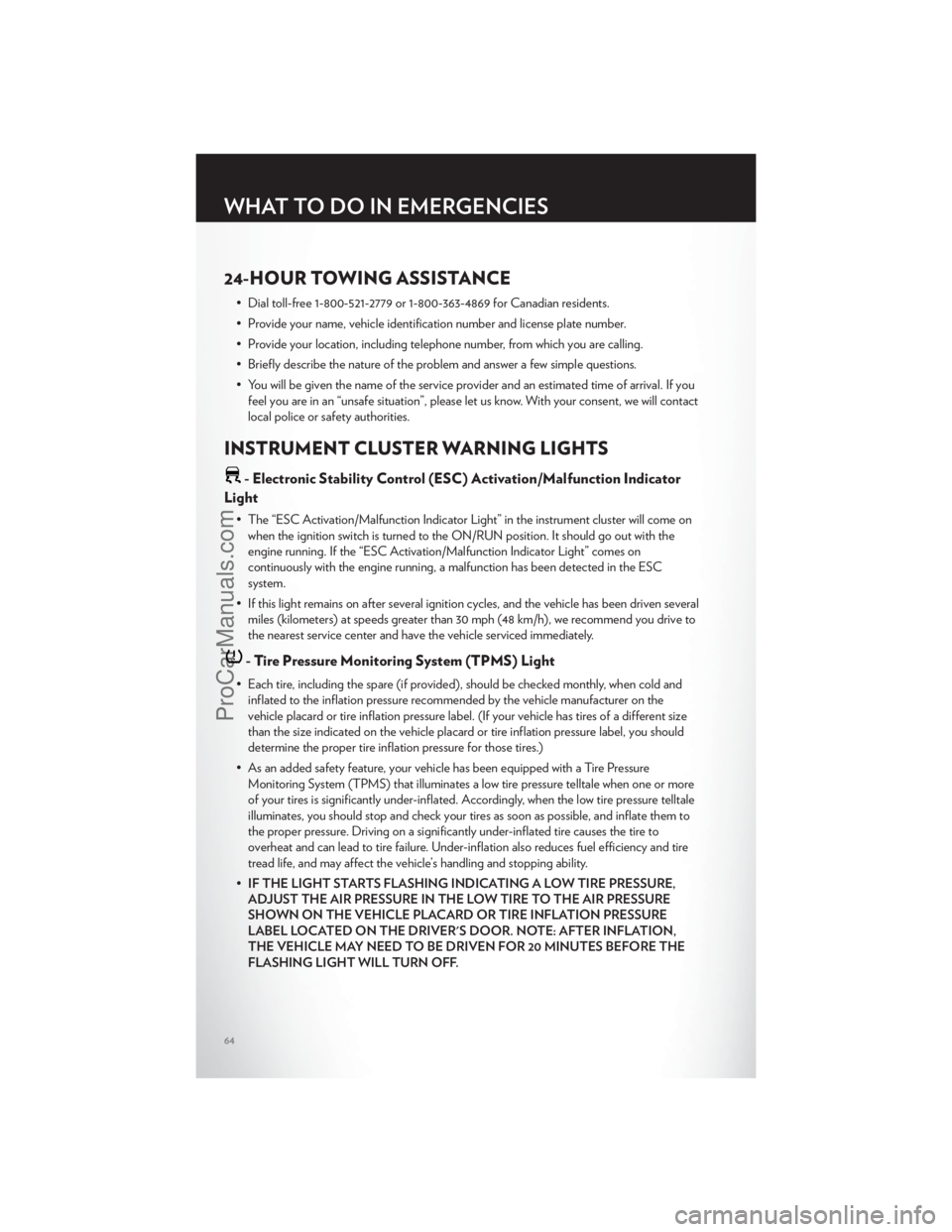

24-HOUR TOWING ASSISTANCE
• Dial toll-free 1-800-521-2779 or 1-800-363-4869 for Canadian residents.
• Provide your name, vehicle identification number and license plate number.
• Provide your location, including telephone number, from which you are calling.
• Briefly describe the nature of the problem and answer a few simple questions.
• You will be given the name of the service provider and an estimated time of arrival. If youfeel you are in an “unsafe situation”, please let us know. With your consent, we will contact
local police or safety authorities.
INSTRUMENT CLUSTER WARNING LIGHTS
- Electronic Stability Control (ESC) Activation/Malfunction Indicator
Light
• The “ESC Activation/Malfunction Indicator Light” in the instrument cluster will come on when the ignition switch is turned to the ON/RUN position. It should go out with the
engine running. If the “ESC Activation/Malfunction Indicator Light” comes on
continuously with the engine running, a malfunction has been detected in the ESC
system.
• If this light remains on after several ignition cy cles, and the vehicle has been driven several
miles (kilometers) at speeds greater than 30 mph (48 km/h), we recommend you drive to
the nearest service center and have the vehicle serviced immediately.
- Tire Pressure Monitoring System (TPMS) Light
• Each tire, including the spare (if provided), should be checked monthly, when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size
than the size indicated on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)
• As an added safety feature, your vehicle has been equipped with a Tire Pressure Monitoring System (TPMS) that illuminates a low tire pressure telltale when one or more
of your tires is significantly under-inflated. Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires as soon as possible, and inflate them to
the proper pressure. Driving on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling and stopping ability.
• IF THE LIGHT STARTS FLASHING INDICATING A LOW TIRE PRESSURE,
ADJUST THE AIR PRESSURE IN THE LOW TIRE TO THE AIR PRESSURE
SHOWN ON THE VEHICLE PLACARD OR TIRE INFLATION PRESSURE
LABEL LOCATED ON THE DRIVER'S DOOR. NOTE: AFTER INFLATION,
THE VEHICLE MAY NEED TO BE DRIVEN FOR 20 MINUTES BEFORE THE
FLASHING LIGHT WILL TURN OFF.
WHAT TO DO IN EMERGENCIES
64
ProCarManuals.com

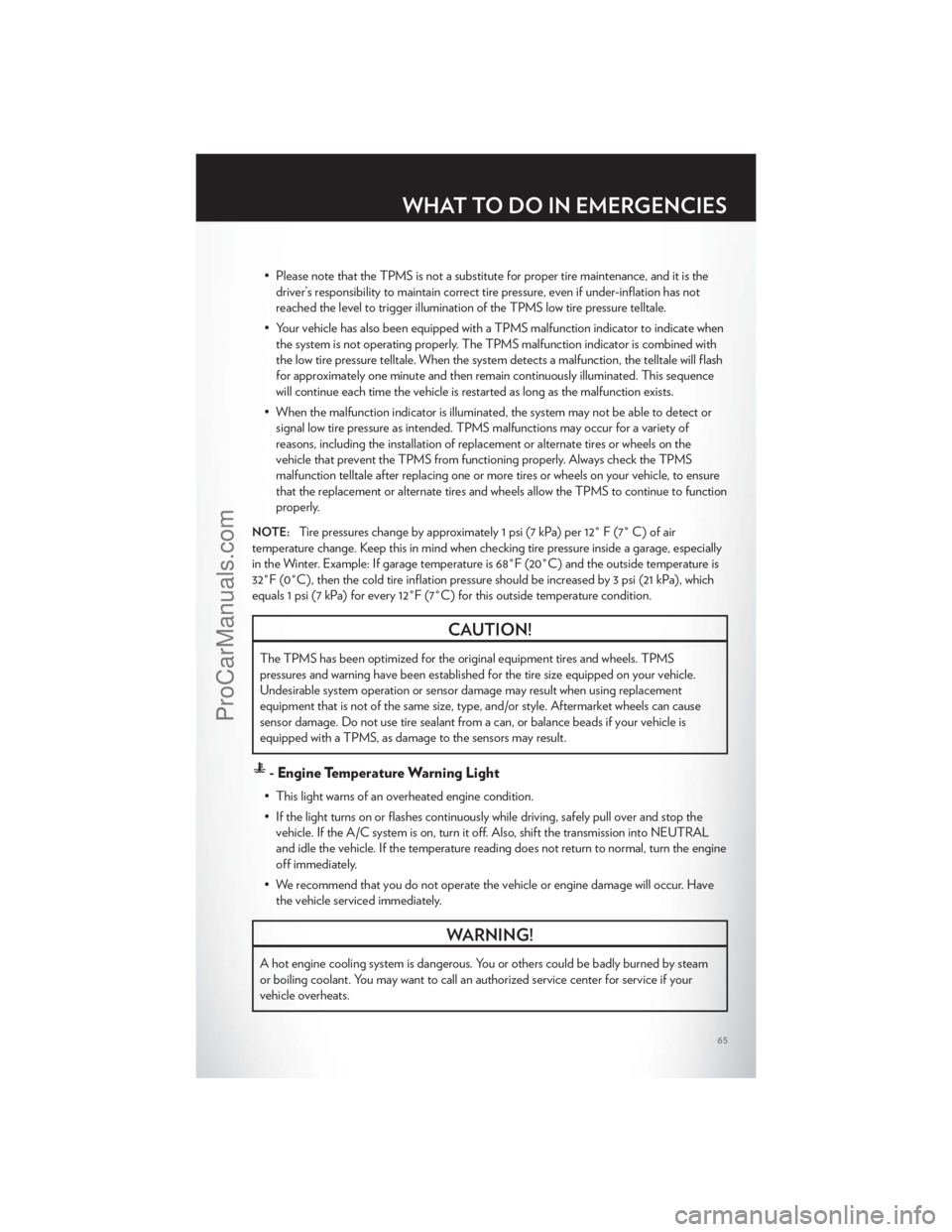

• Please note that the TPMS is not a substitute for proper tire maintenance, and it is thedriver’s responsibility to maintain correct tire pressure, even if under-inflation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
• Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with
the low tire pressure telltale. When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously illuminated. This sequence
will continue each time the vehicle is restarted as long as the malfunction exists.
• When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of
reasons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly. Always check the TPMS
malfunction telltale after replacing one or more tires or wheels on your vehicle, to ensure
that the replacement or alternate tires and wheels allow the TPMS to continue to function
properly.
NOTE:Tire pressures change by approximately 1 psi (7 kPa) per 12° F (7° C) of air
temperature change. Keep this in mind when checking tire pressure inside a garage, especially
in the Winter. Example: If garage temperature is 68°F (20°C) and the outside temperature is
32°F (0°C), then the cold tire inflation pressure should be increased by 3 psi (21 kPa), which
equals 1 psi (7 kPa) for every 12°F (7°C) for this outside temperature condition.
CAUTION!
The TPMS has been optimized for the original equipment tires and wheels. TPMS
pressures and warning have been established for the tire size equipped on your vehicle.
Undesirable system operation or sensor damage may result when using replacement
equipment that is not of the same size, type, and/or style. Aftermarket wheels can cause
sensor damage. Do not use tire sealant from a can, or balance beads if your vehicle is
equipped with a TPMS, as damage to the sensors may result.
- Engine Temperature Warning Light
• This light warns of an overheated engine condition.
• If the light turns on or flashes continuously while driving, safely pull over and stop the vehicle. If the A/C system is on, turn it off. Also, shift the transmission into NEUTRAL
and idle the vehicle. If the temperature reading does not return to normal, turn the engine
off immediately.
• We recommend that you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.
WARNING!
A hot engine cooling system is dangerous. You or others could be badly burned by steam
or boiling coolant. You may want to call an authorized service center for service if your
vehicle overheats.
WHAT TO DO IN EMERGENCIES
65
ProCarManuals.com

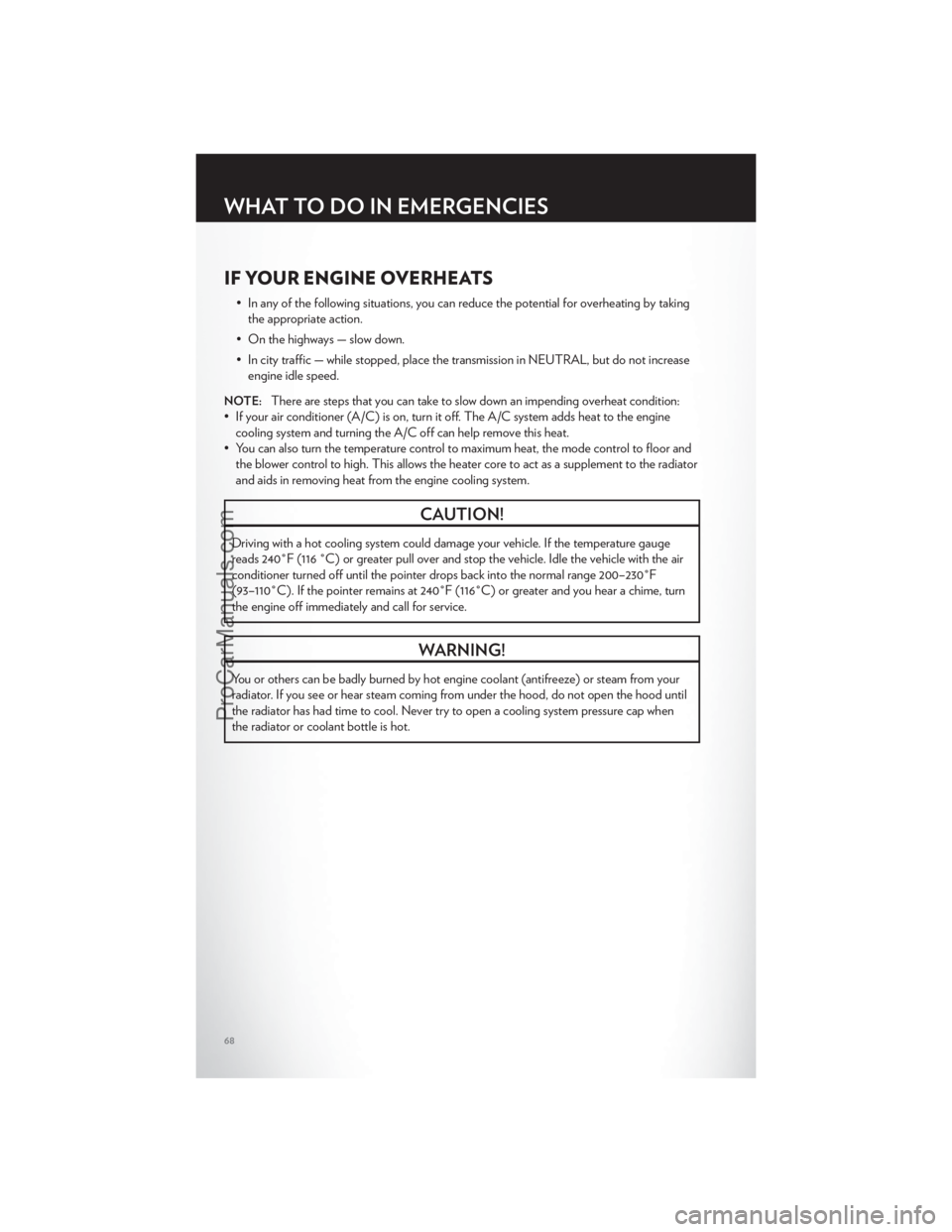

IF YOUR ENGINE OVERHEATS
• In any of the following situations, you can reduce the potential for overheating by takingthe appropriate action.
• On the highways — slow down.
• In city traffic — while stopped, place the transmission in NEUTRAL, but do not increase engine idle speed.
NOTE:There are steps that you can take to slow down an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the engine cooling system and turning the A/C off can help remove this heat.
• You can also turn the temperature control to maximum heat, the mode control to floor and the blower control to high. This allows the heater core to act as a supplement to the radiator
and aids in removing heat from the engine cooling system.
CAUTION!
Driving with a hot cooling system could damage your vehicle. If the temperature gauge
reads 240°F (116 °C) or greater pull over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back into the normal range 200–230°F
(93–110°C). If the pointer remains at 240°F (116°C) or greater and you hear a chime, turn
the engine off immediately and call for service.
WARNING!
You or others can be badly burned by hot engine coolant (antifreeze) or steam from your
radiator. If you see or hear steam coming from under the hood, do not open the hood until
the radiator has had time to cool. Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.
WHAT TO DO IN EMERGENCIES
68
ProCarManuals.com

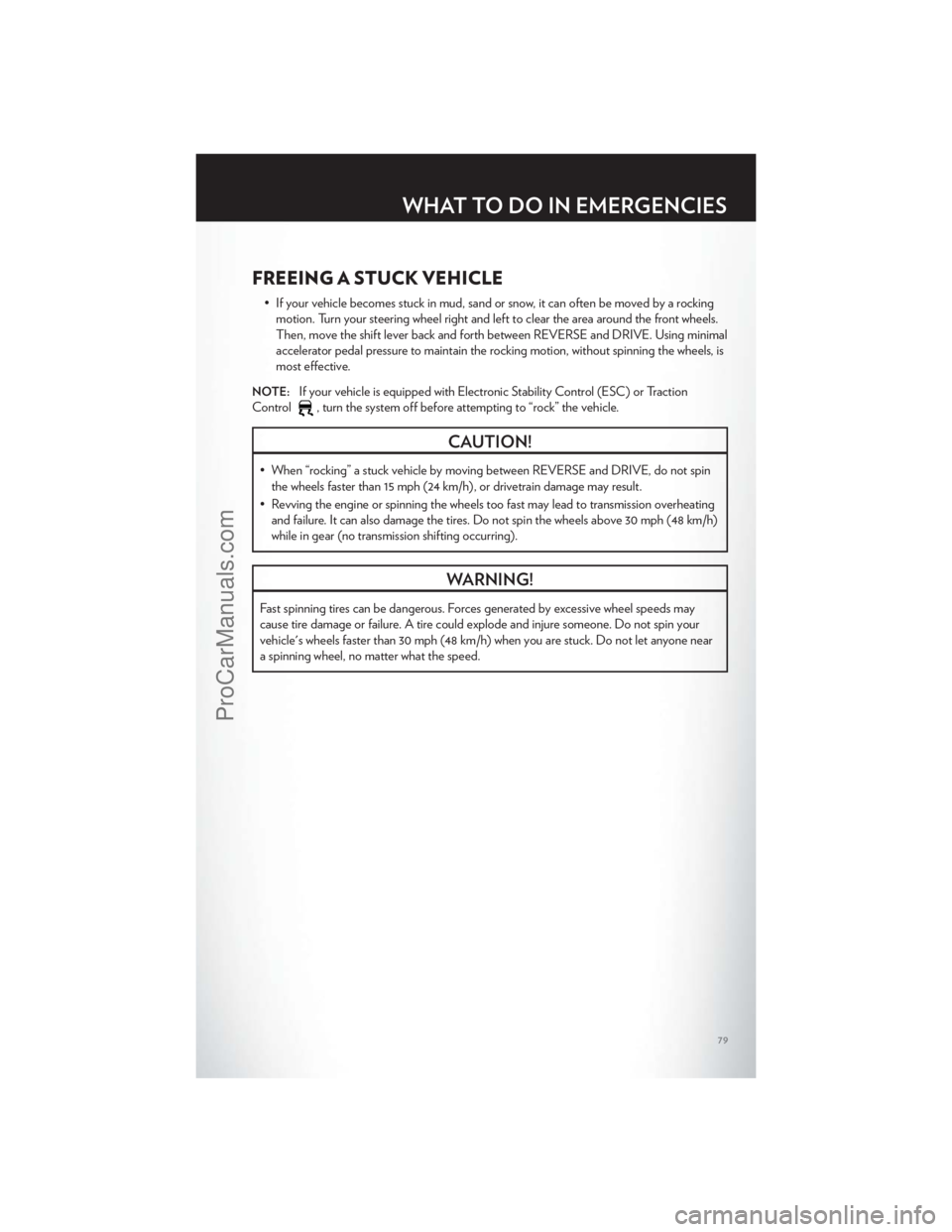

FREEING A STUCK VEHICLE
• If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a rockingmotion. Turn your steering wheel right and left to clear the area around the front wheels.
Then, move the shift lever back and forth between REVERSE and DRIVE. Using minimal
accelerator pedal pressure to maintain the rocking motion, without spinning the wheels, is
most effective.
NOTE:If your vehicle is equipped with Electronic Stability Control (ESC) or Traction
Control
, turn the system off before attempting to “rock” the vehicle.
CAUTION!
• When “rocking” a stuck vehicle by moving between REVERSE and DRIVE, do not spin the wheels faster than 15 mph (24 km/h), or drivetrain damage may result.
• Revving the engine or spinning the wheels too fast may lead to transmission overheating and failure. It can also damage the tires. Do not spin the wheels above 30 mph (48 km/h)
while in gear (no transmission shifting occurring).
WARNING!
Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds may
cause tire damage or failure. A tire could explode and injure someone. Do not spin your
vehicle's wheels faster than 30 mph (48 km/h) when you are stuck. Do not let anyone near
a spinning wheel, no matter what the speed.
WHAT TO DO IN EMERGENCIES
79
ProCarManuals.com

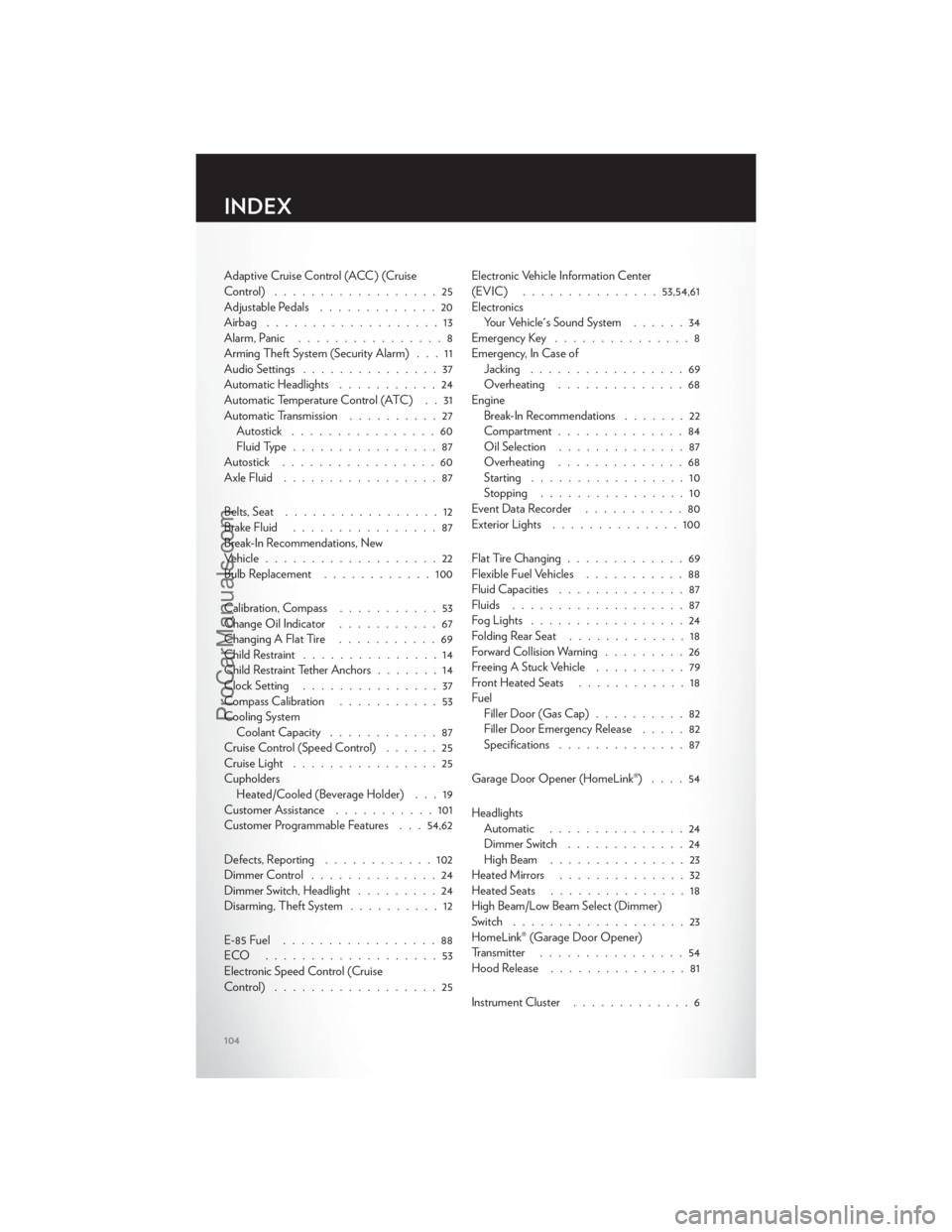

Adaptive Cruise Control (ACC) (Cruise
Control)..................25
Adjustable Pedals .............20
Airbag ...................13
Alarm, Panic ................8
Arming Theft System (Security Alarm) . . . 11
Audio Settings ...............37
Automatic Headlights ...........24
Automatic Temperature Control (ATC) . . 31
Automatic Transmission ..........27
Autostick ................60
Fluid Type ................87
Autostick .................60
Axle Fluid .................87
Belts, Seat .................12
Brake Fluid ................87
Break-In Recommendations, New
Vehicle ...................22
Bulb Replacement ............100
Calibration, Compass ...........53
Change Oil Indicator ...........67
Changing A Flat Tire ...........69
Child Restraint ...............14
Child Restraint Tether Anchors .......14
Clock Setting ...............37
Compass Calibration ...........53
Cooling System Coolant Capacity ............87
Cruise Control (Speed Control) ......25
Cruise Light ................25
Cupholders Heated/Cooled (Beverage Holder) . . . 19
Customer Assistance ...........101
Customer Programmable Features . . . 54,62
Defects, Reporting ............102
Dimmer Control ..............24
Dimmer Switch, Headlight .........24
Disarming, Theft System ..........12
E-85Fuel .................88
ECO ...................53
Electronic Speed Control (Cruise
Control) ..................25 Electronic Vehicle Information Center
(EVIC) ...............
53,54,61
Electronics Your Vehicle's Sound System ......34
Emergency Key ...............8
Emergency, In Case of Jacking .................69
Overheating ..............68
Engine Break-In Recommendations .......22
Compartment ..............84
Oil Selection ..............87
Overheating ..............68
Starting .................10
Stopping ................10
Event Data Recorder ...........80
Exterior Lights ..............100
Flat Tire Changing .............69
Flexible Fuel Vehicles ...........88
Fluid Capacities ..............87
Fluids ...................

87
Fog Lights .................24
Folding Rear Seat .............18
Forward Collision Warning .........26
Freeing A Stuck Vehicle ..........79
Front Heated Seats ............18
Fuel Filler Door (Gas Cap) ..........82
Filler Door Emergency Release .....82
Specifications ..............87
Garage Door Opener (HomeLink®) ....54
Headlights Automatic ...............24
Dimmer Switch .............24
HighBeam ...............23
Heated Mirrors ..............32
Heated Seats ...............18
High Beam/Low Beam Select (Dimmer)
Switch ...................23
HomeLink® (Garage Door Opener)
Transmitter ................54
Hood Release ...............81
Instrument Cluster .............6
INDEX
104
ProCarManuals.com

Indicators.................7
Instrument Cluster Warning Lights ....6,64
Intermittent Wipers (Delay Wipers) ....23
Introduction .................2
iPod®/USB/MP3 Control .........46
Bluetooth Streaming Audio .......47
Jack Location ...............69
Jack Operation ..............71
Jacking Instructions ............71
Jump Starting ...............74
KeyFob...................8
Keyless Enter-N-Go ............9
Lock/Unlock ...............9
Starting/Stopping ............10
Lane Change Assist ............23
LATCH (Lower Anchors and Tether for
CHildren) .................14
Lights TurnSignal ...............23
Warning (Instrument Cluster
Description) ...............6
Maintenance Record ..........92,94
Maintenance Schedule .........90,93
Memory Seat ...............16
Mirrors Heated .................32
MOPAR® Accessories ..........103
Navigation .................41
Navigation Voice Commands .......52
New Vehicle Break-In Period ........22
Oil Change Indicator ...........67
Oil, Engine Capacity ................87
Outlet Power ..................57
Overheating, Engine ...........68
Panic Alarm .................8
Pedals, Adjustable .............20 Phone (Pairing)
..............48
Phone (Uconnect) .............47
Placard, Tire and Loading Information . . . 99
Power Glass Sunroof ..............33
Outlet (Auxiliary Electrical Outlet) . . . 57
Seats ..................16
Steering .................87
Tilt/Telescoping Steering Column ....21
Preparation for Jacking ..........70
Programmable Electronic Features . . . 54,61
Radio Operation ..............38
Rain Sensitive Wiper System ........23
Rear Heated Seats .............19
Rear Seat, Folding .............18
Recreational Towing ............59
Remote Starting System ..........8
Replacement Bulbs ............100
Reporting Safety Defects .........102
Restraints, Child ..............14
Seat Belts .................12
Seats ....................16
Ad

justment ...............17
Heated .................18
Lumbar Support .............16
Memory.................16
Power ..................16
Rear Folding ..............18
Setting the Clock .............37
Shift Lever Override ............76
Signals, Turn ................23
SIRIUSTravelLink .............45
SmartBeams ................24
SpareTire .................69
Spark Plugs ................87
Speed Control (Cruise Control) ......25
Starting Remote .................8
Steering Tilt Column ...............20
Store Radio Presets ............38
SunRoof..................33
Supplemental Restraint System - Airbag . . 13
Temperature Gauge, Engine Coolant . . . 68
INDEX
105
ProCarManuals.com
