fuel filter CHRYSLER 300 SRT 2009 1.G Owners Manual

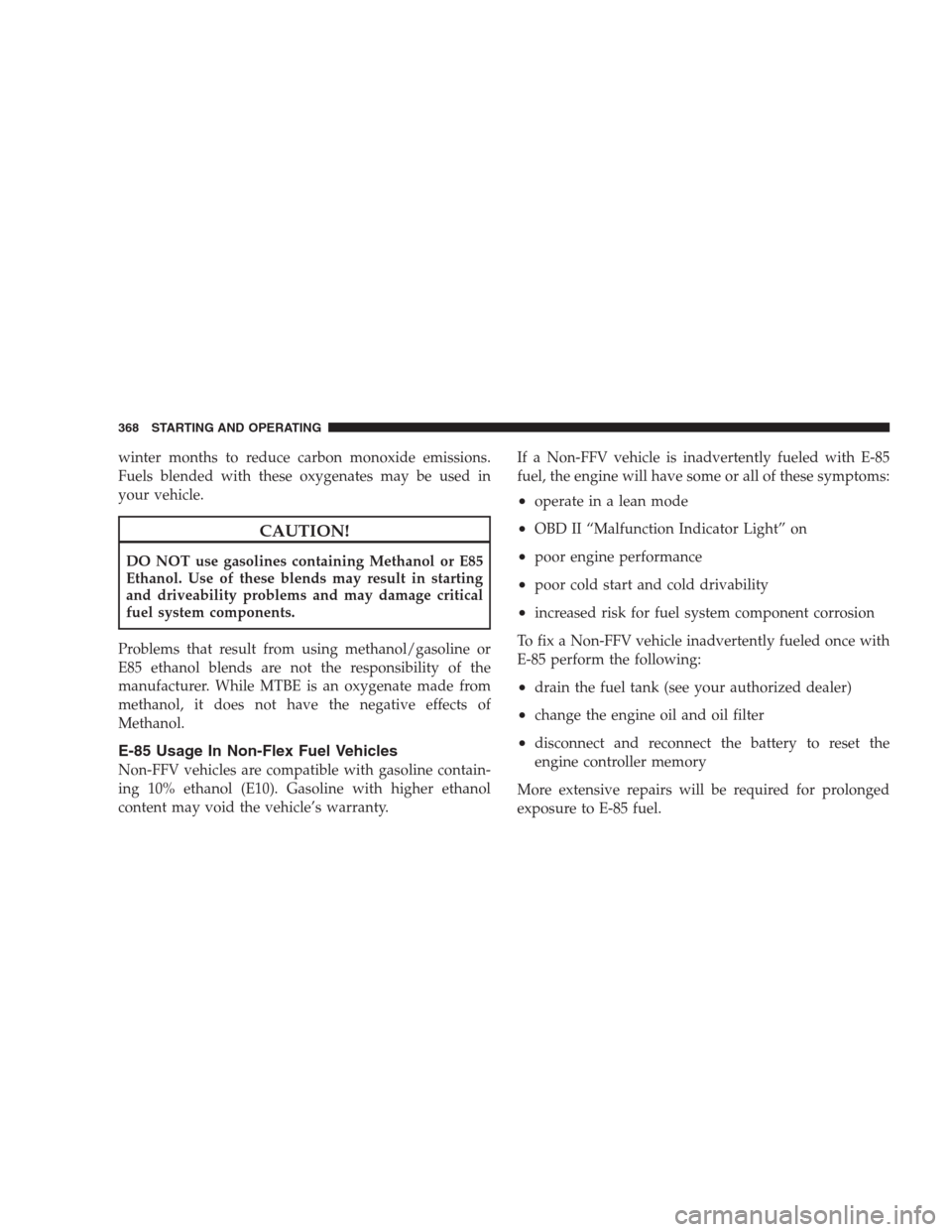

winter months to reduce carbon monoxide emissions.
Fuels blended with these oxygenates may be used in
your vehicle.
CAUTION!
DO NOT use gasolines containing Methanol or E85
Ethanol. Use of these blends may result in starting
and driveability problems and may damage critical
fuel system components.
Problems that result from using methanol/gasoline or
E85 ethanol blends are not the responsibility of the
manufacturer. While MTBE is an oxygenate made from
methanol, it does not have the negative effects of
Methanol.
E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline contain-
ing 10% ethanol (E10). Gasoline with higher ethanol
content may void the vehicle’s warranty.If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
•operate in a lean mode
•OBD II “Malfunction Indicator Light” on
•poor engine performance
•poor cold start and cold drivability
•increased risk for fuel system component corrosion
To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
•change the engine oil and oil filter
•disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
368 STARTING AND OPERATING

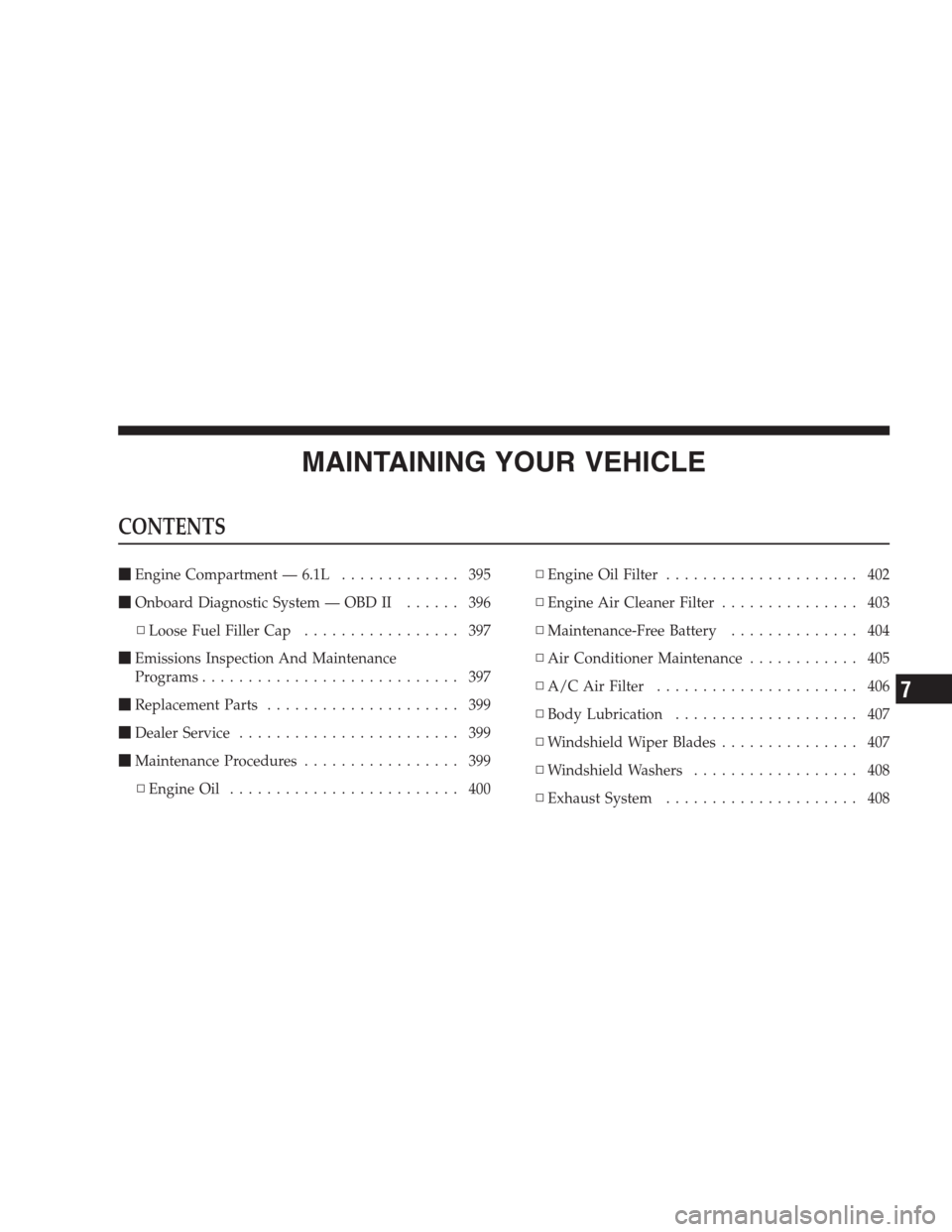

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 6.1L............. 395
Onboard Diagnostic System — OBD II...... 396
▫Loose Fuel Filler Cap................. 397
Emissions Inspection And Maintenance
Programs............................ 397
Replacement Parts..................... 399
Dealer Service........................ 399
Maintenance Procedures................. 399
▫Engine Oil......................... 400▫Engine Oil Filter..................... 402
▫Engine Air Cleaner Filter............... 403
▫Maintenance-Free Battery.............. 404
▫Air Conditioner Maintenance............ 405
▫A/C Air Filter...................... 406
▫Body Lubrication.................... 407
▫Windshield Wiper Blades............... 407
▫Windshield Washers.................. 408
▫Exhaust System..................... 408
7

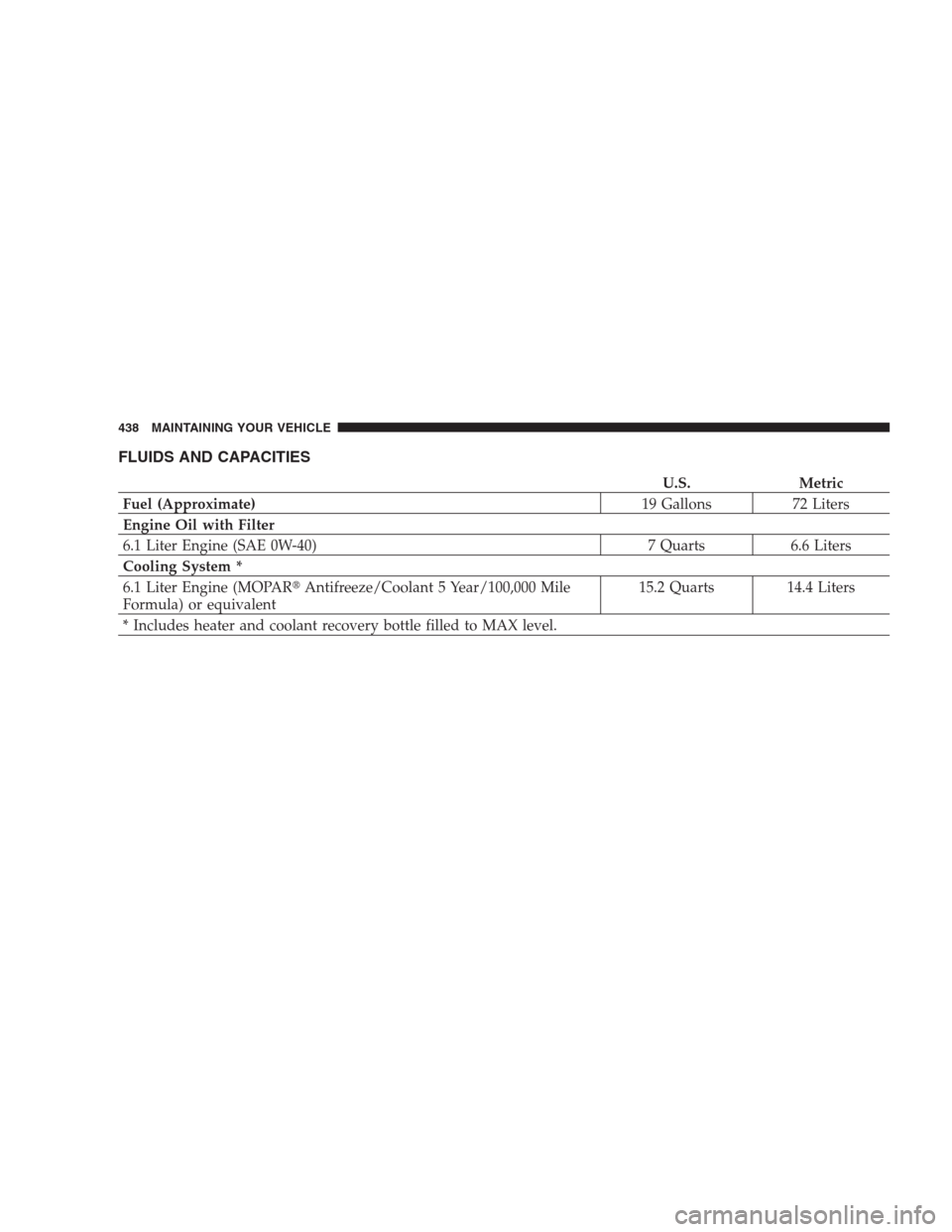

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)19 Gallons 72 Liters
Engine Oil with Filter
6.1 Liter Engine (SAE 0W-40) 7 Quarts 6.6 Liters
Cooling System *
6.1 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula) or equivalent15.2 Quarts 14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
438 MAINTAINING YOUR VEHICLE

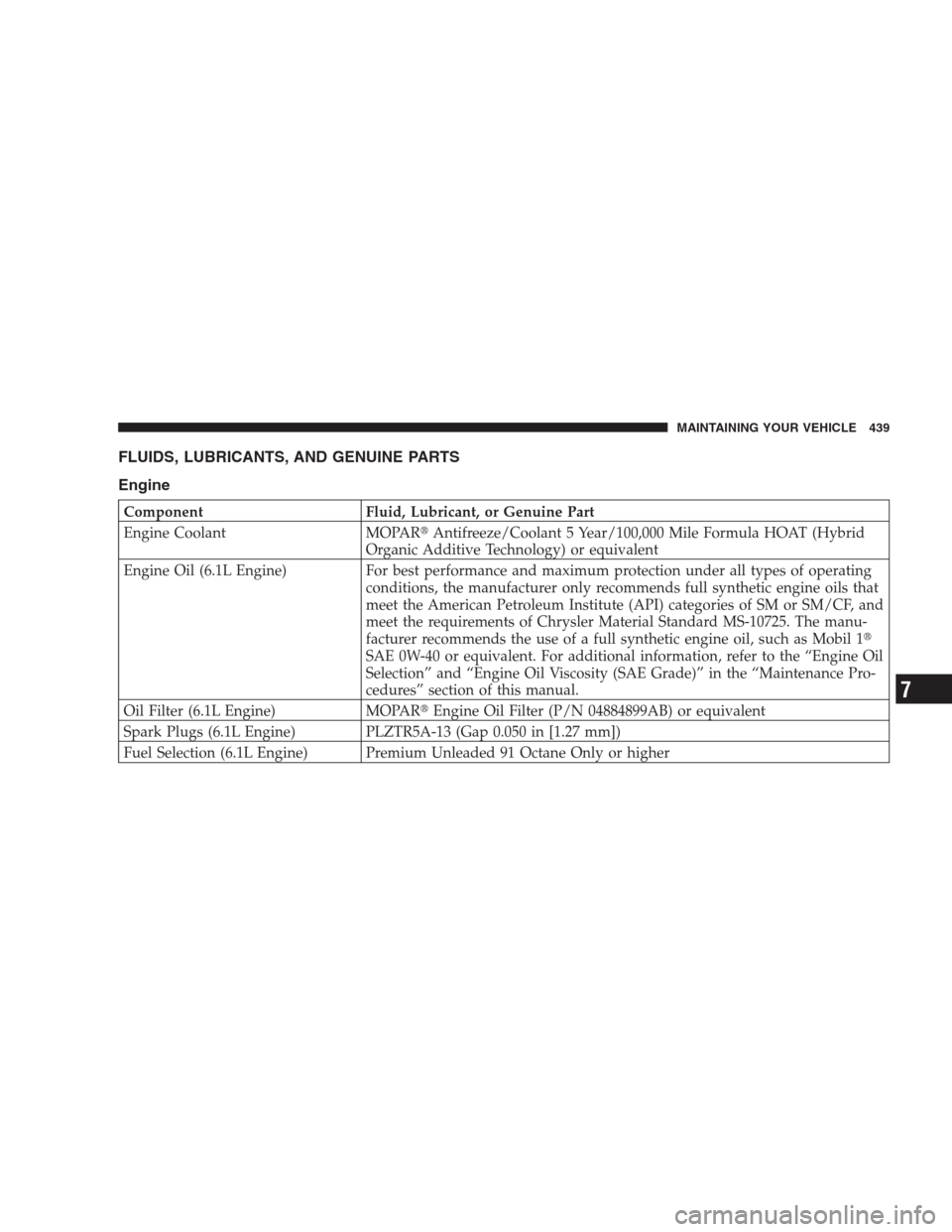

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent
Engine Oil (6.1L Engine) For best performance and maximum protection under all types of operating
conditions, the manufacturer only recommends full synthetic engine oils that
meet the American Petroleum Institute (API) categories of SM or SM/CF, and
meet the requirements of Chrysler Material Standard MS-10725. The manu-
facturer recommends the use of a full synthetic engine oil, such as Mobil 1
SAE 0W-40 or equivalent. For additional information, refer to the “Engine Oil
Selection” and “Engine Oil Viscosity (SAE Grade)” in the “Maintenance Pro-
cedures” section of this manual.
Oil Filter (6.1L Engine) MOPAREngine Oil Filter (P/N 04884899AB) or equivalent
Spark Plugs (6.1L Engine) PLZTR5A-13 (Gap 0.050 in [1.27 mm])
Fuel Selection (6.1L Engine) Premium Unleaded 91 Octane Only or higher
MAINTAINING YOUR VEHICLE 439
7

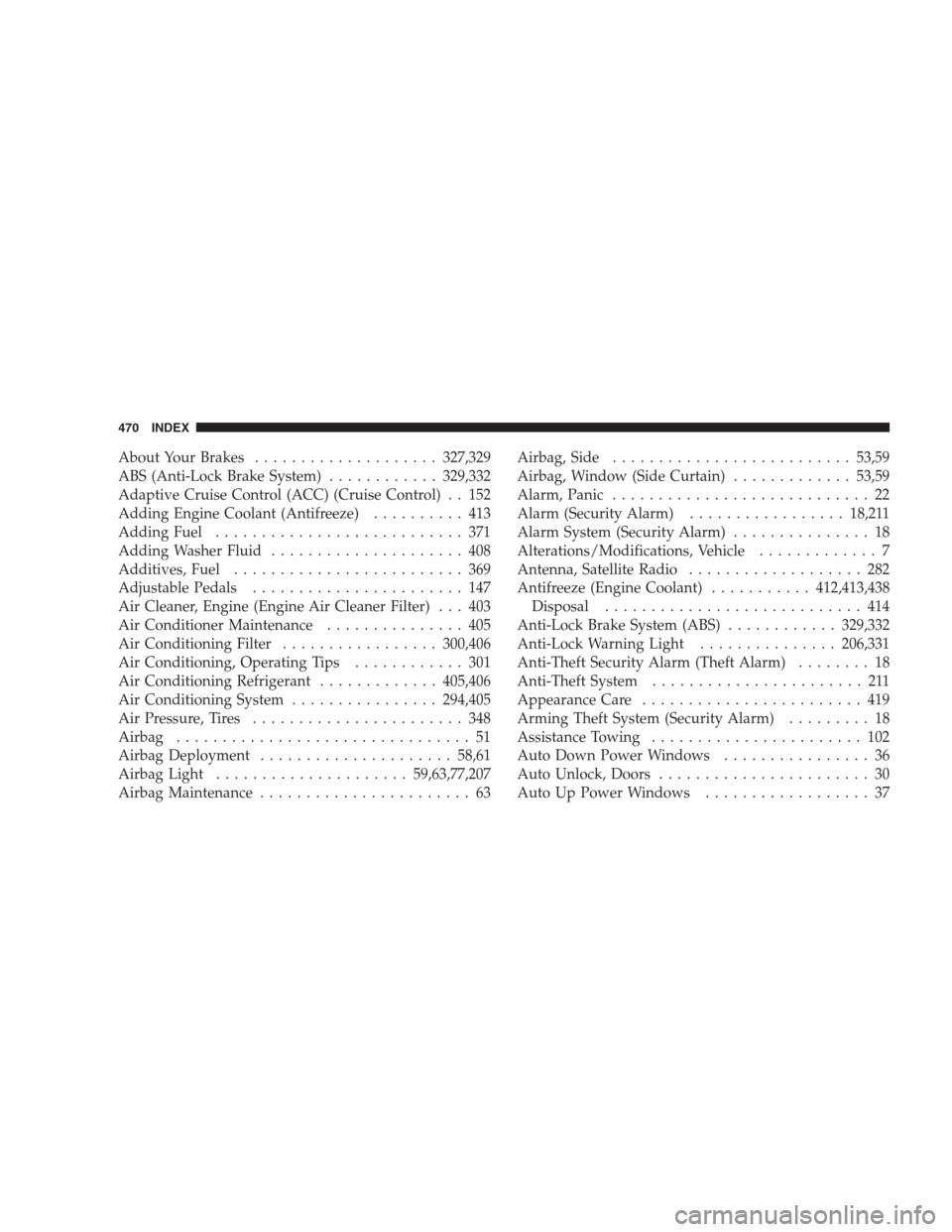

About Your Brakes....................327,329
ABS (Anti-Lock Brake System)............329,332
Adaptive Cruise Control (ACC) (Cruise Control) . . 152
Adding Engine Coolant (Antifreeze).......... 413
Adding Fuel........................... 371
Adding Washer Fluid..................... 408
Additives, Fuel......................... 369
Adjustable Pedals....................... 147
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 403
Air Conditioner Maintenance............... 405
Air Conditioning Filter.................300,406
Air Conditioning, Operating Tips............ 301
Air Conditioning Refrigerant.............405,406
Air Conditioning System................294,405
Air Pressure, Tires....................... 348
Airbag................................ 51
Airbag Deployment.....................58,61
Airbag Light.....................59,63,77,207
Airbag Maintenance....................... 63Airbag, Side..........................53,59
Airbag, Window (Side Curtain).............53,59
Alarm, Panic............................ 22
Alarm (Security Alarm).................18,211
Alarm System (Security Alarm)............... 18
Alterations/Modifications, Vehicle............. 7
Antenna, Satellite Radio................... 282
Antifreeze (Engine Coolant)...........412,413,438
Disposal............................ 414
Anti-Lock Brake System (ABS)............329,332
Anti-Lock Warning Light...............206,331
Anti-Theft Security Alarm (Theft Alarm)........ 18
Anti-Theft System....................... 211
Appearance Care........................ 419
Arming Theft System (Security Alarm)......... 18
Assistance Towing....................... 102
Auto Down Power Windows................ 36
Auto Unlock, Doors....................... 30
Auto Up Power Windows.................. 37
470 INDEX

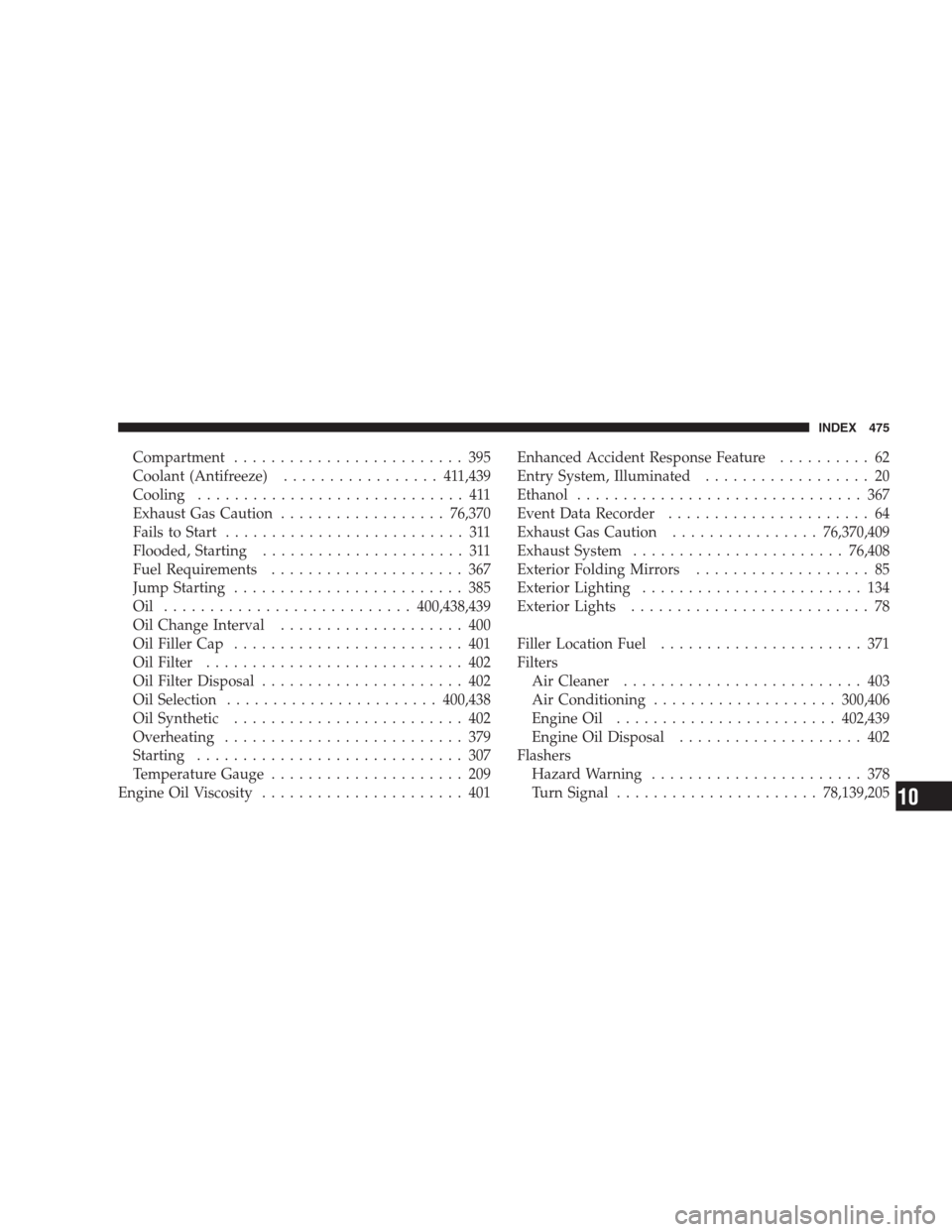

Compartment......................... 395
Coolant (Antifreeze)................. 411,439
Cooling............................. 411
Exhaust Gas Caution..................76,370
Fails to Start.......................... 311
Flooded, Starting...................... 311
Fuel Requirements..................... 367
Jump Starting......................... 385
Oil ...........................400,438,439
Oil Change Interval.................... 400
Oil Filler Cap......................... 401
Oil Filter............................ 402
Oil Filter Disposal...................... 402
Oil Selection.......................400,438
Oil Synthetic......................... 402
Overheating.......................... 379
Starting............................. 307
Temperature Gauge..................... 209
Engine Oil Viscosity...................... 401Enhanced Accident Response Feature.......... 62
Entry System, Illuminated.................. 20
Ethanol............................... 367
Event Data Recorder...................... 64
Exhaust Gas Caution................76,370,409
Exhaust System.......................76,408
Exterior Folding Mirrors................... 85
Exterior Lighting........................ 134
Exterior Lights.......................... 78
Filler Location Fuel...................... 371
Filters
Air Cleaner.......................... 403
Air Conditioning....................300,406
Engine Oil........................402,439
Engine Oil Disposal.................... 402
Flashers
Hazard Warning....................... 378
Turn Signal......................78,139,205
INDEX 475
10

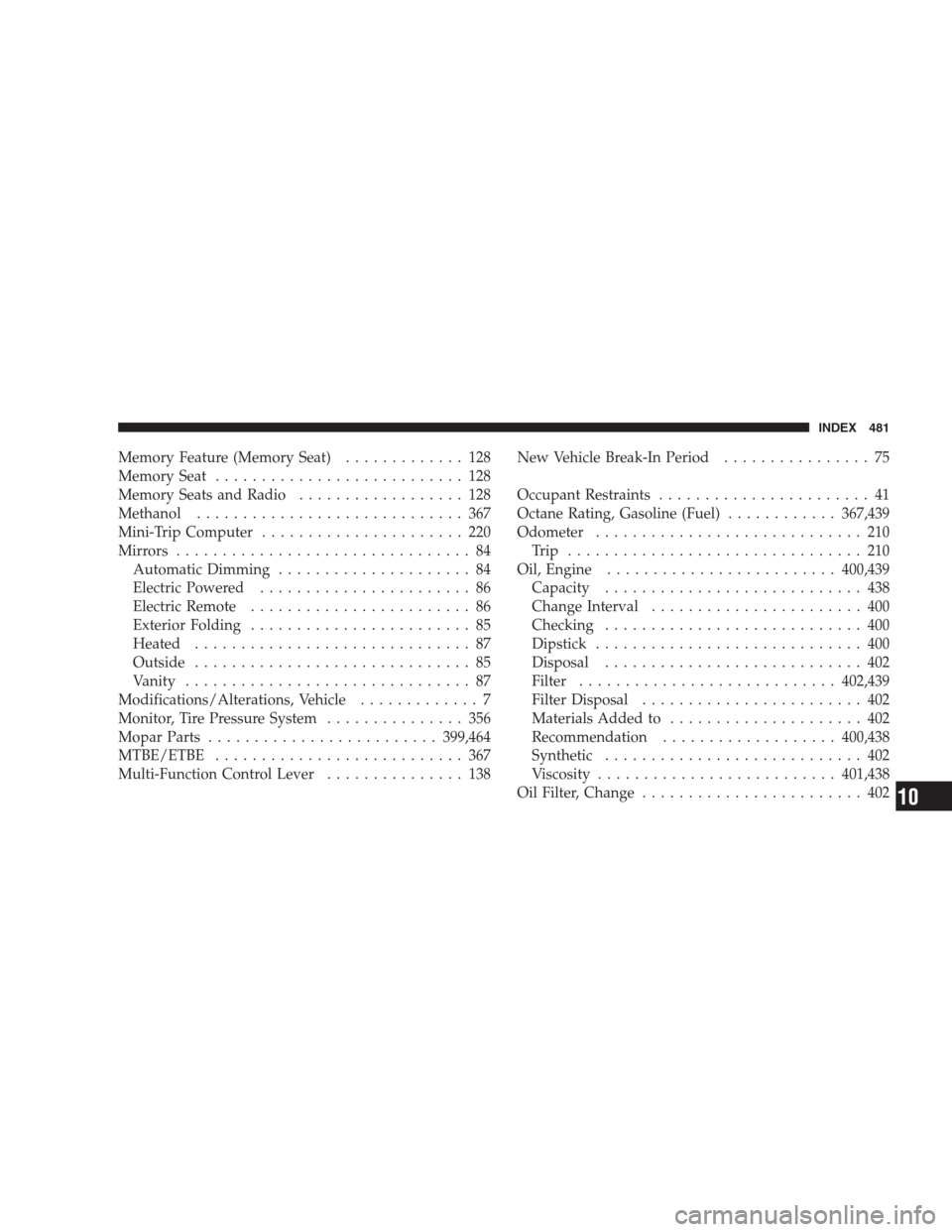

Memory Feature (Memory Seat)............. 128
Memory Seat........................... 128
Memory Seats and Radio.................. 128
Methanol............................. 367
Mini-Trip Computer...................... 220
Mirrors................................ 84
Automatic Dimming..................... 84
Electric Powered....................... 86
Electric Remote........................ 86
Exterior Folding........................ 85
Heated.............................. 87
Outside.............................. 85
Vanity............................... 87
Modifications/Alterations, Vehicle............. 7
Monitor, Tire Pressure System............... 356
Mopar Parts.........................399,464
MTBE/ETBE........................... 367
Multi-Function Control Lever............... 138New Vehicle Break-In Period................ 75
Occupant Restraints....................... 41
Octane Rating, Gasoline (Fuel)............367,439
Odometer............................. 210
Trip ................................ 210
Oil, Engine.........................400,439
Capacity............................ 438
Change Interval....................... 400
Checking............................ 400
Dipstick............................. 400
Disposal............................ 402
Filter............................402,439
Filter Disposal........................ 402
Materials Added to..................... 402
Recommendation...................400,438
Synthetic............................ 402
Viscosity..........................401,438
Oil Filter, Change........................ 402
INDEX 481
10
