Page 401 of 557

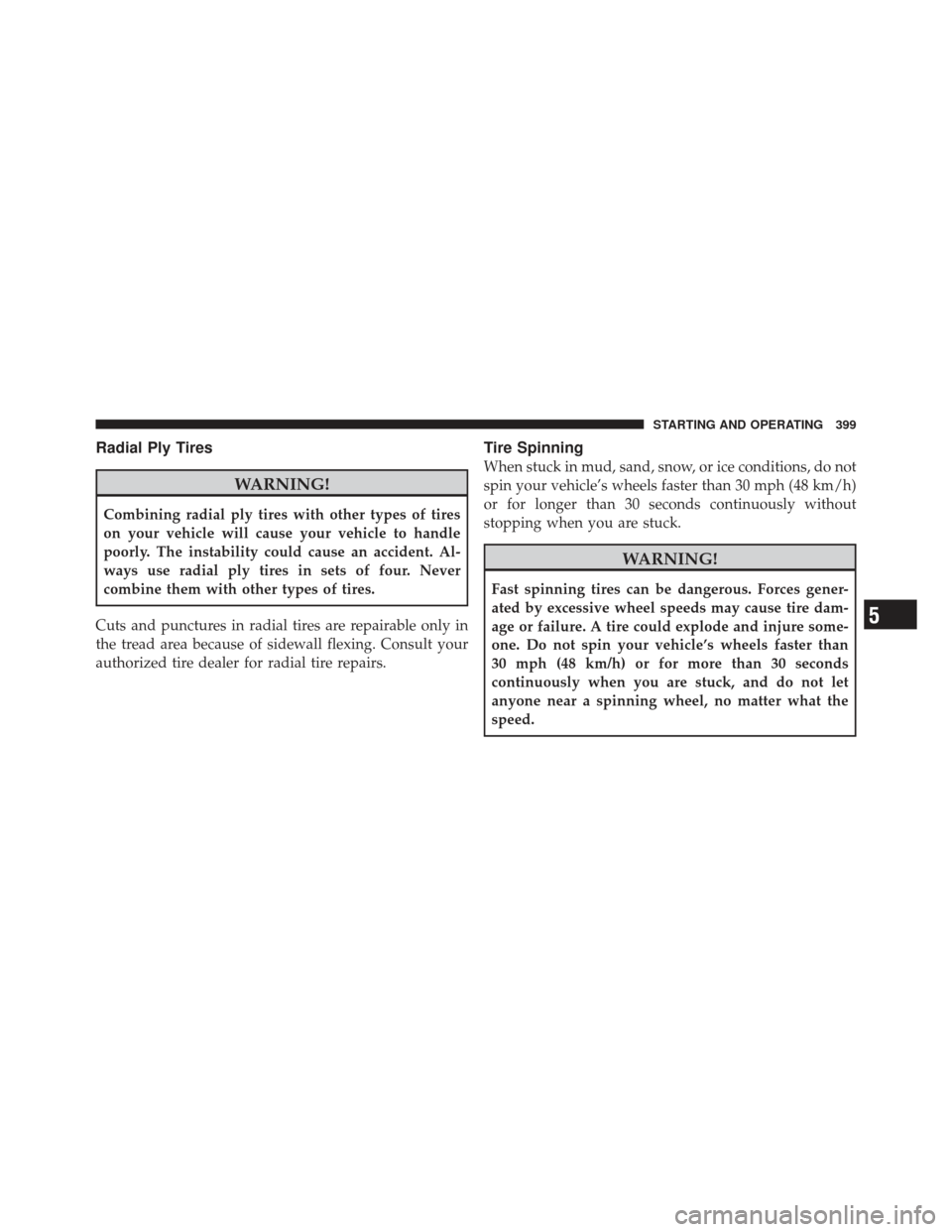

CHRYSLER 300 SRT 2012 2.G Owners Manual Radial Ply Tires
WARNING!
Combining radial ply tires with other types of tires
on your vehicle will cause your vehicle to handle
poorly. The instability could cause an accident. Al-
ways use radial pl

Page 402 of 557

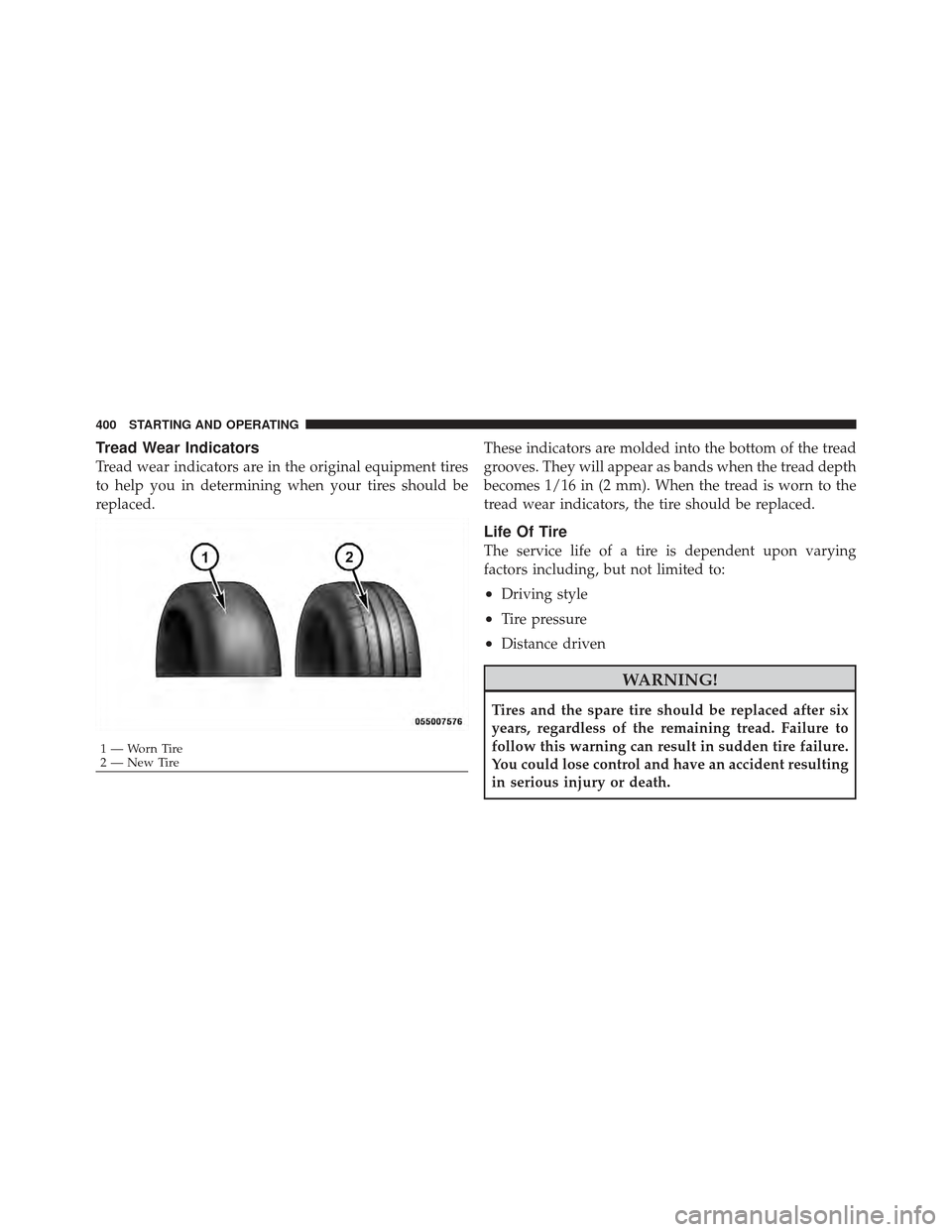

CHRYSLER 300 SRT 2012 2.G Owners Manual Tread Wear Indicators
Tread wear indicators are in the original equipment tires
to help you in determining when your tires should be
replaced.These indicators are molded into the bottom of the tread
g

Page 403 of 557

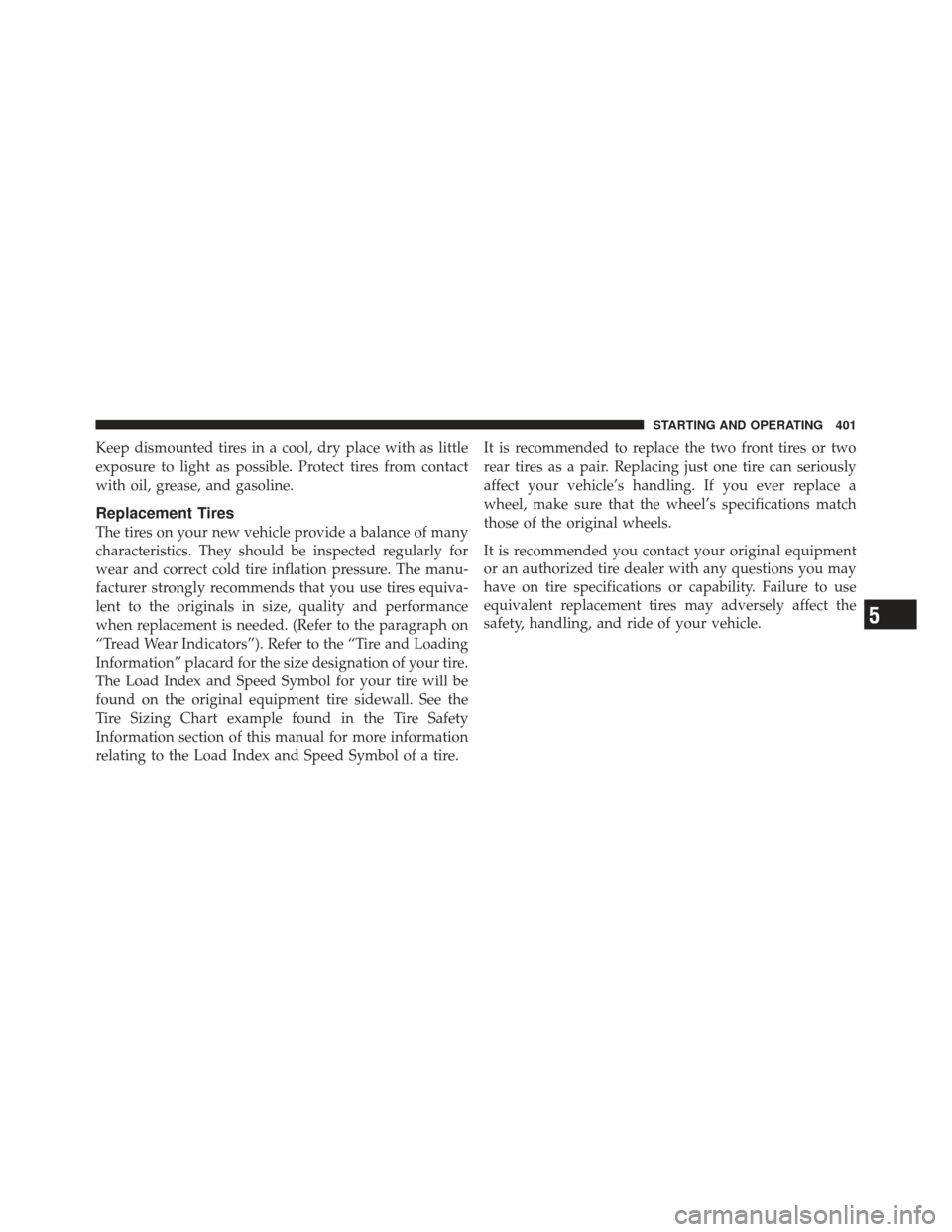

CHRYSLER 300 SRT 2012 2.G Owners Manual Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.
Replacement Tires
The tires on your new vehicle prov

Page 404 of 557

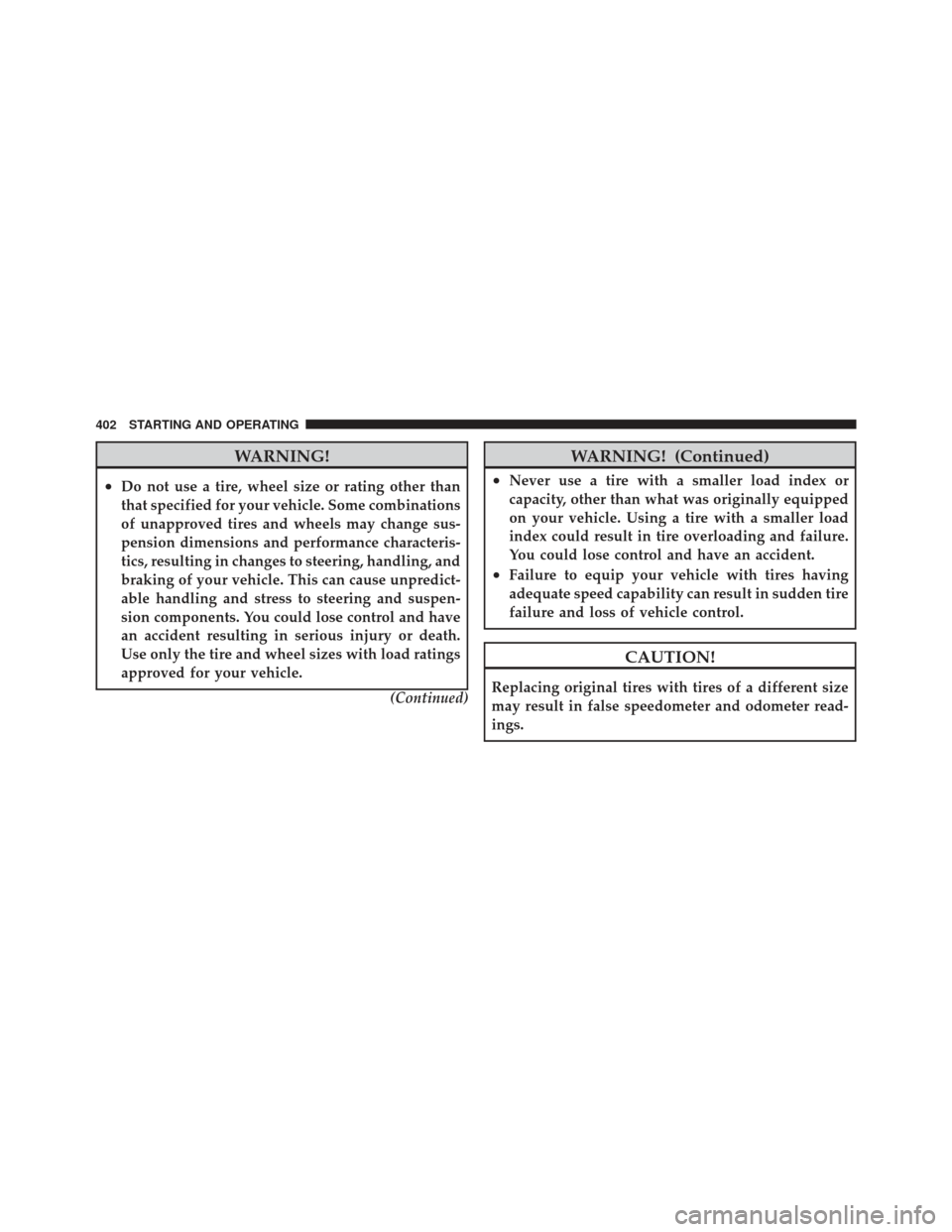

CHRYSLER 300 SRT 2012 2.G Owners Manual WARNING!
•Do not use a tire, wheel size or rating other than
that specified for your vehicle. Some combinations
of unapproved tires and wheels may change sus-
pension dimensions and performance char

Page 405 of 557

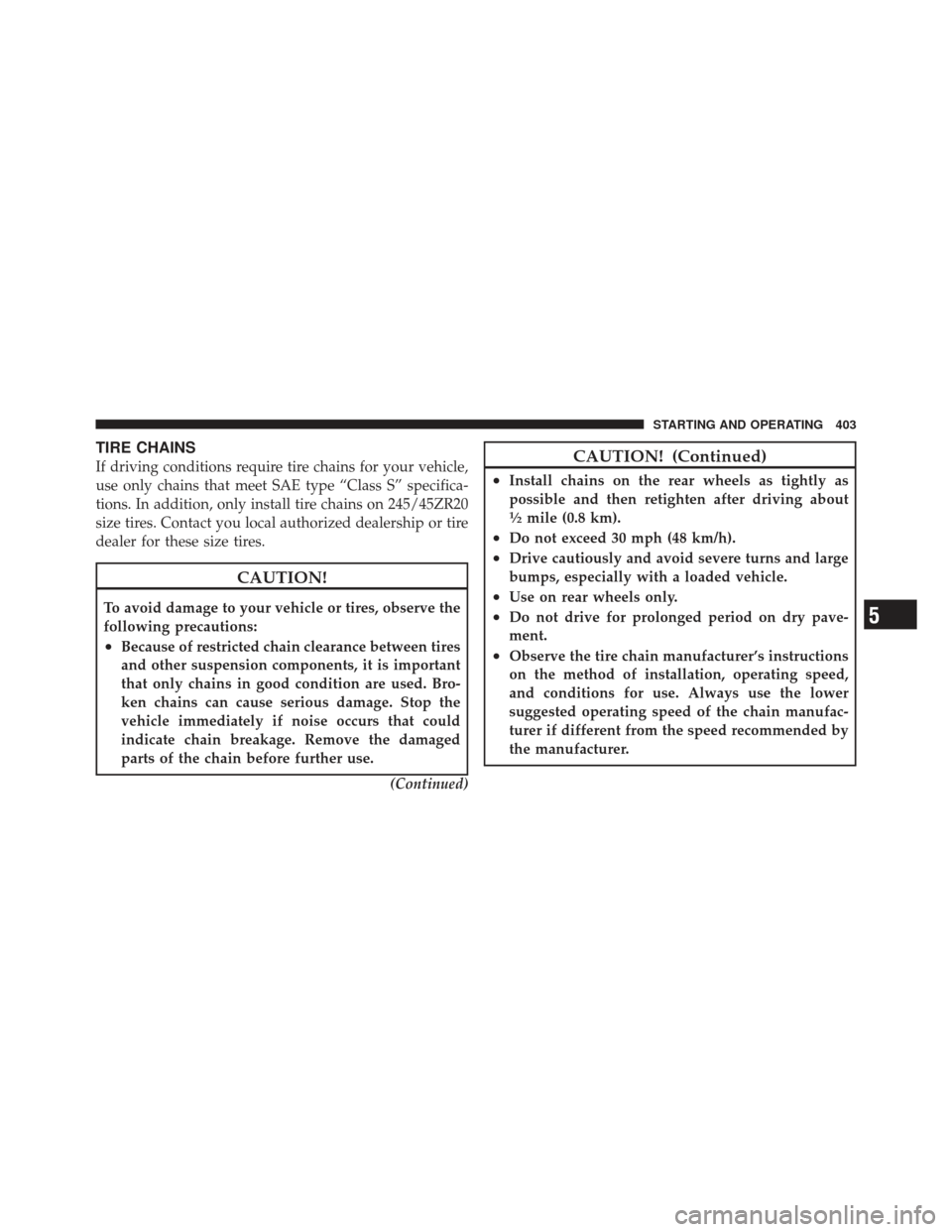

CHRYSLER 300 SRT 2012 2.G Owners Manual TIRE CHAINS
If driving conditions require tire chains for your vehicle,
use only chains that meet SAE type “Class S” specifica-
tions. In addition, only install tire chains on 245/45ZR20
size tire

Page 406 of 557

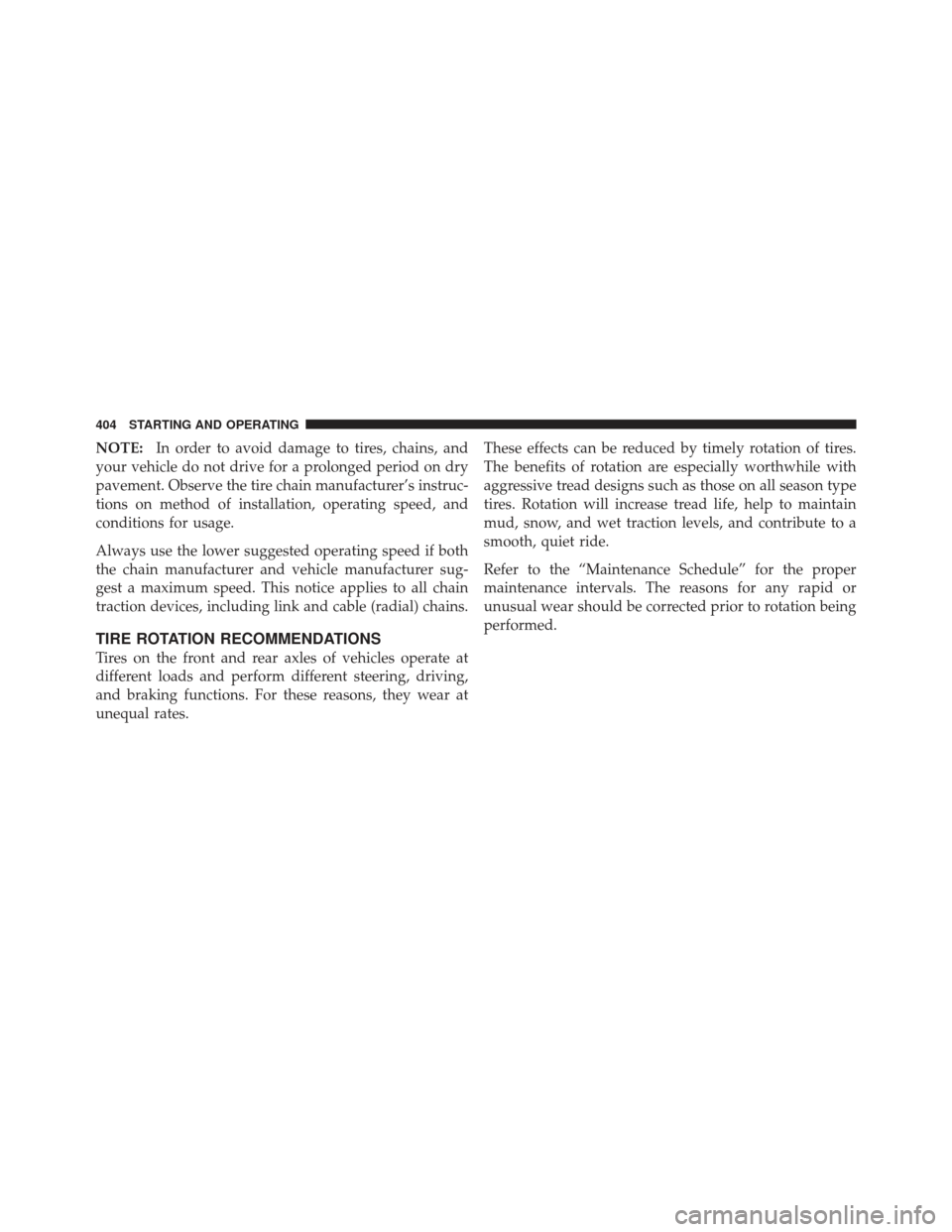

CHRYSLER 300 SRT 2012 2.G Owners Manual NOTE:In order to avoid damage to tires, chains, and
your vehicle do not drive for a prolonged period on dry
pavement. Observe the tire chain manufacturer’s instruc-
tions on method of installation,

Page 407 of 557

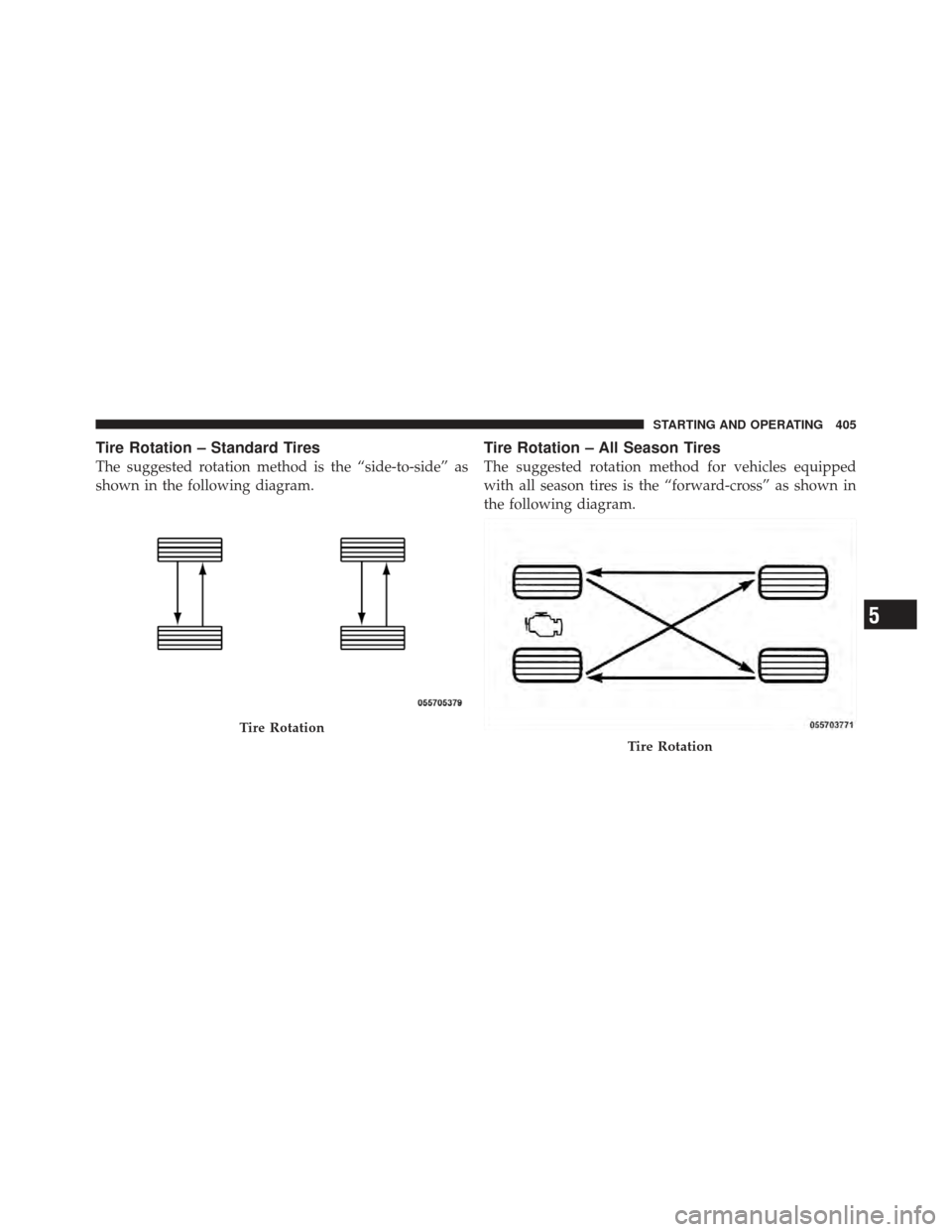

CHRYSLER 300 SRT 2012 2.G Owners Manual Tire Rotation – Standard Tires
The suggested rotation method is the “side-to-side” as
shown in the following diagram.
Tire Rotation – All Season Tires
The suggested rotation method for vehicle

Page 408 of 557

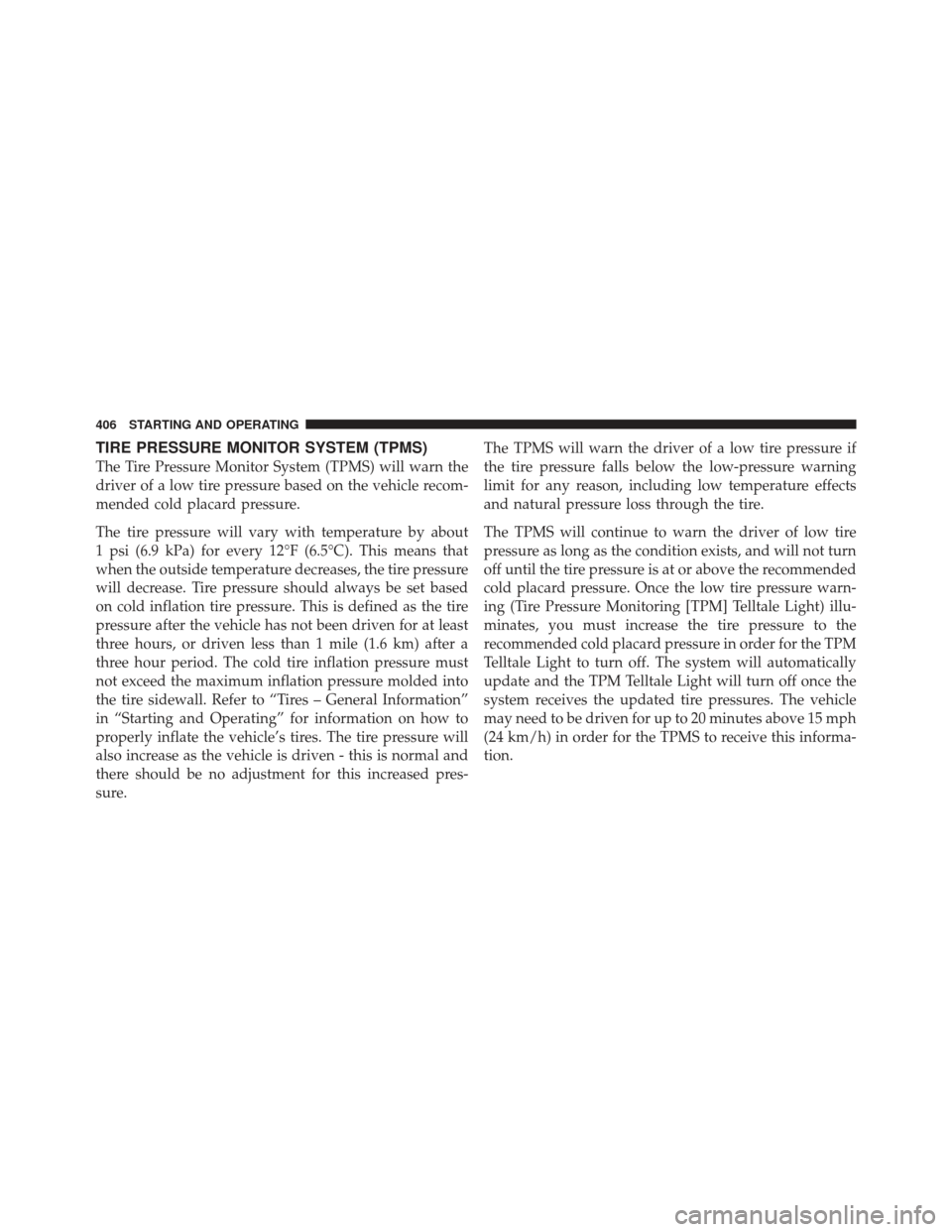

CHRYSLER 300 SRT 2012 2.G Owners Manual TIRE PRESSURE MONITOR SYSTEM (TPMS)
The Tire Pressure Monitor System (TPMS) will warn the
driver of a low tire pressure based on the vehicle recom-
mended cold placard pressure.
The tire pressure will

Page 409 of 557

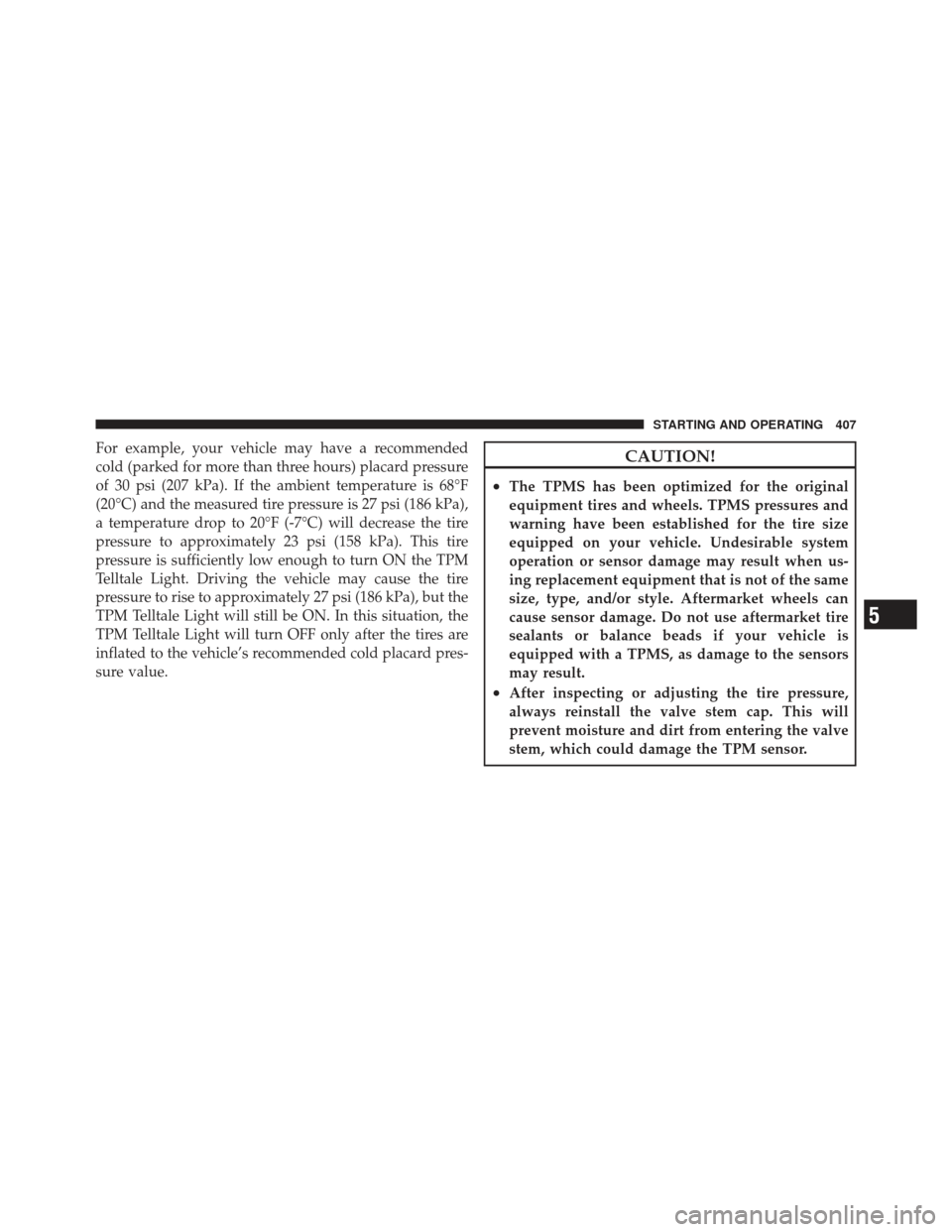

CHRYSLER 300 SRT 2012 2.G Owners Manual For example, your vehicle may have a recommended
cold (parked for more than three hours) placard pressure
of 30 psi (207 kPa). If the ambient temperature is 68°F
(20°C) and the measured tire pressur

Page 410 of 557

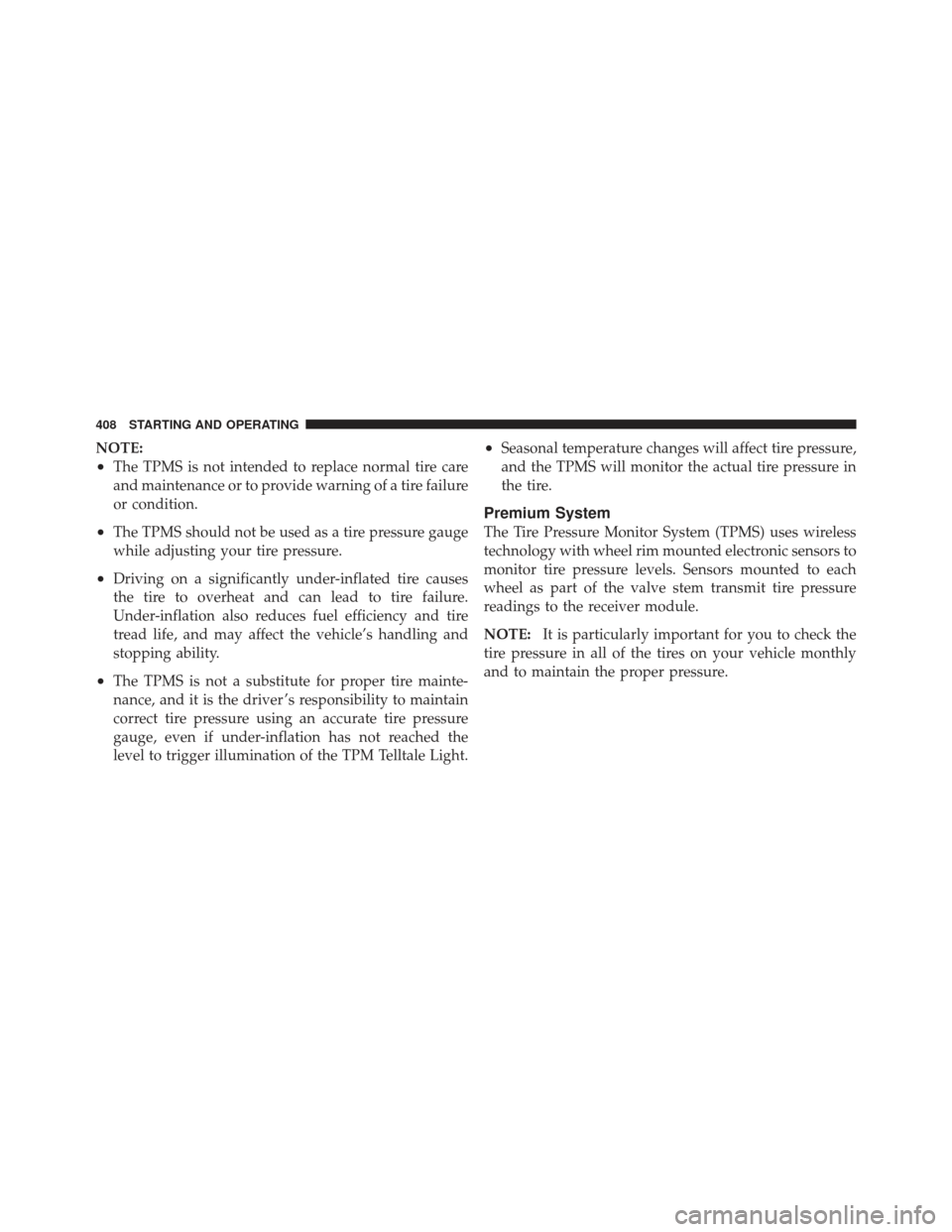

CHRYSLER 300 SRT 2012 2.G Owners Manual NOTE:
•The TPMS is not intended to replace normal tire care
and maintenance or to provide warning of a tire failure
or condition.
•The TPMS should not be used as a tire pressure gauge
while adjust
