Page 301 of 580

CHRYSLER 300 SRT 2013 2.G Owners Manual INSTRUMENT PANEL FEATURES
1 — Air Outlet8 — Uconnect® System Hard Controls 15 — Dimmer Controls
2 — Instrument Cluster 9 — SD Memory Card Slot16 — Hood Release
3 — Hazard Switch 10 —

Page 302 of 580

CHRYSLER 300 SRT 2013 2.G Owners Manual INSTRUMENT CLUSTER
300 UNDERSTANDING YOUR INSTRUMENT PANEL

Page 303 of 580

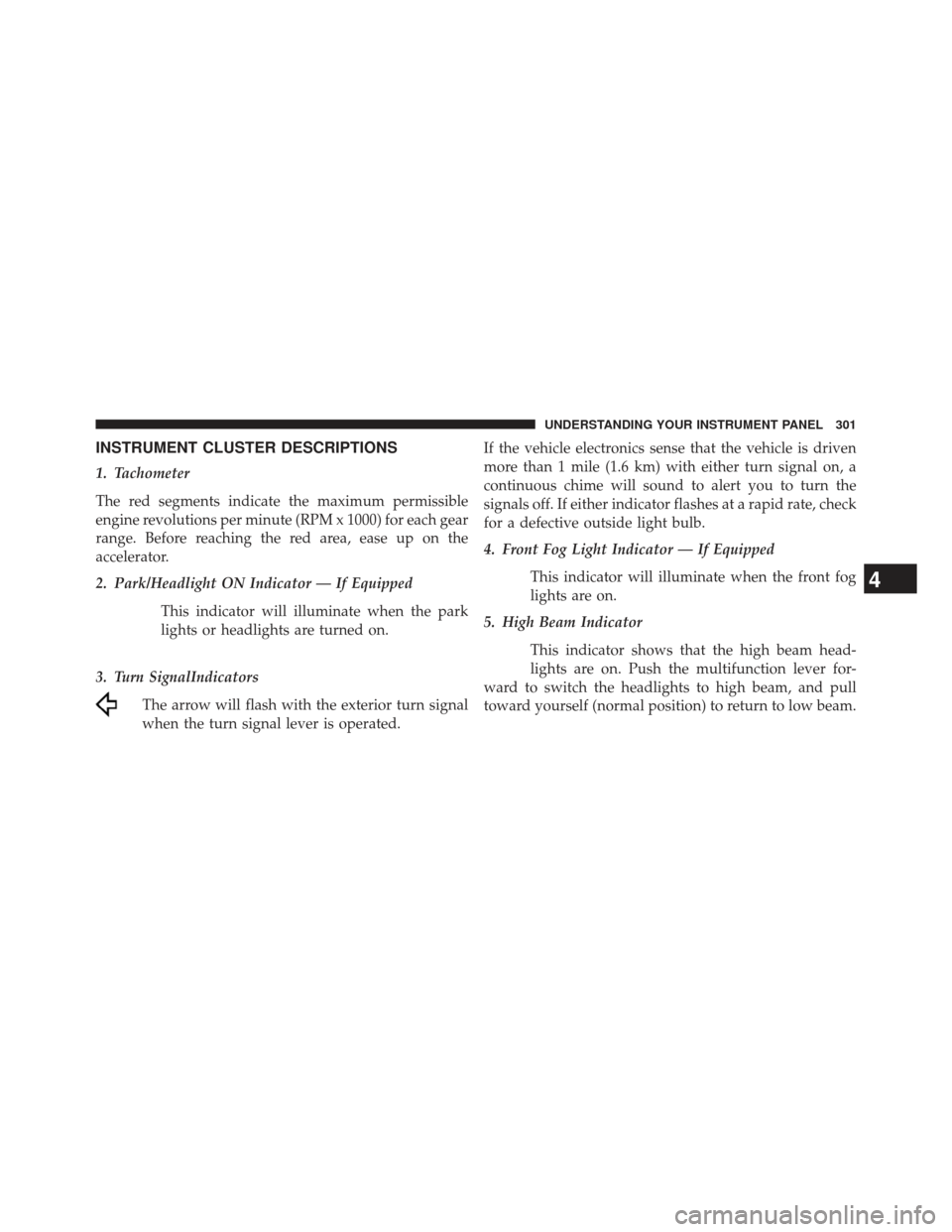

CHRYSLER 300 SRT 2013 2.G Owners Manual INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
The red segments indicate the maximum permissible
engine revolutions per minute (RPM x 1000) for each gear
range. Before reaching the red area, ease up on

Page 304 of 580

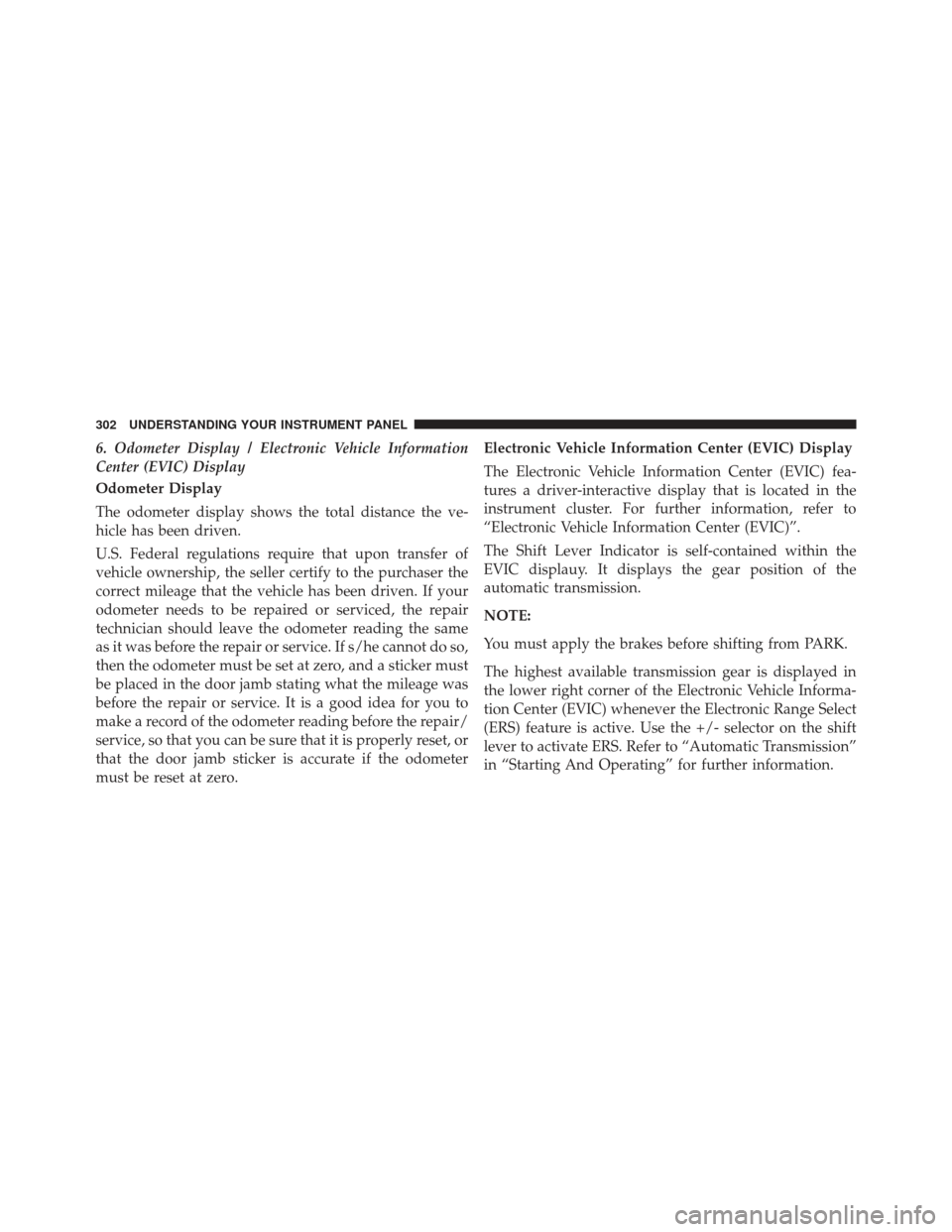

CHRYSLER 300 SRT 2013 2.G Owners Manual 6. Odometer Display / Electronic Vehicle Information
Center (EVIC) Display
Odometer Display
The odometer display shows the total distance the ve-
hicle has been driven.
U.S. Federal regulations requir

Page 305 of 580

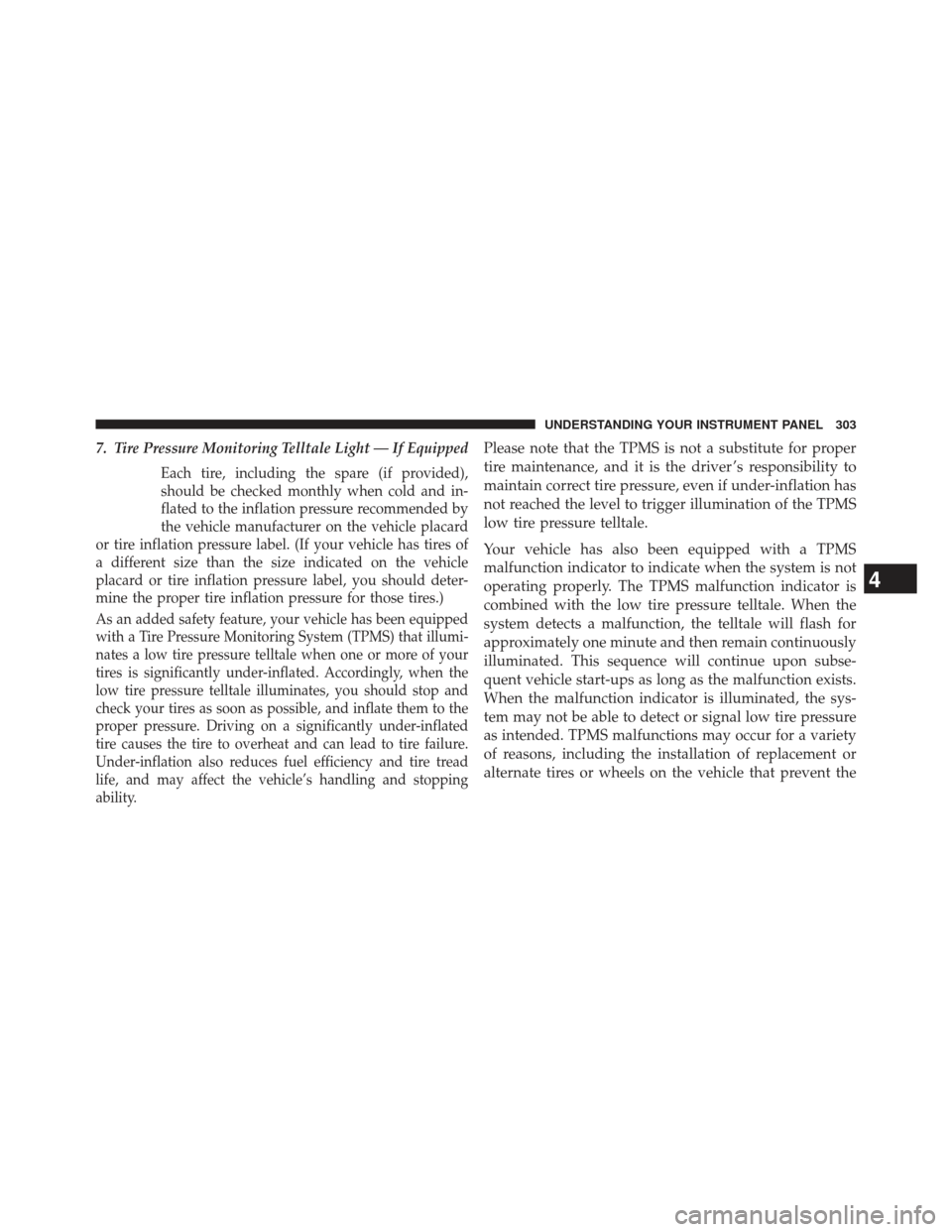

CHRYSLER 300 SRT 2013 2.G Owners Manual 7. Tire Pressure Monitoring Telltale Light — If Equipped
Each tire, including the spare (if provided),
should be checked monthly when cold and in-
flated to the inflation pressure recommended by
the

Page 306 of 580

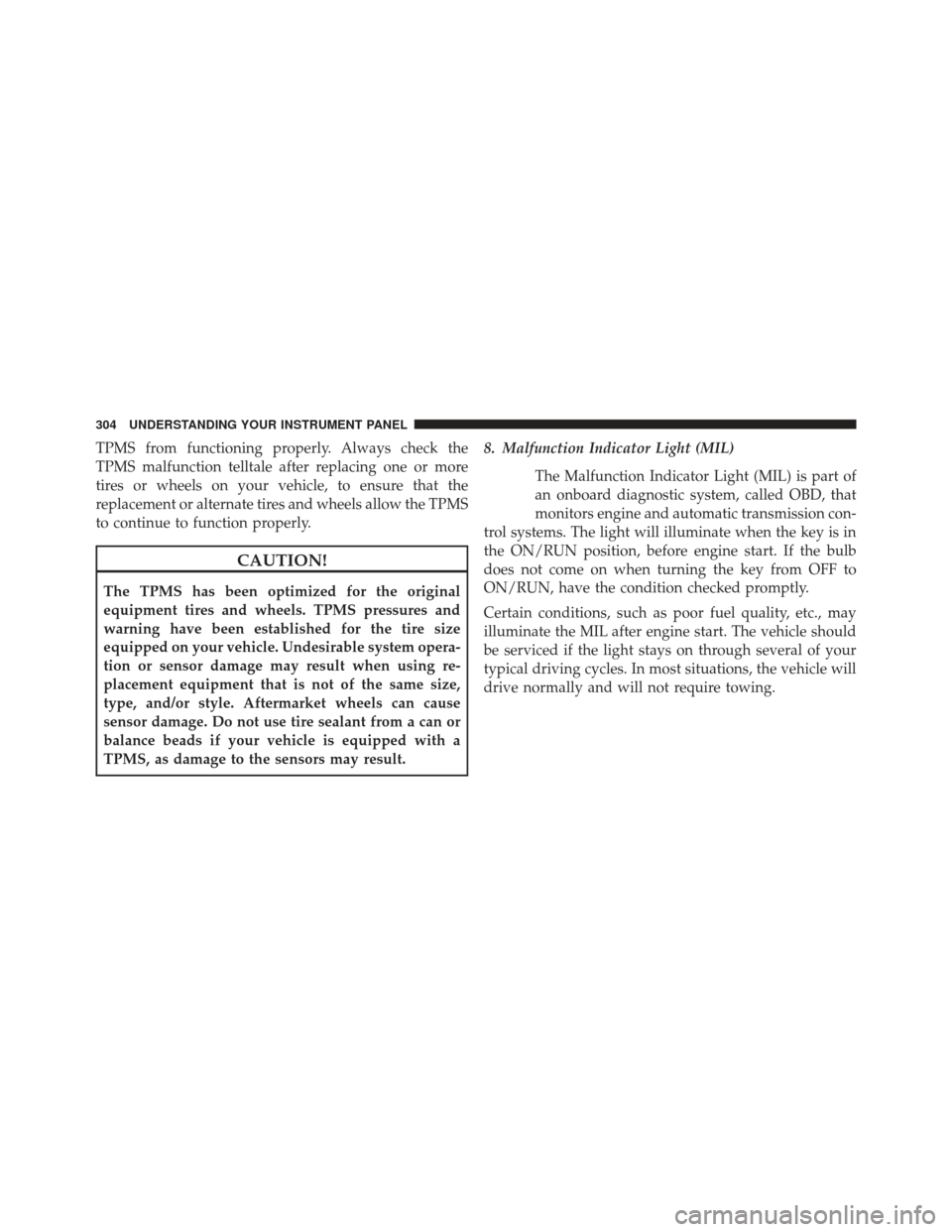

CHRYSLER 300 SRT 2013 2.G Owners Manual TPMS from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels all

Page 307 of 580

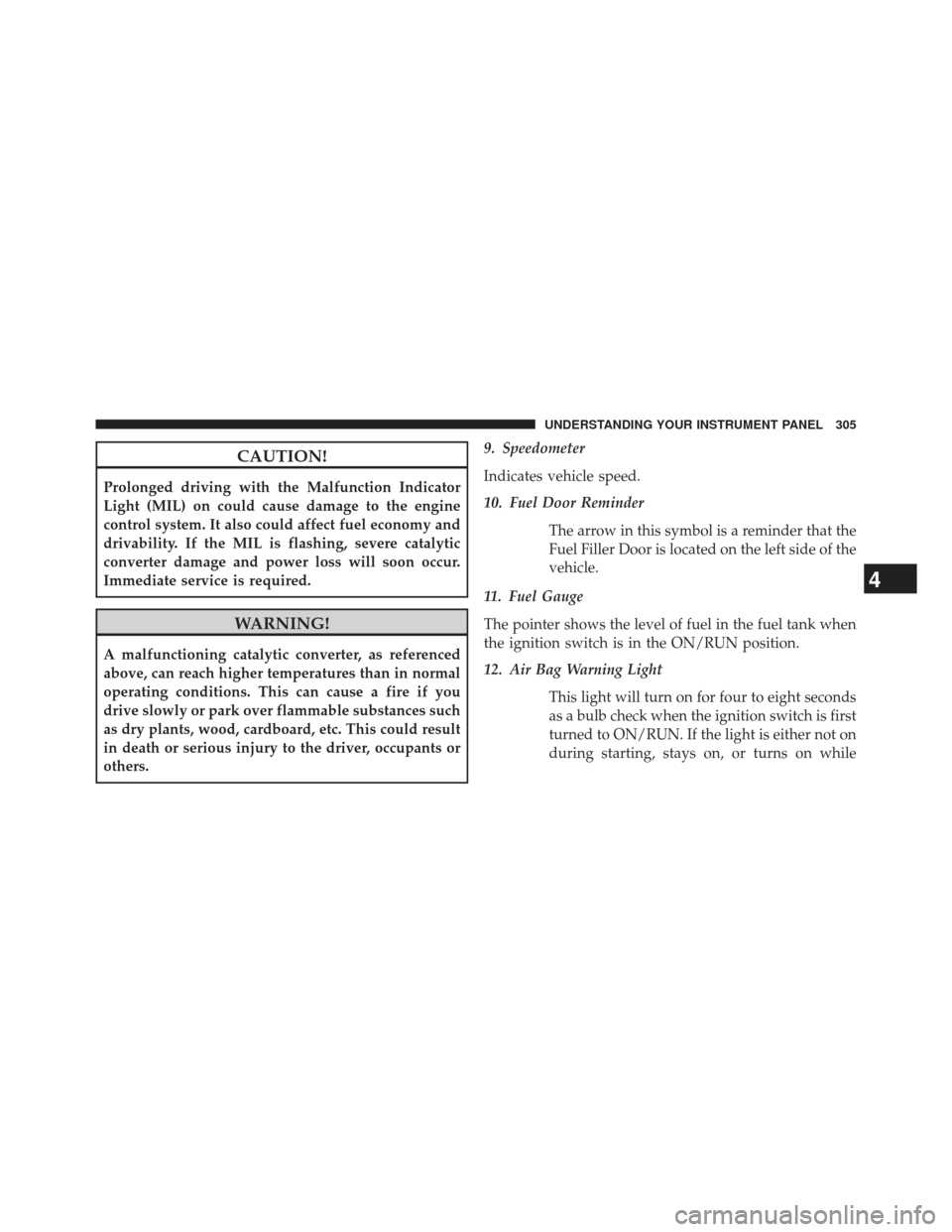

CHRYSLER 300 SRT 2013 2.G Owners Manual CAUTION!
Prolonged driving with the Malfunction Indicator
Light (MIL) on could cause damage to the engine
control system. It also could affect fuel economy and
drivability. If the MIL is flashing, sev

Page 308 of 580

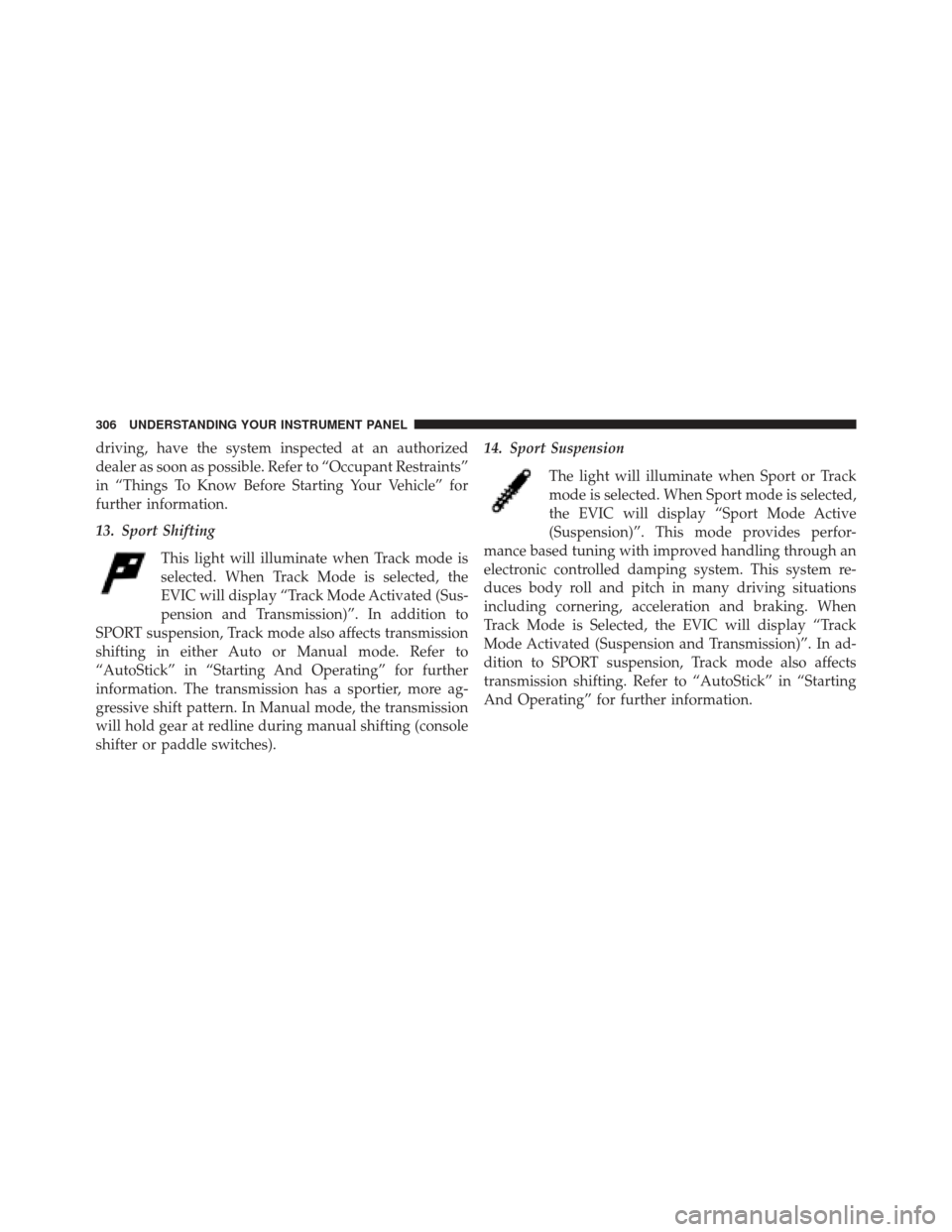

CHRYSLER 300 SRT 2013 2.G Owners Manual driving, have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
13. Spo

Page 309 of 580

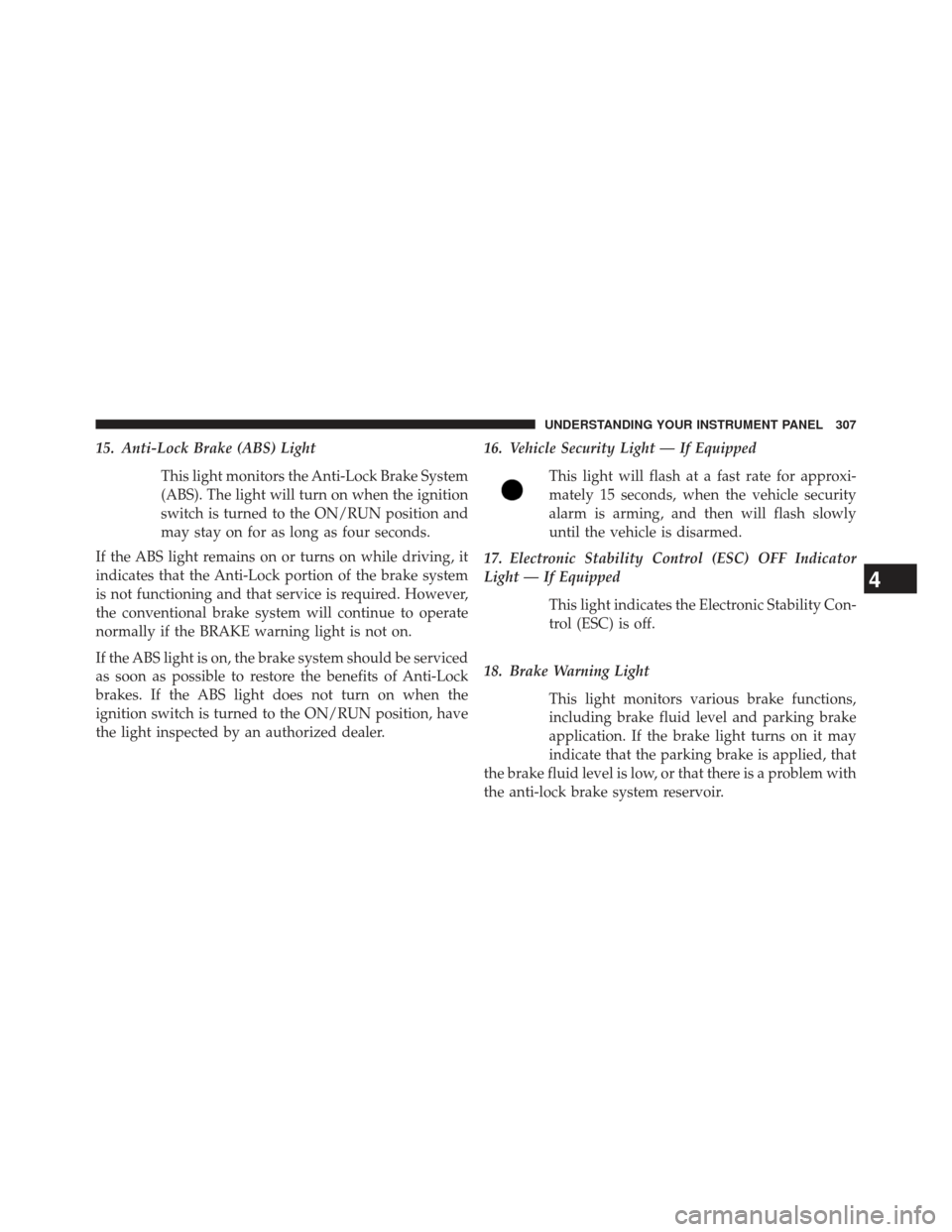

CHRYSLER 300 SRT 2013 2.G Owners Manual 15. Anti-Lock Brake (ABS) LightThis light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as fou

Page 310 of 580

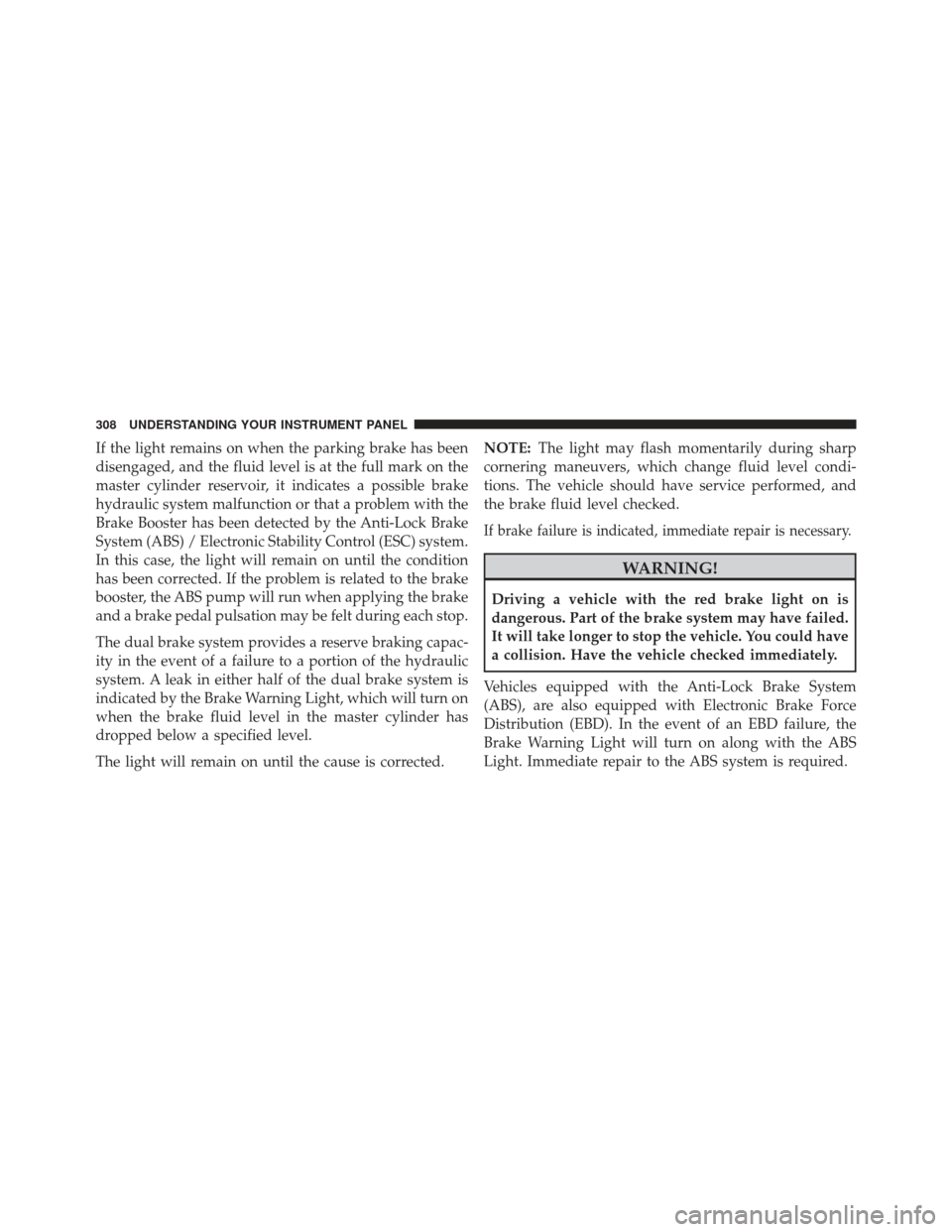

CHRYSLER 300 SRT 2013 2.G Owners Manual If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction
