CHRYSLER 300 SRT 2013 2.G Owners Manual

15. Driver Temperature Control Up Button
Provides the driver with independent temperature con-
trol. Push the button for warmer temperature settings.
NOTE:
In Sync mode, this button will also automatically
adjust the passenger temperature setting at the same time.
Climate Control Functions
A/C (Air Conditioning)
The Air Conditioning (A/C) button allows the operator
to manually activate or deactivate the air conditioning
system. When the air conditioning system is turned on,
cool dehumidified air will flow through the outlets into
the cabin. For improved fuel economy, press the A/C
button to turn off the air conditioning and manually
adjust the blower and airflow mode settings. Also, make
sure to select only Panel, Bi-Level or Floor modes. NOTE:
•
If fog or mist appears on the windshield or side glass,
select Defrost mode and increase blower speed.
• If your air conditioning performance seems lower than
expected, check the front of the A/C condenser (lo-
cated in front of the radiator), for an accumulation of
dirt or insects. Clean with a gentle water spray from
behind the radiator and through the condenser. Fabric
front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.
MAX A/C
Max A/C sets the control for maximum cooling perfor-
mance.Press and release to toggle between Max A/C and
the prior settings. The soft-key illuminates when Max
A/C is ON.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 359

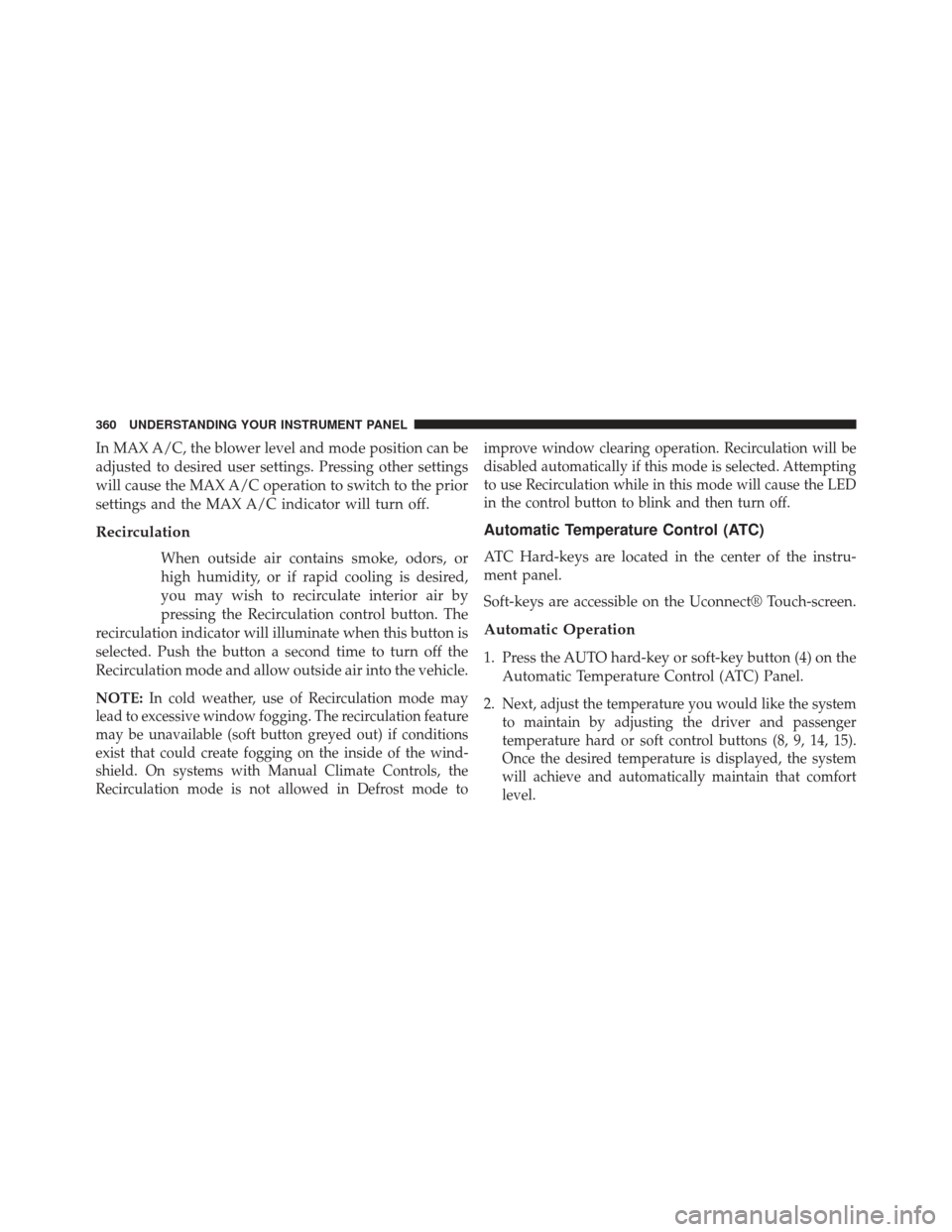

In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the prior
settings and the MAX A/C indicator will turn off.
Recirculation
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the Recirculation control button. The
recirculation indicator will illuminate when this button is
selected. Push the button a second time to turn off the
Recirculation mode and allow outside air into the vehicle.
NOTE:
In cold weather, use of Recirculation mode may
lead to excessive window fogging. The recirculation feature
may be unavailable (soft button greyed out) if conditions
exist that could create fogging on the inside of the wind-
shield. On systems with Manual Climate Controls, the
Recirculation mode is not allowed in Defrost mode to improve window clearing operation. Recirculation will be
disabled automatically if this mode is selected. Attempting
to use Recirculation while in this mode will cause the LED
in the control button to blink and then turn off.
Automatic Temperature Control (ATC)
ATC Hard-keys are located in the center of the instru-
ment panel.
Soft-keys are accessible on the Uconnect® Touch-screen.
Automatic Operation
1. Press the AUTO hard-key or soft-key button (4) on the
Automatic Temperature Control (ATC) Panel.
2.
Next, adjust the temperature you would like the system
to maintain by adjusting the driver and passenger
temperature hard or soft control buttons (8, 9, 14, 15).
Once the desired temperature is displayed, the system
will achieve and automatically maintain that comfort
level.
360 UNDERSTANDING YOUR INSTRUMENT PANEL

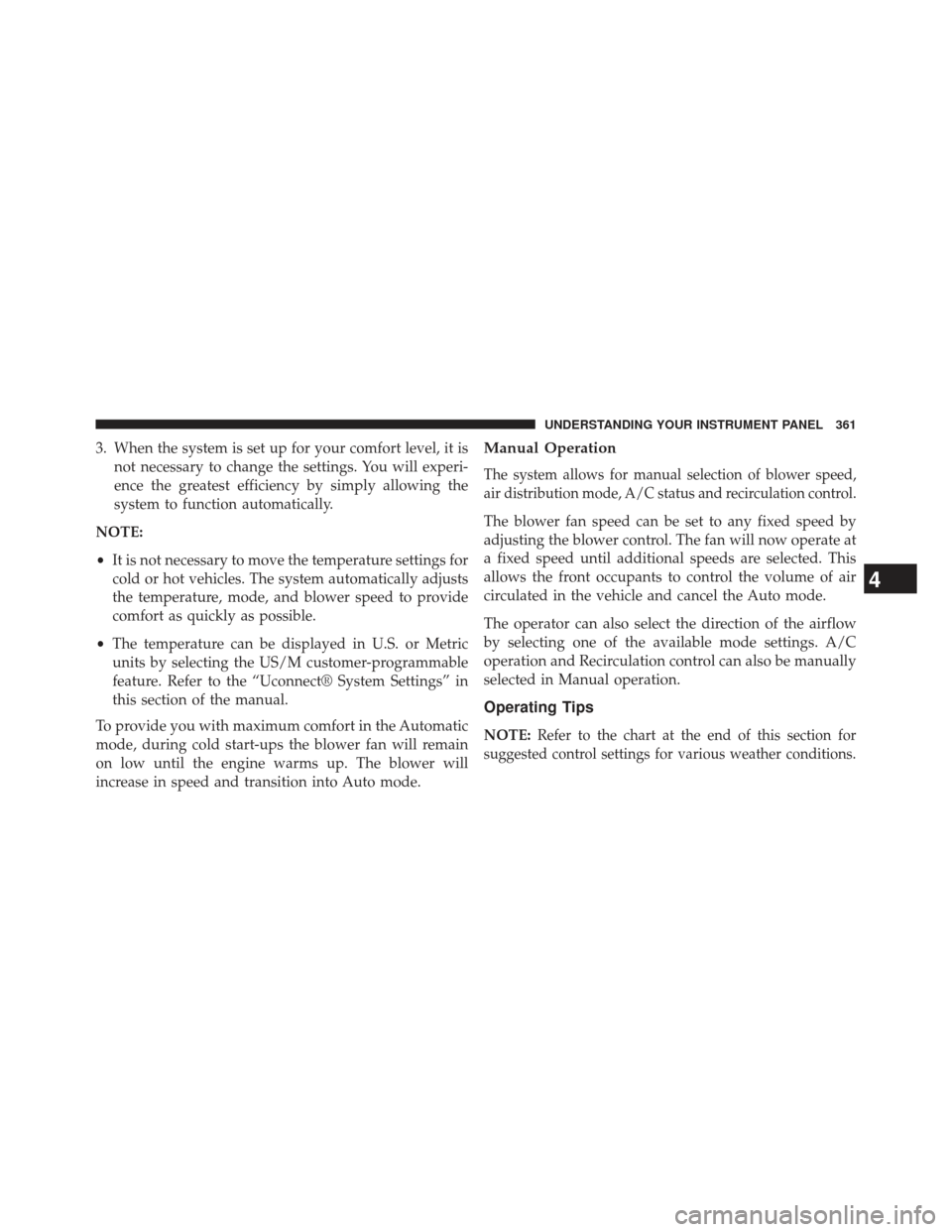

3. When the system is set up for your comfort level, it isnot necessary to change the settings. You will experi-
ence the greatest efficiency by simply allowing the
system to function automatically.
NOTE:
• It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.
• The temperature can be displayed in U.S. or Metric
units by selecting the US/M customer-programmable
feature. Refer to the “Uconnect® System Settings” in
this section of the manual.
To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain
on low until the engine warms up. The blower will
increase in speed and transition into Auto mode.Manual Operation
The system allows for manual selection of blower speed,
air distribution mode, A/C status and recirculation control.
The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at
a fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode.
The operator can also select the direction of the airflow
by selecting one of the available mode settings. A/C
operation and Recirculation control can also be manually
selected in Manual operation.
Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather conditions.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 361

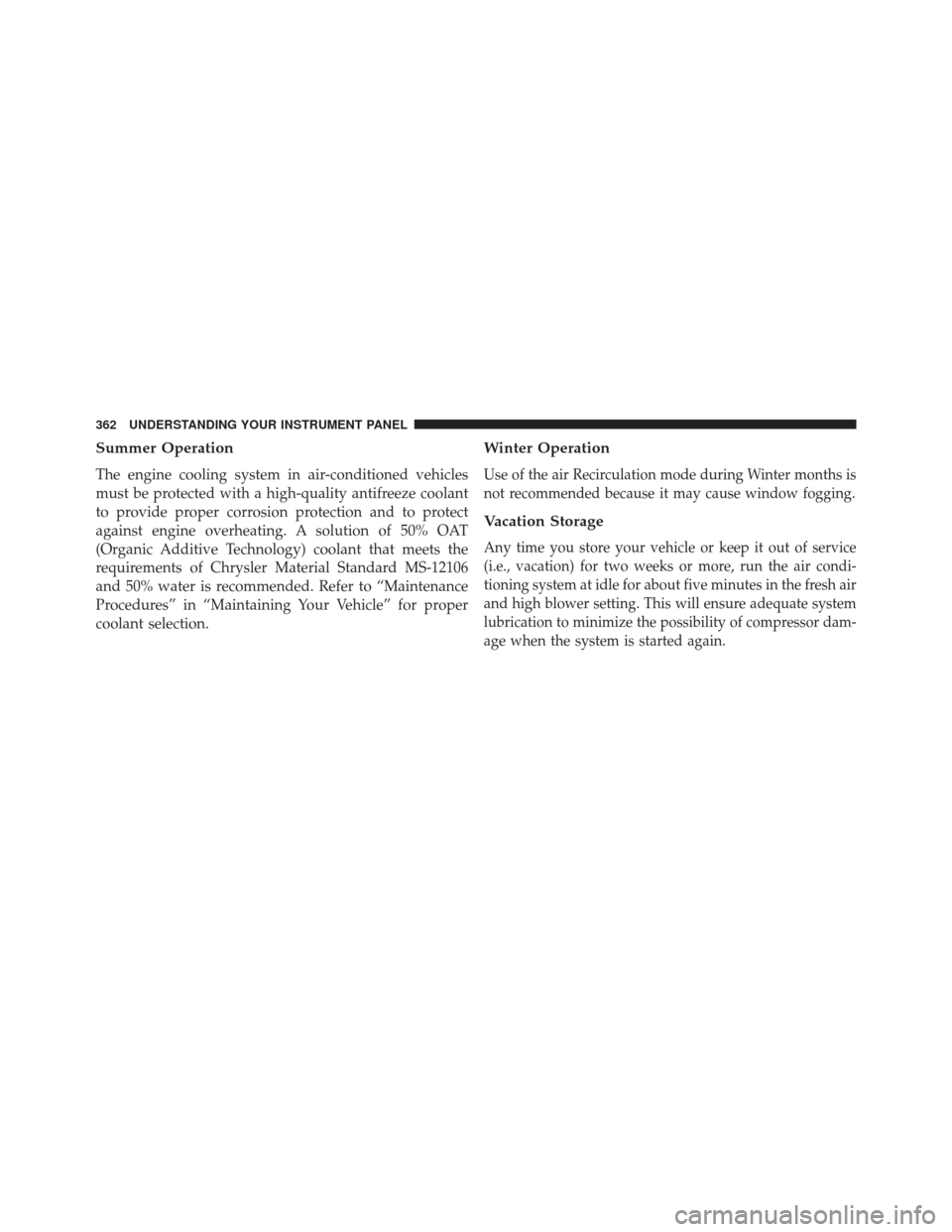

Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% OAT
(Organic Additive Technology) coolant that meets the
requirements of Chrysler Material Standard MS-12106
and 50% water is recommended. Refer to “Maintenance
Procedures” in “Maintaining Your Vehicle” for proper
coolant selection.
Winter Operation
Use of the air Recirculation mode during Winter months is
not recommended because it may cause window fogging.
Vacation Storage
Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air condi-
tioning system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate system
lubrication to minimize the possibility of compressor dam-
age when the system is started again.
362 UNDERSTANDING YOUR INSTRUMENT PANEL

Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes a problem increase blower speed.
Vehicle windows tend to fog on the inside in mild but
rainy or humid weather.
NOTE:
•Recirculate without A/C should not be used for long
periods, as fogging may occur.
• Automatic Temperature Controls (ATC) will automati-
cally adjust the climate control settings to reduce or
eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if
theyenter the plenum, they could plug the water drains.
In Winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter
The climate control system filters outside air containing
dust, pollen and some odors. Strong odors cannot be totally
filtered out. Refer to “Maintenance Procedures” in “Main-
taining Your Vehicle” for filter replacement instructions.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 363

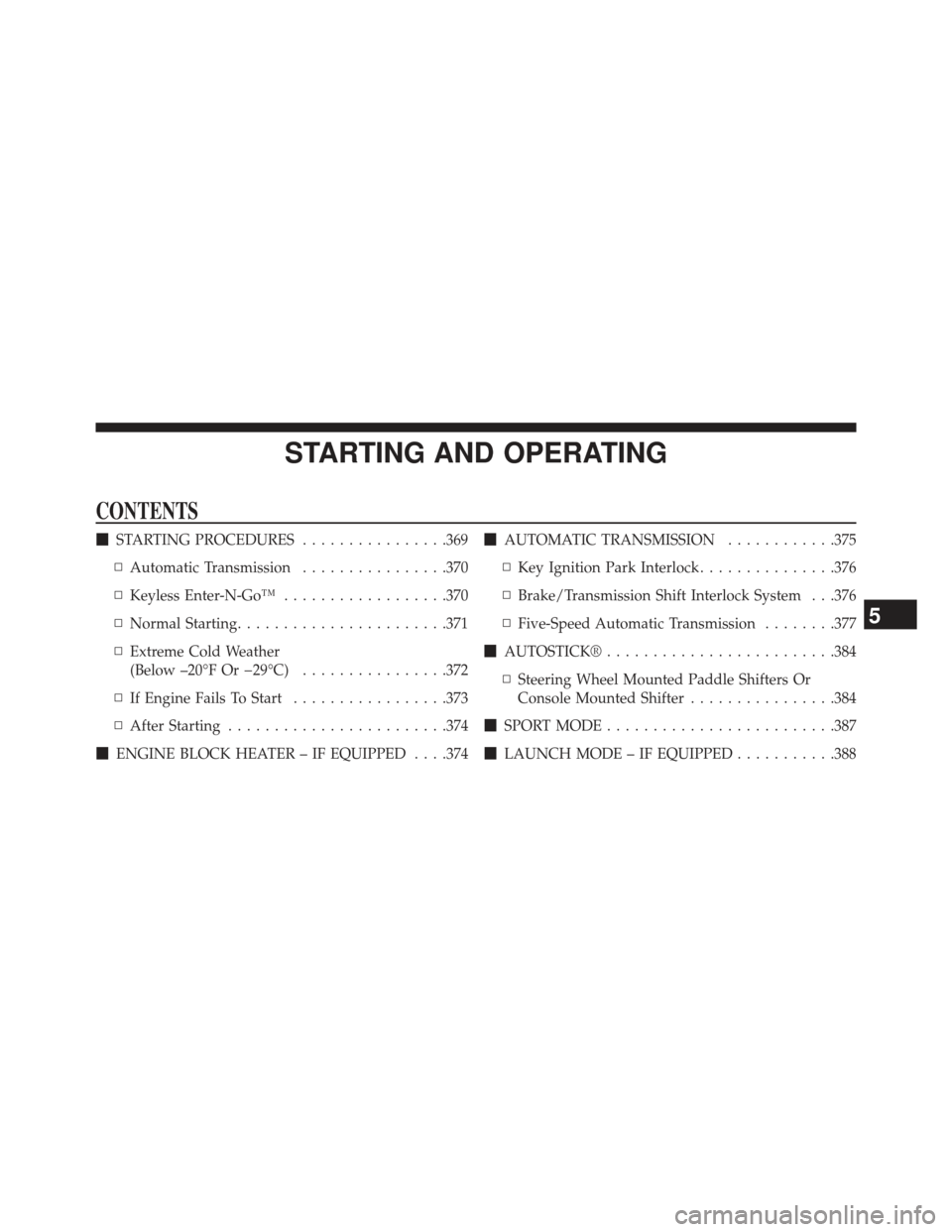

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................369
▫ Automatic Transmission ................370
▫ Keyless Enter-N-Go™ ..................370
▫ Normal Starting ...................... .371
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................372
▫ If Engine Fails To Start .................373
▫ After Starting ....................... .374
 ENGINE BLOCK HEATER – IF EQUIPPED . . . .374
AUTOMATIC TRANSMISSION ............375
▫ Key Ignition Park Interlock ...............376
▫ Brake/Transmission Shift Interlock System . . .376
▫ Five-Speed Automatic Transmission ........377
 AUTOSTICK® ........................ .384
▫ Steering Wheel Mounted Paddle Shifters Or
Console Mounted Shifter ................384
 SPORT MODE ........................ .387
 LAUNCH MODE – IF EQUIPPED ...........388
5

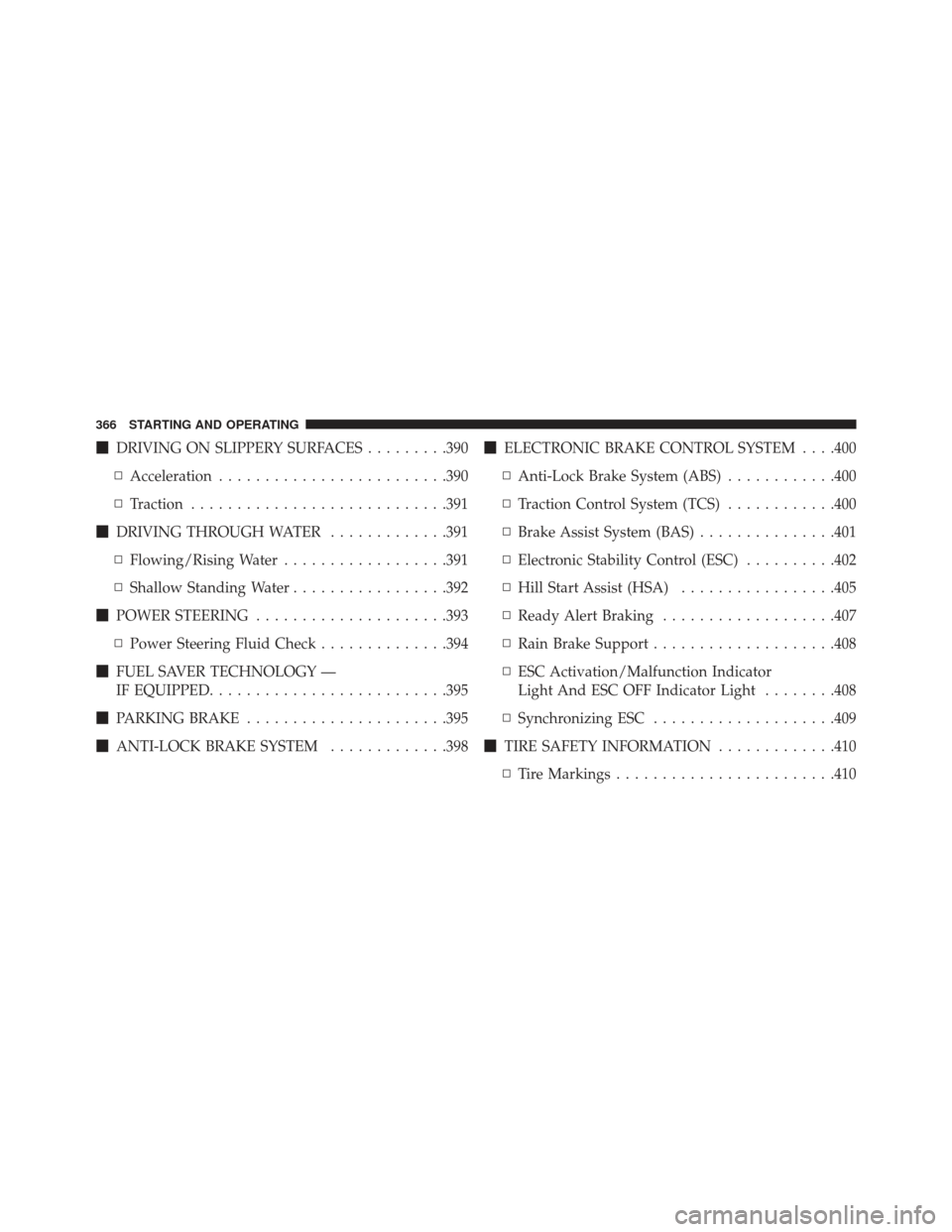

DRIVING ON SLIPPERY SURFACES .........390
▫ Acceleration ........................ .390
▫ Traction ........................... .391
 DRIVING THROUGH WATER .............391
▫ Flowing/Rising Water ..................391
▫ Shallow Standing Water .................392
 POWER STEERING .....................393
▫ Power Steering Fluid Check ..............394
 FUEL SAVER TECHNOLOGY —
IF EQUIPPED ......................... .395
 PARKING BRAKE ..................... .395
 ANTI-LOCK BRAKE SYSTEM .............398
ELECTRONIC BRAKE CONTROL SYSTEM . . . .400
▫ Anti-Lock Brake System (ABS) ............400
▫ Traction Control System (TCS) ............400
▫ Brake Assist System (BAS) ...............401
▫ Electronic Stability Control (ESC) ..........402
▫ Hill Start Assist (HSA) .................405
▫ Ready Alert Braking ...................407
▫ Rain Brake Support ....................408
▫ ESC Activation/Malfunction Indicator
Light And ESC OFF Indicator Light ........408
▫ Synchronizing ESC ....................409
 TIRE SAFETY INFORMATION .............410
▫ Tire Markings ....................... .410
366 STARTING AND OPERATING

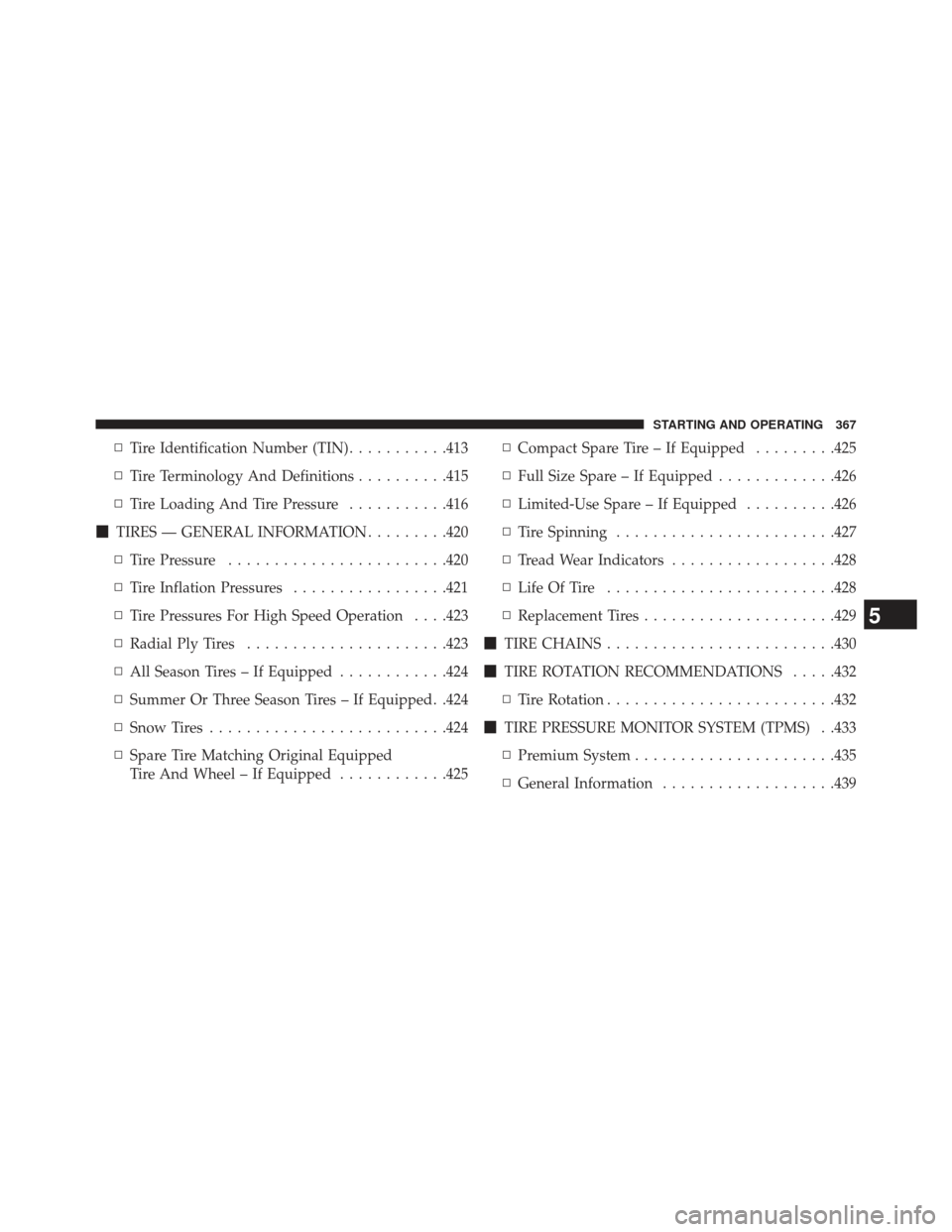

▫Tire Identification Number (TIN) ...........413
▫ Tire Terminology And Definitions ..........415
▫ Tire Loading And Tire Pressure ...........416
 TIRES — GENERAL INFORMATION .........420
▫ Tire Pressure ....................... .420
▫ Tire Inflation Pressures .................421
▫ Tire Pressures For High Speed Operation . . . .423
▫ Radial Ply Tires ..................... .423
▫ All Season Tires – If Equipped ............424
▫ Summer Or Three Season Tires – If Equipped. .424
▫ Snow Tires ......................... .424
▫ Spare Tire Matching Original Equipped
Tire And Wheel – If Equipped ............425▫
Compact Spare Tire – If Equipped .........425
▫ Full Size Spare – If Equipped .............426
▫ Limited-Use Spare – If Equipped ..........426
▫ Tire Spinning ....................... .427
▫ Tread Wear Indicators ..................428
▫ Life Of Tire ........................ .428
▫ Replacement Tires .....................429
 TIRE CHAINS ........................ .430
 TIRE ROTATION RECOMMENDATIONS .....432
▫ Tire Rotation ........................ .432
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .433
▫ Premium System ..................... .435
▫ General Information ...................439
5
STARTING AND OPERATING 367

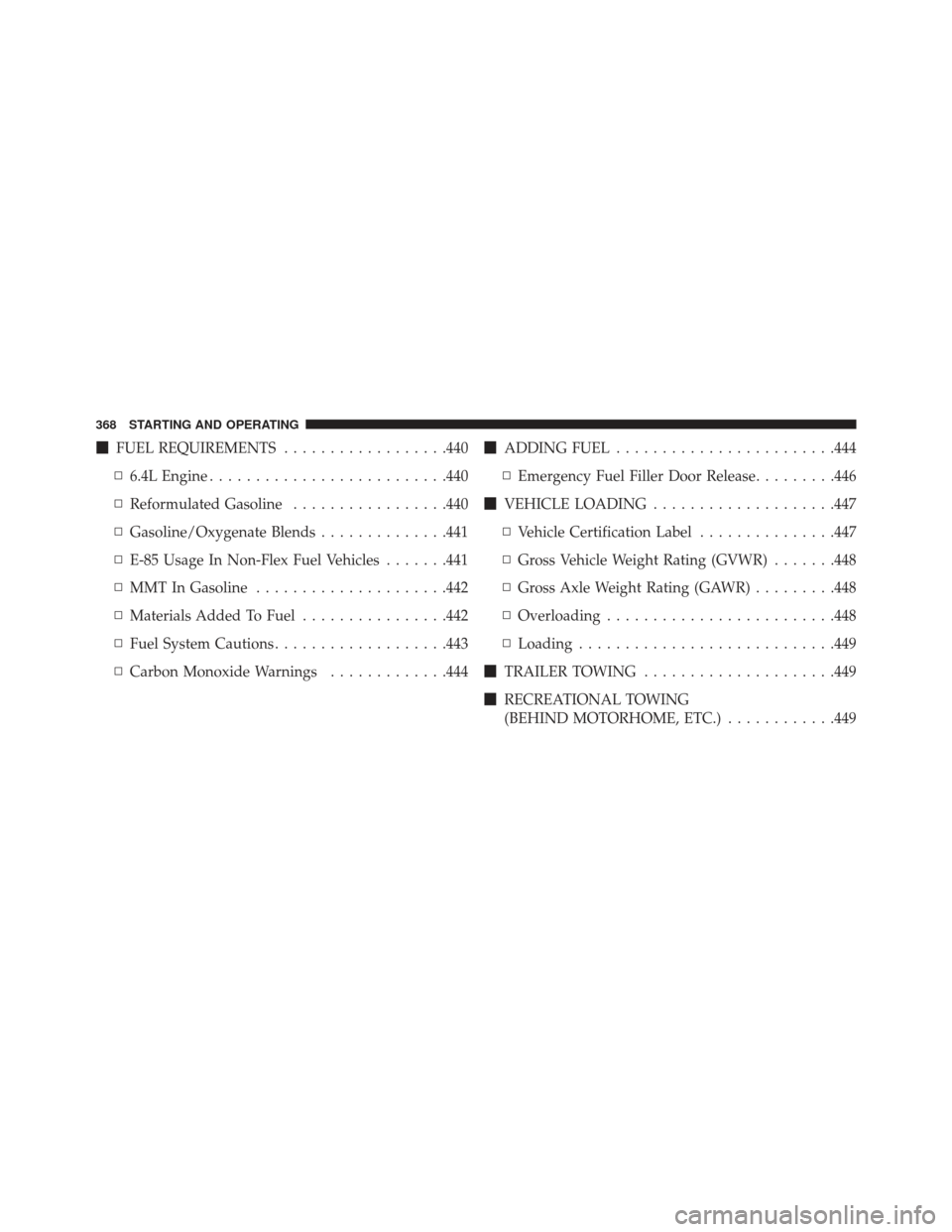

FUEL REQUIREMENTS ..................440
▫ 6.4L Engine ......................... .440
▫ Reformulated Gasoline .................440
▫ Gasoline/Oxygenate Blends ..............441
▫ E-85 Usage In Non-Flex Fuel Vehicles .......441
▫ MMT In Gasoline .....................442
▫ Materials Added To Fuel ................442
▫ Fuel System Cautions ...................443
▫ Carbon Monoxide Warnings .............444
ADDING FUEL ....................... .444
▫ Emergency Fuel Filler Door Release .........446
 VEHICLE LOADING ....................447
▫ Vehicle Certification Label ...............447
▫ Gross Vehicle Weight Rating (GVWR) .......448
▫ Gross Axle Weight Rating (GAWR) .........448
▫ Overloading ........................ .448
▫ Loading ........................... .449
 TRAILER TOWING .....................449
 RECREATIONAL TOWING
(BEHIND MOTORHOME, ETC.) ............449
368 STARTING AND OPERATING
