Page 13 of 590
▫Seat Belt Extender .....................59
▫ Supplemental Restraint System (SRS) —
Air Bags ............................59
▫ Air Bag Deployment Sensors And Controls ....66
▫ Event Data Recorder (EDR) ...............74
▫ Child Restraints .......................75
ENGINE BREAK-IN RECOMMENDATIONS ....99
SAFETY TIPS ........................ .100
▫ Transporting Passengers .................100
▫ Exhaust Gas ........................ .101
▫ Safety Checks You Should Make Inside The
Vehicle ............................ .102
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ........................ .104
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
Page 62 of 590
NOTE:The Driver and Front Passenger Advanced Front
Air Bags are certified to the new Federal regulations for
Advanced Air Bags.
The Advanced Front Air Bags have a multistage inflator
design. This allows the air bag to have different rates of
inflation based on several factors, including the severity
and type of collision.
This vehicle may be equipped with driver and/or front
passenger seat track position sensors that may adjust the
inflation rate of the Advanced Front Air Bags based upon
seat position.
This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is fastened. The
seat belt buckle switch may adjust the inflation rate of the
Advanced Front Air Bags.
Advanced Front Air Bag And Knee Bolster Locations
1 — Driver And Passenger Ad-
vanced Front Air Bags 2 — Knee Bolster
3 — Supplemental Driver Side
Knee Air Bag/Knee Bolster 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 64 of 590

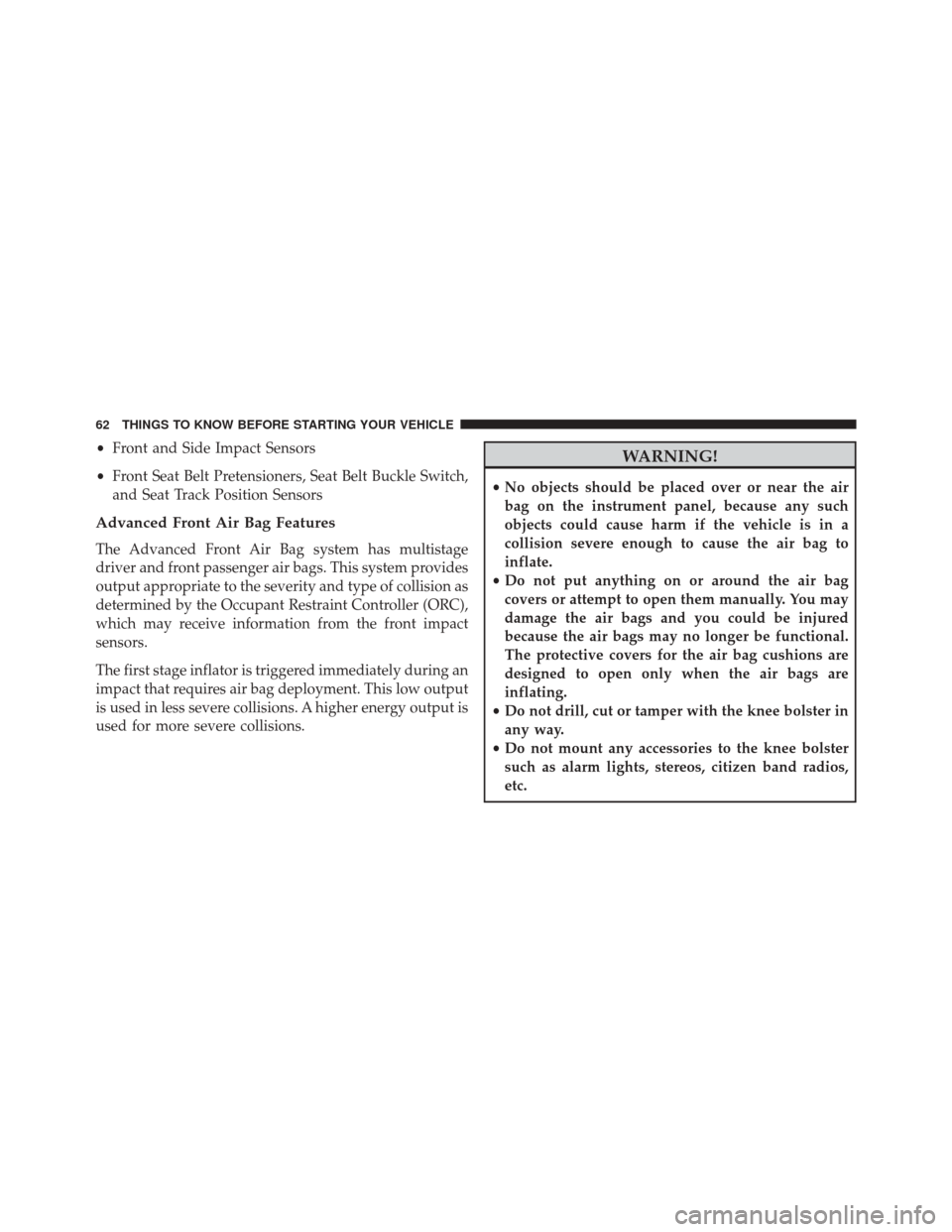

•Front and Side Impact Sensors
• Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
and Seat Track Position Sensors
Advanced Front Air Bag Features
The Advanced Front Air Bag system has multistage
driver and front passenger air bags. This system provides
output appropriate to the severity and type of collision as
determined by the Occupant Restraint Controller (ORC),
which may receive information from the front impact
sensors.
The first stage inflator is triggered immediately during an
impact that requires air bag deployment. This low output
is used in less severe collisions. A higher energy output is
used for more severe collisions.
WARNING!
• No objects should be placed over or near the air
bag on the instrument panel, because any such
objects could cause harm if the vehicle is in a
collision severe enough to cause the air bag to
inflate.
• Do not put anything on or around the air bag
covers or attempt to open them manually. You may
damage the air bags and you could be injured
because the air bags may no longer be functional.
The protective covers for the air bag cushions are
designed to open only when the air bags are
inflating.
• Do not drill, cut or tamper with the knee bolster in
any way.
• Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizen band radios,
etc.
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 66 of 590
NOTE:
•Air Bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
• Being too close to the side air bags during deployment
could cause you to be severely injured or killed. The system includes side impact sensors that are cali-
brated to deploy the side air bags during impacts that
require air bag occupant protection.
WARNING!
•
Your vehicle is equipped with left and right
Supplemental Side Air Bag Inflatable Curtain
(SABIC), do not stack luggage or other cargo up
high enough to block the location of the SABIC.
The area where the SABIC is located should remain
free from any obstructions.
• Do not use accessory seat covers or place objects
between you and the side air bags; the performance
could be adversely affected and/or objects could be
pushed into you, causing serious injury.
(Continued)
Supplemental Side Air Bag Inflatable Curtains (SABIC)
Label Location
64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 68 of 590

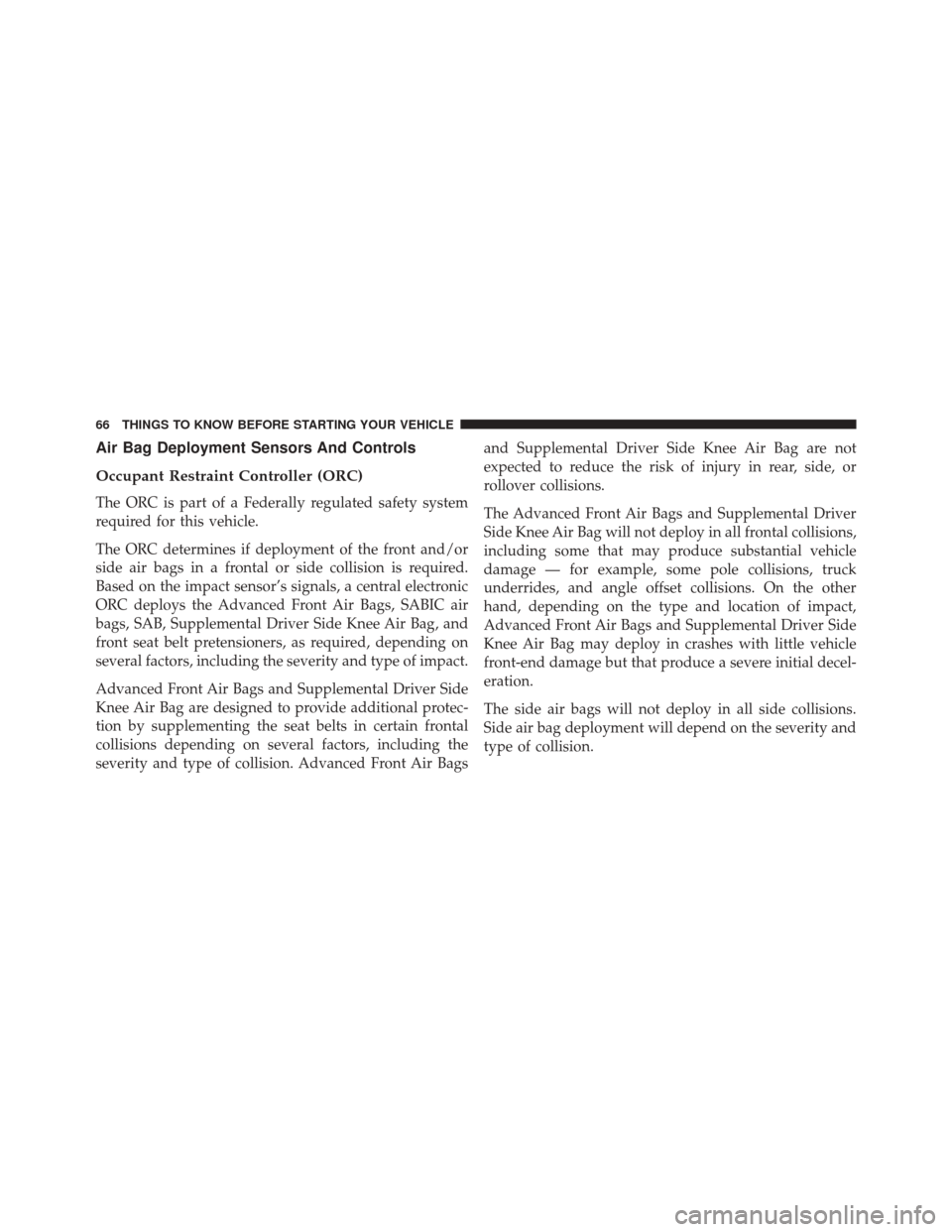

Air Bag Deployment Sensors And Controls
Occupant Restraint Controller (ORC)
The ORC is part of a Federally regulated safety system
required for this vehicle.
The ORC determines if deployment of the front and/or
side air bags in a frontal or side collision is required.
Based on the impact sensor’s signals, a central electronic
ORC deploys the Advanced Front Air Bags, SABIC air
bags, SAB, Supplemental Driver Side Knee Air Bag, and
front seat belt pretensioners, as required, depending on
several factors, including the severity and type of impact.
Advanced Front Air Bags and Supplemental Driver Side
Knee Air Bag are designed to provide additional protec-
tion by supplementing the seat belts in certain frontal
collisions depending on several factors, including the
severity and type of collision. Advanced Front Air Bagsand Supplemental Driver Side Knee Air Bag are not
expected to reduce the risk of injury in rear, side, or
rollover collisions.
The Advanced Front Air Bags and Supplemental Driver
Side Knee Air Bag will not deploy in all frontal collisions,
including some that may produce substantial vehicle
damage — for example, some pole collisions, truck
underrides, and angle offset collisions. On the other
hand, depending on the type and location of impact,
Advanced Front Air Bags and Supplemental Driver Side
Knee Air Bag may deploy in crashes with little vehicle
front-end damage but that produce a severe initial decel-
eration.
The side air bags will not deploy in all side collisions.
Side air bag deployment will depend on the severity and
type of collision.
66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 69 of 590
Because air bag sensors measure vehicle deceleration
over time, vehicle speed and damage by themselves are
not good indicators of whether or not an air bag should
have deployed.
Seat belts are necessary for your protection in all colli-
sions, and also are needed to help keep you in position,
away from an inflating air bag.
The ORC monitors the readiness of the electronic parts of
the air bag system whenever the ignition is in the START
or ON/RUN position. If the ignition is in the OFF
position or in the ACC position, the air bag system is not
on and the air bags will not inflate.The ORC contains a backup power supply system that
may deploy the air bags even if the battery loses power or
it becomes disconnected prior to deployment.
Also, the ORC turns on the Air Bag Warning
Light in the instrument panel for approxi-
mately four to eight seconds for a self-check
when the ignition is first turned on. After the
self-check, the Air Bag Warning Light will turn off. If the
ORC detects a malfunction in any part of the system, it
turns on the Air Bag Warning Light, either momentarily
or continuously. A single chime will sound if the light
comes on again after initial startup.
It also includes diagnostics that will illuminate the instru-
ment cluster Air Bag Warning Light if a malfunction is
noted that could affect the air bag system. The diagnos-
tics also record the nature of the malfunction.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67
Page 72 of 590
positioned in the area where the side curtain air bag
inflates. This especially applies to children. The side
curtain air bag is only about 3-1/2 in (9 cm) thick when
it is inflated.
Because air bag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an air bag should have deployed.

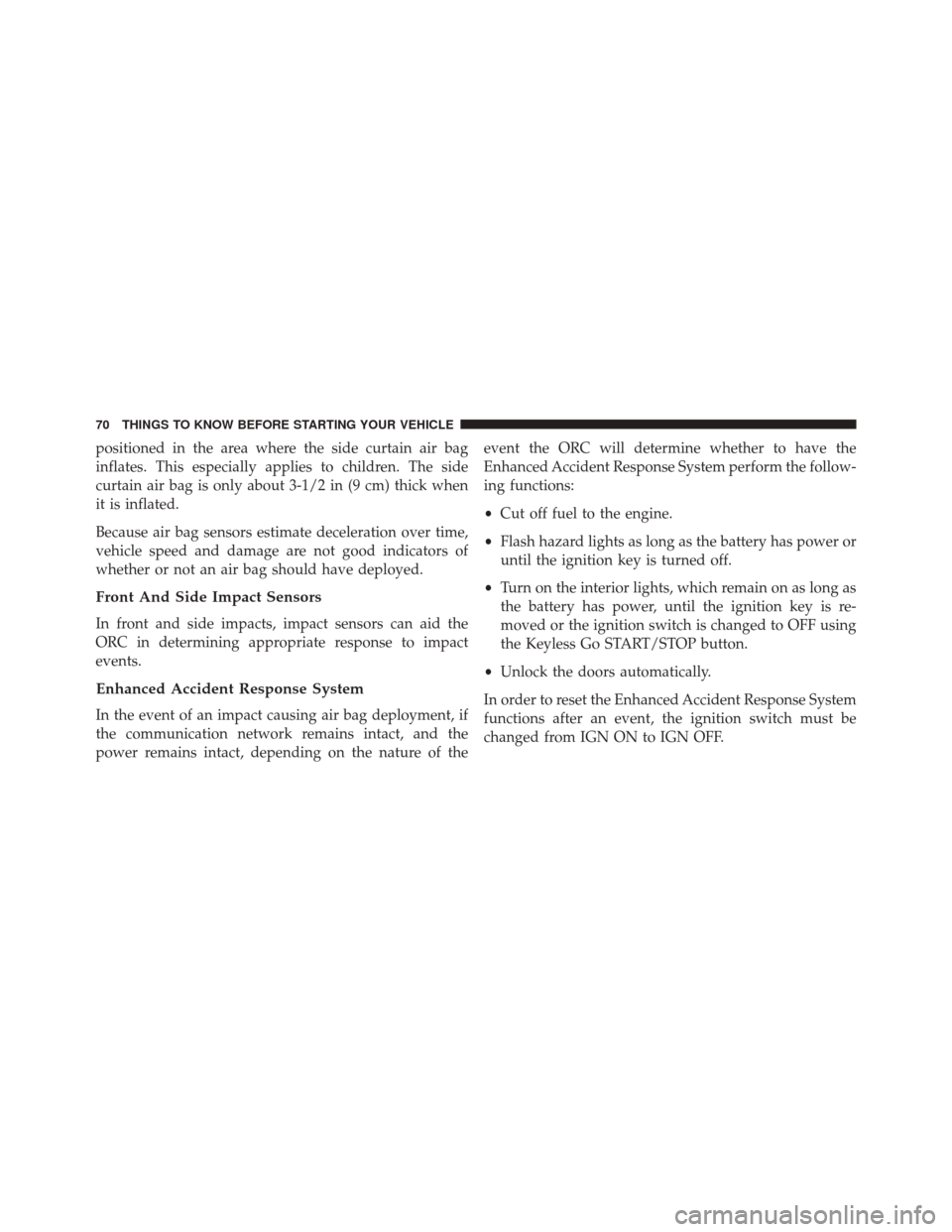

Front And Side Impact Sensors
In front and side impacts, impact sensors can aid the
ORC in determining appropriate response to impact
events.
Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of theevent the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
•
Cut off fuel to the engine.
• Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
• Turn on the interior lights, which remain on as long as
the battery has power, until the ignition key is re-
moved or the ignition switch is changed to OFF using
the Keyless Go START/STOP button.
• Unlock the doors automatically.
In order to reset the Enhanced Accident Response System
functions after an event, the ignition switch must be
changed from IGN ON to IGN OFF.
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 111 of 590
▫Overtake Aid ....................... .236
▫ Adaptive Cruise Control (ACC) Menu .......236
▫ Display Warnings And Maintenance ........237
▫ Precautions While Driving With ACC .......239
▫ General Information ...................244
▫ Normal (Fixed Speed) Cruise Control Mode . . .244
▫ Forward Collision Warning — If Equipped . . .247
PARKSENSE® FRONT AND REAR PARK
ASSIST — IF EQUIPPED .................250
▫ ParkSense® Sensors ....................250
▫ ParkSense® Warning Display .............251
▫ ParkSense® Display ....................252
▫ Front Park Assist Audible Alerts ...........256▫
Enabling And Disabling ParkSense® ........256
▫ Service The ParkSense® Park Assist System . . .257
▫ Cleaning The ParkSense® System ..........257
▫ ParkSense® System Usage Precautions .......257
PARKVIEW® REAR BACK UP CAMERA —
IF EQUIPPED ........................ .260
OVERHEAD CONSOLE ..................262
▫ Front Map/Reading Lights — If Equipped . . .263
▫ Courtesy Lights ...................... .264
▫ Sunglasses Bin Door ...................264
GARAGE DOOR OPENER — IF EQUIPPED . . .265
▫ Before You Begin Programming HomeLink® . .266
▫ Programming A Rolling Code .............267
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
Page 120 of 590
BLIND SPOT MONITORING (BSM) — IF
EQUIPPED
The Blind Spot Monitoring (BSM) system uses two radar-
based sensors, located inside the rear bumper fascia, to
detect highway licensable vehicles (automobiles, trucks,
motorcycles, etc.) that enter the blind spot zones from the
rear/front/side of the vehicle.When the vehicle is started, the BSM warning light will
momentarily illuminate in both outside rear view mirrors
to let the driver know that the system is operational. The
BSM system sensors operate when the vehicle is in any
forward gear or REVERSE and enters stand by mode
when the vehicle is in PARK.
Rear Detection Zones
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 122 of 590
The area on the rear fascia where the radar sensors are
located must remain free of snow, ice, and dirt/road
contamination so that the BSM system can function
properly. Do not block the area of the rear fascia where
the radar sensors are located with foreign objects (bum-
per stickers, bicycle racks, etc.).The BSM system notifies the driver of objects in the
detection zones by illuminating the BSM warning light
located in the outside mirrors in addition to sounding an
audible (chime) alert and reducing the radio volume.
Refer to “Modes Of Operation” for further information.
The BSM system monitors the detection zone from three
different entry points (side, rear, front) while driving to
see if an alert is necessary. The BSM system will issue an
alert during these types of zone entries.
Sensor Location (Driver Side Shown)
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
