CHRYSLER ASPEN 2008 2.G Owners Manual

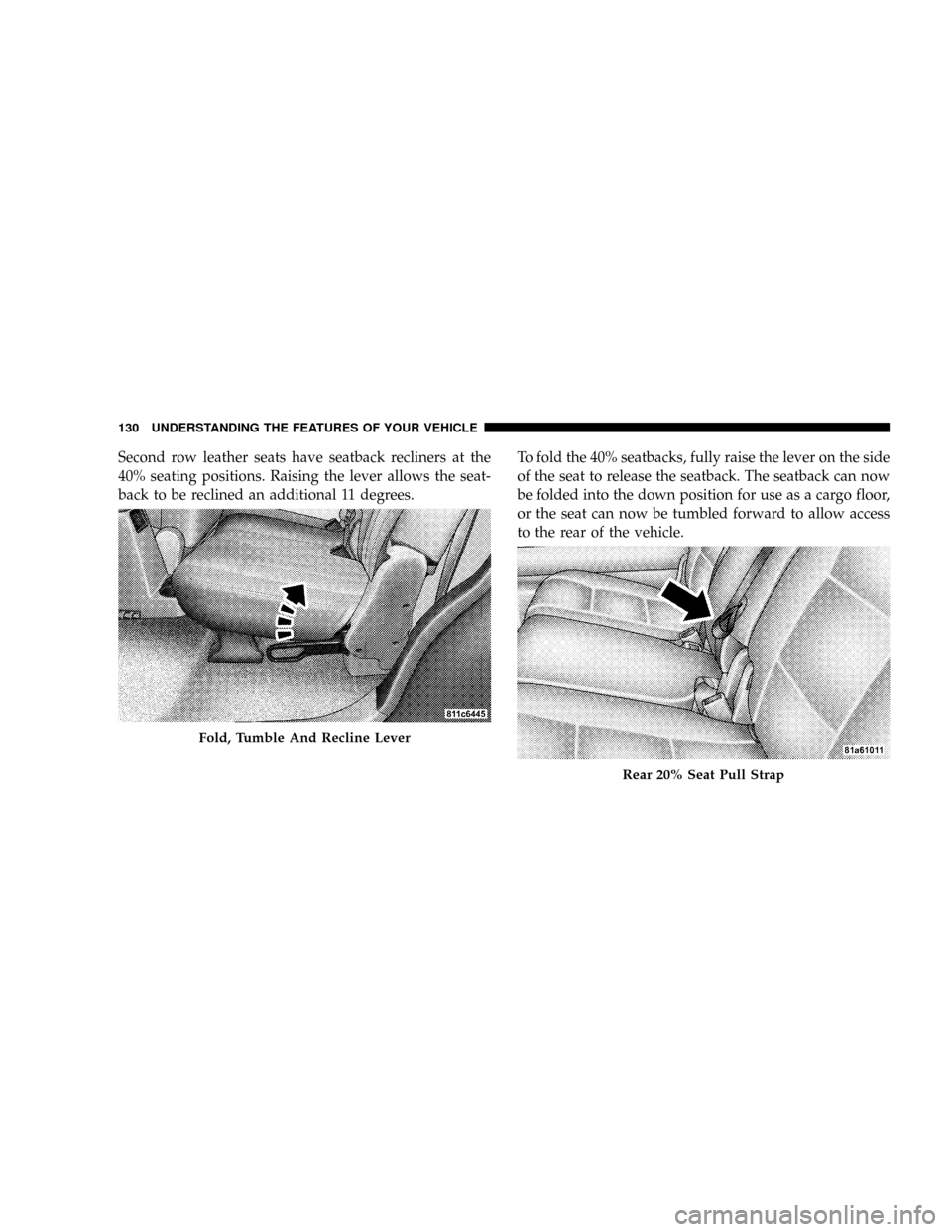

Second row leather seats have seatback recliners at the
40% seating positions. Raising the lever allows the seat-
back to be reclined an additional 11 degrees.To fold the 40% seatbacks, fully raise the lever on the side
of the seat to release the seatback. The seatback can now
be folded into the down position for use as a cargo floor,
or the seat can now be tumbled forward to allow access
to the rear of the vehicle.
Fold, Tumble And Recline Lever
Rear 20% Seat Pull Strap
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

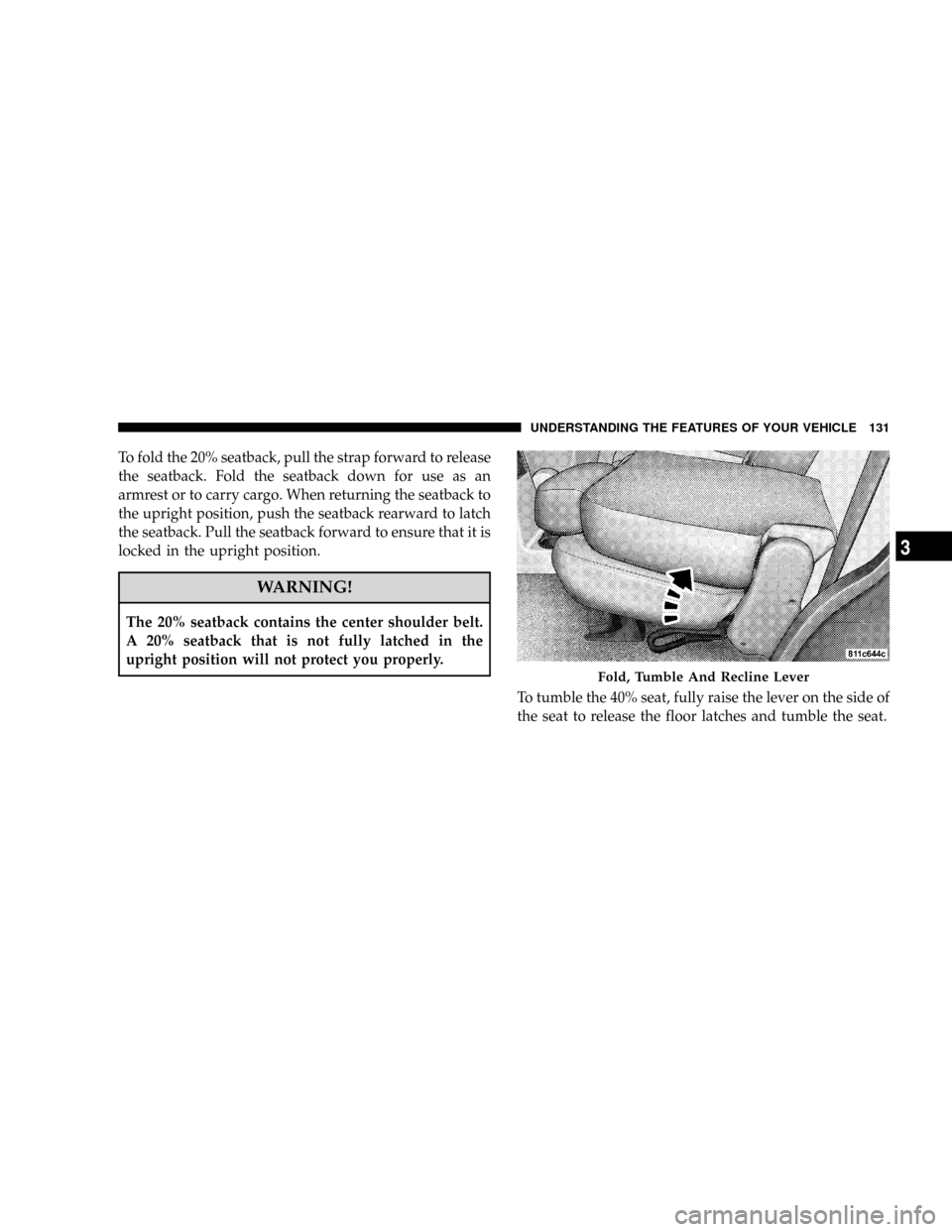

To fold the 20% seatback, pull the strap forward to release
the seatback. Fold the seatback down for use as an
armrest or to carry cargo. When returning the seatback to
the upright position, push the seatback rearward to latch
the seatback. Pull the seatback forward to ensure that it is
locked in the upright position.
WARNING!
The 20% seatback contains the center shoulder belt.
A 20% seatback that is not fully latched in the
upright position will not protect you properly.
To tumble the 40% seat, fully raise the lever on the side of
the seat to release the floor latches and tumble the seat.
Fold, Tumble And Recline Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

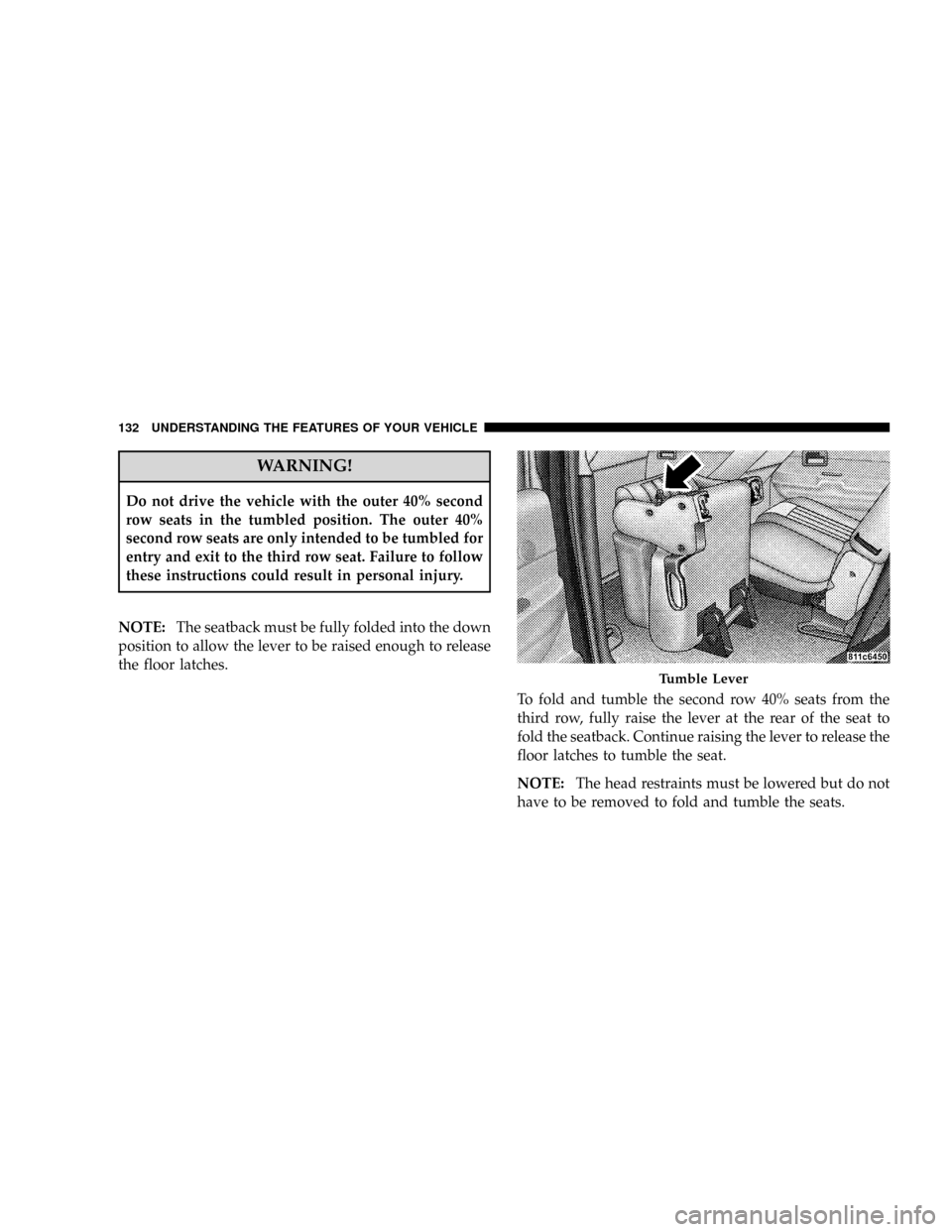

WARNING!
Do not drive the vehicle with the outer 40% second
row seats in the tumbled position. The outer 40%
second row seats are only intended to be tumbled for
entry and exit to the third row seat. Failure to follow
these instructions could result in personal injury.
NOTE:The seatback must be fully folded into the down
position to allow the lever to be raised enough to release
the floor latches.
To fold and tumble the second row 40% seats from the
third row, fully raise the lever at the rear of the seat to
fold the seatback. Continue raising the lever to release the
floor latches to tumble the seat.
NOTE:The head restraints must be lowered but do not
have to be removed to fold and tumble the seats.
Tumble Lever
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

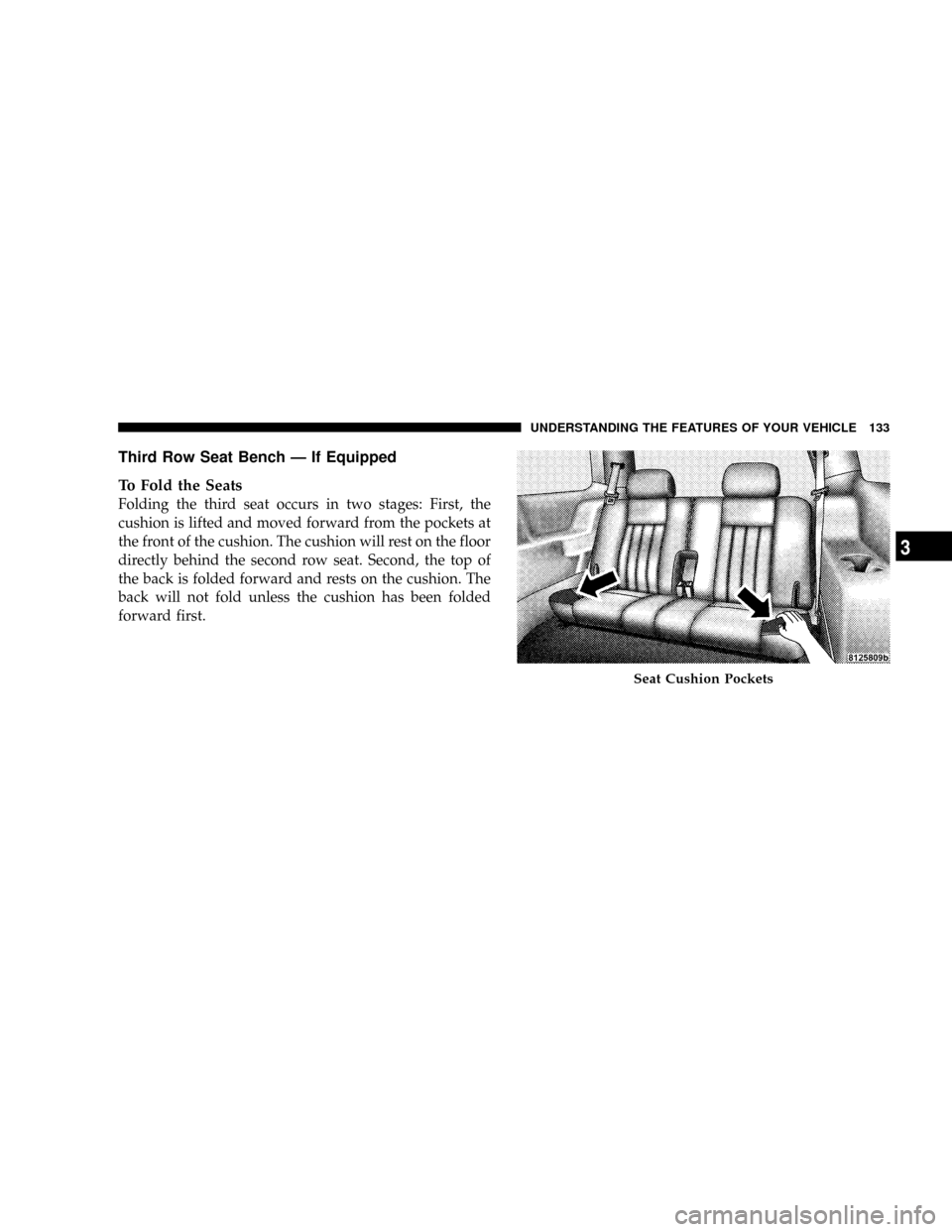

Third Row Seat Bench Ð If Equipped
To Fold the Seats
Folding the third seat occurs in two stages: First, the
cushion is lifted and moved forward from the pockets at
the front of the cushion. The cushion will rest on the floor
directly behind the second row seat. Second, the top of
the back is folded forward and rests on the cushion. The
back will not fold unless the cushion has been folded
forward first.
Seat Cushion Pockets
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

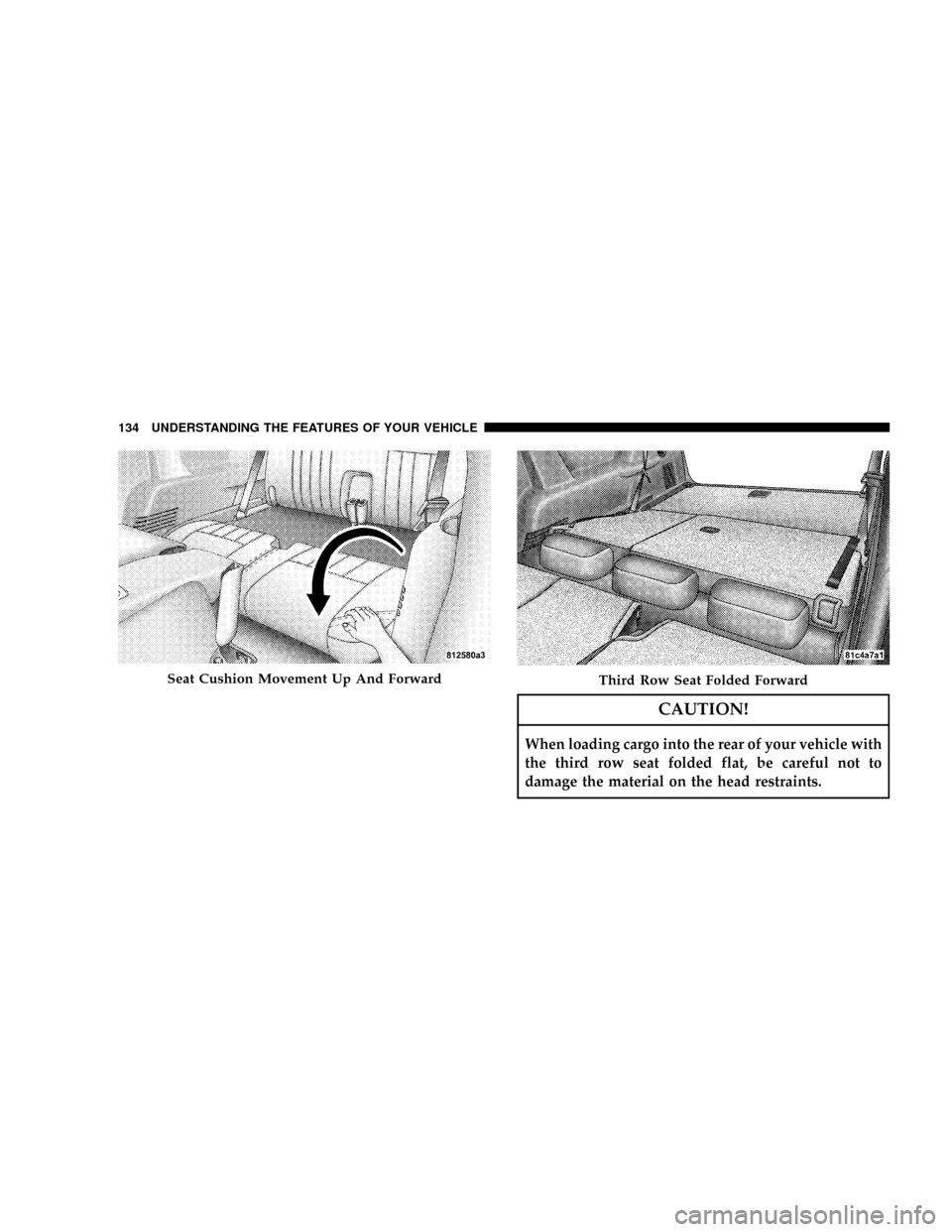

CAUTION!
When loading cargo into the rear of your vehicle with
the third row seat folded flat, be careful not to
damage the material on the head restraints.
Seat Cushion Movement Up And ForwardThird Row Seat Folded Forward
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

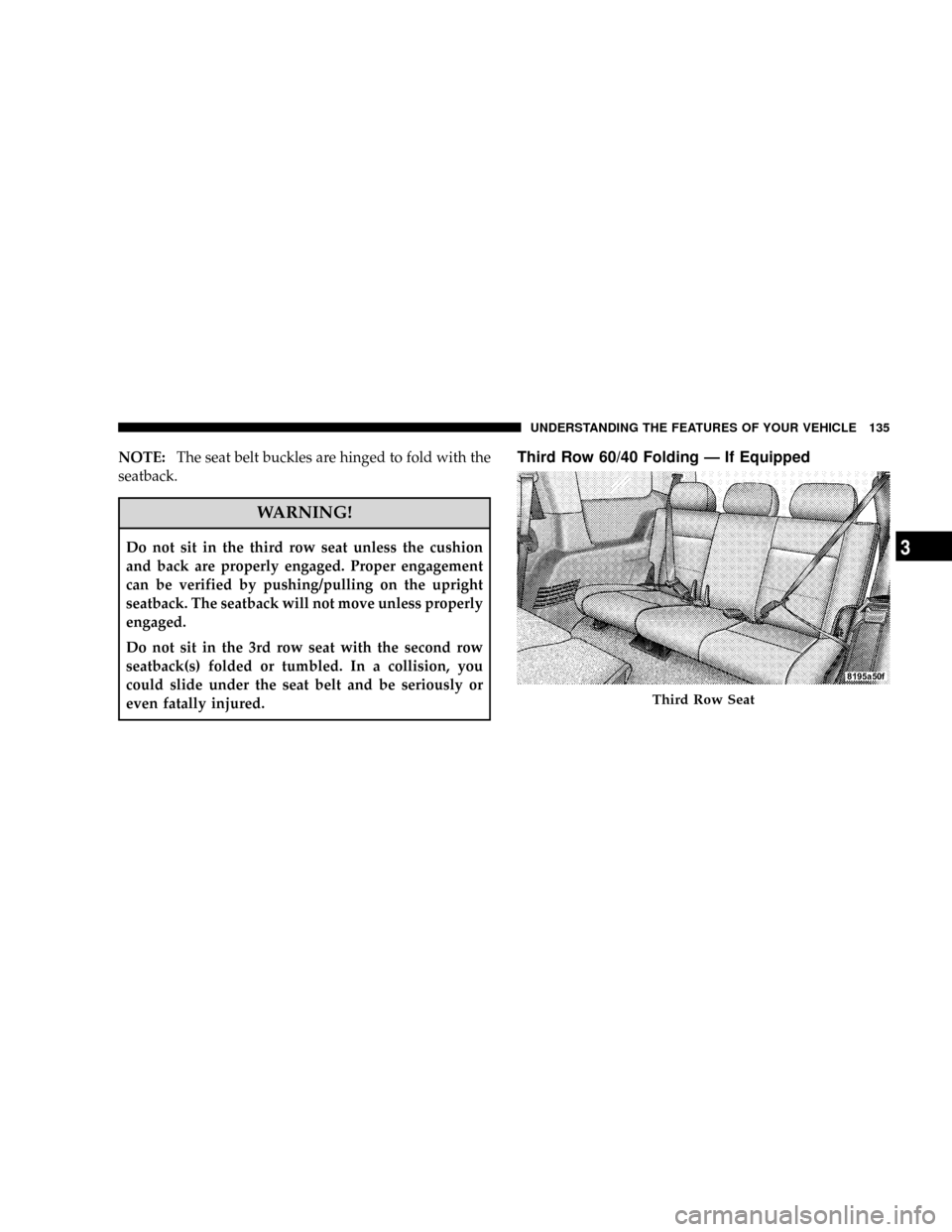

NOTE:The seat belt buckles are hinged to fold with the
seatback.
WARNING!
Do not sit in the third row seat unless the cushion
and back are properly engaged. Proper engagement
can be verified by pushing/pulling on the upright
seatback. The seatback will not move unless properly
engaged.
Do not sit in the 3rd row seat with the second row
seatback(s) folded or tumbled. In a collision, you
could slide under the seat belt and be seriously or
even fatally injured.
Third Row 60/40 Folding Ð If Equipped
Third Row Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

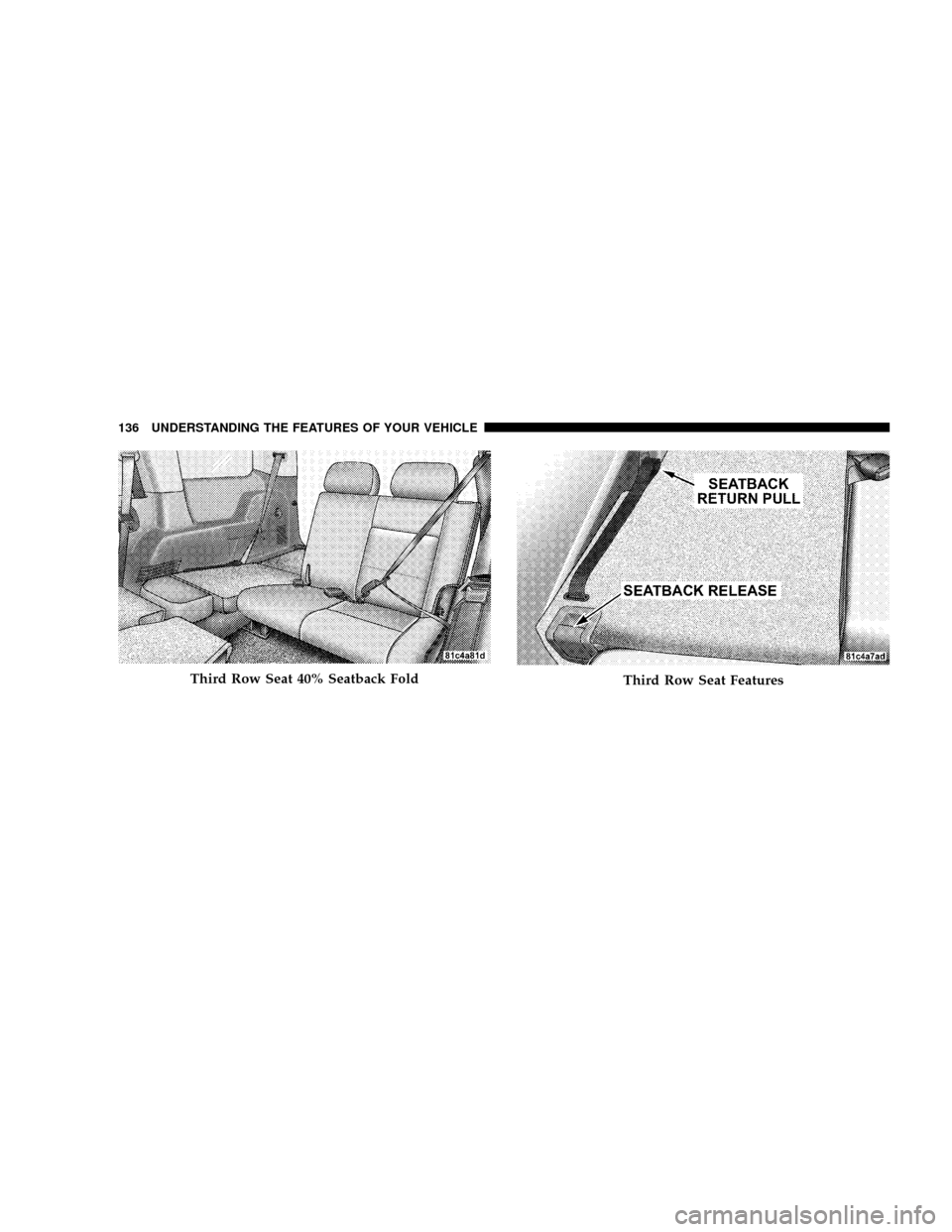

Third Row Seat 40% Seatback FoldThird Row Seat Features
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

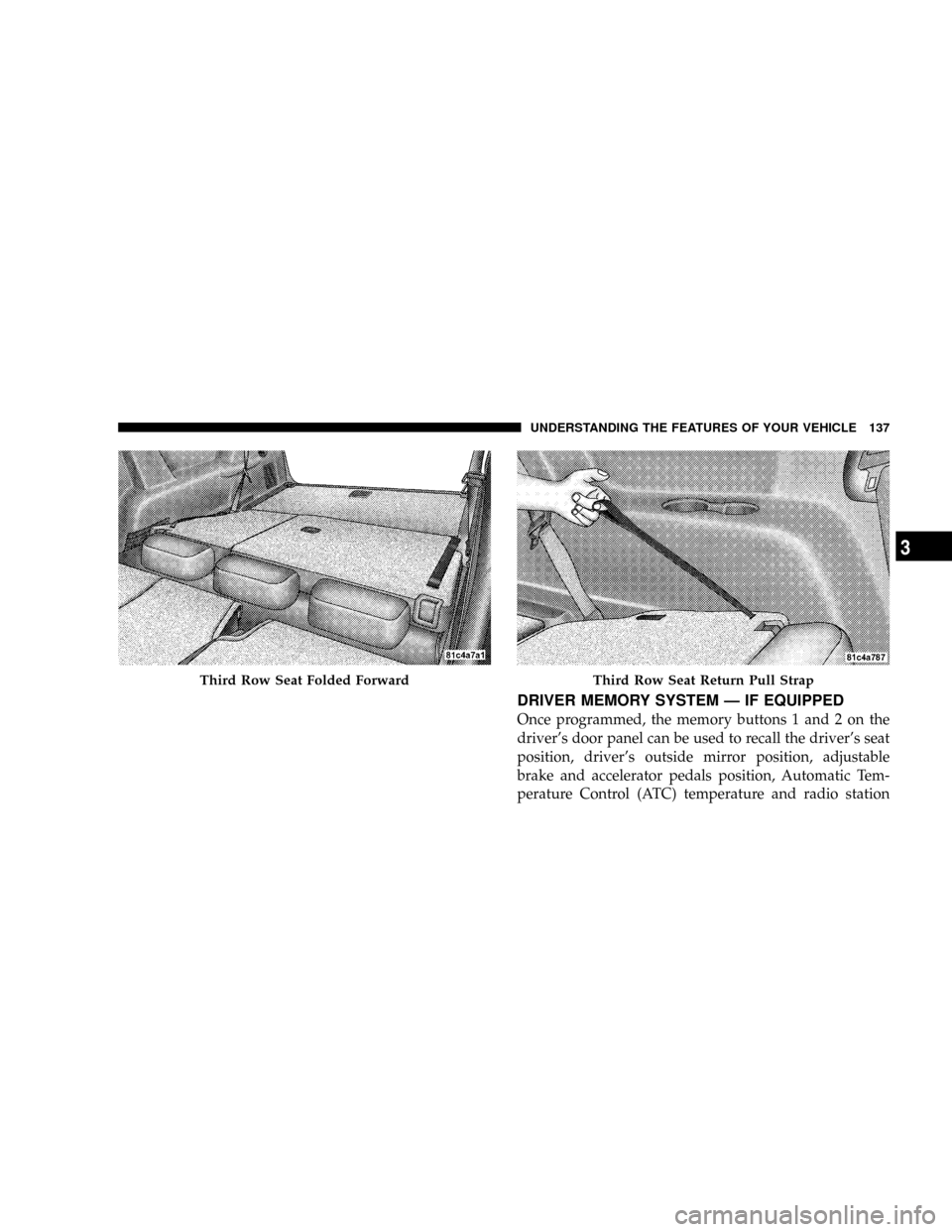

DRIVER MEMORY SYSTEM Ð IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver's door panel can be used to recall the driver's seat
position, driver's outside mirror position, adjustable
brake and accelerator pedals position, Automatic Tem-
perature Control (ATC) temperature and radio station
Third Row Seat Folded ForwardThird Row Seat Return Pull Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

preset settings. Your Remote Keyless Entry (RKE) Trans-
mitters can also be programmed to recall the same
positions when the UNLOCK button is pressed.
Your vehicle was delivered with two RKE Transmitters.
One or both transmitters can be linked to either memoryposition. The memory system can accommodate up to
two transmitters, each transmitter linked to either of the
two memory positions.
Setting Memory Positions and Linking Remote
Keyless Entry Transmitter to Memory
NOTE:Each time the SET (S) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Adjust the driver's seat, recliner, and both sideview
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time.
Please refer to the 8-way power seat description in this
section.
2. Adjust the brake and accelerator pedals to the desired
positions.
Memory Buttons
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
4. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.
5. Press and release the SET (S) button located on the
driver's door.
6. Within five seconds, press and release memory button
1 or 2 on the driver's door. The next step must be
performed within 10 seconds if you desire to also use a
RKE Transmitter to recall memory positions.
7. Press and release the LOCK button on one of the
transmitters.
8. Insert the ignition key and turn the ignition switch to
the ON position.9. Repeat the above steps to set the next memory posi-
tion using the other numbered memory button or to link
another RKE Transmitter to memory.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
Memory Position Recall
NOTE:
²The driver's seat belt must be unbuckled to recall
memory positions.
²The vehicle must be in PARK to recall memory posi-
tions.
²Not all motors may be moved at one time. Please refer
to the 8-way power seat description in this section.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3
