WARNING!
²Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won't deploy at all.
Always wear your seat belts even though you have
airbags.
²Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri-
ous injury. Airbags need room to inflate. Sit back,
comfortably extending your arms to reach the
steering wheel or instrument panel.
²If the vehicle has window bags, they also need
room to inflate. Do not lean against the door or
window. Sit upright in the center of the seat.
Airbag System Components
The airbag system consists of the following:
²Occupant Restraint Controller
²Side Remote Acceleration Sensors
²Airbag Warning Light
²Driver Airbag
²Passenger Airbag
²Window Bags above Side Windows
²Steering Wheel and Column
²Instrument Panel
²Interconnecting Wiring
²Knee Impact Bolsters
²Front Acceleration Sensors
²Driver and Front Passenger Seat Belt Pretensioners
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
2

For vehicles equipped with Automatic Climate Controls
(ATC) the controls can be found on the lower right corner.
A rotating switch located on the climate control
panel turns the rear wiper ON or OFF. Pressing the
rotating switch inward activates the rear window washer.
Rotating the switch will enable one of five intermittentdelay times for the rear wiper. The delay times range
from 1 second to approximately 20 seconds.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the Park
position. When the vehicle is restarted, the wiper will
resume operation.
Rear Window Defrosting
A push-button type switch is located in the climate
control panel. Press the switch and the rear win-
dow defroster and electric remote control heated mirrors
(if equipped) will turn on. An amber indicator on the
push-button will light when the defroster is turned on. A
symbol will be displayed when the defroster is turned on
with an ATC control. Push again to turn off prior to
time-out. The defroster will automatically turn off after
15 minutes. For an additional 10 minutes of operation,
Automatic Climate Control Panel
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may be
stamped on the inside cover, otherwise the cavity num-
ber of each fuse is stamped on the inside cover that
corresponds to the following chart. These fuses and
relays can be obtained from your authorized dealer.
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
1 30 Amp
PinkStarter
2 30 Amp
PinkFront Wiper
3 40 Amp
GreenBrake Batt
4 30 Amp
PinkJB Feed Acc # 2
5 40 Amp
GreenPower Seats
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
6 30 Amp
PinkRun Remote Relay
Feed
7 40 Amp
GreenBlower Motor Relay
Feed
8 40 Amp
GreenJB Feed Acc Delay
9 Spare
10 30 Amp
PinkASD
11 40 Amp
GreenPower Liftgate ( If
Equipped)
12 40 Amp
GreenJB Feed / Heated Rear
Glass (EBL)/T-Case
Brake
13 30 Amp
PinkJB Feed RR
418 MAINTAINING YOUR VEHICLE

Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
14 40 Amp
GreenESP Pump
15 50 Amp
RedJB Feed
16 10 Amp
RedSpare
17 Spare
18 20 Amp
YellowFuel Pump
19 20 Amp
YellowNext Generation Con-
troller (NGC)
20 25 Amp
Clear115V Power Inverter
21 20 Amp
YellowABS BattCav-
ityCartridge
Fuse /
RelayMini Fuse Description
22 20 Amp
YellowNext Generation Con-
troller (NGC) Batt
23 20 Amp
YellowTrailer Tow
24 15 Amp
BlueA/C Clutch
25 15 Amp
BlueStop Lamp Switch
26 Spare
27 20 Amp
YellowRun/Start Relay Feed
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 Spare
MAINTAINING YOUR VEHICLE 419
7

Reclining Front Seats..................... 120
Recorder, Event Data...................... 63
Recreational Towing...................... 362
Shifting into Transfer Case Neutral (N)....... 363
Shifting out of Transfer Case Neutral (N)..... 365
Reformulated Gasoline.................... 336
Refrigerant............................ 395
Release, Hood.......................... 140
Reminder, Seat Belt....................... 51
Remote Keyless Entry (RKE)................. 21
Remote Sound System (Radio) Controls........ 252
Remote Starting System.................... 28
Replacement Keys........................ 17
Replacement Parts....................... 389
Replacement Tires....................... 323
Reporting Safety Defects................... 454
Resetting Oil Change Indicator...........169,208
Restraints, Child.......................65,70
Restraints, Occupant...................... 40Rocking Vehicle When Stuck................ 379
Roll Over Warning........................ 4
Roof Type Carrier....................... 197
Rotation, Tires.......................... 327
Safety Checks Inside Vehicle................. 76
Safety Checks Outside Vehicle............... 77
Safety Defects, Reporting.................. 454
Safety, Exhaust Gas....................... 40
Safety Information, Tire................... 307
Safety Tips............................. 75
Satellite Radio.......................246,251
Satellite Radio Antenna................... 248
Schedule, Maintenance.................... 436
Seat Belt Maintenance.................... 414
Seat Belt Reminder....................... 51
Seat Belts..........................40,41,76
And Pregnant Women................... 53
Child Restraint.......................65,66
472 INDEX

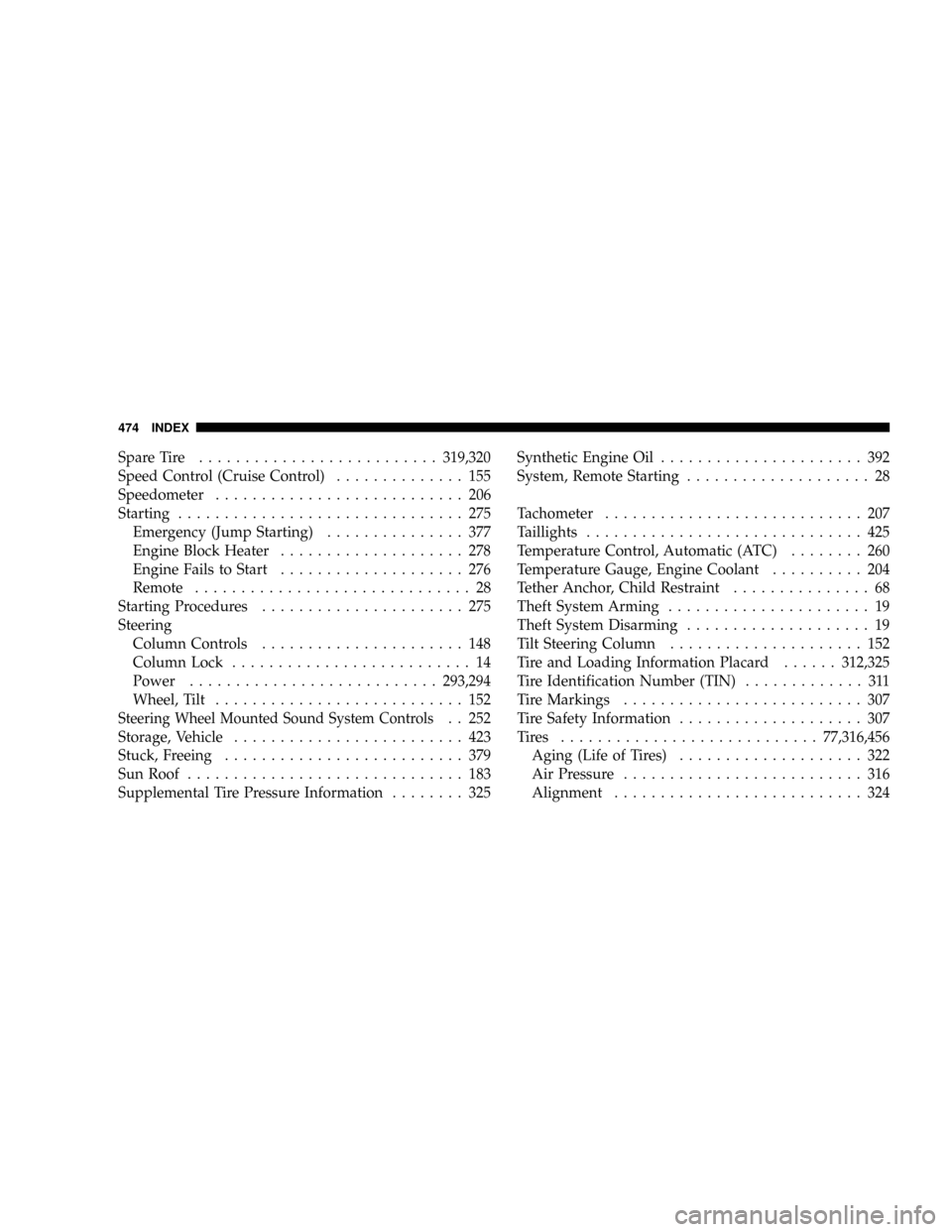

Spare Tire..........................319,320
Speed Control (Cruise Control).............. 155
Speedometer........................... 206
Starting............................... 275
Emergency (Jump Starting)............... 377
Engine Block Heater.................... 278
Engine Fails to Start.................... 276
Remote.............................. 28
Starting Procedures...................... 275
Steering
Column Controls...................... 148
Column Lock.......................... 14
Power...........................293,294
Wheel, Tilt........................... 152
Steering Wheel Mounted Sound System Controls. . 252
Storage, Vehicle......................... 423
Stuck, Freeing.......................... 379
Sun Roof.............................. 183
Supplemental Tire Pressure Information........ 325Synthetic Engine Oil...................... 392
System, Remote Starting.................... 28
Tachometer............................ 207
Taillights.............................. 425
Temperature Control, Automatic (ATC)........ 260
Temperature Gauge, Engine Coolant.......... 204
Tether Anchor, Child Restraint............... 68
Theft System Arming...................... 19
Theft System Disarming.................... 19
Tilt Steering Column..................... 152
Tire and Loading Information Placard......312,325
Tire Identification Number (TIN)............. 311
Tire Markings.......................... 307
Tire Safety Information.................... 307
Tires ............................77,316,456
Aging (Life of Tires).................... 322
Air Pressure.......................... 316
Alignment........................... 324
474 INDEX
