mirror controls CHRYSLER ASPEN 2009 2.G Owners Manual

dimming feature is activated. This option also controls
the driver side mirror when it is equipped with auto
dimming glass.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Outside Folding Mirrors Ð If Equipped
Folding outside mirrors are hinged and may be moved
either forward or rearward to resist damage.
Power Mirrors
The controls for the power mirrors are located on the
driver's door trim panel.
Automatic Dimming Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

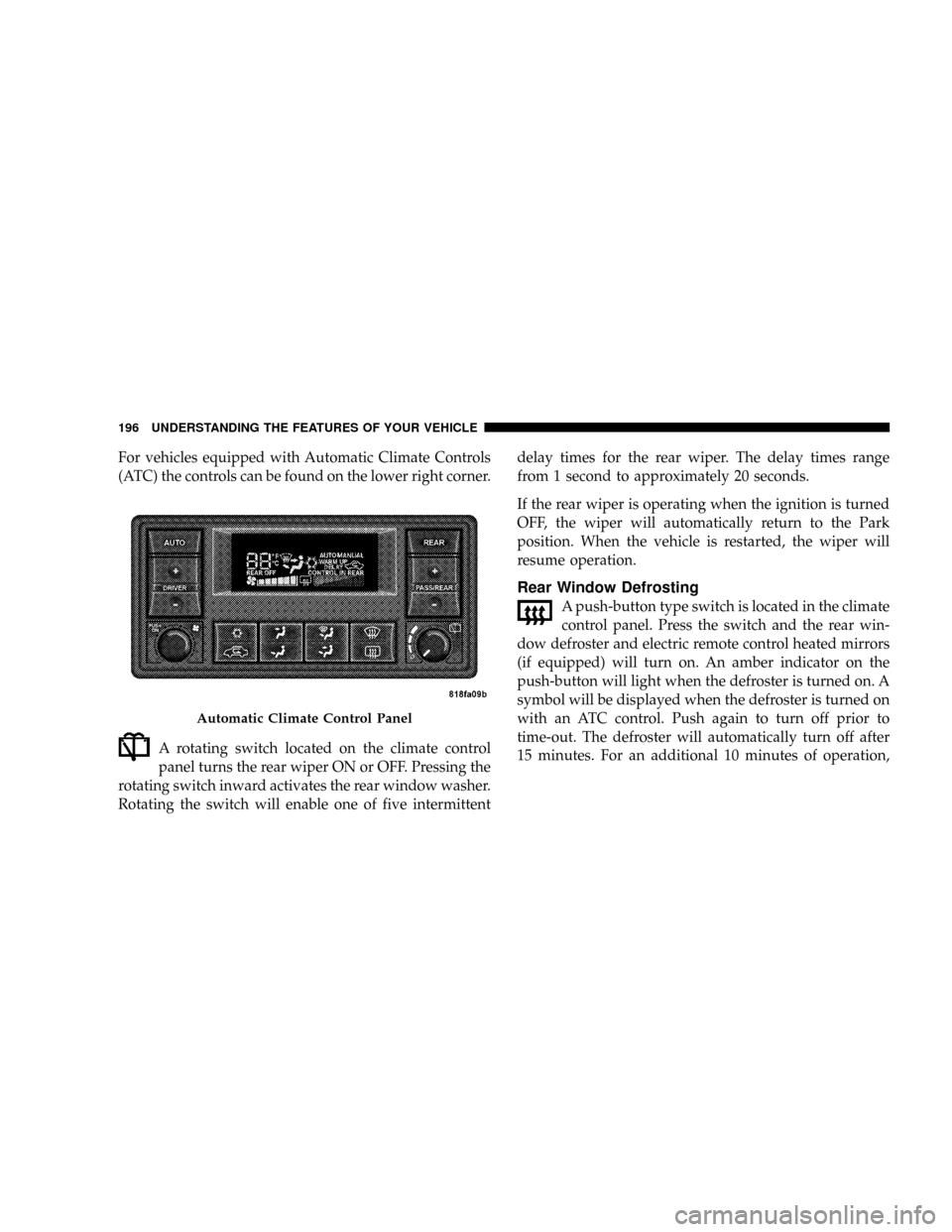

For vehicles equipped with Automatic Climate Controls
(ATC) the controls can be found on the lower right corner.
A rotating switch located on the climate control
panel turns the rear wiper ON or OFF. Pressing the
rotating switch inward activates the rear window washer.
Rotating the switch will enable one of five intermittentdelay times for the rear wiper. The delay times range
from 1 second to approximately 20 seconds.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the Park
position. When the vehicle is restarted, the wiper will
resume operation.
Rear Window Defrosting
A push-button type switch is located in the climate
control panel. Press the switch and the rear win-
dow defroster and electric remote control heated mirrors
(if equipped) will turn on. An amber indicator on the
push-button will light when the defroster is turned on. A
symbol will be displayed when the defroster is turned on
with an ATC control. Push again to turn off prior to
time-out. The defroster will automatically turn off after
15 minutes. For an additional 10 minutes of operation,
Automatic Climate Control Panel
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

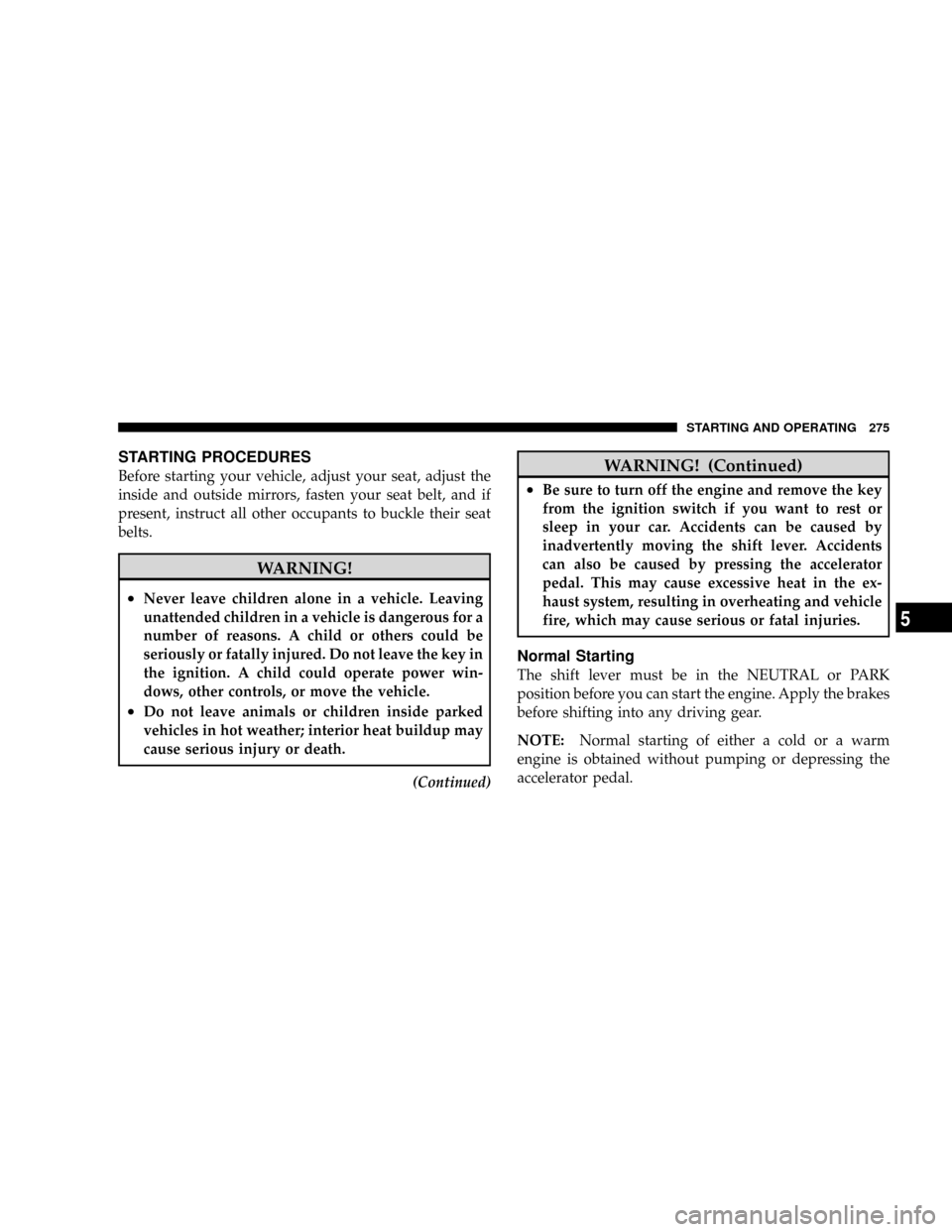

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
²Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
²Do not leave animals or children inside parked
vehicles in hot weather; interior heat buildup may
cause serious injury or death.
(Continued)
WARNING! (Continued)
²Be sure to turn off the engine and remove the key
from the ignition switch if you want to rest or
sleep in your car. Accidents can be caused by
inadvertently moving the shift lever. Accidents
can also be caused by pressing the accelerator
pedal. This may cause excessive heat in the ex-
haust system, resulting in overheating and vehicle
fire, which may cause serious or fatal injuries.
Normal Starting
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or depressing the
accelerator pedal.
STARTING AND OPERATING 275
5

Heated Seats........................... 123
Heater............................... 255
Heater, Engine Block..................... 278
High Beam Indicator..................... 205
High Beam/Low Beam Select (Dimmer) Switch . . 149
Hitches
Trailer Towing........................ 353
HomeLinkt(Garage Door Opener) Transmitter . . . 176
Hood Release.......................... 140
Ignition.............................12,14
Key ................................. 12
Lock................................ 14
Ignition Key Removal..................... 12
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................65,66
Inflation Pressure Tires.................... 325
Information Center...................... 167Information Center, Vehicle................. 167
Inside Rearview Mirror.................... 84
Instrument Cluster....................... 204
Instrument Panel and Controls.............. 202
Instrument Panel Lens Cleaning............. 414
Integrated Power Module (Fuses)............ 420
Interior Appearance Care.................. 413
Interior Fuses.......................... 415
Interior Lighting........................ 144
Interior Lights.......................... 144
Intermittent Wipers (Delay Wipers)........... 150
Introduction............................. 4
Inverter Outlet (115V)..................... 188
Jack Operation.......................369,371
Jacking Instructions...................... 372
Key, Programming........................ 17
Key, Replacement........................ 17
INDEX 467
10
