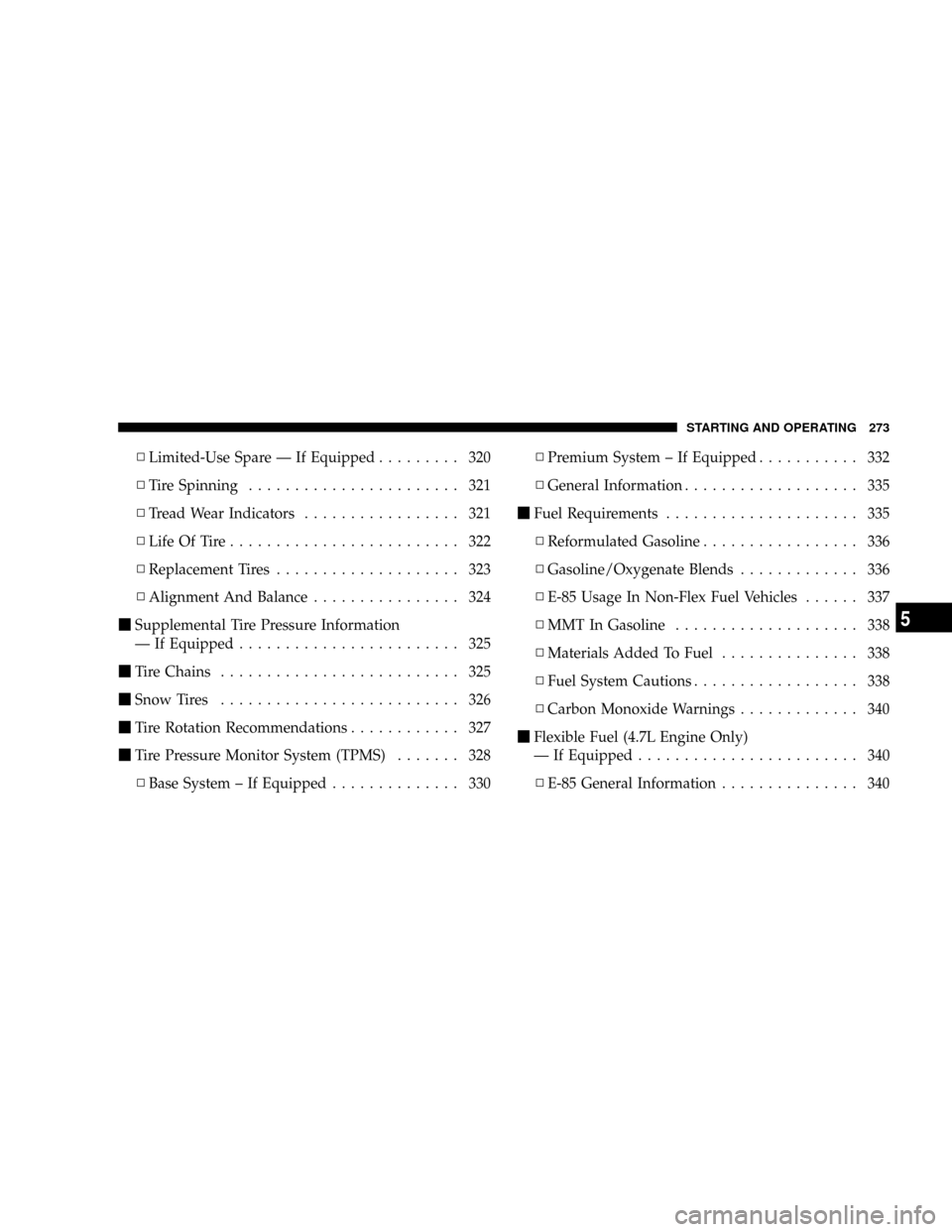

Page 275 of 481
NLimited-Use Spare Ð If Equipped......... 320
NTire Spinning....................... 321
NTread Wear Indicators................. 321
NLife Of Tire......................... 322
NReplacement Tires.................... 323
NAlignment And Balance................ 324
mSupplemental Tire Pressure Information
Ð If Equipped......................... 325
mTire Chains.......................... 325
mSnow Tires.......................... 326
mTire Rotation Recommendations............ 327
mTire Pressure Monitor System (TPMS)....... 328
NBase System ± If Equipped.............. 330NPremium System ± If Equipped........... 332
NGeneral Information................... 335
mFuel Requirements..................... 335
NReformulated Gasoline................. 336
NGasoline/Oxygenate Blends............. 336
NE-85 Usage In Non-Flex Fuel Vehicles...... 337
NMMT In Gasoline.................... 338
NMaterials Added To Fuel............... 338
NFuel System Cautions.................. 338
NCarbon Monoxide Warnings............. 340
mFlexible Fuel (4.7L Engine Only)
Ð If Equipped......................... 340
NE-85 General Information............... 340
STARTING AND OPERATING 273
5

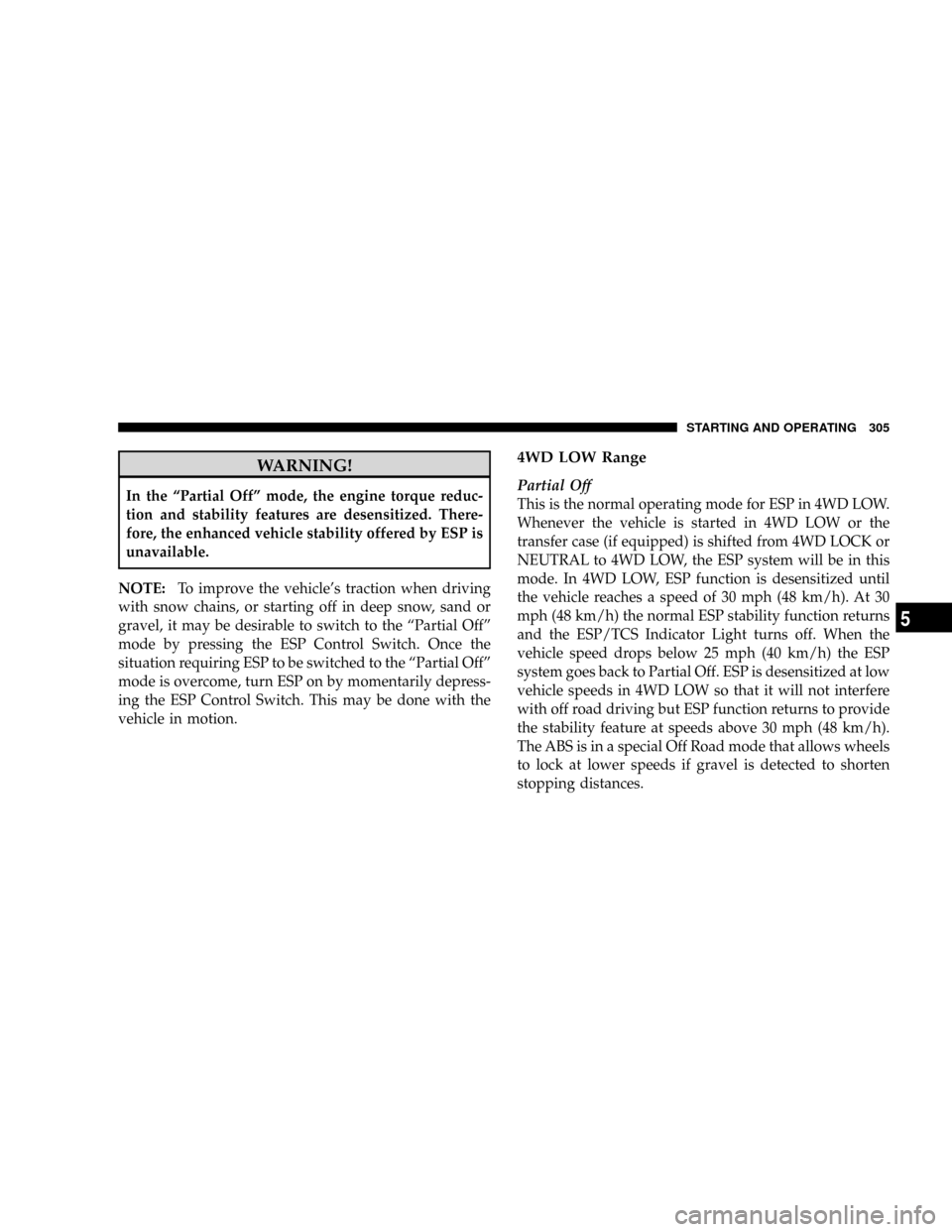

Page 307 of 481
WARNING!
In the ªPartial Offº mode, the engine torque reduc-
tion and stability features are desensitized. There-
fore, the enhanced vehicle stability offered by ESP is
unavailable.
NOTE:To improve the vehicle's traction when driving
with snow chains, or starting off in deep snow, sand or
gravel, it may be desirable to switch to the ªPartial Offº
mode by pressing the ESP Control Switch. Once the
situation requiring ESP to be switched to the ªPartial Offº
mode is overcome, turn ESP on by momentarily depress-
ing the ESP Control Switch. This may be done with the
vehicle in motion.
4WD LOW Range
Partial Off
This is the normal operating mode for ESP in 4WD LOW.
Whenever the vehicle is started in 4WD LOW or the
transfer case (if equipped) is shifted from 4WD LOCK or
NEUTRAL to 4WD LOW, the ESP system will be in this
mode. In 4WD LOW, ESP function is desensitized until
the vehicle reaches a speed of 30 mph (48 km/h). At 30
mph (48 km/h) the normal ESP stability function returns
and the ESP/TCS Indicator Light turns off. When the
vehicle speed drops below 25 mph (40 km/h) the ESP
system goes back to Partial Off. ESP is desensitized at low
vehicle speeds in 4WD LOW so that it will not interfere
with off road driving but ESP function returns to provide
the stability feature at speeds above 30 mph (48 km/h).
The ABS is in a special Off Road mode that allows wheels
to lock at lower speeds if gravel is detected to shorten
stopping distances.
STARTING AND OPERATING 305
5

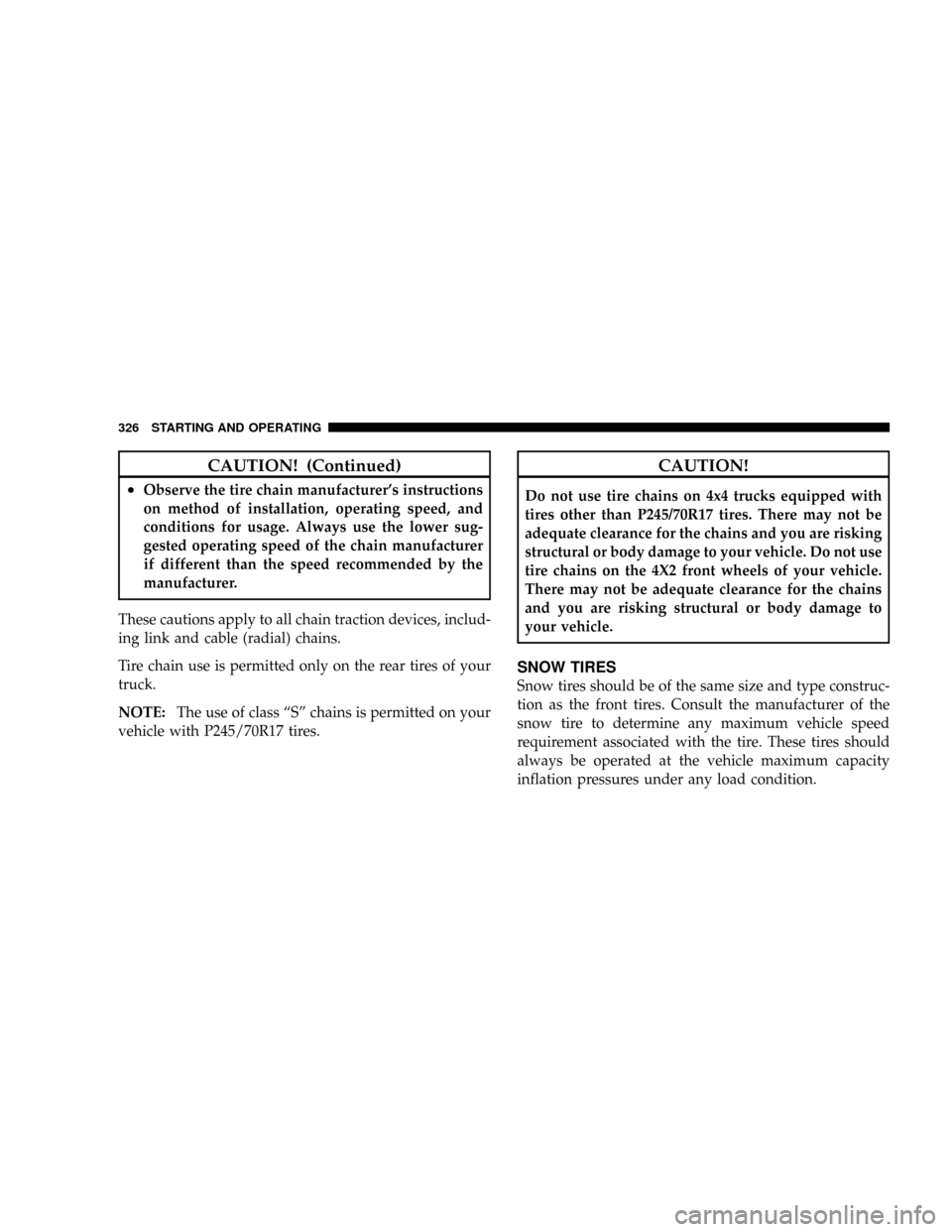

Page 328 of 481
CAUTION! (Continued)
²Observe the tire chain manufacturer's instructions
on method of installation, operating speed, and
conditions for usage. Always use the lower sug-
gested operating speed of the chain manufacturer
if different than the speed recommended by the
manufacturer.
These cautions apply to all chain traction devices, includ-
ing link and cable (radial) chains.
Tire chain use is permitted only on the rear tires of your
truck.
NOTE:The use of class ªSº chains is permitted on your
vehicle with P245/70R17 tires.
CAUTION!
Do not use tire chains on 4x4 trucks equipped with
tires other than P245/70R17 tires. There may not be
adequate clearance for the chains and you are risking
structural or body damage to your vehicle. Do not use
tire chains on the 4X2 front wheels of your vehicle.
There may not be adequate clearance for the chains
and you are risking structural or body damage to
your vehicle.
SNOW TIRES
Snow tires should be of the same size and type construc-
tion as the front tires. Consult the manufacturer of the
snow tire to determine any maximum vehicle speed
requirement associated with the tire. These tires should
always be operated at the vehicle maximum capacity
inflation pressures under any load condition.
326 STARTING AND OPERATING
Page 333 of 481
The Tire Pressure Monitoring Telltale Lamp will
illuminate in the instrument cluster, and an au-
dible chime will be activated when one or more of
the four active road tire pressures are low. Should this
occur, you should stop as soon as possible, check the
inflation pressure of each tire on your vehicle, and inflate
each tire to the vehicle's recommended cold placard
pressure value. The system will automatically update
and the Tire Pressure Monitoring Telltale Lamp will
extinguish once the updated tire pressures have been
received. The vehicle may need to be driven for up to 10
minutes above 15 mph (25 km/h) to receive this infor-
mation.
The Tire Pressure Monitoring Telltale Lamp will flash on
and off for 75 seconds, and remain on solid when a system
fault is detected. The system fault will also sound a chime.
If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. The Tire Pressure
Monitoring Telltale Lamp will turn off when the faultcondition no longer exists. A system fault can occur by any
of the following scenarios: 1) Jamming due to electronic
devices or driving next to facilities emitting the same radio
frequencies as the TPM sensors; 2) Installing some form of
aftermarket window tinting that affects radio wave sig-
nals; 3) Lots of snow or ice around the wheels or wheel
housings; 4) Using tire chains on the vehicle; 5) Using
wheels/tires not equipped with TPM sensors.
NOTE: Your vehicle is equipped with a non-matching
full size spare wheel and tire assembly.
1. This spare tire does not have a tire pressure monitor-
ing sensor. Therefore, the TPMS will not monitor the tire
pressure in the spare tire.
2. If you install the full size spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle a chime will sound
and the TPM Telltale Lamp will still turn ON due to the
low tire.
STARTING AND OPERATING 331
5
Page 336 of 481
affects radio wave signals; 3) Lots of snow or ice around
the wheels or wheel housings; 4) Using tire chains on the
vehicle; 5) Using wheels/tires not equipped with TPM
sensors.
NOTE:Your vehicle is equipped with a non-matching
full size spare wheel and tire assembly.
1. This spare tire does not have a tire pressure monitor-
ing sensor. Therefore, the TPMS will not monitor the tire
pressure in the spare tire.
2. If you install the full size spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, a chime will
sound and the TPM Telltale Light will still turn ON. In
addition, the graphic in the EVIC will still display a
flashing pressure value.
3. However, after driving the vehicle for up to 10 min-
utes above 15 mph (25 km/h), the TPM Telltale Light willflash on and off for 75 seconds and then remain on solid.
The EVIC will display a ªCHECK TPM SYSTEMº mes-
sage for three seconds and then display dashes (- - -) in
place of the pressure value.
4. For each subsequent ignition key cycle, a chime will
sound and the TPM Telltale Light will flash on and off for
75 seconds and then remain on solid. The EVIC will
display a ªCHECK TPM SYSTEMº message for three
seconds, and then display dashes (- - -) in place of a
pressure value.
5. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the full size spare tire,
the TPMS will update automatically. In addition, the
TPM Telltale Light will turn OFF and the graphic in the
EVIC will display a new pressure value instead of dashes
(- - -), as long as no tire pressure is below the low-
pressure warning limit in any of the four active road tires.
334 STARTING AND OPERATING

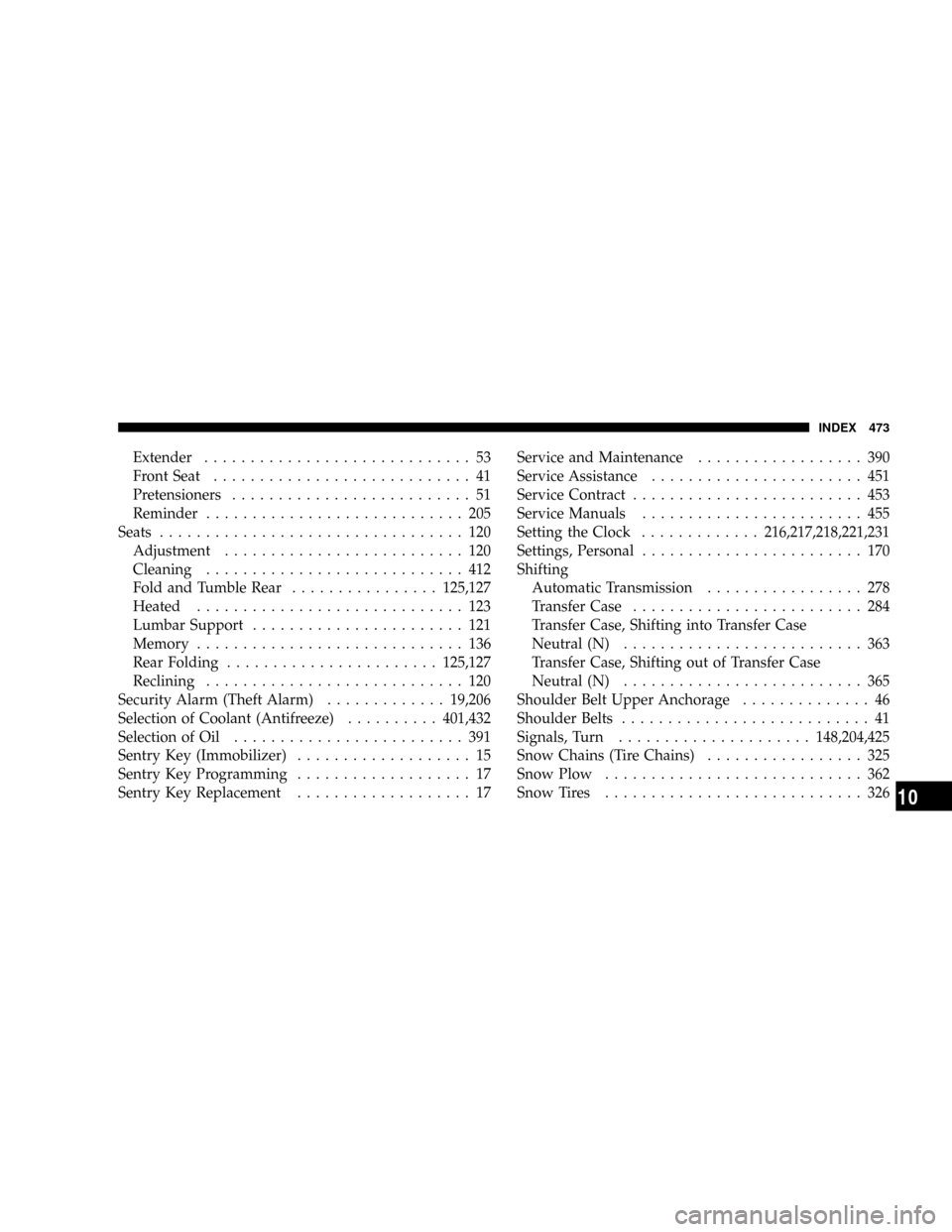

Page 475 of 481
Extender............................. 53
Front Seat............................ 41
Pretensioners.......................... 51
Reminder............................ 205
Seats................................. 120
Adjustment.......................... 120
Cleaning............................ 412
Fold and Tumble Rear................125,127
Heated............................. 123
Lumbar Support....................... 121
Memory............................. 136
Rear Folding.......................125,127
Reclining............................ 120
Security Alarm (Theft Alarm).............19,206
Selection of Coolant (Antifreeze)..........401,432
Selection of Oil......................... 391
Sentry Key (Immobilizer)................... 15
Sentry Key Programming................... 17
Sentry Key Replacement................... 17Service and Maintenance.................. 390
Service Assistance....................... 451
Service Contract......................... 453
Service Manuals........................ 455
Setting the Clock.............216,217,218,221,231
Settings, Personal........................ 170
Shifting
Automatic Transmission................. 278
Transfer Case......................... 284
Transfer Case, Shifting into Transfer Case
Neutral (N).......................... 363
Transfer Case, Shifting out of Transfer Case
Neutral (N).......................... 365
Shoulder Belt Upper Anchorage.............. 46
Shoulder Belts........................... 41
Signals, Turn.....................148,204,425
Snow Chains (Tire Chains)................. 325
Snow Plow............................ 362
Snow Tires............................ 326
INDEX 473
10

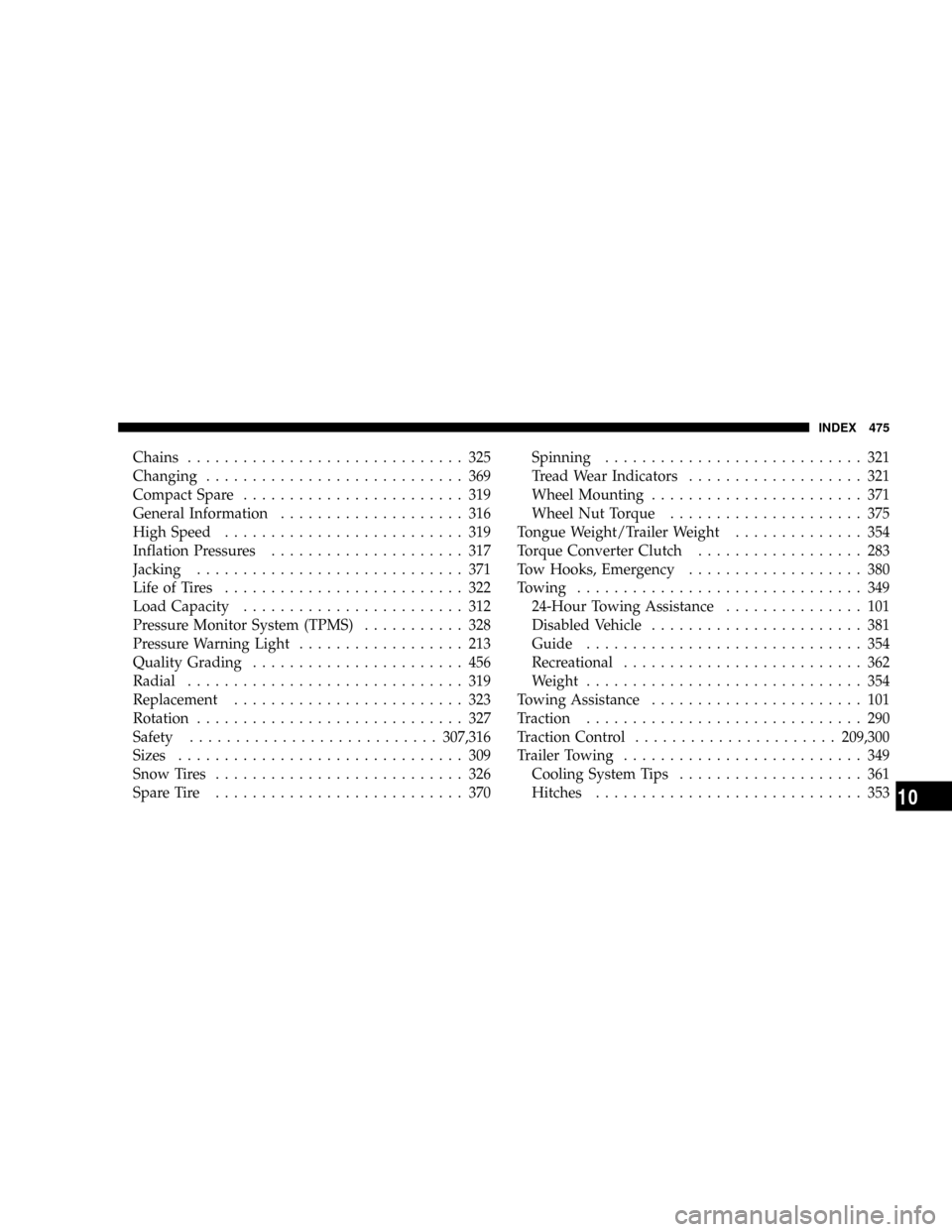

Page 477 of 481
Chains.............................. 325
Changing............................ 369
Compact Spare........................ 319
General Information.................... 316
High Speed.......................... 319
Inflation Pressures..................... 317
Jacking............................. 371
Life of Tires.......................... 322
Load Capacity........................ 312
Pressure Monitor System (TPMS)........... 328
Pressure Warning Light.................. 213
Quality Grading....................... 456
Radial.............................. 319
Replacement......................... 323
Rotation............................. 327
Safety...........................307,316
Sizes............................... 309
Snow Tires........................... 326
Spare Tire........................... 370Spinning............................ 321
Tread Wear Indicators................... 321
Wheel Mounting....................... 371
Wheel Nut Torque..................... 375
Tongue Weight/Trailer Weight.............. 354
Torque Converter Clutch.................. 283
Tow Hooks, Emergency................... 380
Towing............................... 349
24-Hour Towing Assistance............... 101
Disabled Vehicle....................... 381
Guide.............................. 354
Recreational.......................... 362
Weight.............................. 354
Towing Assistance....................... 101
Traction.............................. 290
Traction Control......................209,300
Trailer Towing.......................... 349
Cooling System Tips.................... 361
Hitches............................. 353
INDEX 475
10
