TEST TC-91ACONTINUED - REPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
FIG.1
FIG.2
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
272
ProCarManuals.com

TEST TC-91ACONTINUED - REPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
KEY OFF.
TEST TC-91A
CONTINUED FROM DISCONNECT THE VSS
PREVIOUS PAGE. HARNESS
CONNECTOR.**
USING A VOLTMETER, REPAIR THE
MEASURE THE FUSED IS THE VOLTAGE NO IGNITION SWITCH
TURN IGNITION ON. IGNITION SWITCH ABOVE 10.0 VOLTS? OUTPUT CIRCUIT FOR
OUTPUT CKT. AN OPEN OR SHORT
FIG.1 TO GROUND.*
YES
USING A VOLTMETER,
MEASURE THE VSS IS THE VOLTAGE NO CONTINUE TEST
SIGNAL CIRCUIT. BETWEEN TC-91A ON THE
4.0 AND 6.0 VOLTS? NEXT PAGE.
FIG.1
YES
KEY OFF. USING AN OHMMETER,
MEASURE RESISTANCE IS THE RESISTANCE NO REPAIR THE OPEN
DISCONNECT THE ECM OF SENSOR GROUND CKT BELOW 5.0 OHMS? SENSOR GROUND
HARNESS BETWEEN ECM AND VSS. CIRCUIT.*
CONNECTORS.** FIG.2
YES
PERFORM TEST
TC-91B.
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
273
ProCarManuals.com

TEST TC-91ACONTINUED - REPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
FIG.1
FIG.2
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
274
ProCarManuals.com

TEST TC-91ACONTINUED - REPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TEST TC-91A
CONTINUED FROM IS THE VOLTAGE YES CONTINUE TEST
THE PREVIOUS ABOVE 6.0 VOLTS IN TC-91A ON THE
PAGE. THE PREVIOUS STEP? NEXT PAGE.
NO
KEY OFF. KEY ON.
USING A VOLTMETER, IS THE VOLTAGE YES REPLACE THE BODY
DISCONNECT THE BCM MEASURE THE VSS BETWEEN CONTROL MODULE.*
"B" HARNESS SIGNAL CKT. 4.0 AND 6.0 VOLTS?
CONNECTOR.** FIG.1
NO
KEY OFF. USING AN OHMMETER, REPAIR THE VSS
MEASURE BETWEEN IS THE RESISTANCE YES SIGNAL CIRCUIT FOR
DISCONNECT THE ECM VSS SIGNAL CKT AND BELOW 5.0 OHMS? A SHORT TO SENSOR
HARNESS SENSOR GROUND CKT. GROUND CIRCUIT.*
CONNECTORS.** FIG.1
NO
USING AN OHMMETER, REPAIR THE VSS
MEASURE BETWEEN IS THE RESISTANCE YES SIGNAL CIRCUIT FOR
VSS SIGNAL CKT AND BELOW 5.0 OHMS? A SHORT TO
GROUND. GROUND.*
FIG.1
NO
USING AN OHMMETER,
MEASURE THE THE VSS SENSOR AND IS THE RESISTANCE NO REPAIR THE OPEN
RESISTANCE OF THE THE ECM. BELOW 5.0 OHMS? VSS SIGNAL
VSS SIGNAL CKTCIRCUIT.*
BETWEEN... FIG.2
YES
REPLACE THE ENGINE
CONTROL MODULE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
275
ProCarManuals.com

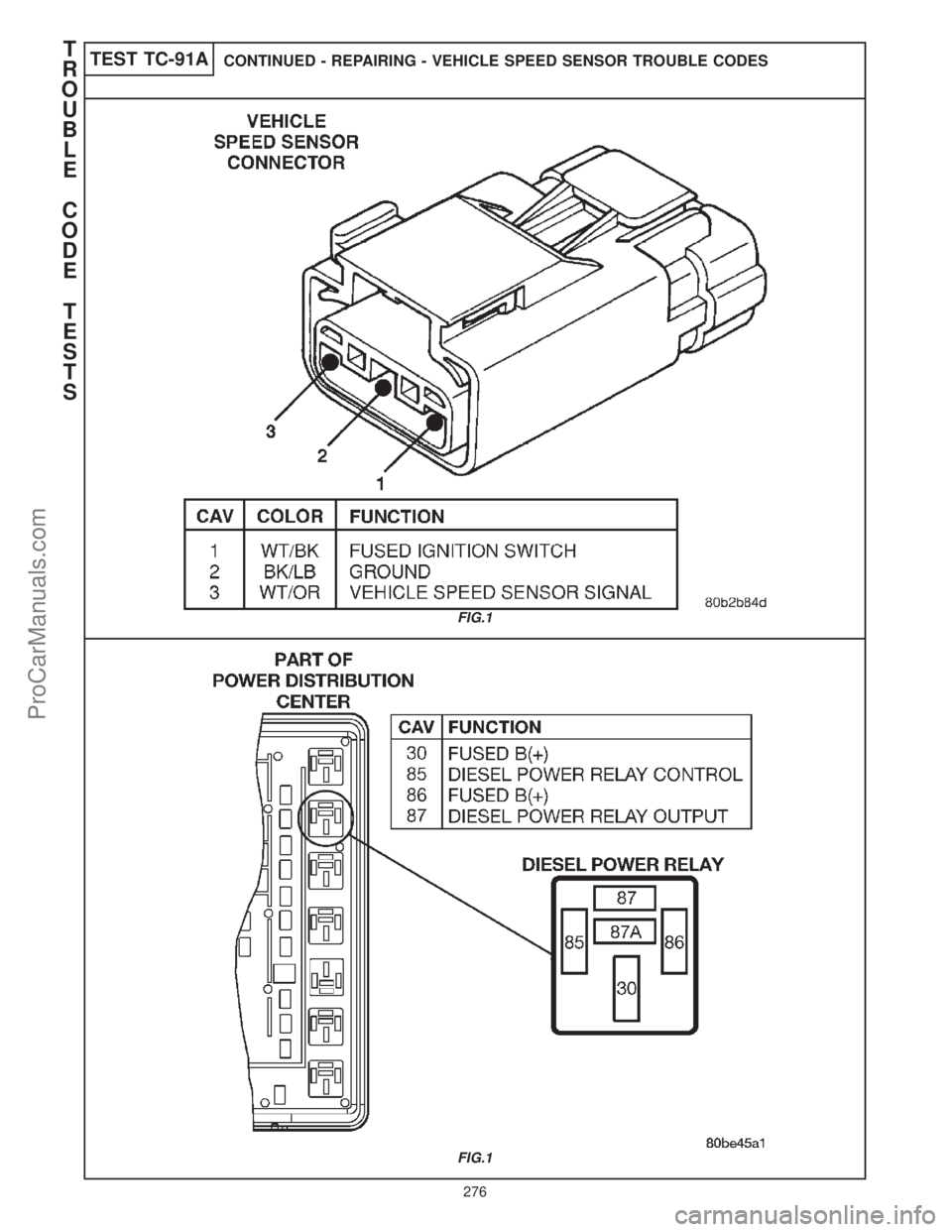

TEST TC-91ACONTINUED - REPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
FIG.1
FIG.1
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
276
ProCarManuals.com

TEST TC-91ACONTINUED - REPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TEST TC-91A KEY OFF.
CONTINUED FROM
THE PREVIOUS DISCONNECT THE BCM
PAGE. "B" HARNESS
CONNECTOR.**
USING A VOLTMETER,
MEASURE THE VSS IS THE VOLTAGE YES REPLACE THE BODY
TURN IGNITION ON. SIGNAL CKT. BELOW 5.0 VOLTS? CONTROL MODULE.*
FIG.1
NO
KEY OFF.
REMOVE THE DIESEL
DISCONNECT THE ECM POWER RELAY.*
HARNESS
CONNECTORS.* FIG.2
WITH A JUMPER WIRE, KEY ON. USING A REPAIR THE VSS
CONNECT DIESEL POWER VOLTMETER, MEASURE IS THE VOLTAGE NO SIGNAL CIRCUIT FOR
RELAY CONNECTOR THE VSS SIGNAL CKT. ABOVE 1.0 VOLT? A SHORT TO
CAVITIES 30 AND 87 VOLTAGE.*
(IN PDC). FIG.2 FIG.1
YES
REPLACE THE ENGINE
CONTROL MODULE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
277
ProCarManuals.com

TEST TC-91BREPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
Perform TEST TC-91A Before Proceeding
FIG.1
FIG.2
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
278
ProCarManuals.com

TEST TC-91BREPAIRING - VEHICLE SPEED SENSOR TROUBLE CODES
Perform TEST TC-91A Before Proceeding
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
USING THE DRB
START TEST RECONNECT THE VSS RAISE AND SUPPORT OSCILLOSCOPE
TC-91B. AND ECM HARNESS THE VEHICLE DRIVE FUNCTION SELECT
CONNECTORS. AXLE. "LAB SCOPE".
SET VOLTAGE RANGE USING THE
TO +10.0v. SET TIME RANGE TO OSCILLOSCOPE LEAD,
SET PROBE TO x10. 40ms/Div. BACKPROBE ECM
HARNESS CONNECTOR
FIG.1 FIG.2 CAVITY 51. FIG.3
START THE ENGINE. SHIFT TRANSMISSION
INTO FIRST GEAR
ENGAGE THE PARKING AND ALLOW THE
BRAKE. WHEELS TO ROTATE
AT IDLE SPEED.
NOTE: A VALID VSS DOES THE DRB
OBSERVE THE DRB SIGNAL WILL CYCLE DISPLAY THE 5.0 NO REPLACE THE
OSCILLOSCOPE HI TO LOW SIMILAR VOLT VSS SIGNAL VEHICLE SPEED
PATTERN. TO THE PATTERN CYCLING HI AND SENSOR.*
SHOWN IN FIGURE 2. LOW?
YES
REPLACE THE ENGINE
CONTROL MODULE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
279
ProCarManuals.com

TEST NTC-1ANO TROUBLE CODE TEST MENU
First, check all Technical Service Bulletins that relate to this driveability problem. Perform corrective
actions if indicated; otherwise continue.
1.NO TROUBLE CODE COMPLETE TEST(non-monitored and monitored circuits)
PerformNTC-2AthroughNTC-13Ain sequence until the driveability problem is found.
NO TROUBLE CODE MENU
CHECKING GLOW PLUG OPERATION.........................................NTC-2A
CHECKING FUEL INJECTION PUMP CIRCUITS.................................NTC-3A
CHECKING THE PCM POWER AND GROUND CIRCUITS.........................NTC-4A
CHECKING ENGINE COOLANT SENSOR CALIBRATION..........................NTC-5A
CHECKING ACCELERATOR PEDAL SENSOR CALIBRATION......................NTC-6A
CHECKING BOOST PRESSURE SENSOR CALIBRATION.........................NTC-7A
CHECKING FUEL TEMPERATURE SENSOR CALIBRATION.......................NTC-8A
CHECKING EGR SYSTEM...................................................NTC-9A
CHECKING THE FUEL HEATER.............................................NTC-10A
CHECKING RADIATOR FAN OPERATION.....................................NTC-11A
CHECKING THE ENGINE MECHANICAL SYSTEMS.............................NTC-12A
CHECKING THE TURBOCHARGER..........................................NTC-13A
2.NO TROUBLE CODE QUICK INDIVIDUAL TEST(individual test only)
If you suspect any of the above items to be the cause of the vehicle's driveability problem, perform
the associated test(s) individually.Return to No Trouble Code Menu if driveability problem still
exists, or perform No Trouble Code Complete Test.
3.NO TROUBLE CODE QUICK SYMPTOM TEST(symptom test only)
Symptom checks cannot be used properly unless the driveability problem characteristic actually
happens while the vehicle is being tested. To reduce diagnostic time, ensure that DTC TEST and
appropriate GENERAL INFORMATION sections have been reviewed before attempting to diagnose
a symptom.
Select the symptom that most accurately describes the vehicle's driveability problem and then
perform the test routine that pertains to this symptom. Perform each routine test in sequence until
the problem is found. For definitions, see Section 12.0 in the GENERAL INFORMATION section in
this manual.
NOTE:For all component locations seeGeneral Information Section 4.0in this manual.
N
O
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
322
ProCarManuals.com

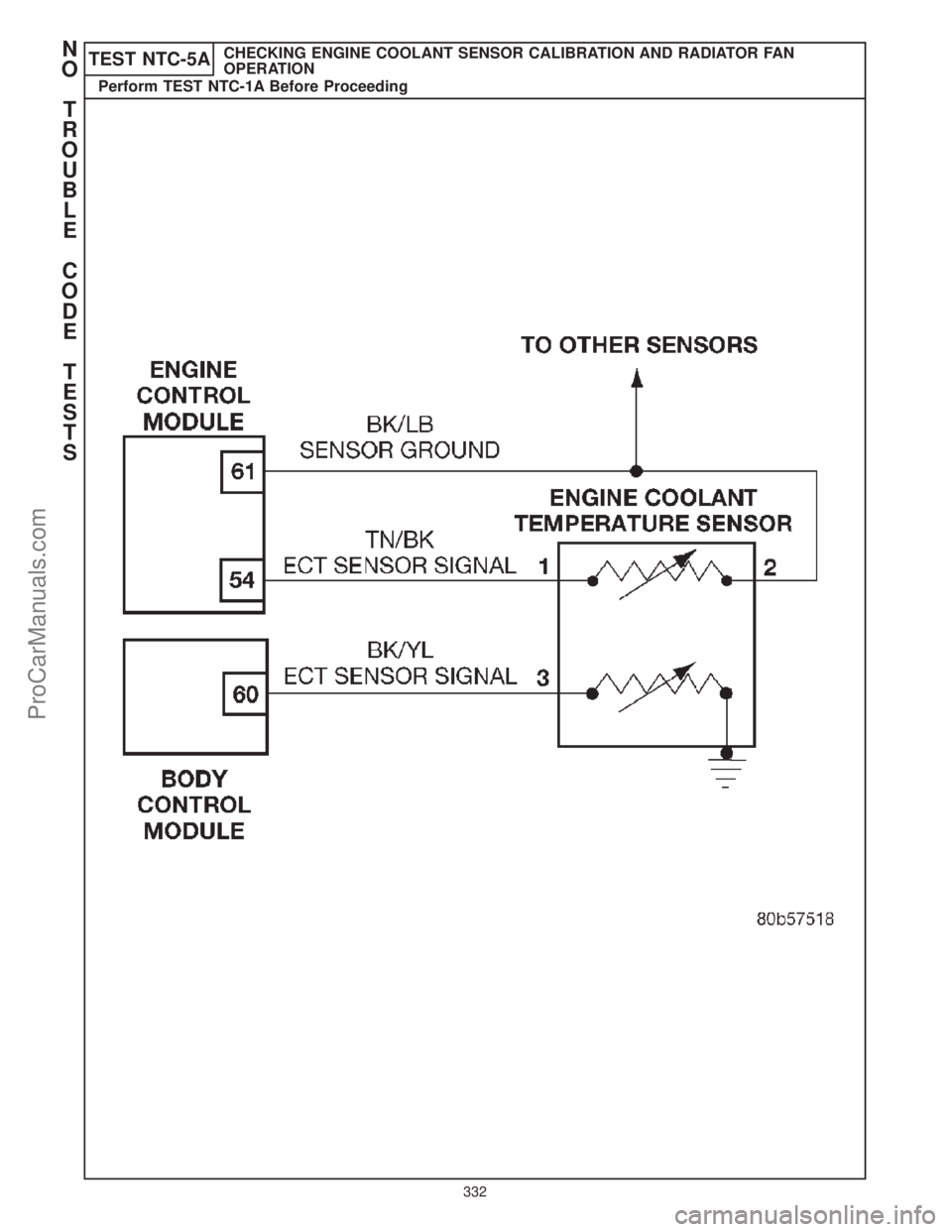

TEST NTC-5ACHECKING ENGINE COOLANT SENSOR CALIBRATION AND RADIATOR FAN
OPERATION
Perform TEST NTC-1A Before ProceedingN
O
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
332
