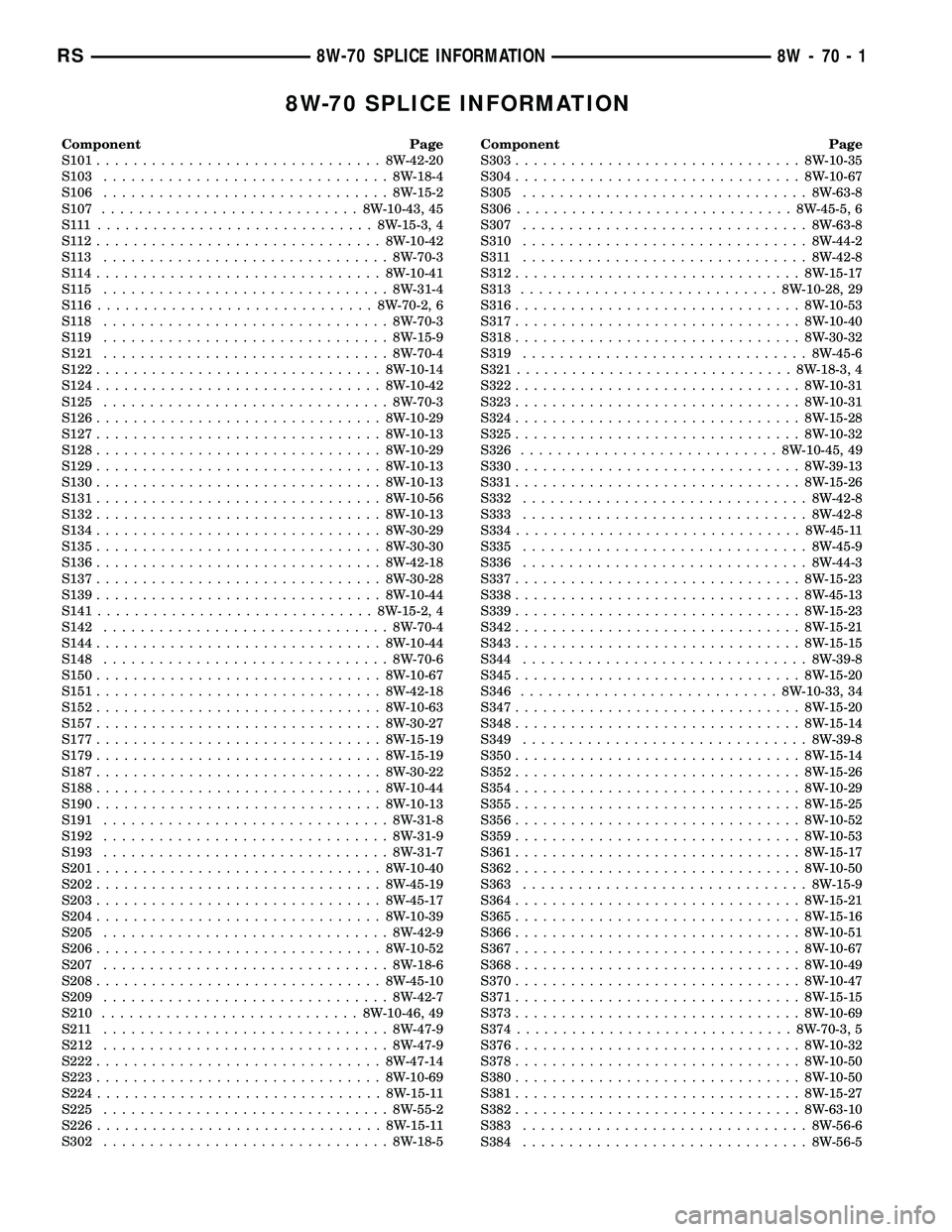

8W-70 SPLICE INFORMATION
Component Page
S101...............................8W-42-20
S103...............................8W-18-4
S106...............................8W-15-2
S107............................8W-10-43, 45
S111 ..............................8W-15-3, 4
S112...............................8W-10-42

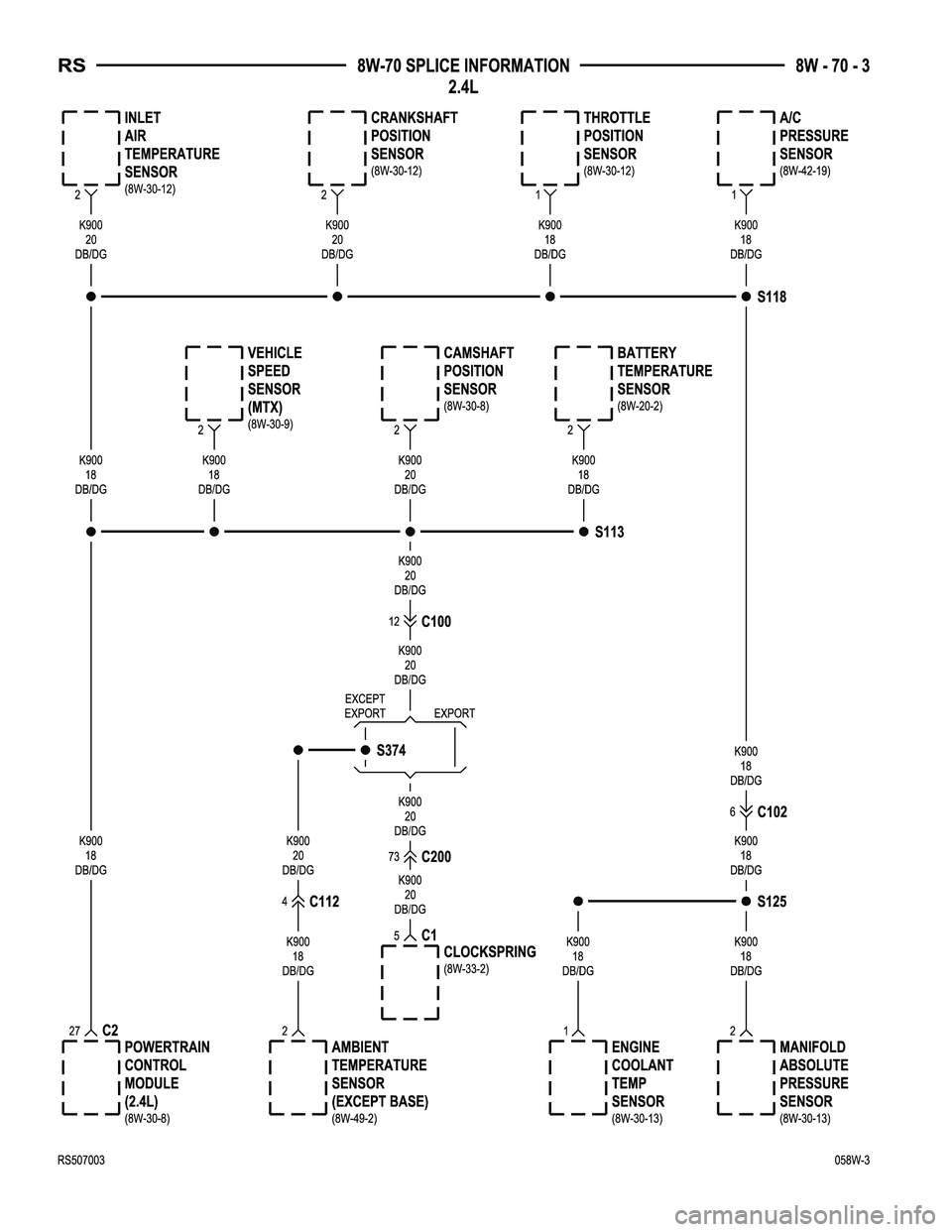

S113 ...............................8W-70-3
S114...............................8W-10-41
S115 ...............................8W-31-4

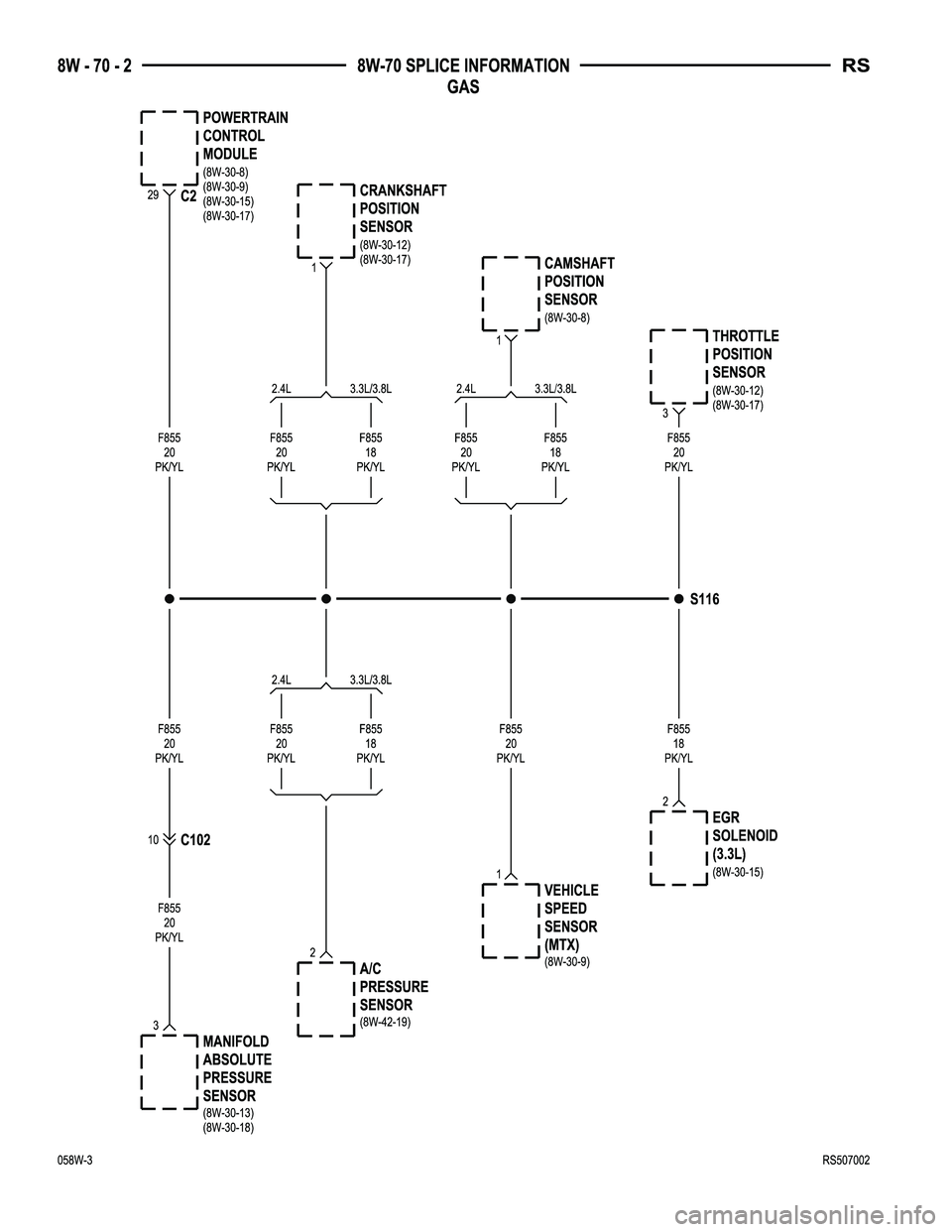

S116 ..............................8W-70-2, 6
S118 ...............................8W-70-3
S119 ...............................8W-15-9

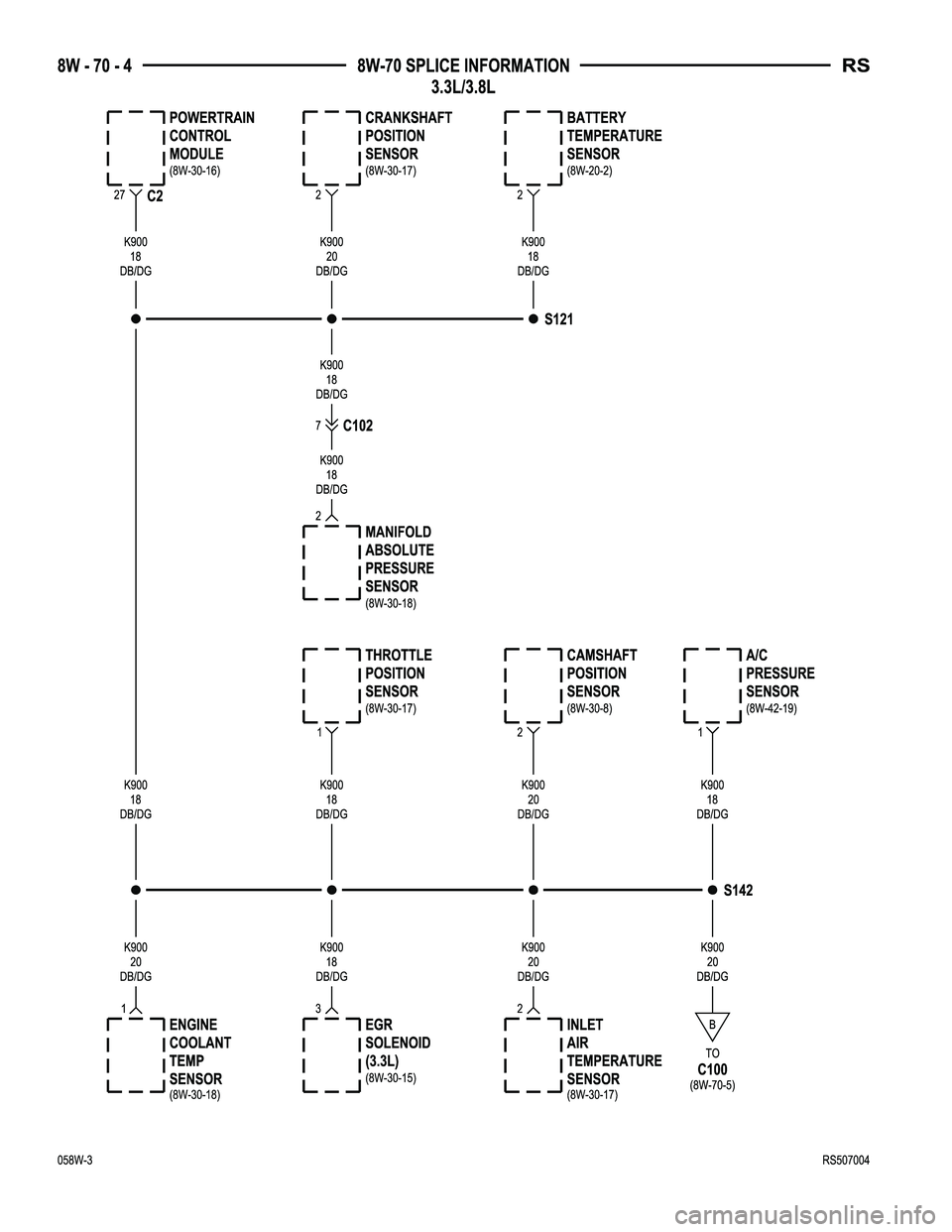

S121...............................8W-70-4
S122...............................8W-10-14
S124...............................8W-10-42
S125...............................8W-70-3
S126...............................8W-10-29
S127...............................8W-10-13
S128...............................8W-10-29
S129...............................8W-10-13
S130...............................8W-10-13
S131...............................8W-10-56
S132...............................8W-10-13
S134...............................8W-30-29
S135...............................8W-30-30
S136...............................8W-42-18
S137...............................8W-30-28
S139...............................8W-10-44
S141..............................8W-15-2, 4
S142...............................8W-70-4
S144...............................8W-10-44

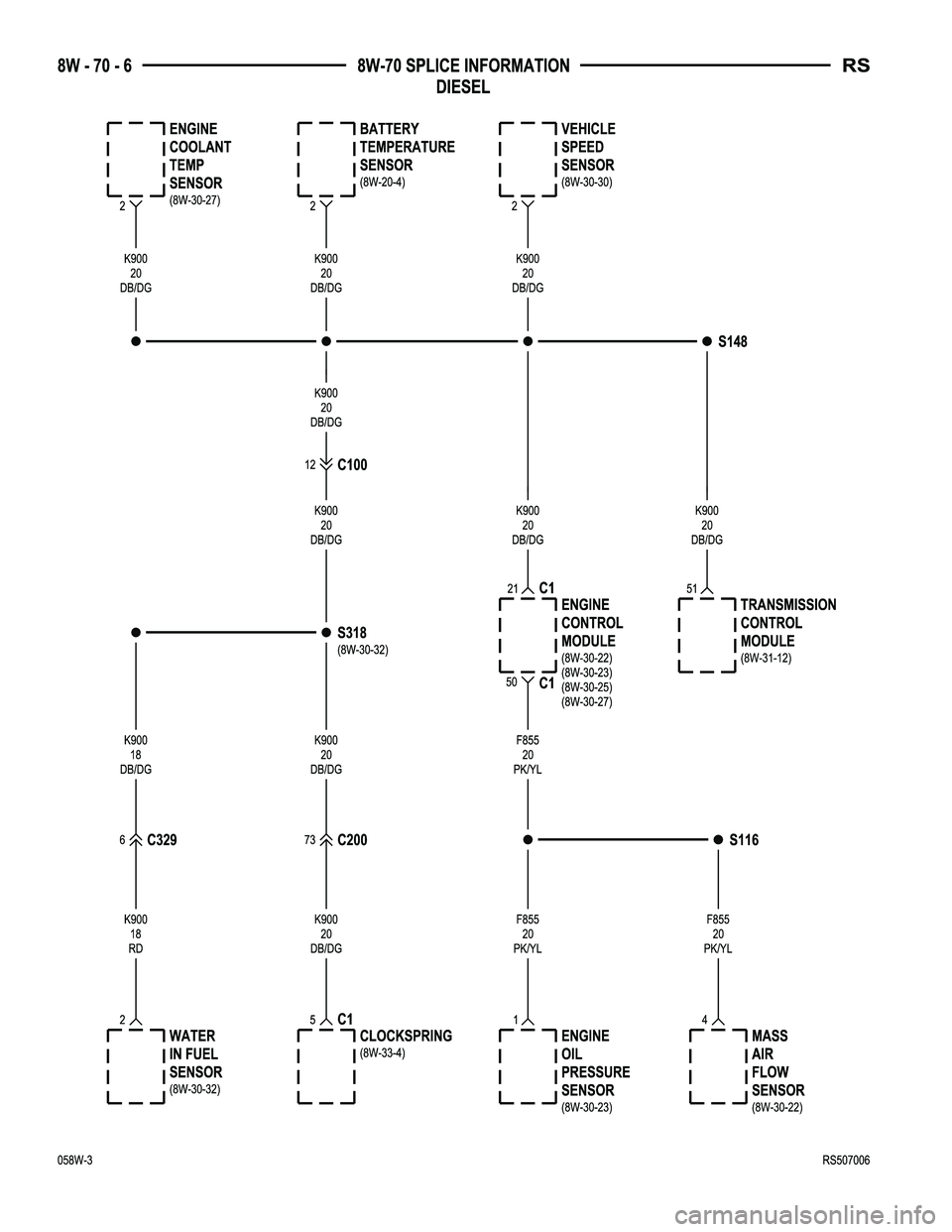

S148...............................8W-70-6
S150...............................8W-10-67
S151...............................8W-42-18
S152...............................8W-10-63
S157...............................8W-30-27
S177...............................8W-15-19
S179...............................8W-15-19
S187...............................8W-30-22
S188...............................8W-10-44
S190...............................8W-10-13
S191...............................8W-31-8
S192...............................8W-31-9
S193...............................8W-31-7
S201...............................8W-10-40
S202...............................8W-45-19
S203...............................8W-45-17
S204...............................8W-10-39
S205...............................8W-42-9
S206...............................8W-10-52
S207...............................8W-18-6
S208...............................8W-45-10
S209...............................8W-42-7
S210............................8W-10-46, 49
S211 ...............................8W-47-9
S212...............................8W-47-9
S222...............................8W-47-14
S223...............................8W-10-69
S224...............................8W-15-11
S225...............................8W-55-2
S226...............................8W-15-11
S302...............................8W-18-5Component Page
S303...............................8W-10-35
S304...............................8W-10-67
S305...............................8W-63-8
S306..............................8W-45-5, 6
S307...............................8W-63-8
S310...............................8W-44-2
S311 ...............................8W-42-8
S312...............................8W-15-17
S313............................8W-10-28, 29
S316...............................8W-10-53
S317...............................8W-10-40
S318...............................8W-30-32
S319...............................8W-45-6
S321..............................8W-18-3, 4
S322...............................8W-10-31
S323...............................8W-10-31
S324...............................8W-15-28
S325...............................8W-10-32
S326............................8W-10-45, 49
S330...............................8W-39-13
S331...............................8W-15-26
S332...............................8W-42-8
S333...............................8W-42-8
S334...............................8W-45-11
S335...............................8W-45-9
S336...............................8W-44-3
S337...............................8W-15-23
S338...............................8W-45-13
S339...............................8W-15-23
S342...............................8W-15-21
S343...............................8W-15-15
S344...............................8W-39-8
S345...............................8W-15-20
S346............................8W-10-33, 34
S347...............................8W-15-20
S348...............................8W-15-14
S349...............................8W-39-8
S350...............................8W-15-14
S352...............................8W-15-26
S354...............................8W-10-29
S355...............................8W-15-25
S356...............................8W-10-52
S359...............................8W-10-53
S361...............................8W-15-17
S362...............................8W-10-50
S363...............................8W-15-9
S364...............................8W-15-21
S365...............................8W-15-16
S366...............................8W-10-51
S367...............................8W-10-67
S368...............................8W-10-49
S370...............................8W-10-47
S371...............................8W-15-15
S373...............................8W-10-69

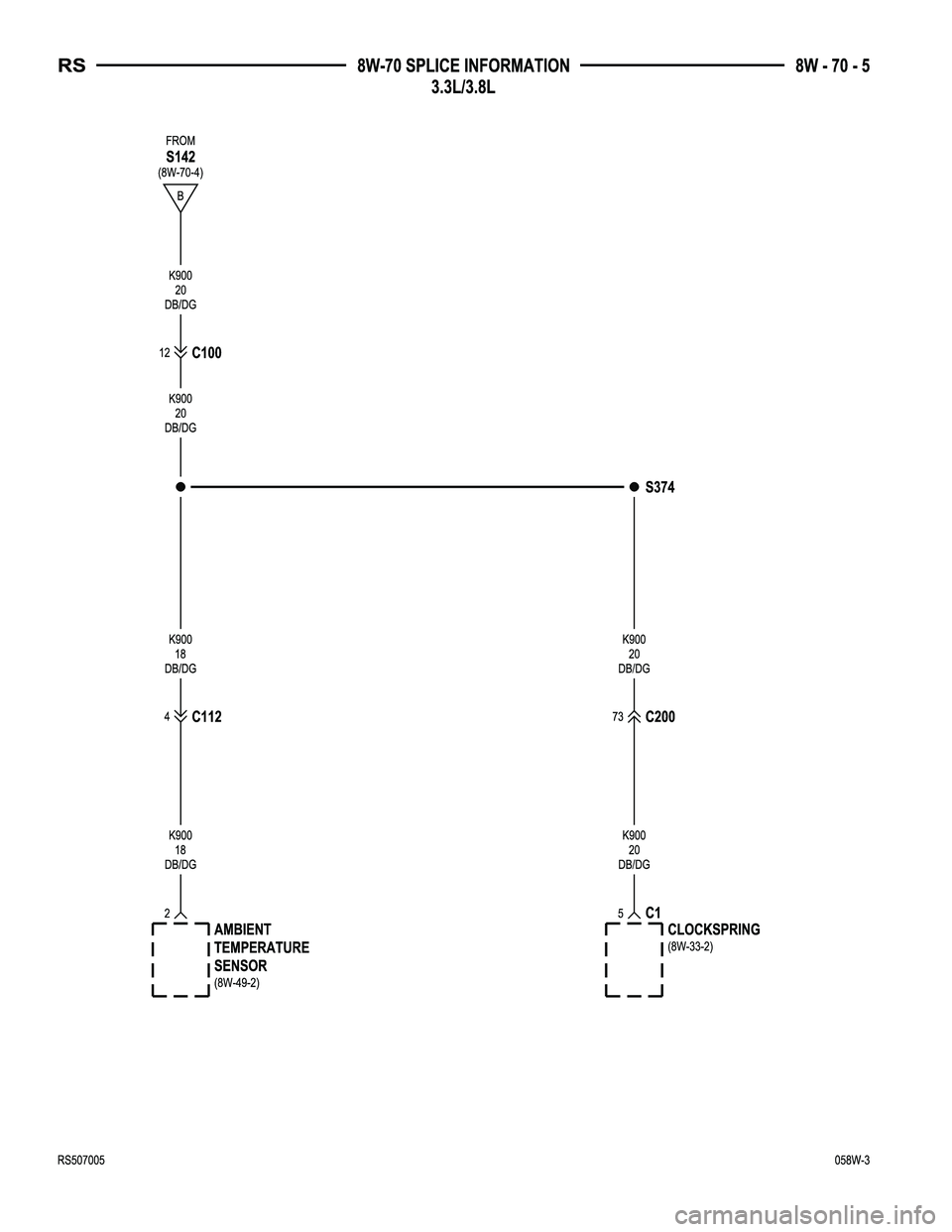

S374..............................8W-70-3, 5
S376...............................8W-10-32
S378...............................8W-10-50
S380...............................8W-10-50
S381...............................8W-15-27
S382...............................8W-63-10
S383...............................8W-56-6
S384...............................8W-56-5
RS8W-70 SPLICE INFORMATION8W-70-1
