buttons CHRYSLER CONCORDE 2004 2.G Owners Manual

1. Press and hold the Unlock button on the transmitter.
2. Continue to hold the Unlock button, wait at least 4 but
no longer than 10 seconds, then press the Lock button.
3. Release both buttons.
Enable/Disable Lamp Flash:
The Lamp Flash can be enabled or disabled by perform-
ing the following procedure:
1. Press and hold the Lock button on the transmitter.
2. Continue to hold the Lock button, wait at least 4 but
no longer than 10 seconds, then press the Trunk button.
3. Release both buttons.
To lock the doors:
Press and release the LOCK button to lock all doors.
Enable/Disable Horn chirp:
The horn chirp feature can be enabled or disabled by
performing the following procedure:
1. Press and hold the Lock button on the transmitter.2. Continue to hold the Lock button, wait at least 4 but
no longer than 10 seconds, then press the Unlock button.
3. Release both buttons.
NOTE:To enable/disable the Lamp Flash, see proce-
dure described above.
To unlock the trunk:
Press and hold the trunk button on the transmitter to
unlatch the trunk.
Enable/Disable Trunk Press and Hold:
The transmitter can be programmed to unlatch the trunk
immediately upon activation of the Trunk button (with-
out pressing and holding) by performing the following
procedure:
1. Press and hold the Unlock button on the transmitter.
2. Continue to hold the Unlock button, wait at least 4 but
no longer than 10 seconds, then press the Trunk button.
3. Release both buttons.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

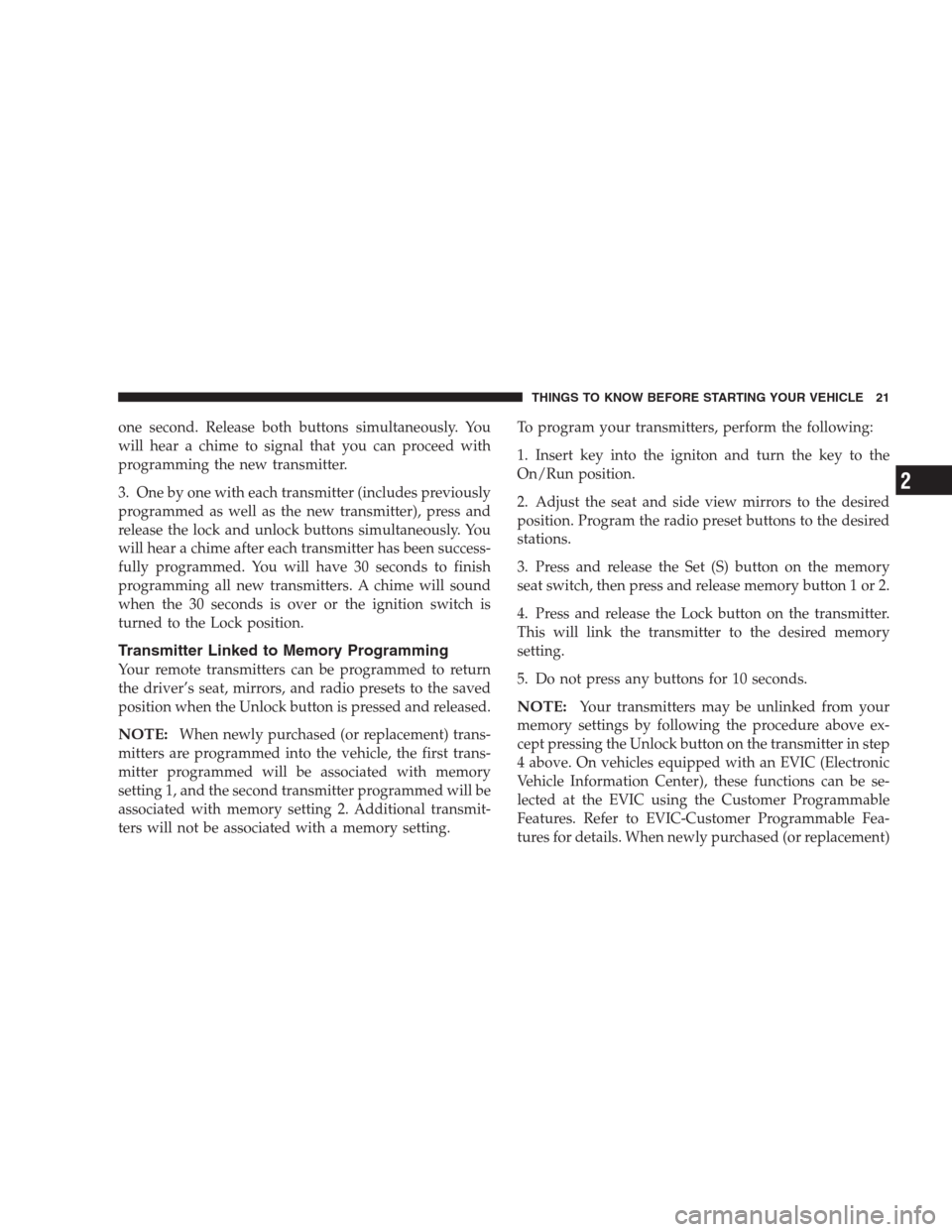

one second. Release both buttons simultaneously. You
will hear a chime to signal that you can proceed with
programming the new transmitter.
3. One by one with each transmitter (includes previously
programmed as well as the new transmitter), press and
release the lock and unlock buttons simultaneously. You
will hear a chime after each transmitter has been success-
fully programmed. You will have 30 seconds to finish
programming all new transmitters. A chime will sound
when the 30 seconds is over or the ignition switch is
turned to the Lock position.
Transmitter Linked to Memory Programming
Your remote transmitters can be programmed to return
the driver’s seat, mirrors, and radio presets to the saved
position when the Unlock button is pressed and released.
NOTE:When newly purchased (or replacement) trans-
mitters are programmed into the vehicle, the first trans-
mitter programmed will be associated with memory
setting 1, and the second transmitter programmed will be
associated with memory setting 2. Additional transmit-
ters will not be associated with a memory setting.To program your transmitters, perform the following:
1. Insert key into the igniton and turn the key to the
On/Run position.
2. Adjust the seat and side view mirrors to the desired
position. Program the radio preset buttons to the desired
stations.
3. Press and release the Set (S) button on the memory
seat switch, then press and release memory button 1 or 2.
4. Press and release the Lock button on the transmitter.
This will link the transmitter to the desired memory
setting.
5. Do not press any buttons for 10 seconds.
NOTE:Your transmitters may be unlinked from your
memory settings by following the procedure above ex-
cept pressing the Unlock button on the transmitter in step
4 above. On vehicles equipped with an EVIC (Electronic
Vehicle Information Center), these functions can be se-
lected at the EVIC using the Customer Programmable
Features. Refer to EVIC-Customer Programmable Fea-
tures for details. When newly purchased (or replacement)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

Lumbar Support
This feature allows you to increase or decrease the
amount of lumbar support. Turn the control level for-
ward to increase and rearward to decrease the desired
amount of lumbar support.
Heated Seats— If Equipped
The front driver’s and passenger seats are heated. The
control for the heater is located on the outboard side of
each seat. After turning on the ignition, you can choose
from High, Off, or Low heat settings. An indicator on the
switch shows which setting has been chosen.Press the switch once to select a heat setting (high or low)
and press the switch a second time to turn the heated seat
off.
NOTE:Once a heat setting is selected, heat will be felt
within 2 to 3 minutes.
Memory Feature
This feature allows the driver to recall one of two
pre-selected seat/outside mirror settings as well as radio
station preset buttons. The radio display will show which
memory position is being recalled.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 61
3

The memory feature switch is located on the outboard
side of the driver’s seat, next to the heated seat switch.
To Set The Memory Feature:
1. Use the seat and driver mirror switches to adjust the
seat and driver mirror to the desired positions. Program
the radio preset buttons to the desired stations.
2. Press and release the Set (S) button on the memory
seat switch, then press either button 1 or 2 within 5
seconds. The radio display will show which memory
position is being set.3. A second memory setting can be stored in the vehicle
memory. Begin with pressing 2 on the memory seat
switch for driver 2. Select a second seat/radio setting,
press the Set (S) button, then press button 2 within 5
seconds.
Each time the Set and a numbered button are pressed, the
old memory is erased, and a new one is stored.
NOTE:The vehicle must be in Park to activate the
Memory feature.
Programming the Remote Keyless Transmitter for
the Memory Feature
Your remote transmitters can be programmed to return
the driver’s seat, mirror, and radio presets to the saved
position when the Unlock button is pressed and released.
To program your transmitters, perform the following:
1. Insert the key into the ignition and turn the key to the
Run position.
2. Adjust the seat and side view mirror to the desired
position. Program the radio preset buttons to the desired
stations.
62 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

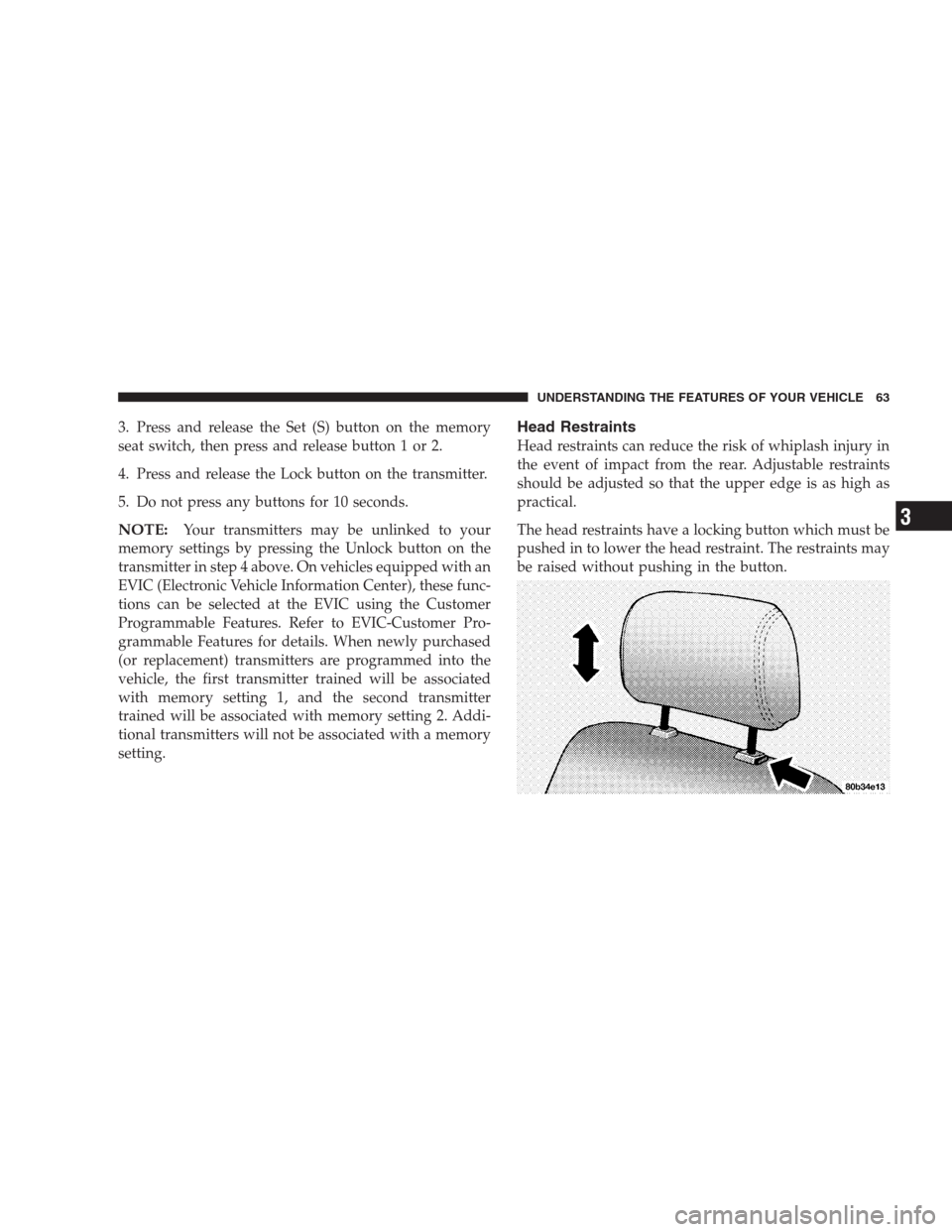

3. Press and release the Set (S) button on the memory
seat switch, then press and release button 1 or 2.
4. Press and release the Lock button on the transmitter.
5. Do not press any buttons for 10 seconds.
NOTE:Your transmitters may be unlinked to your
memory settings by pressing the Unlock button on the
transmitter in step 4 above. On vehicles equipped with an
EVIC (Electronic Vehicle Information Center), these func-
tions can be selected at the EVIC using the Customer
Programmable Features. Refer to EVIC-Customer Pro-
grammable Features for details. When newly purchased
(or replacement) transmitters are programmed into the
vehicle, the first transmitter trained will be associated
with memory setting 1, and the second transmitter
trained will be associated with memory setting 2. Addi-
tional transmitters will not be associated with a memory
setting.
Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Adjustable restraints
should be adjusted so that the upper edge is as high as
practical.
The head restraints have a locking button which must be
pushed in to lower the head restraint. The restraints may
be raised without pushing in the button.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 63
3

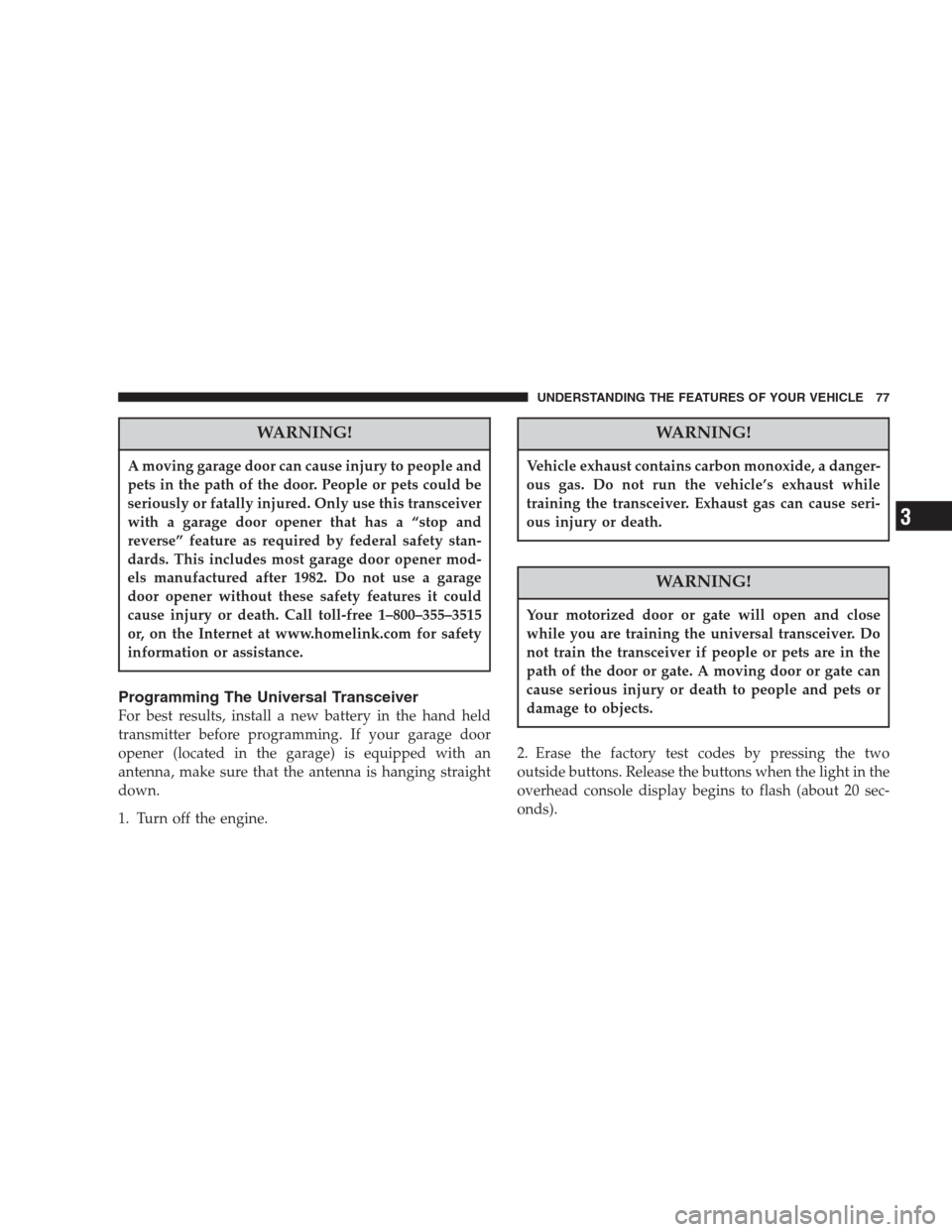

WARNING!
A moving garage door can cause injury to people and
pets in the path of the door. People or pets could be
seriously or fatally injured. Only use this transceiver
with a garage door opener that has a “stop and
reverse” feature as required by federal safety stan-
dards. This includes most garage door opener mod-
els manufactured after 1982. Do not use a garage
door opener without these safety features it could
cause injury or death. Call toll-free 1–800–355–3515
or, on the Internet at www.homelink.com for safety
information or assistance.
Programming The Universal Transceiver
For best results, install a new battery in the hand held
transmitter before programming. If your garage door
opener (located in the garage) is equipped with an
antenna, make sure that the antenna is hanging straight
down.
1. Turn off the engine.
WARNING!
Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run the vehicle’s exhaust while
training the transceiver. Exhaust gas can cause seri-
ous injury or death.
WARNING!
Your motorized door or gate will open and close
while you are training the universal transceiver. Do
not train the transceiver if people or pets are in the
path of the door or gate. A moving door or gate can
cause serious injury or death to people and pets or
damage to objects.
2. Erase the factory test codes by pressing the two
outside buttons. Release the buttons when the light in the
overhead console display begins to flash (about 20 sec-
onds).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

NOTE:Step 2 does not have to be followed to program
additional hand held transmitters.
3. Choose one of the three buttons to train. Place the
hand held controller one to three inches from the univer-
sal transceiver while keeping its indicator light in view.
4. Using both hands, press the hand held transmitter
button and the desired universal transceiver button. Do
not release the buttons until step 5 has been completed.NOTE:Some entry gates and garage door openers may
require you to replace step 4 with the procedures listed
under Canadian Programming.
5. The indicator light in the Universal Transceiver will
begin to flash, first slowly and then rapidly. The rapid
flashing indicates successful programming. If after 90
seconds the indicator light does not flash rapidly or goes
out, return to step 1 and repeat the procedure. To train the
other buttons, repeat steps 3 and 4. Be sure to keep your
hand held transmitters in case you need to retrain the
Universal Transceiver.
If you do not successfully program the Universal Trans-
ceiver to learn the signal of your hand held transmitter,
refer to the Rolling Code Paragraph, or call toll free for
customer assistance at 1–800–355–3515, or on the internet
at www.homelink.com.
“Rolling Code” Programming
NOTE:
If your hand held transmitter appears to pro-
gram the Universal Transceiver, but your garage door or
other device does not operate, and your device was
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

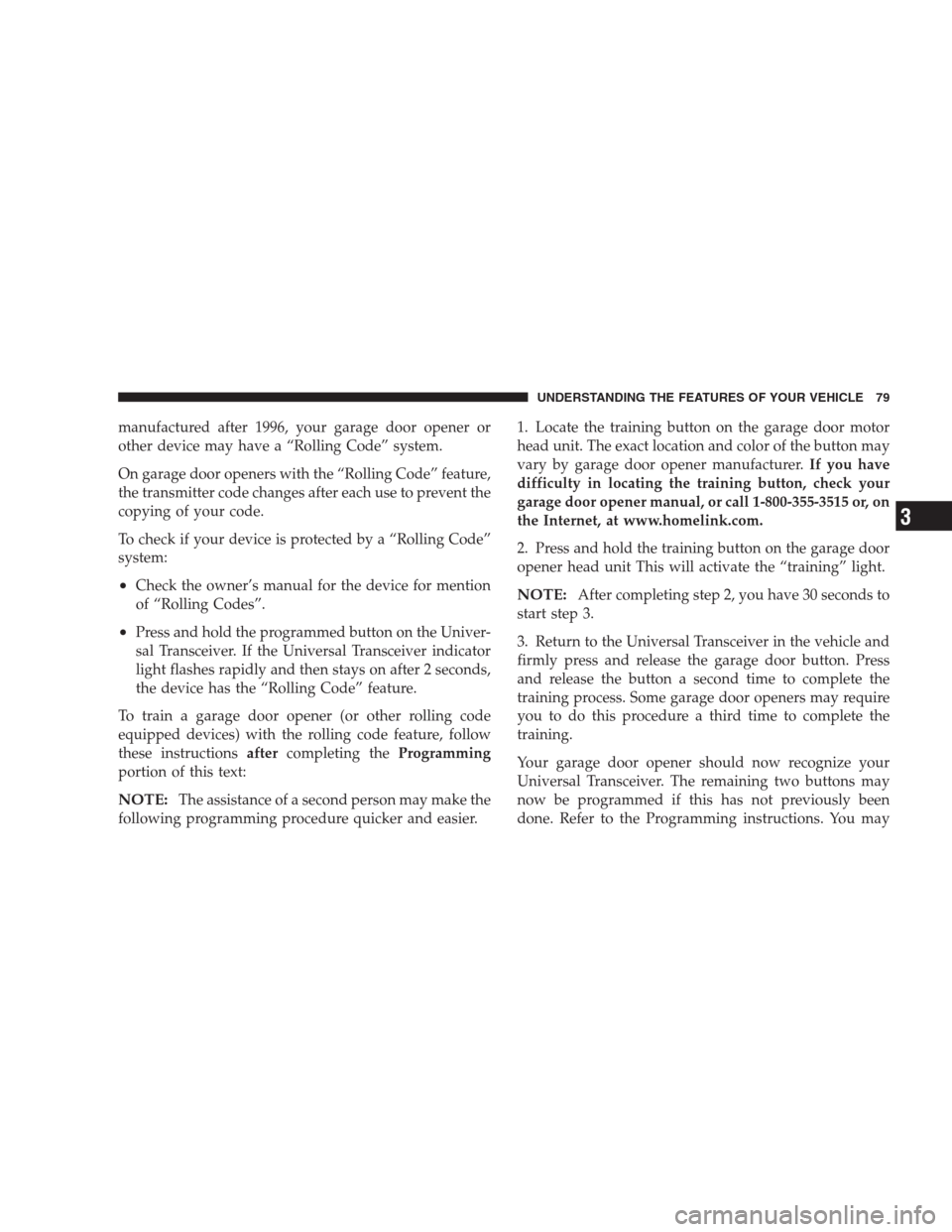

manufactured after 1996, your garage door opener or
other device may have a “Rolling Code” system.
On garage door openers with the “Rolling Code” feature,
the transmitter code changes after each use to prevent the
copying of your code.
To check if your device is protected by a “Rolling Code”
system:
•Check the owner’s manual for the device for mention
of “Rolling Codes”.
•Press and hold the programmed button on the Univer-
sal Transceiver. If the Universal Transceiver indicator
light flashes rapidly and then stays on after 2 seconds,
the device has the “Rolling Code” feature.
To train a garage door opener (or other rolling code
equipped devices) with the rolling code feature, follow
these instructionsaftercompleting theProgramming
portion of this text:
NOTE:The assistance of a second person may make the
following programming procedure quicker and easier.1. Locate the training button on the garage door motor
head unit. The exact location and color of the button may
vary by garage door opener manufacturer.If you have
difficulty in locating the training button, check your
garage door opener manual, or call 1-800-355-3515 or, on
the Internet, at www.homelink.com.
2. Press and hold the training button on the garage door
opener head unit This will activate the “training” light.
NOTE:After completing step 2, you have 30 seconds to
start step 3.
3. Return to the Universal Transceiver in the vehicle and
firmly press and release the garage door button. Press
and release the button a second time to complete the
training process. Some garage door openers may require
you to do this procedure a third time to complete the
training.
Your garage door opener should now recognize your
Universal Transceiver. The remaining two buttons may
now be programmed if this has not previously been
done. Refer to the Programming instructions. You may
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

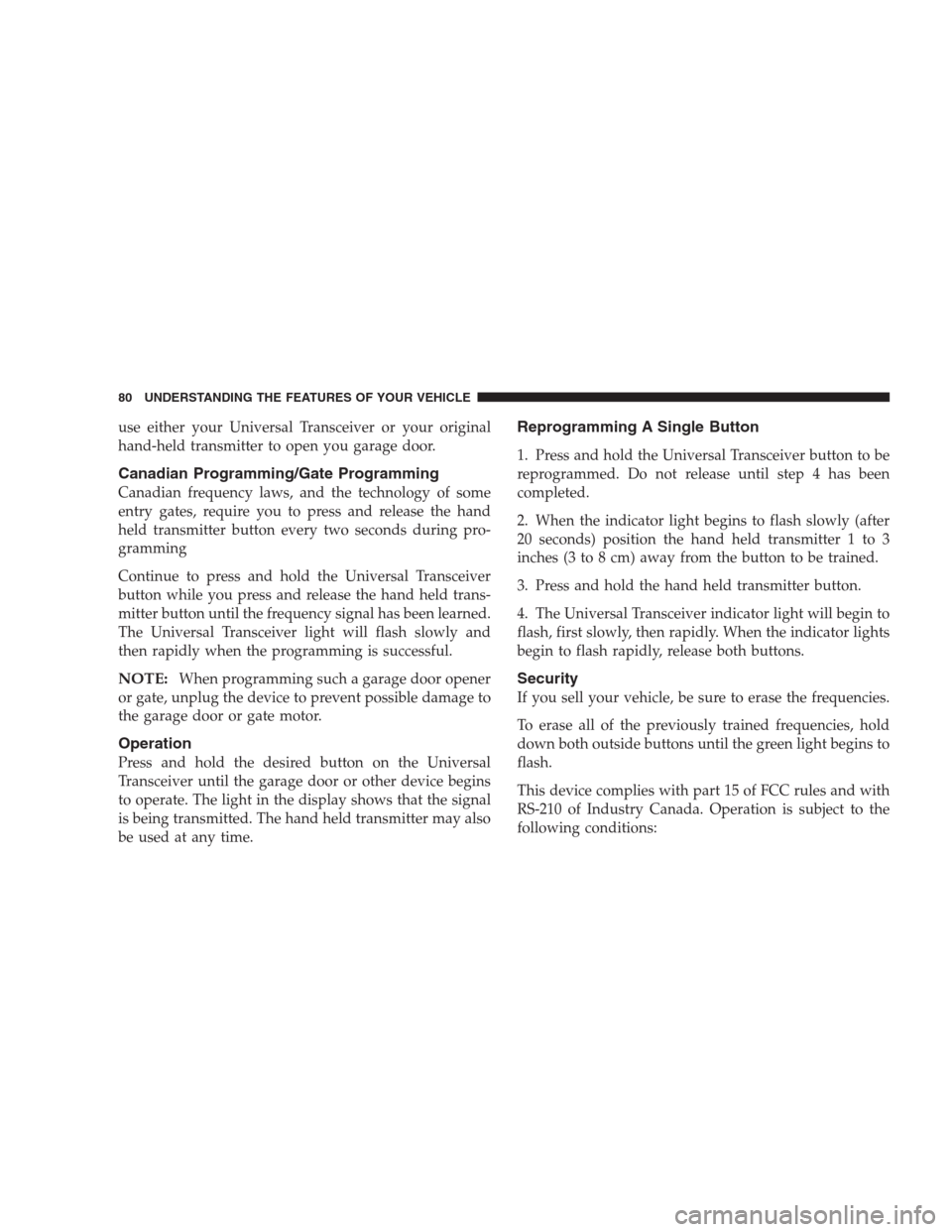

use either your Universal Transceiver or your original
hand-held transmitter to open you garage door.
Canadian Programming/Gate Programming
Canadian frequency laws, and the technology of some
entry gates, require you to press and release the hand
held transmitter button every two seconds during pro-
gramming
Continue to press and hold the Universal Transceiver
button while you press and release the hand held trans-
mitter button until the frequency signal has been learned.
The Universal Transceiver light will flash slowly and
then rapidly when the programming is successful.
NOTE:When programming such a garage door opener
or gate, unplug the device to prevent possible damage to
the garage door or gate motor.
Operation
Press and hold the desired button on the Universal
Transceiver until the garage door or other device begins
to operate. The light in the display shows that the signal
is being transmitted. The hand held transmitter may also
be used at any time.
Reprogramming A Single Button
1. Press and hold the Universal Transceiver button to be
reprogrammed. Do not release until step 4 has been
completed.
2. When the indicator light begins to flash slowly (after
20 seconds) position the hand held transmitter 1 to 3
inches (3 to 8 cm) away from the button to be trained.
3. Press and hold the hand held transmitter button.
4. The Universal Transceiver indicator light will begin to
flash, first slowly, then rapidly. When the indicator lights
begin to flash rapidly, release both buttons.
Security
If you sell your vehicle, be sure to erase the frequencies.
To erase all of the previously trained frequencies, hold
down both outside buttons until the green light begins to
flash.
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Erase the factory test codes by pressing and holding
channels button one and three, of the universal trans-
ceiver, until CLEARED CHANNELS displays (about 20
seconds). Release the buttons.
NOTE:Step 2 does not have to be followed to program
additional hand held transmitters.3. Choose one of the three universal transceiver buttons
to program. Place the hand-held controller at the lower
left corner of the display and approximately 1 to 3 inches
away from the surface of the universal transceiver while
keeping the display in view.
4. Using both hands, simultaneously press and hold the
button on the hand-held transmitter and the button you
would like to program on the universal transceiver. The
display on the universal transmitter will show TRAIN-
ING. When TRAINED appears in the display, release
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3
