Page 141 of 358
driving when reaching the service warning threshold. It
can be canceled manually by pressing the knob/button.
Once the suggested term has passed, the message plus
either the symbol for Service A or the symbol for Service
B preceded by a ± (minus symbol) blinks for approxi-
mately 30 seconds and a signal sounds every time when
turning the key to the ON/RUN position.
The FSS display can also be called up for approximately
10 seconds with the display illuminated by pressing the
knob/button twice within one second.
Following a completed A or B service your authorized
dealer sets the counter to 7,000 mi (Canada: 11 000 km).
NOTE:When disconnecting vehicle battery for one or
more days at a time, such days will not be counted. Any
such days not counted by FSS can be added by your
authorized dealer.The interval between services is determined by the type
of vehicle operation. Driving at extreme speeds, and cold
starts combined with short distance driving in which the
engine does not reach normal operating temperature,
reduce the interval between services.
However you choose to set your reference numbers, the
scheduled services as posted in the Service Booklet must
be followed to properly care for your vehicle.
23. Outside Temperature Display
The temperature display is located on the left side of the
instrument cluster, below the fuel and engine tempera-
ture gauges.
The sensor for the outside temperature indicator is
located in the front fascia area. Due to its location, the
sensor can be affected by road or engine heat during
idling or slow driving. This means that the accuracy of
UNDERSTANDING YOUR INSTRUMENT PANEL 139
4

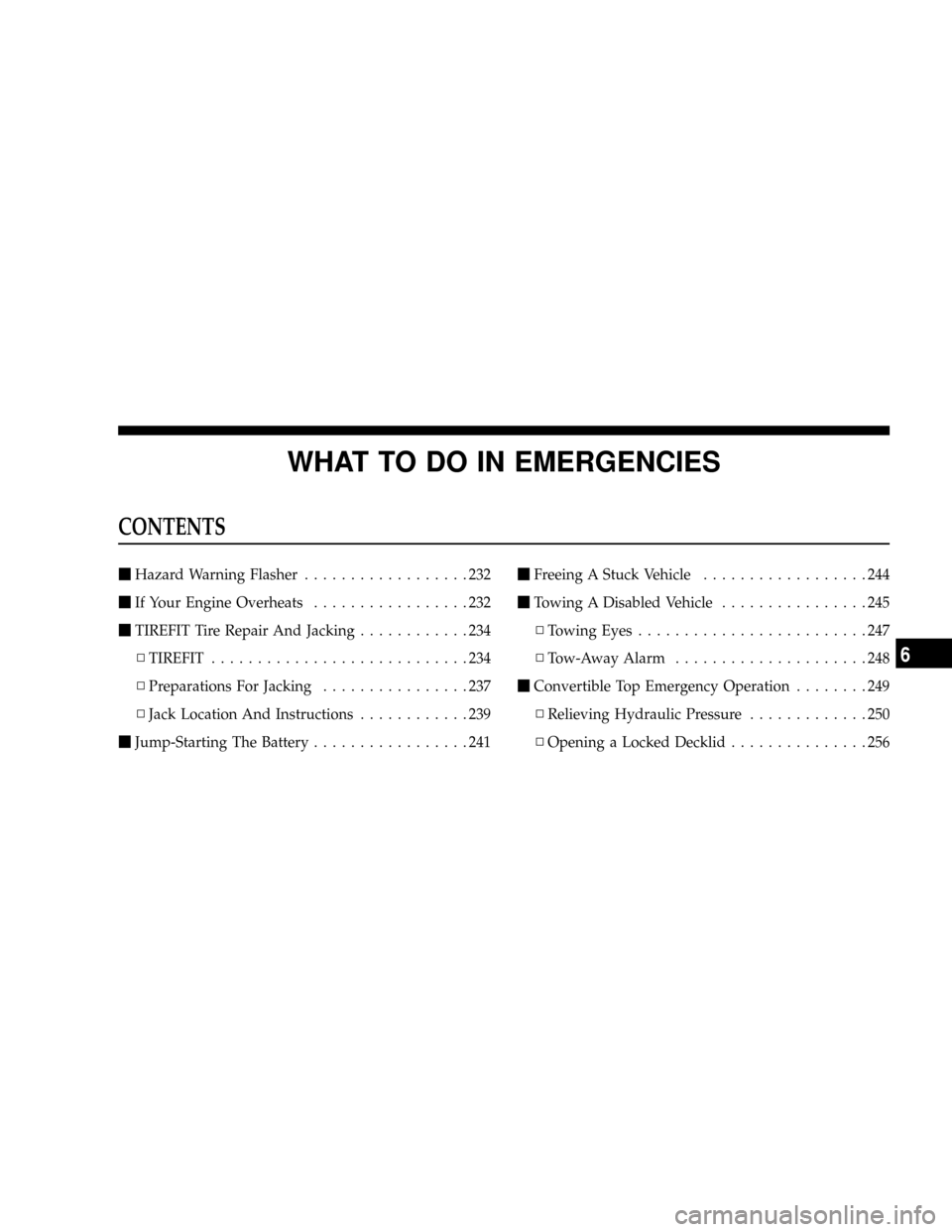

Page 233 of 358
WHAT TO DO IN EMERGENCIES
CONTENTS
mHazard Warning Flasher..................232
mIf Your Engine Overheats.................232
mTIREFIT Tire Repair And Jacking............234
NTIREFIT............................234
NPreparations For Jacking................237
NJack Location And Instructions............239
mJump-Starting The Battery.................241mFreeing A Stuck Vehicle..................244
mTowing A Disabled Vehicle................245
NTowing Eyes.........................247
NTow-Away Alarm.....................248
mConvertible Top Emergency Operation........249
NRelieving Hydraulic Pressure.............250
NOpening a Locked Decklid...............256
6

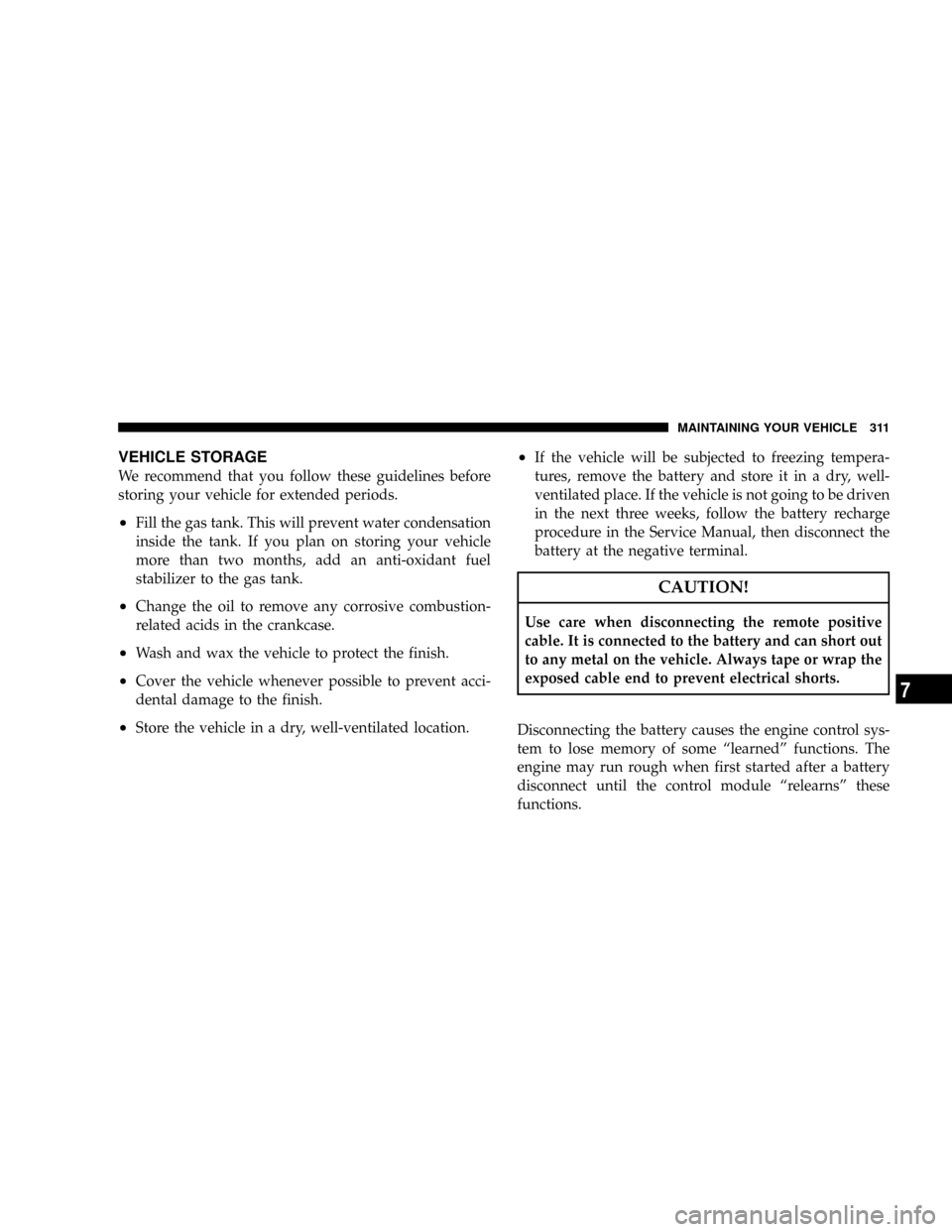

Page 313 of 358
VEHICLE STORAGE
We recommend that you follow these guidelines before
storing your vehicle for extended periods.
²Fill the gas tank. This will prevent water condensation
inside the tank. If you plan on storing your vehicle
more than two months, add an anti-oxidant fuel
stabilizer to the gas tank.
²Change the oil to remove any corrosive combustion-
related acids in the crankcase.
²Wash and wax the vehicle to protect the finish.
²Cover the vehicle whenever possible to prevent acci-
dental damage to the finish.
²Store the vehicle in a dry, well-ventilated location.
²If the vehicle will be subjected to freezing tempera-
tures, remove the battery and store it in a dry, well-
ventilated place. If the vehicle is not going to be driven
in the next three weeks, follow the battery recharge
procedure in the Service Manual, then disconnect the
battery at the negative terminal.
CAUTION!
Use care when disconnecting the remote positive
cable. It is connected to the battery and can short out
to any metal on the vehicle. Always tape or wrap the
exposed cable end to prevent electrical shorts.
Disconnecting the battery causes the engine control sys-
tem to lose memory of some ªlearnedº functions. The
engine may run rough when first started after a battery
disconnect until the control module ªrelearnsº these
functions.
MAINTAINING YOUR VEHICLE 311
7
Page 344 of 358
ABS (Anti-Lock Brake System).............. 134
Adding Engine Coolant (Antifreeze).......... 282
Adding Fuel........................... 225
Aiming Headlights....................... 310
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 269
Air Conditioning.....................155,273
Air Conditioning Filter.................... 329
Air Conditioning Refrigerant............... 273
Air Conditioning System.................. 273
Air Pressure, Tires....................... 208
Airbag................................ 33
Airbag Deployment....................... 40
Airbag Light.........................38,140
Airbag Maintenance....................... 50
Airbag On/Off Switch...................47,53
Alignment and Balance................... 214
Antenna.............................. 154
Antifreeze (Engine Coolant)................ 315
Anti-Lock Warning Light.................. 134Appearance Care........................ 290
Ashtrays and Lighter...................... 82
Automatic Door Locks..................... 15
Automatic Transmission................174,288
Fluid and Filter Changes................. 289
Fluid Level Check...................... 288
Fluid Type........................... 288
Special Additives...................... 290
Autostick............................. 178
Ball Joints............................. 275
Battery............................135,271
Saving Feature (Protection)................ 95
Belts, Drive............................ 268
Belts, Seat.............................. 26
Body Mechanism Lubrication............... 276
B-Pillar Location........................ 203
Brake Assist System...................... 108
Brake, Parking.......................... 185
342 INDEX
