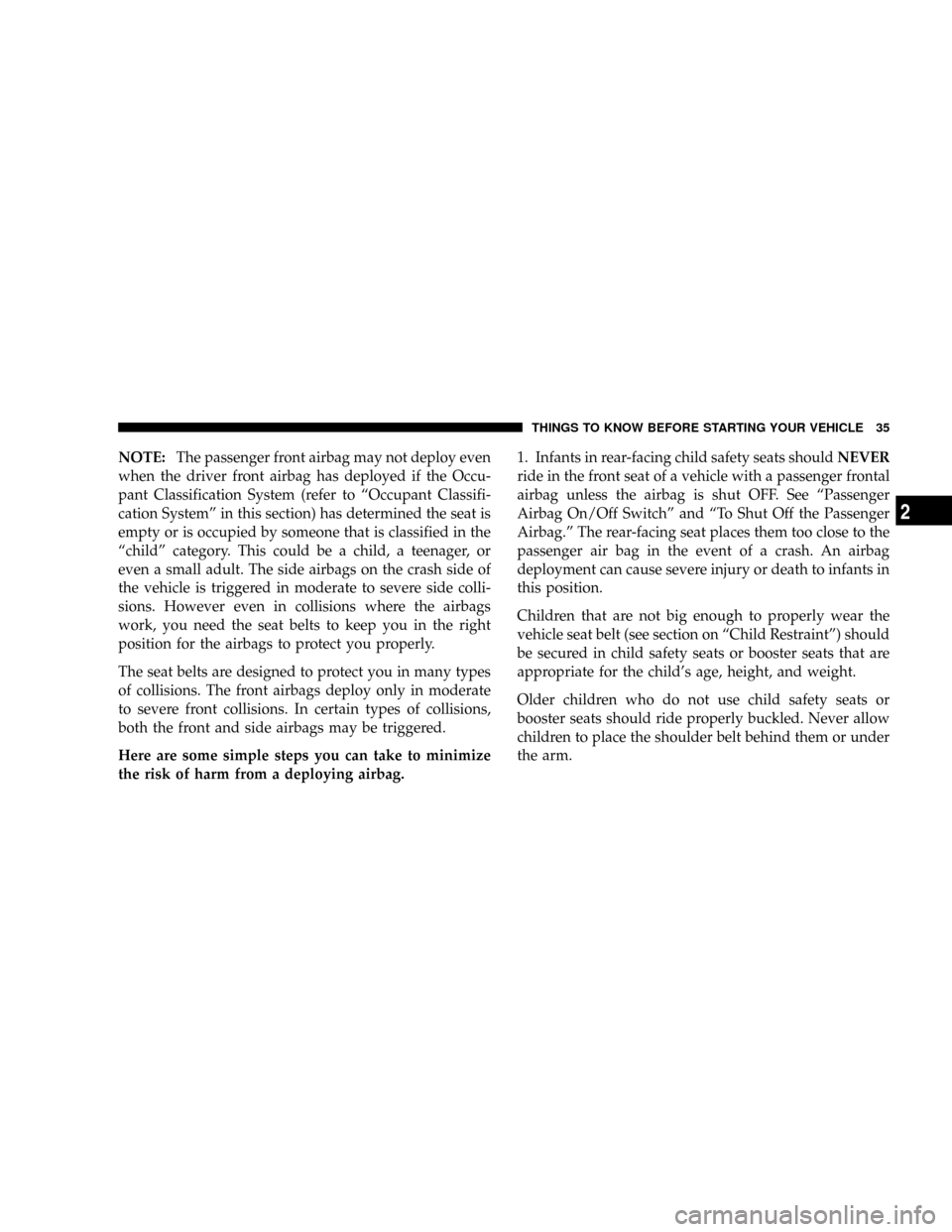

NOTE:The passenger front airbag may not deploy even
when the driver front airbag has deployed if the Occu-
pant Classification System (refer to ªOccupant Classifi-
cation Systemº in this section) has determined the seat is
empty or is occupied by someone that is classified in the
ªchildº category. This could be a child, a teenager, or
even a small adult. The side airbags on the crash side of
the vehicle is triggered in moderate to severe side colli-
sions. However even in collisions where the airbags
work, you need the seat belts to keep you in the right
position for the airbags to protect you properly.
The seat belts are designed to protect you in many types
of collisions. The front airbags deploy only in moderate
to severe front collisions. In certain types of collisions,
both the front and side airbags may be triggered.
Here are some simple steps you can take to minimize
the risk of harm from a deploying airbag.1. Infants in rear-facing child safety seats shouldNEVER
ride in the front seat of a vehicle with a passenger frontal
airbag unless the airbag is shut OFF. See ªPassenger
Airbag On/Off Switchº and ªTo Shut Off the Passenger
Airbag.º The rear-facing seat places them too close to the
passenger air bag in the event of a crash. An airbag
deployment can cause severe injury or death to infants in
this position.
Children that are not big enough to properly wear the
vehicle seat belt (see section on ªChild Restraintº) should
be secured in child safety seats or booster seats that are
appropriate for the child's age, height, and weight.
Older children who do not use child safety seats or
booster seats should ride properly buckled. Never allow
children to place the shoulder belt behind them or under
the arm.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
Page 46 of 358
How the Occupant Classification System (OCS)
System Works
The Occupant Classification System (OCS) will classify
an occupant in the front passenger seat into a size
category based on sensor readings from within the seat
cushion. Occupants should try to remain in a normally
seated position. If the occupant's weight is transferred to
another object in the vehicle (i.e. feet on the dashboard),
the OCS may not be able to properly approximate
occupant size. Furthermore, the occupant size may ap-
pear to increase or decrease due to objects hanging on the
seat, other passengers pushing on the seat, or objects
lodged underneath the seat. If there is a rapid change in
temperature or humidity, the OCS may not be able to
properly approximate occupant size. If your seat includ-
ing your trim cover and cushion needs to be serviced in
any way, take the vehicle to your authorized dealer. Only
manufacturer approved seat accessories may be used. If
there is a fault present in the system, the AIRBAGwarning light will light indicating that you should take
the vehicle to an authorized dealer. In the presence of an
occupant in the passenger seat, if both the Passenger
Airbag Disable (PAD) indicator light (located in the
center console) and AIRBAG warning light (located in
the instrument cluster) are illuminated the airbag will be
disabled. The Occupant Restraint Controller (ORC) will
not allow front airbag deployment in the event of a
collision for occupants classified into the empty or child
size categories. The PAD indicator light will illuminate
indicating that the Passenger Airbag is OFF when the
OCS has determined that the occupant size category is a
child. Also, when the seat is empty or an object that
weighs less than a predetermined threshold is placed on
the seat, the light will remain OFF. (The PAD indicator
light is an amber light located in the center console.) For
almost all sizes of properly seated adults, the passenger
frontal airbag will be enabled in the event of a collision.
For small teenagers and some small adults, depending on
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 47 of 358
size, the airbag may or may not be enabled in the event
of a collision. Both drivers and passengers should always
use the PAD indicator light as an indication if the front
passenger is properly positioned or not. If the PAD
indicator light comes on when an adult is in the passen-
ger seat, have the passenger re-position themselves in the
seat until the light goes out. Remember, if the PAD
indicator light is illuminated the passenger front airbag
will not inflate. For most children properly seated on the
front seat and most properly installed child restraint
systems, the airbag will be disabled and the PAD indica-
tor light will be on. However, under certain conditions
even with the child restraint system has been installed
properly, the PAD indicator light may not be on even
though the air bag is disabled. This can occur if the child
restraint is lighter than the threshold weight necessary to
turn the PAD indicator light on. If this happens to you,
you can check to ensure the airbag is disabled by
performing the following simple procedure. Place theignition key in the RUN position and apply downward
pressure to the child restraint on the surface that the child
will be sitting on. Slowly count to 10 and watch the PAD
indicator light. The PAD indicator light should turn on.
When you release the pressure, the PAD indicator light
may stay on or may turn off but the airbag is disabled. If
at all possible, place children 12 years and younger in a
back seat.
The following requirements must be strictly adhered to:
²Do not modify the front passenger seat assembly or
components in any way.
²Do not modify the front seat center console or center
position seat in any way.
²Do not use prior or future model year seat covers not
designated for the specific model being repaired.
²Always use the correct seat cover specified for the
vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
2
Page 48 of 358
²Do not replace the seat cover with an aftermarket seat
cover.
²Do not add a secondary seat cover other than those
approved by DaimlerChrysler/Mopart.
²At no time should any supplemental restraint system
(SRS) component or SRS related component or fas-
tener be modified or replaced with any part except
those which are approved by DaimlerChrysler/
Mopart.
How the Occupant Classification Module (OCM)
Works
The Occupant Classification Module (OCM) is located
beneath the passenger seat. The OCM classifies the
occupant into one of three size categories based on the
input from the Bladder Assembly and a Belt Tension
Sensor. The size categories include empty, child, and
adult. The OCM sends the Occupant Classification to theORC to determine if a front passenger airbag is allowed.
If a fault is present, the AIRBAG warning light is illumi-
nated.
How the Passenger Airbag Disabled (PAD)
Indicator Light Works
The Passenger Airbag Disabled (PAD) Indicator Light
indicates to the driver and passenger when the airbag is
turned OFF. In the presence of a properly seated occu-
pant, when the PAD indicator light is illuminated, the
airbag is OFF. Also, when the Occupant Classification
System detects either an empty seat or a weight less than
the predetermined threshold, the ORC will not illuminate
the PAD indicator light even though the airbag is turned
OFF.
How the Belt Tension Sensor (BTS) Works
The Belt Tension Sensor (BTS) is located at the outboard
passenger lap belt anchor. The BTS creates a signal based
on outboard lap belt tension. This signal is sent to the
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 54 of 358
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time, including babies and children. Every state in the
United States and all Canadian provinces require that
small children ride in proper restraint systems. This is the
law, and you can be prosecuted for ignoring it.
WARNING!
In a collision, an unrestrained child, even a tiny baby,
can become a missile inside the vehicle. The force
required to hold even an infant on your lap could
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child's
size.
Infants and Child Restraints
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
seat Owner's Manual to ensure you have the right seat
for your child. Use the restraint that is correct for your
child:
²Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and convertible child seats.
²The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). Convertible child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 56 of 358
Here are some tips on getting the most out of your child
restraint:
²Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.
²The restraint must be appropriate for your child's
weight and height. Check the label on the restraint for
weight and height limits.
²Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
²Buckle the child into the seat according to the seat
manufacturer's directions.
²When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants and cause
serious personal injury.
NOTE: For additional information refer to
www.seatcheck.org or call 1±866±SEATCHECK.
Older Children and Child Restraints
Children who weigh more than 20 lbs (9 kg) and who are
older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who weigh 20 to 40 lbs (9 to 18 kg) and who are older
than one year. These child seats are also held in the
vehicle by the lap/shoulder belt or the LATCH child
restraint anchorage system. (See LATCH - Child Seat
Anchorage System section.)
The belt-positioning booster seat is for children weighing
more than 40 lbs (18 kg), but who are still too small to fit
the vehicle's seat belts properly. If the child cannot sit
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 91 of 358
NOTE:When moving the seat, be sure that there are no
items in the footwell or behind the seats. Otherwise you
could damage the seats.Manual Seat Adjustments (If Equipped)
Seat Height (Drivers Seat Only)
²
Pull up on handle 3.
²To lower the seat, use your body weight to push the
seat downward.
²To raise the seat, lift your body weight off the seat to
obtain a higher seat position.

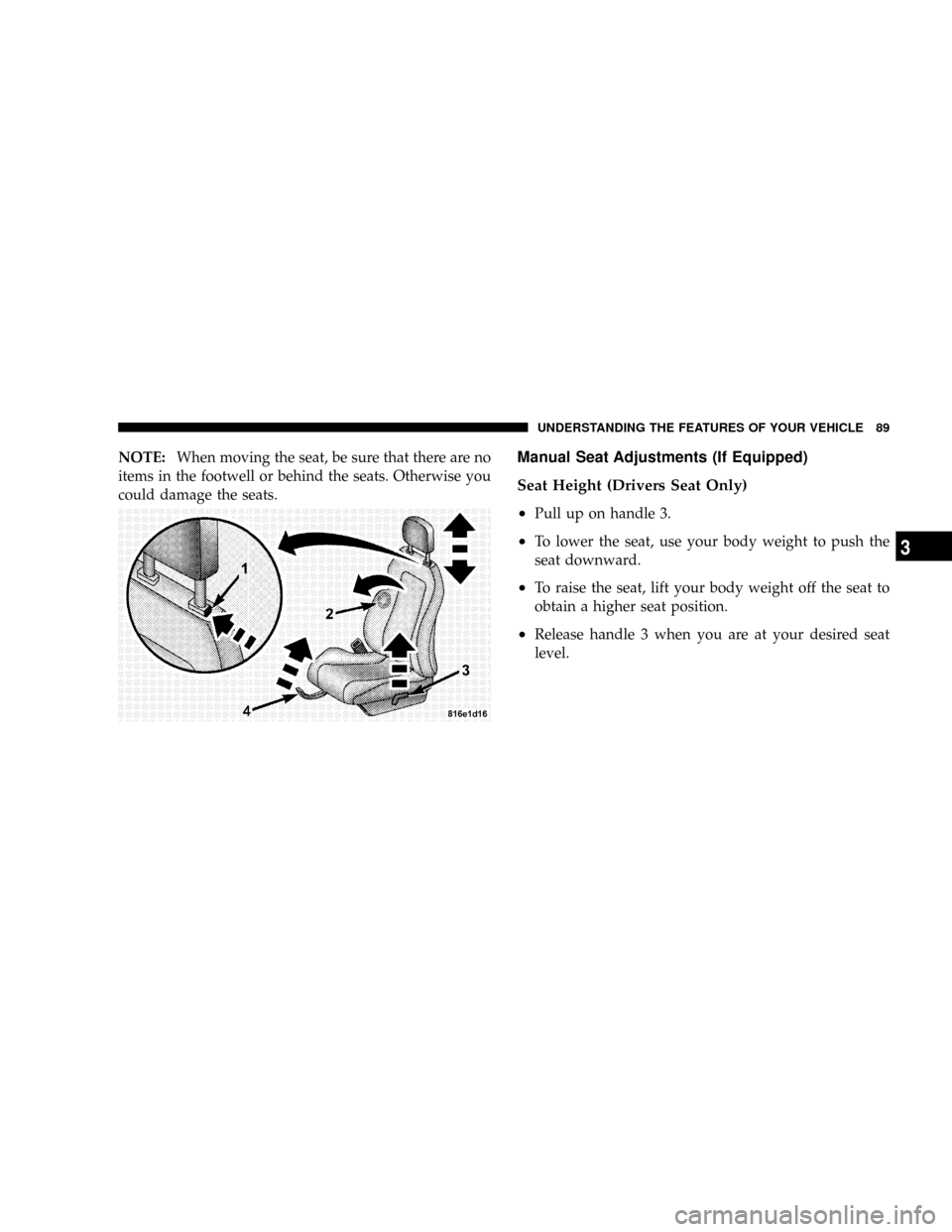

²Release handle 3 when you are at your desired seat
level.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3
Page 205 of 358

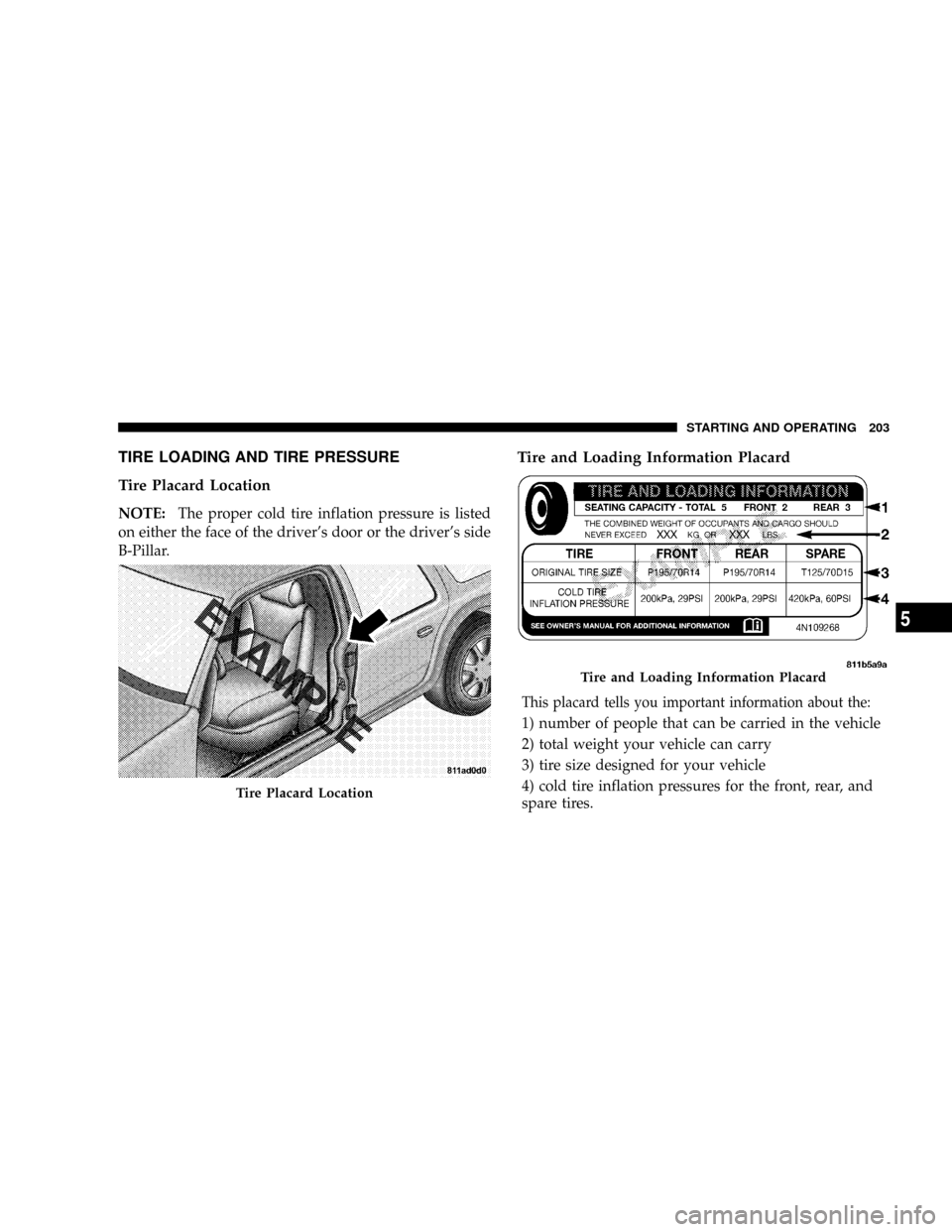

TIRE LOADING AND TIRE PRESSURE
Tire Placard Location
NOTE:The proper cold tire inflation pressure is listed
on either the face of the driver's door or the driver's side
B-Pillar.
Tire and Loading Information Placard
This placard tells you important information about the:
1) number of people that can be carried in the vehicle
2) total weight your vehicle can carry
3) tire size designed for your vehicle
4) cold tire inflation pressures for the front, rear, and
spare tires.
Tire Placard Location
Tire and Loading Information Placard
STARTING AND OPERATING 203
5
Page 206 of 358

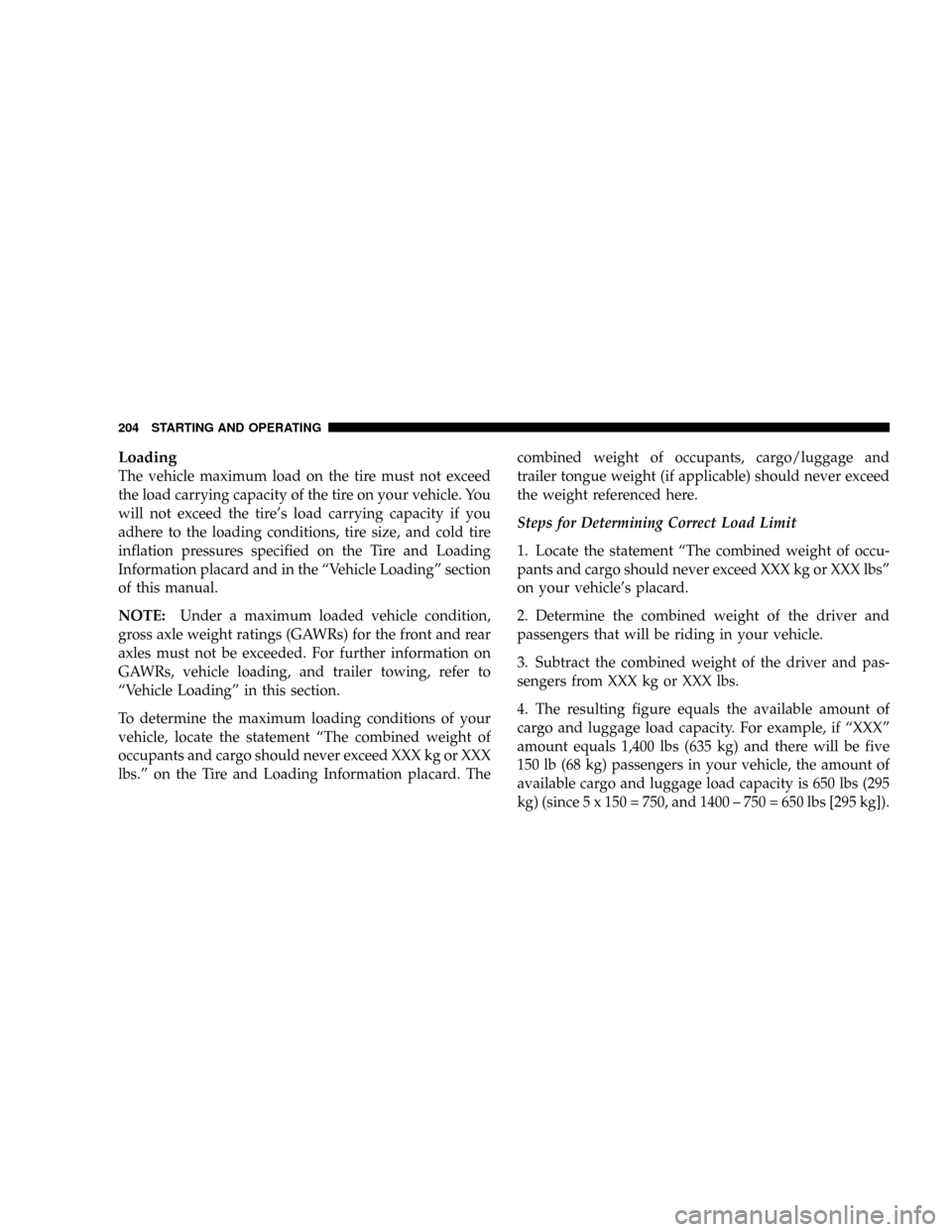

Loading
The vehicle maximum load on the tire must not exceed
the load carrying capacity of the tire on your vehicle. You
will not exceed the tire's load carrying capacity if you
adhere to the loading conditions, tire size, and cold tire
inflation pressures specified on the Tire and Loading
Information placard and in the ªVehicle Loadingº section
of this manual.
NOTE:Under a maximum loaded vehicle condition,
gross axle weight ratings (GAWRs) for the front and rear
axles must not be exceeded. For further information on
GAWRs, vehicle loading, and trailer towing, refer to
ªVehicle Loadingº in this section.
To determine the maximum loading conditions of your
vehicle, locate the statement ªThe combined weight of
occupants and cargo should never exceed XXX kg or XXX
lbs.º on the Tire and Loading Information placard. Thecombined weight of occupants, cargo/luggage and
trailer tongue weight (if applicable) should never exceed
the weight referenced here.
Steps for Determining Correct Load Limit
1. Locate the statement ªThe combined weight of occu-
pants and cargo should never exceed XXX kg or XXX lbsº
on your vehicle's placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and pas-
sengers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if ªXXXº
amount equals 1,400 lbs (635 kg) and there will be five
150 lb (68 kg) passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs (295
kg) (since 5 x 150 = 750, and 1400 ± 750 = 650 lbs [295 kg]).
204 STARTING AND OPERATING
Page 207 of 358

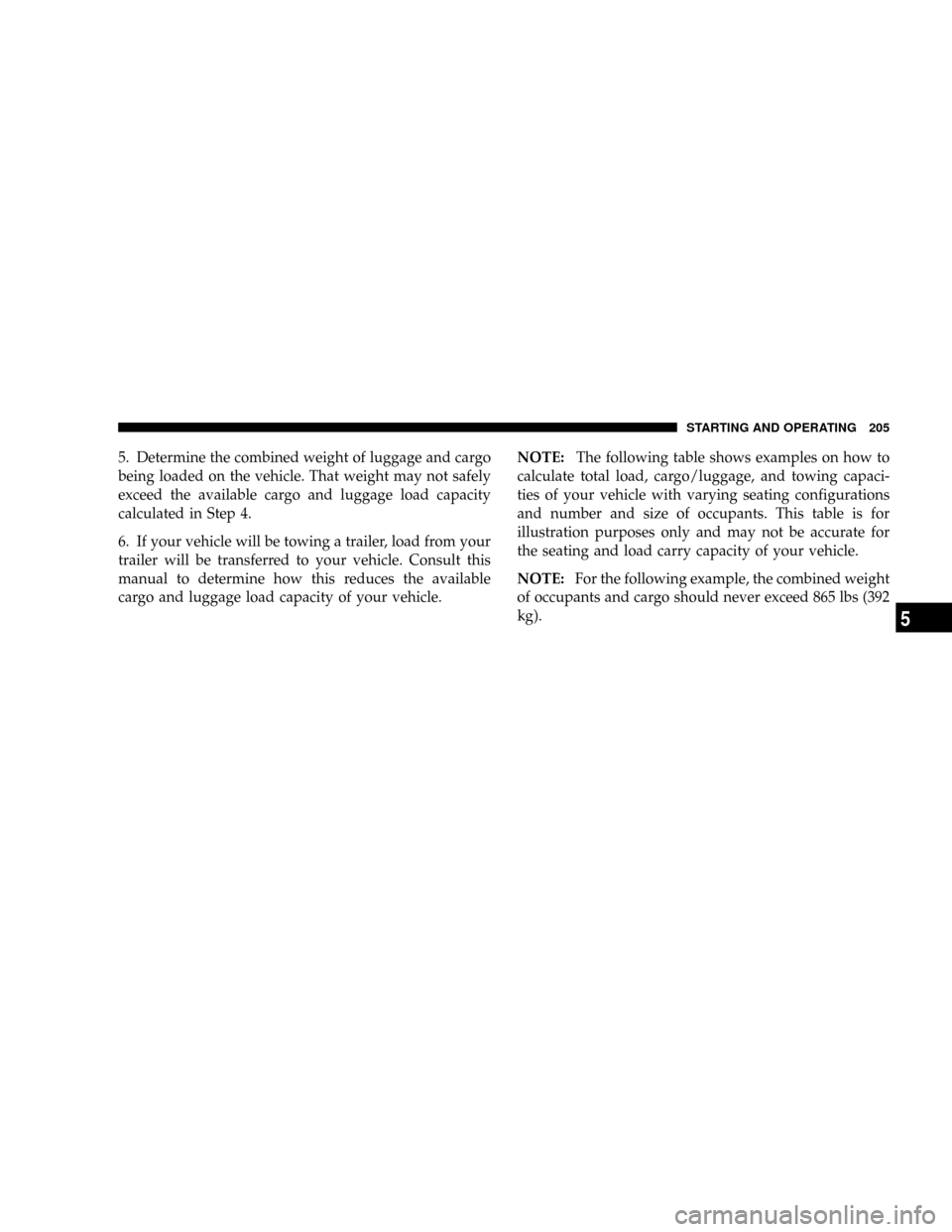

5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not safely
exceed the available cargo and luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.NOTE:The following table shows examples on how to
calculate total load, cargo/luggage, and towing capaci-
ties of your vehicle with varying seating configurations
and number and size of occupants. This table is for
illustration purposes only and may not be accurate for
the seating and load carry capacity of your vehicle.
NOTE:For the following example, the combined weight
of occupants and cargo should never exceed 865 lbs (392
kg).
STARTING AND OPERATING 205
5
