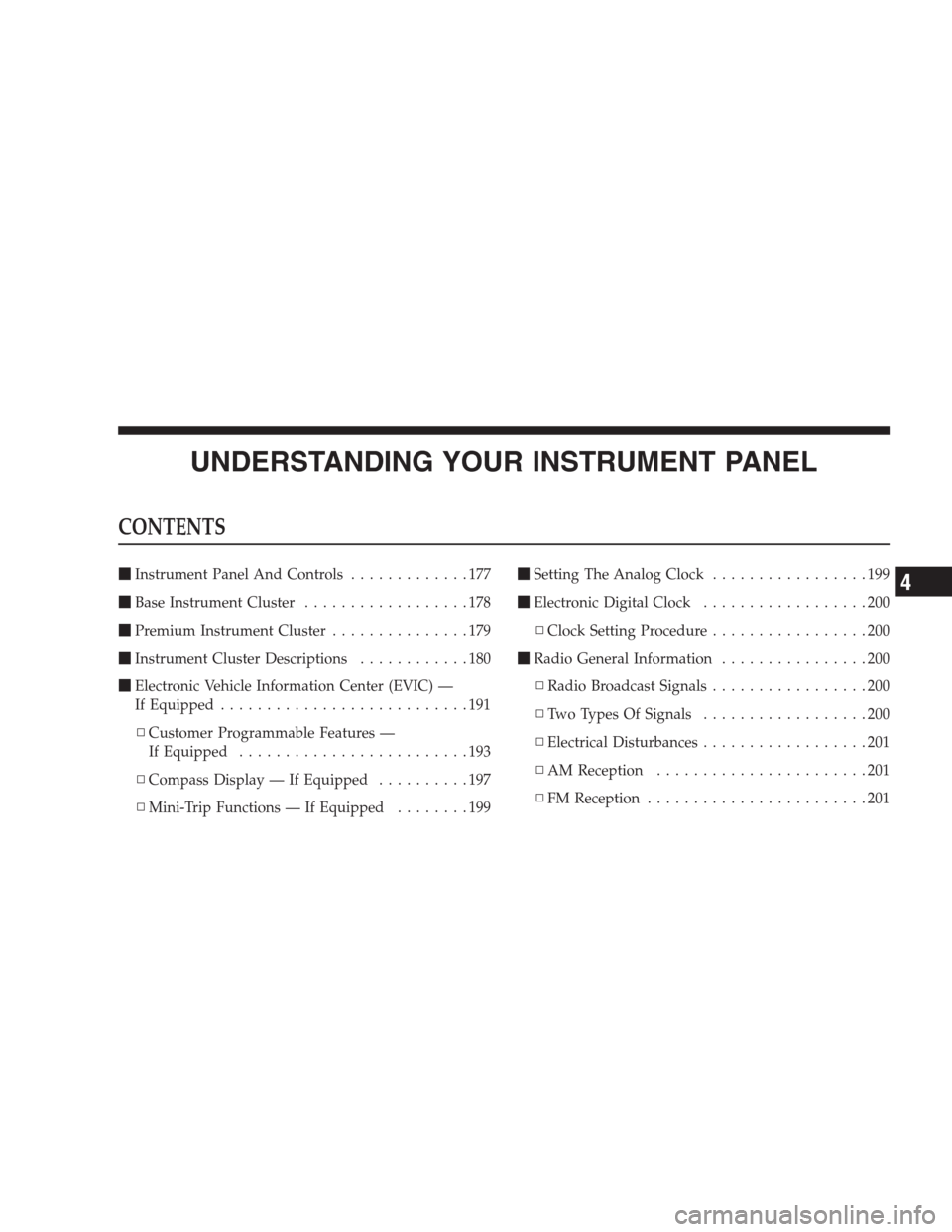

Page 173 of 464
UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel And Controls.............177
Base Instrument Cluster..................178
Premium Instrument Cluster...............179
Instrument Cluster Descriptions............180
Electronic Vehicle Information Center (EVIC) —
If Equipped...........................191
▫Customer Programmable Features —
If Equipped.........................193
▫Compass Display — If Equipped..........197
▫Mini-Trip Functions — If Equipped........199Setting The Analog Clock.................199
Electronic Digital Clock..................200
▫Clock Setting Procedure.................200
Radio General Information................200
▫Radio Broadcast Signals.................200
▫Two Types Of Signals..................200
▫Electrical Disturbances..................201
▫AM Reception.......................201
▫FM Reception........................2014

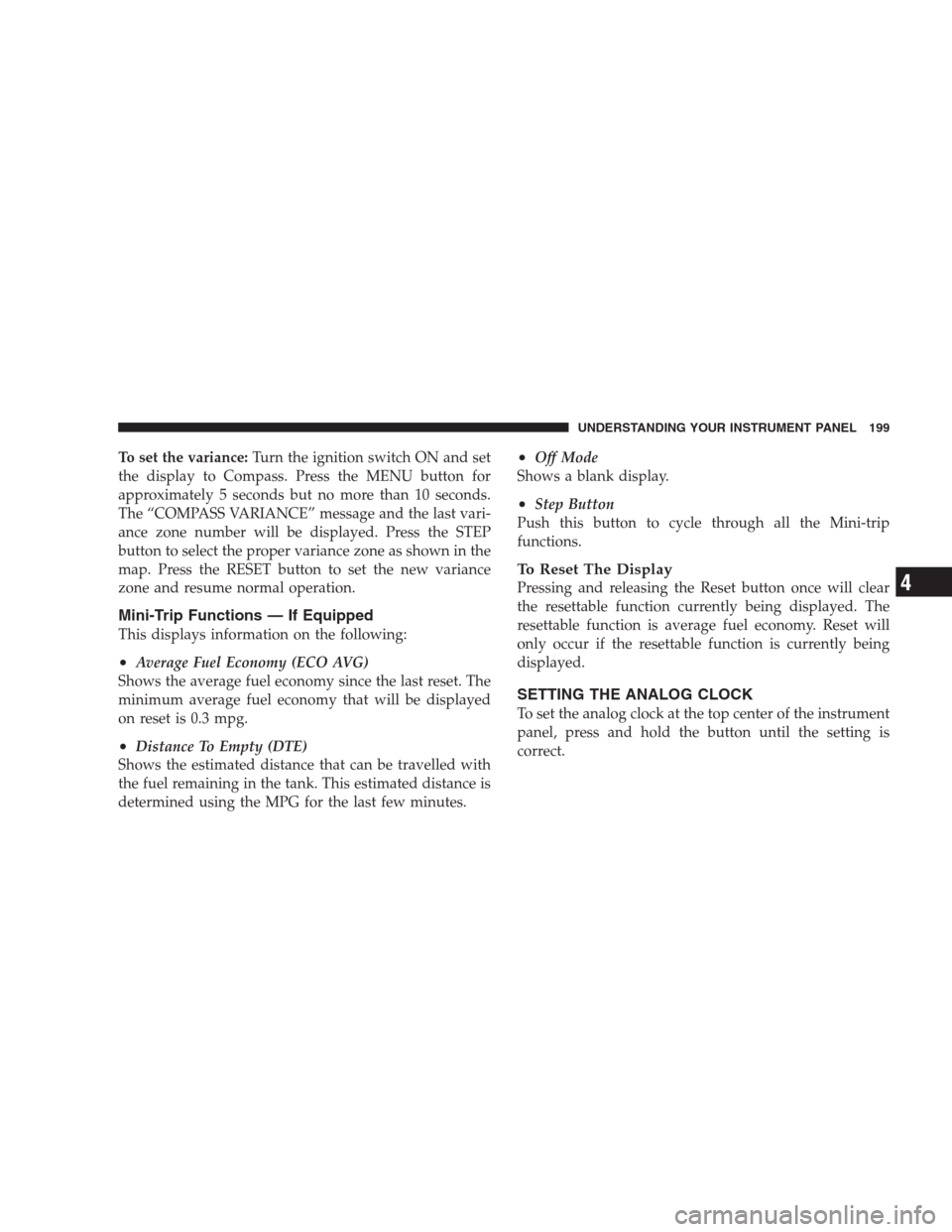

Page 199 of 464
To set the variance:Turn the ignition switch ON and set
the display to Compass. Press the MENU button for
approximately 5 seconds but no more than 10 seconds.
The “COMPASS VARIANCE” message and the last vari-
ance zone number will be displayed. Press the STEP
button to select the proper variance zone as shown in the
map. Press the RESET button to set the new variance
zone and resume normal operation.
Mini-Trip Functions — If Equipped
This displays information on the following:
•Average Fuel Economy (ECO AVG)
Shows the average fuel economy since the last reset. The
minimum average fuel economy that will be displayed
on reset is 0.3 mpg.
•Distance To Empty (DTE)
Shows the estimated distance that can be travelled with
the fuel remaining in the tank. This estimated distance is
determined using the MPG for the last few minutes.
•Off Mode
Shows a blank display.
•Step Button
Push this button to cycle through all the Mini-trip
functions.
To Reset The Display
Pressing and releasing the Reset button once will clear
the resettable function currently being displayed. The
resettable function is average fuel economy. Reset will
only occur if the resettable function is currently being
displayed.
SETTING THE ANALOG CLOCK
To set the analog clock at the top center of the instrument
panel, press and hold the button until the setting is
correct.
UNDERSTANDING YOUR INSTRUMENT PANEL 199
4
Page 200 of 464
ELECTRONIC DIGITAL CLOCK
The clock and radio each use the display panel built into
the radio. A digital readout shows the time in hours and
minutes whenever the ignition switch is in the ON or
ACC position and the time button is pressed.
When the ignition switch is in the OFF position, or when
the radio frequency is being displayed, time keeping is
accurately maintained.
Clock Setting Procedure
1. Turn the ignition switch to the ON or ACC position
and press the time button. Using the tip of a ballpoint pen
or similar object, press either the hour (H) or minute (M)
buttons on the radio.
2. Press the H button to set hours or the M button to set
minutes. The time setting will increase each time you
press a button.
RADIO GENERAL INFORMATION
Radio Broadcast Signals
Your new radio will provide excellent reception under
most operating conditions. Like any system, however, car
radios have performance limitations, due to mobile op-
eration and natural phenomena, which might lead you to
believe your sound system is malfunctioning. To help
you understand and save you concern about these “ap-
parent” malfunctions, you must understand a point or
two about the transmission and reception of radio sig-
nals.
Two Types of Signals
There are two basic types of radio signals... AM or
Amplitude Modulation, in which the transmitted sound
causes the amplitude, or height, of the radio waves to
vary... and FM or Frequency Modulation, in which the
frequency of the wave is varied to carry the sound.
200 UNDERSTANDING YOUR INSTRUMENT PANEL

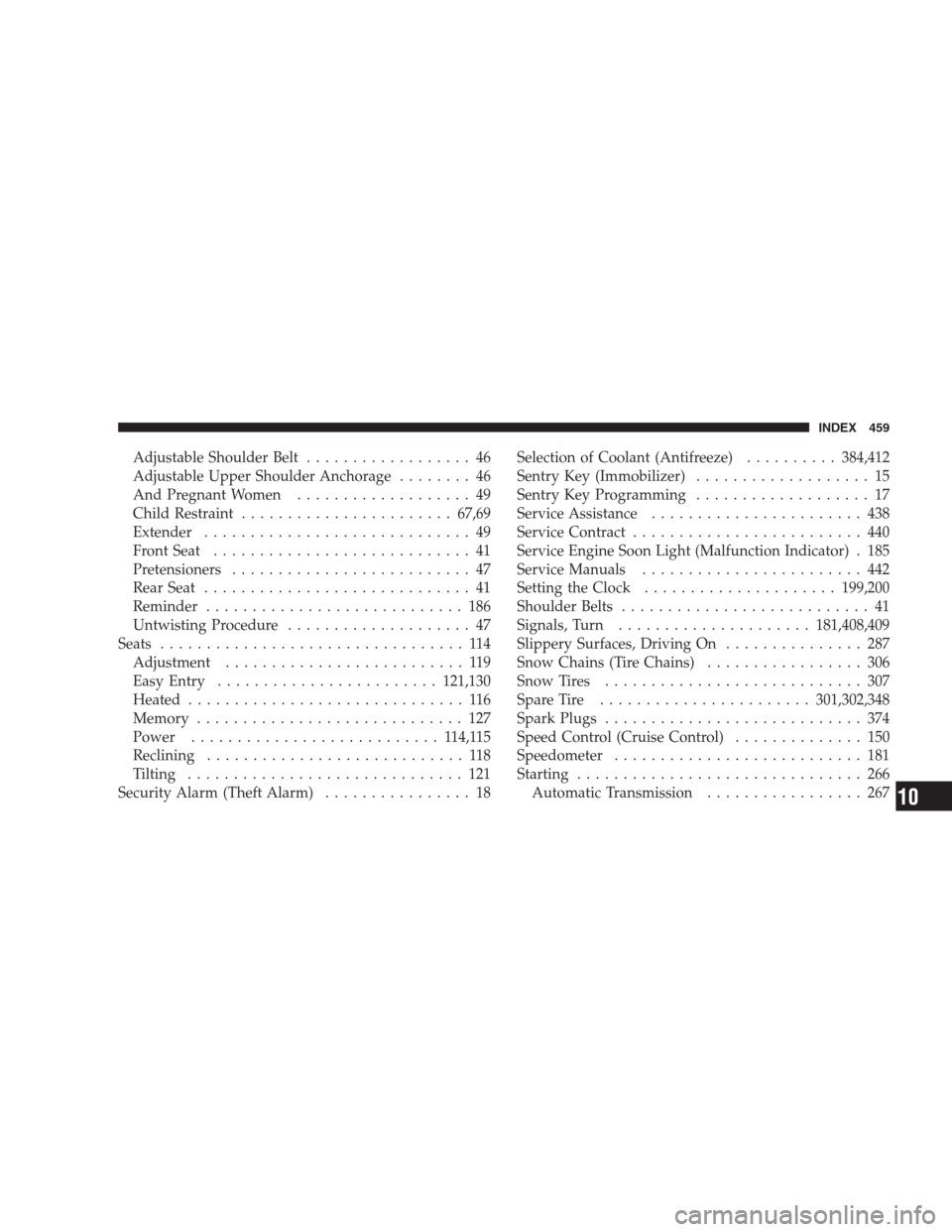

Page 459 of 464
Adjustable Shoulder Belt.................. 46
Adjustable Upper Shoulder Anchorage........ 46
And Pregnant Women................... 49
Child Restraint.......................67,69
Extender............................. 49
Front Seat............................ 41
Pretensioners.......................... 47
Rear Seat............................. 41
Reminder............................ 186
Untwisting Procedure.................... 47
Seats................................. 114
Adjustment.......................... 119
Easy Entry........................121,130
Heated.............................. 116
Memory............................. 127
Power........................... 114,115
Reclining............................ 118
Tilting.............................. 121
Security Alarm (Theft Alarm)................ 18Selection of Coolant (Antifreeze)..........384,412
Sentry Key (Immobilizer)................... 15
Sentry Key Programming................... 17
Service Assistance....................... 438
Service Contract......................... 440
Service Engine Soon Light (Malfunction Indicator) . 185
Service Manuals........................ 442
Setting the Clock.....................199,200
Shoulder Belts........................... 41
Signals, Turn.....................181,408,409
Slippery Surfaces, Driving On............... 287
Snow Chains (Tire Chains)................. 306
Snow Tires............................ 307
Spare Tire.......................301,302,348
Spark Plugs............................ 374
Speed Control (Cruise Control).............. 150
Speedometer........................... 181
Starting............................... 266
Automatic Transmission................. 267
INDEX 459
10
