tire type CHRYSLER PACIFICA 2007 1.G Warranty Booklet

2007 Passenger Cars21

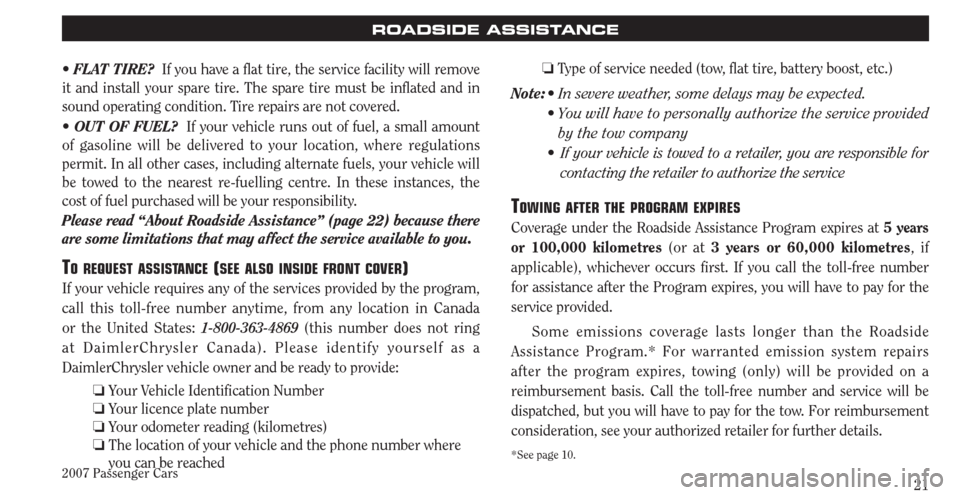

ROADSIDE ASSISTANCE
If you have a flat tire, the service facility will remove
it and install your spare tire. The spare tire must be inflated and in
sound operating condition. Tire repairs are not covered.
If your vehicle runs out of fuel, a small amount
of gasoline will be delivered to your location, where regulations
permit. In all other cases, including alternate fuels, your vehicle will
be towed to the nearest re-fuelling centre. In these instances, the
cost of fuel purchased will be your responsibility.
Please read “About Roadside Assistance” (page 22) because there
are some limitations that may affect the service available to you.
TO REQUEST ASSISTANCE
(SEE ALSO INSIDE FRONT COVER)
If your vehicle requires any of the services provided by the program,
call this toll-free number anytime, from any location in Canada
or the United States: 1-800-363-4869 (this number does not ring
at DaimlerChrysler Canada). Please identify yourself as a
DaimlerChrysler vehicle own er and be ready to provide:
❏ Your Vehicle Identification Number
❏ Your licence plate number
❏ Your odometer reading (kilometres)
❏ The location of your vehicle and the phone number where
you can be reached
❏ Type of service needed (tow, flat tire, battery boost, etc.)
Note: In severe weather, some delays may be expected.
You will have to personally authorize the service provided
by the tow company
If your vehicle is towed to a retailer, you are responsible for
contacting the retailer to authorize the service
TOWING AFTER THE PROGRAM EXPIRES
Coverage under the Roadside Assistance Program expires at 5 years
or 100,000 kilometres (or at 3 years or 60,000 kilometres, if
applicable), whichever occurs first. If you call the toll-free number
for assistance after the Program expires, you will have to pay for the
service provided.
Some emissions coverage lasts longer than the Roadside
Assistance Program.* For warranted emission system repairs
after the program expires, towing (only) will be provided on a
reimbursement basis. Call the toll-free number and service will be
dispatched, but you will have to pay for the tow. For reimbursement
consideration, see your authorized retailer for further details.
*See page 10.

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date

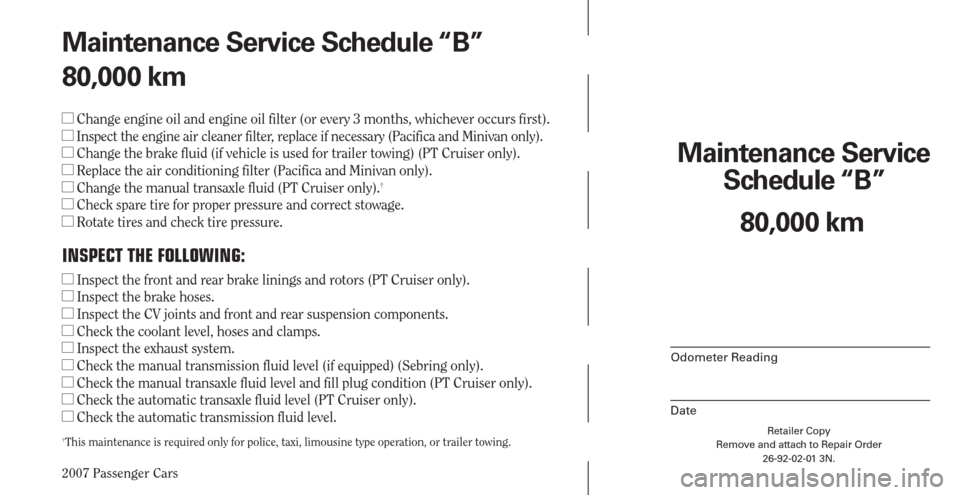

80,000 km Maintenance Service Schedule “B”
80,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (Pacifica and Minivan only).
 Change the brake fluid (if vehicle is used for trailer towing) (PT Cruiser only).
 Replace the air conditioning filter (Pacifica and Minivan only).
 Change the manual transaxle fluid (PT Cruiser only).
†
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors (PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary
(Pacifica and Minivan only).
 Change the brake fluid (if vehicle is used for trailer towing)
(PT Cruiser only).
 Replace the air conditioning filter (Pacifica and Minivan only).
 Change the manual transaxle fluid (PT Cruiser only).
†
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors
(PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
†This maintenance is required only for police, taxi, limousine type operation, or
trailer towing.

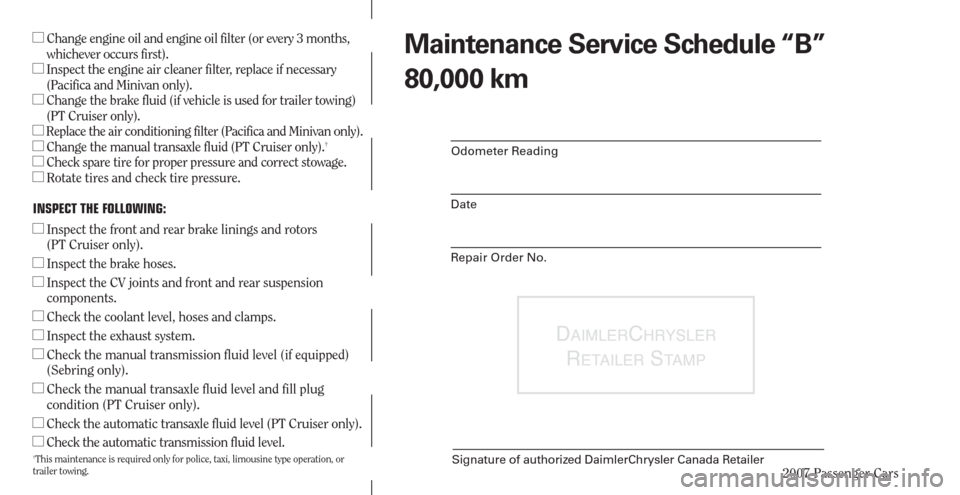

Maintenance Service Schedule “B”
80,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
100,000 km
Maintenance Service Schedule “B”
100,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Replace the engine air cleaner filter (All models).*
 Replace the air conditioning filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension (Caravan 2.4L engine only).
 Replace the spark plugs and ignition cables (PT Cruiser and Caravan 2.4L engines only).
 Replace the spark plugs (2.4L Sebring only).
 Inspect the PCV valve and replace if necessary (Pacifica and Minivan only).*
‡ Replace the make-up air filter (PT Cruiser only).
 Inspect the serpentine drive belt, replace if necessary (Town & Country/Caravan 3.3L and 3.8L engines and
Pacifica only).
‡ Adjust the generator drive belt tension (PT Cruiser only).
 Inspect the generator belt on 2.4L engines, replace if necessary (Caravan only).
 Change the automatic transaxle fluid and filter (All models).
† Flush and replace engine coolant at 60 months or 170,000 kilometres, whichever comes first (All models).
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING: Inspect the front and rear brake linings and rotors (PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica and Minivan only).
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.‡This maintenance is not required if previously replaced.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.

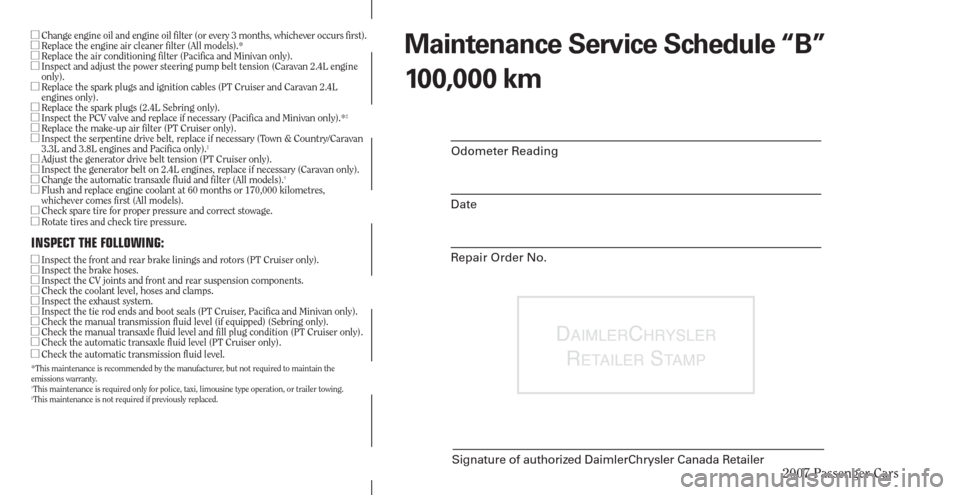

Maintenance Service Schedule “B”
100,000 km Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Replace the engine air cleaner filter (All models).*
 Replace the air conditioning filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension (Caravan 2.4L engine
only).
 Replace the spark plugs and ignition cables (PT Cruiser and Caravan 2.4L
engines only).
 Replace the spark plugs (2.4L Sebring only).
 Inspect the PCV valve and replace if necessary (Pacifica and Minivan only).*
‡ Replace the make-up air filter (PT Cruiser only).
 Inspect the serpentine drive belt, replace if necessary (Town & Country/Caravan
3.3L and 3.8L engines and Pacifica only).
‡ Adjust the generator drive belt tension (PT Cruiser only).
 Inspect the generator belt on 2.4L engines, replace if necessary (Caravan only).
 Change the automatic transaxle fluid and filter (All models).
† Flush and replace engine coolant at 60 months or 170,000 kilometres,
whichever comes first (All models).
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING: Inspect the front and rear brake linings and rotors (PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica and Minivan only).
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain the
emissions warranty.
†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.‡This maintenance is not required if previously replaced.

Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date

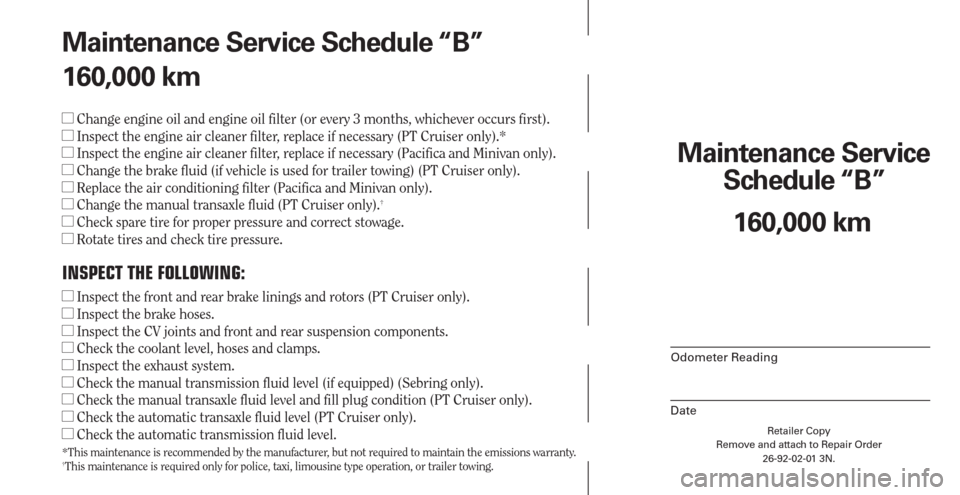

160,000 km Maintenance Service Schedule “B”
160,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary (PT Cruiser only).*
 Inspect the engine air cleaner filter, replace if necessary (Pacifica and Minivan only).
 Change the brake fluid (if vehicle is used for trailer towing) (PT Cruiser only).
 Replace the air conditioning filter (Pacifica and Minivan only).
 Change the manual transaxle fluid (PT Cruiser only).
†
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors (PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Inspect the engine air cleaner filter, replace if necessary
(PT Cruiser only).*
 Inspect the engine air cleaner filter, replace if necessary
(Pacifica and Minivan only).
 Change the brake fluid (if vehicle is used for trailer
towing) (PT Cruiser only).
 Replace the air conditioning filter (Pacifica and Minivan only). Change the manual transaxle fluid (PT Cruiser only).†
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors
(PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
†This maintenance is required only for police, taxi, limousine type operation, or
trailer towing.

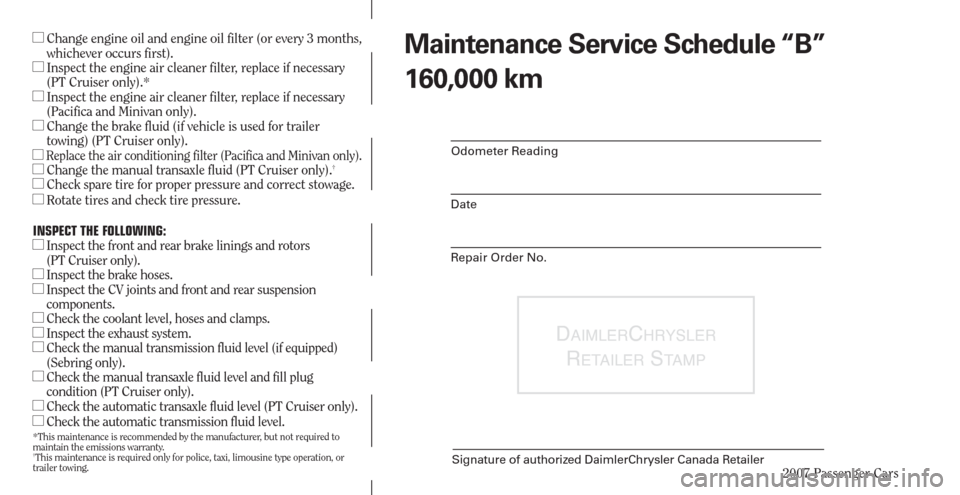

Maintenance Service Schedule “B”
160,000 km

Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
200,000 km Maintenance Service Schedule “B”
200,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Replace the engine air cleaner filter (All models).*
 Replace the air conditioning filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension (Caravan 2.4L engine only).
 Replace the spark plugs and ignition cables (PT Cruiser and Caravan 2.4L engines only).
 Replace the spark plugs (2.4L Sebring only).
 Inspect the PCV valve and replace if necessary (PT Cruiser, Pacifica and Minivan only).*
‡ Change the All-Wheel Drive (AWD) power transfer unit fluid (Pacifica only).
 Replace the make-up air filter (PT Cruiser only).
 Inspect the serpentine drive belt, replace if necessary (Town & Country/Caravan 3.3L and 3.8L engines and
Pacifica only).
‡ Replace the accessory drive belt every 200,000 km (Sebring only).
 Adjust the generator drive belt tension (PT Cruiser only).
 Inspect the generator belt on 2.4L engines, replace if necessary (Caravan only).
 Change the automatic transaxle fluid and filter (All models).
† Flush and replace engine coolant at 120 months if not done at 170,000 kilometres.
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING: Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica and Minivan only).
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.‡This maintenance is not required if previously replaced.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer

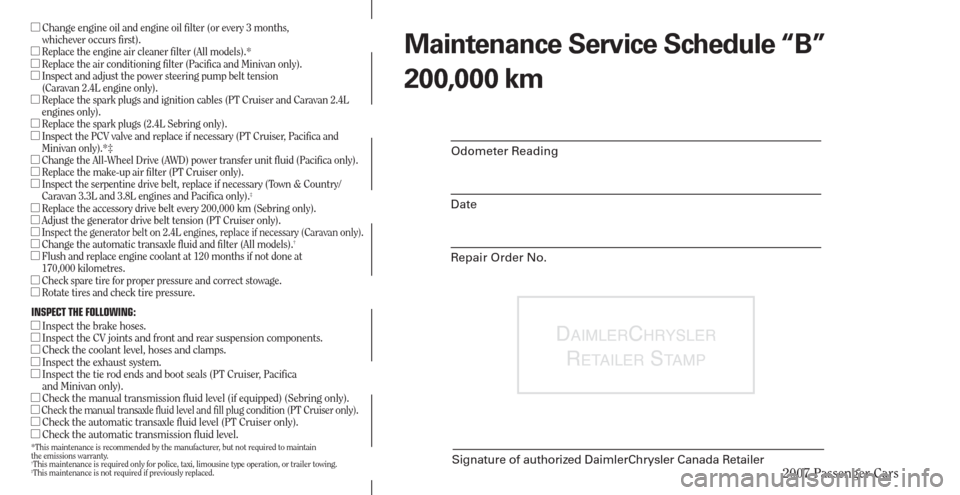

Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Replace the engine air cleaner filter (All models).*
 Replace the air conditioning filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension
(Caravan 2.4L engine only).
 Replace the spark plugs and ignition cables (PT Cruiser and Caravan 2.4L
engines only).
 Replace the spark plugs (2.4L Sebring only).
 Inspect the PCV valve and replace if necessary (PT Cruiser, Pacifica and
Minivan only).*‡
 Change the All-Wheel Drive (AWD) power transfer unit fluid (Pacifica only).
 Replace the make-up air filter (PT Cruiser only).
 Inspect the serpentine drive belt, replace if necessary (Town & Country/
Caravan 3.3L and 3.8L engines and Pacifica only).
‡ Replace the accessory drive belt every 200,000 km (Sebring only).
 Adjust the generator drive belt tension (PT Cruiser only).
 Inspect the generator belt on 2.4L engines, replace if necessary (Caravan only). Change the automatic transaxle fluid and filter (All models).† Flush and replace engine coolant at 120 months if not done at
170,000 kilometres.
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica
and Minivan only).
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only). Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.‡This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
200,000 km
