CHRYSLER PACIFICA 2017 2.G Owners Manual

EVENT DATA RECORDER (EDR)
This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per-
formed.
Please refer to “Occupant Restraint Systems” in “Safety”
in this guide for further information on the Event Data
Recorder (EDR).
7
IN CASE OF EMERGENCY 609

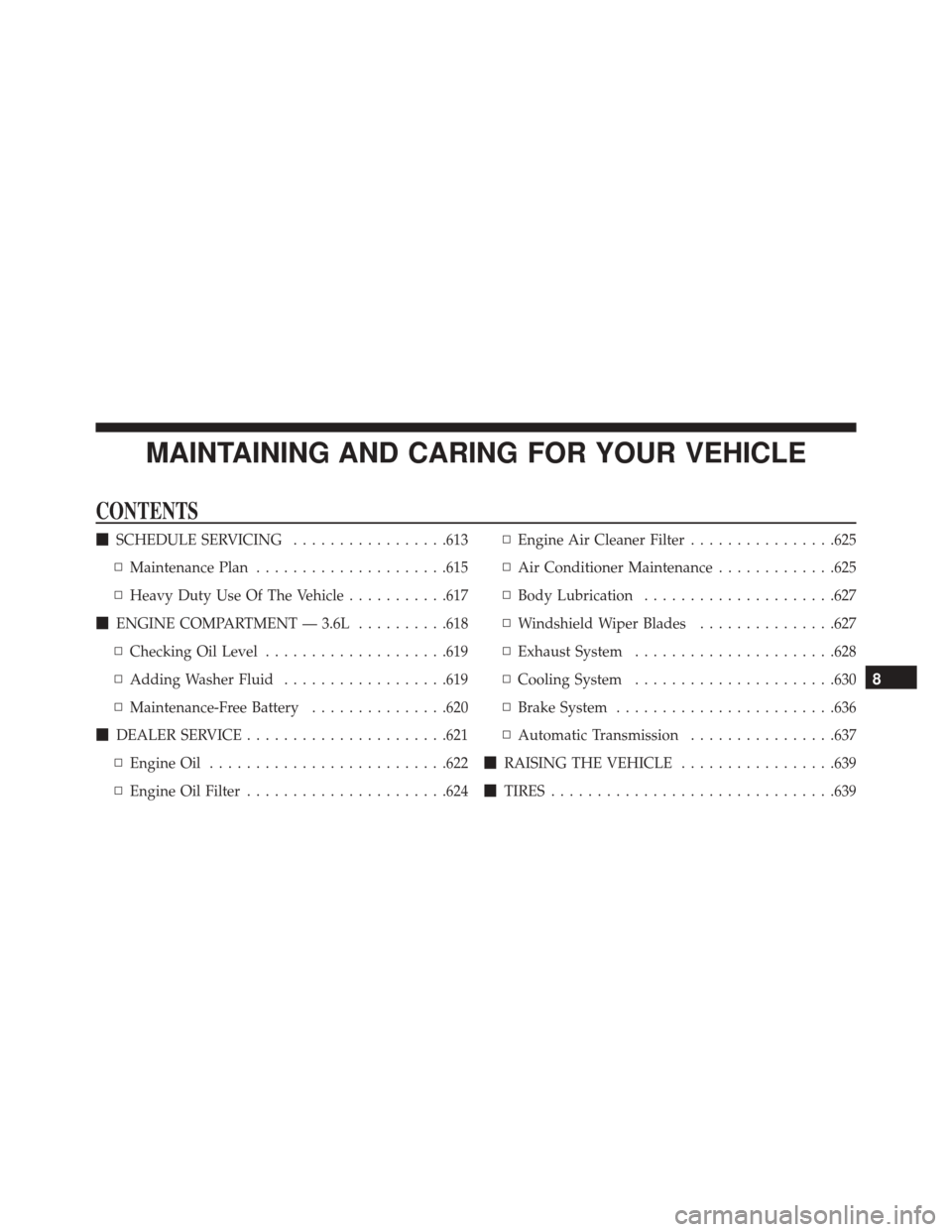

MAINTAINING AND CARING FOR YOUR VEHICLE
CONTENTS
SCHEDULE SERVICING .................613
▫ Maintenance Plan .....................615
▫ Heavy Duty Use Of The Vehicle ...........617
 ENGINE COMPARTMENT — 3.6L ..........618
▫ Checking Oil Level ....................619
▫ Adding Washer Fluid ..................619
▫ Maintenance-Free Battery ...............620
 DEALER SERVICE ..................... .621
▫ Engine Oil ......................... .622
▫ Engine Oil Filter ..................... .624▫
Engine Air Cleaner Filter ................625
▫ Air Conditioner Maintenance .............625
▫ Body Lubrication .....................627
▫ Windshield Wiper Blades ...............627
▫ Exhaust System ..................... .628
▫ Cooling System ..................... .630
▫ Brake System ....................... .636
▫ Automatic Transmission ................637
 RAISING THE VEHICLE .................639
 TIRES .............................. .639
8

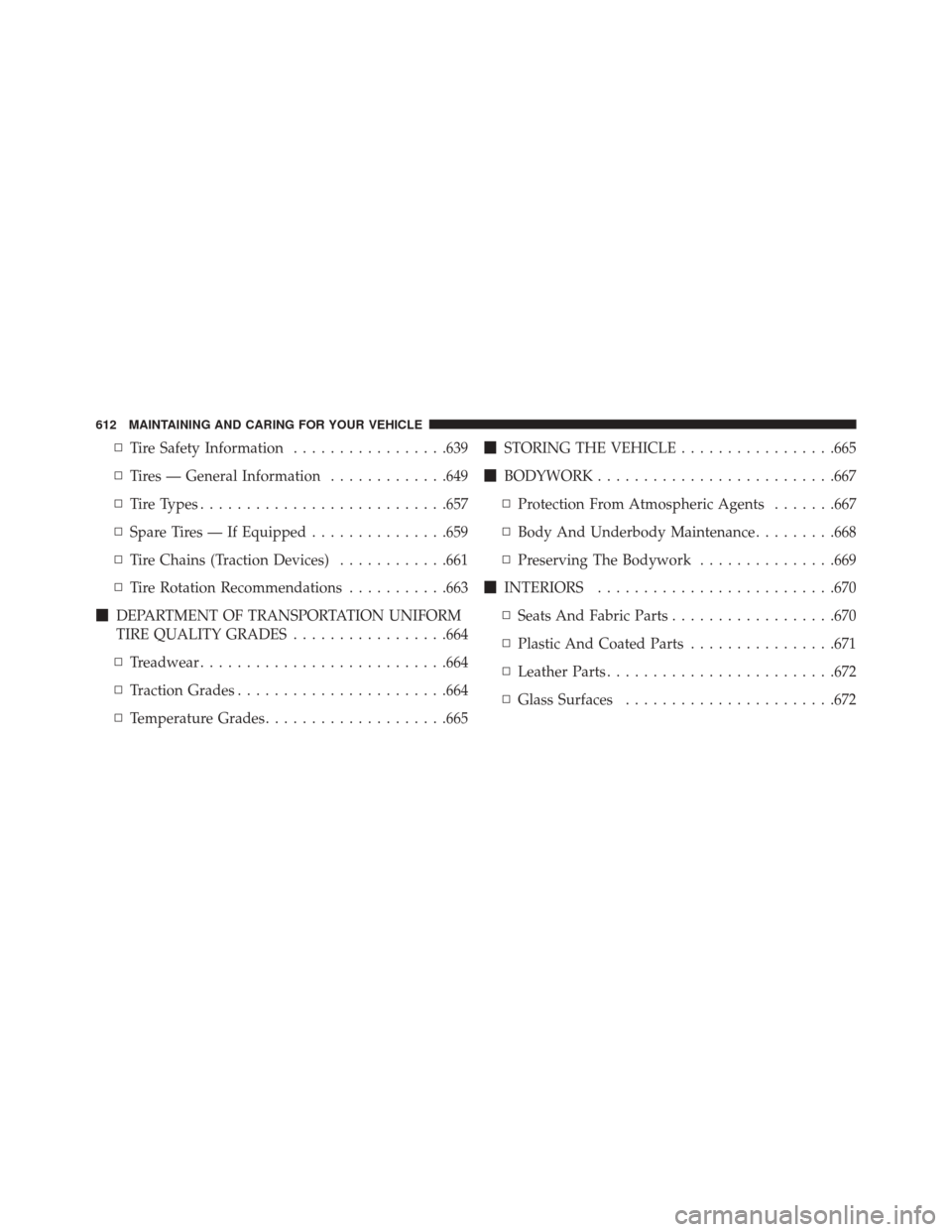

▫Tire Safety Information .................639
▫ Tires — General Information .............649
▫ Tire Types .......................... .657
▫ Spare Tires — If Equipped ...............659
▫ Tire Chains (Traction Devices) ............661
▫ Tire Rotation Recommendations ...........663
 DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES .................664
▫ Treadwear .......................... .664
▫ Traction Grades ...................... .664
▫ Temperature Grades ....................665
STORING THE VEHICLE .................665
 BODYWORK ......................... .667
▫ Protection From Atmospheric Agents .......667
▫ Body And Underbody Maintenance .........668
▫ Preserving The Bodywork ...............669
 INTERIORS ......................... .670
▫ Seats And Fabric Parts ..................670
▫ Plastic And Coated Parts ................671
▫ Leather Parts ........................ .672
▫ Glass Surfaces ...................... .672
612 MAINTAINING AND CARING FOR YOUR VEHICLE

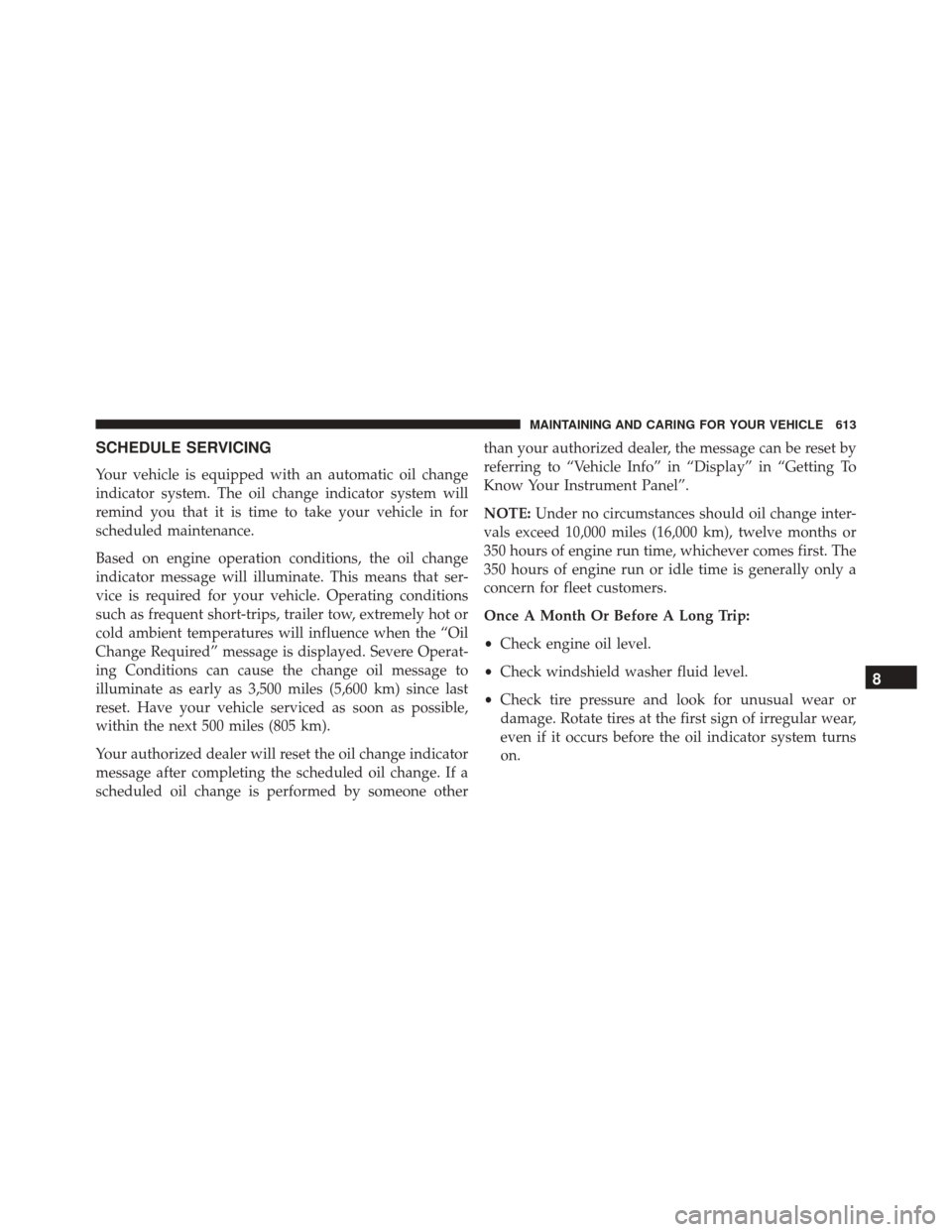

SCHEDULE SERVICING
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures will influence when the “Oil
Change Required” message is displayed. Severe Operat-
ing Conditions can cause the change oil message to
illuminate as early as 3,500 miles (5,600 km) since last
reset. Have your vehicle serviced as soon as possible,
within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone otherthan your authorized dealer, the message can be reset by
referring to “Vehicle Info” in “Display” in “Getting To
Know Your Instrument Panel”.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or
350 hours of engine run time, whichever comes first. The
350 hours of engine run or idle time is generally only a
concern for fleet customers.
Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns
on.
8
MAINTAINING AND CARING FOR YOUR VEHICLE 613

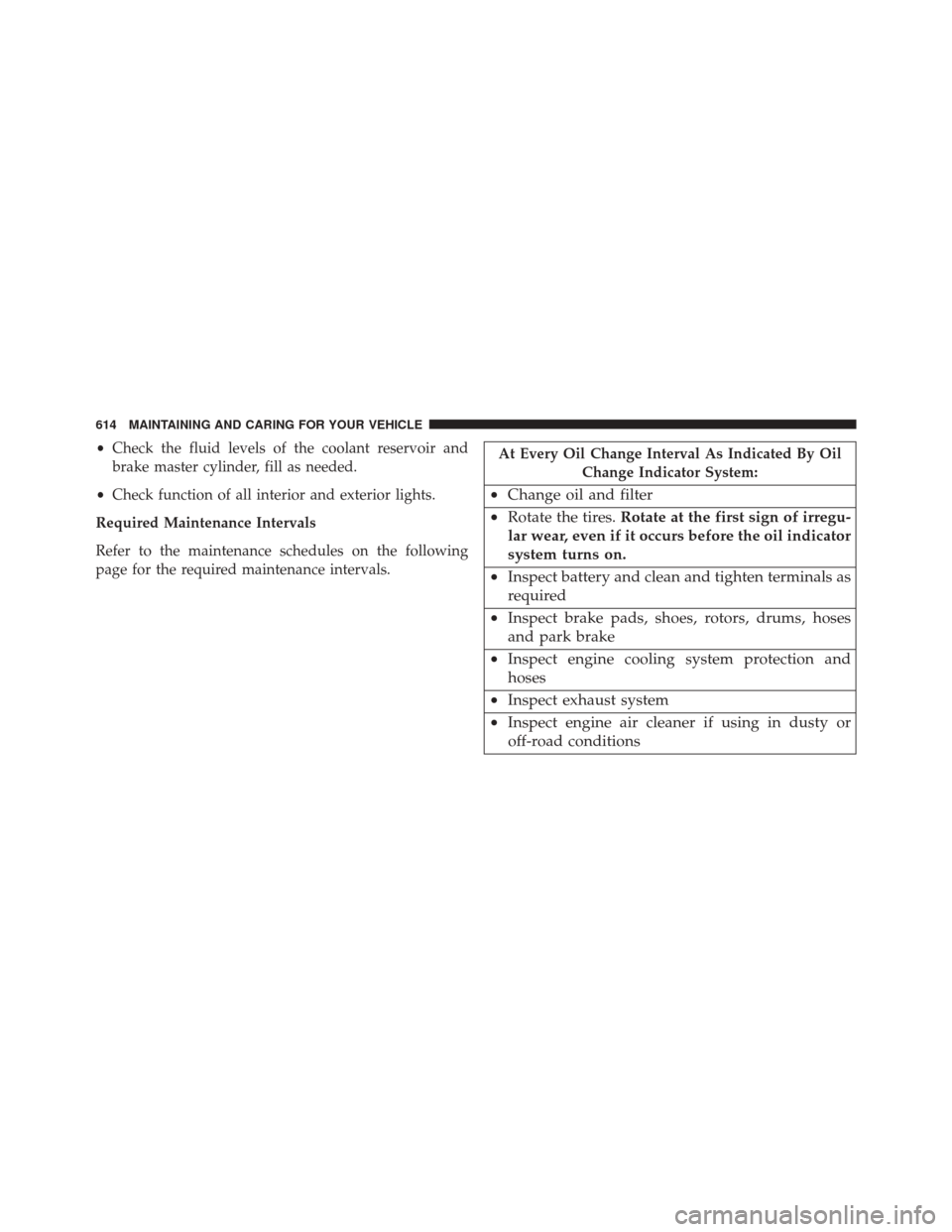

•Check the fluid levels of the coolant reservoir and
brake master cylinder, fill as needed.
• Check function of all interior and exterior lights.
Required Maintenance Intervals
Refer to the maintenance schedules on the following
page for the required maintenance intervals.At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake
• Inspect engine cooling system protection and
hoses
• Inspect exhaust system
• Inspect engine air cleaner if using in dusty or
off-road conditions
614 MAINTAINING AND CARING FOR YOUR VEHICLE

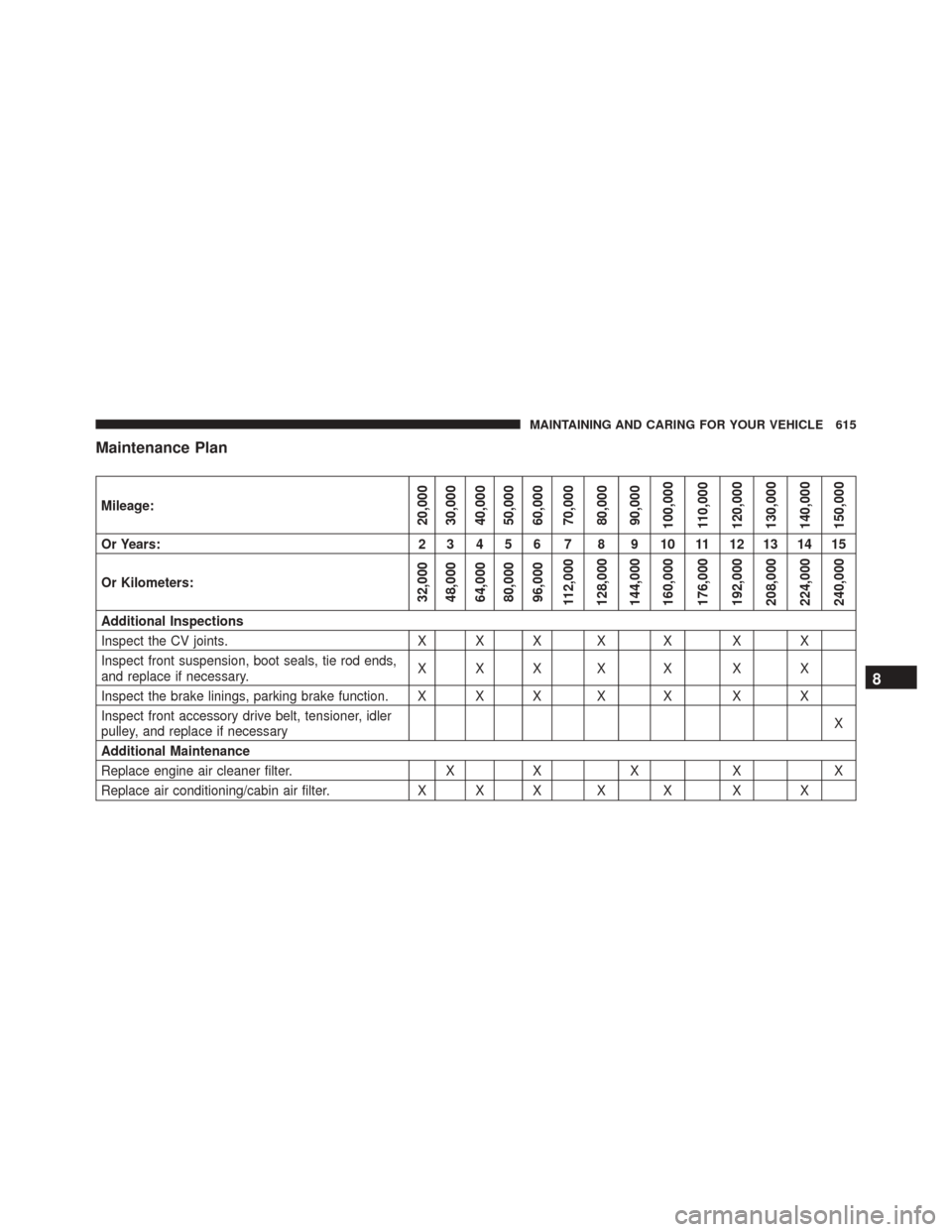

Maintenance Plan
Mileage:20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV joints. X X X X X X X
Inspect front suspension, boot seals, tie rod ends,
and replace if necessary. XXX X X X X
Inspect the brake linings, parking brake function. X X X X X X X
Inspect front accessory drive belt, tensioner, idler
pulley, and replace if necessary X
Additional Maintenance
Replace engine air cleaner filter. XX X XX
Replace air conditioning/cabin air filter. X X X X X X X
8
MAINTAINING AND CARING FOR YOUR VEHICLE 615

Mileage:20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Replace spark plugs ** X
Flush and replace the engine coolant at 10 years
or 150,000 miles (240,000 km) whichever comes
first. XX
Inspect and replace PCV valve if necessary. X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.
616 MAINTAINING AND CARING FOR YOUR VEHICLE

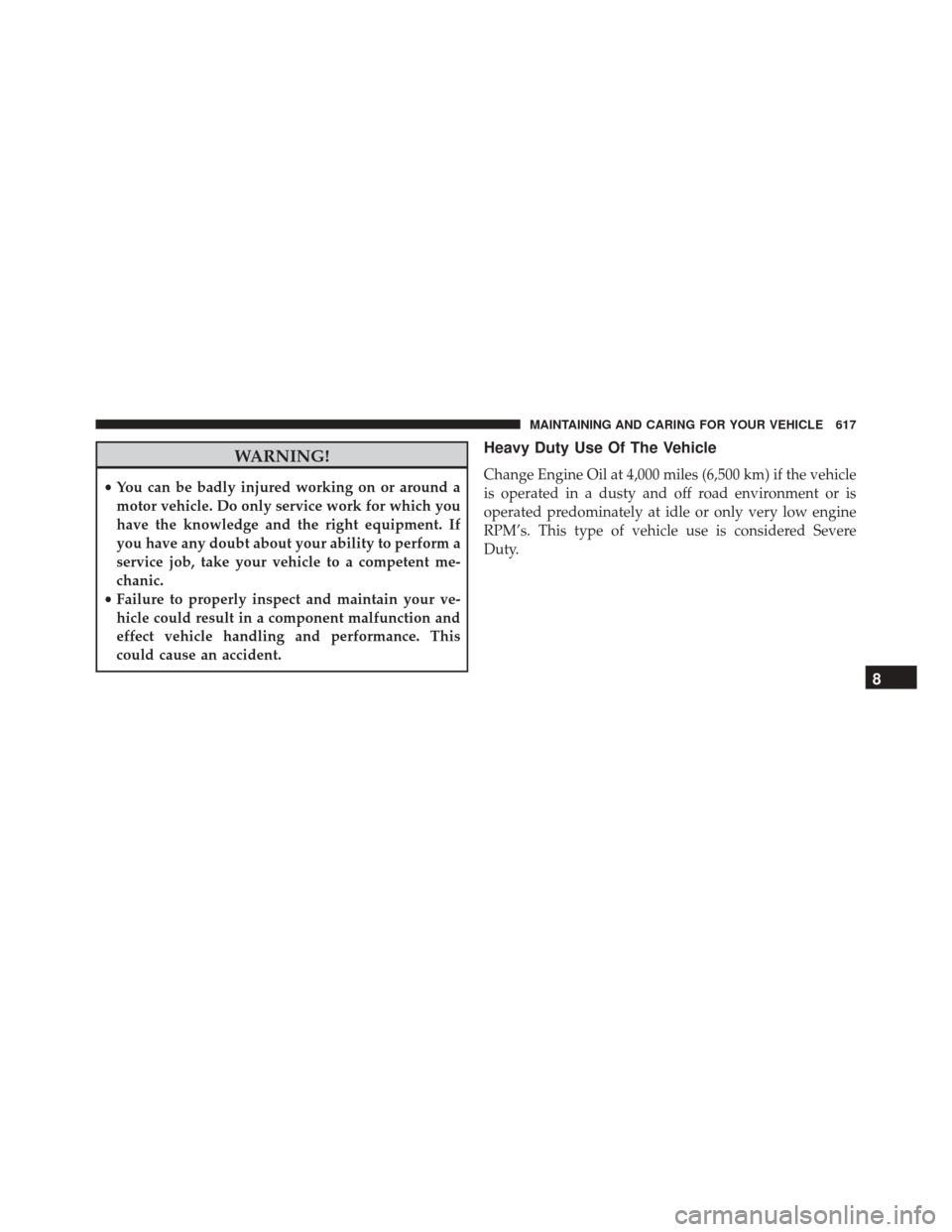

WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
• Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
Heavy Duty Use Of The Vehicle
Change Engine Oil at 4,000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment or is
operated predominately at idle or only very low engine
RPM’s. This type of vehicle use is considered Severe
Duty.
8
MAINTAINING AND CARING FOR YOUR VEHICLE 617

ENGINE COMPARTMENT — 3.6L
1 — Engine Coolant Pressure Cap6 — Battery
2 — Engine Oil Fill 7 — Engine Oil Dipstick
3 — Brake Fluid Reservoir 8 — Window Washer Fill
4 — Engine Air Cleaner
5 — Totally Integrated Power Module (Fuses) 618 MAINTAINING AND CARING FOR YOUR VEHICLE
