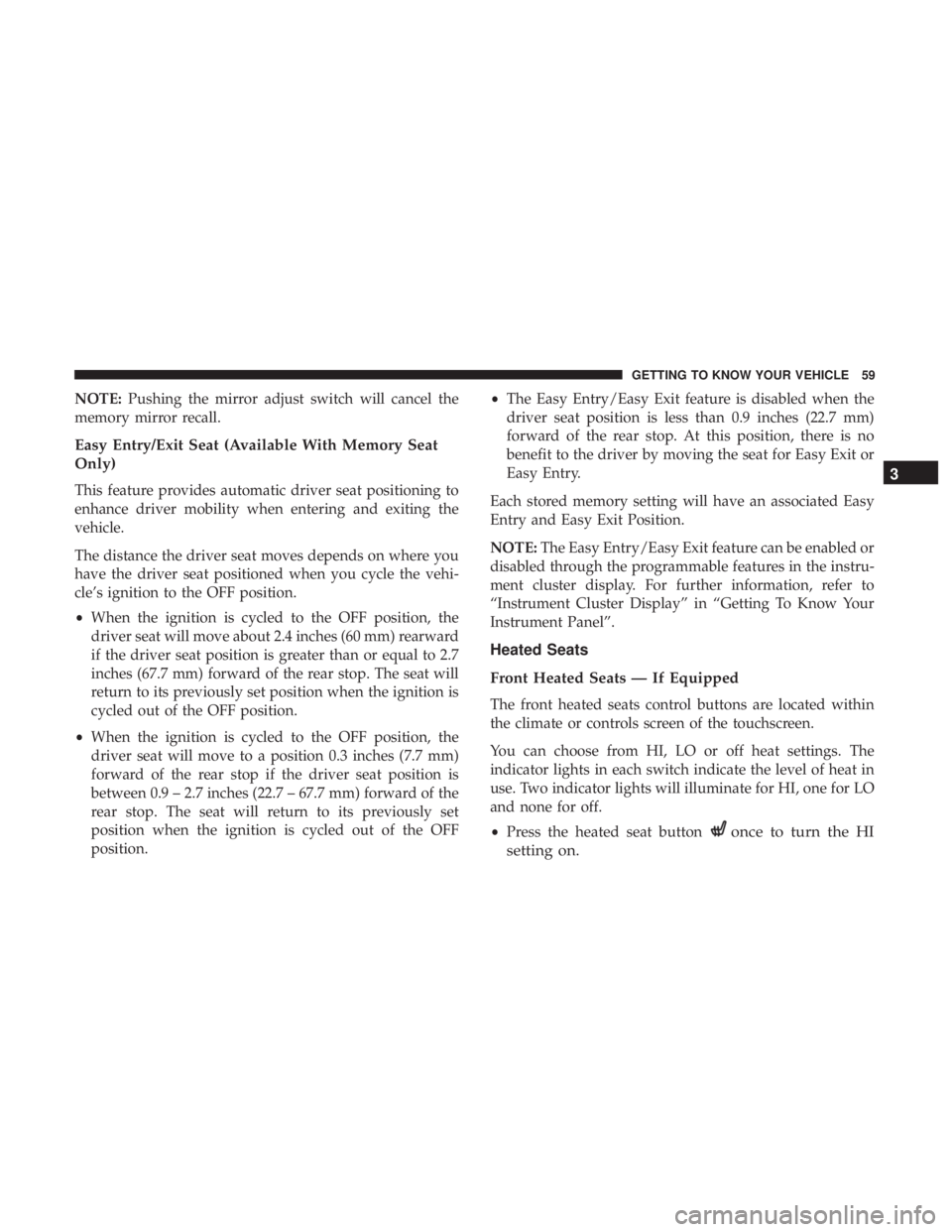

NOTE:Pushing the mirror adjust switch will cancel the
memory mirror recall.
Easy Entry/Exit Seat (Available With Memory Seat
Only)
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle.
The distance the driver seat moves depends on where you
have the driver seat positioned when you cycle the vehi-
cle’s ignition to the OFF position.
• When the ignition is cycled to the OFF position, the
driver seat will move about 2.4 inches (60 mm) rearward
if the driver seat position is greater than or equal to 2.7
inches (67.7 mm) forward of the rear stop. The seat will
return to its previously set position when the ignition is
cycled out of the OFF position.
• When the ignition is cycled to the OFF position, the
driver seat will move to a position 0.3 inches (7.7 mm)
forward of the rear stop if the driver seat position is
between 0.9 – 2.7 inches (22.7 – 67.7 mm) forward of the
rear stop. The seat will return to its previously set
position when the ignition is cycled out of the OFF
position. •
The Easy Entry/Easy Exit feature is disabled when the
driver seat position is less than 0.9 inches (22.7 mm)
forward of the rear stop. At this position, there is no
benefit to the driver by moving the seat for Easy Exit or
Easy Entry.
Each stored memory setting will have an associated Easy
Entry and Easy Exit Position.
NOTE: The Easy Entry/Easy Exit feature can be enabled or
disabled through the programmable features in the instru-
ment cluster display. For further information, refer to
“Instrument Cluster Display” in “Getting To Know Your
Instrument Panel”.
Heated Seats
Front Heated Seats — If Equipped
The front heated seats control buttons are located within
the climate or controls screen of the touchscreen.
You can choose from HI, LO or off heat settings. The
indicator lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for LO
and none for off.
• Press the heated seat button
once to turn the HI
setting on. 3
GETTING TO KNOW YOUR VEHICLE 59

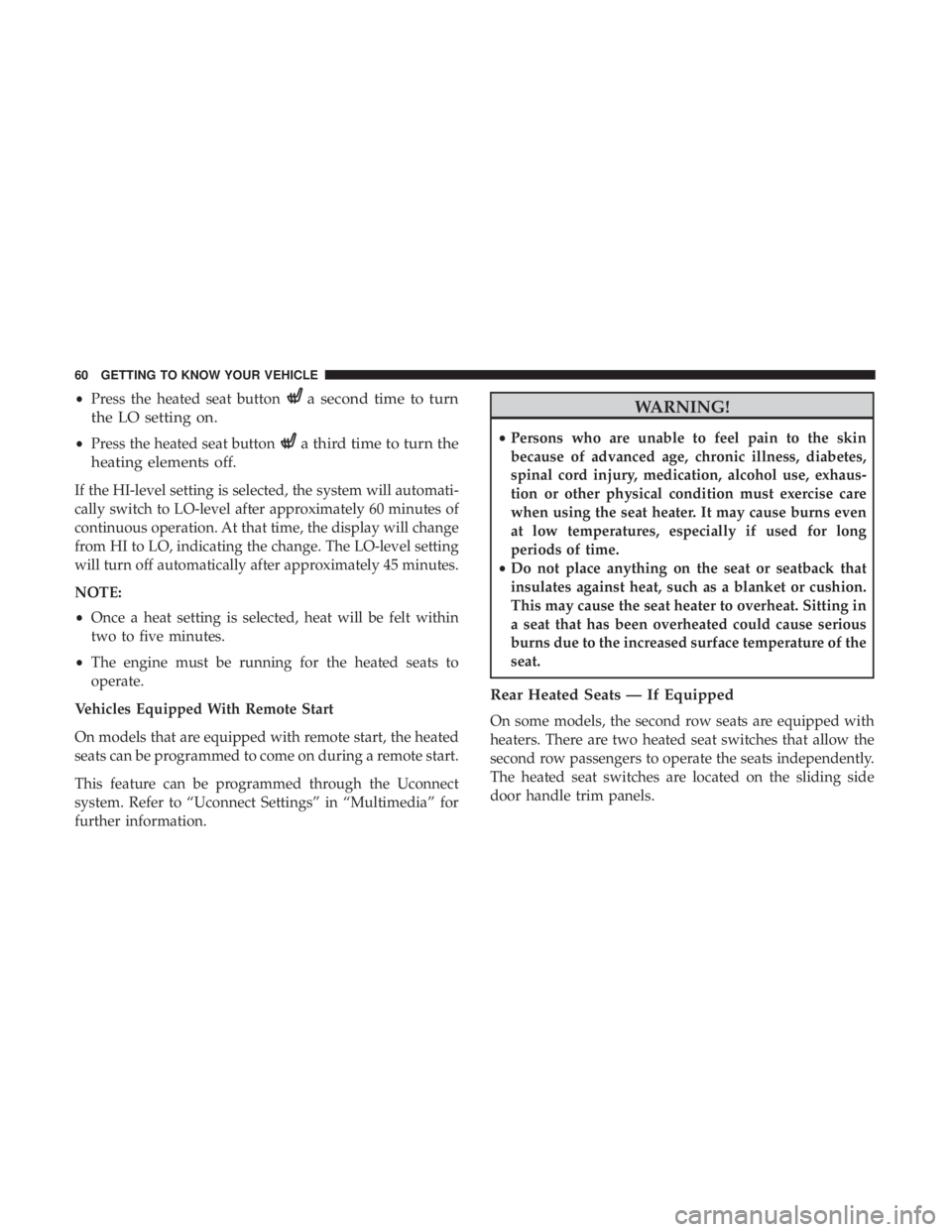

•Press the heated seat buttona second time to turn
the LO setting on.
• Press the heated seat buttona third time to turn the
heating elements off.
If the HI-level setting is selected, the system will automati-
cally switch to LO-level after approximately 60 minutes of
continuous operation. At that time, the display will change
from HI to LO, indicating the change. The LO-level setting
will turn off automatically after approximately 45 minutes.
NOTE:
• Once a heat setting is selected, heat will be felt within
two to five minutes.
• The engine must be running for the heated seats to
operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
seats can be programmed to come on during a remote start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of the
seat.
Rear Heated Seats — If Equipped
On some models, the second row seats are equipped with
heaters. There are two heated seat switches that allow the
second row passengers to operate the seats independently.
The heated seat switches are located on the sliding side
door handle trim panels.
60 GETTING TO KNOW YOUR VEHICLE

You can choose from HI, LO or off heat settings. Amber
indicator lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for LO
and none for off.
Push the switch once to select HI-level heating. Push the
switch a second time to select LO-level heating. Push the
switch a third time to shut the heating elements off.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.
When the HI-level setting is selected, the heater will
provide a boosted heat level during the initial stages of operation. Then, the heat output will drop to the normal
HI-level. If the HI-level setting is selected, the system will
automatically switch to LO-level after approximately 60
minutes of continuous operation. At that time, the display
will change from HI to LO, indicating the change. The
LO-level setting will turn off automatically after approxi-
mately 45 minutes.
Ventilated Seats — If Equipped
Located in the first row seat cushions are small fans that
draw the air from the passenger compartment and move
air through fine perforations in the seat cover to help keep
the driver and front passenger cooler in higher ambient
temperatures. The fans operate at two speeds, HI and LO.
The front ventilated seats control buttons are located
within the climate or controls screen of the touchscreen.
•
Press the ventilated seat button
once to choose HI.
•Press the ventilated seat buttona second time to
choose LO.
• Press the ventilated seat buttona third time to turn
the ventilated seat off.
NOTE: The engine must be running for the ventilated seats
to operate.
Second Row Heated Seat Switch
3
GETTING TO KNOW YOUR VEHICLE 61

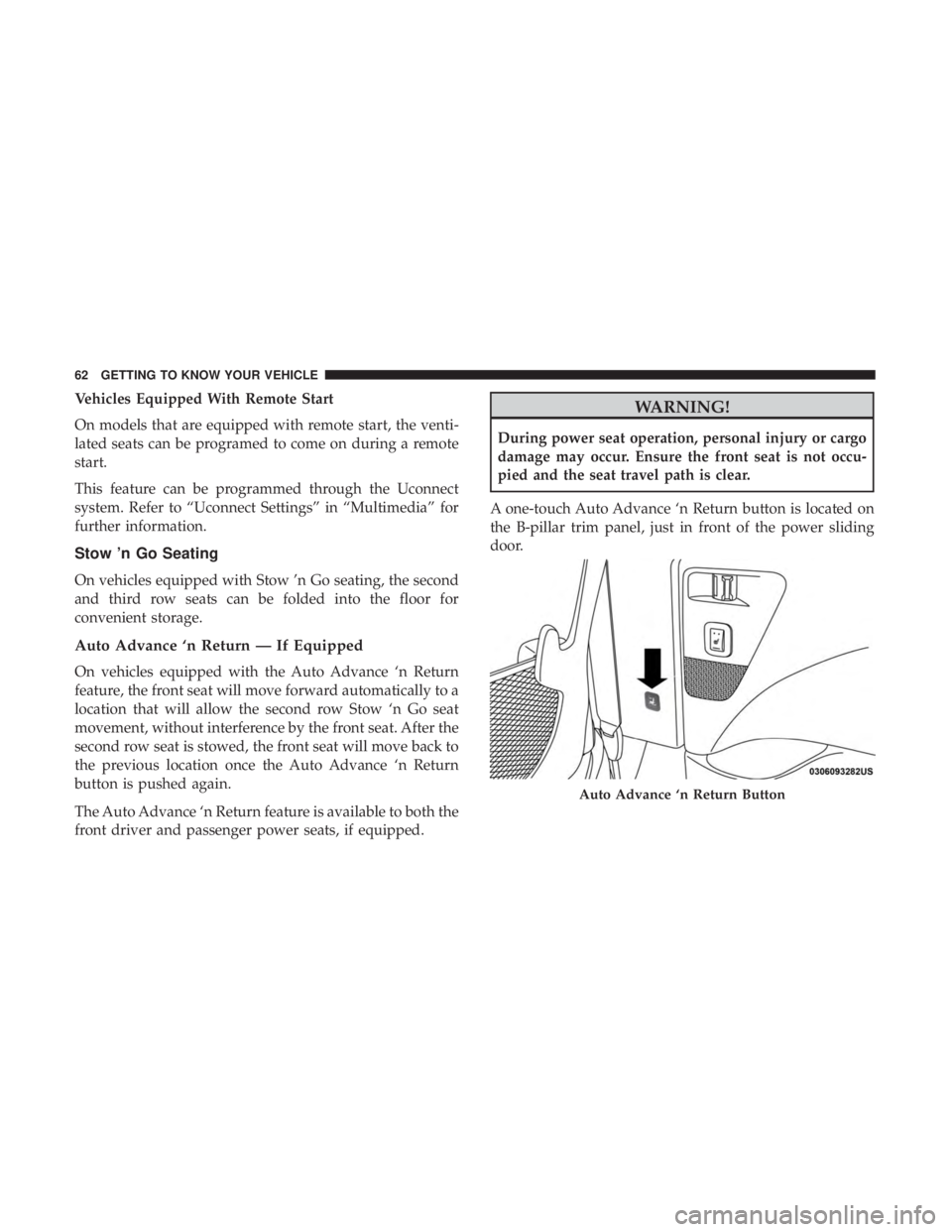

Vehicles Equipped With Remote Start
On models that are equipped with remote start, the venti-
lated seats can be programed to come on during a remote
start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.
Stow ’n Go Seating
On vehicles equipped with Stow ’n Go seating, the second
and third row seats can be folded into the floor for
convenient storage.
Auto Advance ‘n Return — If Equipped
On vehicles equipped with the Auto Advance ‘n Return
feature, the front seat will move forward automatically to a
location that will allow the second row Stow ‘n Go seat
movement, without interference by the front seat. After the
second row seat is stowed, the front seat will move back to
the previous location once the Auto Advance ‘n Return
button is pushed again.
The Auto Advance ‘n Return feature is available to both the
front driver and passenger power seats, if equipped.
WARNING!
During power seat operation, personal injury or cargo
damage may occur. Ensure the front seat is not occu-
pied and the seat travel path is clear.
A one-touch Auto Advance ‘n Return button is located on
the B-pillar trim panel, just in front of the power sliding
door.
Auto Advance ‘n Return Button
62 GETTING TO KNOW YOUR VEHICLE

Using the Auto Advance ‘n Return Feature
NOTE:
•The button is only functional when the power sliding
door is open and the vehicle is in PARK. If the door is
not open or the vehicle is not in PARK when the button
is pushed, the front seat will not move and a message
will be displayed in instrument cluster display.
• If the power sliding door is closing when the button is
pushed, the front seat will not move and a message will
be displayed in the instrument cluster display.
1. Push and release the Auto Advance ‘n Return button. The front seat cushion and seat back will move as
necessary to a location that will allow space for the
second row Stow ‘n Go seat movement.
2. Perform the second row Stow ‘n Go seat movement. Refer to “Second Row Stow ‘n Go” for further informa-
tion.
3. Push and release the Auto Advance ‘n Return button a second time. The front seat cushion and seat back will
return to the original starting location. NOTE:
•
To abort seat operation while seat is in motion, push the
Auto Advance ‘n Return button, or push the front power
seat button to stop the seat movement. Pushing the Auto
Advance ‘n Return button again will return the front
seat to the original starting location.
• The Auto Advance ‘n Return system includes obstacle
detection. When the system detects an obstacle, the seat
will stop, reverse direction, and return to the previous
location. A message will be displayed in the instrument
cluster indicating that an obstacle has been detected.
• If the front seat is already in a location that will allow
space for Stow ‘n Go of the second row seat, the front
seat will not move and a message will be displayed in
the instrument cluster.
• If calibration of the front seat is lost, the seat will
automatically re-calibrate when the Auto Advance ‘n
Return button is pushed. This may result in the seat
cushion moving forward and downward, before moving
to the location that will allow space for the second row
Stow ‘n Go seat movement.
3
GETTING TO KNOW YOUR VEHICLE 63

Second Row Stow ’n Go
For Manual Seats:To stow the seat in the floor, move the
front seat all the way forward using the manual seat
adjustment bar. Move the seat back all the way forward
using the recliner handle located on the outboard side of
the cushion. Move the seat height to at least mid position
using the height adjuster handle in the outboard side of the
cushion.
For Power Seats: Push the Auto Advance ‘n Return button
located on the B pillar trim (if equipped.) Refer to Auto
Advance ‘n Return - If Equipped in this section for
instructions.
1. To access the storage bin, place the lock rod in the locked position. NOTE:
•Push the lock rod inward for the locked position.
• Pull outward on the lock rod for the unlocked position.
• For information on storage bin function with the seats
rearward refer to “Second Row Floor Storage Bins” in
“Internal Equipment” for further information.
Lock Rod
64 GETTING TO KNOW YOUR VEHICLE

2. Pull the latch located near the second row seat to openthe floor panel. 3. Pull the floor panel and position it toward the front seats
while folding the top half down and rest it against the
front seats.
Floor Latch
Push Panel Forward
3
GETTING TO KNOW YOUR VEHICLE 65

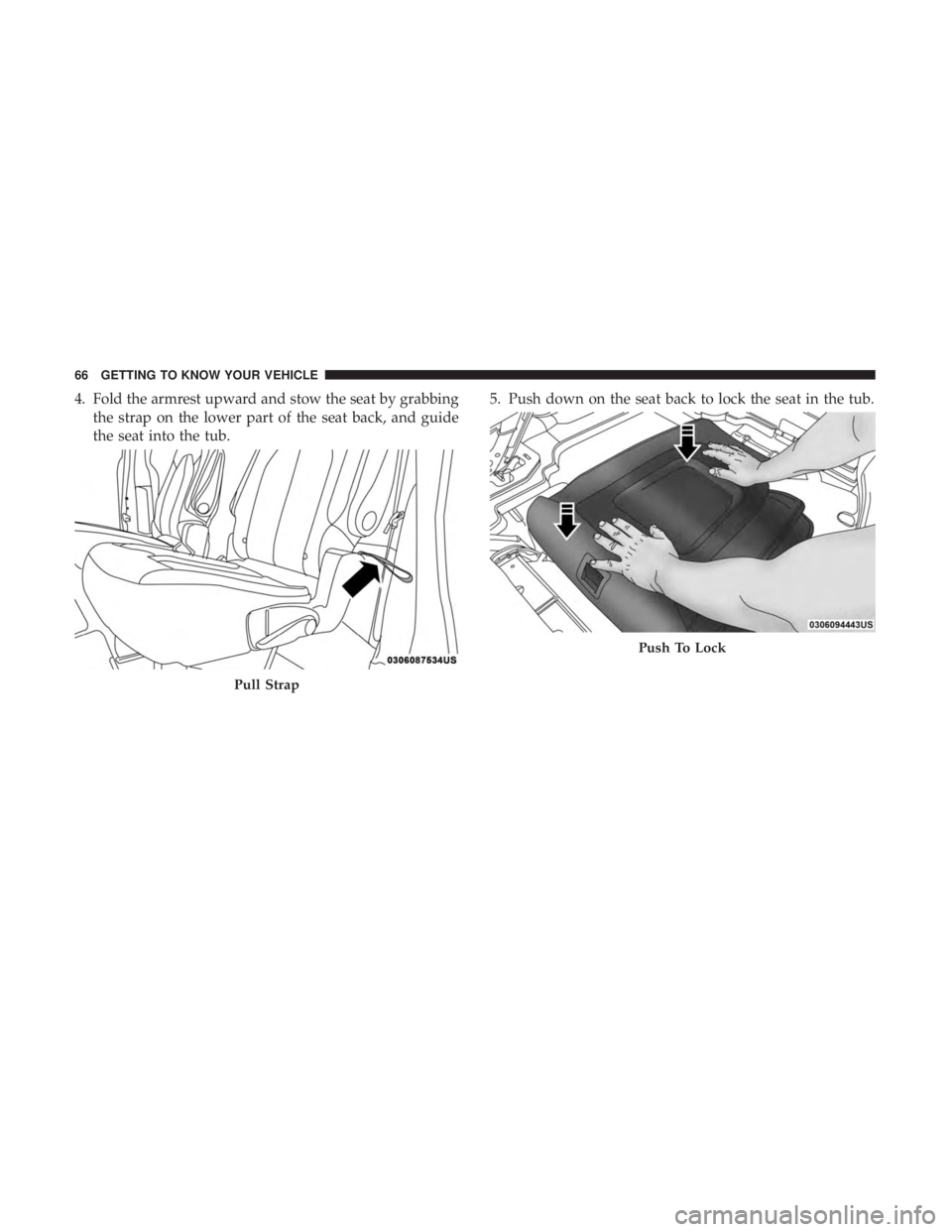

4. Fold the armrest upward and stow the seat by grabbingthe strap on the lower part of the seat back, and guide
the seat into the tub. 5. Push down on the seat back to lock the seat in the tub.
Pull Strap
Push To Lock
66 GETTING TO KNOW YOUR VEHICLE

6. Close the floor by pulling the floor panel backwards bythe bottom corner edge of the panel.
7. Push down on floor panel to lock into place. 8. Readjust the front seat as needed.
WARNING!
In a collision, serious injury could result if the seat
storage bin covers are not properly latched:
•
Do not drive the vehicle with the storage bin covers
open.
• Keep the storage bin covers closed and latched while
the vehicle is in motion.
• Do not use a storage bin latch as a tie down.
Extend Floor Panel
Push To Lock
3
GETTING TO KNOW YOUR VEHICLE 67

CAUTION!
•The storage bin cover must be locked and flat to
avoid damage from contact with the front seat tracks,
which have minimal clearance to the cover.
• Do not sit on the second row seat when it is in the
stowed position with the seatback upright otherwise
damage to the seat may occur.
To Unstow Second Row Seats
For Manual Seats: To unstow the seat from the floor, move
the front seat all the way forward using the manual seat
adjustment bar.
For Power Seats: Push the Auto Advance ‘n Return button
located on the B pillar trim (if equipped). Refer to Auto
Advance ‘n Return - If Equipped in this section for
instructions.
1. To access the storage bin, place the lock rod in the locked position. NOTE:
•Push the lock rod inward for the locked position.
• Pull outward on the lock rod for the unlocked position.
Lock Rod
68 GETTING TO KNOW YOUR VEHICLE
