CHRYSLER PACIFICA 2019 Owners Manual

Lower Anchors And Tethers For CHildren (LATCH)
Restraint SystemYour vehicle is equipped with the child restraint anchorage
system called LATCH, which stands for Lower Anchors
and Tethers for CHildren. The LATCH system has three
vehicle anchor points for installing LATCH-equipped child
seats. There are two lower anchorages located at the back
of the seat cushion where it meets the seatback and one top
tether anchorage located behind the seating position. These
anchorages are used to install LATCH-equipped child seats
without using the vehicle’s seat belts. Some seating posi-
tions may have a top tether anchorage but no lower
anchorages. In these seating positions, the seat belt must be
used with the top tether anchorage to install the child
restraint. Please see the following table for more
information.
LATCH Label
5
SAFETY 289

LATCH Positions For Installing Child Restraints In
This Vehicle
7 Passenger Bench Seat LATCH Positions
Lower Anchorage Symbol 2 anchorages per seating positionTop Tether Anchorage Symbol
7 Passenger Stow ‘n Go Seating LATCH Positions
Lower Anchorage Symbol 2 anchorages per seating positionTop Tether Anchorage Symbol
290 SAFETY

Frequently Asked Questions About Installing Child Restraints With LATCH
What is the weight limit (child’s weight + weight of the child re-
straint) for using the LATCH anchor- age system to attach the child re- straint? 65 lbs (29.5 kg)
Use the LATCH anchorage system
until the combined weight of the
child and the child restraint is 65 lbs
(29.5 kg). Use the seat belt and tether anchor instead of the LATCH system once the combined weight is more than 65 lbs (29.5 kg).
8 Passenger LATCH Positions
Lower Anchorage Symbol 2 anchorages per seating positionTop Tether Anchorage Symbol
5
SAFETY 291

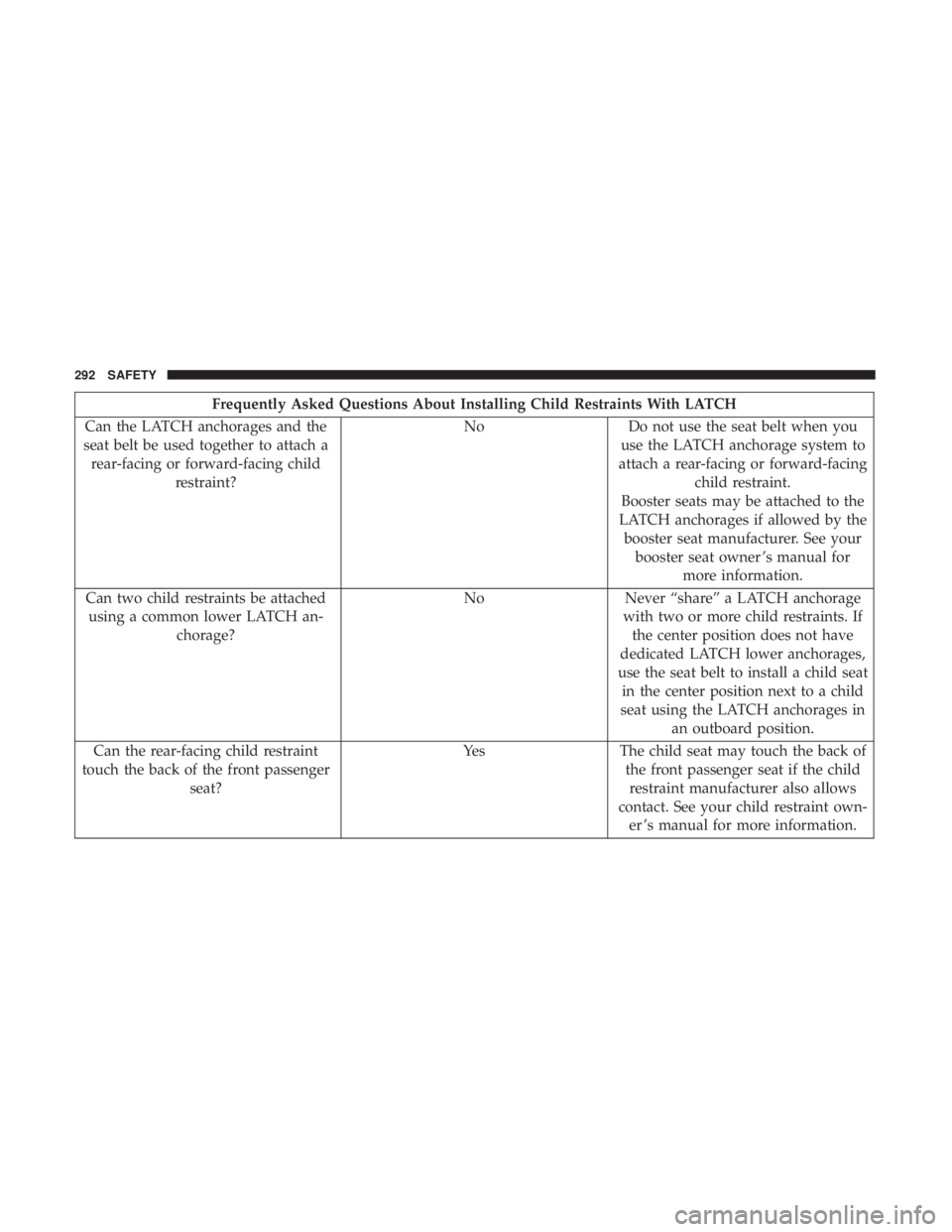

Frequently Asked Questions About Installing Child Restraints With LATCH
Can the LATCH anchorages and the
seat belt be used together to attach a rear-facing or forward-facing child restraint? No Do not use the seat belt when you
use the LATCH anchorage system to
attach a rear-facing or forward-facing child restraint.
Booster seats may be attached to the
LATCH anchorages if allowed by the booster seat manufacturer. See your booster seat owner ’s manual for more information.
Can two child restraints be attached using a common lower LATCH an- chorage? No
Never “share” a LATCH anchorage
with two or more child restraints. If the center position does not have
dedicated LATCH lower anchorages,
use the seat belt to install a child seat in the center position next to a child
seat using the LATCH anchorages in an outboard position.
Can the rear-facing child restraint
touch the back of the front passenger seat? Yes
The child seat may touch the back of
the front passenger seat if the childrestraint manufacturer also allows
contact. See your child restraint own- er ’s manual for more information.
292 SAFETY

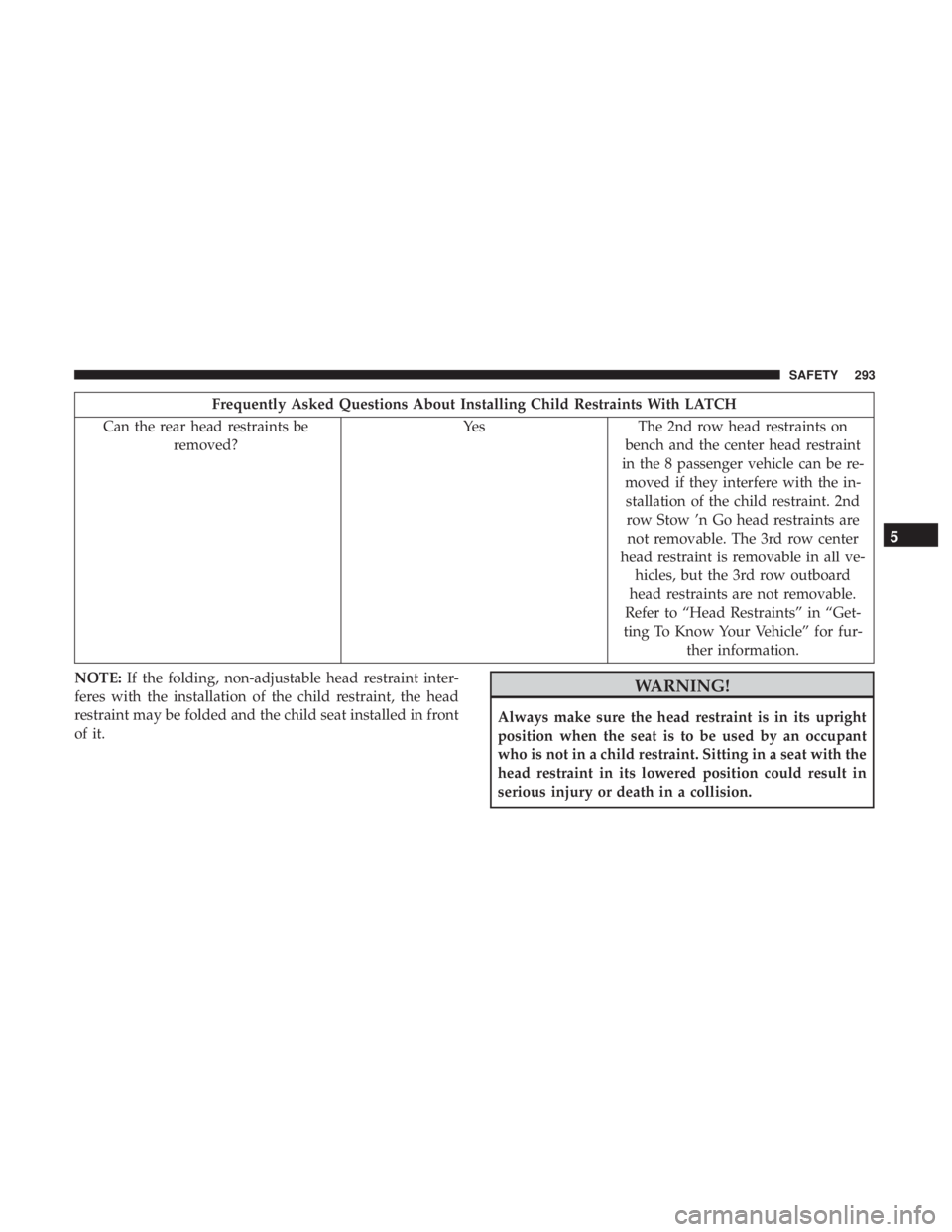

Frequently Asked Questions About Installing Child Restraints With LATCH
Can the rear head restraints be removed? Yes The 2nd row head restraints on
bench and the center head restraint
in the 8 passenger vehicle can be re- moved if they interfere with the in-stallation of the child restraint. 2ndrow Stow ’n Go head restraints are not removable. The 3rd row center
head restraint is removable in all ve- hicles, but the 3rd row outboard
head restraints are not removable.
Refer to “Head Restraints” in “Get-
ting To Know Your Vehicle” for fur- ther information.
NOTE: If the folding, non-adjustable head restraint inter-
feres with the installation of the child restraint, the head
restraint may be folded and the child seat installed in front
of it.
WARNING!
Always make sure the head restraint is in its upright
position when the seat is to be used by an occupant
who is not in a child restraint. Sitting in a seat with the
head restraint in its lowered position could result in
serious injury or death in a collision.
5
SAFETY 293

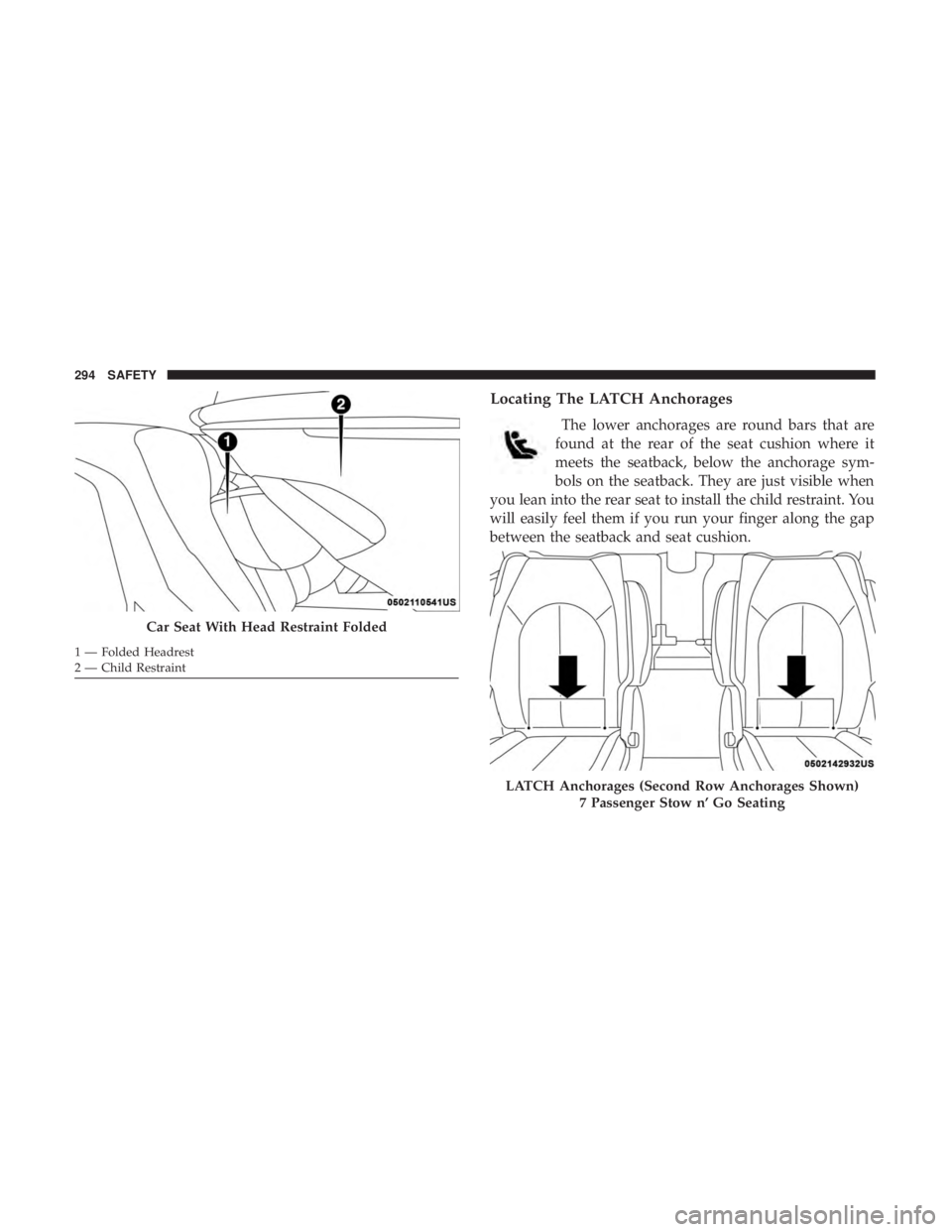

Locating The LATCH Anchorages
The lower anchorages are round bars that are
found at the rear of the seat cushion where it
meets the seatback, below the anchorage sym-
bols on the seatback. They are just visible when
you lean into the rear seat to install the child restraint. You
will easily feel them if you run your finger along the gap
between the seatback and seat cushion.
Car Seat With Head Restraint Folded
1 — Folded Headrest
2 — Child Restraint
LATCH Anchorages (Second Row Anchorages Shown)
7 Passenger Stow n’ Go Seating
294 SAFETY

LATCH Anchorages (Second Row Anchorages Shown)8 Passenger SeatingLATCH Anchorages (Second Row Bench Anchorages Shown)
5
SAFETY 295

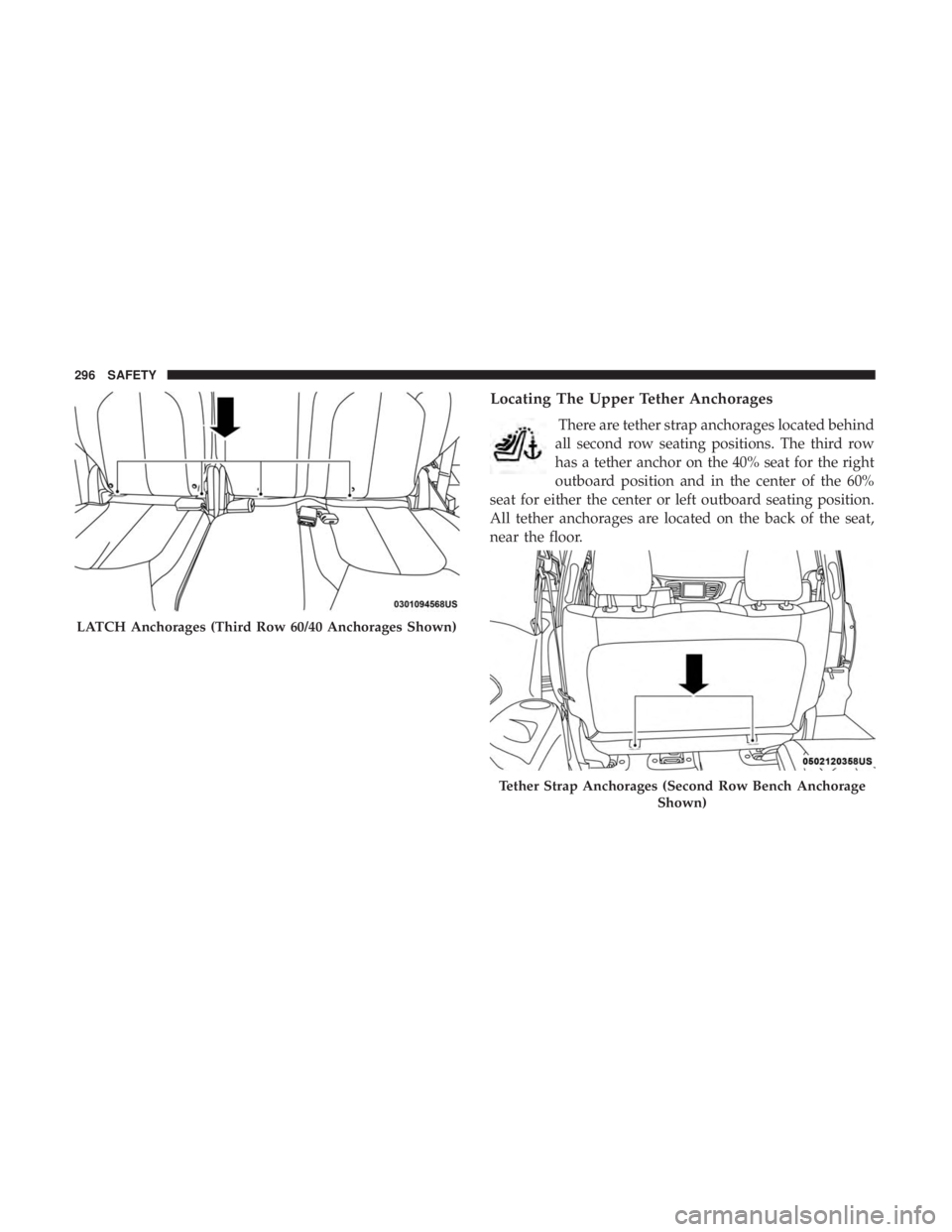

Locating The Upper Tether Anchorages
There are tether strap anchorages located behind
all second row seating positions. The third row
has a tether anchor on the 40% seat for the right
outboard position and in the center of the 60%
seat for either the center or left outboard seating position.
All tether anchorages are located on the back of the seat,
near the floor.
LATCH Anchorages (Third Row 60/40 Anchorages Shown)
Tether Strap Anchorages (Second Row Bench Anchorage
Shown)
296 SAFETY

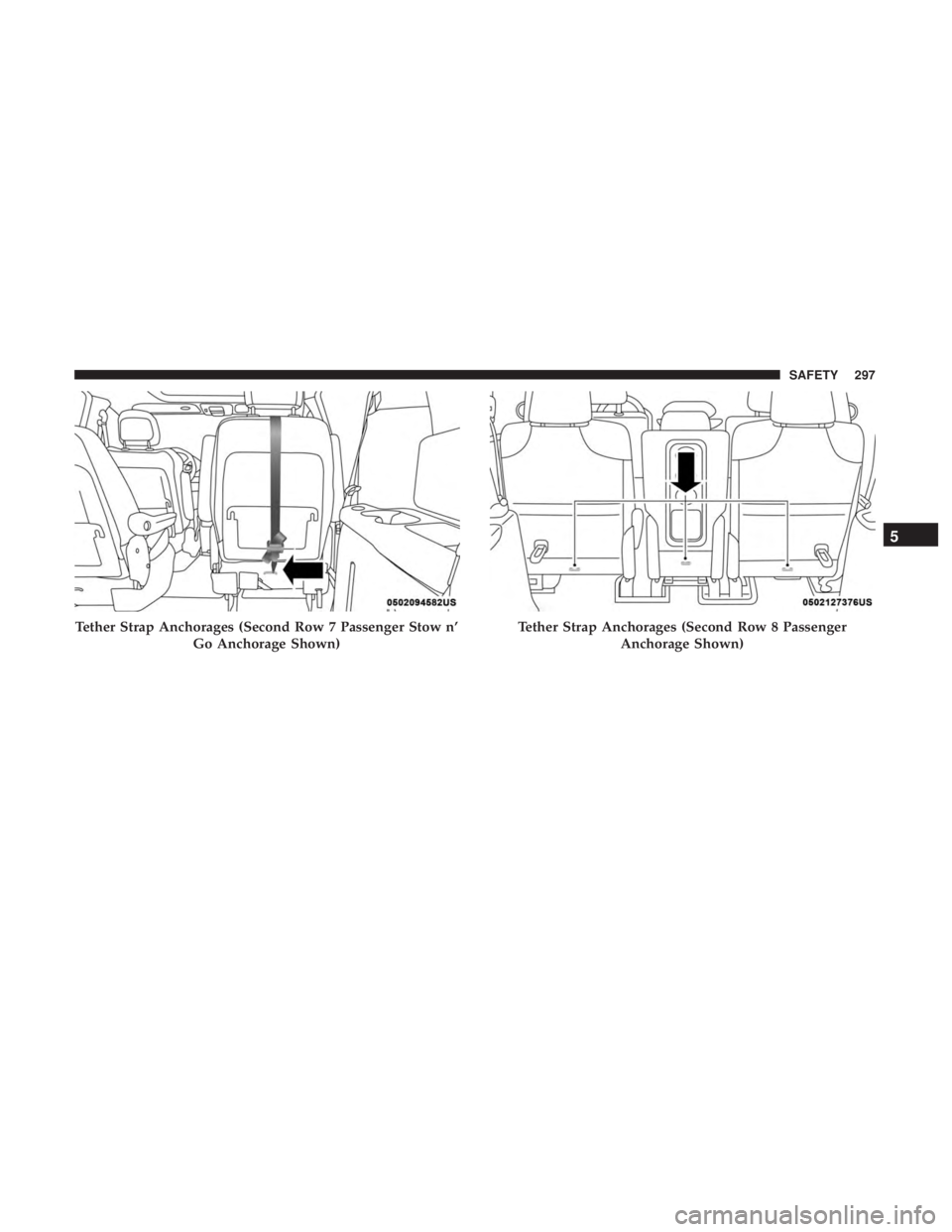

Tether Strap Anchorages (Second Row 7 Passenger Stow n’Go Anchorage Shown)Tether Strap Anchorages (Second Row 8 PassengerAnchorage Shown)
5
SAFETY 297

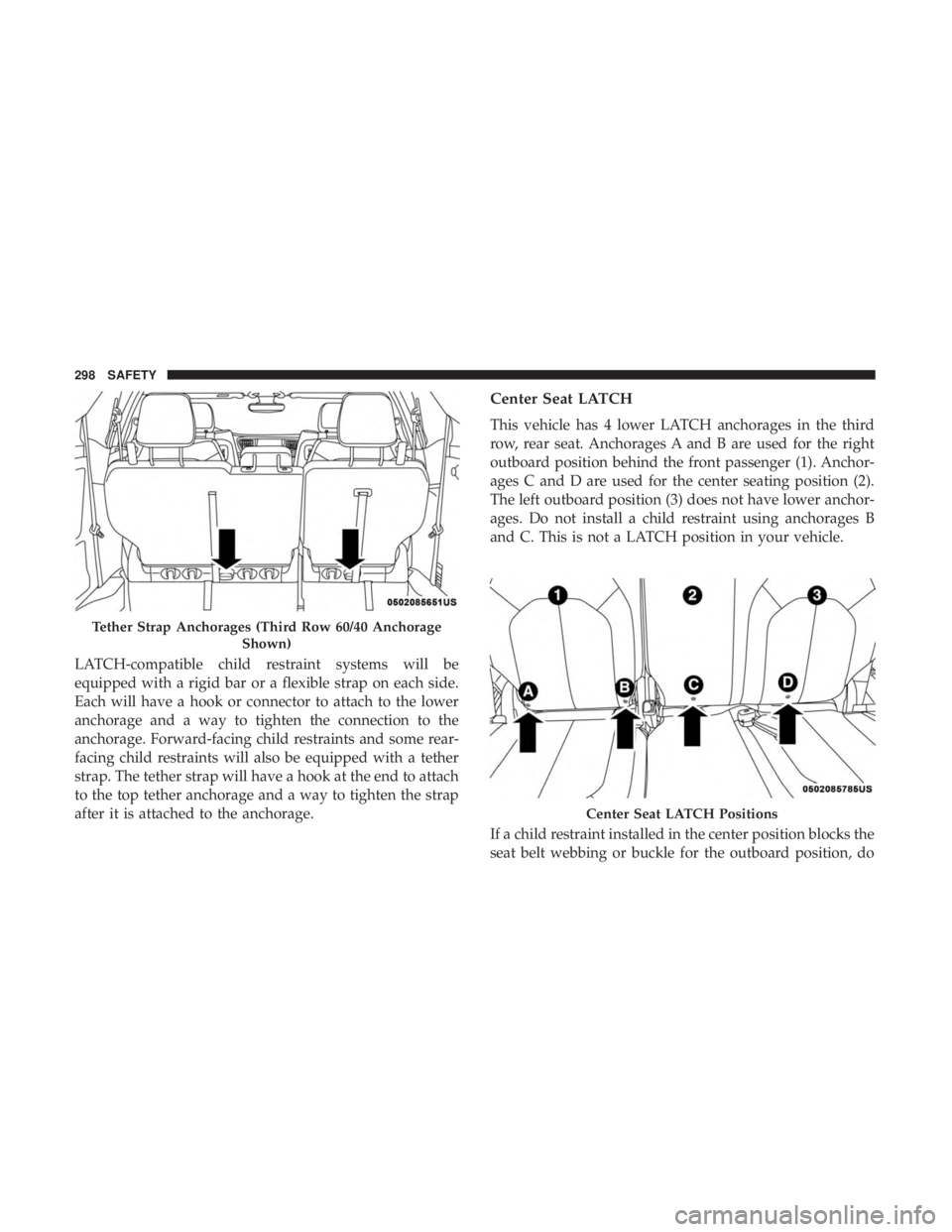

LATCH-compatible child restraint systems will be
equipped with a rigid bar or a flexible strap on each side.
Each will have a hook or connector to attach to the lower
anchorage and a way to tighten the connection to the
anchorage. Forward-facing child restraints and some rear-
facing child restraints will also be equipped with a tether
strap. The tether strap will have a hook at the end to attach
to the top tether anchorage and a way to tighten the strap
after it is attached to the anchorage.
Center Seat LATCH
This vehicle has 4 lower LATCH anchorages in the third
row, rear seat. Anchorages A and B are used for the right
outboard position behind the front passenger (1). Anchor-
ages C and D are used for the center seating position (2).
The left outboard position (3) does not have lower anchor-
ages. Do not install a child restraint using anchorages B
and C. This is not a LATCH position in your vehicle.
If a child restraint installed in the center position blocks the
seat belt webbing or buckle for the outboard position, do
Tether Strap Anchorages (Third Row 60/40 AnchorageShown)
Center Seat LATCH Positions
298 SAFETY
