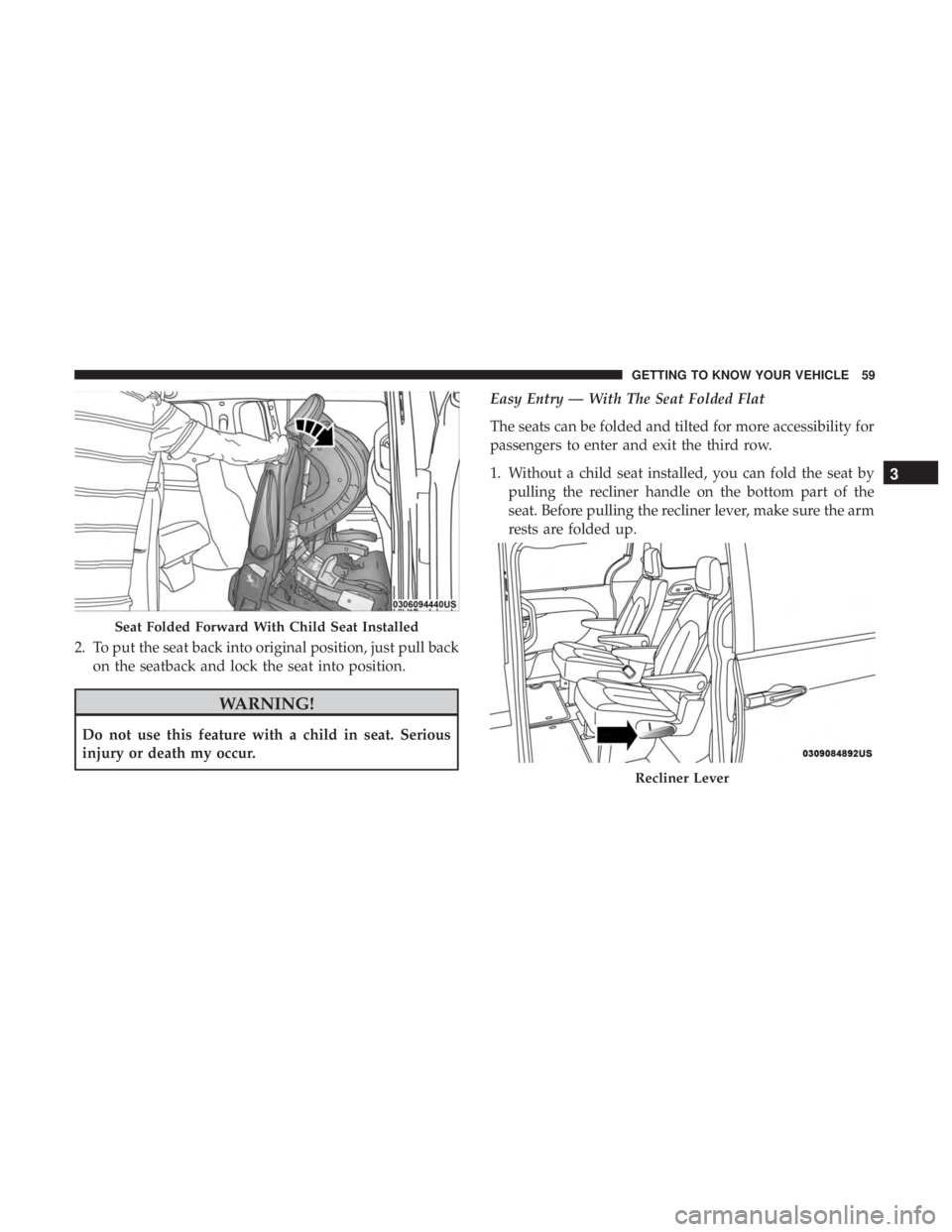

2. To put the seat back into original position, just pull backon the seatback and lock the seat into position.
WARNING!
Do not use this feature with a child in seat. Serious
injury or death my occur. Easy Entry — With The Seat Folded Flat
The seats can be folded and tilted for more accessibility for
passengers to enter and exit the third row.
1. Without a child seat installed, you can fold the seat by
pulling the recliner handle on the bottom part of the
seat. Before pulling the recliner lever, make sure the arm
rests are folded up.
Seat Folded Forward With Child Seat Installed
Recliner Lever
3
GETTING TO KNOW YOUR VEHICLE 59

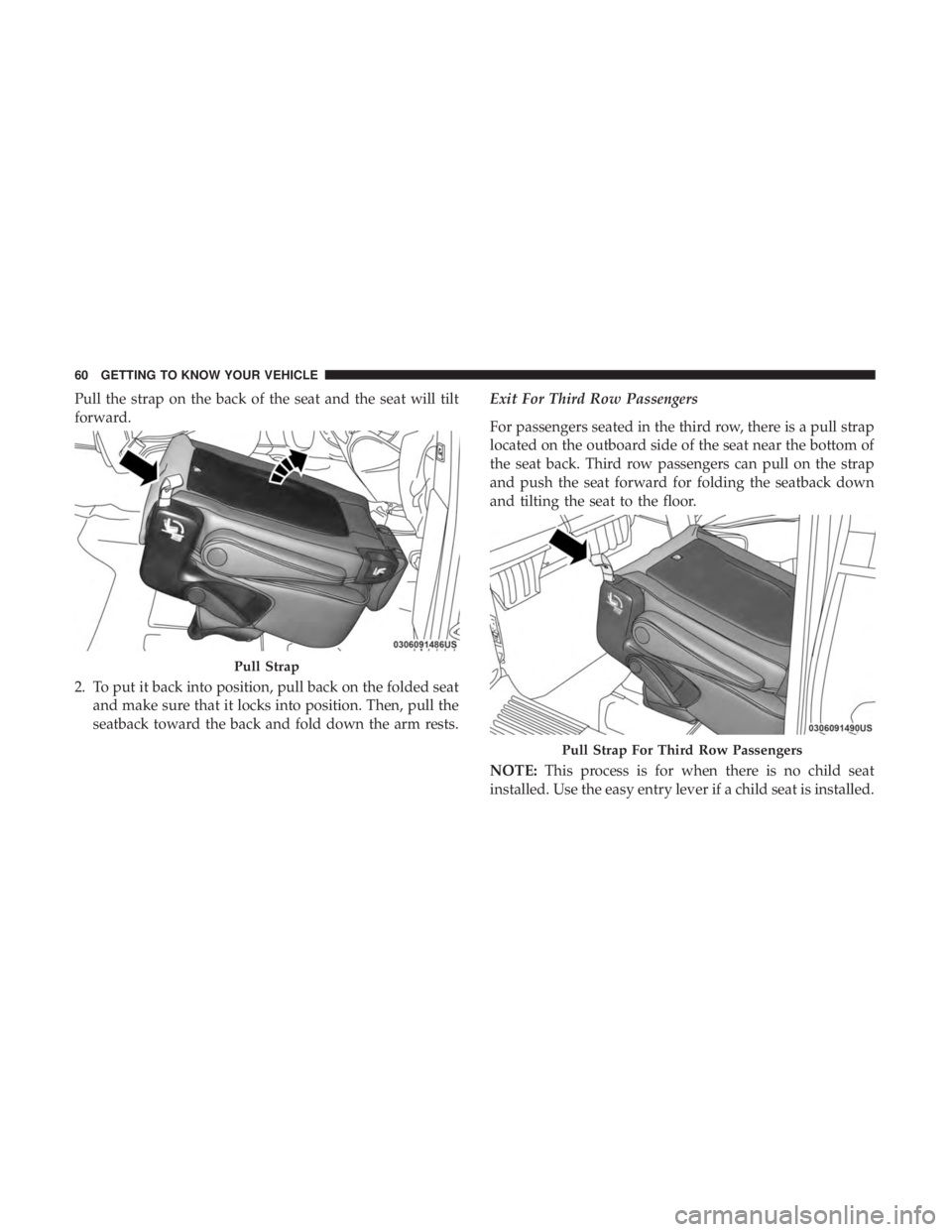

Pull the strap on the back of the seat and the seat will tilt
forward.
2. To put it back into position, pull back on the folded seatand make sure that it locks into position. Then, pull the
seatback toward the back and fold down the arm rests. Exit For Third Row Passengers
For passengers seated in the third row, there is a pull strap
located on the outboard side of the seat near the bottom of
the seat back. Third row passengers can pull on the strap
and push the seat forward for folding the seatback down
and tilting the seat to the floor.
NOTE:
This process is for when there is no child seat
installed. Use the easy entry lever if a child seat is installed.
Pull Strap
Pull Strap For Third Row Passengers
60 GETTING TO KNOW YOUR VEHICLE

Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatback bypushing the button on the guide and pushing the head
restraint down.
2. Pull release strap marked “1” to release the anchors. 3. Pull release strap marked “2” and tumble the seat
rearward into the storage bin.
Release Strap “1”
Strap “2”
3
GETTING TO KNOW YOUR VEHICLE 61

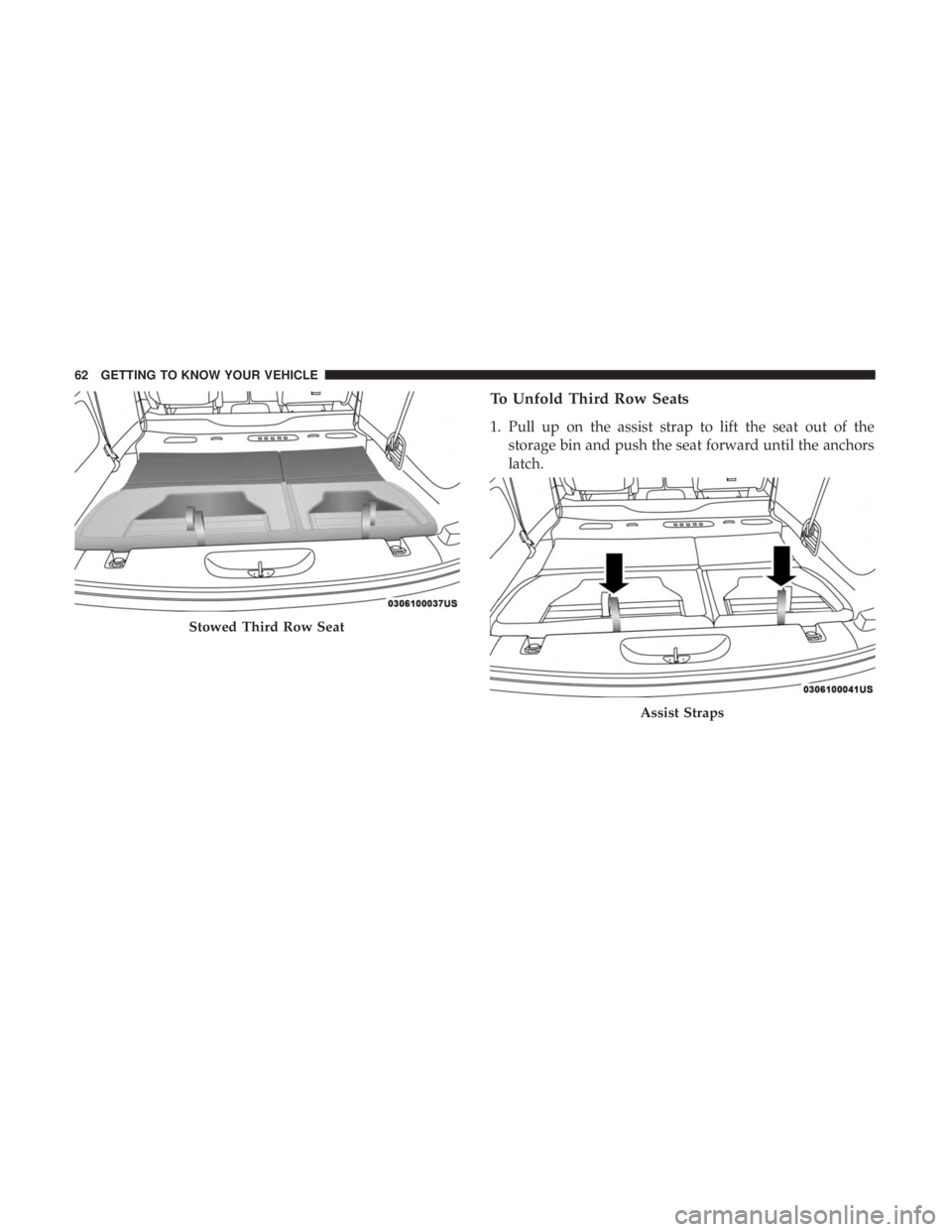

To Unfold Third Row Seats
1. Pull up on the assist strap to lift the seat out of thestorage bin and push the seat forward until the anchors
latch.
Stowed Third Row Seat
Assist Straps
62 GETTING TO KNOW YOUR VEHICLE

2. Pulling strap “2” releases the seatback to return to itsfull upright position.
3. Raise the head restraint to its upright position.
WARNING!
• In a collision, you or others in your vehicle could be
injured if seats are not properly latched to their floor
attachments. Always be sure the seats are fully
latched.
(Continued)
WARNING! (Continued)
•Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
collision. Always make sure the head restraints are in
their upright positions when the seat is to be occu-
pied.
Stow ’n Go Seating
On vehicles equipped with Stow ’n Go seating, the second
and third row seats can be folded into the floor for
convenient storage.
Auto Advance ‘n Return — If Equipped
On vehicles equipped with the Auto Advance ‘n Return
feature, the front seat will move forward automatically to a
location that will allow the second row Stow ‘n Go seat
movement, without interference by the front seat. After the
second row seat is stowed, the front seat will move back to
the previous location once the Auto Advance ‘n Return
button is pushed again.
The Auto Advance ‘n Return feature is available to both the
front driver and passenger power seats, if equipped.
Strap “2”
3
GETTING TO KNOW YOUR VEHICLE 63

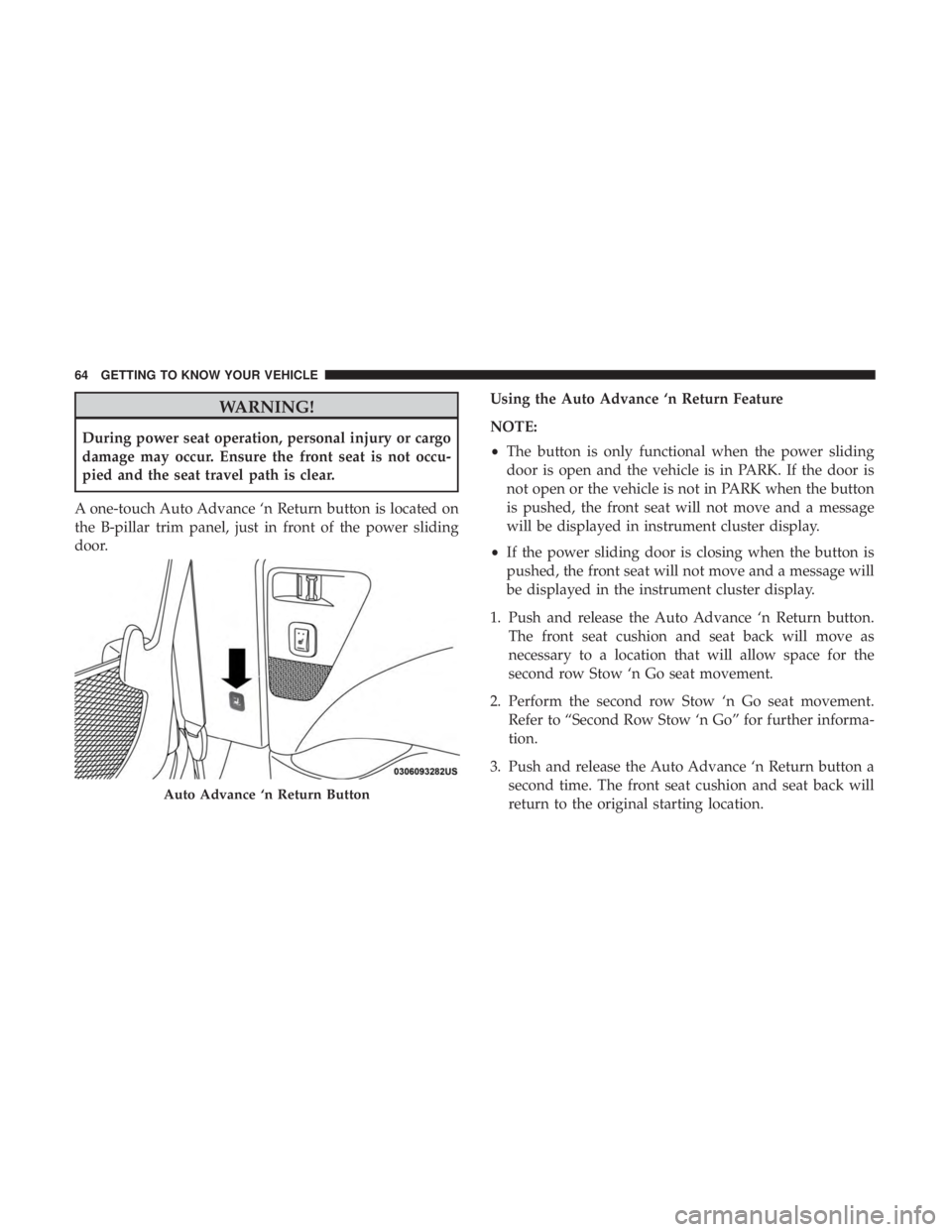

WARNING!
During power seat operation, personal injury or cargo
damage may occur. Ensure the front seat is not occu-
pied and the seat travel path is clear.
A one-touch Auto Advance ‘n Return button is located on
the B-pillar trim panel, just in front of the power sliding
door. Using the Auto Advance ‘n Return Feature
NOTE:
•
The button is only functional when the power sliding
door is open and the vehicle is in PARK. If the door is
not open or the vehicle is not in PARK when the button
is pushed, the front seat will not move and a message
will be displayed in instrument cluster display.
• If the power sliding door is closing when the button is
pushed, the front seat will not move and a message will
be displayed in the instrument cluster display.
1. Push and release the Auto Advance ‘n Return button. The front seat cushion and seat back will move as
necessary to a location that will allow space for the
second row Stow ‘n Go seat movement.
2. Perform the second row Stow ‘n Go seat movement. Refer to “Second Row Stow ‘n Go” for further informa-
tion.
3. Push and release the Auto Advance ‘n Return button a second time. The front seat cushion and seat back will
return to the original starting location.
Auto Advance ‘n Return Button
64 GETTING TO KNOW YOUR VEHICLE

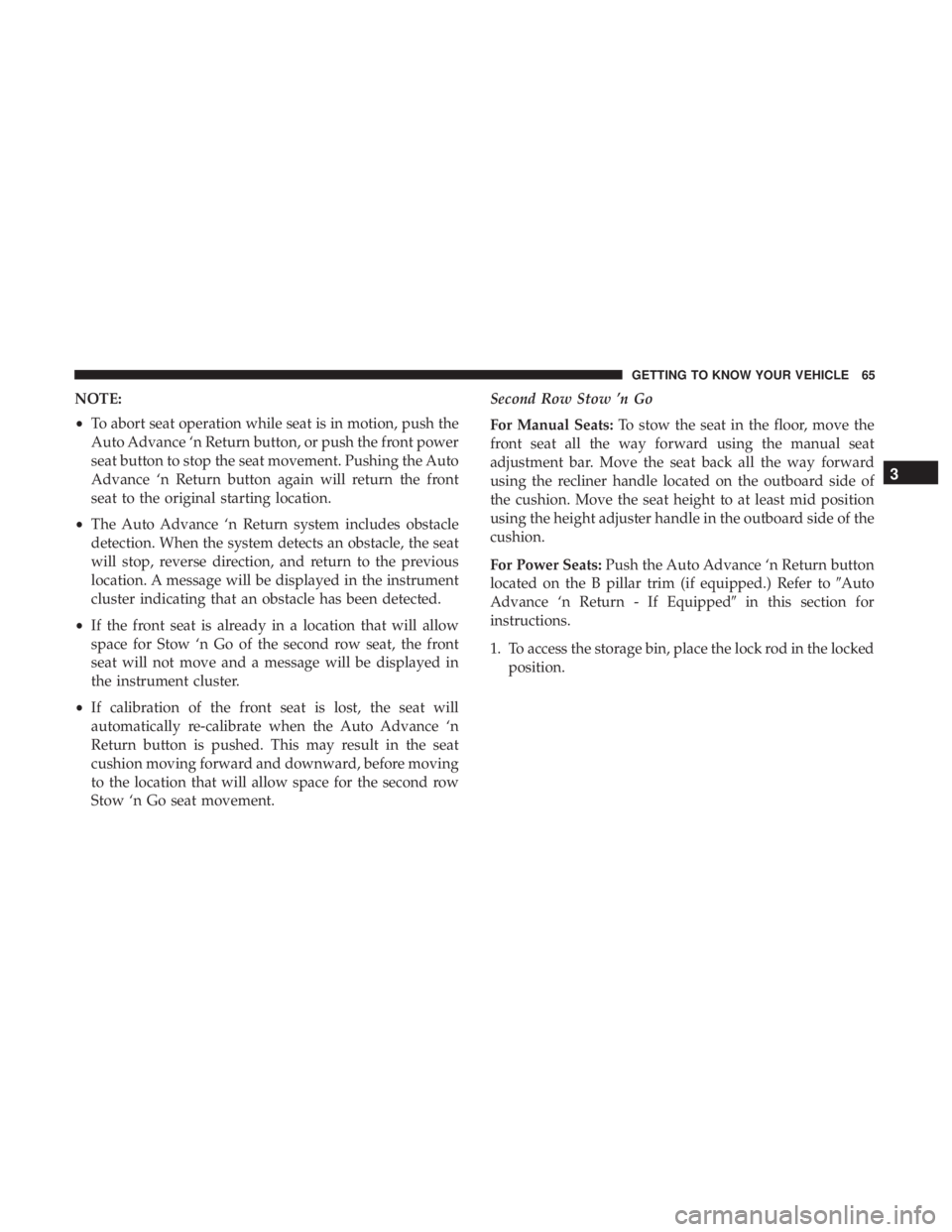

NOTE:
•To abort seat operation while seat is in motion, push the
Auto Advance ‘n Return button, or push the front power
seat button to stop the seat movement. Pushing the Auto
Advance ‘n Return button again will return the front
seat to the original starting location.
• The Auto Advance ‘n Return system includes obstacle
detection. When the system detects an obstacle, the seat
will stop, reverse direction, and return to the previous
location. A message will be displayed in the instrument
cluster indicating that an obstacle has been detected.
• If the front seat is already in a location that will allow
space for Stow ‘n Go of the second row seat, the front
seat will not move and a message will be displayed in
the instrument cluster.
• If calibration of the front seat is lost, the seat will
automatically re-calibrate when the Auto Advance ‘n
Return button is pushed. This may result in the seat
cushion moving forward and downward, before moving
to the location that will allow space for the second row
Stow ‘n Go seat movement. Second Row Stow ’n Go
For Manual Seats:
To stow the seat in the floor, move the
front seat all the way forward using the manual seat
adjustment bar. Move the seat back all the way forward
using the recliner handle located on the outboard side of
the cushion. Move the seat height to at least mid position
using the height adjuster handle in the outboard side of the
cushion.
For Power Seats: Push the Auto Advance ‘n Return button
located on the B pillar trim (if equipped.) Refer to Auto
Advance ‘n Return - If Equipped in this section for
instructions.
1. To access the storage bin, place the lock rod in the locked position.
3
GETTING TO KNOW YOUR VEHICLE 65

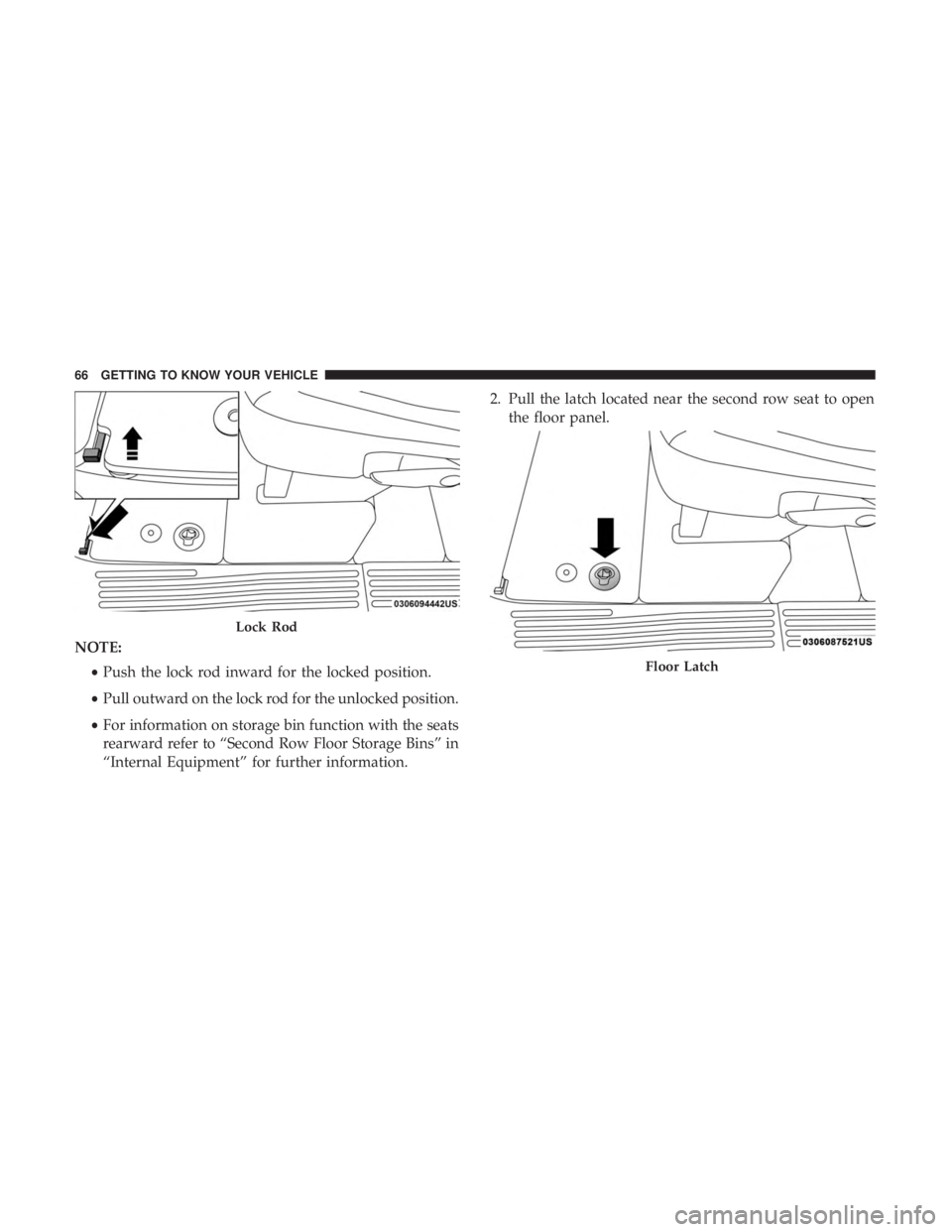

NOTE:•Push the lock rod inward for the locked position.
• Pull outward on the lock rod for the unlocked position.
• For information on storage bin function with the seats
rearward refer to “Second Row Floor Storage Bins” in
“Internal Equipment” for further information. 2. Pull the latch located near the second row seat to open
the floor panel.
Lock Rod
Floor Latch
66 GETTING TO KNOW YOUR VEHICLE

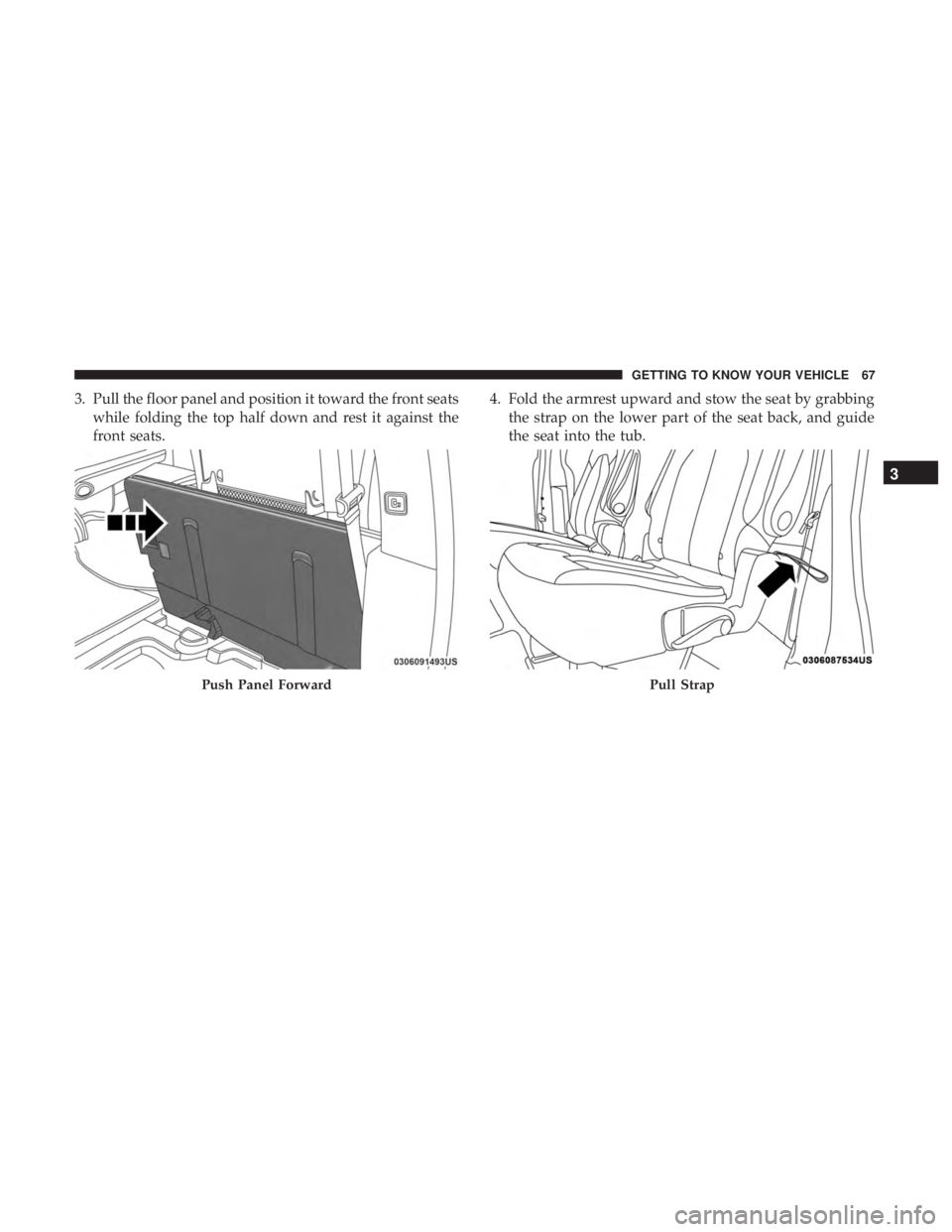

3. Pull the floor panel and position it toward the front seatswhile folding the top half down and rest it against the
front seats. 4. Fold the armrest upward and stow the seat by grabbing
the strap on the lower part of the seat back, and guide
the seat into the tub.
Push Panel ForwardPull Strap
3
GETTING TO KNOW YOUR VEHICLE 67

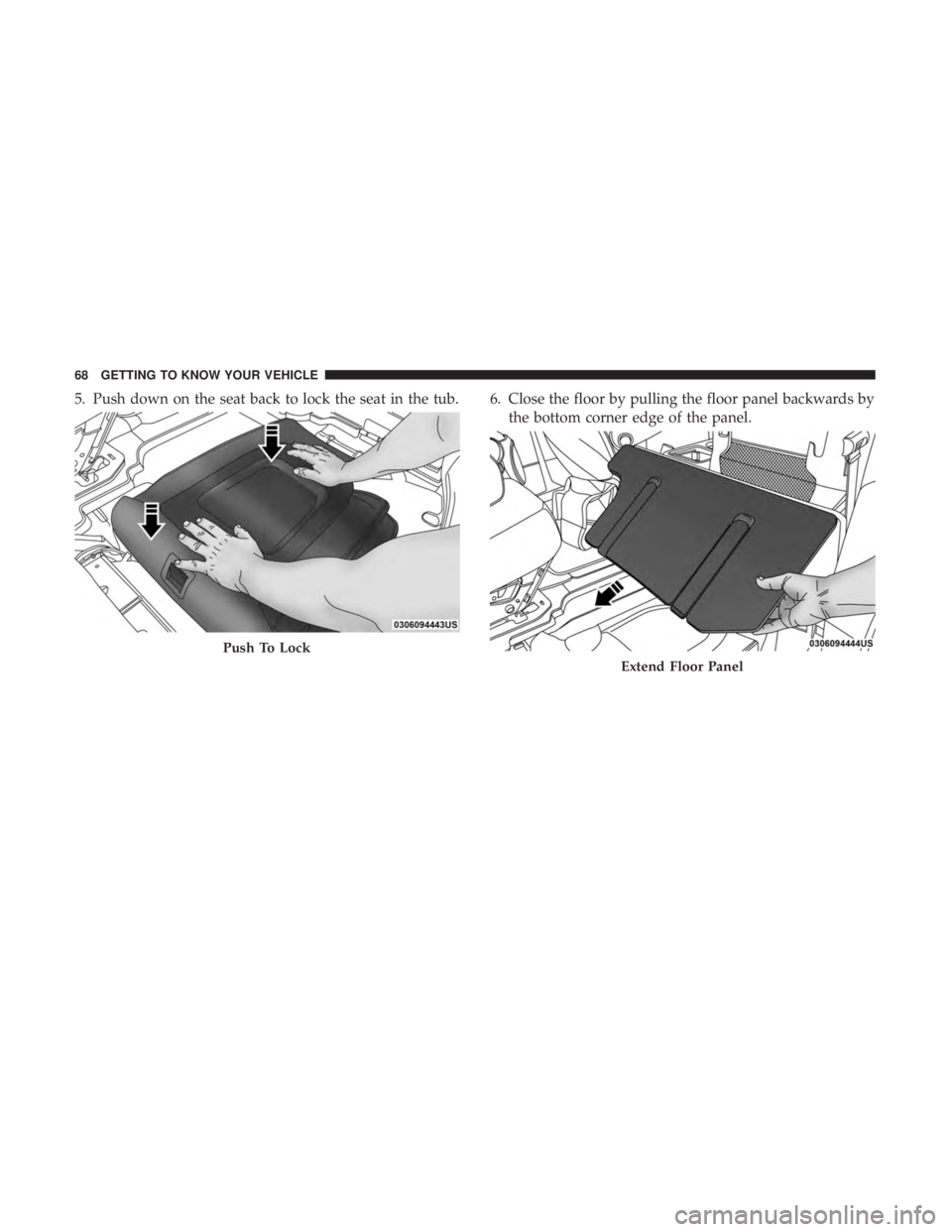

5. Push down on the seat back to lock the seat in the tub. 6. Close the floor by pulling the floor panel backwards bythe bottom corner edge of the panel.
Push To Lock
Extend Floor Panel
