▫Manual Sliding Side Door ..................43
▫ Power Sliding Side Door — If Equipped .......45
▫ Hands-Free Sliding Doors — If Equipped .......47
▫ Child Locks ............................48
 SEATS ................................50
▫ Manual Adjustment (Front Seats) — If Equipped .50
▫ Manual Adjustment (Rear Seats) ............52
▫ Power Adjustment (Front Seats) — If Equipped . .73
▫ Power Adjustment (Rear Seats) — If Equipped . .75
▫ Driver Memory Seat — If Equipped ..........79
▫ Heated Seats ...........................81
▫ Ventilated Seats — If Equipped ..............83
▫ Adjustable Armrest (Front Seats) — If Equipped . .84
▫ Plastic Grocery Bag Retainer Hooks ...........84
 HEAD RESTRAINTS ......................85
▫ Head Restraints — Front Seats ..............85
▫ Head Restraints — Second Row Quad Seats .....87▫
Head Restraints — Second Row Bench .........87
▫ Head Restraints — Third Row ..............88
 STEERING WHEEL .......................90
▫ Tilt/Telescoping Steering Column ............90
▫ Heated Steering Wheel — If Equipped ........91
 MIRRORS ..............................92
▫ Inside Day/Night Mirror — If Equipped ......92
▫ Automatic Dimming Mirror — If Equipped .....92
▫ Outside Mirrors ........................93
▫ Driver’s Outside Automatic Dimming Mirror — If
Equipped .............................93
▫ Conversation Mirror .....................94
▫ Power Mirrors — If Equipped ..............94
▫ Outside Mirrors Folding Feature ............95
▫ Heated Mirrors — If Equipped .............95
▫ Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped ...........95
▫ Power Folding Mirrors — If Equipped .........95
14 GETTING TO KNOW YOUR VEHICLE

NOTE:
•The seatback may lock into the fold flat position. Use the
recline lever to unlock the seatback.
• When returning the seat to the original position, the
headrest must be folded back to the original position.Easy Entry
Easy Tilt Seat — With Or Without Child Seat Installed
The second row seats can be tilted forward for easy entry
into the third row with or without a child seat installed.
1. Located in the seatback of the second row seat is a handle that provides easier access to the third row by
tilting the seat forward.
Fold Headrest To Upward Position
Easy Tilt Seat Handle
58 GETTING TO KNOW YOUR VEHICLE

Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatback bypushing the button on the guide and pushing the head
restraint down.
2. Pull release strap marked “1” to release the anchors. 3. Pull release strap marked “2” and tumble the seat
rearward into the storage bin.
Release Strap “1”
Strap “2”
3
GETTING TO KNOW YOUR VEHICLE 61

2. Pulling strap “2” releases the seatback to return to itsfull upright position.
3. Raise the head restraint to its upright position.
WARNING!
• In a collision, you or others in your vehicle could be
injured if seats are not properly latched to their floor
attachments. Always be sure the seats are fully
latched.
(Continued)
WARNING! (Continued)
•Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
collision. Always make sure the head restraints are in
their upright positions when the seat is to be occu-
pied.
Stow ’n Go Seating
On vehicles equipped with Stow ’n Go seating, the second
and third row seats can be folded into the floor for
convenient storage.
Auto Advance ‘n Return — If Equipped
On vehicles equipped with the Auto Advance ‘n Return
feature, the front seat will move forward automatically to a
location that will allow the second row Stow ‘n Go seat
movement, without interference by the front seat. After the
second row seat is stowed, the front seat will move back to
the previous location once the Auto Advance ‘n Return
button is pushed again.
The Auto Advance ‘n Return feature is available to both the
front driver and passenger power seats, if equipped.
Strap “2”
3
GETTING TO KNOW YOUR VEHICLE 63

3. Pull the floor panel and position it toward the front seatswhile folding the top half down and rest it against the
front seats. 4. Pull the strap located on the seat and pull the seat out of
the storage bin. Push the seat rearward making sure that
it locks into the floor. Fold the seatback into the upright
position and pull the headrest up.
NOTE: The seatback may be locked, if it is, it will be
necessary to use the recliner handle to unlock the back
before folding into the upright position.
Push Panel Forward
Pull Strap
3
GETTING TO KNOW YOUR VEHICLE 71

WARNING!(Continued)
•Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
collision. Always make sure the head restraints are in
their upright positions when the seat is to be occu-
pied.
Power Adjustment (Front Seats) — If Equipped
Some models may be equipped with eight-way power
seats for the driver and front passenger. The power seat
switches are located on the outboard side of the seat. The
switches control the movement of the seat cushion and the
seatback.
WARNING!
• Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
(Continued)
Driver Power Seat Switches
1 — Seat Switch
2 — Seatback Switch
3 — Lumbar Switch
3
GETTING TO KNOW YOUR VEHICLE 73

NOTE:
•The outer head restraints will lower automatically as
necessary when the power seat begins to move.
• The center head restraint raises and lowers manually but
will not lower automatically.
• The head restraint can also be lowered manually using
the pull strap located at the back of the seat. Refer to
Head Restraints - Third Row inHead Restraints for
further information.
The switch is only functional when the liftgate is open and
the vehicle is in PARK.
The rear switch bank allows multiple power folding and
unfolding positions for the third row seats.
Left and right third row seats can be folded individually or
together. The third row power folding seat adjusts to the
following positions using the switch bank located on the
left rear trim panel: To move the selected seat(s) to the normal (seated) position,
push and release the “Normal” button. The seat will
automatically stop when the Normal position is reached.
To move the selected seat(s) to the stow position, push and
release the “Stow” button. The seat will automatically stop
when the Stow position is reached.
Rear Panel Power Switch Bank
1 — Open To Normal
3 — Fold Forward/Rearward
2 — Stow 4 — Right/Left Seats/Both Seats
3
GETTING TO KNOW YOUR VEHICLE 77

HEAD RESTRAINTS
Head restraints are designed to reduce the risk of injury by
restricting head movement in the event of a rear impact.
Head restraints should be adjusted so that the top of the
head restraint is located above the top of your ear.
WARNING!
•All occupants, including the driver, should not oper-
ate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in
order to minimize the risk of neck injury in the event
of a crash.
• Head restraints should never be adjusted while the
vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.
Head Restraints — Front Seats
The front driver and passenger seats are equipped with
four-way head restraints.
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward. The front head restraints are also adjustable
forward and rearward. To adjust forward, pull the head
restraint toward the front of the vehicle to desired position.
To adjust the head restraint rearward, pull forward on the
head restraint to furthest forward position and head re-
straint will reset to furthest rearward position.
NOTE: To remove the head restraint, raise it as far as it can
go. Then, push the release button and the adjustment
button at the base of each post while pulling the head
restraint up. Seatback angle may need to be adjusted to
fully remove the head restraint. To reinstall the head
3
GETTING TO KNOW YOUR VEHICLE 85

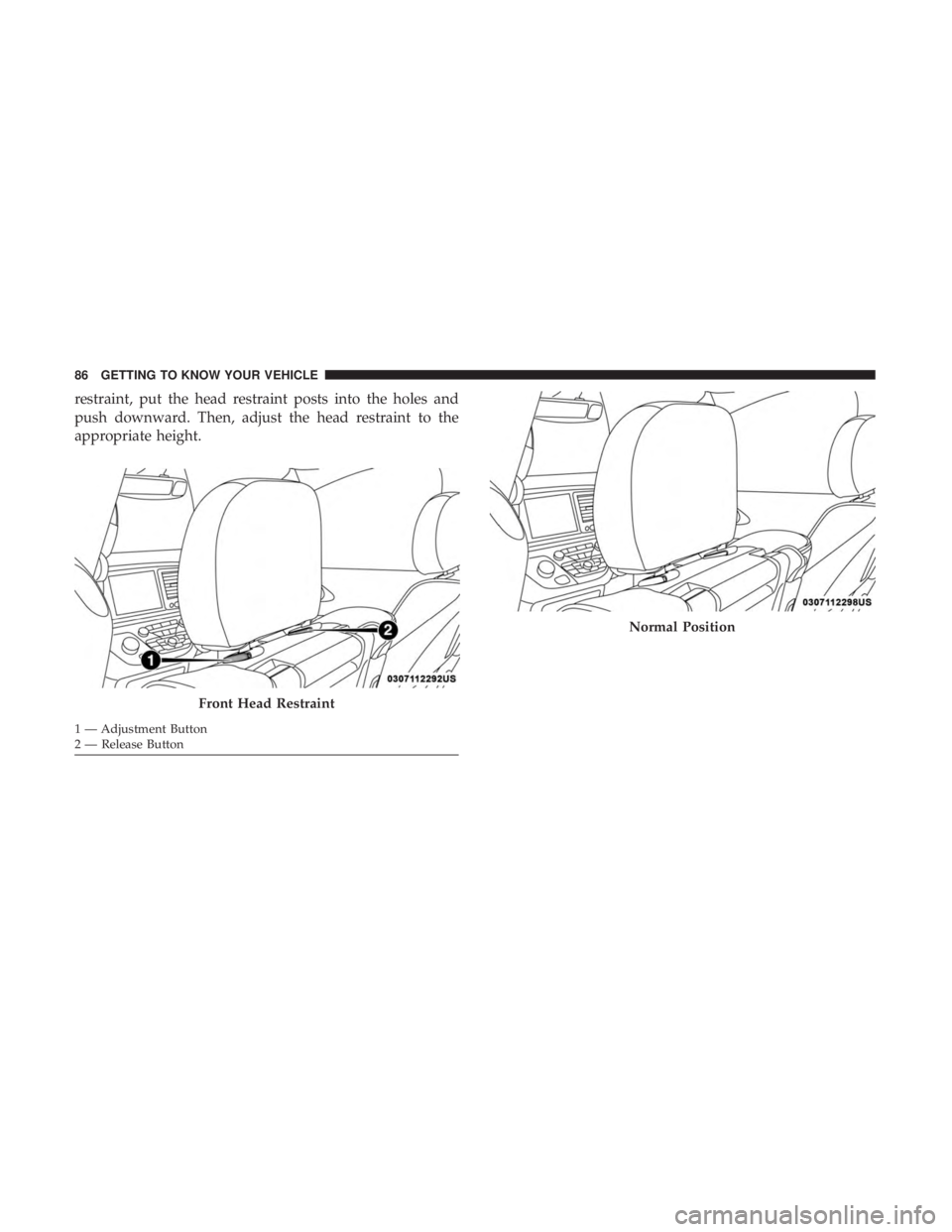

restraint, put the head restraint posts into the holes and
push downward. Then, adjust the head restraint to the
appropriate height.
Front Head Restraint
1 — Adjustment Button
2 — Release Button
Normal Position
86 GETTING TO KNOW YOUR VEHICLE

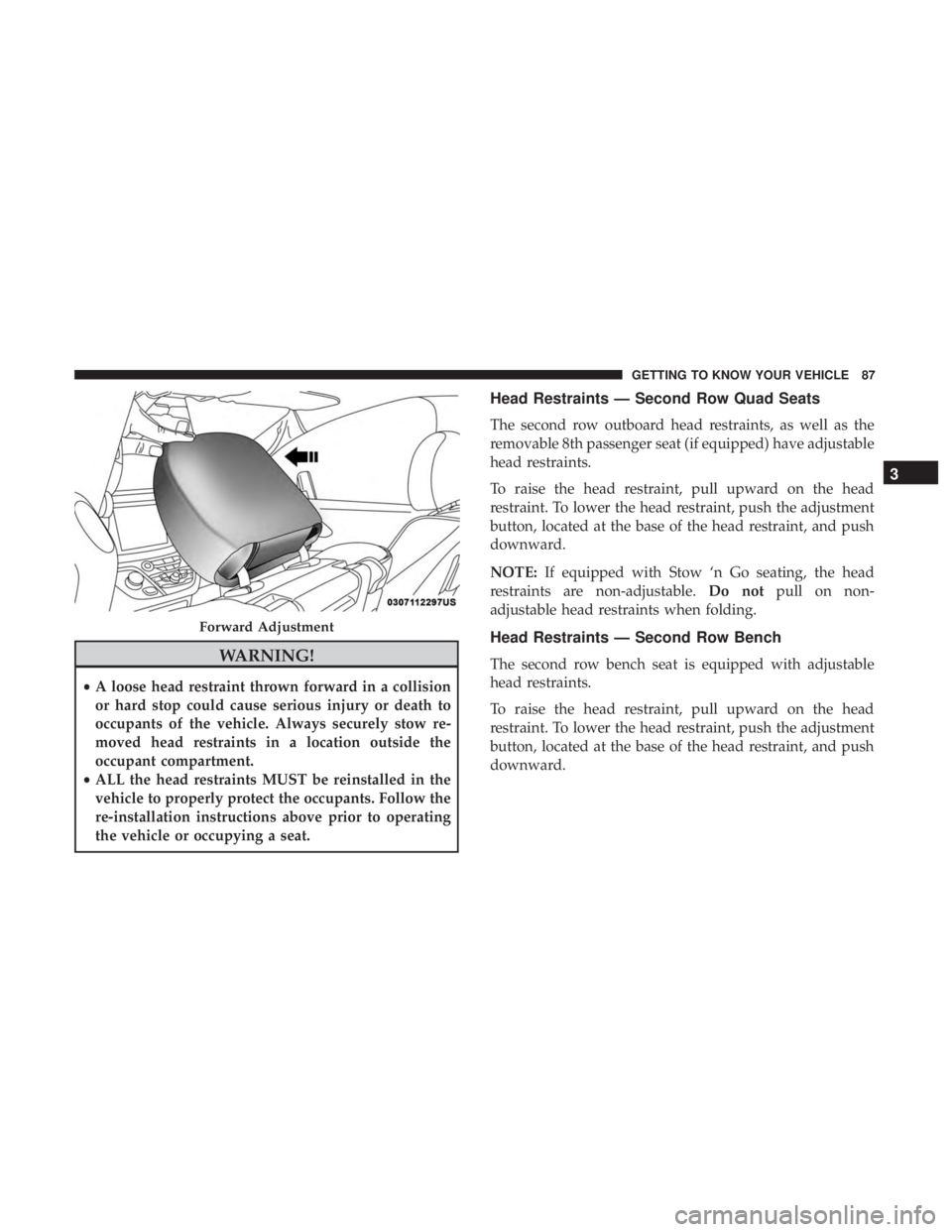

WARNING!
•A loose head restraint thrown forward in a collision
or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow re-
moved head restraints in a location outside the
occupant compartment.
• ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating
the vehicle or occupying a seat.
Head Restraints — Second Row Quad Seats
The second row outboard head restraints, as well as the
removable 8th passenger seat (if equipped) have adjustable
head restraints.
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward.
NOTE: If equipped with Stow ‘n Go seating, the head
restraints are non-adjustable. Do notpull on non-
adjustable head restraints when folding.
Head Restraints — Second Row Bench
The second row bench seat is equipped with adjustable
head restraints.
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward.
Forward Adjustment
3
