Page 201 of 620

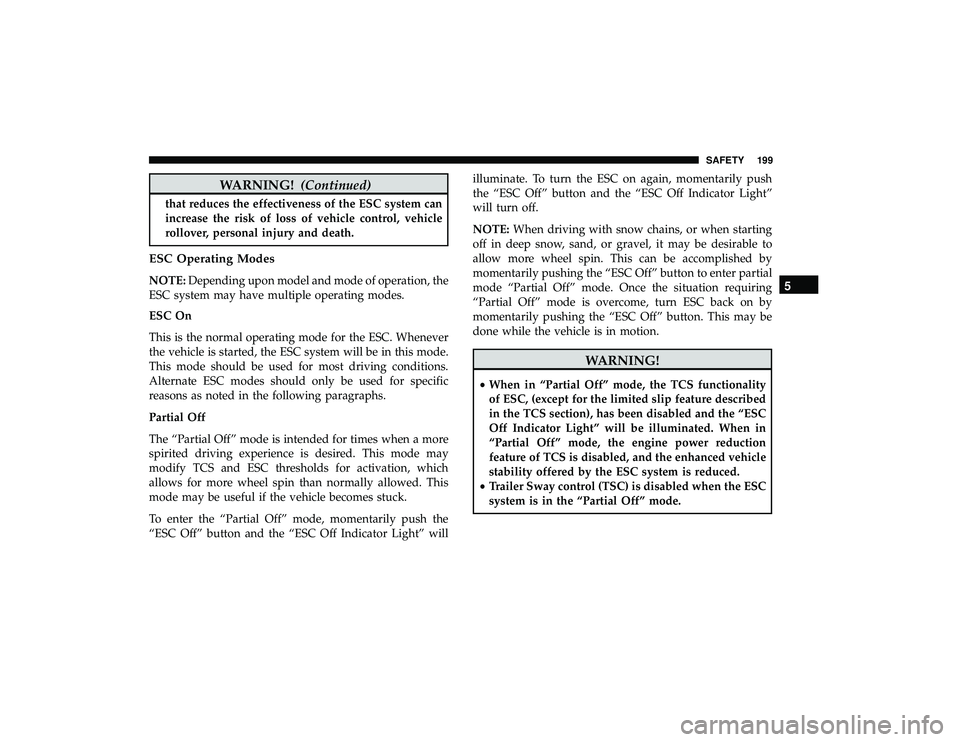

CHRYSLER PACIFICA HYBRID 2019  Owners Manual WARNING!(Continued)
that reduces the effectiveness of the ESC system can
increase the risk of loss of vehicle control, vehicle
rollover, personal injury and death.
ESC Operating Modes
NOTE:Depending u

Page 202 of 620

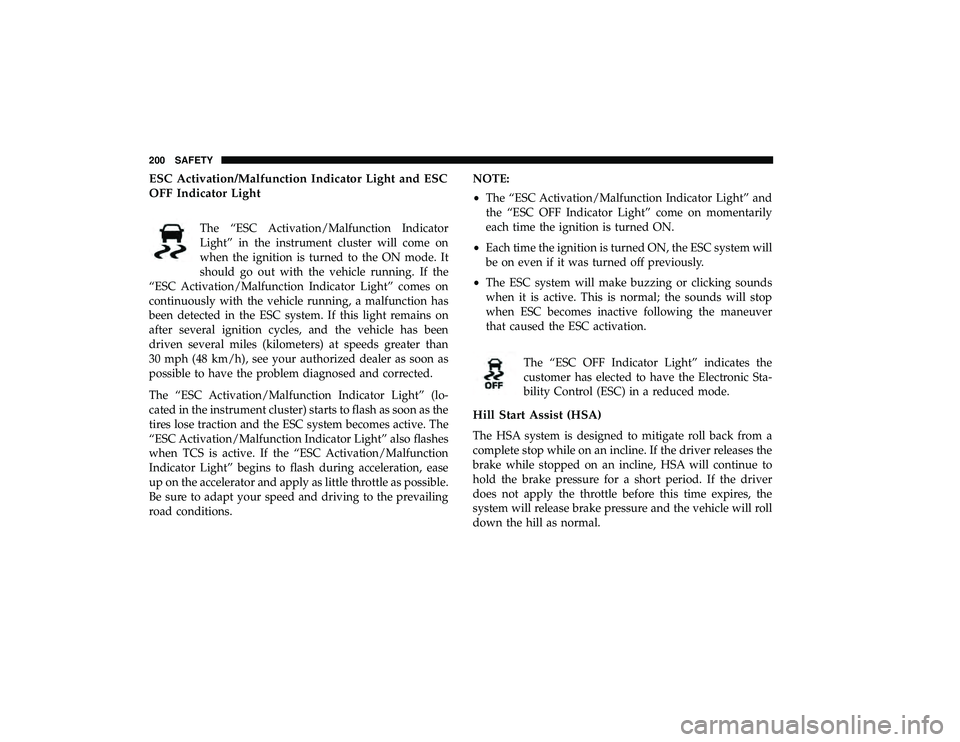

CHRYSLER PACIFICA HYBRID 2019  Owners Manual ESC Activation/Malfunction Indicator Light and ESC
OFF Indicator Light
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition is turned to the ON

Page 203 of 620

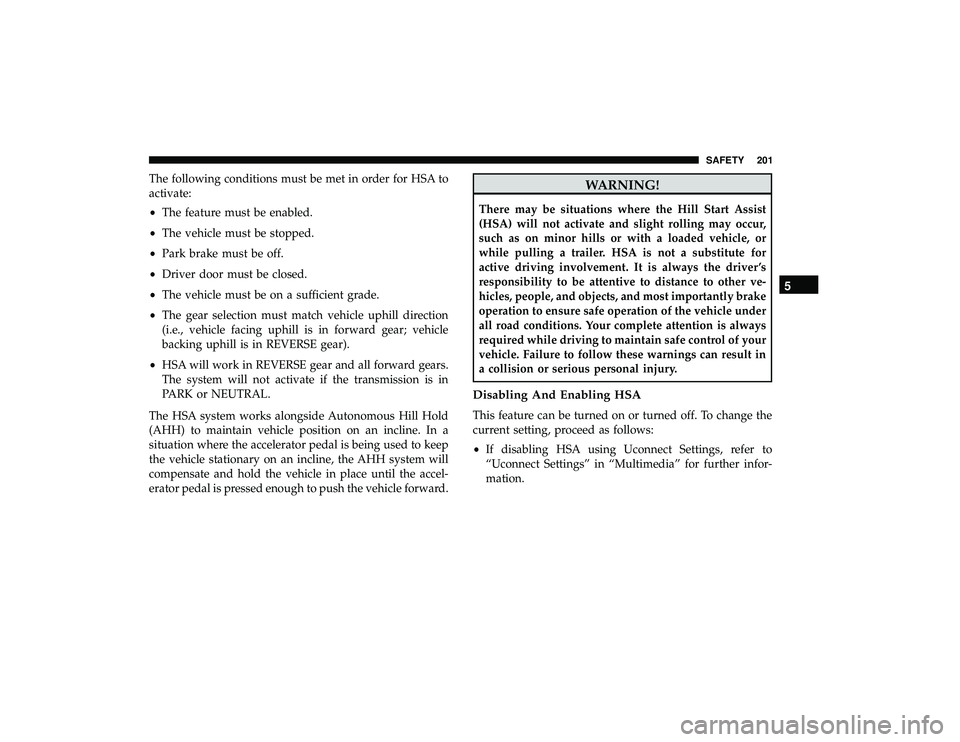

CHRYSLER PACIFICA HYBRID 2019  Owners Manual The following conditions must be met in order for HSA to
activate:
•The feature must be enabled.
• The vehicle must be stopped.
• Park brake must be off.
• Driver door must be closed.
• The

Page 204 of 620

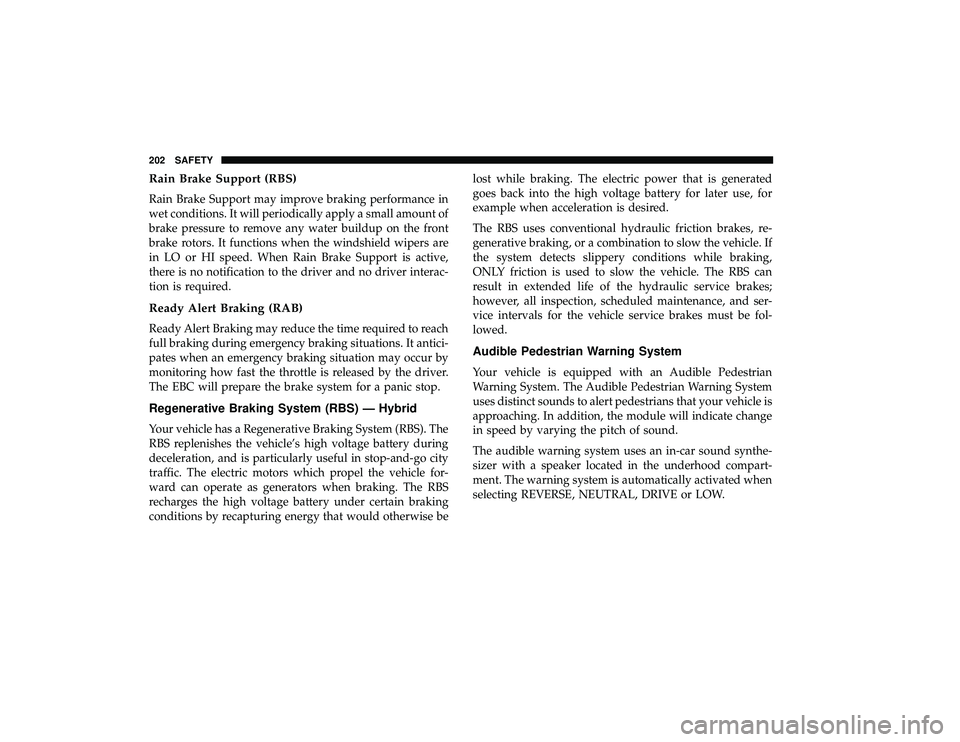

CHRYSLER PACIFICA HYBRID 2019  Owners Manual Rain Brake Support (RBS)
Rain Brake Support may improve braking performance in
wet conditions. It will periodically apply a small amount of
brake pressure to remove any water buildup on the front
brak

Page 205 of 620

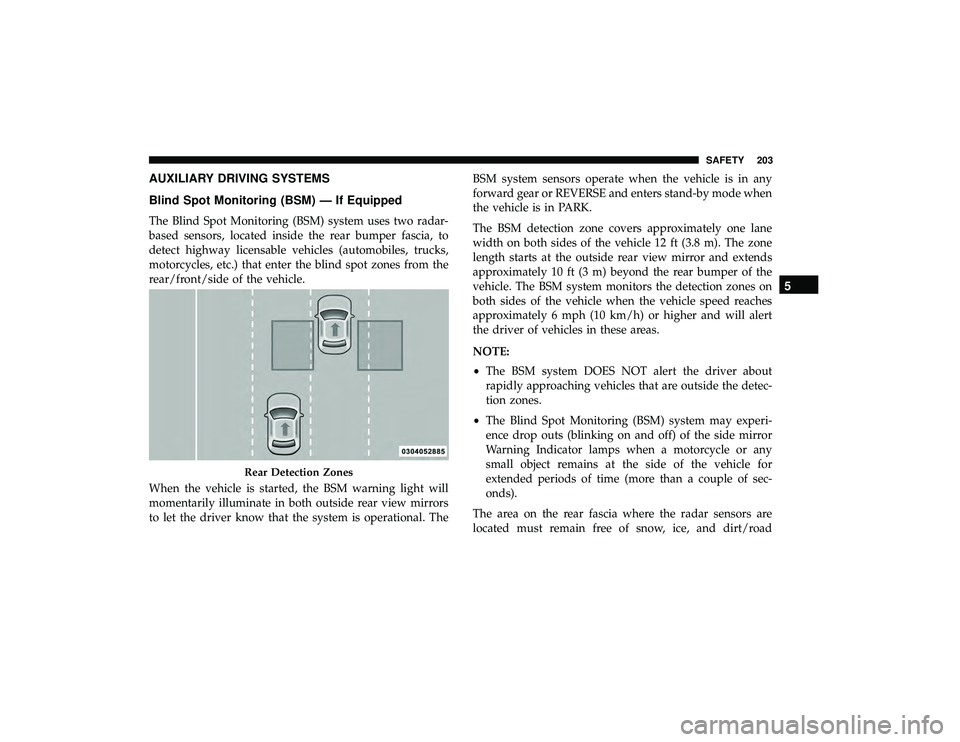

CHRYSLER PACIFICA HYBRID 2019  Owners Manual AUXILIARY DRIVING SYSTEMS
Blind Spot Monitoring (BSM) — If Equipped
The Blind Spot Monitoring (BSM) system uses two radar-
based sensors, located inside the rear bumper fascia, to
detect highway lic

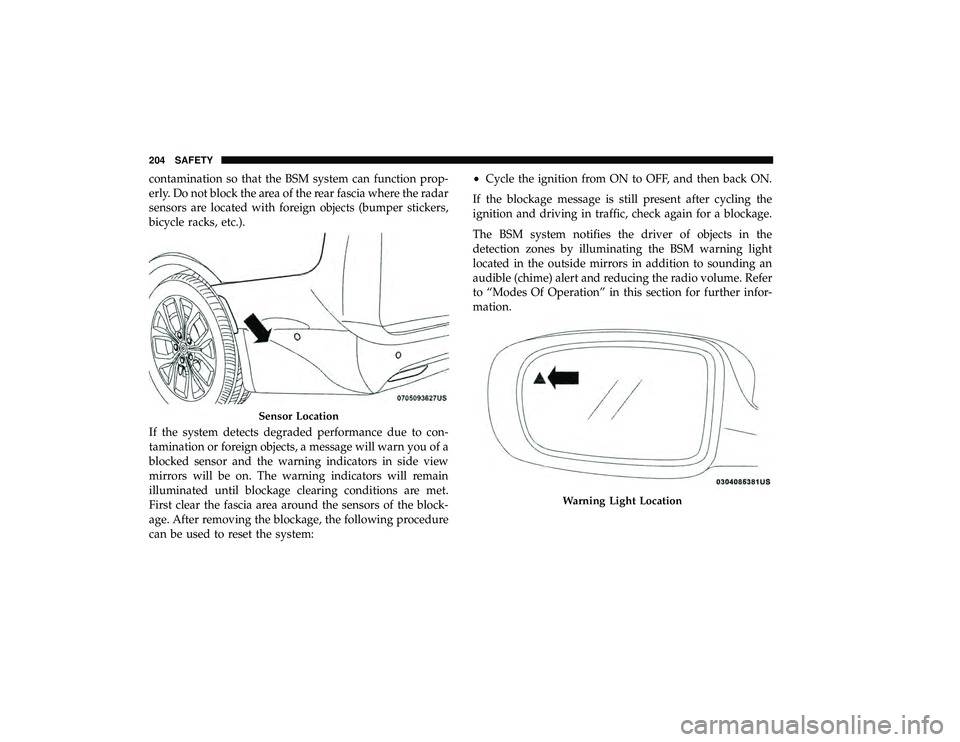

Page 206 of 620

CHRYSLER PACIFICA HYBRID 2019  Owners Manual contamination so that the BSM system can function prop-
erly. Do not block the area of the rear fascia where the radar
sensors are located with foreign objects (bumper stickers,
bicycle racks, etc.).

Page 207 of 620

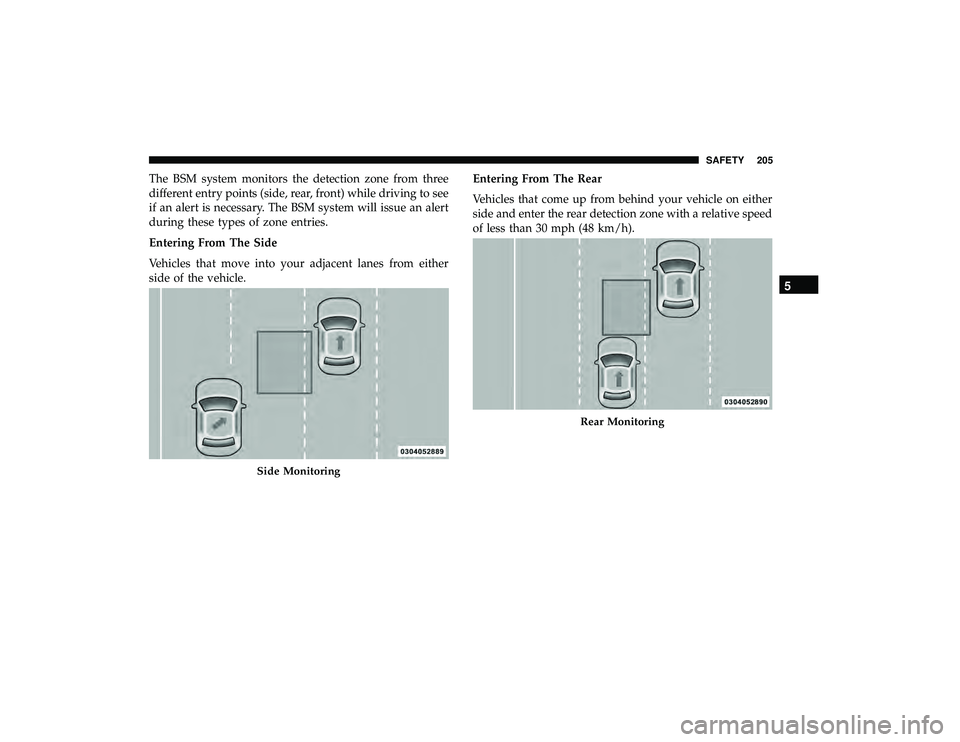

CHRYSLER PACIFICA HYBRID 2019  Owners Manual The BSM system monitors the detection zone from three
different entry points (side, rear, front) while driving to see
if an alert is necessary. The BSM system will issue an alert
during these types of

Page 208 of 620

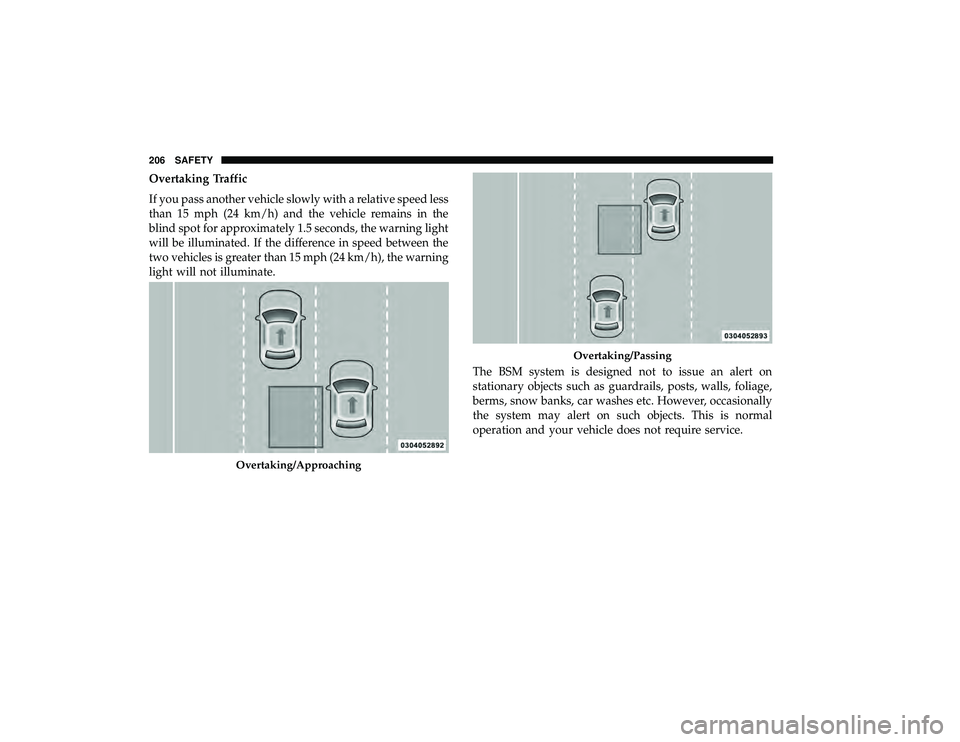

CHRYSLER PACIFICA HYBRID 2019  Owners Manual Overtaking Traffic
If you pass another vehicle slowly with a relative speed less
than 15 mph (24 km/h) and the vehicle remains in the
blind spot for approximately 1.5 seconds, the warning light
will b

Page 209 of 620

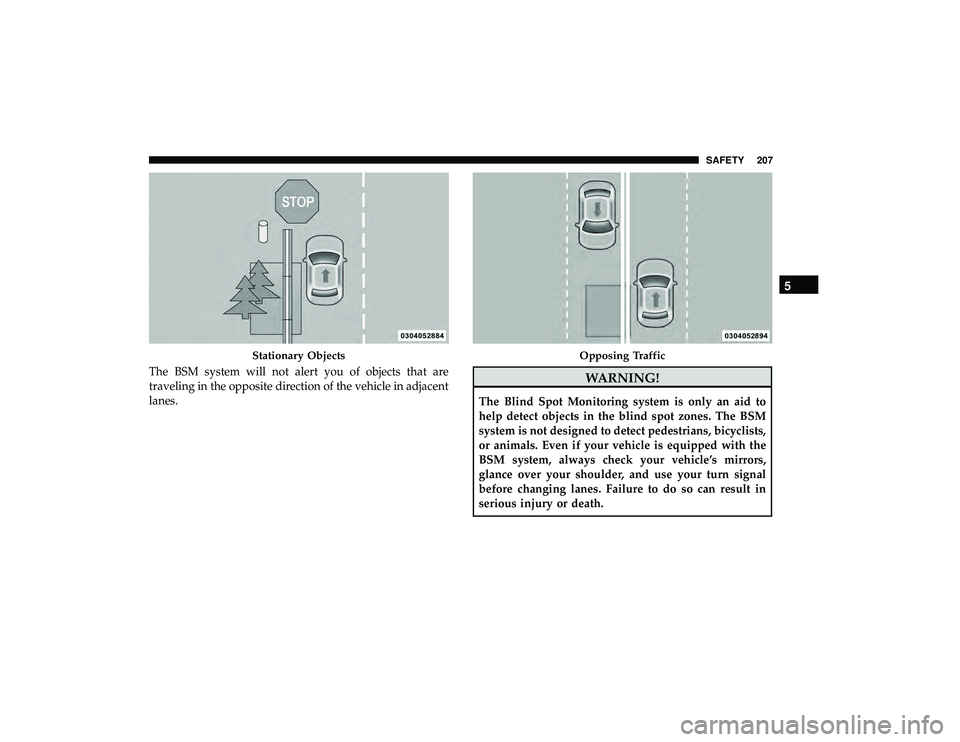

CHRYSLER PACIFICA HYBRID 2019  Owners Manual The BSM system will not alert you of objects that are
traveling in the opposite direction of the vehicle in adjacent
lanes.WARNING!
The Blind Spot Monitoring system is only an aid to
help detect objec

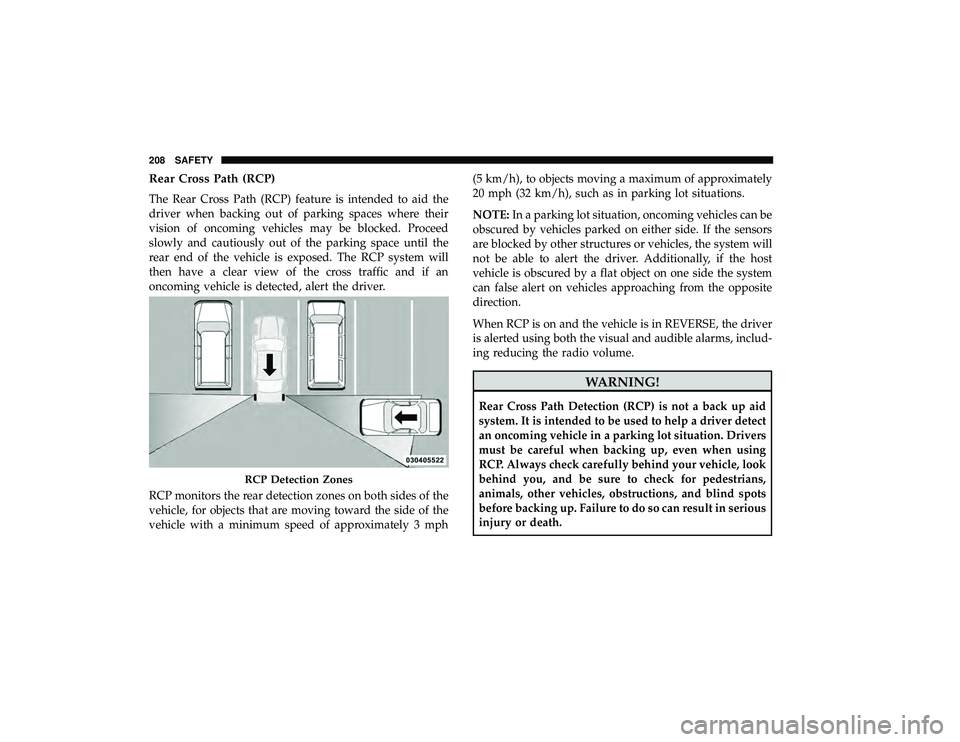

Page 210 of 620

CHRYSLER PACIFICA HYBRID 2019  Owners Manual Rear Cross Path (RCP)
The Rear Cross Path (RCP) feature is intended to aid the
driver when backing out of parking spaces where their
vision of oncoming vehicles may be blocked. Proceed
slowly and caut
