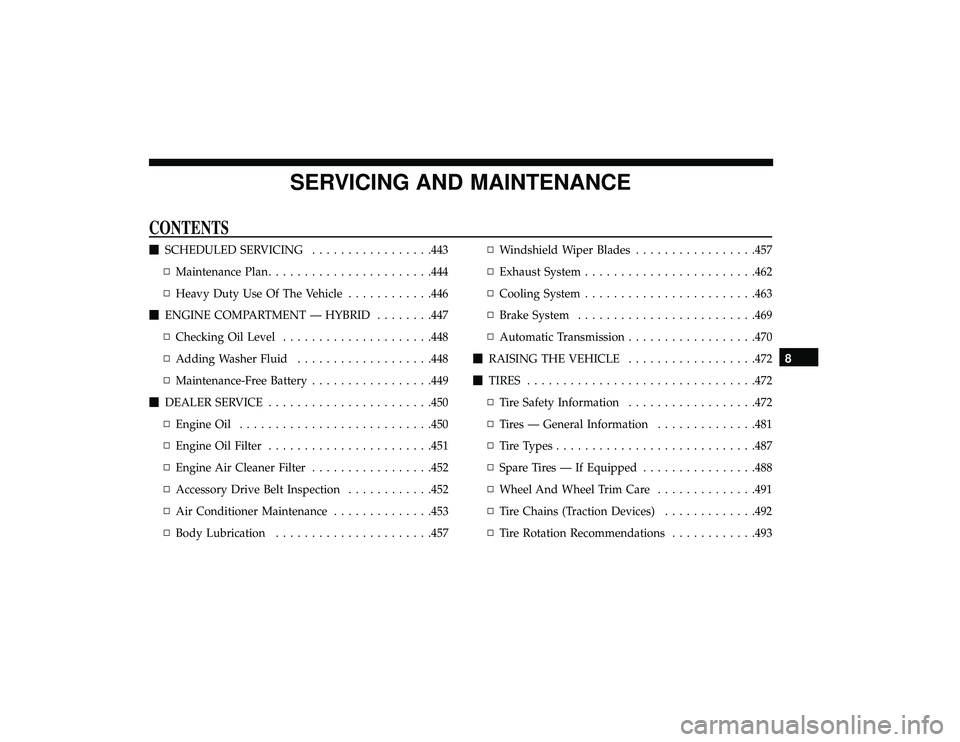

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................443
▫ Maintenance Plan ...................... .444
▫ Heavy Duty Use Of The Vehicle ............446
 ENGINE COMPARTMENT — HYBRID ........447
▫ Checking Oil Level .................... .448
▫ Adding Washer Fluid .................. .448
▫ Maintenance-Free Battery .................449
 DEALER SERVICE ...................... .450
▫ Engine Oil .......................... .450
▫ Engine Oil Filter ...................... .451
▫ Engine Air Cleaner Filter .................452
▫ Accessory Drive Belt Inspection ............452
▫ Air Conditioner Maintenance ..............453
▫ Body Lubrication ..................... .457▫
Windshield Wiper Blades .................457
▫ Exhaust System ....................... .462
▫ Cooling System ....................... .463
▫ Brake System ........................ .469
▫ Automatic Transmission ..................470
 RAISING THE VEHICLE ..................472
 TIRES ............................... .472
▫ Tire Safety Information ..................472
▫ Tires — General Information ..............481
▫ Tire Types ........................... .487
▫ Spare Tires — If Equipped ................488
▫ Wheel And Wheel Trim Care ..............491
▫ T

ire Chains (Traction Devices) .............492
▫ Tire Rotation Recommendations ............493
8

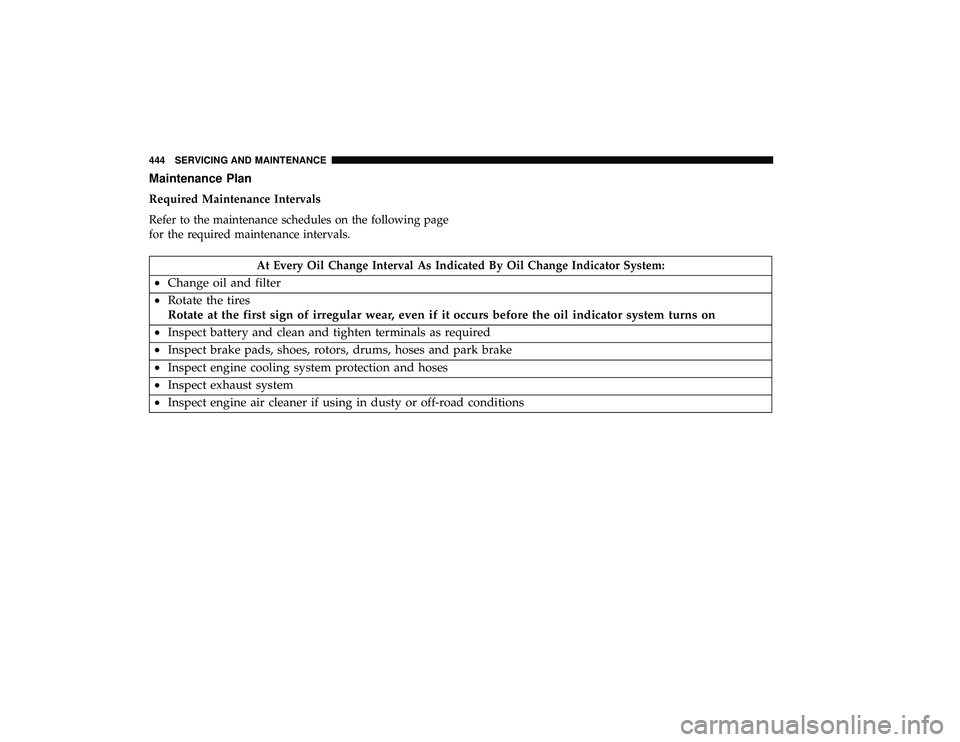

Maintenance Plan
Required Maintenance Intervals
Refer to the maintenance schedules on the following page
for the required maintenance intervals.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter
• Rotate the tires
Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system turns on
• Inspect battery and clean and tighten terminals as required
• Inspect brake pads, shoes, rotors, drums, hoses and park brake
• Inspect engine cooling system protection and hoses
• Inspect exhaust system
• Inspect engine air cleaner if using in dusty or off-road conditions
444 SERVICING AND MAINTENANCE

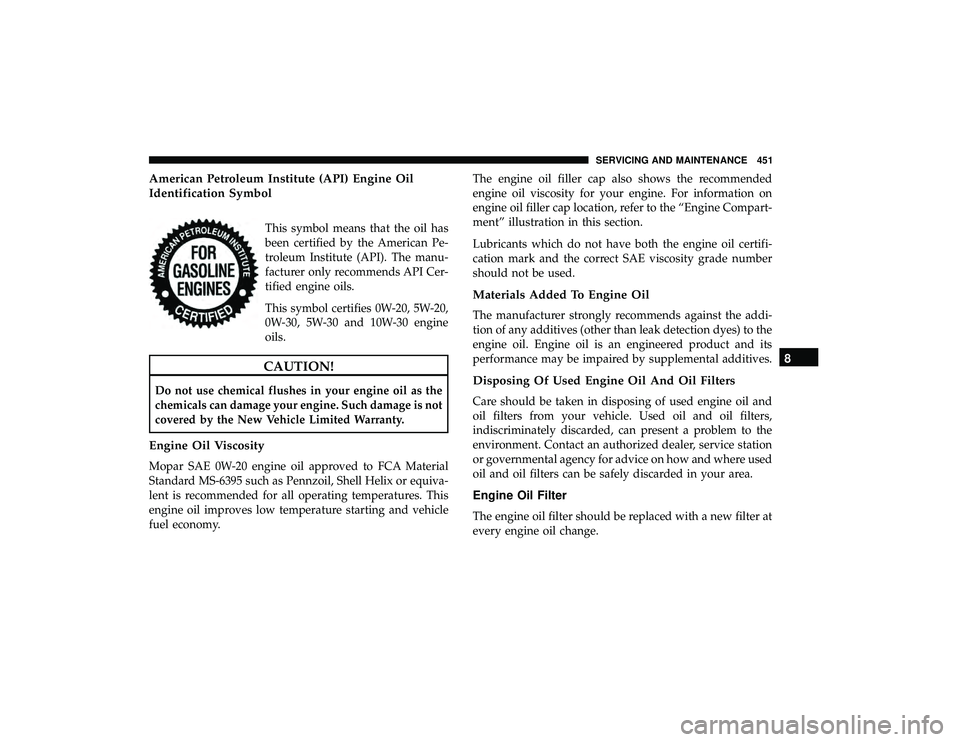

American Petroleum Institute (API) Engine Oil
Identification Symbol
This symbol means that the oil has
been certified by the American Pe-
troleum Institute (API). The manu-
facturer only recommends API Cer-
tified engine oils.
This symbol certifies 0W-20, 5W-20,
0W-30, 5W-30 and 10W-30 engine
oils.
CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is not
covered by the New Vehicle Limited Warranty.
Engine Oil Viscosity
Mopar SAE 0W-20 engine oil approved to FCA Material
Standard MS-6395 such as Pennzoil, Shell Helix or equiva-
lent is recommended for all operating temperatures. This
engine oil improves low temperature starting and vehicle
fuel economy.The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Compart-
ment” illustration in this section.
Lubricants which do not have both the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact an authorized dealer, service station
or governmental agency for advice on how and where used
oil and oil filters can be safely discarded in your area.
Engine Oil Filter
The engine oil filter should be replaced with a new filter at
every engine oil change.
8
SERVICING AND MAINTENANCE 451

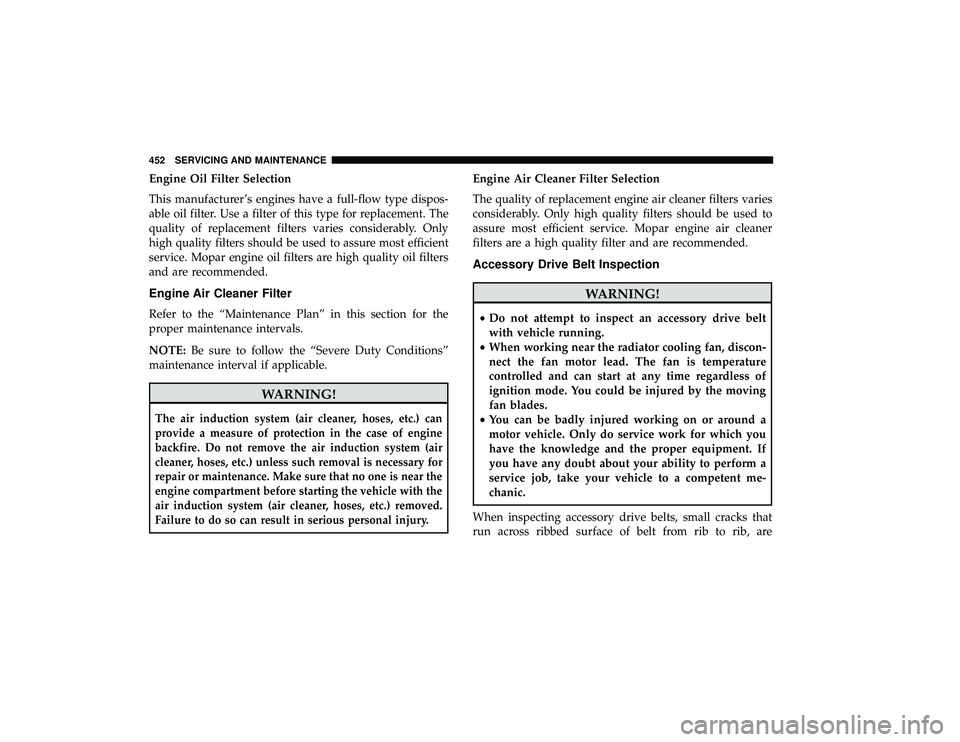

Engine Oil Filter Selection
This manufacturer’s engines have a full-flow type dispos-
able oil filter. Use a filter of this type for replacement. The
quality of replacement filters varies considerably. Only
high quality filters should be used to assure most efficient
service. Mopar engine oil filters are high quality oil filters
and are recommended.
Engine Air Cleaner Filter
Refer to the “Maintenance Plan” in this section for the
proper maintenance intervals.
NOTE:Be sure to follow the “Severe Duty Conditions”
maintenance interval if applicable.
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary for
repair or maintenance. Make sure that no one is near the
engine compartment before starting the vehicle with the
air induction system (air cleaner, hoses, etc.) removed.
Failure to do so can result in serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters varies
considerably. Only high quality filters should be used to
assure most efficient service. Mopar engine air cleaner
filters are a high quality filter and are recommended.
Accessory Drive Belt Inspection
WARNING!
• Do not attempt to inspect an accessory drive belt
with vehicle running.
• When working near the radiator cooling fan, discon-
nect the fan motor lead. The fan is temperature
controlled and can start at any time regardless of
ignition mode. You could be injured by the moving
fan blades.
• You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
When inspecting accessory drive belts, small cracks that
run across ribbed surface of belt from rib to rib, are
452 SERVICING AND MAINTENANCE

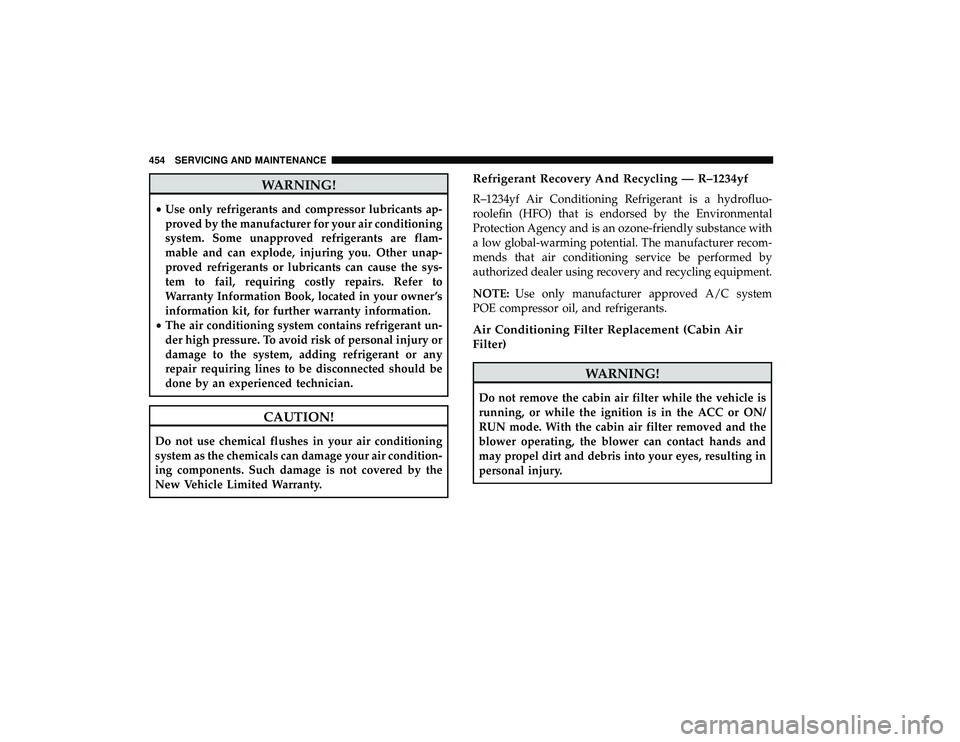

WARNING!
•Use only refrigerants and compressor lubricants ap-
proved by the manufacturer for your air conditioning
system. Some unapproved refrigerants are flam-
mable and can explode, injuring you. Other unap-
proved refrigerants or lubricants can cause the sys-
tem to fail, requiring costly repairs. Refer to
Warranty Information Book, located in your owner ’s
information kit, for further warranty information.
• The air conditioning system contains refrigerant un-
der high pressure. To avoid risk of personal injury or
damage to the system, adding refrigerant or any
repair requiring lines to be disconnected should be
done by an experienced technician.
CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condition-
ing components. Such damage is not covered by the
New Vehicle Limited Warranty.
Refrigerant Recovery And Recycling — R–1234yf
R–1234yf Air Conditioning Refrigerant is a hydrofluo-
roolefin (HFO) that is endorsed by the Environmental
Protection Agency and is an ozone-friendly substance with
a low global-warming potential. The manufacturer recom-
mends that air conditioning service be performed by
authorized dealer using recovery and recycling equipment.
NOTE: Use only manufacturer approved A/C system
POE compressor oil, and refrigerants.
Air Conditioning Filter Replacement (Cabin Air
Filter)
WARNING!
Do not remove the cabin air filter while the vehicle is
running, or while the ignition is in the ACC or ON/
RUN mode. With the cabin air filter removed and the
blower operating, the blower can contact hands and
may propel dirt and debris into your eyes, resulting in
personal injury.
454 SERVICING AND MAINTENANCE

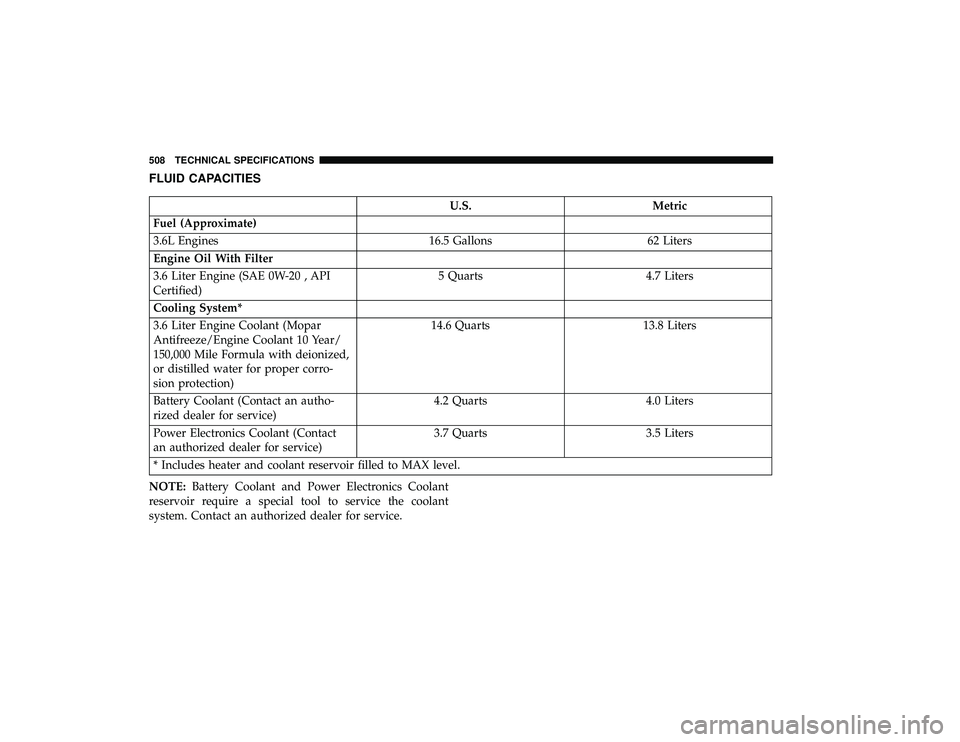

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
3.6L Engines 16.5 Gallons62 Liters
Engine Oil With Filter
3.6 Liter Engine (SAE 0W-20 , API
Certified) 5 Quarts
4.7 Liters
Cooling System*
3.6 Liter Engine Coolant (Mopar
Antifreeze/Engine Coolant 10 Year/
150,000 Mile Formula with deionized,
or distilled water for proper corro-
sion protection) 14.6 Quarts
13.8 Liters
Battery Coolant (Contact an autho-
rized dealer for service) 4.2 Quarts
4.0 Liters
Power Electronics Coolant (Contact
an authorized dealer for service) 3.7 Quarts
3.5 Liters
* Includes heater and coolant reservoir filled to MAX level.
NOTE: Battery Coolant and Power Electronics Coolant
reservoir require a special tool to service the coolant
system. Contact an authorized dealer for service.
508 TECHNICAL SPECIFICATIONS

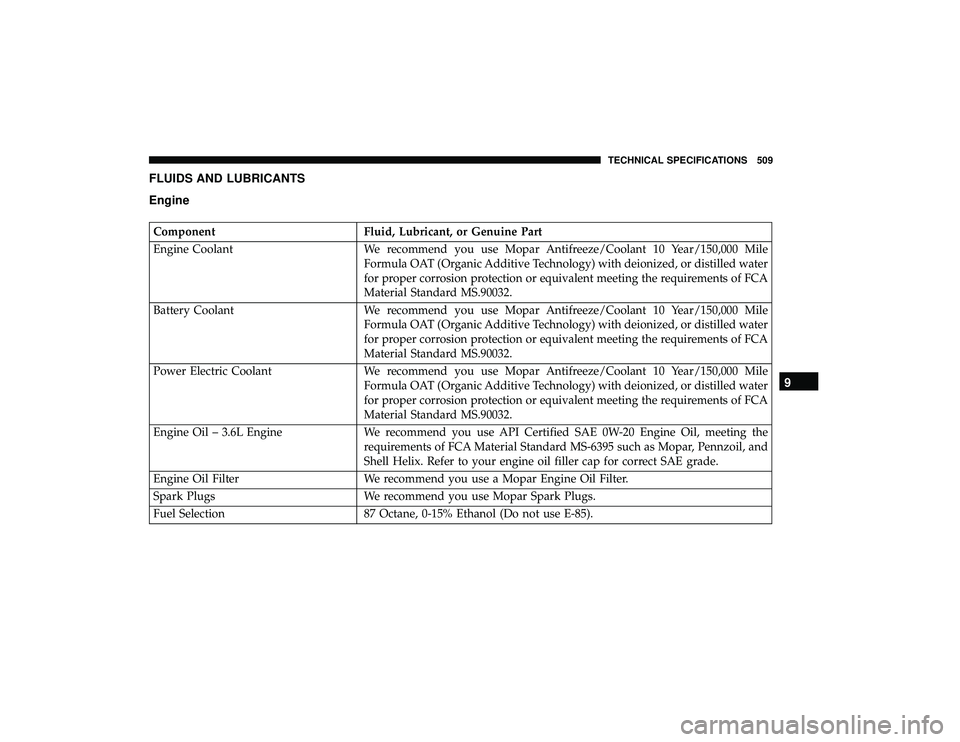

FLUIDS AND LUBRICANTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) with deionized, or distilled water
for proper corrosion protection or equivalent meeting the requirements of FCA
Material Standard MS.90032.
Battery Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) with deionized, or distilled water
for proper corrosion protection or equivalent meeting the requirements of FCA
Material Standard MS.90032.
Power Electric Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) with deionized, or distilled water
for proper corrosion protection or equivalent meeting the requirements of FCA
Material Standard MS.90032.
Engine Oil – 3.6L Engine We recommend you use API Certified SAE 0W-20 Engine Oil, meeting the
requirements of FCA Material Standard MS-6395 such as Mopar, Pennzoil, and
Shell Helix. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use a Mopar Engine Oil Filter.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection 87 Octane, 0-15% Ethanol (Do not use E-85).
9
TECHNICAL SPECIFICATIONS 509

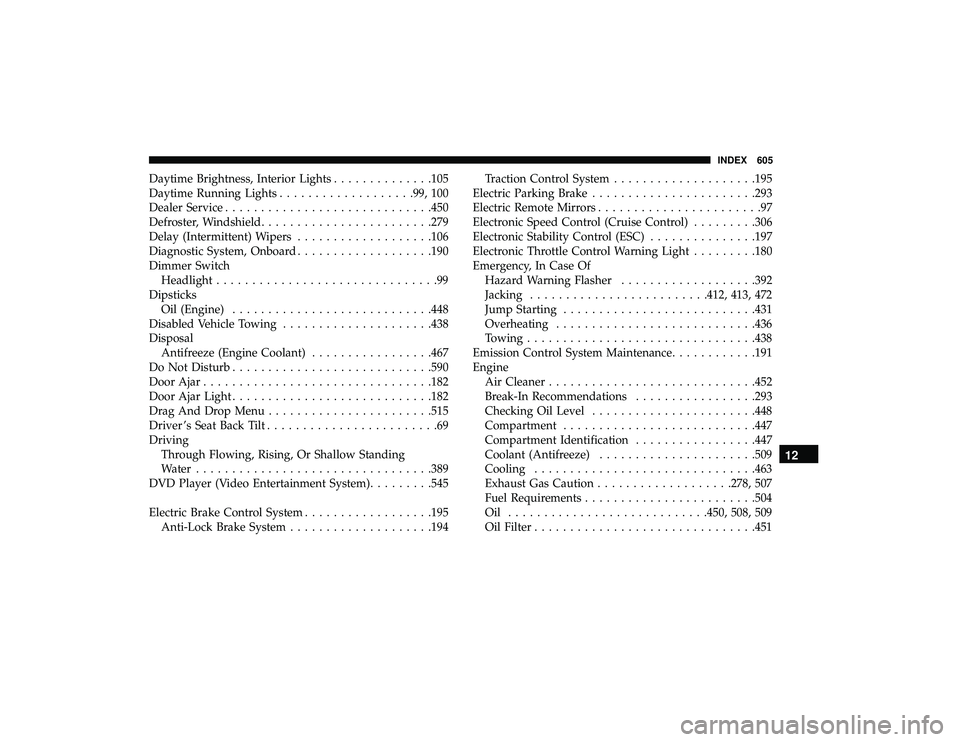

Daytime Brightness, Interior Lights..............105
Daytime Running Lights .................. .99, 100
Dealer Service ............................ .450
Defroster, Windshield ....................... .279
Delay (Intermittent) Wipers ...................106
Diagnostic System, Onboard ...................190
Dimmer Switch Headlight ...............................99
Dipsticks Oil (Engine) ........................... .448
Disabled Vehicle Towing .................... .438
Disposal Antifreeze (Engine Coolant) .................467
Do Not Disturb ........................... .590
Door Ajar ............................... .182
Door Ajar Light ........................... .182
Drag And Drop Menu ...................... .515
Driver ’s Seat Back Tilt ........................69
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .389
DVD Player (Video Entertainment System) .........545
Electric Brake Control System ..................195
Anti-Lock Brake System ................... .194Traction Control System
................... .195
Electric Parking Brake ...................... .293
Electric Remote Mirrors .......................97
Electronic Speed Control (Cruise Control) .........306
Electronic Stability Control (ESC) ...............197
Electronic Throttle Control Warning Light .........180
Emergency, In Case Of Hazard Warning Flasher ...................392
Jacking ........................ .412, 413, 472
Jump Starting .......................... .431
Overheating ........................... .436
Towing ............................... .438
Emission Control System Maintenance ............191
Engine Air Cleaner ............................ .452
Break-In Recommendations .................293
Checking

Oil Level ...................... .448
Compartment .......................... .447
Compartment Identification .................447
Coolant (Antifreeze) ..................... .509
Cooling .............................. .463
Exhaust Gas Caution .................. .278, 507
Fuel Requirements ....................... .504
Oil ........................... .450, 508, 509
Oil Filter .............................. .451
12
INDEX 605

Oil Selection........................ .450, 508
Overheating ........................... .436
Starting .............................. .286
Engine Oil Viscosity ........................ .451
Engine Oil Viscosity Chart ....................451
Enhanced Accident Response Feature .........253, 440
Ethanol ................................. .505
Exhaust Gas Cautions ................... .278, 507
Exhaust System ....................... .278, 462
Exterior Lighting ....................... .99, 401
Exterior Lights .................. .99, 281, 397, 401
Filters Air Cleaner ............................ .452
Air Conditioning .................... .123, 454
Engine Oil ......................... .451, 509
Engine Oil Disposal ...................... .451
Flashers Hazard Warning ........................ .392
Turn Signals .................. .99, 188, 281, 400
Flash-To-Pass .......................... .99, 101
Fluid, Brake ..............................511
Fluid Capacities ........................... .508
Fluid Leaks .............................. .281Fluid Level Checks
Brake ................................ .469
Fluids And Lubricants ...................... .509
Fog Lights ......................... .99, 102, 402
Fog Lights, Service ........................ .402
Fold-Flat Seats .............................69
Forward Collision Warning ....................210
Freeing A Stuck Vehicle ..................... .436
Front Position Light ........................ .401
Fuel ................................... .504
Additives ............................. .505
Clean Air ............................. .505
Ethanol .............................. .505
Filler Cap (Gas Cap) ..................... .381
Gasoline .............................. .504
Materials

Added ........................ .505
Methanol ............................. .505
Octane Rating ....................... .504, 509
Requirements .......................... .504
Specifications .......................... .509
Tank Capacity .......................... .508
Fuses .................................. .403
Garage Door Opener (HomeLink) ...............139
Gas Cap (Fuel Filler Cap) .................... .381
606 INDEX

Filter............................. .451, 509
Filter Disposal .......................... .451
Identification Logo ...................... .451
Materials Added To ...................... .451
Pressure Warning Light ................... .181
Recommendation .................... .450, 508
Viscosity .......................... .451, 508
Oil Filter, Change ......................... .451
Oil Filter, Selection ......................... .451
Oil Pressure Light ......................... .181
Onboard Diagnostic System ...................190
Operating Precautions ...................... .190
Operator Manual Owner’s Manual .......................5,600
Outside Rearview Mirrors ...................95, 96
Overheating, Engine ....................... .436
Owner ’s Manual (Operator Manual) ...............5
Paint Care ............................... .496
Parking Brake ............................ .293
ParkSense System, Rear .................. .328, 338
Pedestrian Warning System ...................202
Personalized Main Menu .................... .515
Pets ................................... .277
Pinch Protection .......................... .130Placard, Tire And Loading Information
...........477
Power Brakes ............................... .502
Inverter .............................. .152
Mirrors ................................97
Outlet (Auxiliary Electrical Outlet) ............149
Seats ..................................80
Steering .............................. .305
Power Seats Down .................................81
Forward ................................81
Rearward ...............................81
Up....................................81
Power Sliding Door On / Off Switch ...................... .63, 135
Pregnant Women And Seat Belts ................231
Pr

eparation For Jacking ..................... .412
Pretensioners Seat Belts ............................. .232
Quiet Vehicle Pedestrian Module (QVPM) .........202
Radial Ply Tires ........................... .483
Radiator Cap (Coolant Pressure Cap) .............467

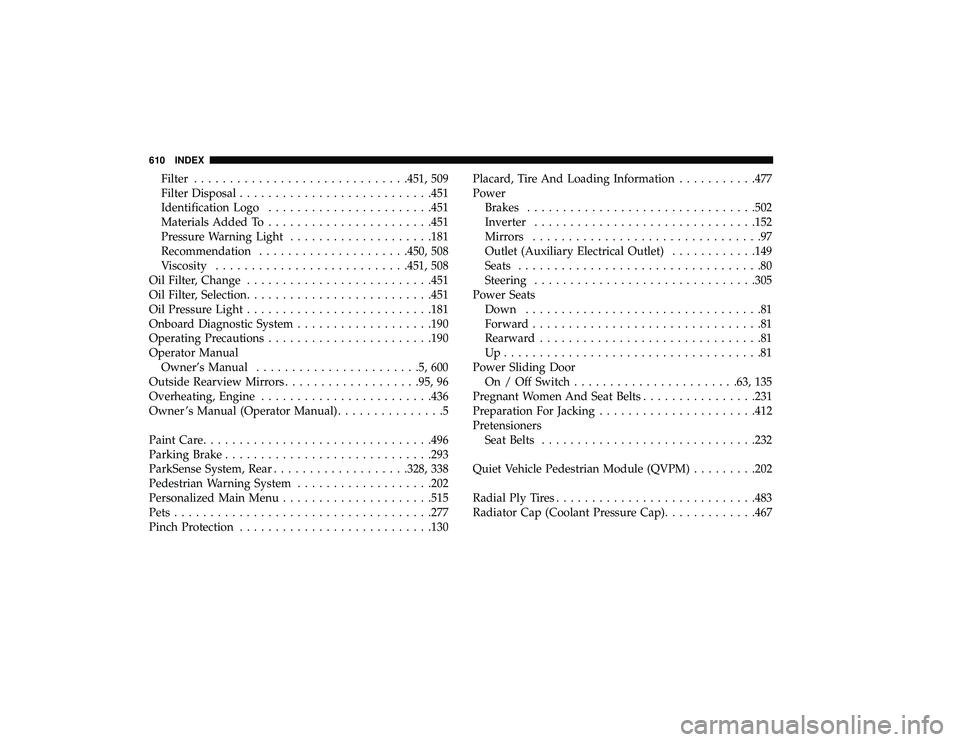

610 INDEX
