oil reset CHRYSLER PACIFICA HYBRID 2019 Owners Manual

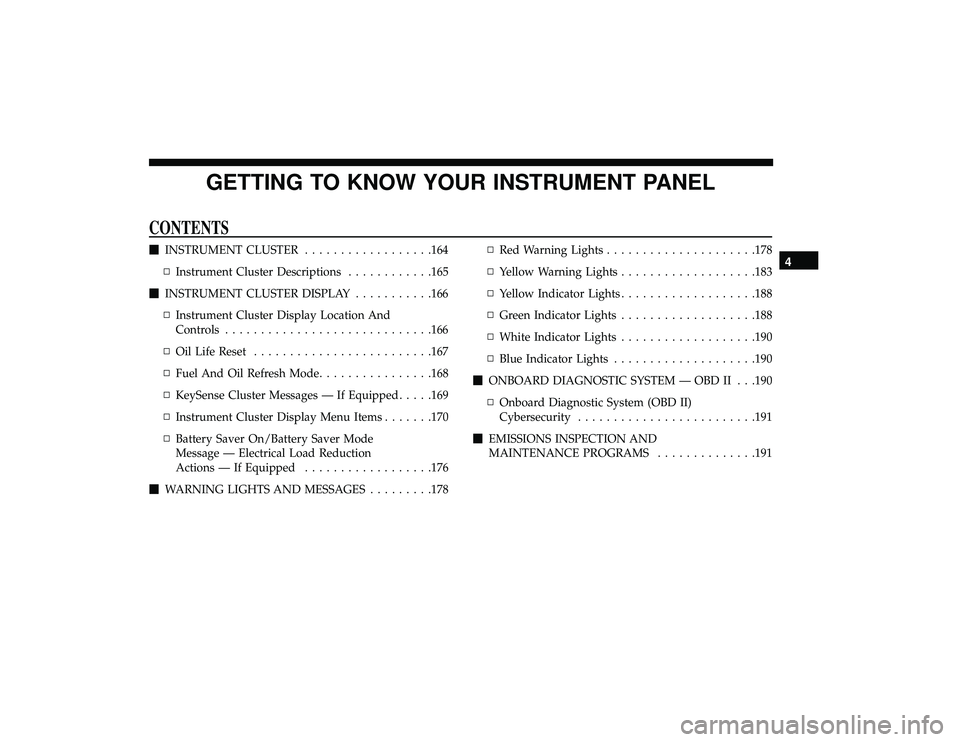

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ..................164
▫ Instrument Cluster Descriptions ............165
 INSTRUMENT CLUSTER DISPLAY ...........166
▫ Instrument Cluster Display Location And
Controls ............................ .166
▫ Oil Life Reset ........................ .167
▫ Fuel And Oil Refresh Mode ................168
▫ KeySense Cluster Messages — If Equipped .....169
▫ Instrument Cluster Display Menu Items .......170
▫ Battery Saver On/Battery Saver Mode
Message — Electrical Load Reduction
Actions — If Equipped ..................176
 WARNING LIGHTS AND MESSAGES .........178▫
Red Warning Lights .................... .178
▫ Yellow Warning Lights .................. .183
▫ Yellow Indicator Lights .................. .188
▫ Green Indicator Lights .................. .188
▫ White Indicator Lights .................. .190
▫ Blue Indicator Lights ................... .190
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .190
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .191
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS ..............1914

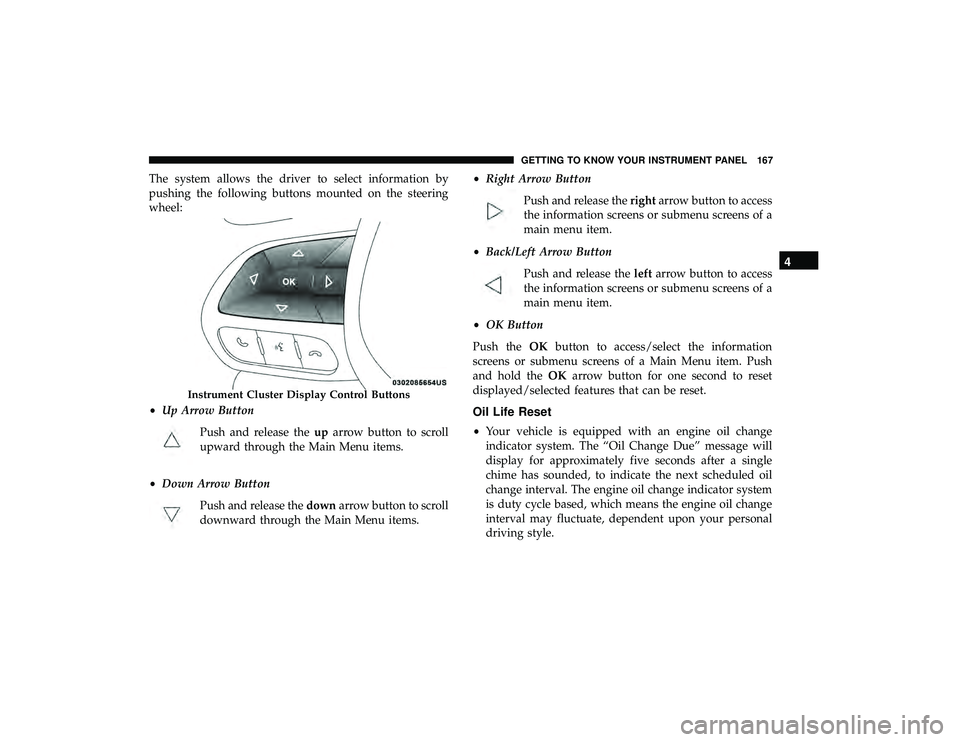

The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:
•Up Arrow Button
Push and release the uparrow button to scroll
upward through the Main Menu items.
• Down Arrow Button
Push and release the downarrow button to scroll
downward through the Main Menu items. •
Right Arrow Button
Push and release the rightarrow button to access
the information screens or submenu screens of a
main menu item.
• Back/Left Arrow Button
Push and release the leftarrow button to access
the information screens or submenu screens of a
main menu item.
• OK Button
Push the OKbutton to access/select the information
screens or submenu screens of a Main Menu item. Push
and hold the OKarrow button for one second to reset
displayed/selected features that can be reset.
Oil Life Reset
• Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Due” message will
display for approximately five seconds after a single
chime has sounded, to indicate the next scheduled oil
change interval. The engine oil change indicator system
is duty cycle based, which means the engine oil change
interval may fluctuate, dependent upon your personal
driving style.
Instrument Cluster Display Control Buttons
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 167

•Unless reset, this message will continue to display each
time the ignition is cycled to the ON/RUN position.
• To reset the oil change indicator, refer to the following
procedure:
Without pressing the brake pedal, push the ENGINE
START/STOP button and place the ignition in the ON/
RUN position (do not start the vehicle.)
NOTE: This procedure should only be performed after
scheduled maintenance is completed. Resetting oil life
other than when associated with a scheduled maintenance
may result in severe engine damage.
1. Push the OKbutton to enter the instrument cluster
display menu screen.
2. Push and release the downarrow button to access the
”Oil Life” menu screen.
3. Push the leftarrow button or right arrow button to
access the “Vehicle Info” submenu.
4. Hold the OKbutton to reset the “Oil Life” to 100%.
5. Push the uparrow button to exit the instrument cluster
display menu screen. Secondary Method For Oil Life Reset Procedure
1. Without pushing the brake pedal, place the ignition in
the ON/RUN position (do not start the engine).
2. Fully press the accelerator pedal, slowly, three times within ten seconds.
3. Without pushing the brake pedal, place the ignition in the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Fuel And Oil Refresh Mode
Since it is possible to operate this vehicle for extended
periods of time without running the gas engine, the fuel
within the vehicle’s fuel tank can become stale or the
engine oil’s lubricating properties can be reduced. To
prevent engine and/or fuel system damage due to stale
fuel, as well as, maintaining internal engine lubrication,
this vehicle is equipped with a “Fuel and Oil Refresh
Mode”.
168 GETTING TO KNOW YOUR INSTRUMENT PANEL

•If one or more tires have low pressure, “Inflate Tire To
XX” is displayed with the vehicle ICON, and the tire
pressure values in each corner of the ICON with the
pressure value of the low tire displayed in a different
color than the other tire pressure value.
• If the Tire Pressure system requires service, “Service Tire
Pressure System” is displayed.
• Tire PSI is an information only function and cannot be
reset.
• Refer to “Tire Pressure Monitoring System (TPMS)”
under “Safety” for further information.
• Coolant Temperature
Displays the actual coolant temperature.
• Oil Temperature
Displays the actual oil temperature.
• Oil Pressure
Displays the actual oil pressure.
• Battery Voltage
Displays the actual battery voltage. •
Engine Hours — If Equipped
Displays the number of hours of engine operation.
• Oil Life
To reset the Oil Life, you must hold the OK button. The
“Hold OK to Reset” instruction will be displayed at all
times, but the following conditions will need to be met in
order to reset Oil Life:
The vehicle must be off
The ignition must be in the ON/RUN position
• If the conditions are met, holding the OKbutton will
reset the gauge and the numeric display will return to
100%.
• If the conditions are not met, a popup message will
display for 5 seconds, describing the required condi-
tions, and then the Oil Life screen will reappear.
NOTE: This procedure should only be performed after
scheduled maintenance is completed. Resetting oil life
other than when associated with a scheduled maintenance
may result in severe engine damage.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 171

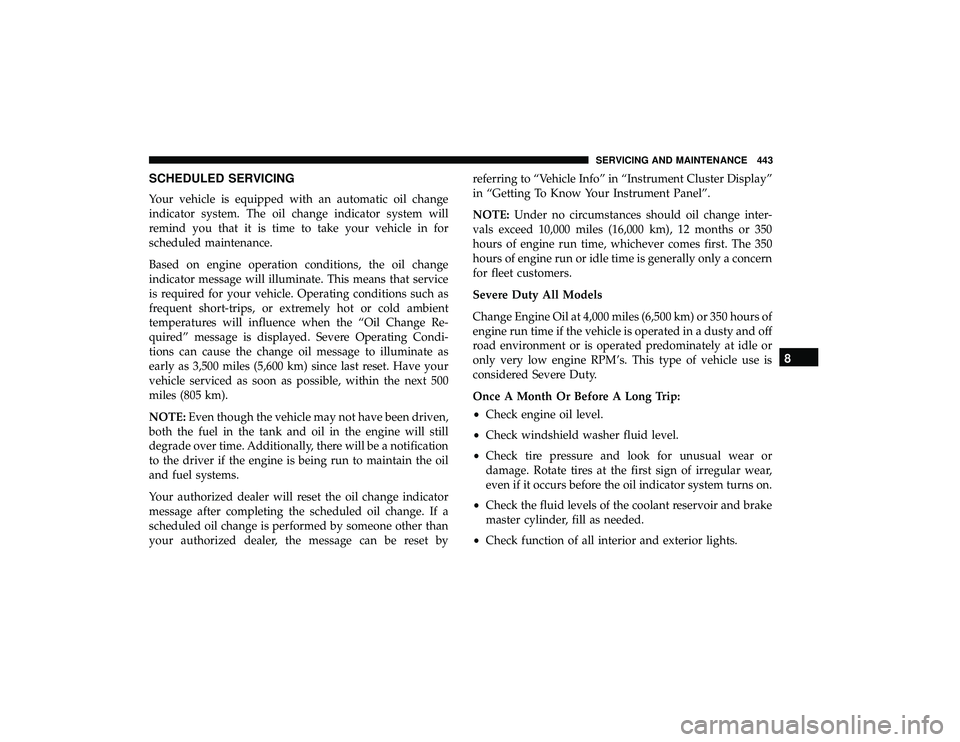

SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, or extremely hot or cold ambient
temperatures will influence when the “Oil Change Re-
quired” message is displayed. Severe Operating Condi-
tions can cause the change oil message to illuminate as
early as 3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next 500
miles (805 km).
NOTE:Even though the vehicle may not have been driven,
both the fuel in the tank and oil in the engine will still
degrade over time. Additionally, there will be a notification
to the driver if the engine is being run to maintain the oil
and fuel systems.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by referring to “Vehicle Info” in “Instrument Cluster Display”
in “Getting To Know Your Instrument Panel”.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), 12 months or 350
hours of engine run time, whichever comes first. The 350
hours of engine run or idle time is generally only a concern
for fleet customers.
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) or 350 hours of
engine run time if the vehicle is operated in a dusty and off
road environment or is operated predominately at idle or
only very low engine RPM’s. This type of vehicle use is
considered Severe Duty.
Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns on.
• Check the fluid levels of the coolant reservoir and brake
master cylinder, fill as needed.
• Check function of all interior and exterior lights.
8
SERVICING AND MAINTENANCE 443

Load Floor, Cargo......................... .138
Loading Vehicle ....................... .138, 384
Tires................................. .477
Load Shed Battery Saver Mode .................176
Load Shed Battery Saver On ...................176
Load Shed Electrical Load Reduction .............176
Load Shed Intelligent Battery Sensor .............176
Low Tire Pressure System .................... .213
Lubrication, Body ......................... .457
Luggage Carrier .......................... .154
Lug Nuts/Bolts ........................... .503
Maintenance ............................. .130
Maintenance Free Battery .................... .449
Maintenance Schedule ...................... .443
Malfunction Indicator Light (Check Engine) ........192
Manual Service ............................... .600
Map/Reading Lights ....................... .103
Marker Lights, Side ........................ .400
Media Hub .............................. .544
Memory Feature (Memory Seats) ................82
Memory Seat ..............................82
Methanol ............................... .505
Mirrors ..................................95 Automatic Dimming
.......................95
Electric Remote ...........................97
Exterior Folding ..........................97
Heated ............................. .95, 97
Outside ............................. .95, 96
Rearview ........................... .95, 392
Vanity .................................98
Modifications/Alterations Vehicle .................................5
Monitor, Tire Pressure System ..................213
Mopar Parts ............................. .599
MP3 Control ............................. .544
Multi-Function Control Lever ...................99
New Vehicle Break-In Period ..................293
Occupant Restraints ........................ .219
Octane

Rating, Gasoline (Fuel) ..............504, 509
Oil Change Indicator ....................... .167
Reset ................................ .167
Oil, Engine ........................... .450, 509
Capacity .............................. .508
Change Interval ........................ .450
Checking ............................. .448
Disposal .............................. .451
12
INDEX 609
