CHRYSLER PT CRUISER 2007 1.G Warranty Booklet

Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
200,000 km Maintenance Service Schedule “B”
200,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Replace the engine air cleaner filter (All models).*
 Replace the air conditioning filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension (Caravan 2.4L engine only).
 Replace the spark plugs and ignition cables (PT Cruiser and Caravan 2.4L engines only).
 Replace the spark plugs (2.4L Sebring only).
 Inspect the PCV valve and replace if necessary (PT Cruiser, Pacifica and Minivan only).*
‡ Change the All-Wheel Drive (AWD) power transfer unit fluid (Pacifica only).
 Replace the make-up air filter (PT Cruiser only).
 Inspect the serpentine drive belt, replace if necessary (Town & Country/Caravan 3.3L and 3.8L engines and
Pacifica only).
‡ Replace the accessory drive belt every 200,000 km (Sebring only).
 Adjust the generator drive belt tension (PT Cruiser only).
 Inspect the generator belt on 2.4L engines, replace if necessary (Caravan only).
 Change the automatic transaxle fluid and filter (All models).
† Flush and replace engine coolant at 120 months if not done at 170,000 kilometres.
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING: Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica and Minivan only).
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.‡This maintenance is not required if previously replaced.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
 Replace the engine air cleaner filter (All models).*
 Replace the air conditioning filter (Pacifica and Minivan only).
 Inspect and adjust the power steering pump belt tension
(Caravan 2.4L engine only).
 Replace the spark plugs and ignition cables (PT Cruiser and Caravan 2.4L
engines only).
 Replace the spark plugs (2.4L Sebring only).
 Inspect the PCV valve and replace if necessary (PT Cruiser, Pacifica and
Minivan only).*‡
 Change the All-Wheel Drive (AWD) power transfer unit fluid (Pacifica only).
 Replace the make-up air filter (PT Cruiser only).
 Inspect the serpentine drive belt, replace if necessary (Town & Country/
Caravan 3.3L and 3.8L engines and Pacifica only).
‡ Replace the accessory drive belt every 200,000 km (Sebring only).
 Adjust the generator drive belt tension (PT Cruiser only).
 Inspect the generator belt on 2.4L engines, replace if necessary (Caravan only). Change the automatic transaxle fluid and filter (All models).† Flush and replace engine coolant at 120 months if not done at
170,000 kilometres.
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica
and Minivan only).
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only). Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.
*This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.†This maintenance is required only for police, taxi, limousine type operation, or trailer towing.‡This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
200,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
205,000 km Maintenance Service Schedule “B”
205,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every
3 months, whichever occurs first).
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).

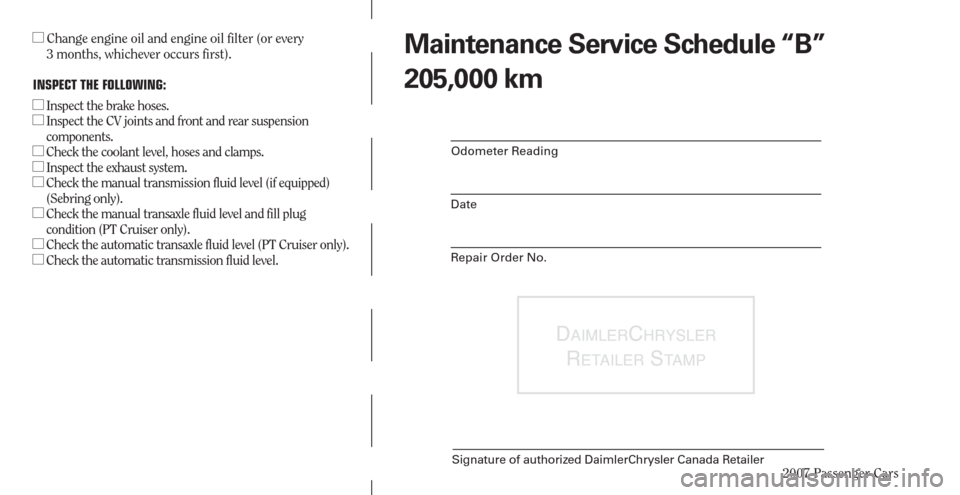

 Check the automatic transmission fluid level.Maintenance Service Schedule “B”
205,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date

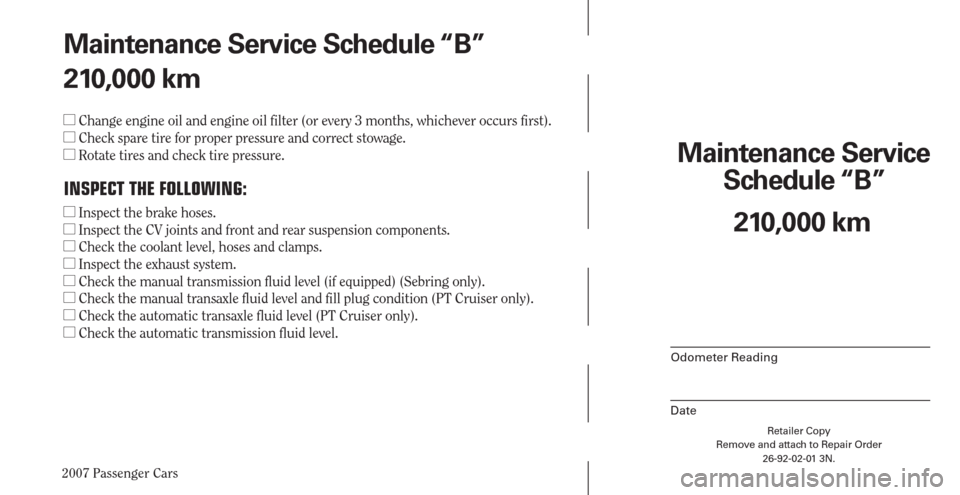

210,000 km Maintenance Service Schedule “B”
210,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
 Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every
3 months, whichever occurs first).
 Check spare tire for proper pressure
and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

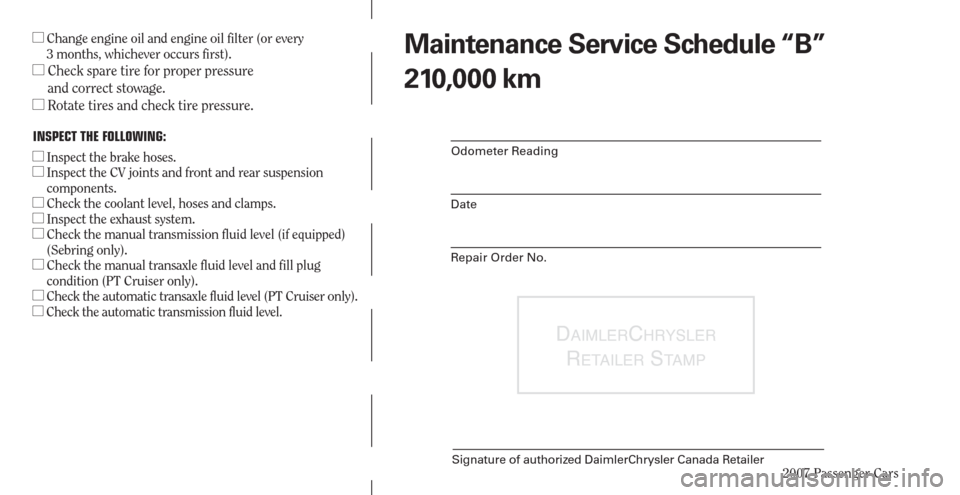

Maintenance Service Schedule “B”
210,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
215,000 km Maintenance Service Schedule “B”
215,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors (PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every
3 months, whichever occurs first).
INSPECT THE FOLLOWING:
 Inspect the front and rear brake linings and rotors
(PT Cruiser only).
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.Maintenance Service Schedule “B”
215,000 km

2007 Passenger Cars
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.

Maintenance Service
Schedule “B”
Odometer Reading
Date
220,000 km Maintenance Service Schedule “B”
220,000 km
 Change engine oil and engine oil filter (or every 3 months, whichever occurs first). Check spare tire for proper pressure and correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped) (Sebring only).
 Check the manual transaxle fluid level and fill plug condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.

2007 Passenger Cars
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Odometer Reading
Date
Repair Order No.
 Change engine oil and engine oil filter (or every
3 months, whichever occurs first).
 Check spare tire for proper pressure and
correct stowage.
 Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
 Inspect the brake hoses.
 Inspect the CV joints and front and rear suspension
components.
 Check the coolant level, hoses and clamps.
 Inspect the exhaust system.
 Check the manual transmission fluid level (if equipped)
(Sebring only).
 Check the manual transaxle fluid level and fill plug
condition (PT Cruiser only).
 Check the automatic transaxle fluid level (PT Cruiser only).
 Check the automatic transmission fluid level.Maintenance Service Schedule “B”
220,000 km
