Engine light CHRYSLER PT CRUISER 2008 1.G Owners Manual

NOTE:If you try to remove the key before you place the
lever in PARK, the key may become trapped temporarily
in the ignition cylinder. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.Manual Transaxle—If EquippedTurn the ignition switch to the ACC position, push the
key and cylinder inward, rotate the key to the LOCK
position, and remove the key.LOCKING DOORS WITH A KEYYou can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

KEY-IN-IGNITION REMINDEROpening the driver’s door when the key is in the ignition,
sounds a signal to remind you to remove the key.
NOTE:With the driver’s door open, and the key in the
ignition, both the power door locks and Remote Keyless
Entry (RKE) will not function.SENTRY KEY — IF EQUIPPEDThe Sentry Key Immobilizer System prevents unautho-
rized operation of the vehicle by disabling the engine.
The system will shut the engine off after two seconds of
running if an invalid key is used to start the vehicle. This
system utilizes ignition keys, which have an electronic
chip (transponder) embedded into them. Only keys that
have been programmed to the vehicle can be used to start
and operate the vehicle.
The Sentry Key Immobilizer System does not need to be
armed or activated. Operation of the system is automatic
regardless of whether or not the vehicle is locked or unlocked. During normal operation, the Theft Alarm/
Immobilizer Light will come on for three seconds imme-
diately after the ignition switch is turned on for a bulb
check. Afterwards, if the bulb remains on, this indicates a
problem with the electronics.
If the bulb begins to flash after the bulb check, this
indicates that an invalid key has been used to start the
vehicle. Both of these conditions will result in the engine
being shut off after two seconds of running.
Keep in mind that a key, which has not been pro-
grammed is also considered an invalid key even if it is
cut to fit the ignition lock cylinder for that vehicle.
If the Theft Alarm/Immobilizer Light comes on during
normal vehicle operation, (the vehicle has been running
for longer than 10 seconds), a fault has been detected in
the electronics and the vehicle should be serviced as soon
as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

NOTE:If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.General InformationThe Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:•
This device may not cause harmful interference.
•
This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
STEERING WHEEL LOCK — IF EQUIPPEDYour vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved no
more than one—half turn in either direction and the key
is not in the ignition switch, the steering wheel will lock.If You Wish To Manually Lock The Steering
Wheel:With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.To Release The Steering Wheel Lock:Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.
WARNING!
If you are required to drive with the deck lid/liftgate
open, make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.Safety Checks You Should Make Inside The
Vehicle
Seat BeltsInspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (bent retractor, torn
webbing, etc. If there is any question regarding belt or
retractor condition, replace the belt.
Airbag LightThe light should come on and remain on for 6 to 8
seconds as a bulb check when the ignition switch is first
turned ON. If the LED is not lit during starting, have it
checked. If the light stays on or comes on while driving,
have the system checked by an authorized dealer.DefrosterCheck operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield.
116 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Periodic Safety Checks You Should Make Outside
The Vehicle
TiresExamine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect tread and sidewall for cuts or
cracks. Check wheel nuts for tightness, and tires (includ-
ing spare) for proper pressure.LightsHave someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid LeaksCheck area under vehicle after overnight parking for fuel,
engine coolant, oil or other fluid leaks. Also, if gasoline
fumes are detected or fuel, power steering fluid or brake
fluid leaks are suspected, the cause should be located and
corrected immediately.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 117
2

Use the hood prop rod clipped to the driver’s side of the
engine compartment to secure the hood in the open
position. Place the hood prop at the location stamped into
the inner hood surface.
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approximately 20
cm (8 inches) and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Map/Reading Lights (Sedan)These lights are mounted between the sun visors above the
rear view mirror. Each light is turned ON by pressing the
button. Press the button a second time to turn the light OFF.
The lights also come on when a door is opened or the dimmer
control is turned fully upward, past the second detent.
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

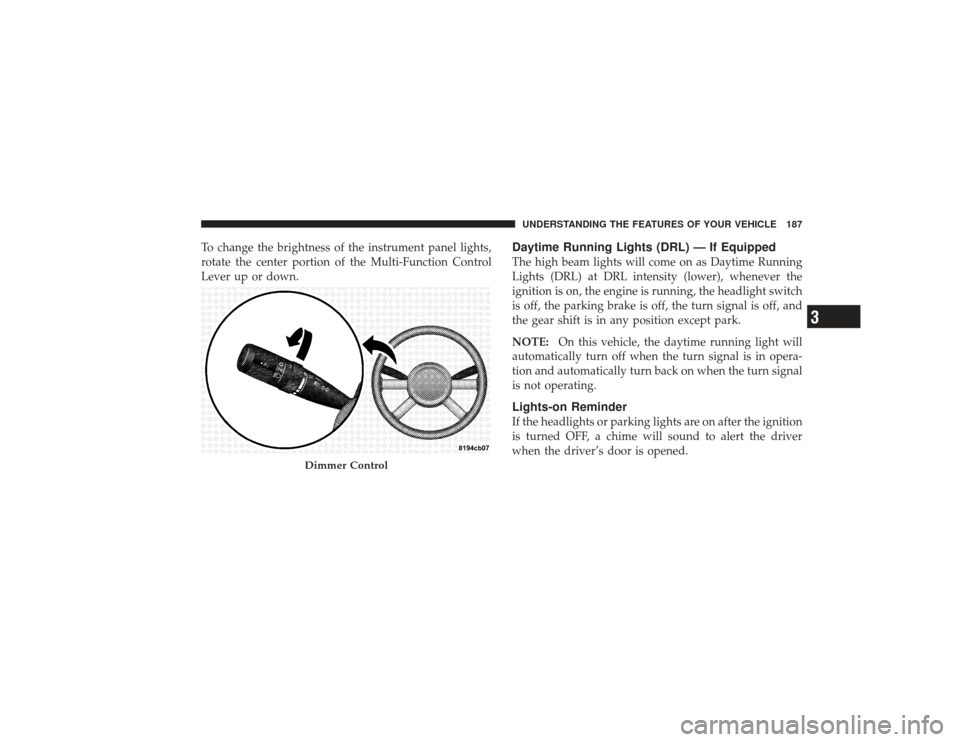

To change the brightness of the instrument panel lights,
rotate the center portion of the Multi-Function Control
Lever up or down.
Daytime Running Lights (DRL) — If EquippedThe high beam lights will come on as Daytime Running
Lights (DRL) at DRL intensity (lower), whenever the
ignition is on, the engine is running, the headlight switch
is off, the parking brake is off, the turn signal is off, and
the gear shift is in any position except park.
NOTE:On this vehicle, the daytime running light will
automatically turn off when the turn signal is in opera-
tion and automatically turn back on when the turn signal
is not operating.Lights-on ReminderIf the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Dimmer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187
3

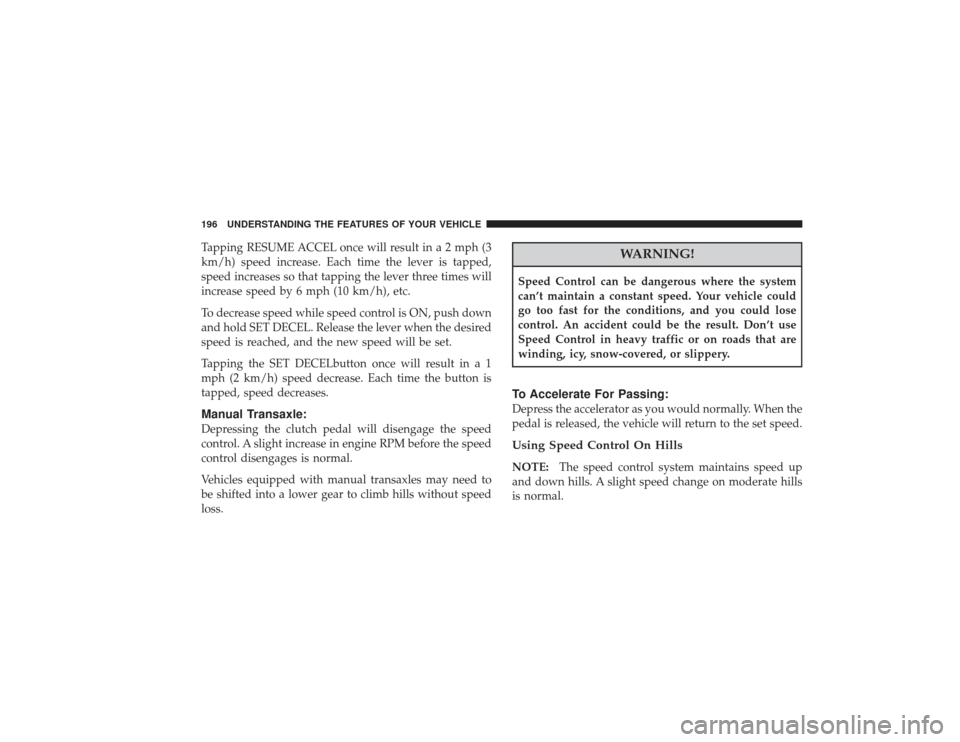

Tapping RESUME ACCEL once will result in a 2 mph (3
km/h) speed increase. Each time the lever is tapped,
speed increases so that tapping the lever three times will
increase speed by 6 mph (10 km/h), etc.
To decrease speed while speed control is ON, push down
and hold SET DECEL. Release the lever when the desired
speed is reached, and the new speed will be set.
Tapping the SET DECELbutton once will result in a 1
mph (2 km/h) speed decrease. Each time the button is
tapped, speed decreases.Manual Transaxle:Depressing the clutch pedal will disengage the speed
control. A slight increase in engine RPM before the speed
control disengages is normal.
Vehicles equipped with manual transaxles may need to
be shifted into a lower gear to climb hills without speed
loss.
WARNING!
Speed Control can be dangerous where the system
can’t maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control. An accident could be the result. Don’t use
Speed Control in heavy traffic or on roads that are
winding, icy, snow-covered, or slippery.To Accelerate For Passing:Depress the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.Using Speed Control On HillsNOTE:The speed control system maintains speed up
and down hills. A slight speed change on moderate hills
is normal.
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Electrical Outlet Use With Engine Off
CAUTION!
•
Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
•
Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•
After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
CONSOLE FEATURESThe console has two front cup holders, a removable coin
holder, 12 volt power outlet and a front storage tray.
There are three additional cup holders; one is molded in
the center of the console to hold large cups and the others
are in the rear of the console to serve passengers in the
rear seat. The floor console power outlet will also operate
a conventional cigar lighter unit (if equipped with an
optional Smoker’s Package).
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•
Many accessories that can be plugged into the 12
volt power outlet, draw power from the vehicle’s
battery, even when not in use; i.e. cellular phones,
etc. Eventually, if plugged in long enough, the
vehicle’s battery will discharge sufficiently to de-
grade battery life and/or prevent engine starting.
•
Accessories that draw higher power such as cool-
ers, vacuum cleaners, lights, etc., will discharge the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•
After the use of high power draw accessories, or
long periods of the vehicle not being started, (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
STORAGE
Center Console/Armrest Storage Bin
Sliding Armrest
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209
3
