fuel filter CHRYSLER PT CRUISER 2008 1.G Owners Manual

MAINTAINING YOUR VEHICLE
CONTENTS2.4L Turbo Engine Compartment ............378
 2.4L Engine Compartment ................379
 Onboard Diagnostic System — OBD II ........380
▫ Loose Fuel Filler Cap Message ............381
 Emissions Inspection And Maintenance
Programs ............................381
 Replacement Parts ......................383
 Authorized Dealer Service ................383
 Maintenance Procedures ..................384 ▫
Engine Oil ..........................384
▫ Drive Belts — Check Condition And Tension . . 388
▫ Spark Plugs .........................388
▫ Ignition Wiring System .................388
▫ Catalytic Converter ....................389
▫ Engine Timing Belt ....................390
▫ Crankcase Emission Control System ........390
▫ Fuel Filter ..........................391
▫ Air Cleaner Element (Air Filter) ...........391
7

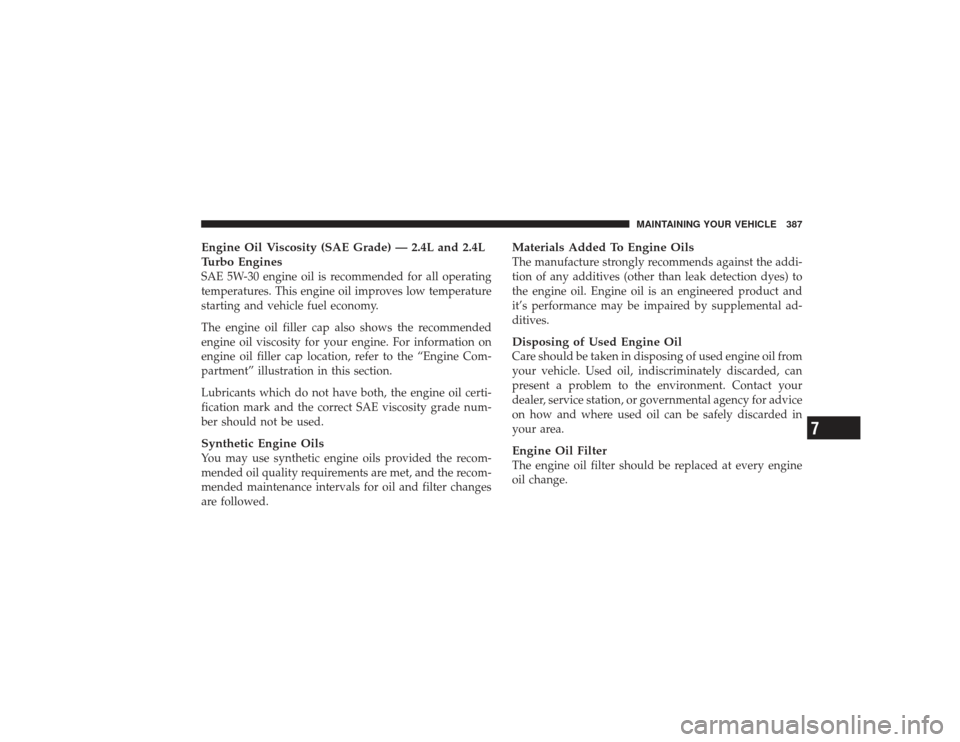

Engine Oil Viscosity (SAE Grade) — 2.4L and 2.4L
Turbo EnginesSAE 5W-30 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.
Lubricants which do not have both, the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.Synthetic Engine OilsYou may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added To Engine OilsThe manufacture strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and
it’s performance may be impaired by supplemental ad-
ditives.Disposing of Used Engine OilCare should be taken in disposing of used engine oil from
your vehicle. Used oil, indiscriminately discarded, can
present a problem to the environment. Contact your
dealer, service station, or governmental agency for advice
on how and where used oil can be safely discarded in
your area.Engine Oil FilterThe engine oil filter should be replaced at every engine
oil change.
MAINTAINING YOUR VEHICLE 387
7

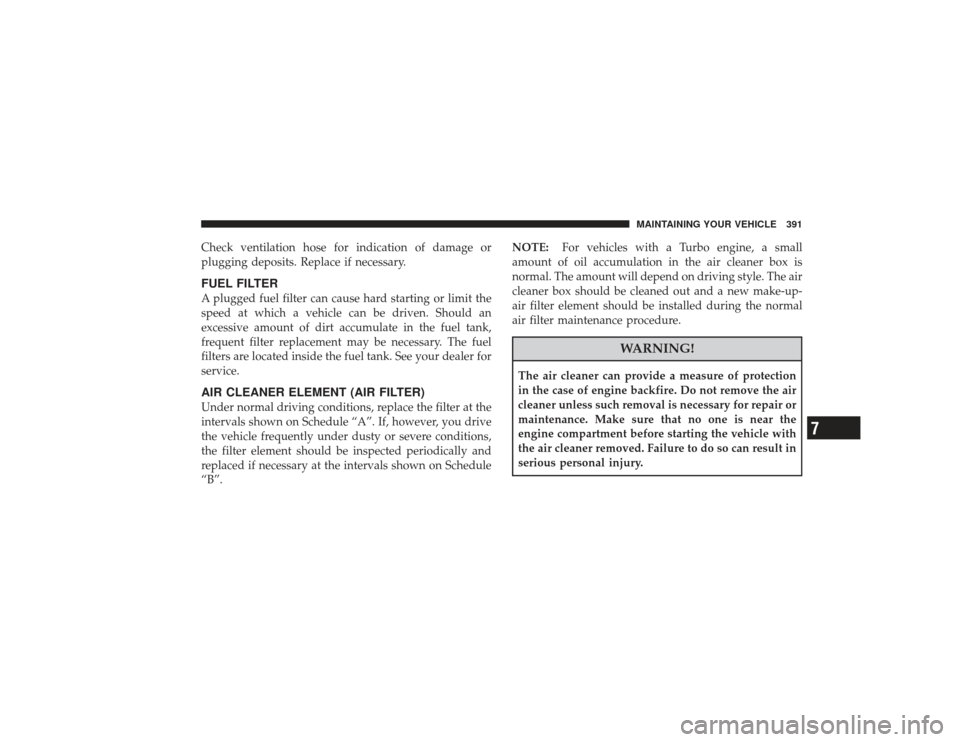

Check ventilation hose for indication of damage or
plugging deposits. Replace if necessary.FUEL FILTERA plugged fuel filter can cause hard starting or limit the
speed at which a vehicle can be driven. Should an
excessive amount of dirt accumulate in the fuel tank,
frequent filter replacement may be necessary. The fuel
filters are located inside the fuel tank. See your dealer for
service.AIR CLEANER ELEMENT (AIR FILTER)Under normal driving conditions, replace the filter at the
intervals shown on Schedule “A”. If, however, you drive
the vehicle frequently under dusty or severe conditions,
the filter element should be inspected periodically and
replaced if necessary at the intervals shown on Schedule
“B”.NOTE:
For vehicles with a Turbo engine, a small
amount of oil accumulation in the air cleaner box is
normal. The amount will depend on driving style. The air
cleaner box should be cleaned out and a new make-up-
air filter element should be installed during the normal
air filter maintenance procedure.
WARNING!
The air cleaner can provide a measure of protection
in the case of engine backfire. Do not remove the air
cleaner unless such removal is necessary for repair or
maintenance. Make sure that no one is near the
engine compartment before starting the vehicle with
the air cleaner removed. Failure to do so can result in
serious personal injury.
MAINTAINING YOUR VEHICLE 391
7

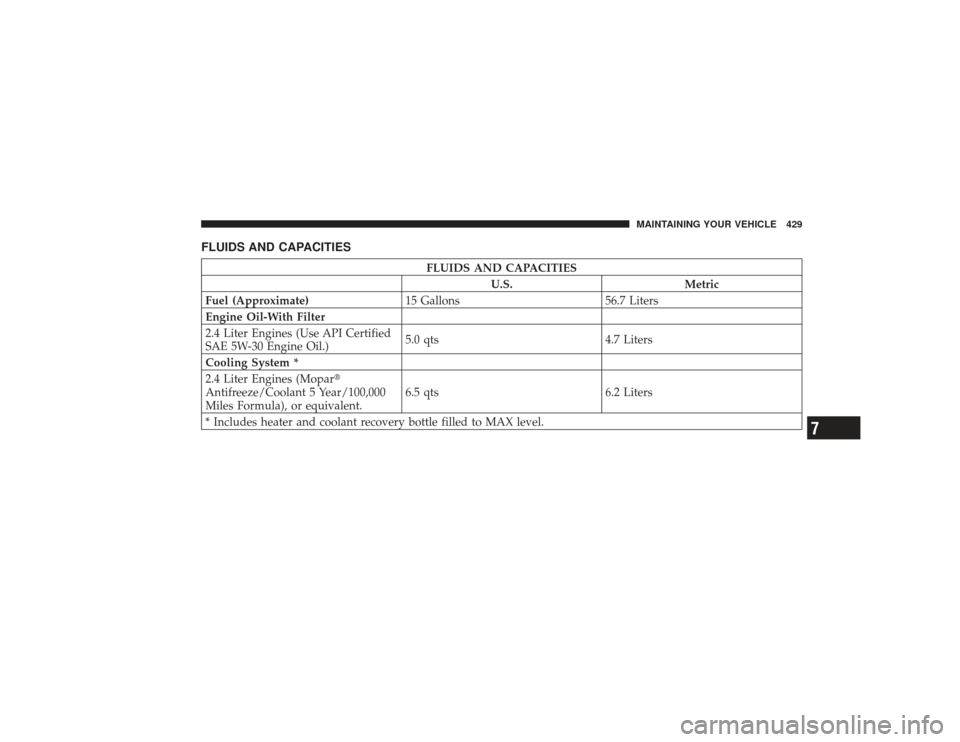

FLUIDS AND CAPACITIES
FLUIDS AND CAPACITIESU.S. Metric
Fuel (Approximate) 15 Gallons56.7 Liters
Engine Oil-With Filter
2.4 Liter Engines (Use API Certified
SAE 5W-30 Engine Oil.) 5.0 qts
4.7 Liters
Cooling System *
2.4 Liter Engines (Mopar
Antifreeze/Coolant 5 Year/100,000
Miles Formula), or equivalent. 6.5 qts
6.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 429
7

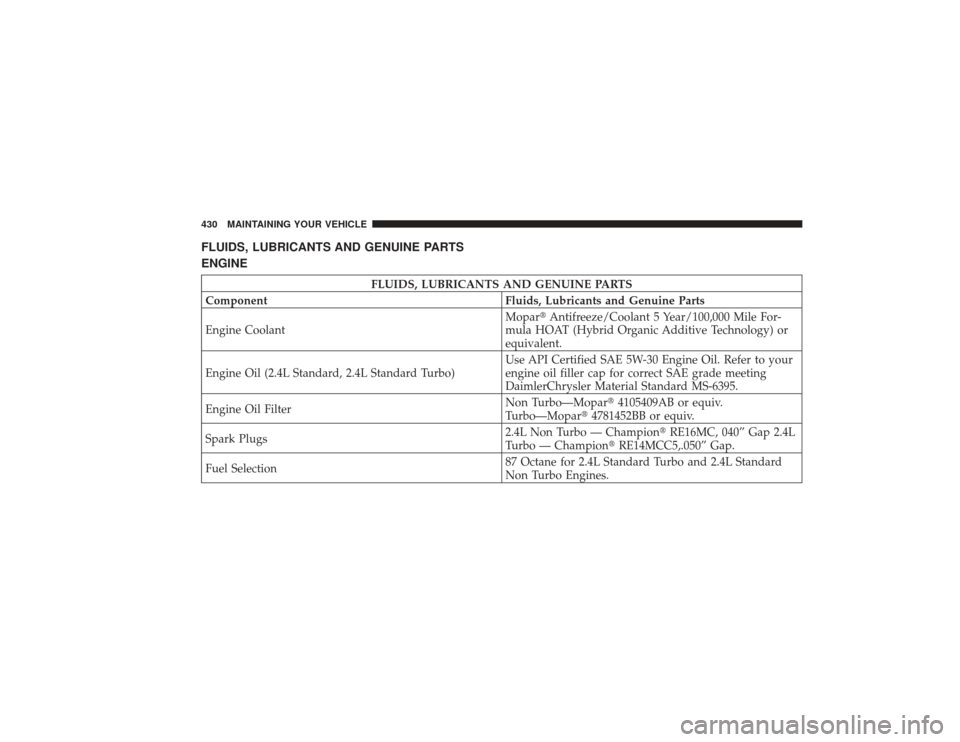

FLUIDS, LUBRICANTS AND GENUINE PARTS
ENGINE
FLUIDS, LUBRICANTS AND GENUINE PARTS
Component Fluids, Lubricants and Genuine Parts
Engine Coolant Mopar
Antifreeze/Coolant 5 Year/100,000 Mile For-
mula HOAT (Hybrid Organic Additive Technology) or
equivalent.
Engine Oil (2.4L Standard, 2.4L Standard Turbo) Use API Certified SAE 5W-30 Engine Oil. Refer to your
engine oil filler cap for correct SAE grade meeting
DaimlerChrysler Material Standard MS-6395.
Engine Oil Filter Non Turbo—Mopar
4105409AB or equiv.
Turbo—Mopar 4781452BB or equiv.
Spark Plugs 2.4L Non Turbo — Champion
RE16MC, 040” Gap 2.4L
Turbo — Champion RE14MCC5,.050” Gap.
Fuel Selection 87 Octane for 2.4L Standard Turbo and 2.4L Standard
Non Turbo Engines.
430 MAINTAINING YOUR VEHICLE

At Each Stop for Fuel•
Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•
Check the windshield washer solvent and add if
required.
Once a Month
•
Check tire pressure and look for unusual wear or
damage.
•
Inspect the battery and clean and tighten the terminals
as required.
•
Check the fluid levels of coolant reservoir, brake
master cylinder and transaxle and add as needed.
•
Check all lights and all other electrical items for correct
operation.
•
Check rubber seals on each side of the radiator for
proper fit.
At Each Oil Change
•
Change the engine oil filter.
•
Inspect the exhaust system.
•
Inspect the brake hoses.
•
Inspect the CV joints and front suspension compo-
nents.
•
Check the automatic transaxle fluid level.
•
Check the manual transaxle fluid level and fill plug
condition.
•
Check the coolant level, hoses, and clamps.
436 MAINTENANCE SCHEDULES
8M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

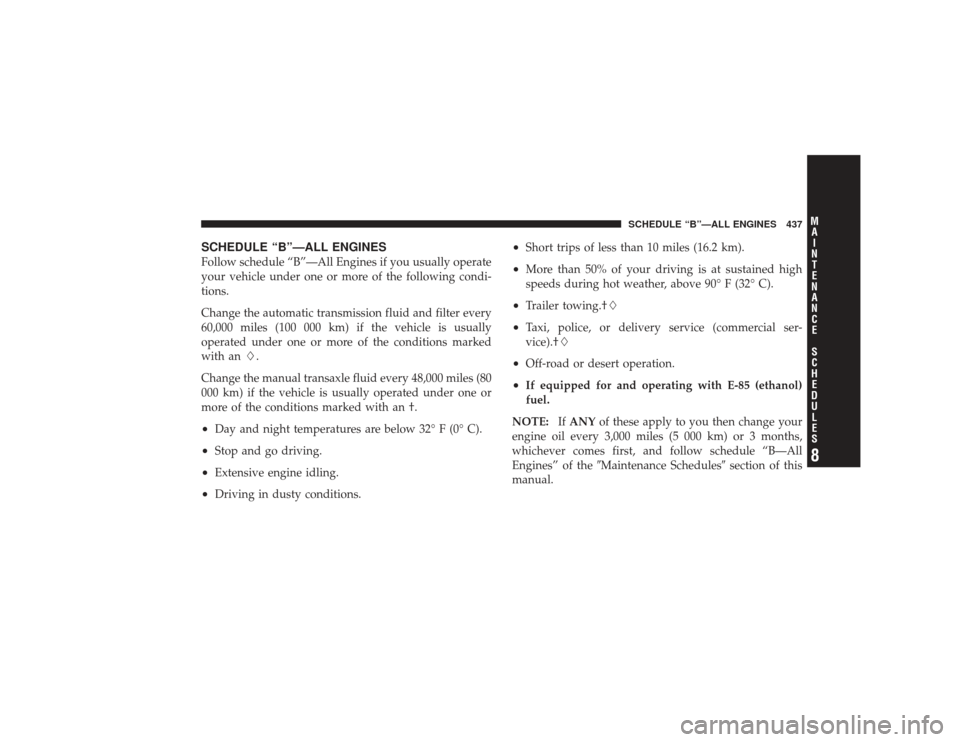

SCHEDULE “B”—ALL ENGINESFollow schedule “B”—All Engines if you usually operate
your vehicle under one or more of the following condi-
tions.
Change the automatic transmission fluid and filter every
60,000 miles (100 000 km) if the vehicle is usually
operated under one or more of the conditions marked
with an
.
Change the manual transaxle fluid every 48,000 miles (80
000 km) if the vehicle is usually operated under one or
more of the conditions marked with an †.•
Day and night temperatures are below 32° F (0° C).
•
Stop and go driving.
•
Extensive engine idling.
•
Driving in dusty conditions.
•
Short trips of less than 10 miles (16.2 km).
•
More than 50% of your driving is at sustained high
speeds during hot weather, above 90° F (32° C).
•
Trailer towing.†

•
Taxi, police, or delivery service (commercial ser-
vice).†

•
Off-road or desert operation.
•
If equipped for and operating with E-85 (ethanol)
fuel.
NOTE: IfANY of these apply to you then change your
engine oil every 3,000 miles (5 000 km) or 3 months,
whichever comes first, and follow schedule “B—All
Engines” of the Maintenance Schedules section of this
manual.
SCHEDULE “B”—ALL ENGINES 437
8M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

ABS (Anti-Lock Brake System).............. 308
Adding Engine Coolant (Antifreeze) .......... 400
Adding Fuel ........................... 340
Adding Washer Fluid ..................... 218
Additives, Fuel ......................... 338
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 391
Air Conditioner Maintenance ............... 393
Air Conditioning Controls ................. 277
Air Conditioning, Operating Tips ............ 283
Air Conditioning Refrigerant .............393,394
Air Conditioning System ................277,393
Air Pressure, Tires ....................... 322
Airbag .............................. 55,90
Airbag Deployment .................... 67,101
Airbag Light .................... 70,104,116,234
Airbag Maintenance .................... 68,103
Airbag, Side ......................... 64,100
Alarm, Panic .......................... 26,32
Alarm System (Security Alarm) ............36,233Alignment and Balance
................... 329
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 276
Antifreeze (Engine Coolant) ........399,400,429,430
Capacities ........................... 429
Disposal ............................ 401
Anti-Lock Brake System (ABS) .............. 308
Anti-Lock Warning Light .................. 233
Anti-Theft Security Alarm (Theft Alarm) ........ 36
Appearance Care ........................ 411
Auto Down Power Windows ................ 43
Automatic Door Locks ..................... 21
Automatic Transaxle ..............13,291,294,408
Adding Fluid ......................... 408
Filter ............................... 409
Fluid and Filter Changes ................. 409
Fluid Level Check ...................... 408
Interlock System ..................... 19,295
Reset Mode .......................... 296470 INDEX

Door Opener, Garage..................... 197
Downshifting .......................... 304
Drive Belts ............................ 388
Driver’s Seat Back Tilt .................... 167
Driving On Slippery Surfaces .................... 369
Electric Rear Window Defrost ............... 217
Electric Remote Mirrors ................... 137
Electrical Power Outlets ................... 206
Electronic Speed Control (Cruise Control) ...... 194
Electronic Vehicle Information Center
(EVIC) .......................... 234,235,240
Emergency Deck Lid Release Latch (Convertible) . . 41
Emergency, In Case of Jacking ............................. 360
Jump Starting ......................... 367
Towing ............................. 371
Emergency Seat Back Release (Sedan) .......... 40Emission Control System Maintenance
......381,434
Engine .......................... 1 15,378,379
Break-In Recommendations ............... 115
Checking Oil Level ..................... 384
Coolant (Antifreeze) .................... 398
Cooling ............................. 398
Exhaust Gas Caution .................... 339
Fuel Requirements ..................... 337
Jump Starting ......................... 367
Oil ........................... 384,429,430
Oil Change Interval .................... 385
Oil Filler Cap ................... 378,379,387
Oil Filter ............................ 430
Oil Selection .......................... 386
Oil Synthetic ......................... 387
Operation ............................ 115
Overheating .......................... 358
Temperature Gauge ..................... 226
Timing Belt .......................... 390474 INDEX

Ethanol............................... 337
Event Data Recorder ................... 70,105
Exhaust Gas Caution ............38,39,115,339,397
Exhaust System ......................... 397
Fabric Care ......................... 413,414
Filler Location Fuel .................... 226,340
Filters Air Cleaner .......................... 391
Automatic Transaxle .................... 409
Engine Fuel .......................... 391
Engine Oil ........................ 387,430
Flashers .............................. 358
Hazard Warning ....................... 358
Flat Tire Stowage ........................ 367
Flooded Engine Starting ................... 293
Fluid, Brake ........................... 431
Fluid Capacities ......................... 429
Fluid Leaks ............................ 117 Fluid Level Checks
Automatic Transaxle .................... 408
Brake ............................... 406
Cooling System ....................... 398
Power Steering ........................ 394
Fluids ................................ 430
Fluids, Lubricants and Genuine Parts .......... 430
Fog Light Service ........................ 426
Fog Lights .......................... 188,233
Folding Front Passenger Seat ............... 167
Folding Rear Seat ..................... 171,173
Folding Rear Seat (Convertible) .............. 173
Folding Rear Seat (Sedan) .................. 171
Freeing A Stuck Vehicle ................... 370
Fuel .............................. 337,430
Adding ............................. 340
Additives ............................ 338
Capacity ............................ 429
Clean Air ............................ 337
INDEX 475
10
