Page 137 of 491

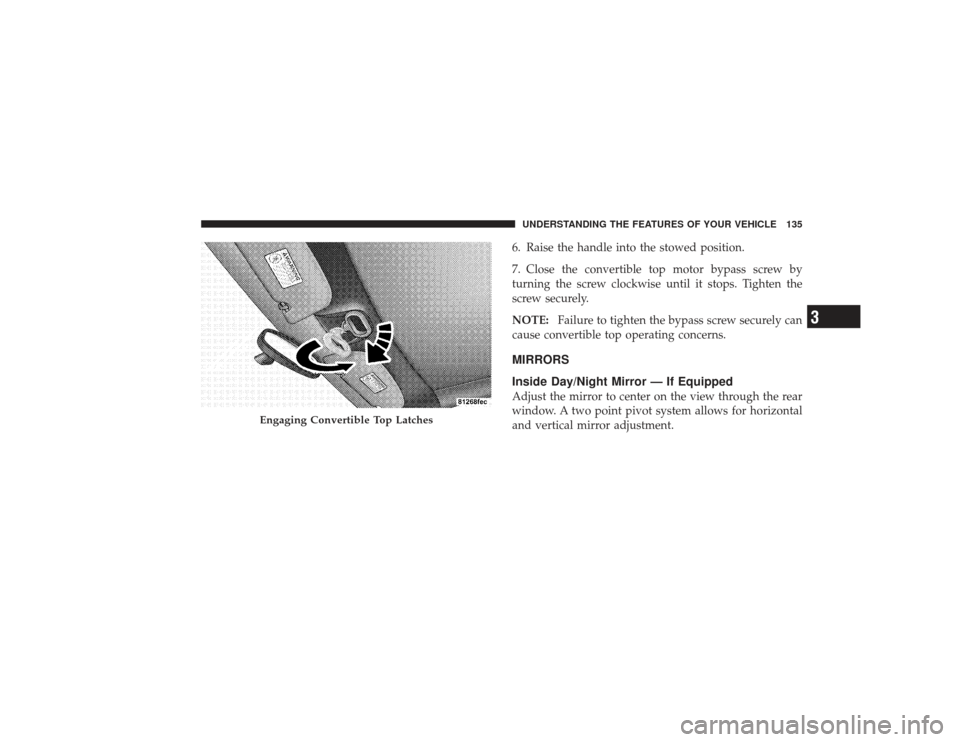

6. Raise the handle into the stowed position.
7. Close the convertible top motor bypass screw by
turning the screw clockwise until it stops. Tighten the
screw securely.
NOTE:Failure to tighten the bypass screw securely can
cause convertible top operating concerns.MIRRORS
Inside Day/Night Mirror — If EquippedAdjust the mirror to center on the view through the rear
window. A two point pivot system allows for horizontal
and vertical mirror adjustment.
Engaging Convertible Top Latches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3
Page 138 of 491

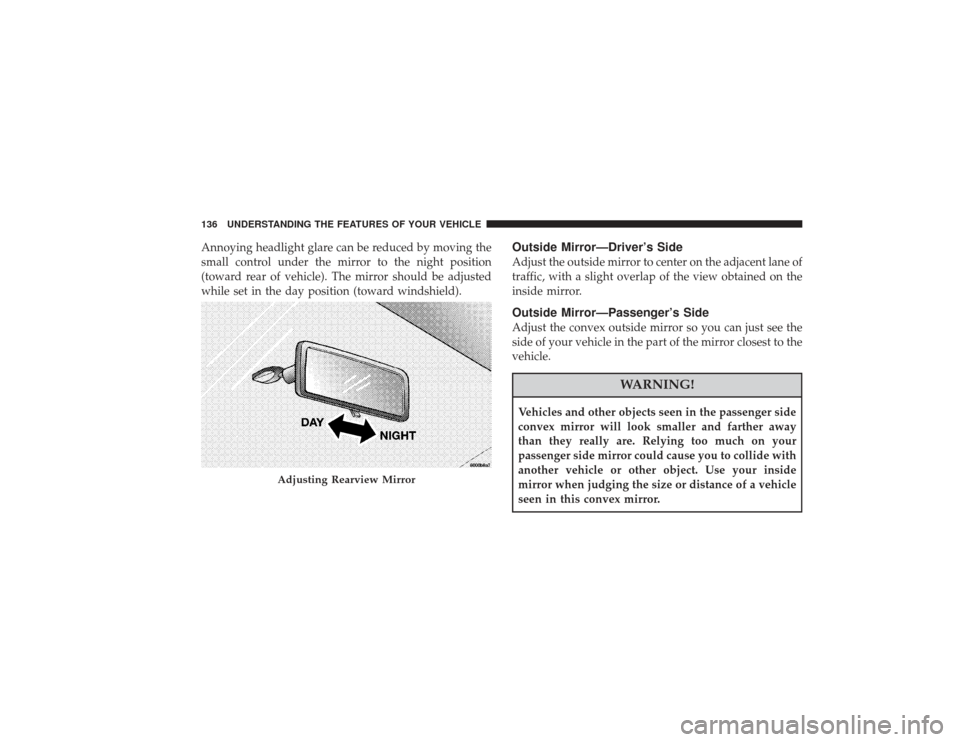

Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of vehicle). The mirror should be adjusted
while set in the day position (toward windshield).
Outside Mirror—Driver’s SideAdjust the outside mirror to center on the adjacent lane of
traffic, with a slight overlap of the view obtained on the
inside mirror.Outside Mirror—Passenger’s SideAdjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Adjusting Rearview Mirror
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 141 of 491

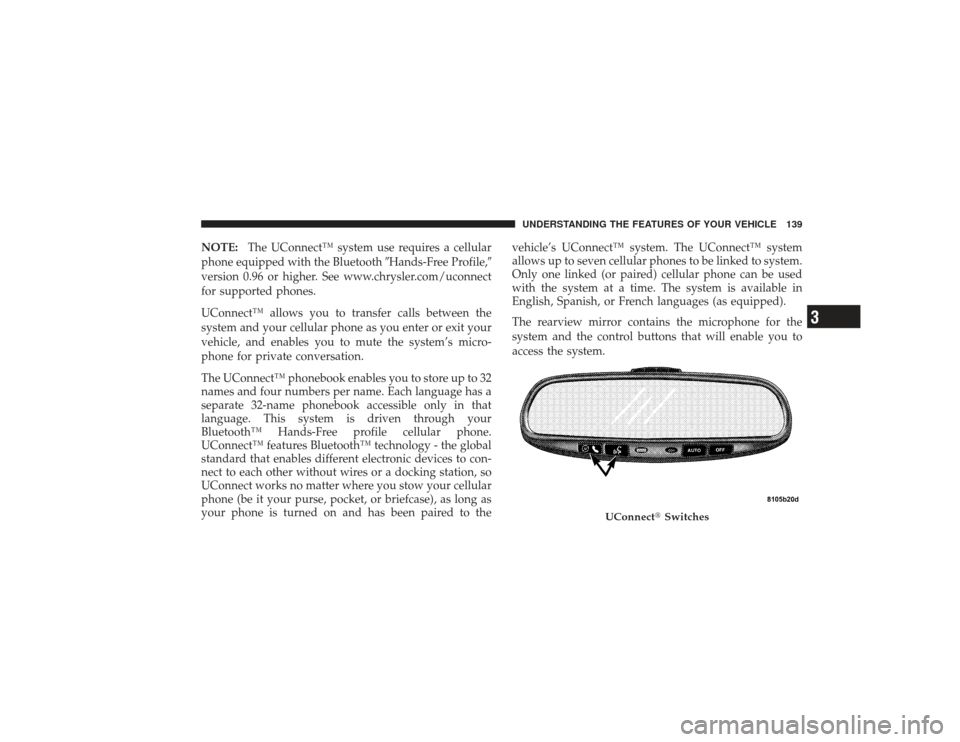

NOTE:The UConnect™ system use requires a cellular
phone equipped with the Bluetooth Hands-Free Profile,
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.
UConnect™ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system’s micro-
phone for private conversation.
The UConnect™ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32-name phonebook accessible only in that
language. This system is driven through your
Bluetooth™ Hands-Free profile cellular phone.
UConnect™ features Bluetooth™ technology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
UConnect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system.
UConnect
Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3
Page 186 of 491

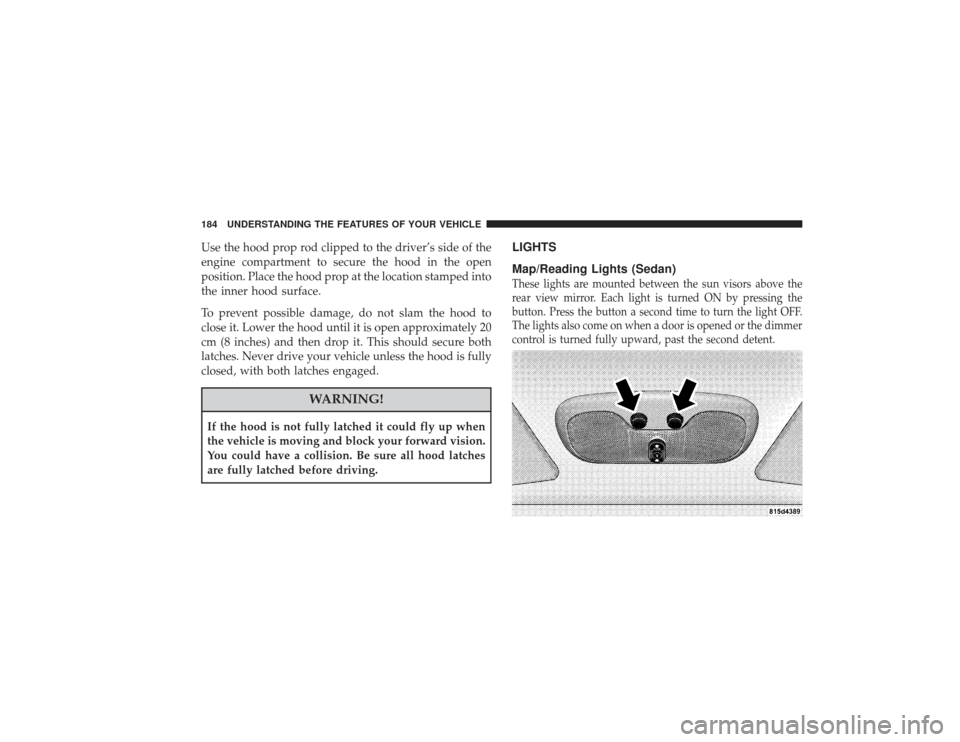

Use the hood prop rod clipped to the driver’s side of the
engine compartment to secure the hood in the open
position. Place the hood prop at the location stamped into
the inner hood surface.
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approximately 20
cm (8 inches) and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Map/Reading Lights (Sedan)These lights are mounted between the sun visors above the
rear view mirror. Each light is turned ON by pressing the
button. Press the button a second time to turn the light OFF.
The lights also come on when a door is opened or the dimmer
control is turned fully upward, past the second detent.
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 187 of 491

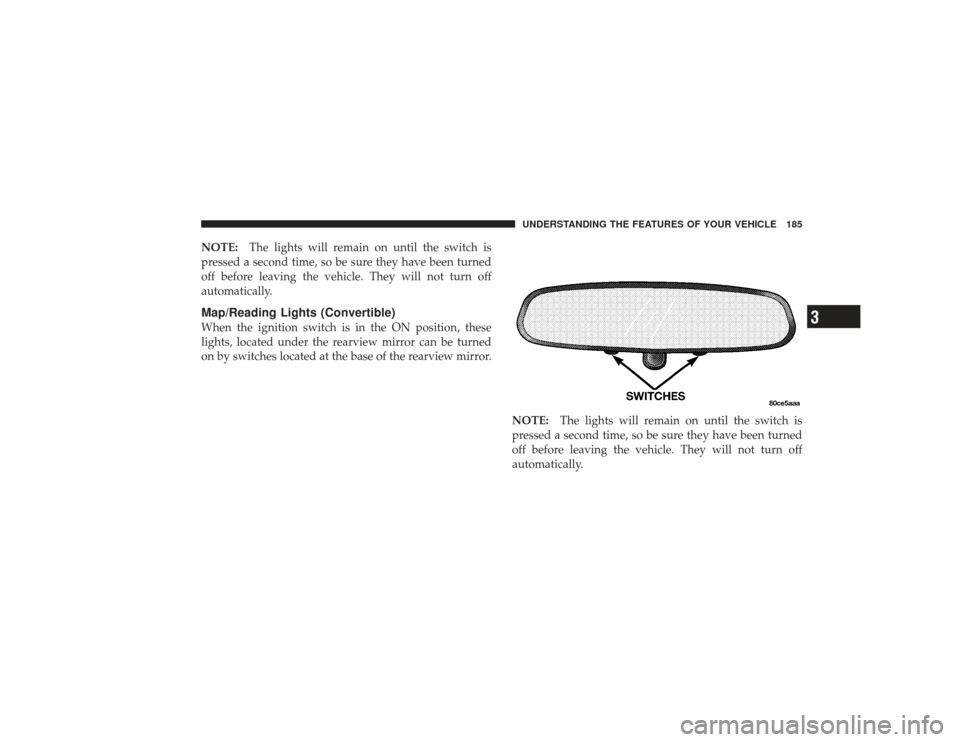

NOTE:The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. They will not turn off
automatically.Map/Reading Lights (Convertible)When the ignition switch is in the ON position, these
lights, located under the rearview mirror can be turned
on by switches located at the base of the rearview mirror.
NOTE:The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. They will not turn off
automatically.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185
3
Page 417 of 491
•

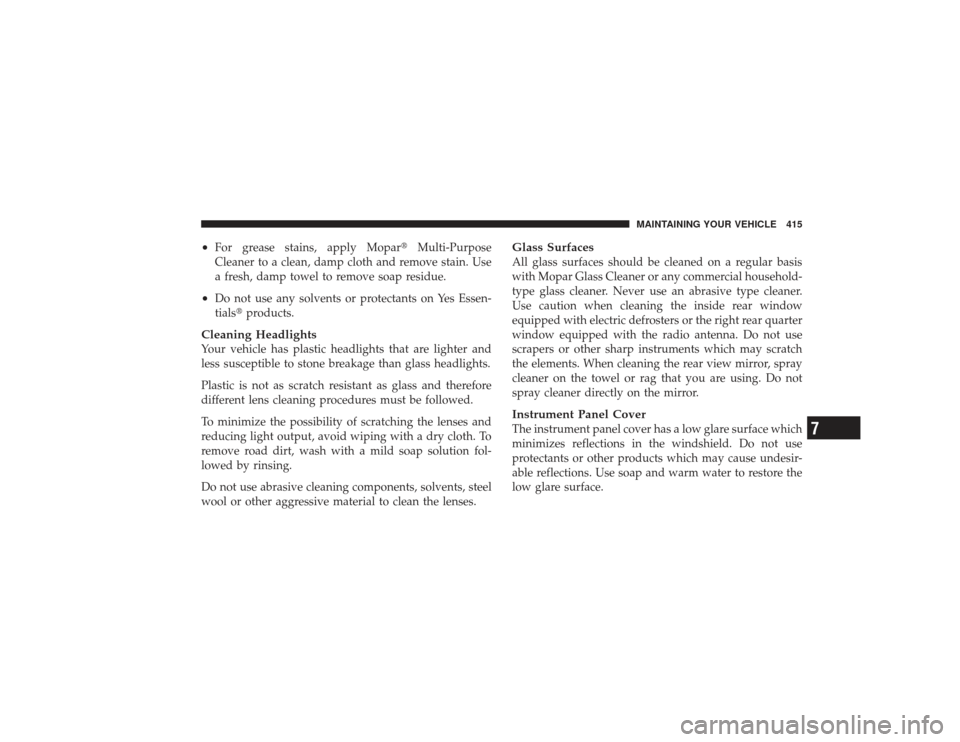

For grease stains, apply MoparMulti-Purpose
Cleaner to a clean, damp cloth and remove stain. Use
a fresh, damp towel to remove soap residue.
•
Do not use any solvents or protectants on Yes Essen-
tials products.
Cleaning HeadlightsYour vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass SurfacesAll glass surfaces should be cleaned on a regular basis
with Mopar Glass Cleaner or any commercial household-
type glass cleaner. Never use an abrasive type cleaner.
Use caution when cleaning the inside rear window
equipped with electric defrosters or the right rear quarter
window equipped with the radio antenna. Do not use
scrapers or other sharp instruments which may scratch
the elements. When cleaning the rear view mirror, spray
cleaner on the towel or rag that you are using. Do not
spray cleaner directly on the mirror.Instrument Panel CoverThe instrument panel cover has a low glare surface which
minimizes reflections in the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
MAINTAINING YOUR VEHICLE 415
7
Page 426 of 491

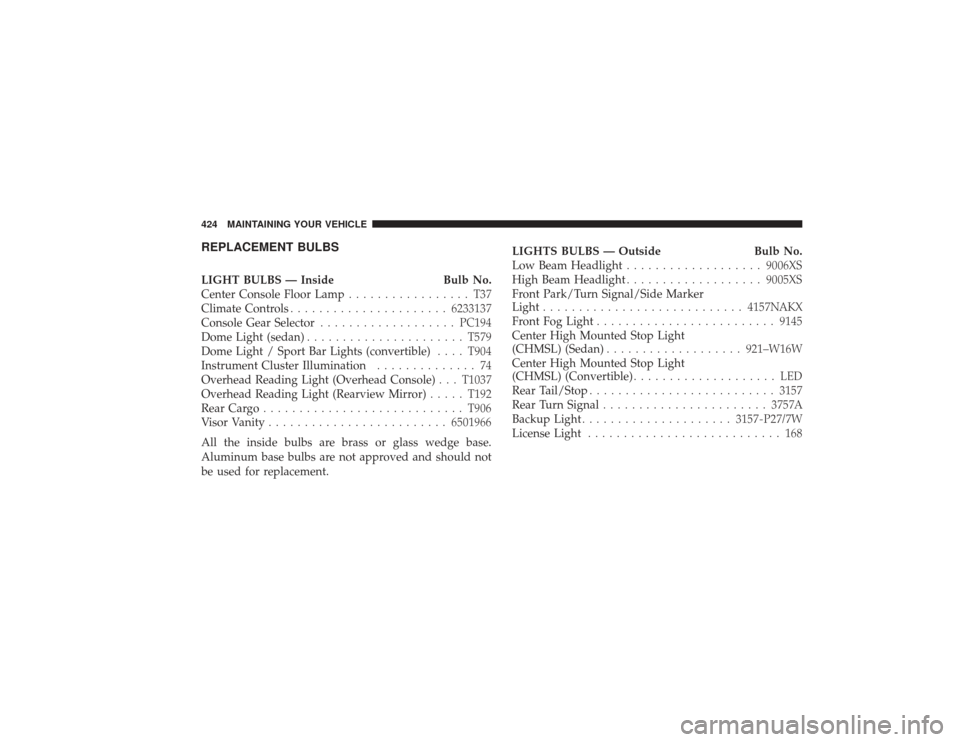

REPLACEMENT BULBSLIGHT BULBS — InsideBulb No.
Center Console Floor Lamp ................. T37
Climate Controls ...................... 6233137
Console Gear Selector ................... PC194
Dome Light (sedan) ...................... T579
Dome Light / Sport Bar Lights (convertible) ....T904
Instrument Cluster Illumination .............. 74
Overhead Reading Light (Overhead Console) . . . T1037
Overhead Reading Light (Rearview Mirror) .....T192
Rear Cargo ............................ T906
Visor Vanity ......................... 6501966
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement. LIGHTS BULBS — Outside
Bulb No.
Low Beam Headlight ................... 9006XS
High Beam Headlight ................... 9005XS
Front Park/Turn Signal/Side Marker
Light ............................ 4157NAKX
Front Fog Light ......................... 9145
Center High Mounted Stop Light
(CHMSL) (Sedan) ................... 921–W16W
Center High Mounted Stop Light
(CHMSL) (Convertible) .................... LED
Rear Tail/Stop .......................... 3157
Rear Turn Signal ....................... 3757A
Backup Light ..................... 3157-P27/7W
License Light ........................... 168424 MAINTAINING YOUR VEHICLE

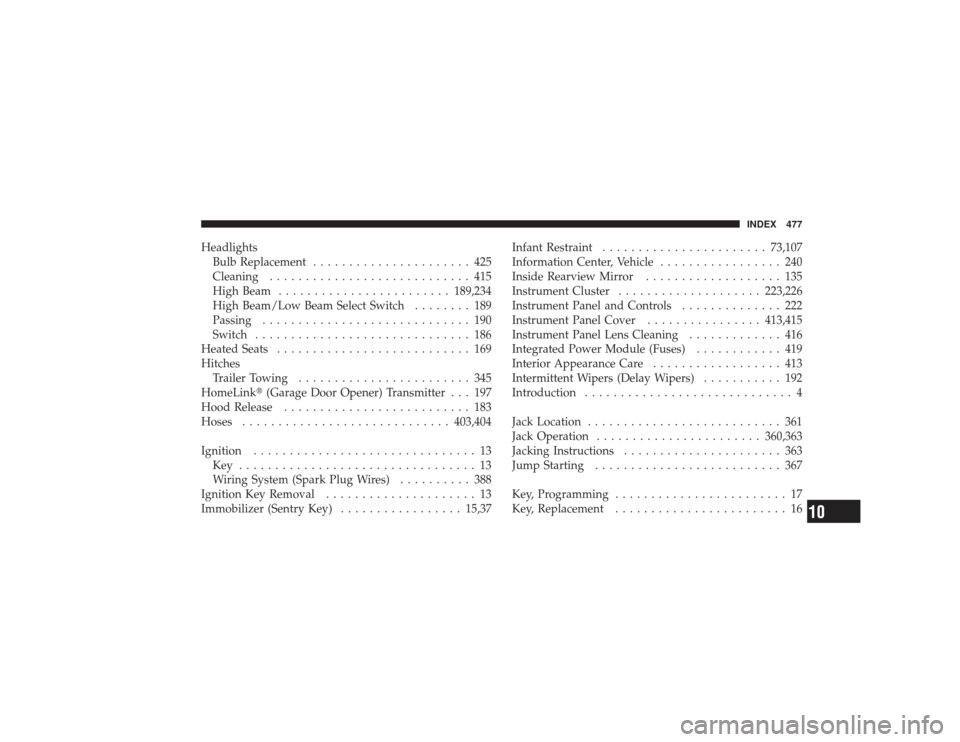

Page 479 of 491
HeadlightsBulb Replacement ...................... 425
Cleaning ............................ 415
High Beam ........................ 189,234
High Beam/Low Beam Select Switch ........ 189
Passing ............................. 190
Switch .............................. 186
Heated Seats ........................... 169
Hitches Trailer Towing ........................ 345
HomeLink (Garage Door Opener) Transmitter . . . 197
Hood Release .......................... 183
Hoses ............................. 403,404
Ignition ............................... 13
Key ................................. 13
Wiring System (Spark Plug Wires) .......... 388
Ignition Key Removal ..................... 13
Immobilizer (Sentry Key) .................15,37Infant Restraint
....................... 73,107
Information Center, Vehicle ................. 240
Inside Rearview Mirror ................... 135
Instrument Cluster .................... 223,226
Instrument Panel and Controls .............. 222
Instrument Panel Cover ................413,415
Instrument Panel Lens Cleaning ............. 416
Integrated Power Module (Fuses) ............ 419
Interior Appearance Care .................. 413
Intermittent Wipers (Delay Wipers) ........... 192
Introduction ............................. 4
Jack Location ........................... 361
Jack Operation ....................... 360,363
Jacking Instructions ...................... 363
Jump Starting .......................... 367
Key, Programming ........................ 17
Key, Replacement ........................ 16
INDEX 477
10
Page 482 of 491
Mini-Trip Computer...................... 235
Mirrors ............................... 135
Electric Remote ....................... 137
Outside ............................. 136
Rearview ............................ 135
Vanity .............................. 138
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 332
Mopar Parts ......................... 383,464
MTBE/ETBE ........................... 337
Multi-Function Control Lever ............... 186
New Vehicle Break-In Period ................ 115
Occupant Classification System (OCS) .......... 60
Occupant Restraints (Convertible) ............. 81
Occupant Restraints (Sedan) ................. 44
Octane Rating, Gasoline (Fuel) .............. 337
Odometer ............................. 229
Trip ............................. 229,230Oil, Engine
......................... 384,429
Capacity ............................ 429
Change Interval ....................... 385
Checking ............................ 384
Disposal ............................ 387
Filter ............................... 387
Identification Logo ..................... 386
Materials Added to ..................... 387
Quality ............................. 386
Recommendation ................... 386,429
Synthetic ............................ 387
Viscosity ............................ 387
Oil Filter, Selection ....................... 388
Oil Pressure Light ....................... 234
Onboard Diagnostic System ..............380,381
Opener, Garage Door (HomeLink ) ........... 197
Operator Manual (Owner’s Manual) ............ 4
Outside Air Intake ....................... 284
Overdrive ............................. 298480 INDEX
