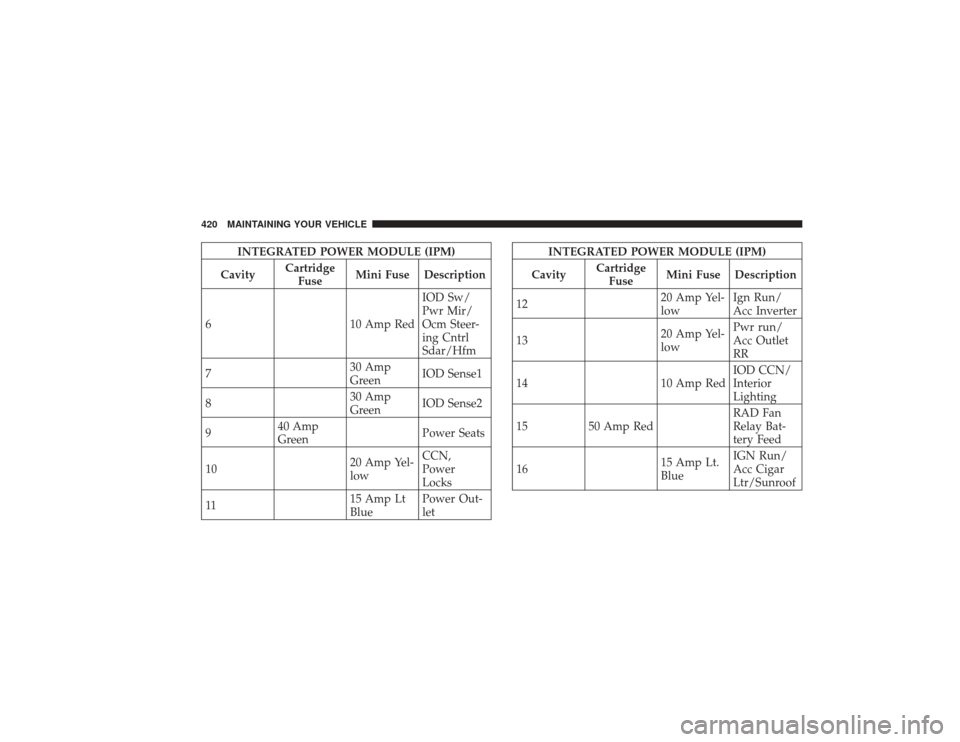

INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
6 10 Amp Red IOD Sw/
Pwr Mir/
Ocm Steer-
ing Cntrl
Sdar/Hfm
7 30 Amp
GreenIOD Sense1
8 30 Amp
GreenIOD Sense2
9 40 Amp
Green Power Seats
10 20 Amp Yel-
lowCCN,
Power
Locks
11 15 Amp Lt
BluePower Out-
let
INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
12 20 Amp Yel-
lowIgn Run/
Acc Inverter
13 20 Amp Yel-
lowPwr run/
Acc Outlet
RR
14 10 Amp RedIOD CCN/
Interior
Lighting
15 50 Amp Red RAD Fan
Relay Bat-
tery Feed
16 15 Amp Lt.
BlueIGN Run/
Acc Cigar
Ltr/Sunroof
420 MAINTAINING YOUR VEHICLE

INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
17 10 Amp Red IOD Feed
CVT Mod/
Mod_Wcm
18 40 Amp
Green ASD Relay
Contact
PWR Feed
19 20 Amp
YelowPWR Amp
1 & Amp 2
Feed
20 15 Amp Lt.
BlueIOD Feed
Radio
21 10 Amp RedIOD Feed
Intrus
Mod/Siren
INTEGRATED POWER MODULE (IPM)
Cavity Cartridge
Fuse Mini Fuse Description
22 10 Amp Red IGN RUN
Hvac/
Compass
Sensor
23 15 Amp Lt.
BlueENG ASD
Relay Feed
3
24 25 Amp
NaturalPWR Sun-
roof Feed
25 10 Amp RedHeated Mir-
ror
26 15 Amp Lt.
BlueENG ASD
Relay Feed
2
MAINTAINING YOUR VEHICLE 421
