Page 31 of 410
Auto Lock — If Equipped
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Auto Lock feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The vehicle speed is above 15 mph (24 km/h).
5. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
The Auto Lock feature can be enabled or disabled. Refer
to “Personal Settings (Customer-Programmable Fea-
tures)” in the “Electronic Vehicle Information Center
(EVIC) — If Equipped” section of this manual for details.For vehicles not equipped with the EVIC, the Auto Lock
can be enabled or disabled by performing the following
procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON, and
back to LOCK four times, ending up in the LOCK
position.
3. Depress the power door LOCK switch to lock the
doors.
4. A single chime will indicate the completion of the
programming.
Auto Unlock — If Equipped
The doors will unlock automatically on vehicles with
power door locks if:
1. The Auto Unlock feature is enabled.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
Page 32 of 410

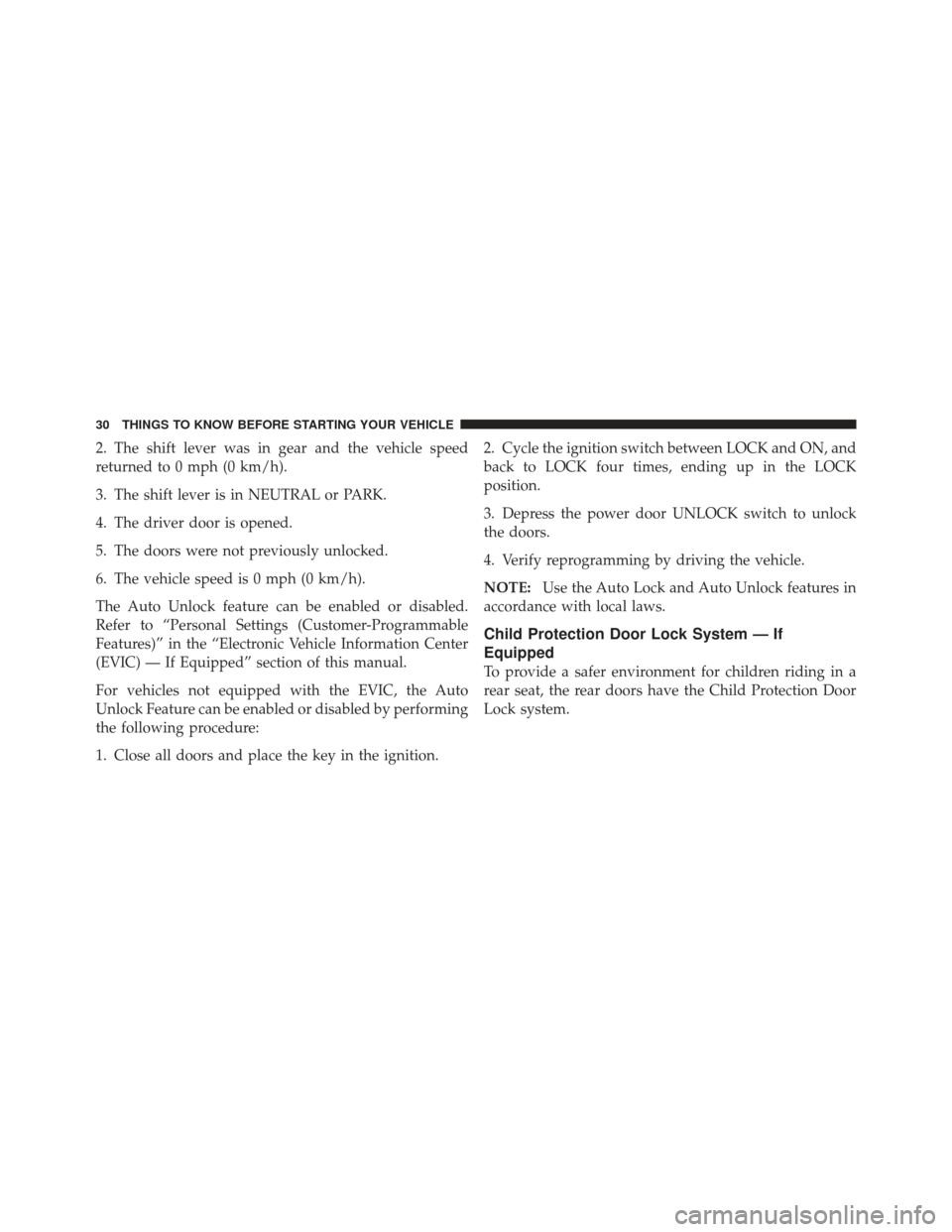

2. The shift lever was in gear and the vehicle speed
returned to 0 mph (0 km/h).
3. The shift lever is in NEUTRAL or PARK.
4. The driver door is opened.
5. The doors were not previously unlocked.
6. The vehicle speed is 0 mph (0 km/h).
The Auto Unlock feature can be enabled or disabled.
Refer to “Personal Settings (Customer-Programmable
Features)” in the “Electronic Vehicle Information Center
(EVIC) — If Equipped” section of this manual.
For vehicles not equipped with the EVIC, the Auto
Unlock Feature can be enabled or disabled by performing
the following procedure:
1. Close all doors and place the key in the ignition.2. Cycle the ignition switch between LOCK and ON, and
back to LOCK four times, ending up in the LOCK
position.
3. Depress the power door UNLOCK switch to unlock
the doors.
4. Verify reprogramming by driving the vehicle.
NOTE:
Use the Auto Lock and Auto Unlock features in
accordance with local laws.
Child Protection Door Lock System — If
Equipped
To provide a safer environment for children riding in a
rear seat, the rear doors have the Child Protection Door
Lock system.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 410

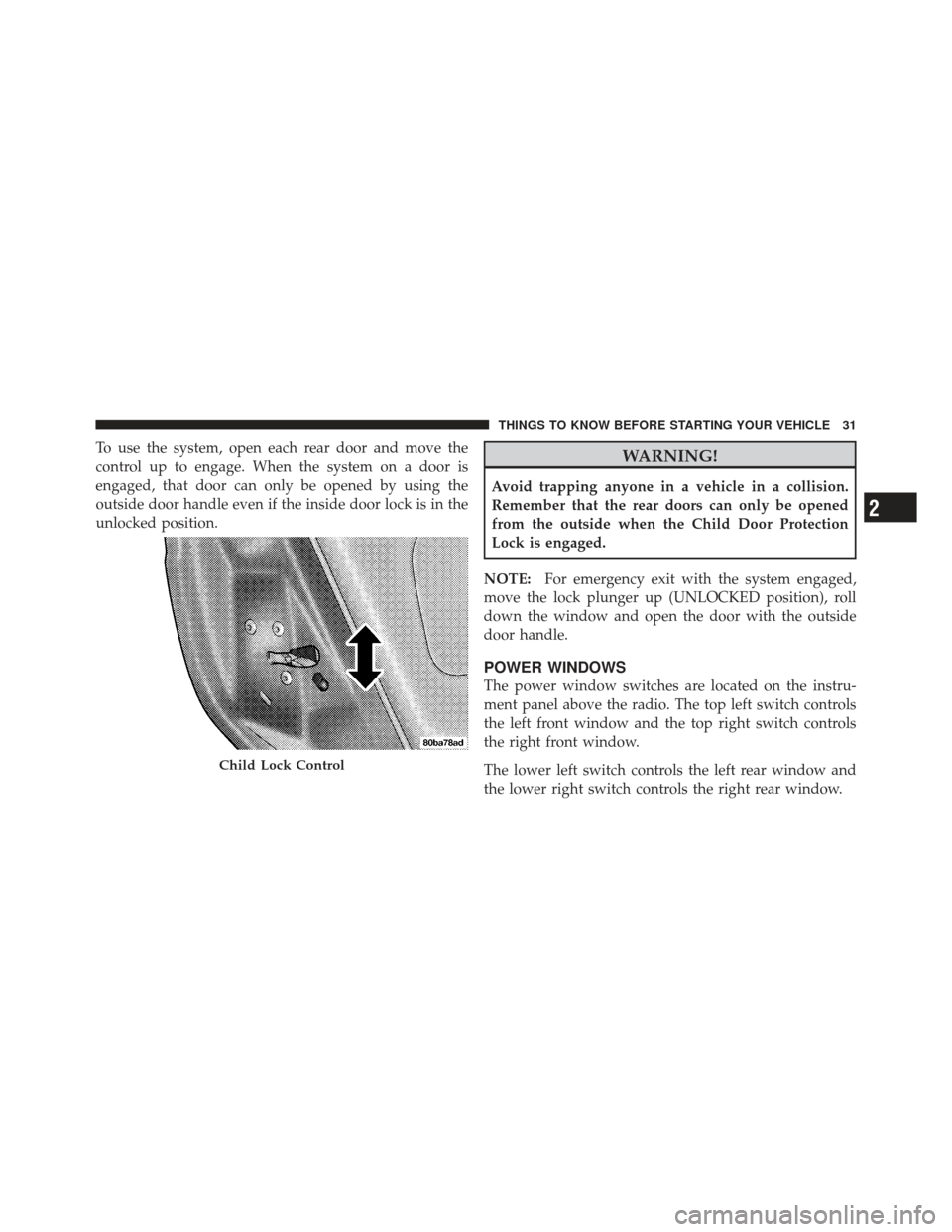

To use the system, open each rear door and move the
control up to engage. When the system on a door is
engaged, that door can only be opened by using the
outside door handle even if the inside door lock is in the
unlocked position.WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child Door Protection
Lock is engaged.
NOTE: For emergency exit with the system engaged,
move the lock plunger up (UNLOCKED position), roll
down the window and open the door with the outside
door handle.
POWER WINDOWS
The power window switches are located on the instru-
ment panel above the radio. The top left switch controls
the left front window and the top right switch controls
the right front window.
The lower left switch controls the left rear window and
the lower right switch controls the right rear window.
Child Lock Control
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
Page 34 of 410
The window lock switch is located between the window
switches, that allows you to disable the rear window
switches that are located at the back of the center floor
console.WARNING!
Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power window switches. Such
entrapment may result in serious injury or death.
Auto-Down Feature
The driver’s and passenger’s front window switches
have an Auto-Down feature. Press the window switch
past the detent, release, and the window will go down
automatically. Press the switch a second time in either
direction to stop the window.
To open the window part way, press the window switch
part way and release it when you want the window to
stop.
Power Window Switches
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 35 of 410
Rear Window Switches
There are also rear passenger window switches located at
the rear of the center console.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting.
LIFTGATE
The liftgate can be unlocked by pressing twice on the
Remote Keyless Entry (RKE) transmitter button or by
activating the power door lock switches located on the
front doors.
Power Rear Window Switches
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
Page 36 of 410
To open the unlocked liftgate, squeeze the liftgate release
touch pad located on the backside of the liftgate handle,
and pull the liftgate open with one fluid motion.WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at HIGH
speed. DO NOT use the RECIRCULATION mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
Liftgate Handle
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 37 of 410

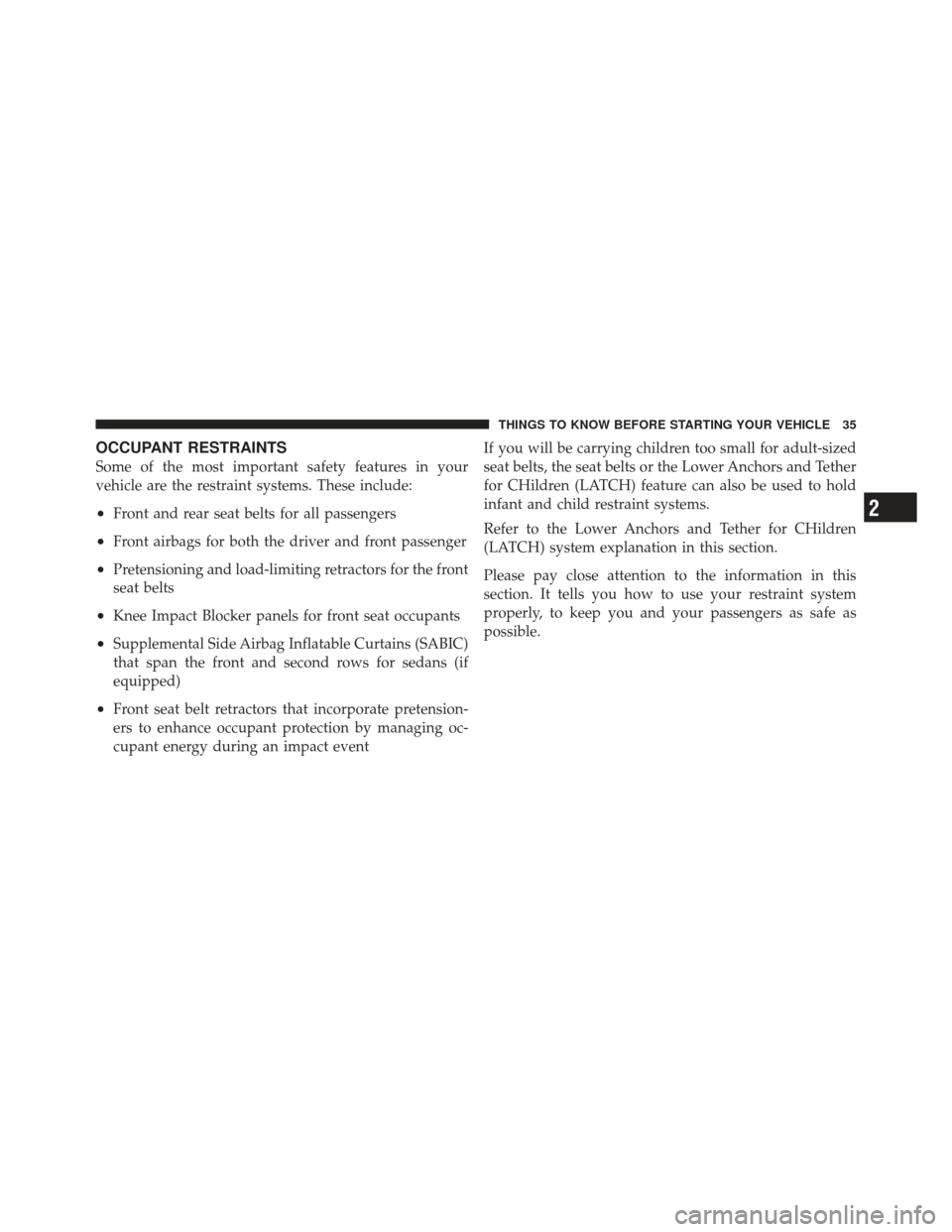

OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include:
•Front and rear seat belts for all passengers
•Front airbags for both the driver and front passenger
•Pretensioning and load-limiting retractors for the front
seat belts
•Knee Impact Blocker panels for front seat occupants
•Supplemental Side Airbag Inflatable Curtains (SABIC)
that span the front and second rows for sedans (if
equipped)
•Front seat belt retractors that incorporate pretension-
ers to enhance occupant protection by managing oc-
cupant energy during an impact eventIf you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature can also be used to hold
infant and child restraint systems.
Refer to the Lower Anchors and Tether for CHildren
(LATCH) system explanation in this section.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
Page 38 of 410
WARNING!
In a collision, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street. Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of
ejection and the risk of injury caused by striking the
inside of the vehicle.
Everyone in a motor vehicle should
be belted at all times.
Lap/Shoulder Belts
All the seats in your vehicle are equipped with lap/
shoulder belts.
The belt webbing retractor is designed to lock during
very sudden stops or collisions. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. But in a collision, the belt will lock
and reduce the risk of you striking the inside of the
vehicle or being thrown out.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 410
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can best take the forces of a collision.(Continued)
WARNING! (Continued)
•Wearing your belt in the wrong place could make
your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your pas-
sengers safe, too.
•Two people should never be belted into a single
seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or lap belt for more
than one person, no matter what their size.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
Page 40 of 410

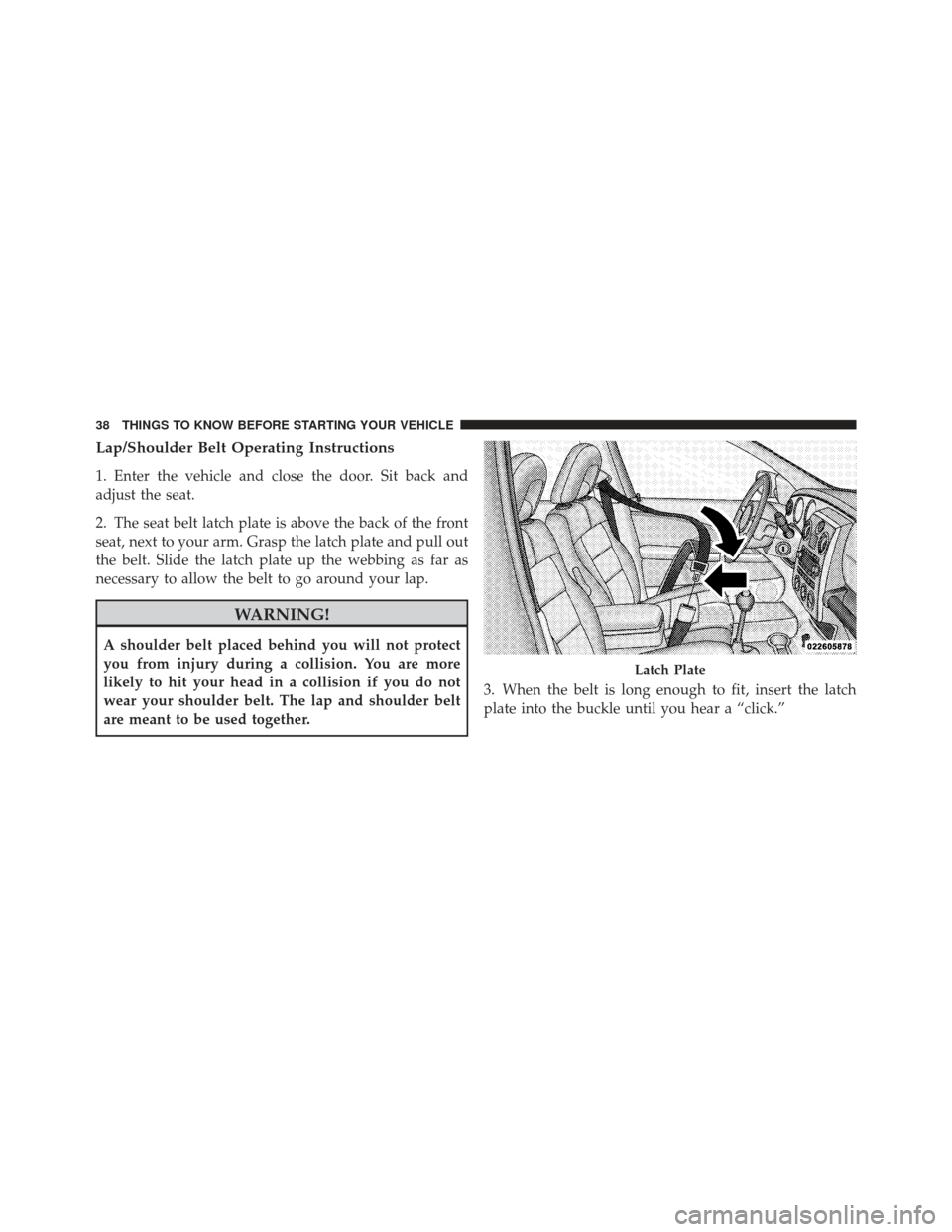

Lap/Shoulder Belt Operating Instructions
1. Enter the vehicle and close the door. Sit back and
adjust the seat.
2. The seat belt latch plate is above the back of the front
seat, next to your arm. Grasp the latch plate and pull out
the belt. Slide the latch plate up the webbing as far as
necessary to allow the belt to go around your lap.
WARNING!
A shoulder belt placed behind you will not protect
you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”
Latch Plate
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
