Heated Seats — If Equipped
The heaters provide the same heat level for both cushion
and seatback. The driver and front passenger seats are
heated. The controls for each heater are located near the
bottom center of the instrument panel.
After turning the ignition ON, you can choose from High,
Low, or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut Off the heating elements.
If High-level heating is selected, the system automatically
switches to Low-level heating and turns one indicator
light off after 30 minutes of continuous operation. It will
turn the heater and the remaining indicator light off after an additional 30 minutes of continuous operation. If
Low-level heating is selected, the system automatically
turns the heater and the indicator light off after 30 min-
utes of continuous operation.
NOTE:
Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
(Continued)
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

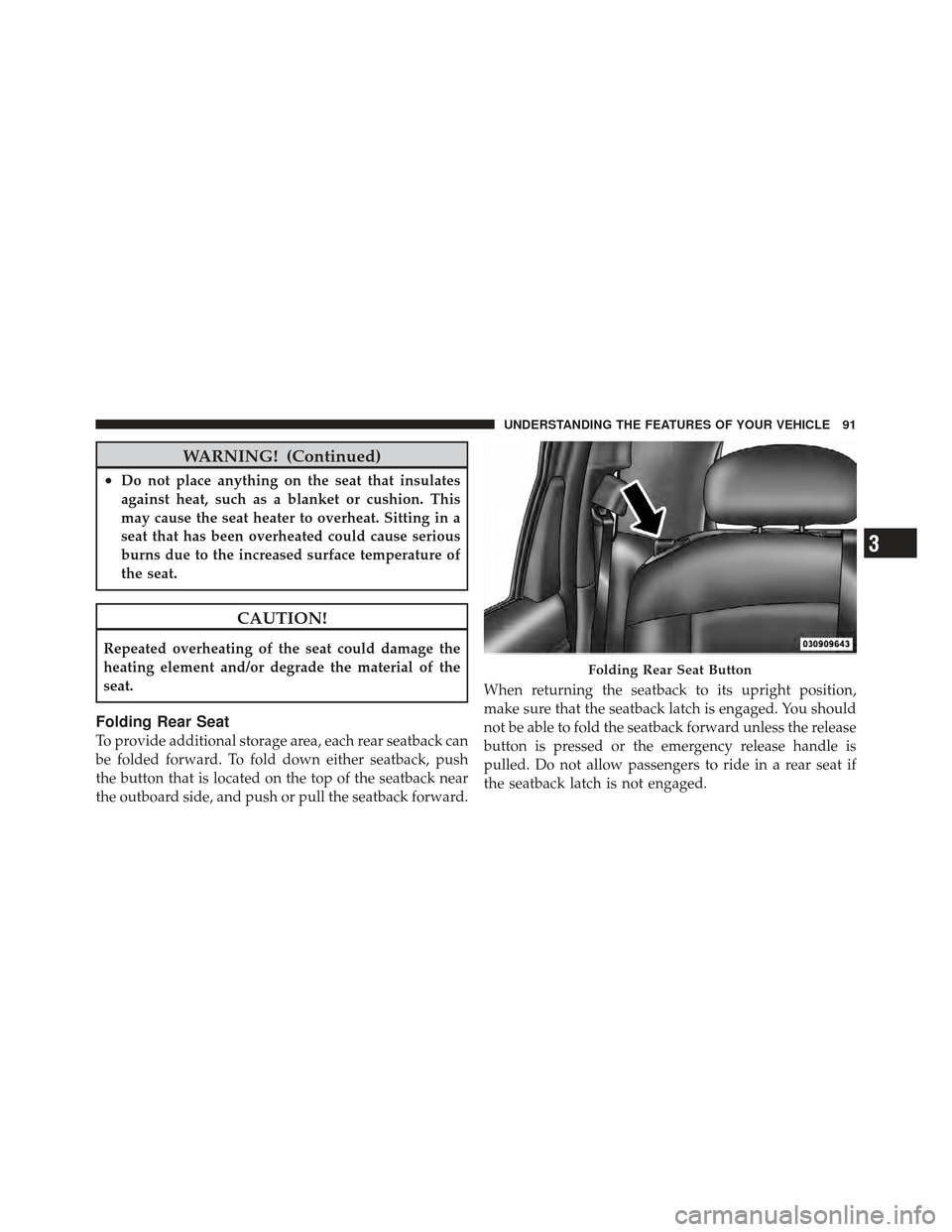

WARNING! (Continued)
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. Sitting in a
seat that has been overheated could cause serious
burns due to the increased surface temperature of
the seat.
CAUTION!
Repeated overheating of the seat could damage the
heating element and/or degrade the material of the
seat.
Folding Rear Seat
To provide additional storage area, each rear seatback can
be folded forward. To fold down either seatback, push
the button that is located on the top of the seatback near
the outboard side, and push or pull the seatback forward.When returning the seatback to its upright position,
make sure that the seatback latch is engaged. You should
not be able to fold the seatback forward unless the release
button is pressed or the emergency release handle is
pulled. Do not allow passengers to ride in a rear seat if
the seatback latch is not engaged.
Folding Rear Seat Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

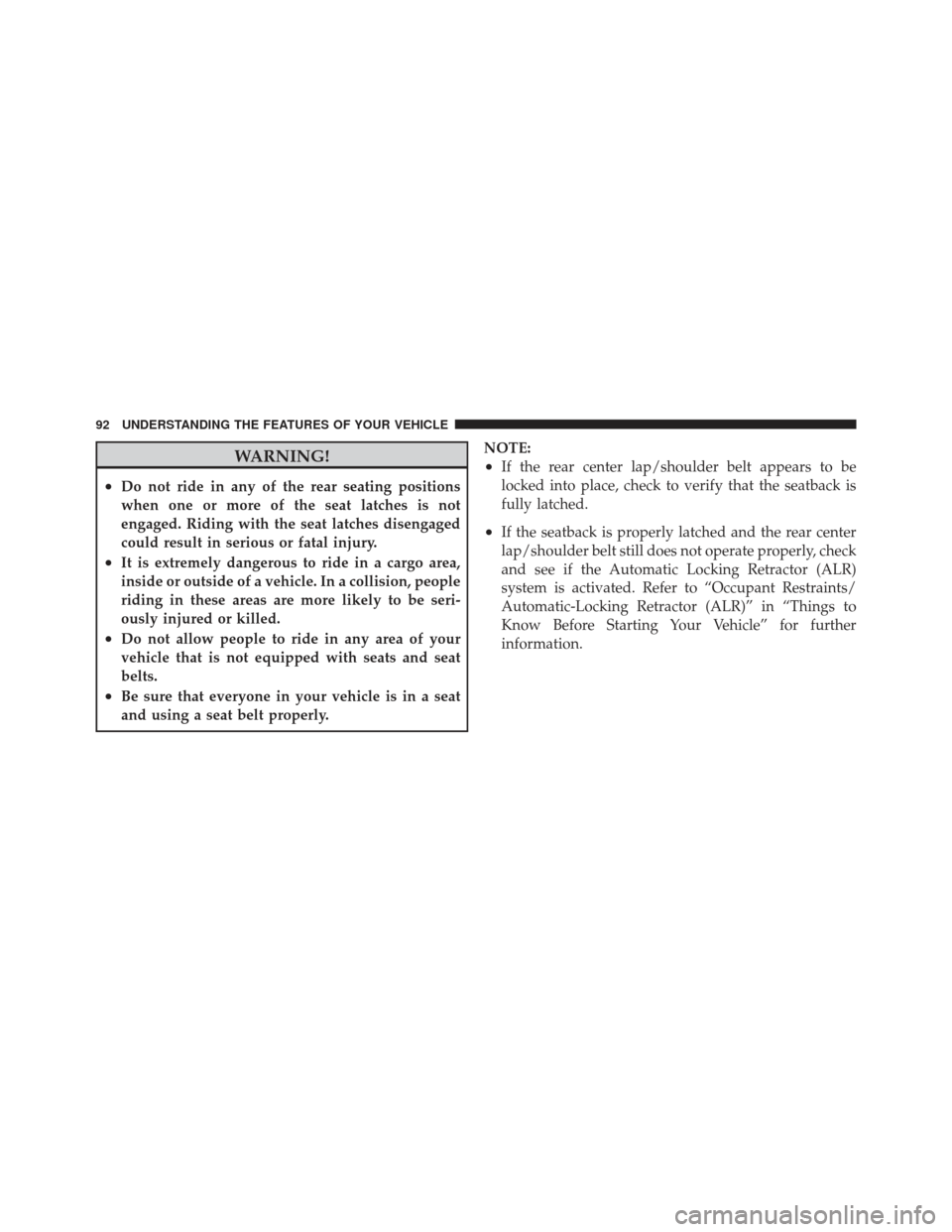

WARNING!
•Do not ride in any of the rear seating positions
when one or more of the seat latches is not
engaged. Riding with the seat latches disengaged
could result in serious or fatal injury.
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure that everyone in your vehicle is in a seat
and using a seat belt properly.NOTE:
•If the rear center lap/shoulder belt appears to be
locked into place, check to verify that the seatback is
fully latched.
•If the seatback is properly latched and the rear center
lap/shoulder belt still does not operate properly, check
and see if the Automatic Locking Retractor (ALR)
system is activated. Refer to “Occupant Restraints/
Automatic-Locking Retractor (ALR)” in “Things to
Know Before Starting Your Vehicle” for further
information.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

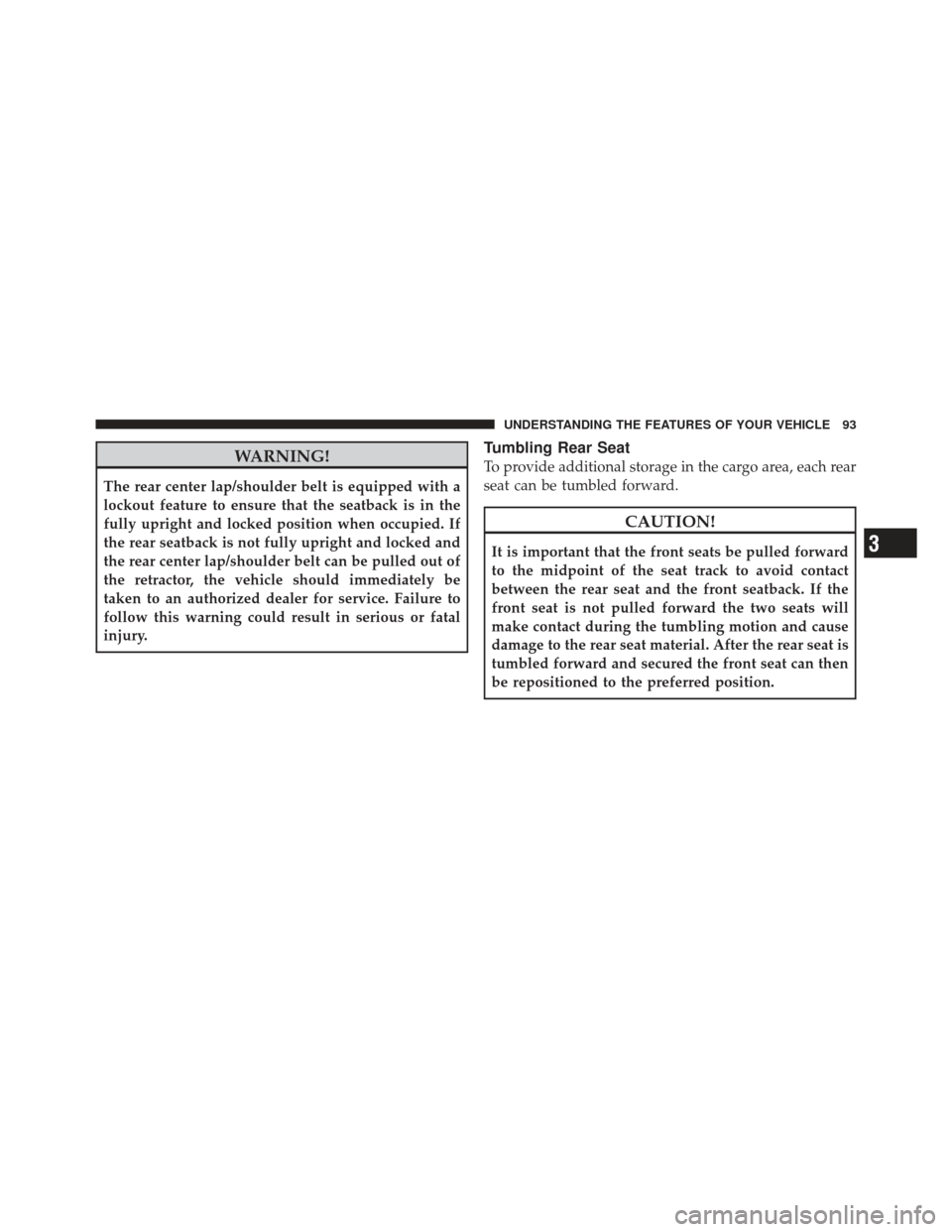

WARNING!
The rear center lap/shoulder belt is equipped with a
lockout feature to ensure that the seatback is in the
fully upright and locked position when occupied. If
the rear seatback is not fully upright and locked and
the rear center lap/shoulder belt can be pulled out of
the retractor, the vehicle should immediately be
taken to an authorized dealer for service. Failure to
follow this warning could result in serious or fatal
injury.
Tumbling Rear Seat
To provide additional storage in the cargo area, each rear
seat can be tumbled forward.
CAUTION!
It is important that the front seats be pulled forward
to the midpoint of the seat track to avoid contact
between the rear seat and the front seatback. If the
front seat is not pulled forward the two seats will
make contact during the tumbling motion and cause
damage to the rear seat material. After the rear seat is
tumbled forward and secured the front seat can then
be repositioned to the preferred position.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

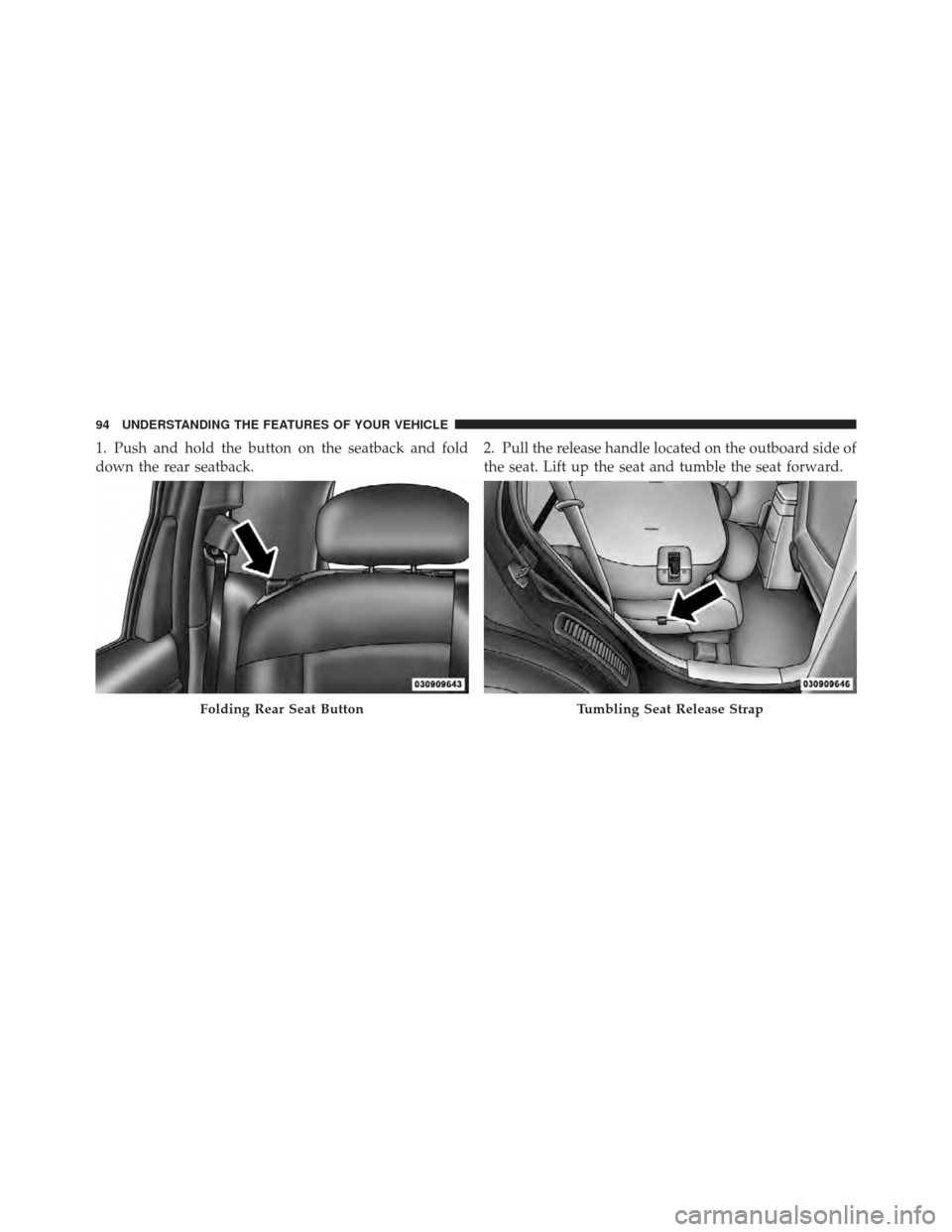

1. Push and hold the button on the seatback and fold
down the rear seatback.2. Pull the release handle located on the outboard side of
the seat. Lift up the seat and tumble the seat forward.
Folding Rear Seat ButtonTumbling Seat Release Strap
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

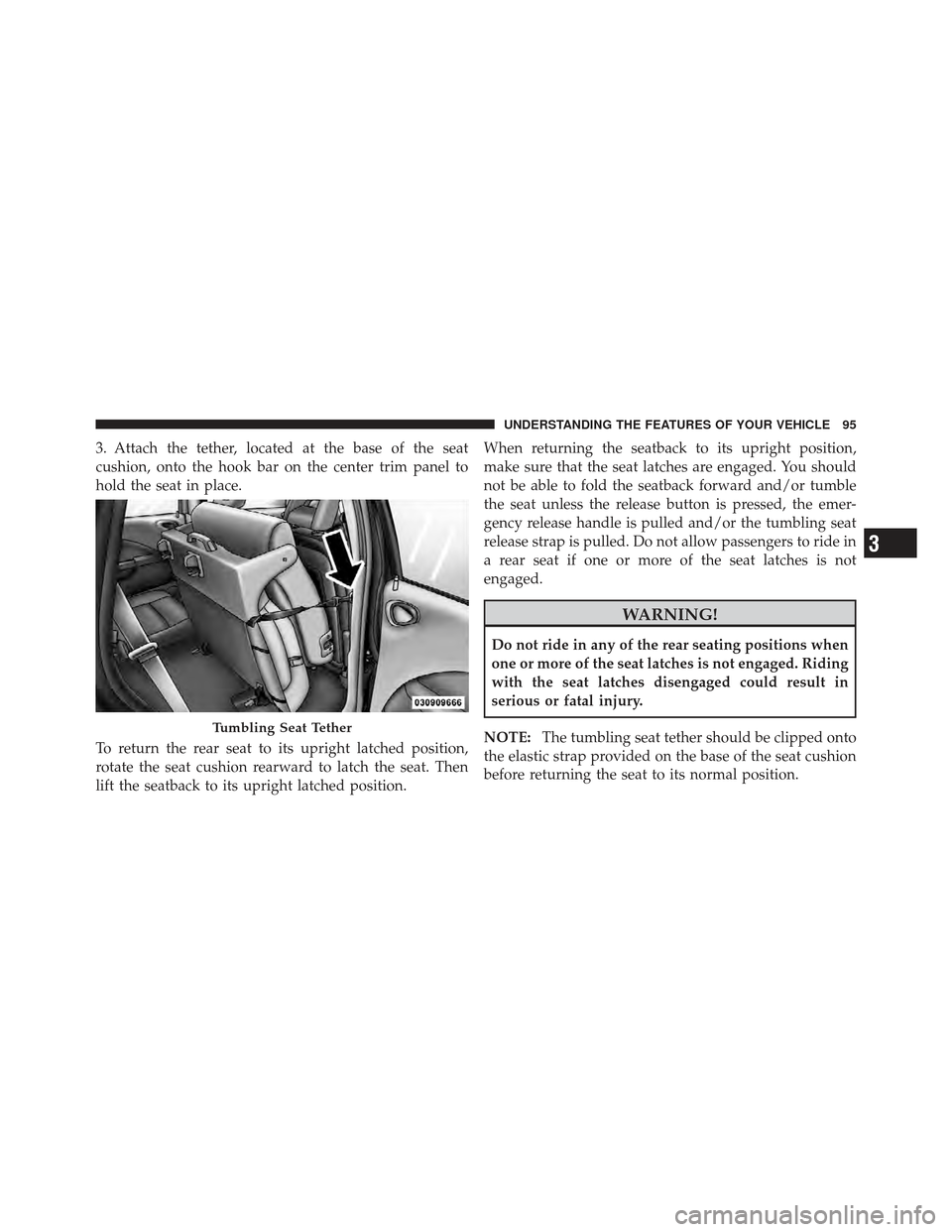

3. Attach the tether, located at the base of the seat
cushion, onto the hook bar on the center trim panel to
hold the seat in place.
To return the rear seat to its upright latched position,
rotate the seat cushion rearward to latch the seat. Then
lift the seatback to its upright latched position.When returning the seatback to its upright position,
make sure that the seat latches are engaged. You should
not be able to fold the seatback forward and/or tumble
the seat unless the release button is pressed, the emer-
gency release handle is pulled and/or the tumbling seat
release strap is pulled. Do not allow passengers to ride in
a rear seat if one or more of the seat latches is not
engaged.
WARNING!
Do not ride in any of the rear seating positions when
one or more of the seat latches is not engaged. Riding
with the seat latches disengaged could result in
serious or fatal injury.
NOTE: The tumbling seat tether should be clipped onto
the elastic strap provided on the base of the seat cushion
before returning the seat to its normal position.
Tumbling Seat Tether
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

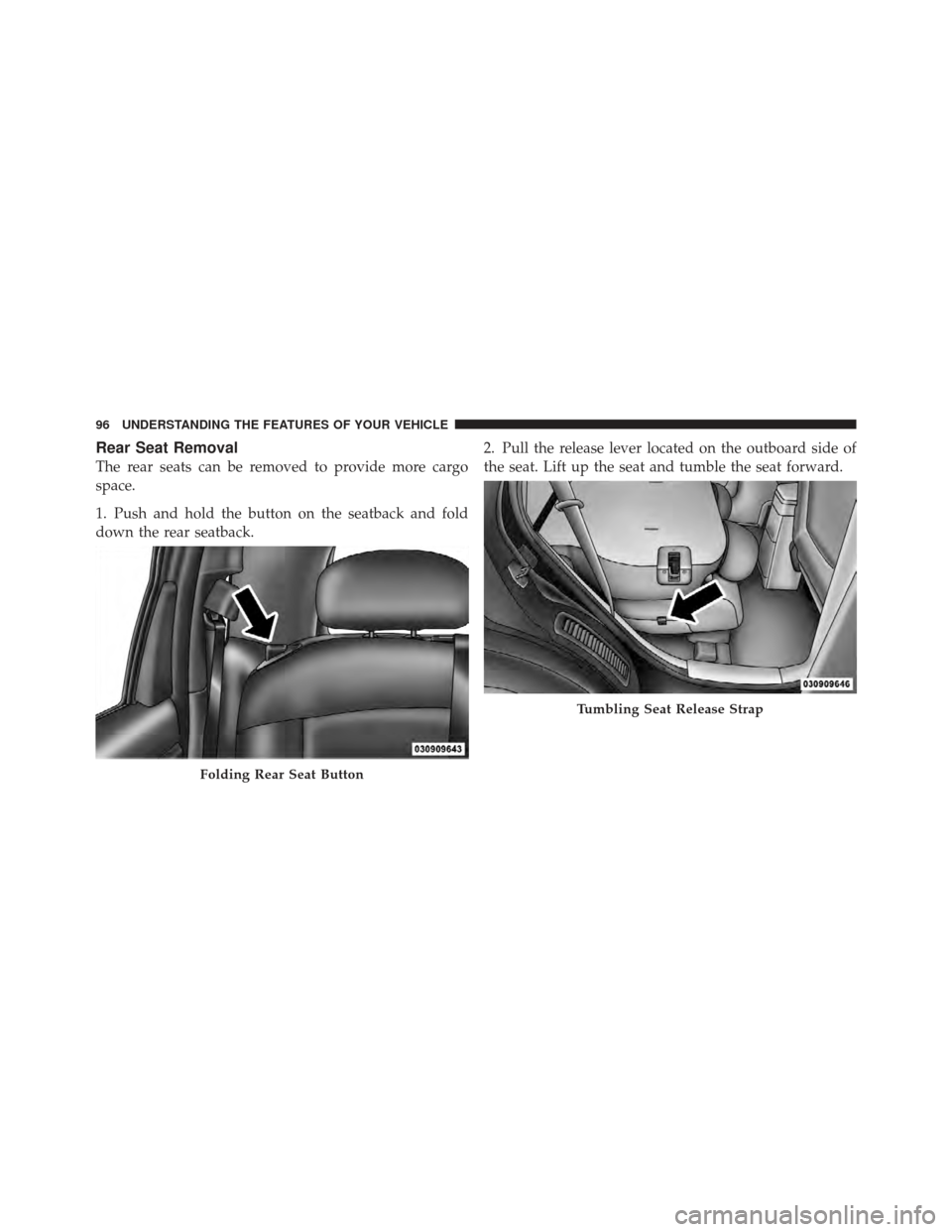

Rear Seat Removal
The rear seats can be removed to provide more cargo
space.
1. Push and hold the button on the seatback and fold
down the rear seatback.2. Pull the release lever located on the outboard side of
the seat. Lift up the seat and tumble the seat forward.
Folding Rear Seat Button
Tumbling Seat Release Strap
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

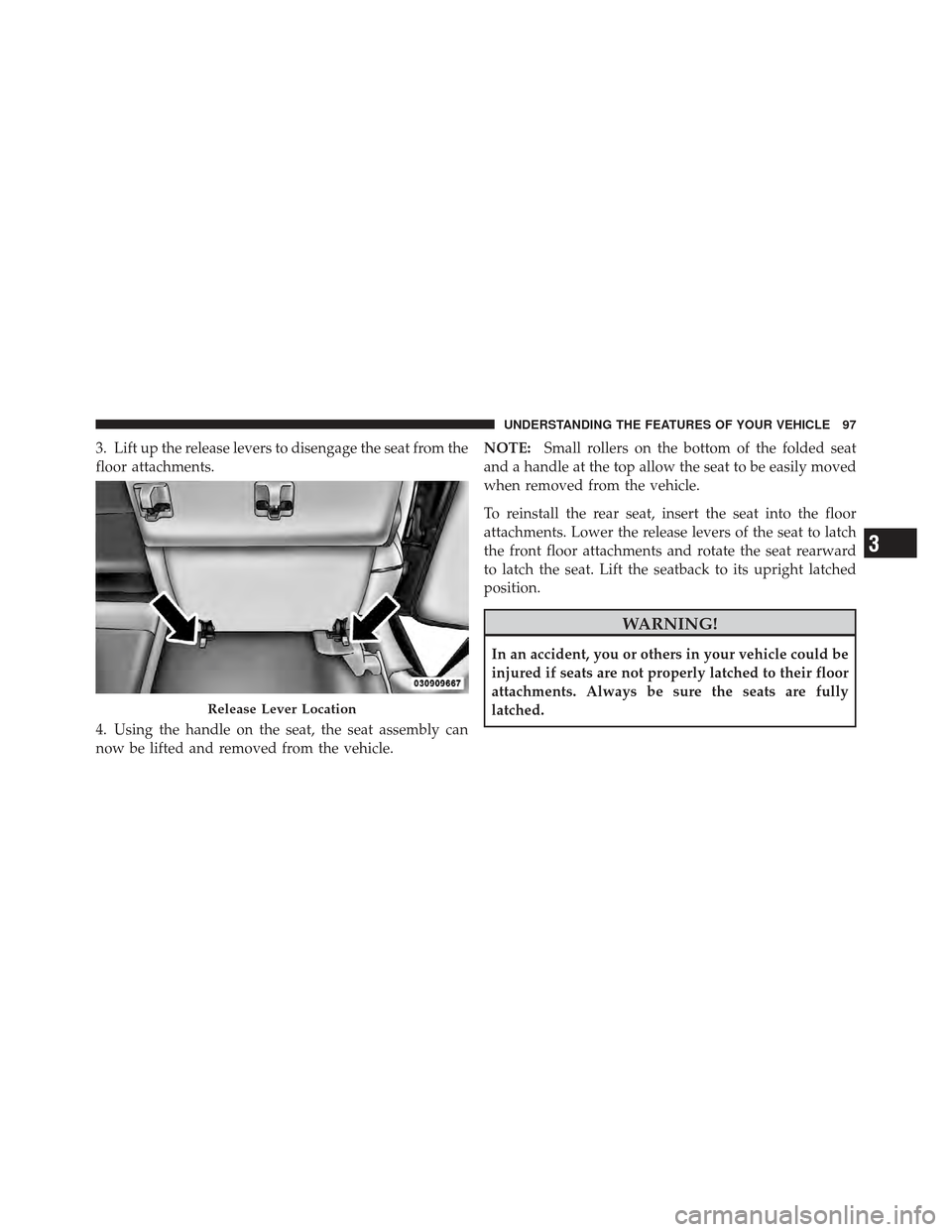

3. Lift up the release levers to disengage the seat from the
floor attachments.
4. Using the handle on the seat, the seat assembly can
now be lifted and removed from the vehicle.NOTE:
Small rollers on the bottom of the folded seat
and a handle at the top allow the seat to be easily moved
when removed from the vehicle.
To reinstall the rear seat, insert the seat into the floor
attachments. Lower the release levers of the seat to latch
the front floor attachments and rotate the seat rearward
to latch the seat. Lift the seatback to its upright latched
position.
WARNING!
In an accident, you or others in your vehicle could be
injured if seats are not properly latched to their floor
attachments. Always be sure the seats are fully
latched.
Release Lever Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

EMERGENCY SEATBACK RELEASE
WARNING!
Do not allow children to have access to the liftgate
area with the rear shelf panel in position 1 (Top) or
position 2 (Middle), either by climbing into the
liftgate from outside, or through the inside of the
vehicle. Always close the liftgate when your vehicle
is unattended. Once in the liftgate area, young chil-
dren may not be able to escape, even if they entered
through the rear seat. If trapped in the liftgate,
children can die from suffocation or heat stroke.
As a security measure, a Seatback Emergency Release
lever is built into the left side rear seatback latching
mechanism. In the event of an individual being locked
inside the liftgate area with the rear shelf panel in
position 1 (Top) or position 2 (Middle), the left side rear
seatback can be unlatched by pulling down on the glow-in-the-dark lever attached to the left rear seatback
latching mechanism. Refer to “Cargo Area Features” in
“Understanding the Features of Your Vehicle” for further
information.
Once unlatched the seatback can be pushed forward to
gain access into the interior of the vehicle.
Emergency Seatback Release
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

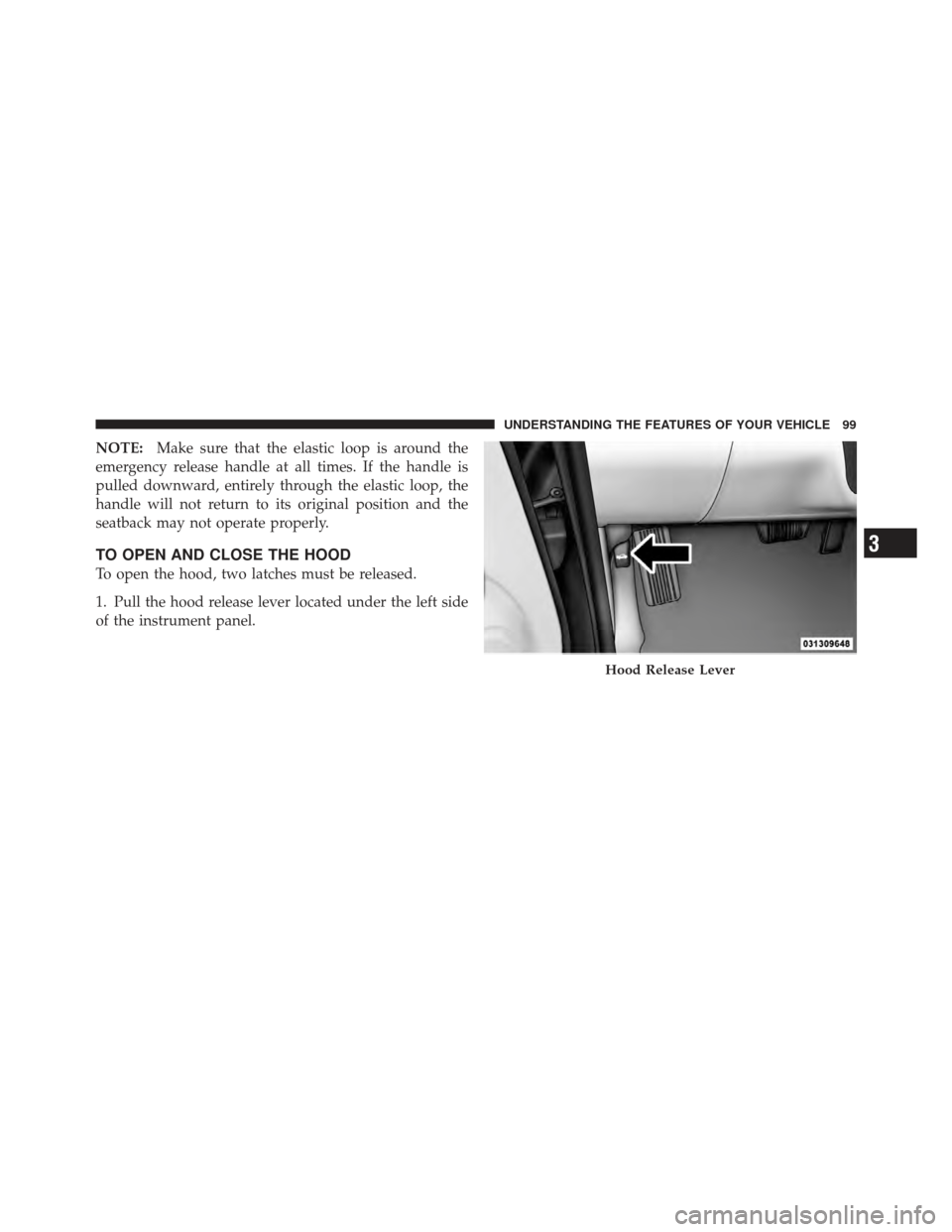

NOTE:Make sure that the elastic loop is around the
emergency release handle at all times. If the handle is
pulled downward, entirely through the elastic loop, the
handle will not return to its original position and the
seatback may not operate properly.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release Lever
3
