CavityCartridge
Fuse Mini-Fuse Description
24 25 Amp Natu-
ral PWR Sunroof
Feed
25 10 Amp Red Heated Mirror
26 15 Amp Lt.
Blue ENG ASD Re-
lay Feed 2
27 10 Amp Red IGN RUN Only
ORC Feed
28 10 Amp Red IGN RUN
ORC/OCM
Feed
29 EMPTY
30 20 Amp Yellow Heated Seats
31 10 Amp Red Headlamp
Washer Relay
ControlCavityCartridge
Fuse Mini-Fuse Description
32 30 Amp Pink ENG ASD Con-
trol Feed 1
33 10 Amp Red ABS MOD/
J1962 Conn/
PCM
34 30 Amp Pink ABS Valve Feed
35 40 Amp Green ABS Pump
Feed
36 30 Amp Pink Headlamp
Washer Relay
Contact Feed
37 25 Amp Natu-
ral Spare
310 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb No.
Center Console Floor Lamp ................. T37
Climate Controls ...................... 6233137
Console Gear Selector ................... PC194
Dome Lamp (Sedan) ..................... T579
Instrument Cluster Illumination ............... 74
Overhead Reading Lamp (Overhead Console) . . . T1037
Overhead Reading Lamp (Rearview Mirror) .....T192
Rear Cargo ............................ T906
Visor Vanity ......................... 6501966
7
MAINTAINING YOUR VEHICLE 311

All the interior bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHTS BULBS – Exterior Bulb No.
Low Beam Headlamp................... 9006XS
High Beam Headlamp .................. 9005XS
Front Park/Turn Signal/Side Marker
Lamp ............................ 4157NAKX
Front Fog Lamp ......................... 9145
Center High-Mounted Stop Lamp (CHMSL)
(Sedan) .......................... 921–W16W
Rear Tail/Stop .......................... 3157
Rear Turn Signal ....................... 3757A
Backup Lamp .................... 3157-P27/7W
License Lamp ........................... 168BULB REPLACEMENT
Headlamps
CAUTION!
Do not touch the new headlamp bulb with your
fingers. Oil contamination will severely shorten bulb
life.
1. Remove the headlamp access cover splash shield,
located in the front wheel well opening.
2. Disconnect the electrical connector(s).
312 MAINTAINING YOUR VEHICLE

3. Rotate the socket to the left one-quarter turn, and
replace the bulb.
Front Parking, Turn Signal, and Side Marker
Lamps
1. Remove the headlamp access cover splash shield,
located in the front wheel well opening.2. Disconnect the electrical connector.
3. Rotate the socket to the left one-quarter turn, and
replace the bulb.
7
MAINTAINING YOUR VEHICLE 313

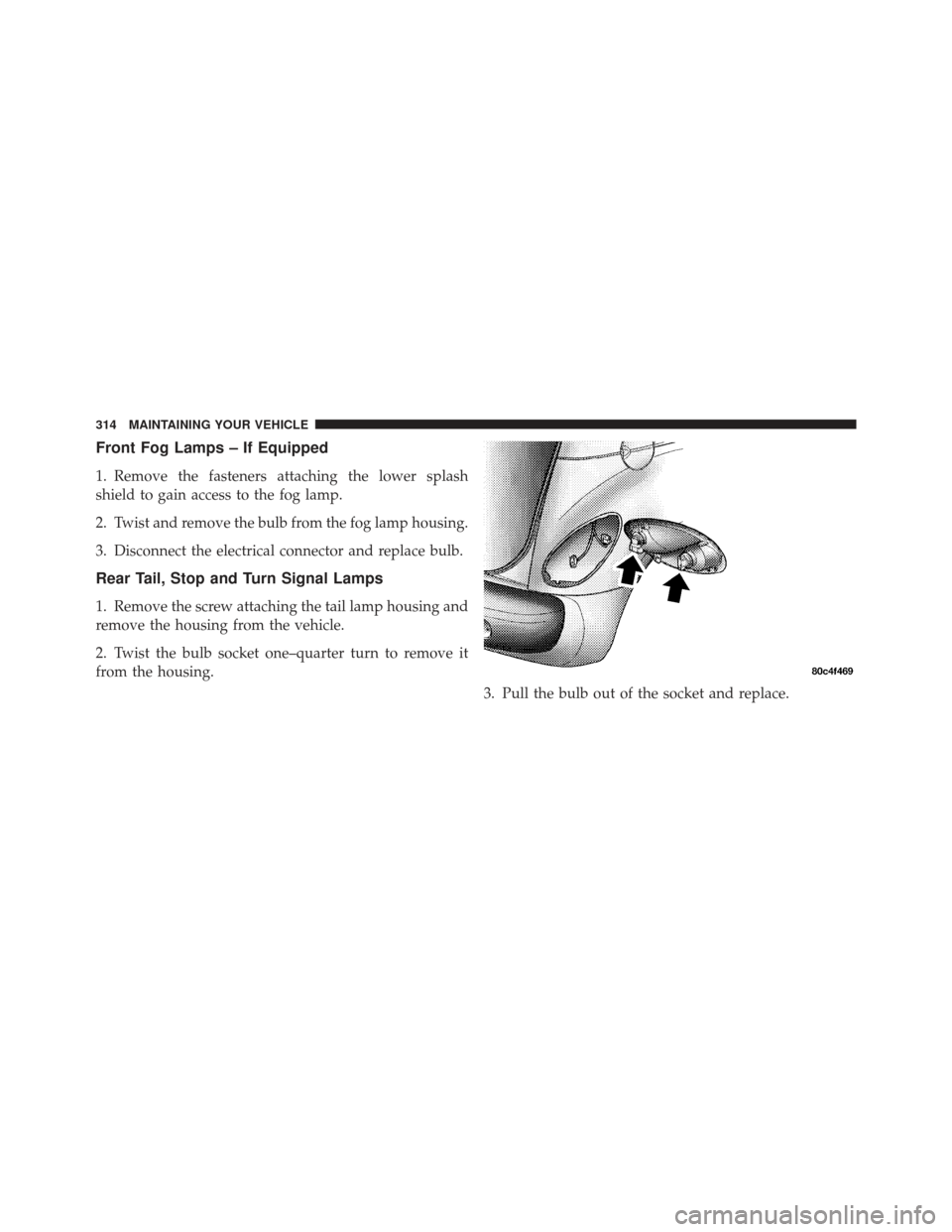

Front Fog Lamps – If Equipped
1. Remove the fasteners attaching the lower splash
shield to gain access to the fog lamp.
2. Twist and remove the bulb from the fog lamp housing.
3. Disconnect the electrical connector and replace bulb.
Rear Tail, Stop and Turn Signal Lamps
1. Remove the screw attaching the tail lamp housing and
remove the housing from the vehicle.
2. Twist the bulb socket one–quarter turn to remove it
from the housing.3. Pull the bulb out of the socket and replace.
314 MAINTAINING YOUR VEHICLE

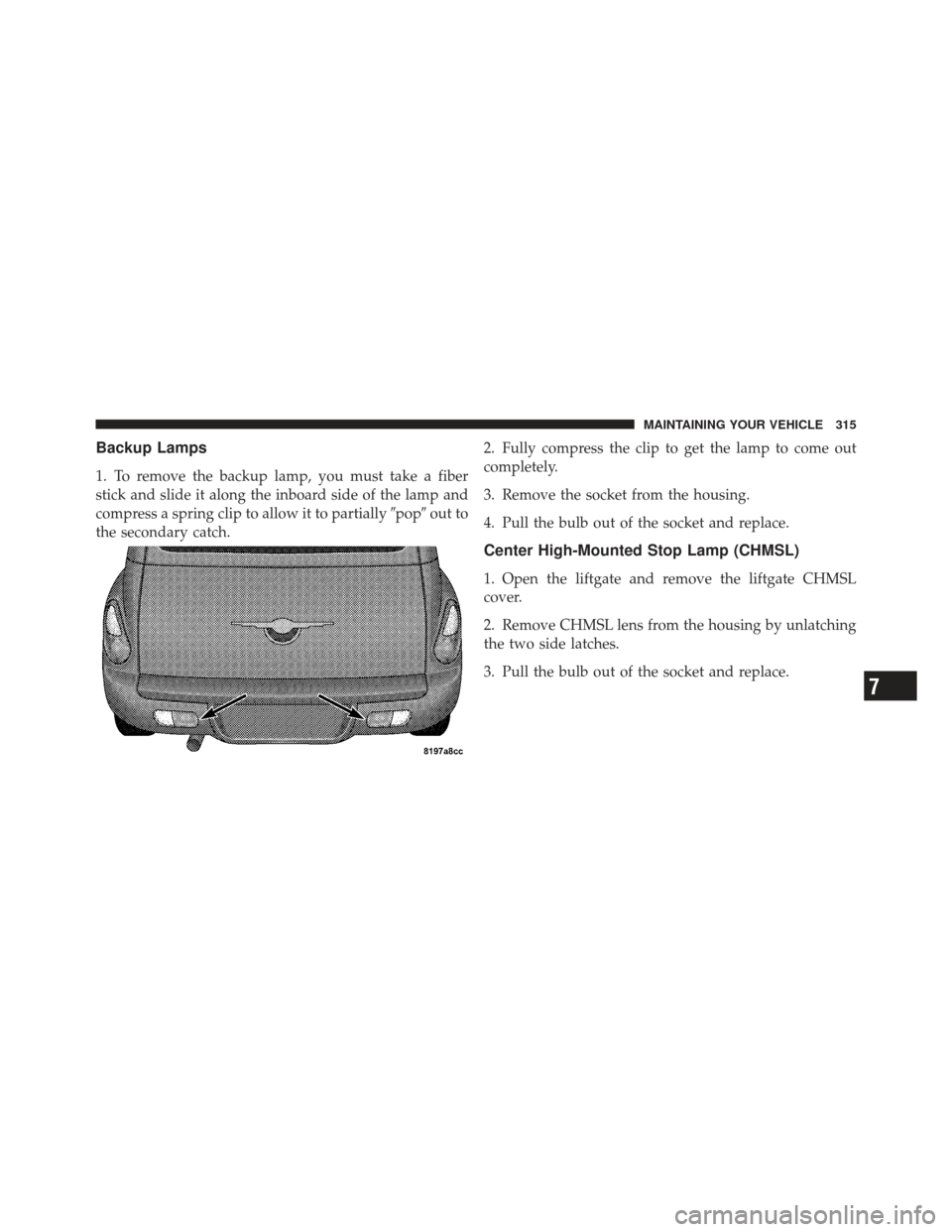

Backup Lamps
1. To remove the backup lamp, you must take a fiber
stick and slide it along the inboard side of the lamp and
compress a spring clip to allow it to partiallypopout to
the secondary catch. 2. Fully compress the clip to get the lamp to come out
completely.
3. Remove the socket from the housing.
4. Pull the bulb out of the socket and replace.
Center High-Mounted Stop Lamp (CHMSL)
1. Open the liftgate and remove the liftgate CHMSL
cover.
2. Remove CHMSL lens from the housing by unlatching
the two side latches.
3. Pull the bulb out of the socket and replace.
7
MAINTAINING YOUR VEHICLE 315

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 15 Gallons56.7 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-30, API Certified) 5 Quarts4.7 Liters
Cooling System *
2.4L Engine (MOPAR Antifreeze/Engine Coolant 5
Year/100,000 Mile Formula or equivalent) 6.5 Quarts
6.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
316 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 2.4L Engine ChampionRE16MC (Gap 0.040 in [1.02 mm])
Fuel Selection 87 Octane
7
MAINTAINING YOUR VEHICLE 317

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid +4, MOPAR ATF+4Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
318 MAINTAINING YOUR VEHICLE

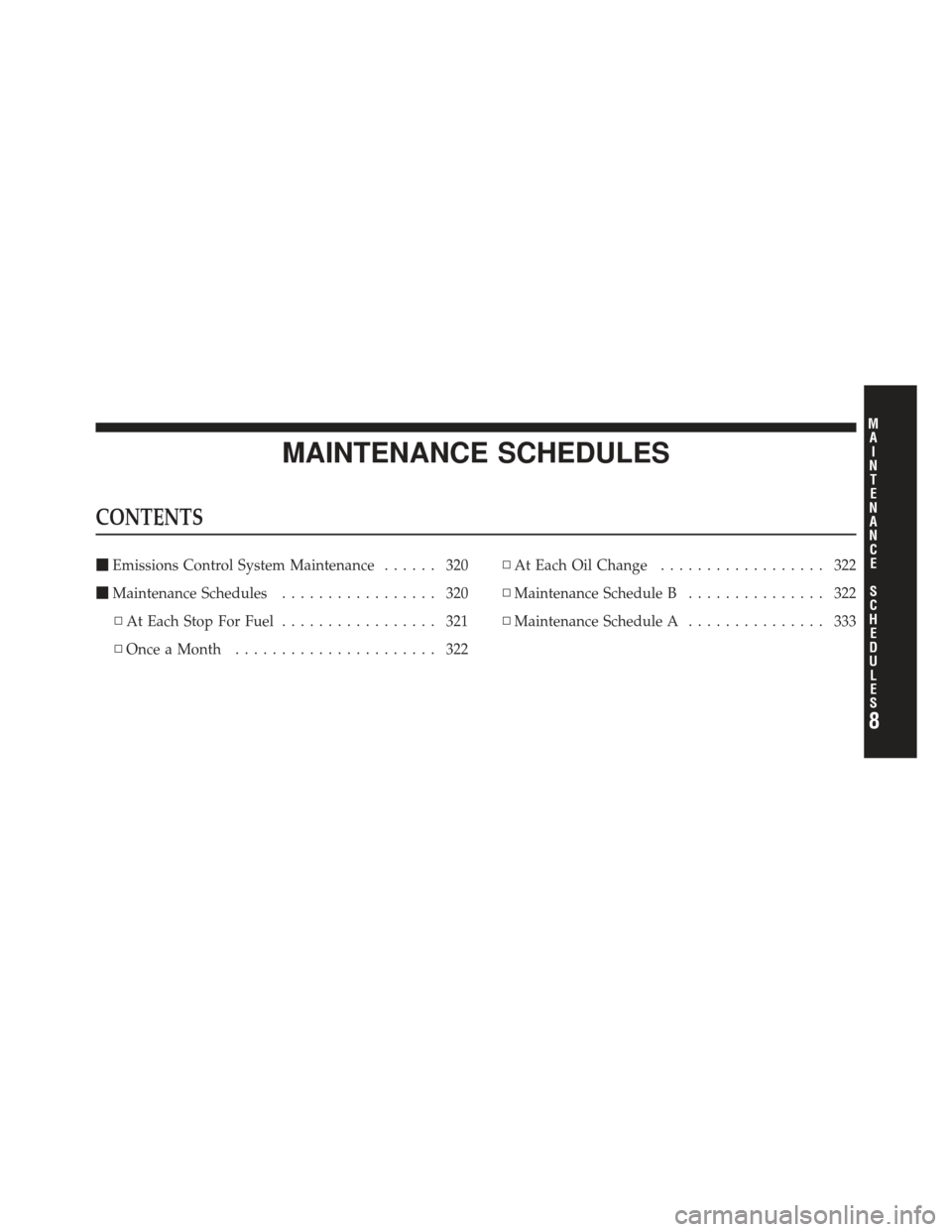

MAINTENANCE SCHEDULES
CONTENTS
Emissions Control System Maintenance ...... 320
 Maintenance Schedules ................. 320
▫ At Each Stop For Fuel ................. 321
▫ Once a Month ...................... 322 ▫
At Each Oil Change .................. 322
▫ Maintenance Schedule B ............... 322
▫ Maintenance Schedule A ............... 333
