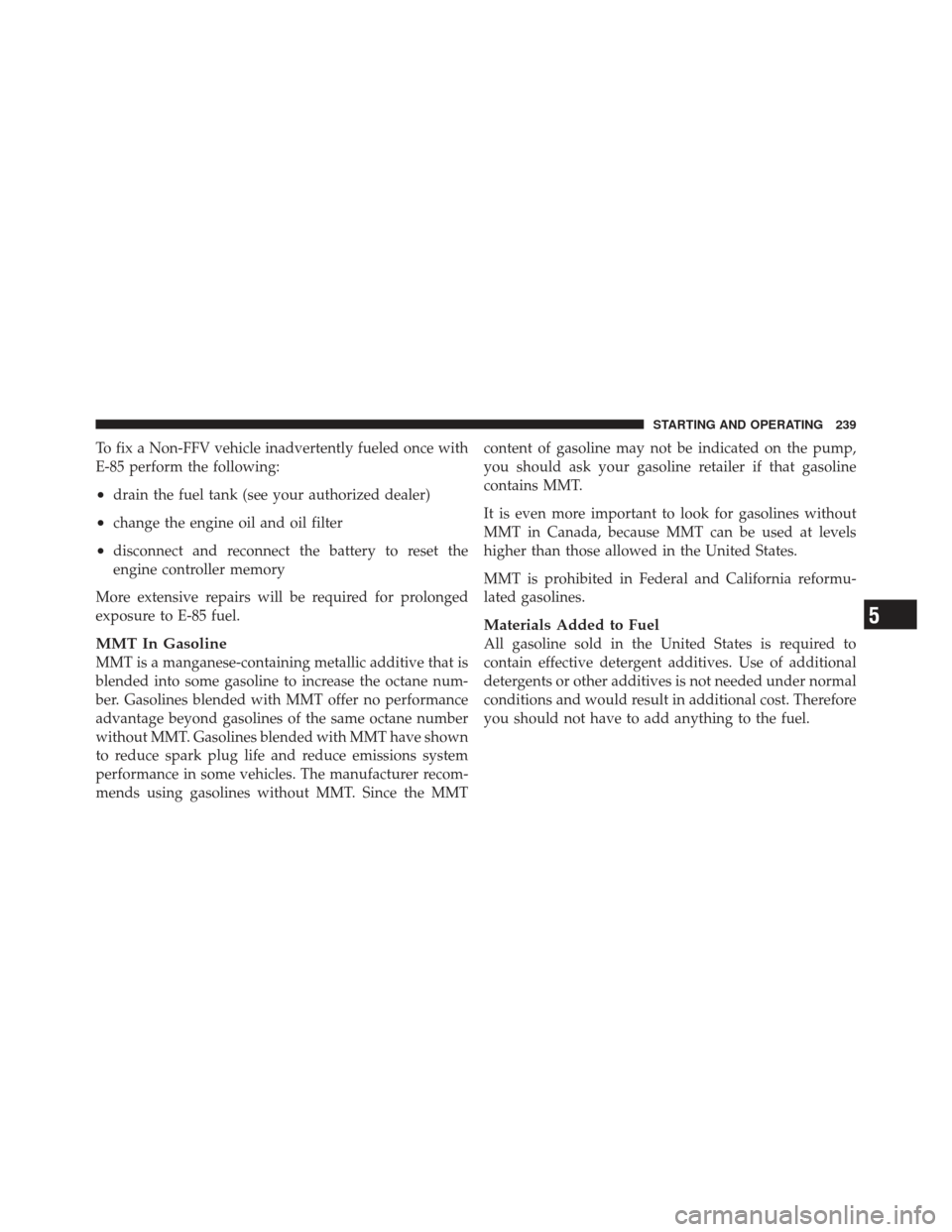

To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
•change the engine oil and oil filter
•disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese-containing metallic additive that is
blended into some gasoline to increase the octane num-
ber. Gasolines blended with MMT offer no performance
advantage beyond gasolines of the same octane number
without MMT. Gasolines blended with MMT have shown
to reduce spark plug life and reduce emissions system
performance in some vehicles. The manufacturer recom-
mends using gasolines without MMT. Since the MMT content of gasoline may not be indicated on the pump,
you should ask your gasoline retailer if that gasoline
contains MMT.
It is even more important to look for gasolines without
MMT in Canada, because MMT can be used at levels
higher than those allowed in the United States.
MMT is prohibited in Federal and California reformu-
lated gasolines.
Materials Added to Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and would result in additional cost. Therefore
you should not have to add anything to the fuel.
5
STARTING AND OPERATING 239

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............ 277
 Onboard Diagnostic System — OBD II ..... 278
▫ Loose Fuel Filler Cap Message .......... 278
 Emissions Inspection And Maintenance
Programs ............................ 278
 Replacement Parts .................... 280
 Dealer Service ....................... 280
 Maintenance Procedures ................ 281
▫ Engine Oil ........................ 281 ▫
Engine Oil Filter .................... 284
▫ Engine Air Cleaner Filter .............. 285
▫ Maintenance-Free Battery ............. 286
▫ Air Conditioner Maintenance ........... 287
▫ Body Lubrication ................... 288
▫ Windshield Wiper Blades ............. 289
▫ Adding Washer Fluid ................ 289
▫ Exhaust System .................... 290
▫ Cooling System .................... 292
7

ENGINE COMPARTMENT — 2.4L
1 — Washer Fluid Reservoir7 — Battery
2 — Power Steering Fluid Reservoir 8 — Automatic Transmission Dipstick
3 — Engine Coolant Reservoir 9 — Engine Oil Dipstick
4 — Brake Fluid Reservoir 10 — Engine Oil Fill
5 — Power Distribution Center 11 — Coolant Pressure Cap
6 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 277

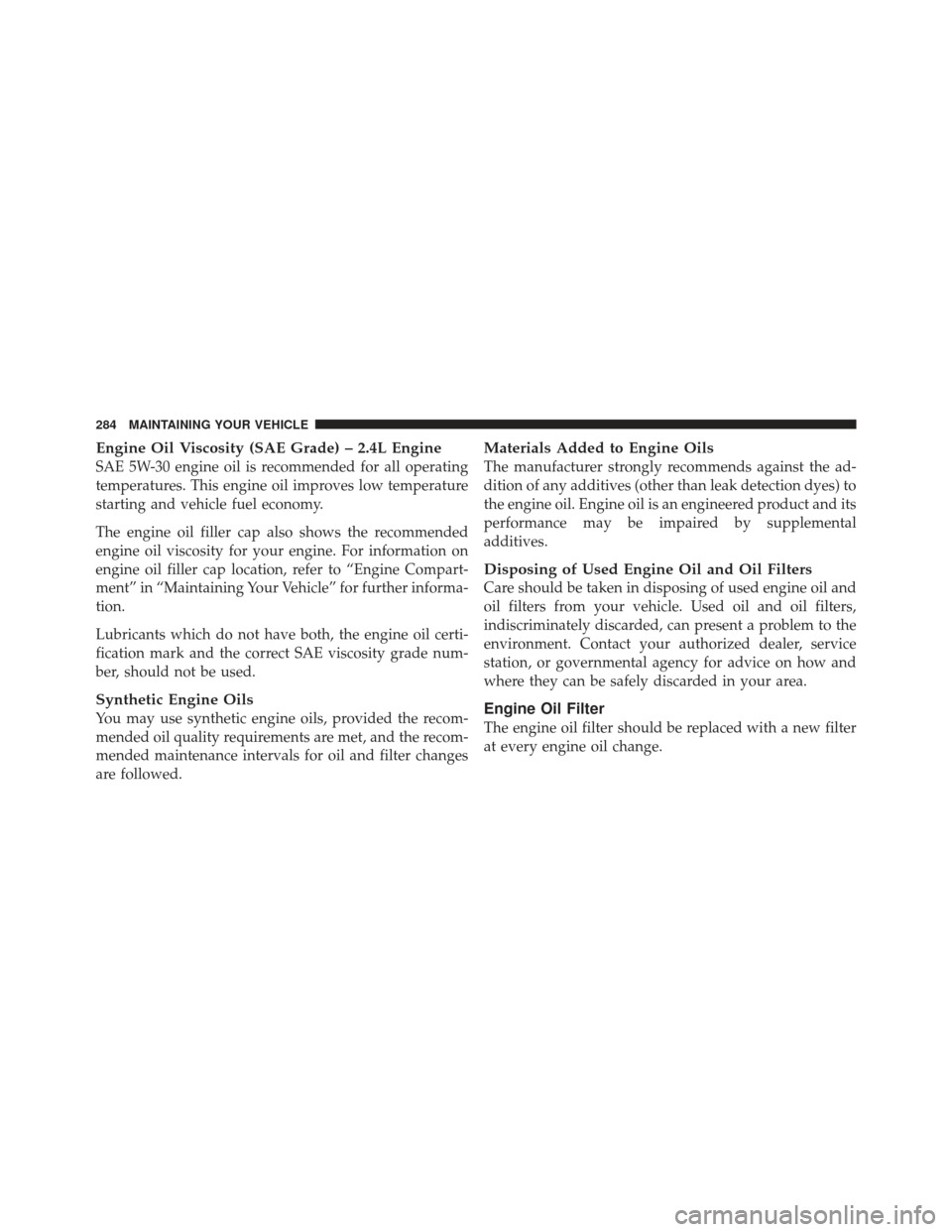

Engine Oil Viscosity (SAE Grade) – 2.4L Engine
SAE 5W-30 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.
Lubricants which do not have both, the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber, should not be used.
Synthetic Engine Oils
You may use synthetic engine oils, provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added to Engine Oils
The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental
additives.
Disposing of Used Engine Oil and Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
station, or governmental agency for advice on how and
where they can be safely discarded in your area.
Engine Oil Filter
The engine oil filter should be replaced with a new filter
at every engine oil change.
284 MAINTAINING YOUR VEHICLE

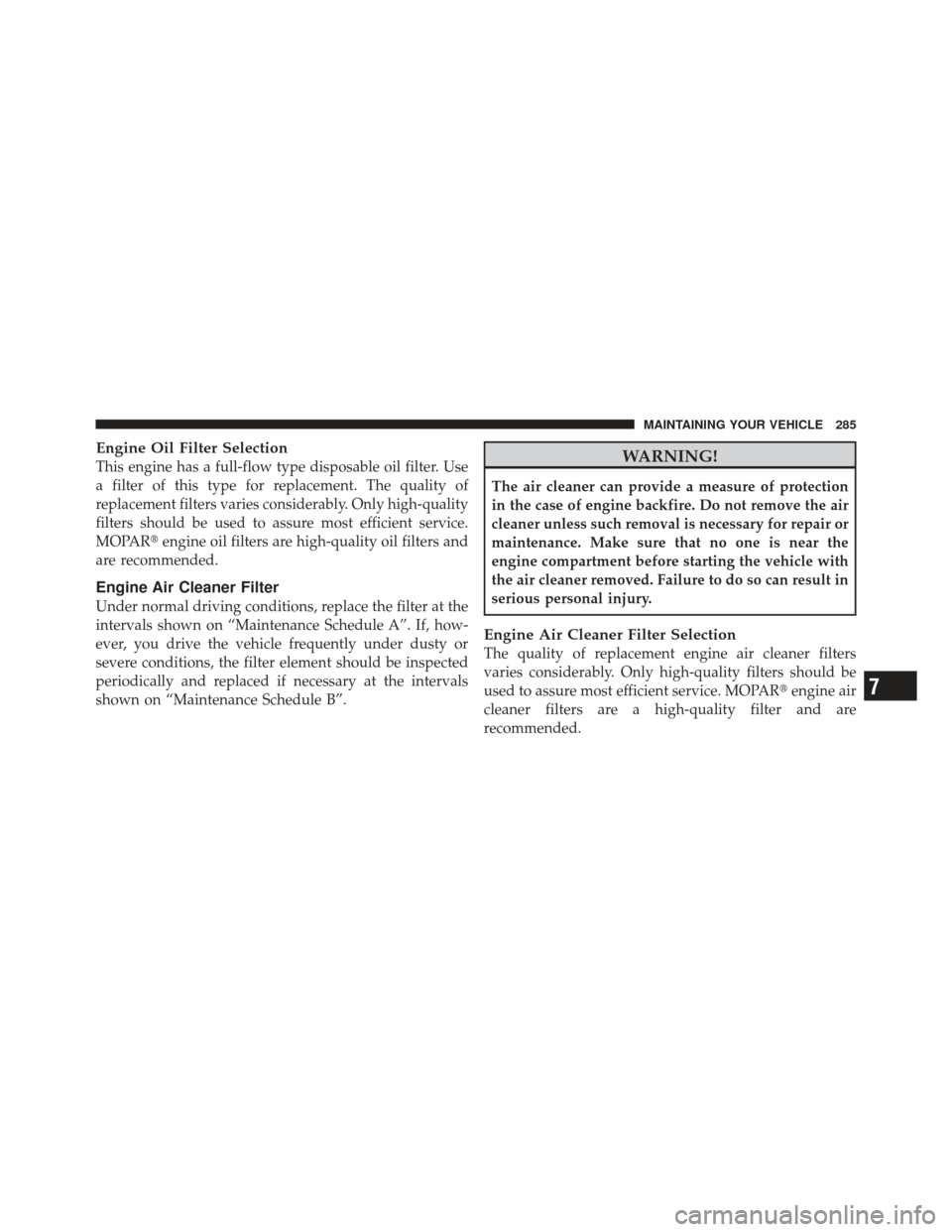

Engine Oil Filter Selection
This engine has a full-flow type disposable oil filter. Use
a filter of this type for replacement. The quality of
replacement filters varies considerably. Only high-quality
filters should be used to assure most efficient service.
MOPARengine oil filters are high-quality oil filters and
are recommended.
Engine Air Cleaner Filter
Under normal driving conditions, replace the filter at the
intervals shown on “Maintenance Schedule A”. If, how-
ever, you drive the vehicle frequently under dusty or
severe conditions, the filter element should be inspected
periodically and replaced if necessary at the intervals
shown on “Maintenance Schedule B”.
WARNING!
The air cleaner can provide a measure of protection
in the case of engine backfire. Do not remove the air
cleaner unless such removal is necessary for repair or
maintenance. Make sure that no one is near the
engine compartment before starting the vehicle with
the air cleaner removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high-quality filters should be
used to assure most efficient service. MOPAR engine air
cleaner filters are a high-quality filter and are
recommended.
7
MAINTAINING YOUR VEHICLE 285

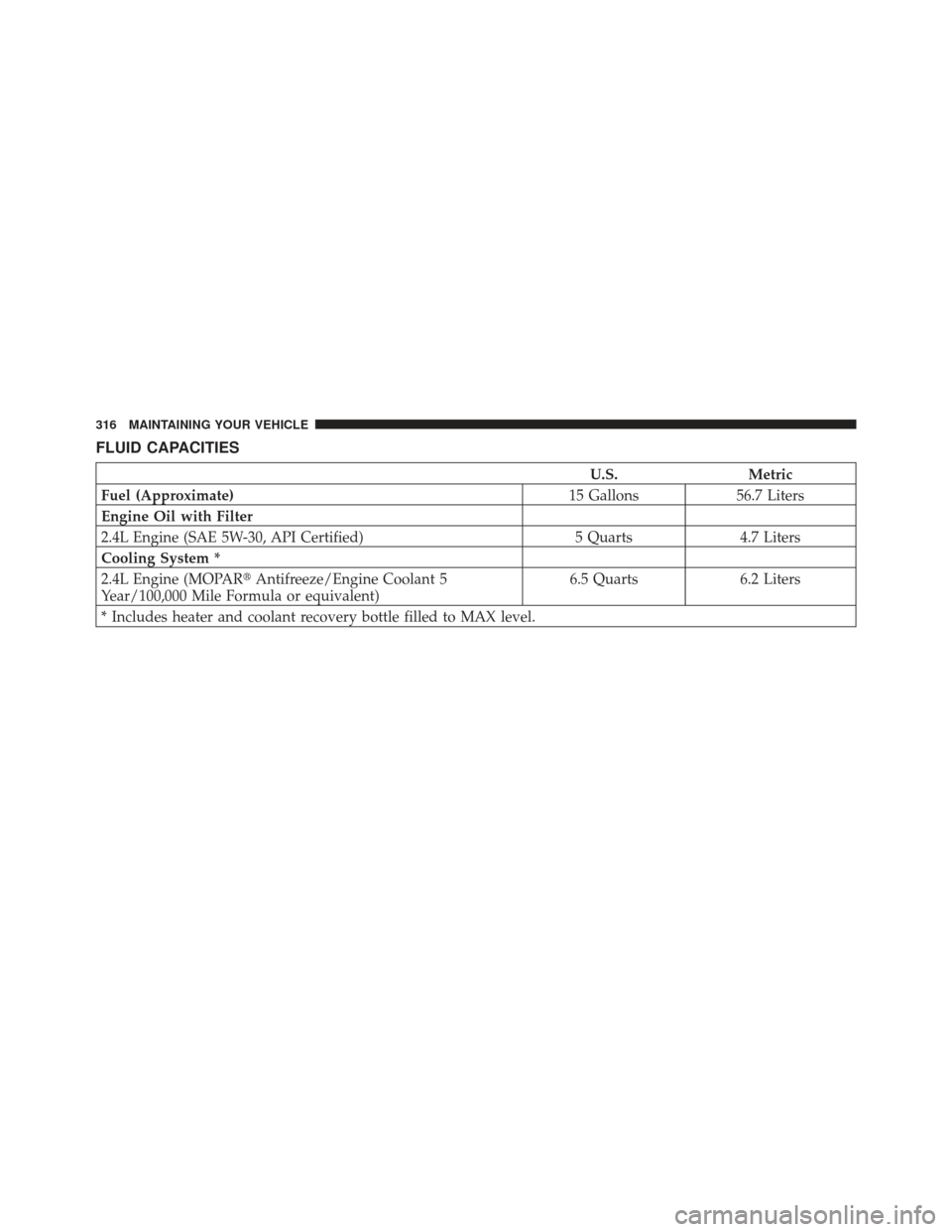

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 15 Gallons56.7 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-30, API Certified) 5 Quarts4.7 Liters
Cooling System *
2.4L Engine (MOPAR Antifreeze/Engine Coolant 5
Year/100,000 Mile Formula or equivalent) 6.5 Quarts
6.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
316 MAINTAINING YOUR VEHICLE

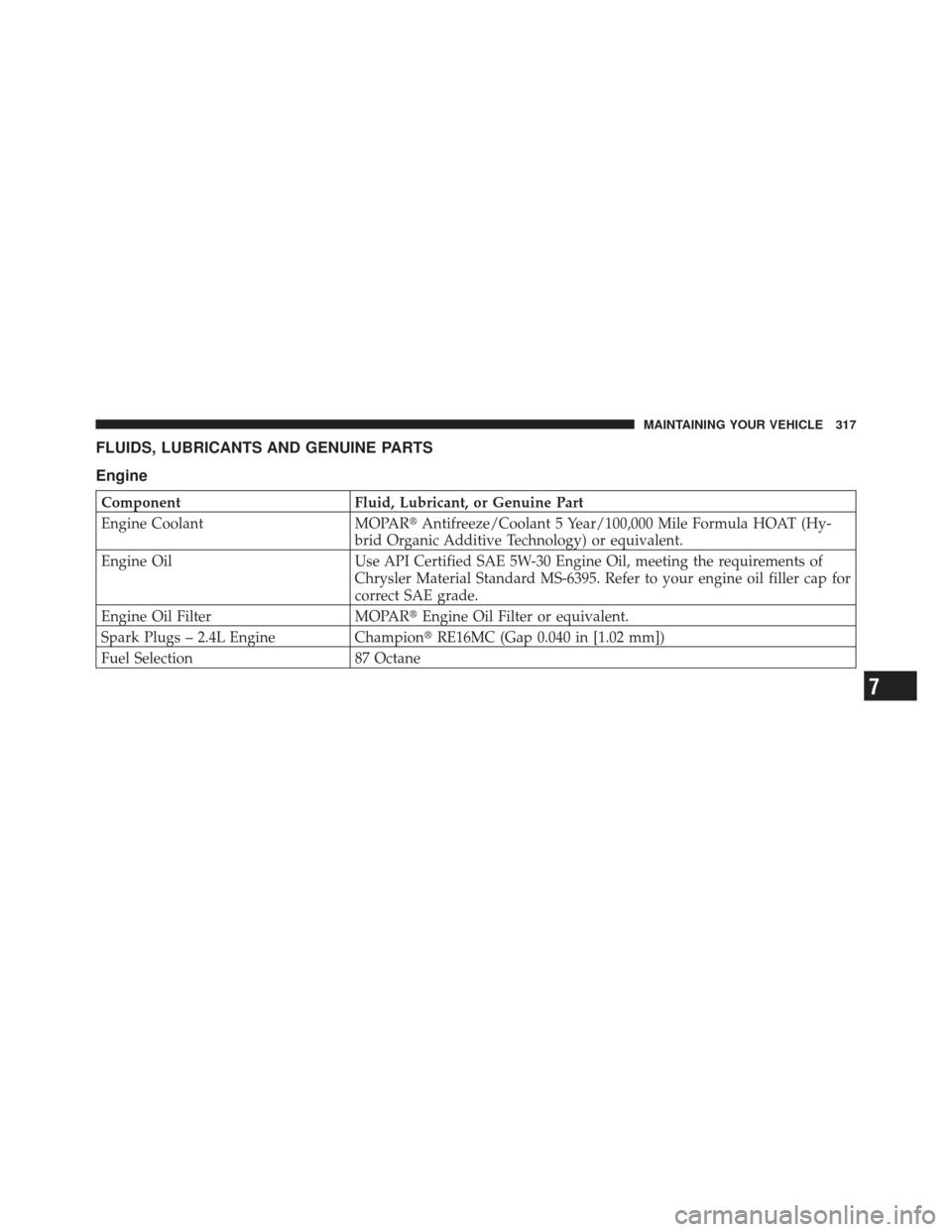

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 2.4L Engine ChampionRE16MC (Gap 0.040 in [1.02 mm])
Fuel Selection 87 Octane
7
MAINTAINING YOUR VEHICLE 317

•Check the windshield washer solvent and add if
required.
Once a Month
•
Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of the coolant reservoir, brake
master cylinder and transmission, and add as needed.
•Check all lights and all other electrical items for correct
operation.
•Check rubber seals on each side of the radiator for
proper fit.
At Each Oil Change
•
Change the engine oil filter.
•Inspect the exhaust system.
•Inspect the brake hoses.
•Inspect the CV joints and front suspension compo-
nents.
•Check the automatic transmission fluid level.
•Check the coolant level, hoses, and clamps.
Maintenance Schedule B
Follow “Maintenance Schedule B” if you usually operate
your vehicle under one or more of the following condi-
tions.
8
MA I
N T
E
N A
N CE
S
C
H E
D
U L
E
S322 MAINTENANCE SCHEDULES

Change the automatic transmission fluid and filter every
60,000 miles (100 000 km) if the vehicle is usually
operated under one or more of the conditions marked
with an\b.
•Day and night temperatures are below 32°F (0°C).
•Stop and go driving.
•Extensive engine idling.
•Driving in dusty conditions.
•Short trips of less than 10 miles (16.2 km).
•More than 50% of your driving is at sustained high
speeds during hot weather, above 90°F (32°C).
•Trailer towing.†\b
•Taxi, police, or delivery service (commercial ser-
vice).†\b
•Off-road or desert operation.
•If equipped for and operating with E-85 (ethanol) fuel.
NOTE:
•If ANY of these apply to you, then change your engine
oil every 3,000 miles (5 000 km) or three months,
whichever comes first, and follow ’Maintenance
Schedule B” in this section.
•If ANY of these apply to you, then flush and replace
the engine coolant every 102,000 miles (170 000 km) or
60 months, whichever comes first, and follow “Main-
tenance Schedule B” in this section.
If none of these apply to you, then change your engine oil
at every interval shown on “Maintenance Schedule A” in
this section.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 323

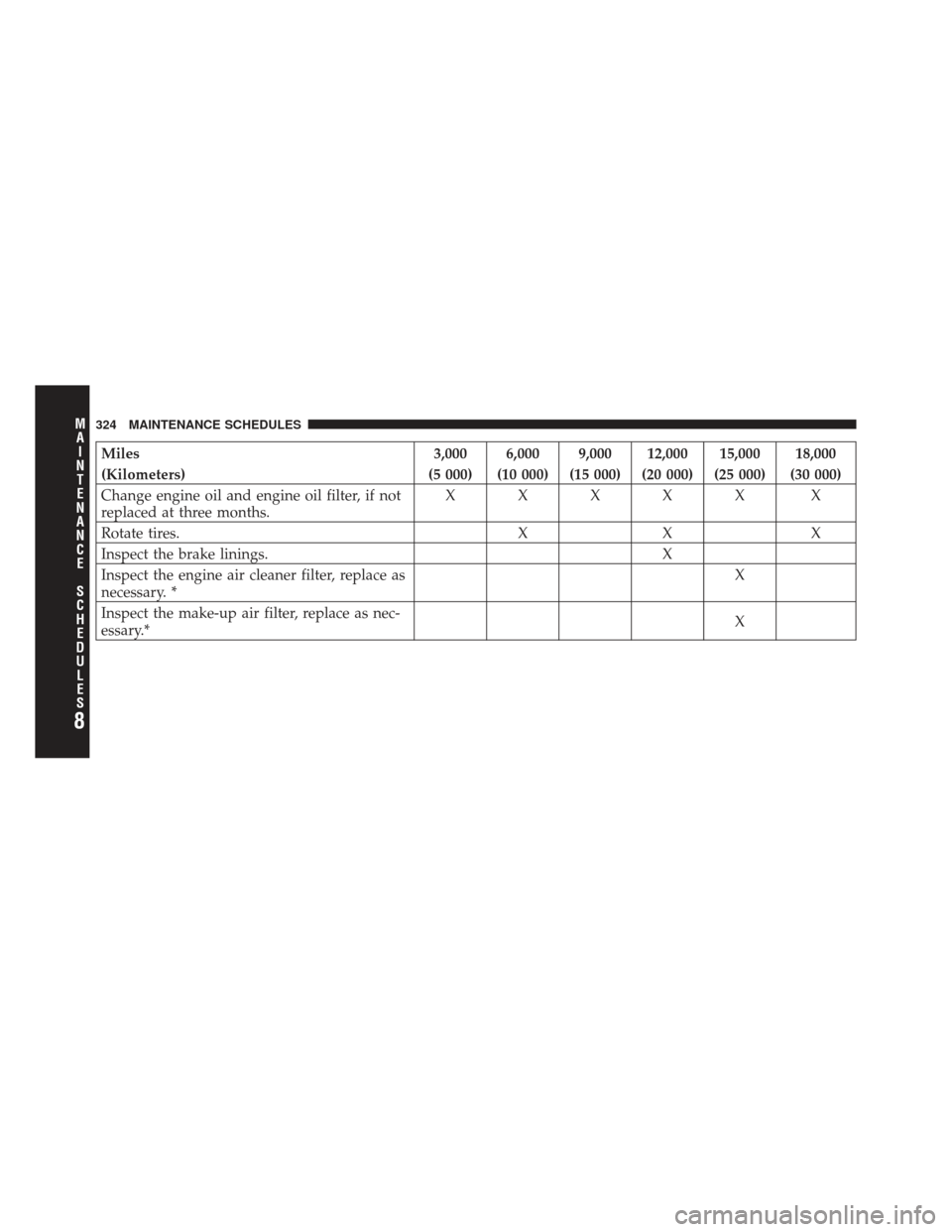

Miles3,000 6,000 9,000 12,000 15,000 18,000
(Kilometers) (5 000) (10 000) (15 000) (20 000) (25 000) (30 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Inspect the engine air cleaner filter, replace as
necessary. * X
Inspect the make-up air filter, replace as nec-
essary.* X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
