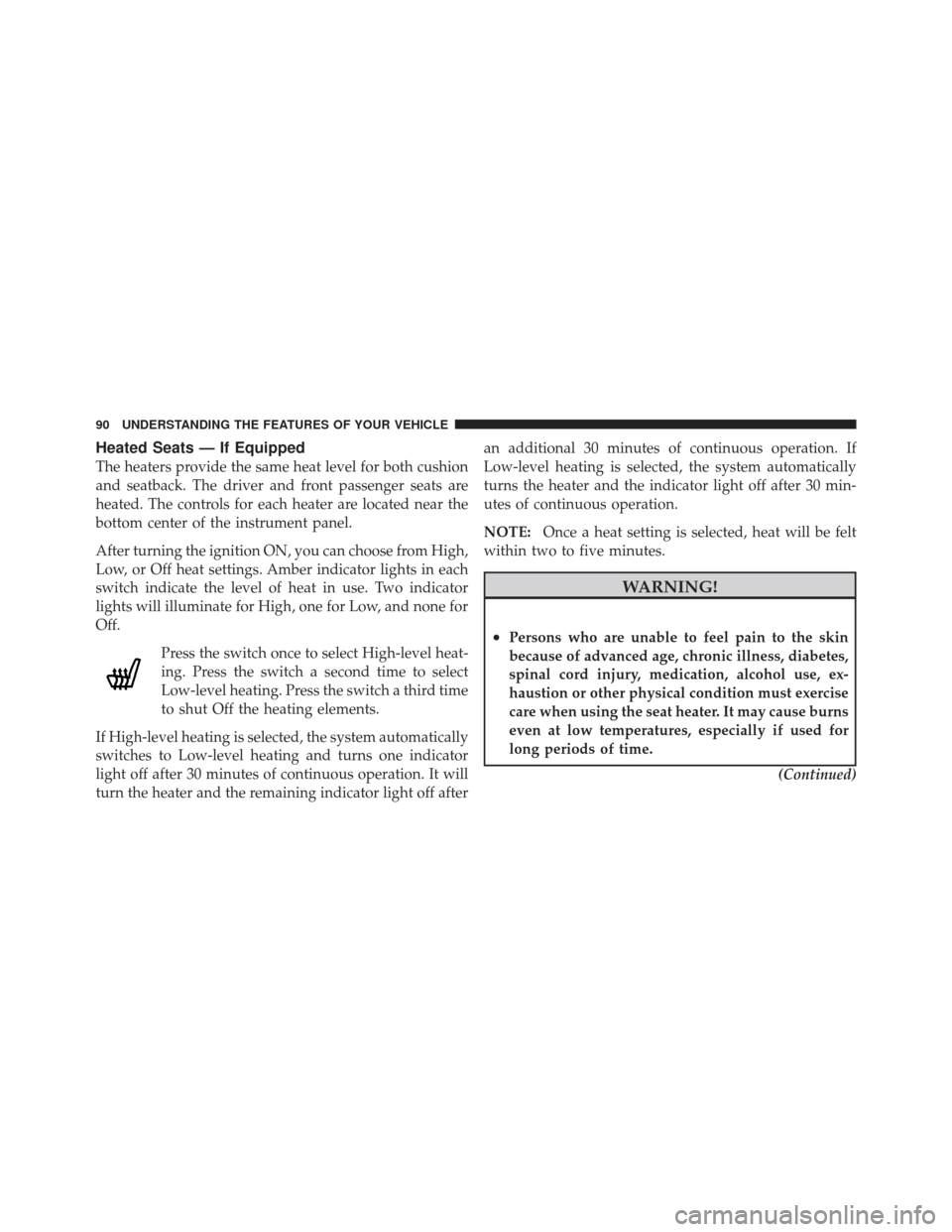

Heated Seats — If Equipped
The heaters provide the same heat level for both cushion
and seatback. The driver and front passenger seats are
heated. The controls for each heater are located near the
bottom center of the instrument panel.
After turning the ignition ON, you can choose from High,
Low, or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut Off the heating elements.
If High-level heating is selected, the system automatically
switches to Low-level heating and turns one indicator
light off after 30 minutes of continuous operation. It will
turn the heater and the remaining indicator light off after an additional 30 minutes of continuous operation. If
Low-level heating is selected, the system automatically
turns the heater and the indicator light off after 30 min-
utes of continuous operation.
NOTE:
Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
(Continued)
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

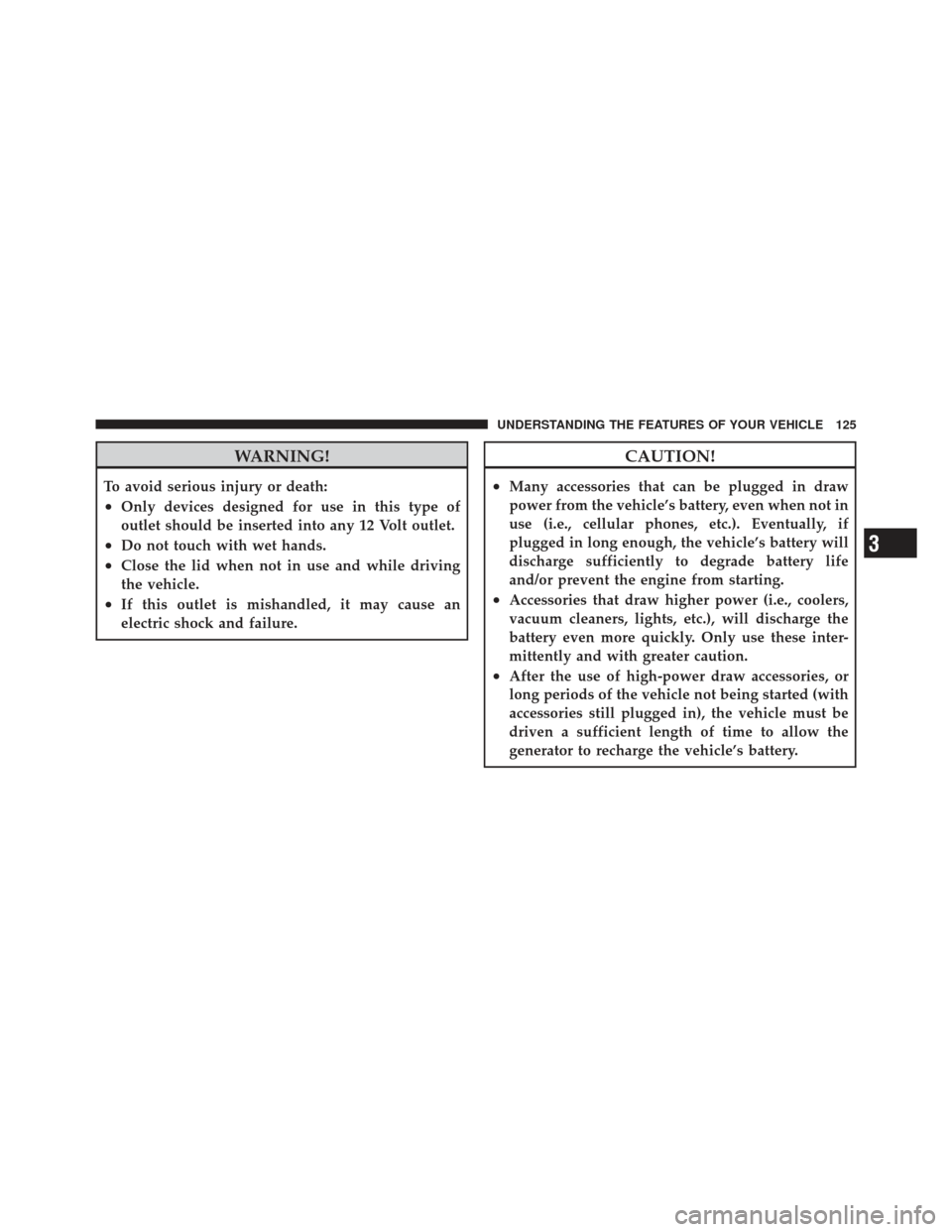

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high-power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

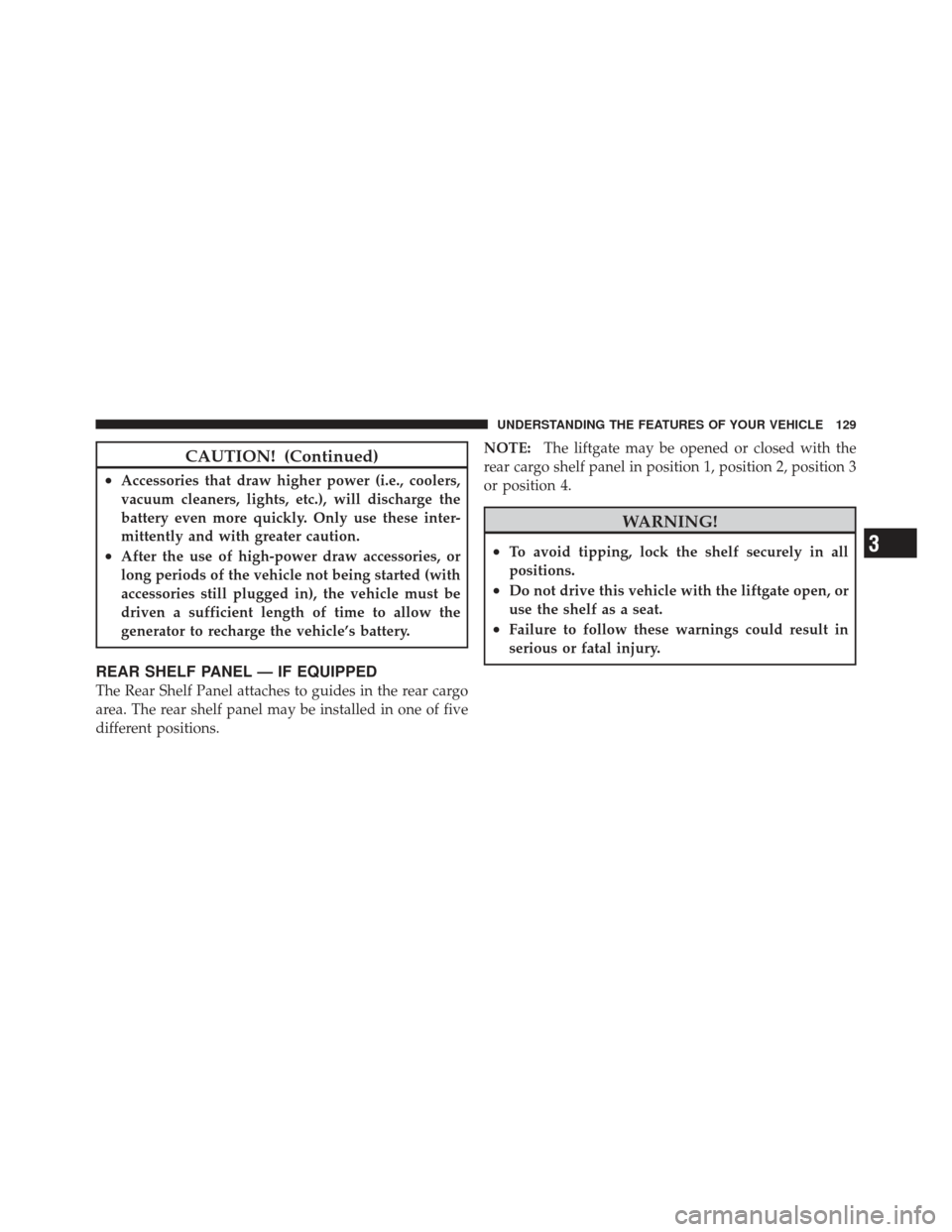

CAUTION! (Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high-power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
REAR SHELF PANEL — IF EQUIPPED
The Rear Shelf Panel attaches to guides in the rear cargo
area. The rear shelf panel may be installed in one of five
different positions.NOTE:
The liftgate may be opened or closed with the
rear cargo shelf panel in position 1, position 2, position 3
or position 4.
WARNING!
•To avoid tipping, lock the shelf securely in all
positions.
•Do not drive this vehicle with the liftgate open, or
use the shelf as a seat.
•Failure to follow these warnings could result in
serious or fatal injury.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

and the chime will sound. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
17. Engine Temperature Warning LightThis light warns of an overheated engine condi-
tion. As temperatures rise and the gauge ap-
proaches H, this indicator will illuminate and a
single chime will sound after reaching a set threshold.
Further overheating will cause the temperature gauge to
pass H, the indicator will continuously flash and a
continuous chime will occur until the engine is allowed
to cool.
If the light turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for further information.
18. Low Fuel Light
When the fuel level reaches approximately 2.0 gal
(7.8 L) this light will turn on, and remain on until
fuel is added.
19. Vehicle Security Light — If Equipped This light will flash at a fast rate for approxi-
mately 15 seconds while the Vehicle Security
Alarm is arming, and then will flash slowly
until the vehicle is disarmed.
20. Front Fog Light Indicator — If Equipped This indicator will illuminate when the front fog
lights are on.
152 UNDERSTANDING YOUR INSTRUMENT PANEL

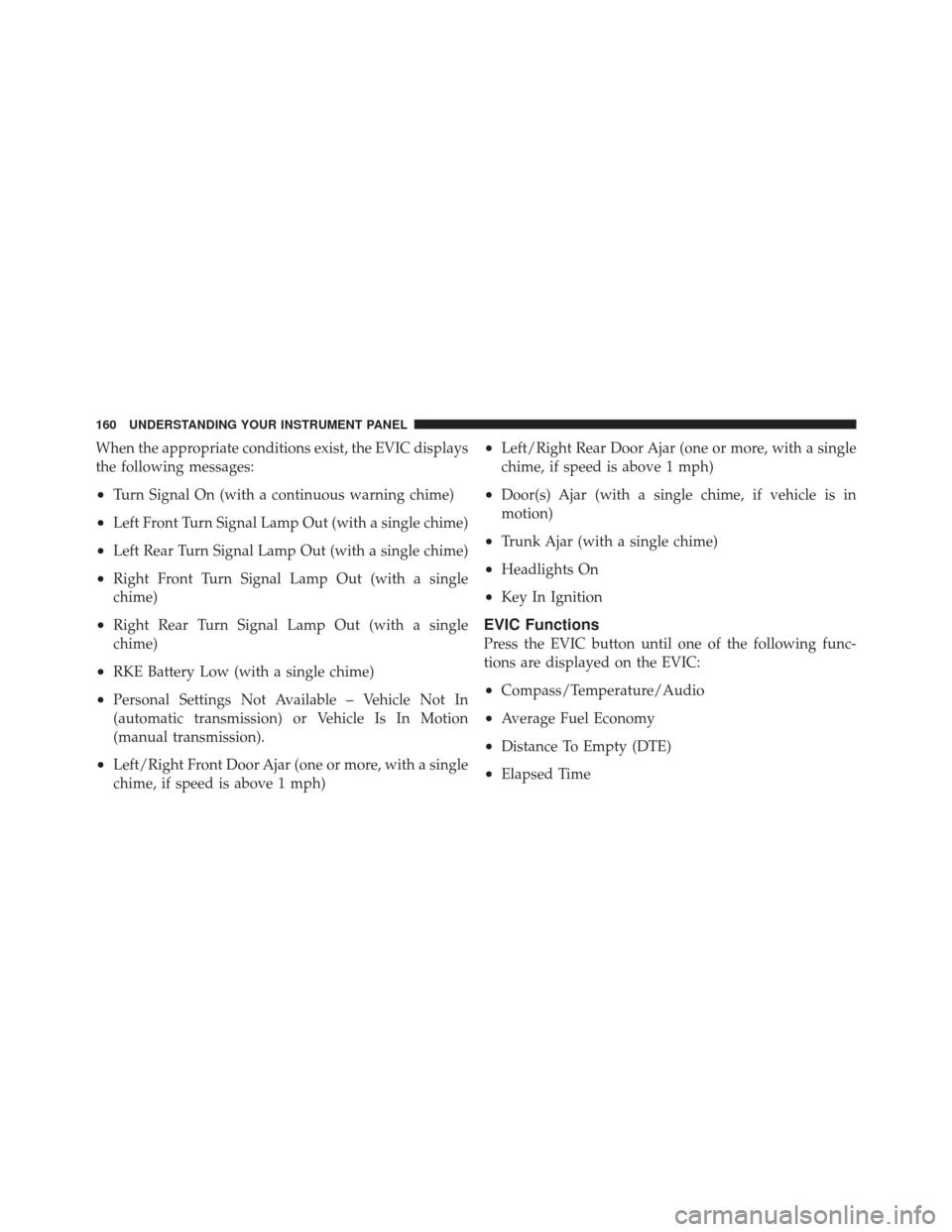

When the appropriate conditions exist, the EVIC displays
the following messages:
•Turn Signal On (with a continuous warning chime)
•Left Front Turn Signal Lamp Out (with a single chime)
•Left Rear Turn Signal Lamp Out (with a single chime)
•Right Front Turn Signal Lamp Out (with a single
chime)
•Right Rear Turn Signal Lamp Out (with a single
chime)
•RKE Battery Low (with a single chime)
•Personal Settings Not Available – Vehicle Not In
(automatic transmission) or Vehicle Is In Motion
(manual transmission).
•Left/Right Front Door Ajar (one or more, with a single
chime, if speed is above 1 mph)
•Left/Right Rear Door Ajar (one or more, with a single
chime, if speed is above 1 mph)
•Door(s) Ajar (with a single chime, if vehicle is in
motion)
•Trunk Ajar (with a single chime)
•Headlights On
•Key In Ignition
EVIC Functions
Press the EVIC button until one of the following func-
tions are displayed on the EVIC:
•Compass/Temperature/Audio
•Average Fuel Economy
•Distance To Empty (DTE)
•Elapsed Time
160 UNDERSTANDING YOUR INSTRUMENT PANEL

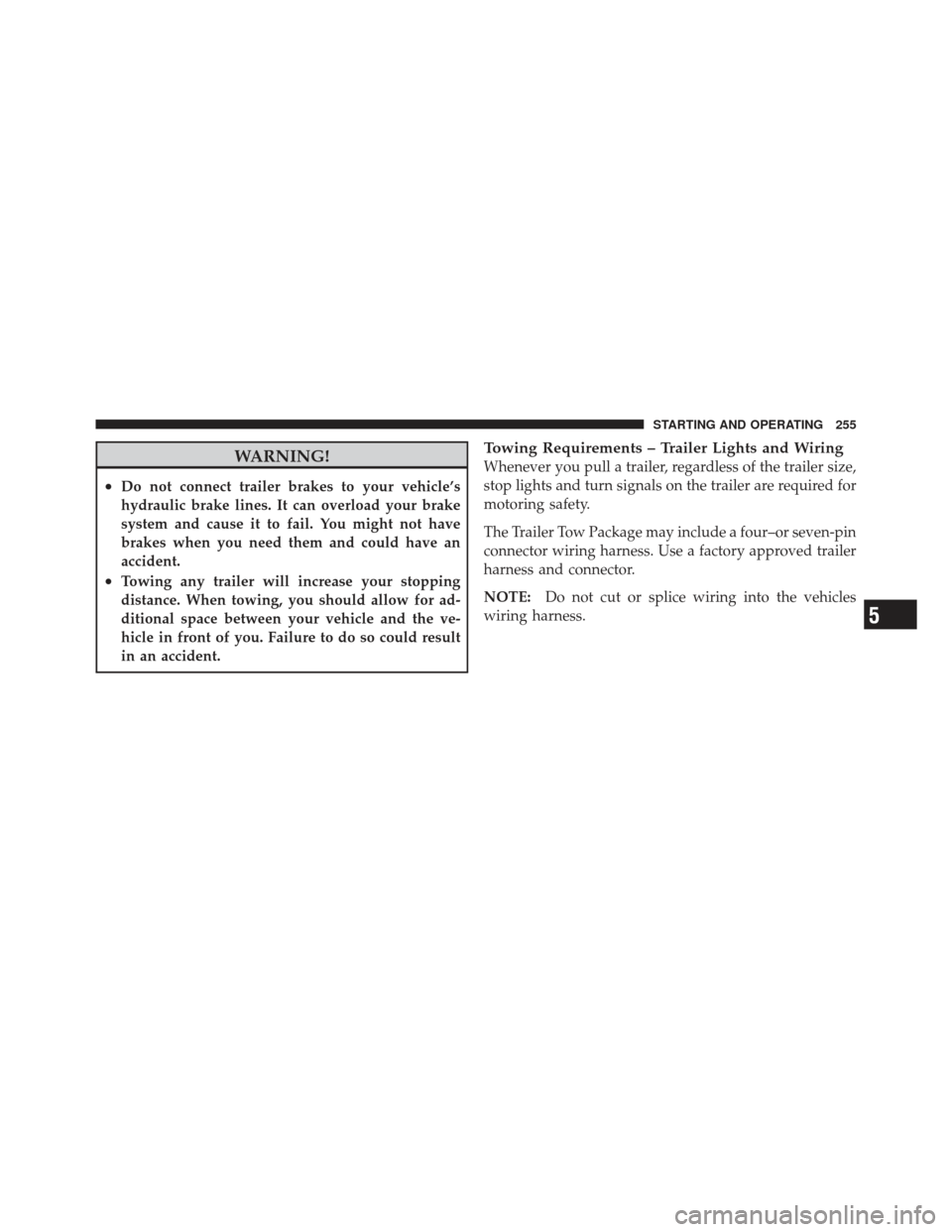

WARNING!
•Do not connect trailer brakes to your vehicle’s
hydraulic brake lines. It can overload your brake
system and cause it to fail. You might not have
brakes when you need them and could have an
accident.
•Towing any trailer will increase your stopping
distance. When towing, you should allow for ad-
ditional space between your vehicle and the ve-
hicle in front of you. Failure to do so could result
in an accident.
Towing Requirements – Trailer Lights and Wiring
Whenever you pull a trailer, regardless of the trailer size,
stop lights and turn signals on the trailer are required for
motoring safety.
The Trailer Tow Package may include a four–or seven-pin
connector wiring harness. Use a factory approved trailer
harness and connector.
NOTE:Do not cut or splice wiring into the vehicles
wiring harness.
5
STARTING AND OPERATING 255

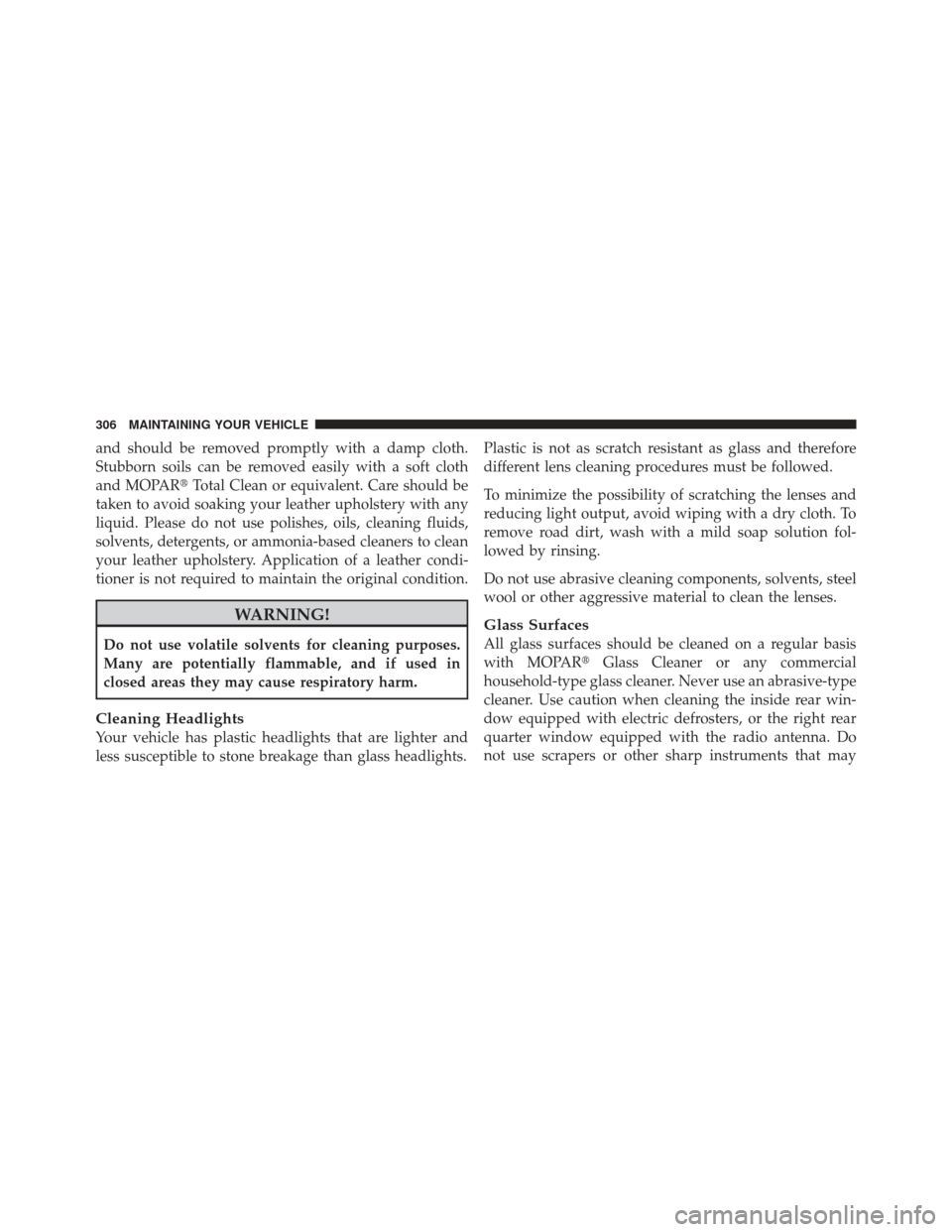

and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPARTotal Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights. Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR
Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive-type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters, or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments that may
306 MAINTAINING YOUR VEHICLE

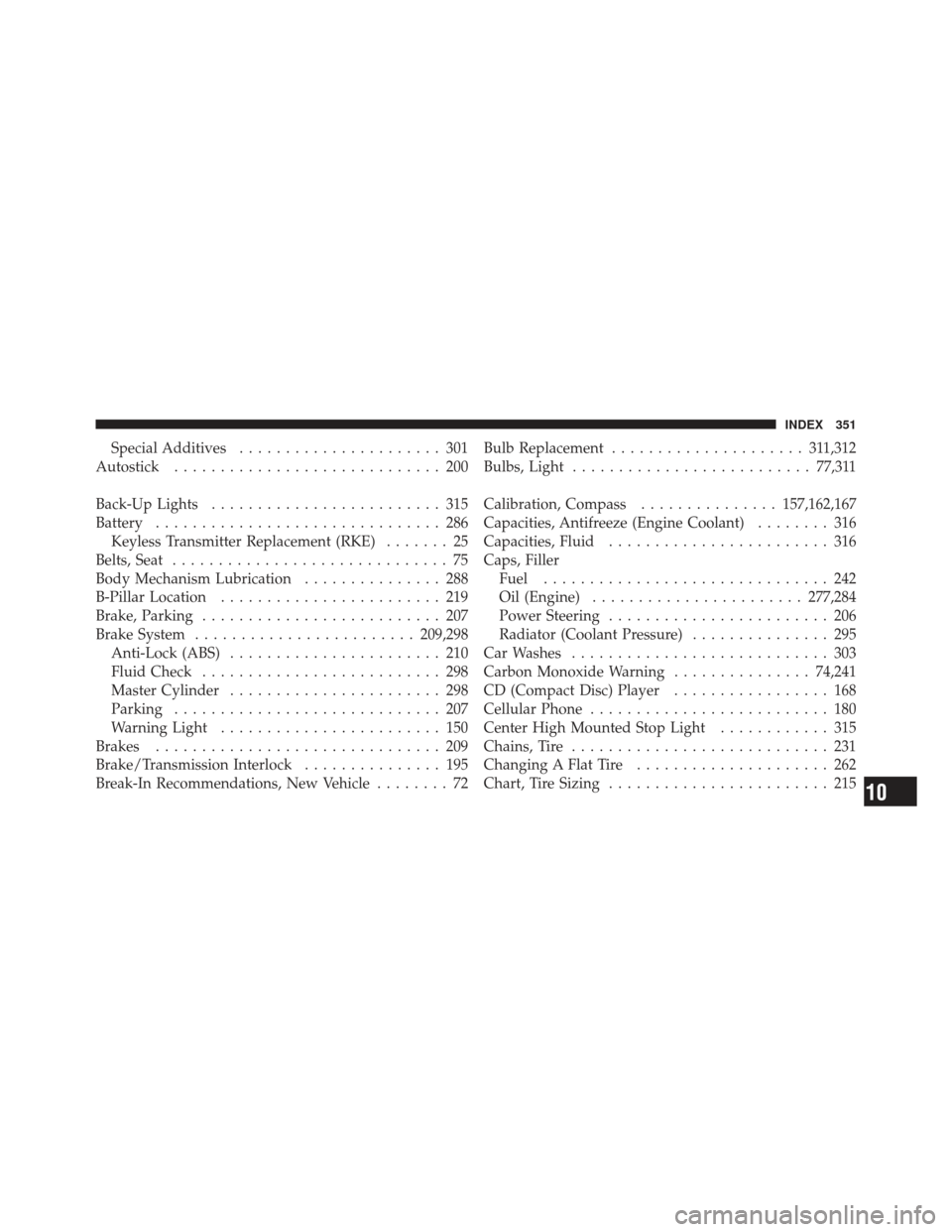

Special Additives...................... 301
Autostick ............................. 200
Back-Up Lights ......................... 315
Battery ............................... 286
Keyless Transmitter Replacement (RKE) ....... 25
Belts, Seat .............................. 75
Body Mechanism Lubrication ............... 288
B-Pillar Location ........................ 219
Brake, Parking .......................... 207
Brake System ........................ 209,298
Anti-Lock (ABS) ....................... 210
Fluid Check .......................... 298
Master Cylinder ....................... 298
Parking ............................. 207
Warning Light ........................ 150
Brakes ............................... 209
Brake/Transmission Interlock ............... 195
Break-In Recommendations, New Vehicle ........ 72Bulb Replacement
..................... 31 1,312
Bulbs, Light .......................... 77,311
Calibration, Compass ...............157,162,167
Capacities, Antifreeze (Engine Coolant) ........ 316
Capacities, Fluid ........................ 316
Caps, Filler Fuel ............................... 242
Oil (Engine) ....................... 277,284
Power Steering ........................ 206
Radiator (Coolant Pressure) ............... 295
Car Washes ............................ 303
Carbon Monoxide Warning ...............74,241
CD (Compact Disc) Player ................. 168
Cellular Phone .......................... 180
Center High Mounted Stop Light ............ 315
Chains, Tire ............................ 231
Changing A Flat Tire ..................... 262
Chart, Tire Sizing ........................ 215
10
INDEX 351

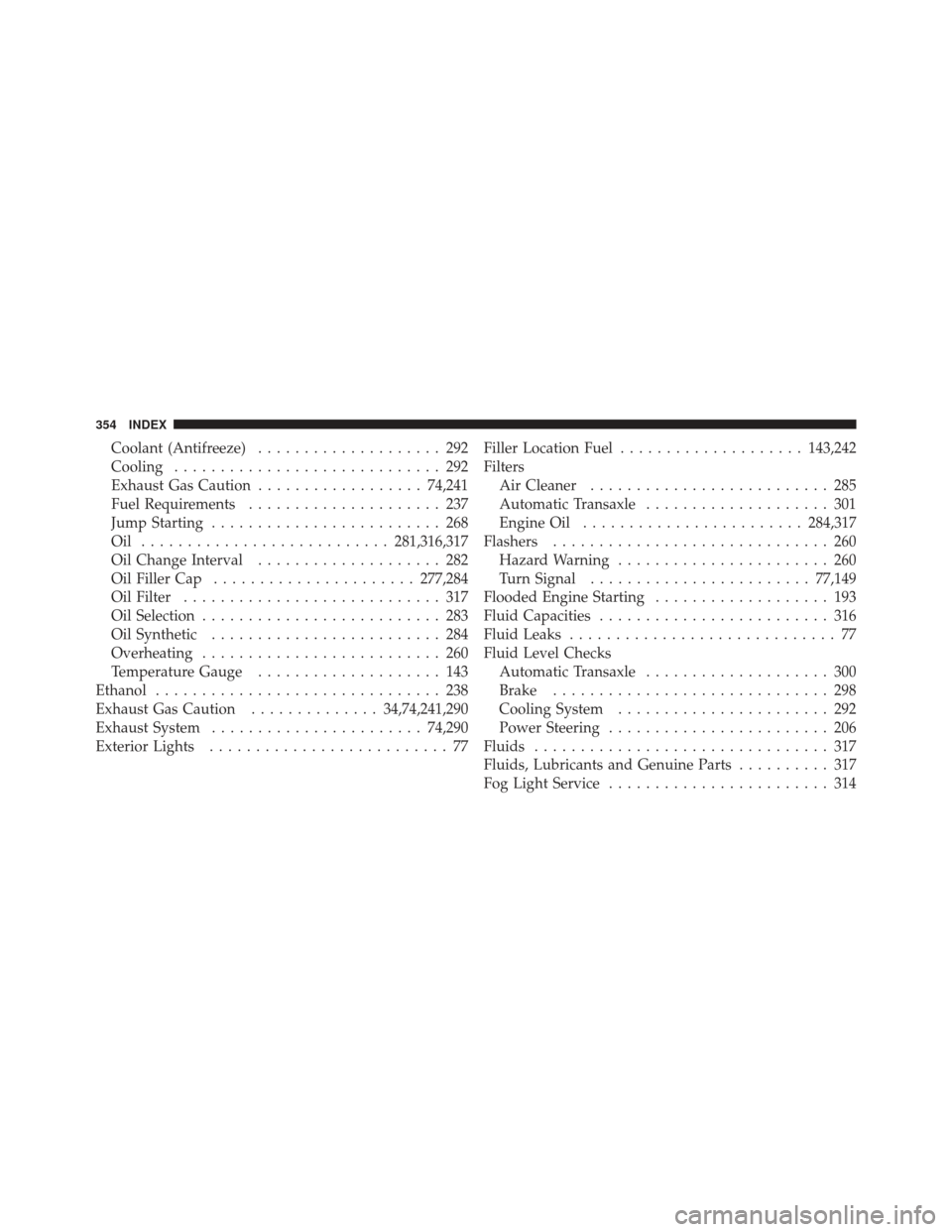

Coolant (Antifreeze).................... 292
Cooling ............................. 292
Exhaust Gas Caution .................. 74,241
Fuel Requirements ..................... 237
Jump Starting ......................... 268
Oil ........................... 281,316,317
Oil Change Interval .................... 282
Oil Filler Cap ...................... 277,284
Oil Filter ............................ 317
Oil Selection .......................... 283
Oil Synthetic ......................... 284
Overheating .......................... 260
Temperature Gauge .................... 143
Ethanol ............................... 238
Exhaust Gas Caution ..............34,74,241,290
Exhaust System ....................... 74,290
Exterior Lights .......................... 77 Filler Location Fuel
.................... 143,242
Filters Air Cleaner .......................... 285
Automatic Transaxle .................... 301
Engine Oil ........................ 284,317
Flashers .............................. 260
Hazard Warning ....................... 260
Turn Signal ........................ 77,149
Flooded Engine Starting ................... 193
Fluid Capacities ......................... 316
Fluid Leaks ............................. 77
Fluid Level Checks Automatic Transaxle .................... 300
Brake .............................. 298
Cooling System ....................... 292
Power Steering ........................ 206
Fluids ................................ 317
Fluids, Lubricants and Genuine Parts .......... 317
Fog Light Service ........................ 314
354 INDEX

Gross Axle Weight Rating.................. 246
Gross Vehicle Weight Rating .............244,246
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 203
Hazard Warning Flasher ................... 260
Head Restraints .......................... 89
Headlights Bulb Replacement ...................... 312
Cleaning ............................ 306
Dimmer Switch ....................... 103
On With Wipers ....................... 110
Switch .............................. 101
Heated Seats ............................ 90
Hitches Trailer Towing ........................ 248
HomeLink (Garage Door Opener) Transmitter . . . 115
Hood Release ........................... 99 Ignition
............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Immobilizer (Sentry Key) .................15,19
Infant Restraint .......................... 64
Information Center, Vehicle ................. 159
Inside Rearview Mirror .................... 82
Instrument Cluster .................... 141,143
Instrument Panel and Controls .............. 140
Instrument Panel Cover ................304,307
Instrument Panel Lens Cleaning ............. 307
Integrated Power Module (Fuses) ............ 308
Interior Appearance Care .................. 305
Intermittent Wipers (Delay Wipers) ........... 108
Introduction ............................. 4
Jack Location ........................... 262
Jack Operation ....................... 262,265
Jacking Instructions ...................... 265
356 INDEX
