TPMS CHRYSLER SEBRING 2010 3.G User Guide

Tire Pressure Monitoring Low Pressure Warnings
The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster and a chime
will sound when tire pressure is low in one or
more of the four active road tires. In addition, the
Electronic Vehicle Information Center (EVIC) will display
a graphic showing the pressure values of each tire with
the low tire pressure values flashing. Should this occur, you should stop as soon as possible,
and inflate all tires with low pressure (those flashing in
the EVIC graphic) to the vehicle’s recommended cold
placard pressure value. Once the system receives the
updated tire pressures, the system will automatically
update, the graphic display in the EVIC will stop flash-
ing, and the “Tire Pressure Monitoring Telltale Light”
will turn off. The vehicle may need to be driven for up to
20 minutes above 15 mph (25 km/h) in order for the
TPMS to receive this information.
5
STARTING AND OPERATING 291

Check TPMS Warning
When a system fault is detected, a chime will sound and
the “Tire Pressure Monitoring Telltale Light” will flash on
and off for 75 seconds and then remain on solid. In
addition, the EVIC will display aCHECK TPM SYS-
TEM message for three seconds and then display dashes
(- -) in place of the pressure value to indicate which
sensor is not being received. If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and the
CHECK TPM
SYSTEM message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the TPM
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
292 STARTING AND OPERATING

NOTE:
1. The compact spare tire (if so equipped) does not have
a tire pressure monitoring sensor. Therefore, the TPMS
will not monitor the pressure in the compact spare tire.
2.
If you install the compact spare tire in place of a road tire
that has a pressure below the low-pressure warning limit,
upon the next ignition key cycle, the “TPM Telltale Light”
will remain ON, a chime will sound, and the EVIC will still
display a flashing pressure value in the graphic display.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h), the “TPM Telltale Light” will flash on
and off for 75 seconds and then remain on solid. In
addition, the EVIC will display a CHECK TPM SYS-
TEM message for three seconds and then display dashes
(- -) in place of the pressure value.
4. For each subsequent ignition key cycle, a chime will
sound, the “TPM Telltale Light” will flash on and off for
75 seconds and then remain on solid, and the EVIC will display a
CHECK TPM SYSTEM message for three
seconds and then display dashes (- -) in place of the
pressure value.
5. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
“TPM Telltale Light” will turn OFF and the graphic in the
EVIC will display a new pressure value instead of dashes
(- -), as long no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The
vehicle may need to be driven for up to 20 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
5
STARTING AND OPERATING 293

LATCH
(Lower Anchors and Tether for CHildren)....... 75
Latches ................................ 84
Hood .............................. 104
Lead Free Gasoline ...................... 294
Leaks, Fluid ............................ 84
Life of Tires ............................ 282
Light Bulbs .......................... 84,382
Lights .............................. 84,105
Airbag ........................ 62,67,82,146
Back-Up ............................ 387
Brake Warning ........................ 147
Bulb Replacement ...................... 383
Center Mounted Stop ................... 391
Daytime Running ...................... 109
Electronic Stability Program (ESP) Indicator . . . 263
Engine Temperature Warning .............. 147
Exterior .............................. 84
Fog .......................... 109,153,385Headlight Switch
...................... 106
Headlights ........................... 106
Headlights On With Wipers ............... 115
High Beam Indicator .................... 158
Illuminated Entry ....................... 20
Instrument Cluster ..................... 106
Interior ............................. 111
License ............................. 390
Lights On Reminder .................... 110
Low Fuel ............................ 146
Malfunction Indicator (Check Engine) ........ 156
Map Reading ......................... 111
Oil Pressure .......................... 147
Passing ............................. 108
Rear Tail ............................ 387
Seat Belt Reminder ..................... 146
Security Alarm (Theft Alarm) .............. 18
Theft Alarm (Security Alarm) .............. 153
Tire Pressure Monitoring (TPMS) ........155,285
10
INDEX 433

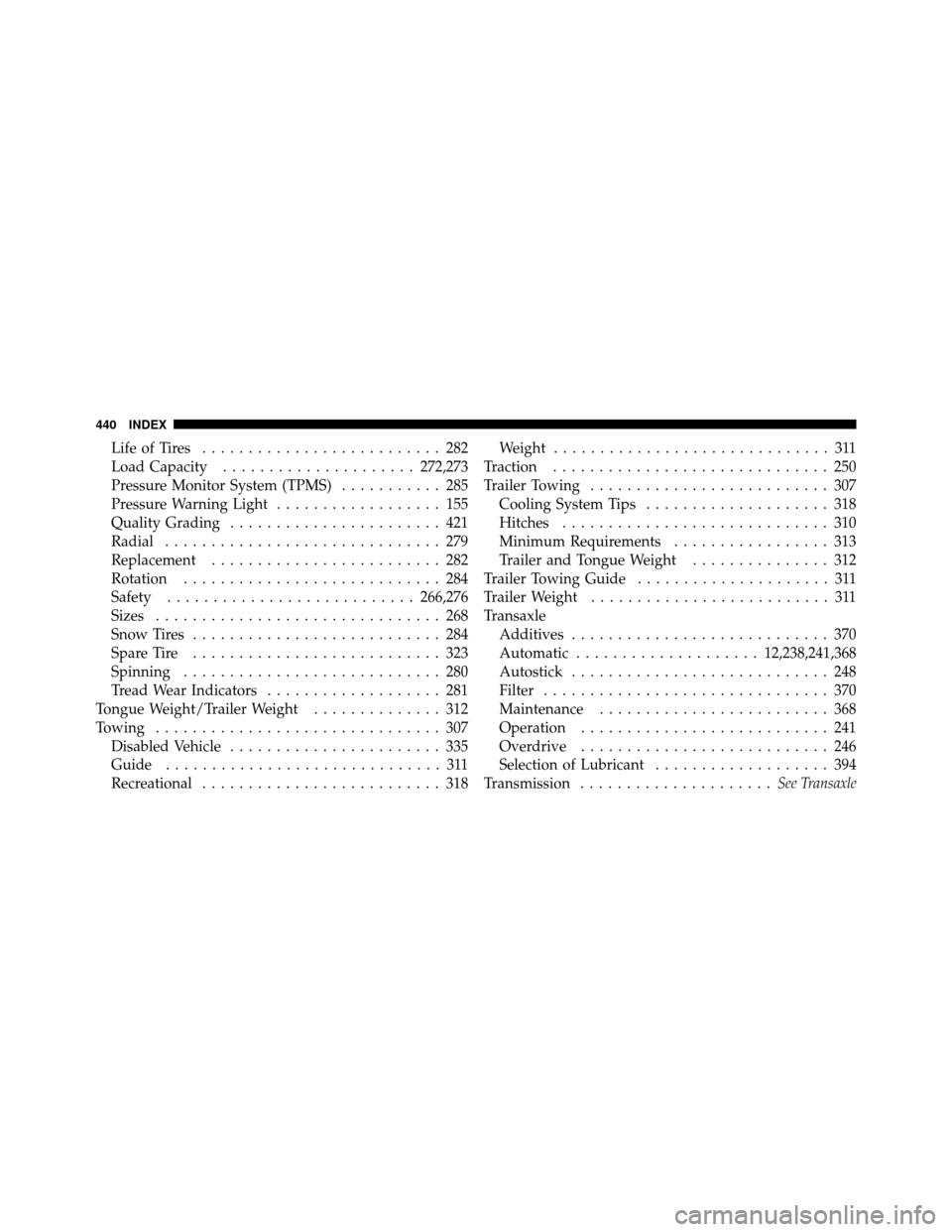

Life of Tires.......................... 282
Load Capacity ..................... 272,273
Pressure Monitor System (TPMS) ........... 285
Pressure Warning Light .................. 155
Quality Grading ....................... 421
Radial .............................. 279
Replacement ......................... 282
Rotation ............................ 284
Safety ........................... 266,276
Sizes ............................... 268
Snow Tires ........................... 284
Spare Tire ........................... 323
Spinning ............................ 280
Tread Wear Indicators ................... 281
Tongue Weight/Trailer Weight .............. 312
Towing ............................... 307
Disabled Vehicle ....................... 335
Guide .............................. 311
Recreational .......................... 318 Weight
.............................. 311
Traction .............................. 250
Trailer Towing .......................... 307
Cooling System Tips .................... 318
Hitches ............................. 310
Minimum Requirements ................. 313
Trailer and Tongue Weight ............... 312
Trailer Towing Guide ..................... 311
Trailer Weight .......................... 311
Transaxle Additives ............................ 370
Automatic .................... 12,238,241,368
Autostick ............................ 248
Filter ............................... 370
Maintenance ......................... 368
Operation ........................... 241
Overdrive ........................... 246
Selection of Lubricant ................... 394
Transmission ..................... See Transaxle
440 INDEX
