Page 381 of 444

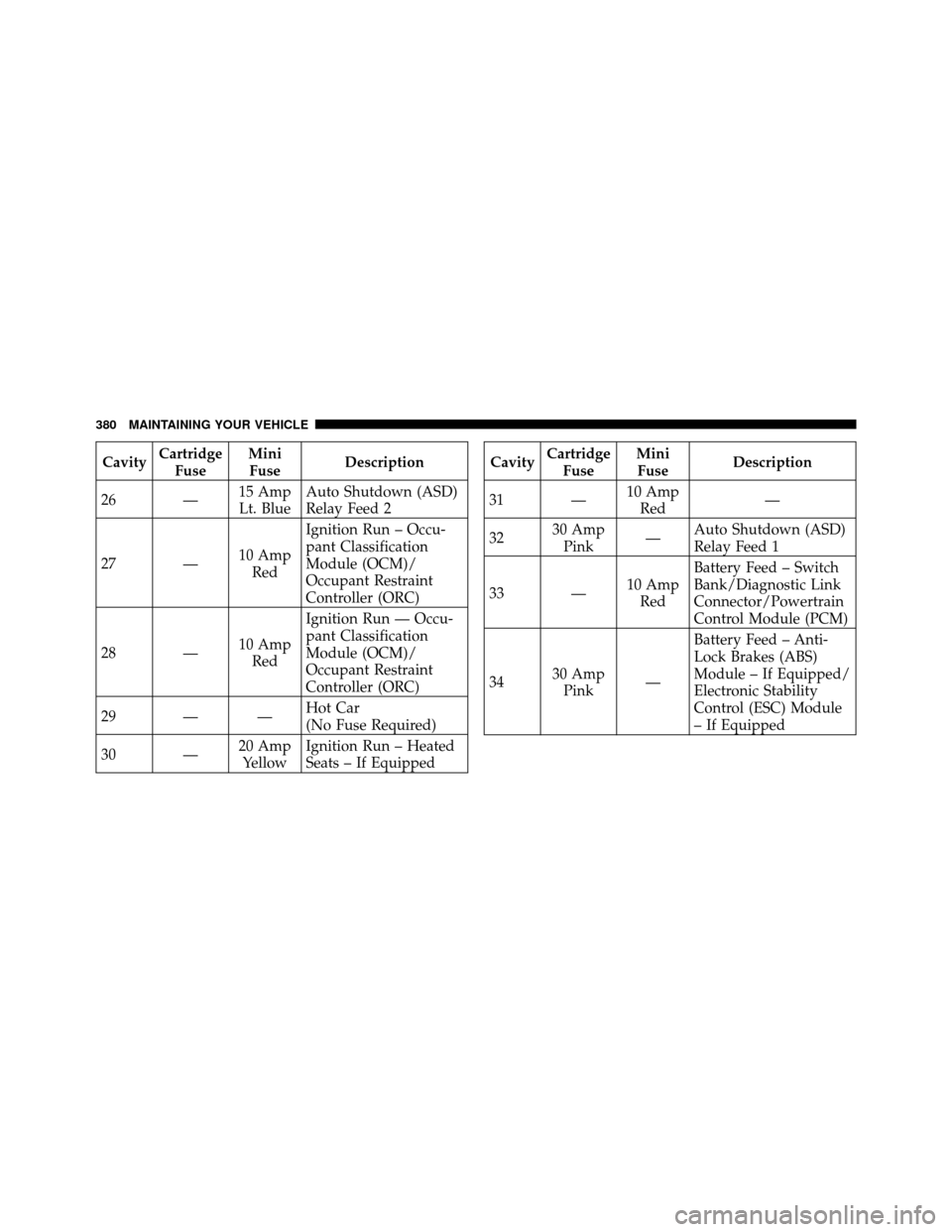

CavityCartridge
Fuse Mini
Fuse Description
26 — 15 Amp
Lt. Blue Auto Shutdown (ASD)
Relay Feed 2
27 — 10 Amp
Red Ignition Run – Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
28 — 10 Amp
Red Ignition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — — Hot Car
(No Fuse Required)
30 — 20 Amp
Yellow Ignition Run – Heated
Seats – If EquippedCavity
Cartridge
Fuse Mini
Fuse Description
31 — 10 Amp
Red —
32 30 Amp
Pink —Auto Shutdown (ASD)
Relay Feed 1
33 — 10 Amp
Red Battery Feed – Switch
Bank/Diagnostic Link
Connector/Powertrain
Control Module (PCM)
34 30 Amp
Pink —Battery Feed – Anti-
Lock Brakes (ABS)
Module – If Equipped/
Electronic Stability
Control (ESC) Module
– If Equipped
380 MAINTAINING YOUR VEHICLE
Page 382 of 444

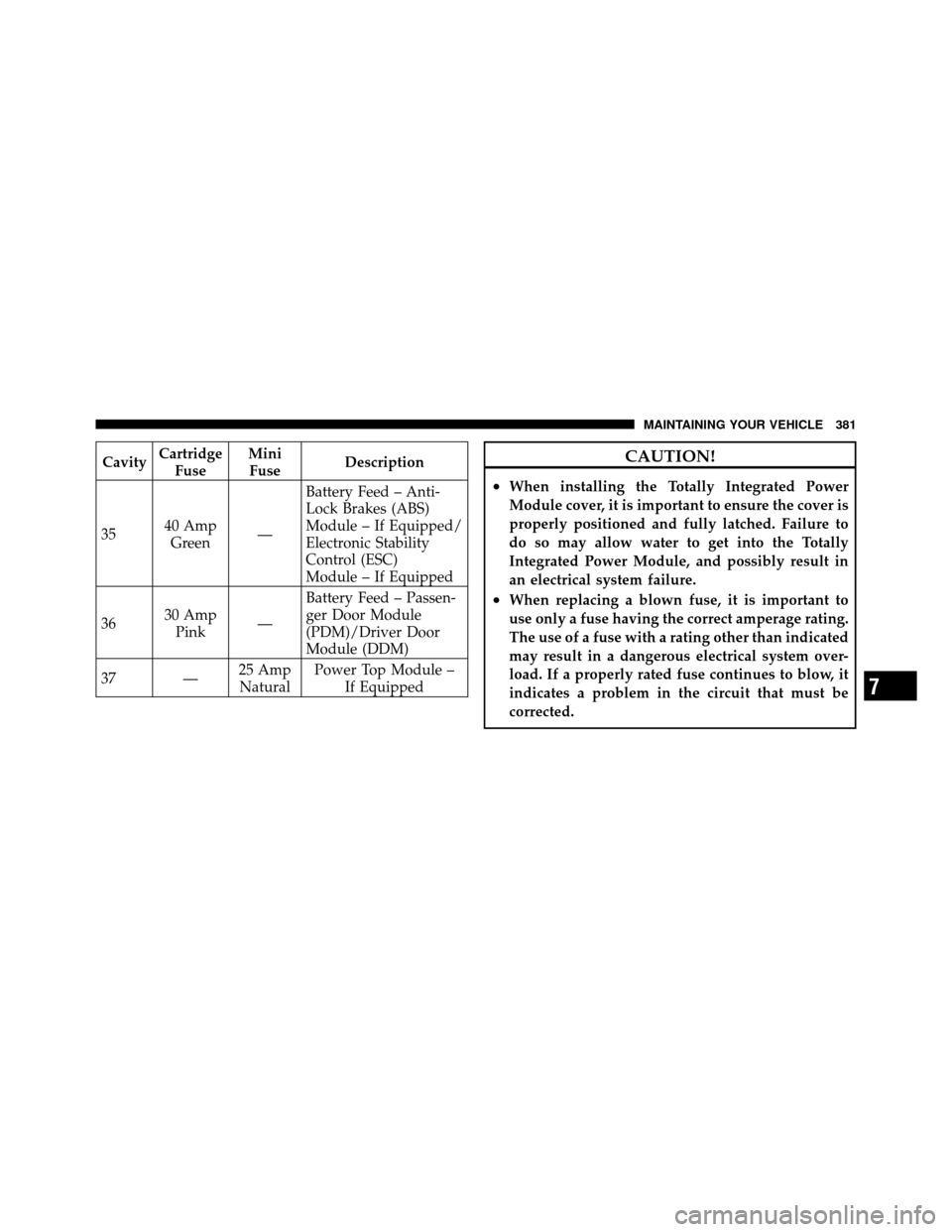

CavityCartridge
Fuse Mini
Fuse Description
35 40 Amp
Green —Battery Feed – Anti-
Lock Brakes (ABS)
Module – If Equipped/
Electronic Stability
Control (ESC)
Module – If Equipped
36 30 Amp
Pink —Battery Feed – Passen-
ger Door Module
(PDM)/Driver Door
Module (DDM)
37 — 25 Amp
Natural Power Top Module –
If EquippedCAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 381
Page 383 of 444
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.LIGHT BULBS – Interior
Bulb No.
Front Courtesy/Reading Lamp ..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement.
382 MAINTAINING YOUR VEHICLE
Page 384 of 444
LIGHT BULBS – ExteriorBulb No.
Low Beam Headlamp ..................... H11
High Beam Headlamp .................... 9005
Front Park/Turn Signal/Side Marker Lamp ....3757A
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop
(CHMSL) Lamp ................... W16W (921)
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Signal Lamp .................... 3157
Backup Lamp .......................... 3157
License Lamp .......................... W5W
Front Position Lamp ..................... W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp. NOTE:
It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
7
MAINTAINING YOUR VEHICLE 383
Page 385 of 444

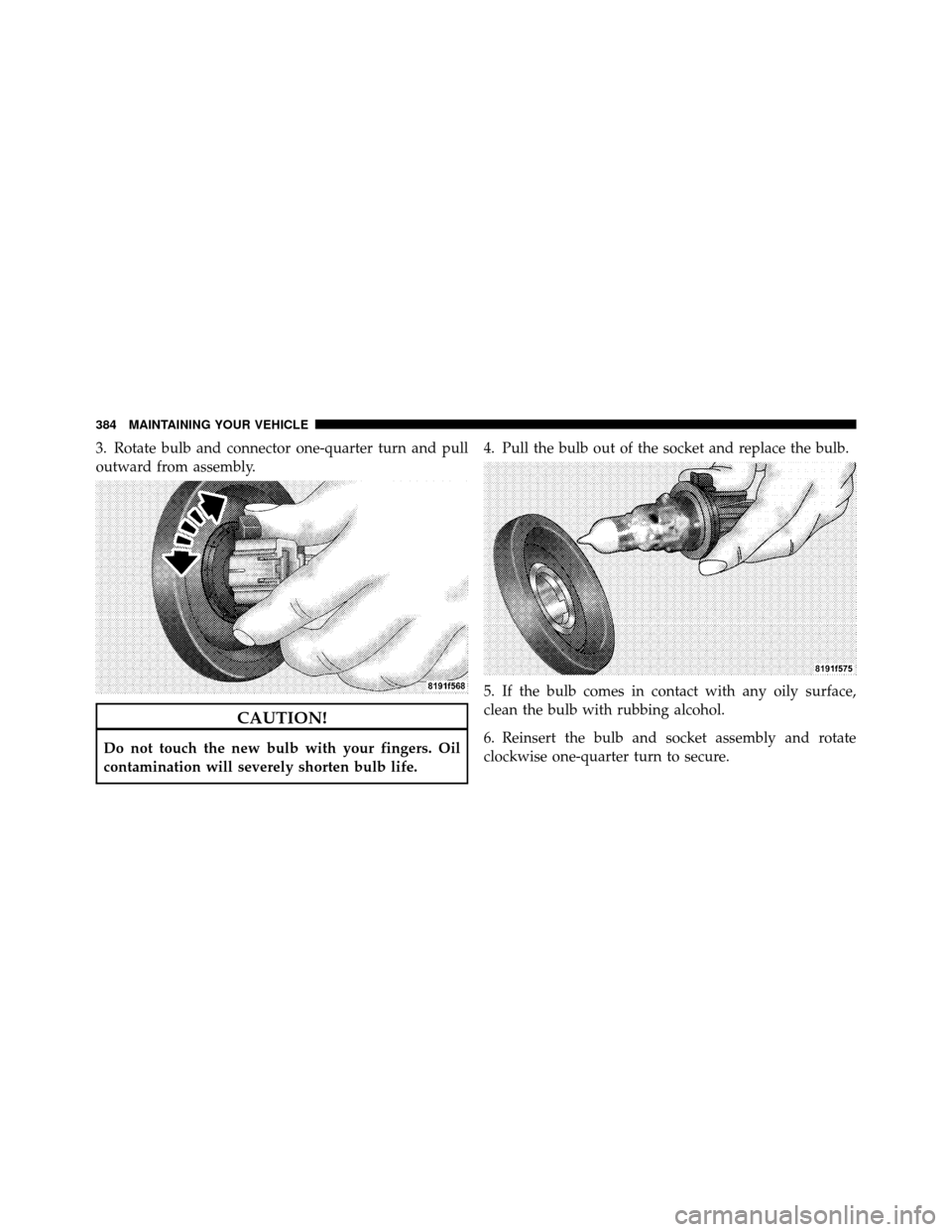

3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise one-quarter turn to secure.
384 MAINTAINING YOUR VEHICLE
Page 386 of 444
Front Turn Signal/Parking Lamp
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlamp
housing.3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Front Fog Lamp
NOTE:
Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.
7
MAINTAINING YOUR VEHICLE 385
Page 387 of 444

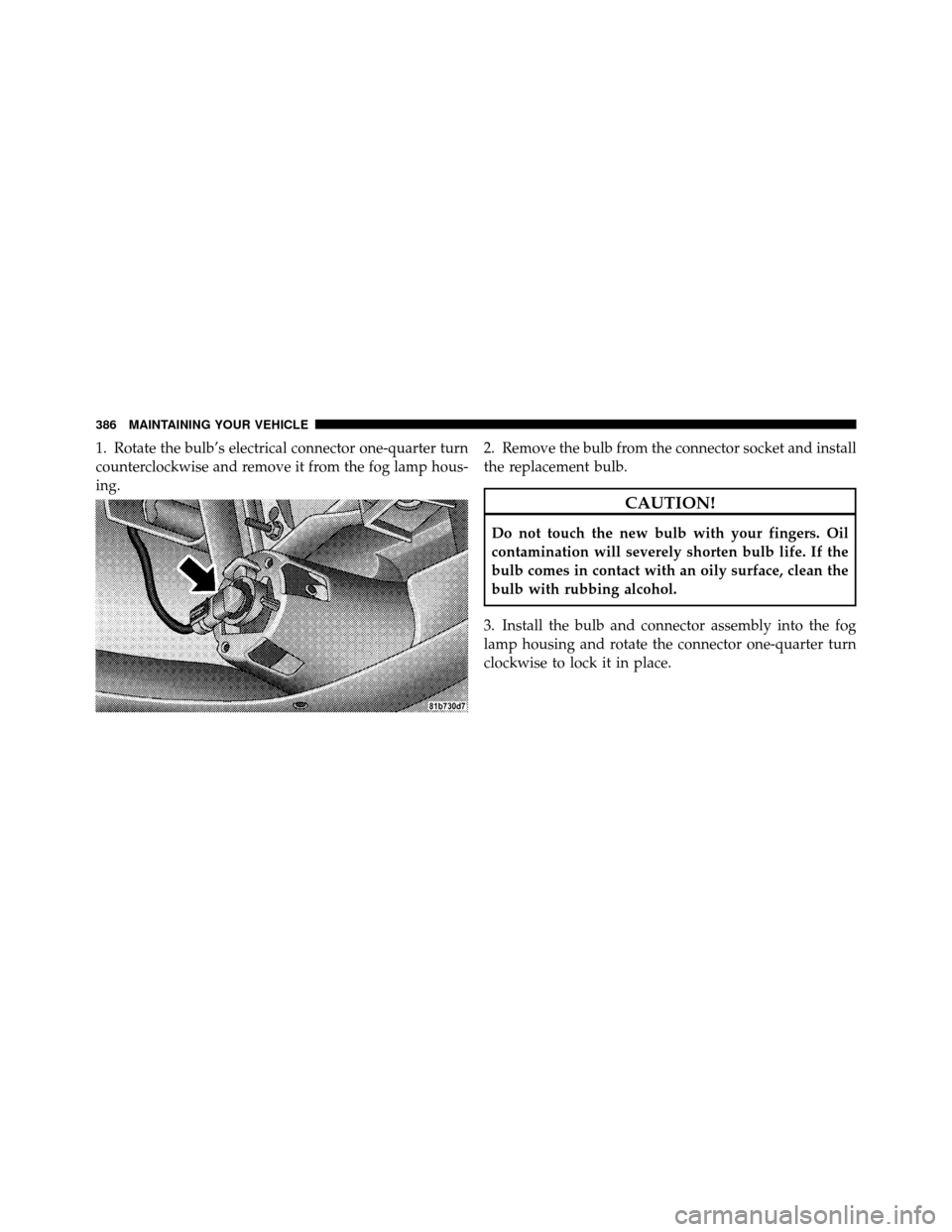

1. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the fog lamp hous-
ing.2. Remove the bulb from the connector socket and install
the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter turn
clockwise to lock it in place.
386 MAINTAINING YOUR VEHICLE
Page 388 of 444

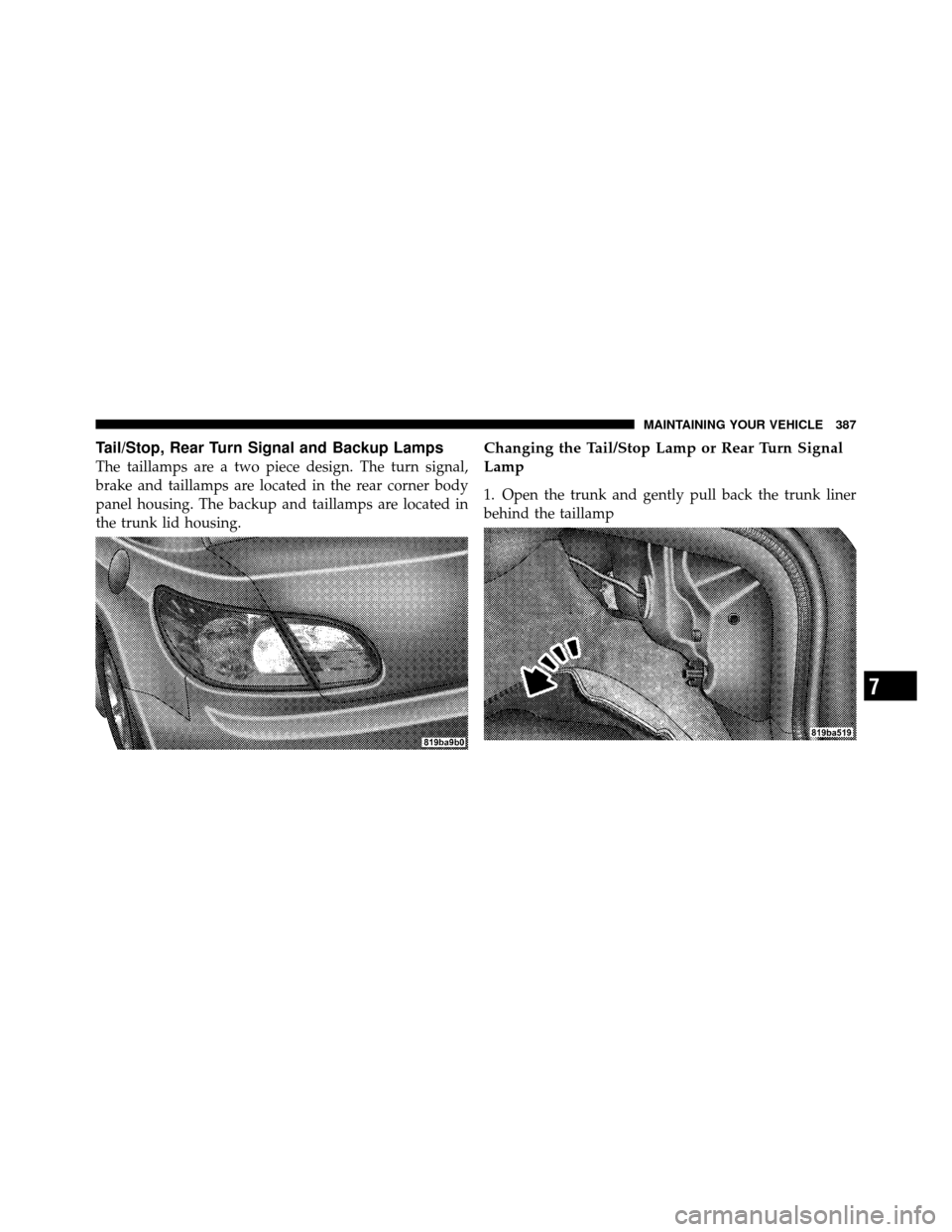

Tail/Stop, Rear Turn Signal and Backup Lamps
The taillamps are a two piece design. The turn signal,
brake and taillamps are located in the rear corner body
panel housing. The backup and taillamps are located in
the trunk lid housing.
Changing the Tail/Stop Lamp or Rear Turn Signal
Lamp
1. Open the trunk and gently pull back the trunk liner
behind the taillamp
7
MAINTAINING YOUR VEHICLE 387
Page 389 of 444

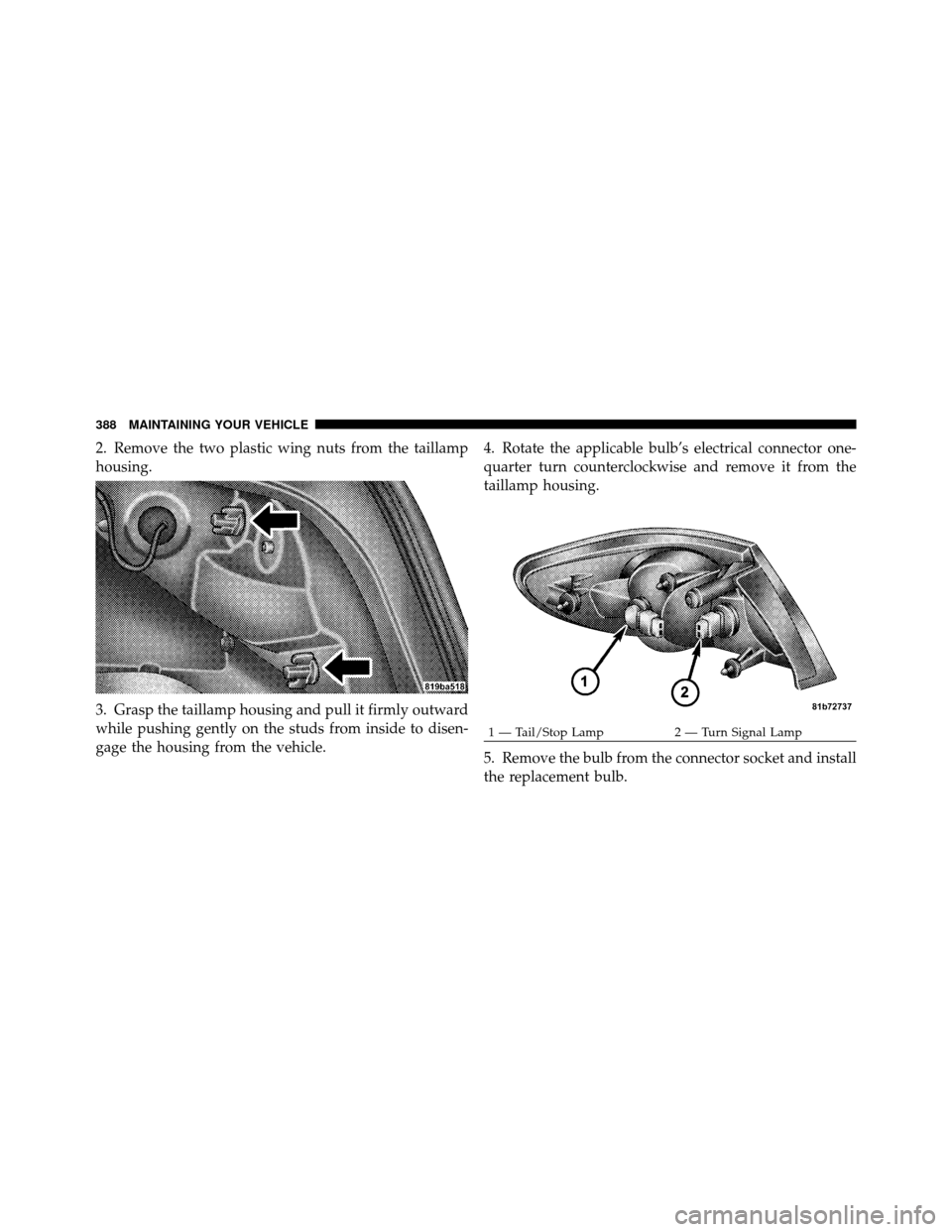

2. Remove the two plastic wing nuts from the taillamp
housing.
3. Grasp the taillamp housing and pull it firmly outward
while pushing gently on the studs from inside to disen-
gage the housing from the vehicle.4. Rotate the applicable bulb’s electrical connector one-
quarter turn counterclockwise and remove it from the
taillamp housing.
5. Remove the bulb from the connector socket and install
the replacement bulb.
1 — Tail/Stop Lamp
2 — Turn Signal Lamp
388 MAINTAINING YOUR VEHICLE
Page 390 of 444

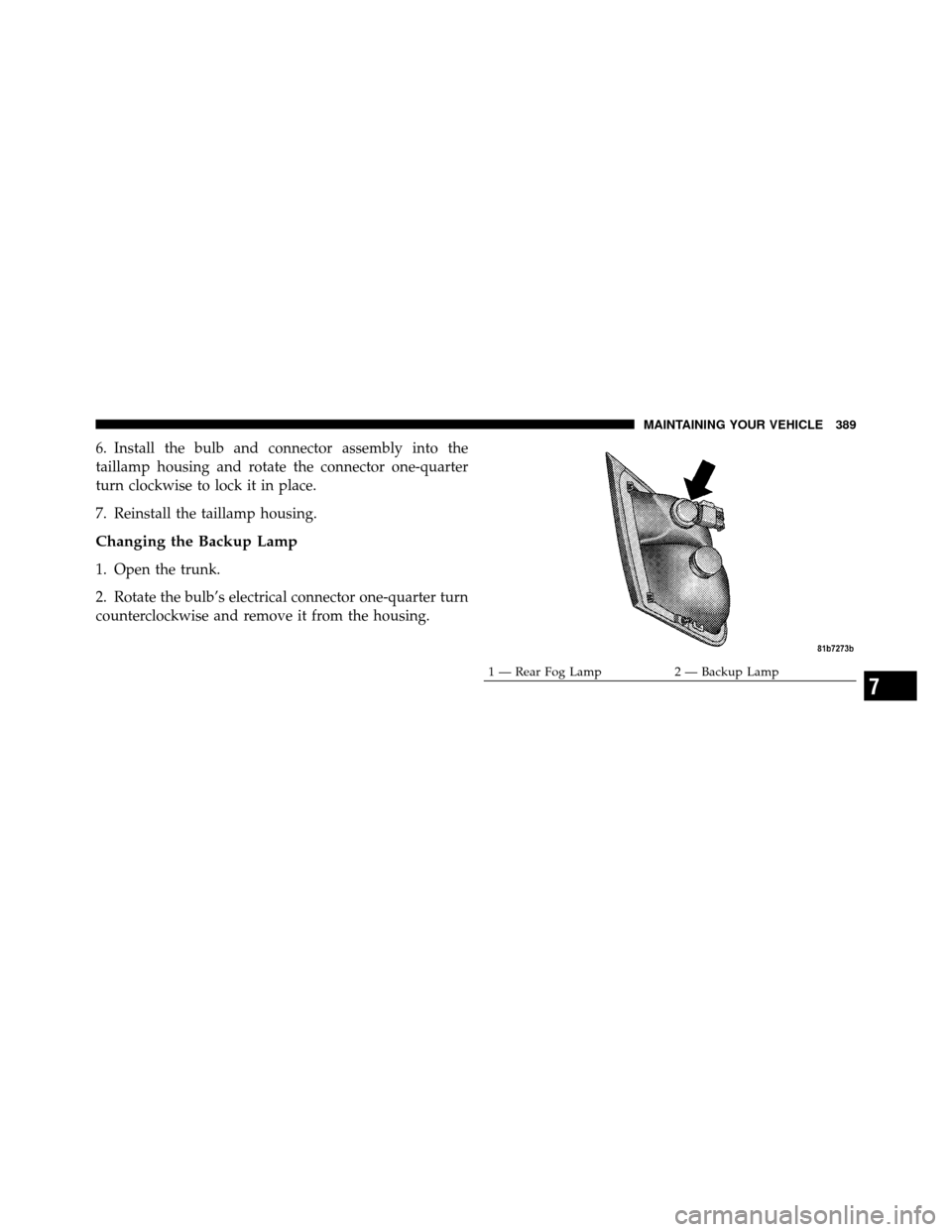

6. Install the bulb and connector assembly into the
taillamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
7. Reinstall the taillamp housing.
Changing the Backup Lamp
1. Open the trunk.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the housing.
1 — Rear Fog Lamp2 — Backup Lamp
7
MAINTAINING YOUR VEHICLE 389
